Lymphatic System

field avatar
15 diapositives · 722 Views · Jul 21, 2014

Lymphatic System. Chapter 20. An Overview. One way system flowing towards heart Functions Return fluid and proteins to venous blood House phagocytic cells and lymphocytes Carry absorbed fats from intestines to blood Components Lymphatic vessels Lymph Lymph nodes. Lymphatic Vessels.

Lymphatic System - slide 1
01 / 15Lymphatic System
1 / 17

Télécharger la présentation

Lymphatic System
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation
  1. Lymphatic System Chapter 20

  2. An Overview • One way system flowing towards heart • Functions • Return fluid and proteins to venous blood • House phagocytic cells and lymphocytes • Carry absorbed fats from intestines to blood • Components • Lymphatic vessels • Lymph • Lymph nodes

  3. Lymphatic Vessels • Capillaries • Endothelial cells form minivalves • Inflammation increases permeability • Lacteals carry fat from intestines as chyle • Collecting Vessels • Similar to veins • Varies between individuals • Trunks • Lumbar • Bronchomediastinal • Subclavian • Jugular • Intestinal • Ducts • Right lymphatic • Thoracic • Cisterna chyli • Dump to venous blood

  4. Lymph Transport • Low pressure system w/o a pump • Similar return as veins • Arterial pulsations • Tunica media smooth muscle contraction • Balances with blood fluid loss • Hydrostatic and colloid pressures (Chpt. 19) • ~ 3L every 24 hours • Rate increases w/activity

  5. Lymphocytes • Primary fighters of immune response • Targets are antigens • T-cells – direct attack • Attack and destroy antigens • B-cells – indirect attack • Produce antibodies from plasma cells to ‘flag’ antigens

  6. Other Lymphoid Cells • Macrophages • Phagocytic themselves • Activate T-cells • Dendritic cells • Capture and move antigens to lymph nodes • Activate T-cells too • Reticular cells • Fibroblast-like cells that form supportive network

  7. Lymphoid Tissue • Proliferation & surveillance sites • Primarily reticular CT (except thymus) • Diffuse lymphatic tissue • Sparse scatterings in all lymph organs, • Concentrated in lamina propria of mucus membranes • Lymphoid follicles (nodules) • Spherically packed tissue w/o capsule • Larger organs and few isolated patches • Germinal centers where B cells proliferate • Enlarge w/ increased B cell division

  8. Lymph Nodes • Main lymphatic organs • Located along lymph vessel path • Concentrated near large collecting vessel junctions • Inguinal region • Axillary region • Cervical region • Functions • Filtration • Macrophages prevent foreign molecule entrance to blood • Immune system activation • Monitor for antigens to fight

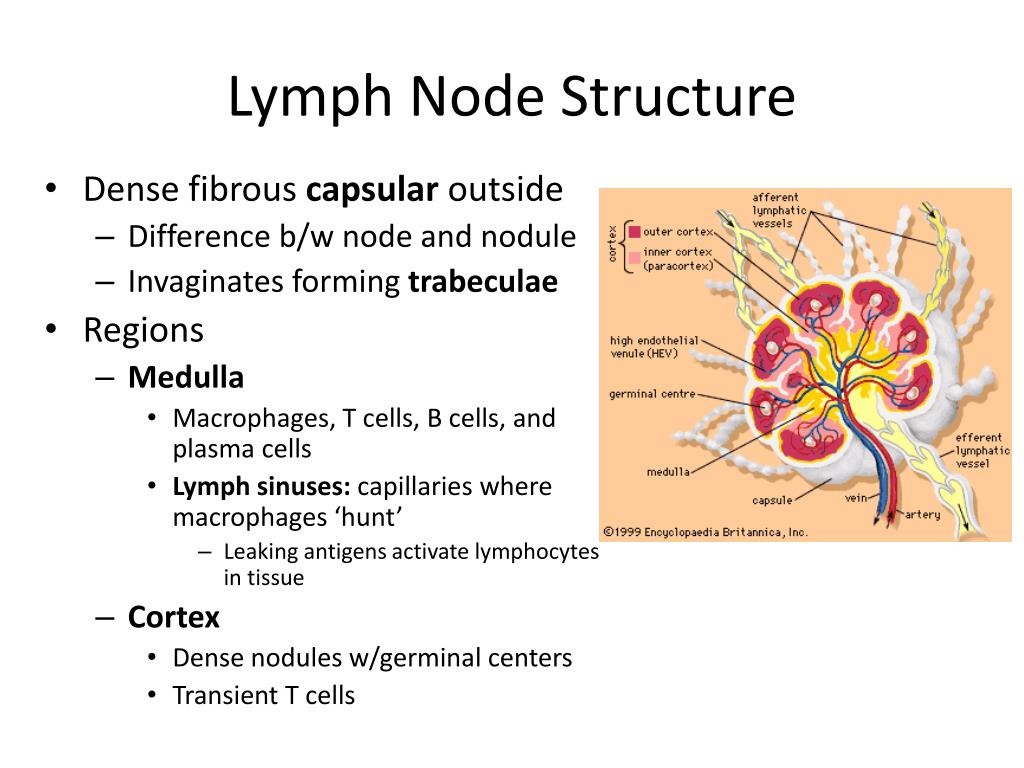

  9. Lymph Node Structure • Dense fibrous capsularoutside • Difference b/w node and nodule • Invaginatesforming trabeculae • Regions • Medulla • Macrophages, T cells, B cells, and plasma cells • Lymph sinuses: capillaries where macrophages ‘hunt’ • Leaking antigens activate lymphocytes in tissue • Cortex • Dense nodules w/germinal centers • Transient T cells

  10. Lymphatic Circulation • Enters node in afferent lymphatic vessels • Large subscapular sinus to smaller, cortical sinuses • Enter medulla • Exit at hilum via efferent lymphatic vessels • Fewer slows flow • Allows lymphocytes & macrophages to work

  11. Spleen • Largest lymphatic organ • Functions • Lymphocyte proliferation and surveillance • Stores products of RBC breakdown and platelets • Cleanse blood • Remove aged/damaged blood, debris, and foreign matter • Fetal erythrocyte production (ceases after birth) • Distinct areas • White pulp w/lymphocytes act in immune functions • Red pulp w/worn out erythrocytes and pathogens

  12. Thymus • Bilobed organ at base of neck • More pronounced when young • Corresponds w/importance of immune function • T lymphocyte maturation only • Lacks B cells • Doesn’t directly fight antigens • Thymocytes secrete thymosin and thymopoietin to signal T cell maturation

  13. Tonsils • Lymphatic tissue ring around pharynx • Palatine: largest and most likely infected • Lingual • Pharyngeal (adenoids) • Tubal • Follicles w/germinal centers • Gather and remove pathogens from pharynx • Crypts are deep invaginations to trap and destroy • Tonsil stones • Produces ‘memory’ immune cells for future attacks

  14. Mucosa-Associated Lymphatic Tissue (MALT) • Collections of lymphatic tissue to protect external environment openings • Peyer’s patches • In walls of small intestine • Destroy bacteria before it leaves intestines • Generate ‘memory’ lymphocytes • Appendix • Junction of small and large intestine • Similar function as Peyer’s patches • Lymphoidnodules • In walls of bronchi

  15. Homeostatic Imbalances • Tonsillitis: inflammation of tonsils • Lymphangitis: vasa vasorum of lymph vessels congested w/blood • Lymphedema: blockage prevents return to blood • Buboes: inflamed lymph nodes • Splenectomy: removal of a ruptured spleen • Appendectomy: removal of appendix • Elephantiasis: lymph vessels clogged by worms causing increased swelling • Hodgkin’sdisease: malignant B-cells • Non-Hodgkin’slymphoma: any lymphoma, but Hodgkin’s
