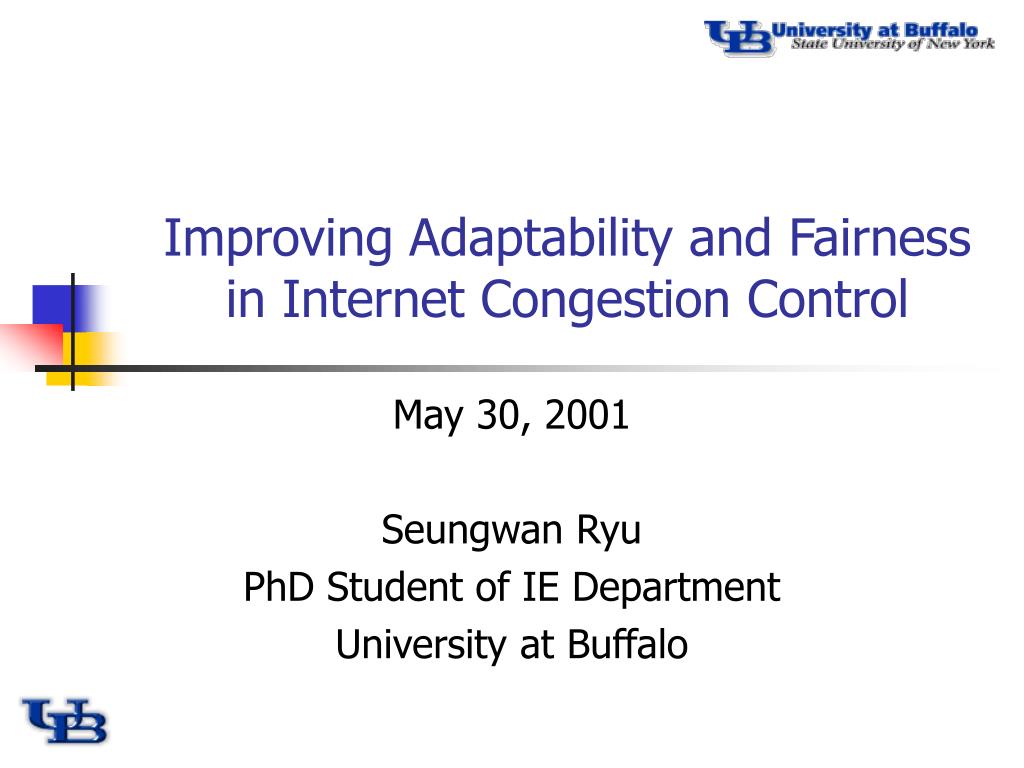

  1. Improving Adaptability and Fairness in Internet Congestion Control May 30, 2001 Seungwan Ryu PhD Student of IE Department University at Buffalo

  2. I. Internet Congestion Control • Internet Congestion Control • Mathematical Modeling and Analysis • Adaptive AQM and User Response • Future Study Plan

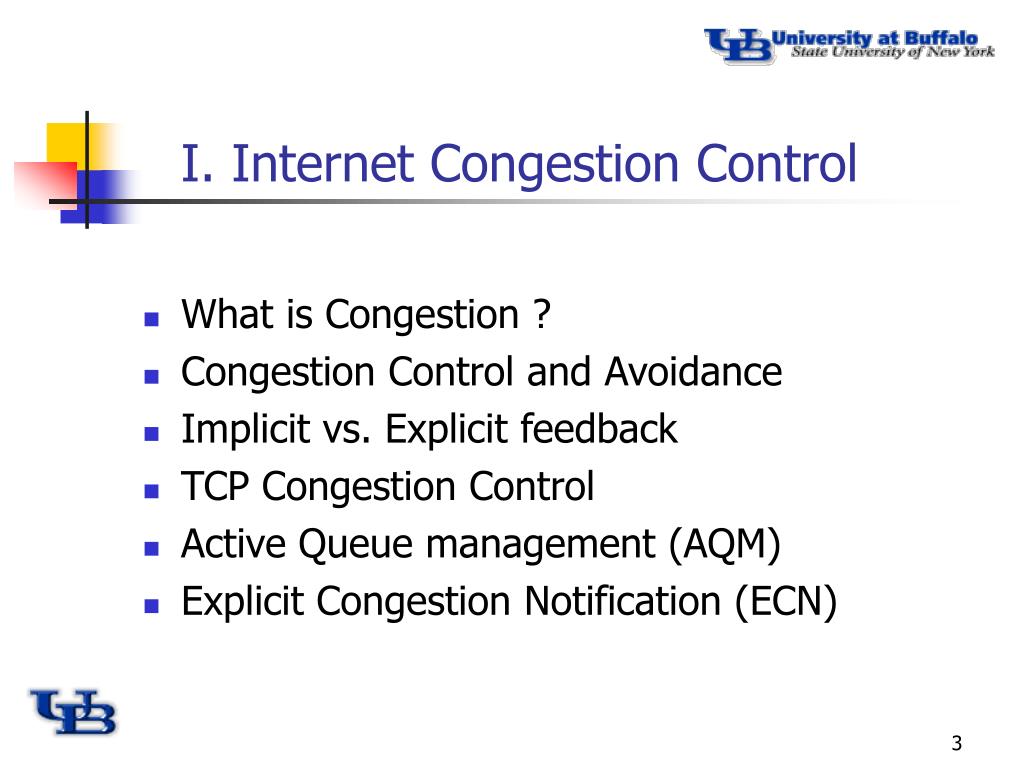

  3. I. Internet Congestion Control • What is Congestion ? • Congestion Control and Avoidance • Implicit vs. Explicit feedback • TCP Congestion Control • Active Queue management (AQM) • Explicit Congestion Notification (ECN)

  4. What is congestion ? • What is congestion ? • The aggregate demand for bandwidth exceeds the available capacity of a link. • What will be occur ? • Performance Degradation • Multiple packet loss • Low link utilization (low Throughput) • High queueing delay • Congestion collapse

  5. Congestion Control and Avoidance • Two approaches for handling Congestion • Congestion Control (Reactive) • Play after the network is overloaded • Congestion Avoidance (Proactive) • Play before the network becomes overloaded

  6. Implicit vs. Explicit feedback • Implicit feedback Congestion Control • Network drops packets when congestion occur • Source infer congestion implicitly • time-out, duplicated ACKs, etc. • Example: end-to-end TCP congestion Control • Simple to implement but inaccurate • implemented only at Transport layer (e.g., TCP)

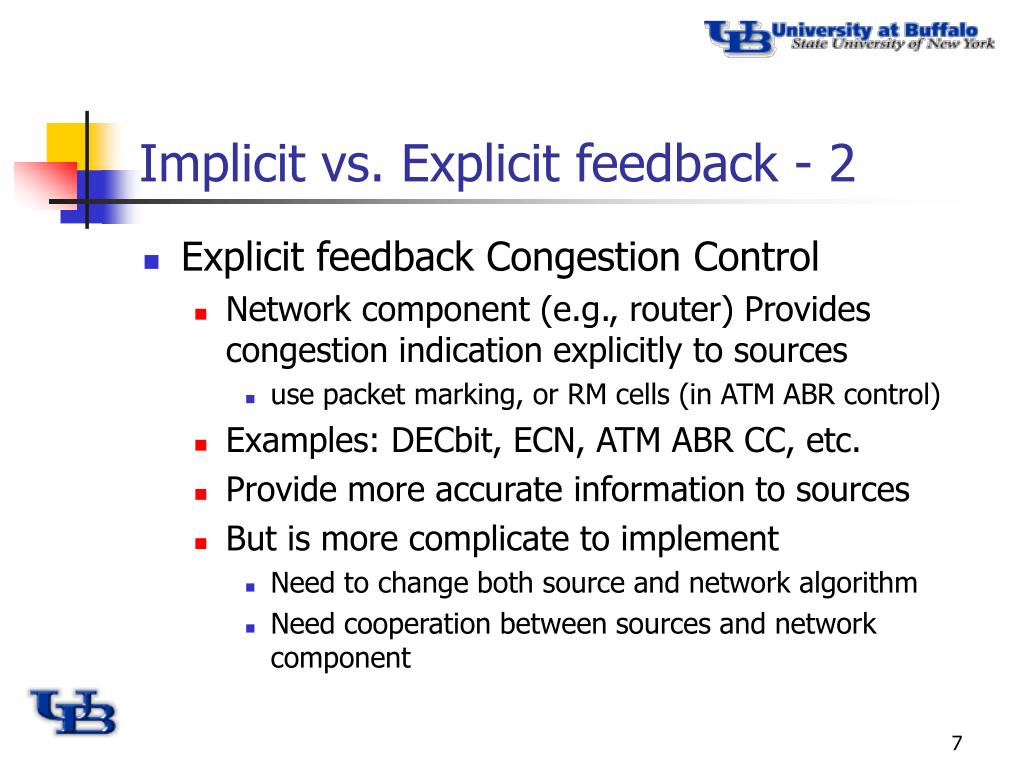

  7. Implicit vs. Explicit feedback - 2 • Explicit feedback Congestion Control • Network component (e.g., router) Provides congestion indication explicitly to sources • use packet marking, or RM cells (in ATM ABR control) • Examples: DECbit, ECN, ATM ABR CC, etc. • Provide more accurate information to sources • But is more complicate to implement • Need to change both source and network algorithm • Need cooperation between sources and network component

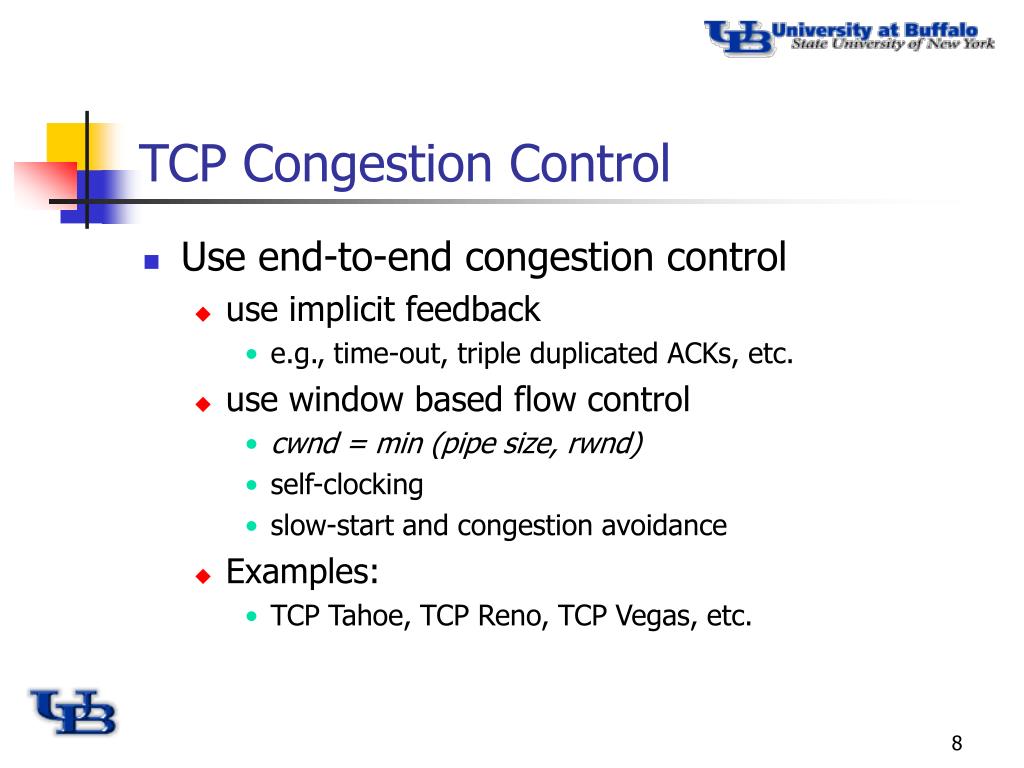

  8. TCP Congestion Control • Use end-to-end congestion control • use implicit feedback • e.g., time-out, triple duplicated ACKs, etc. • use window based flow control • cwnd = min (pipe size, rwnd) • self-clocking • slow-start and congestion avoidance • Examples: • TCP Tahoe, TCP Reno, TCP Vegas, etc.

  9. TCP Congestion Control - 2 • Slow-start and Congestion Avoidance cwnd Congestion Avoidance Slow Start W+1 W 4 2 1 RTT RTT Time

  10. Active Queue Management (AQM) - 1 • Performance Degradation in current TCP Congestion Control • Multiple packet loss • Low link utilization • Congestion collapse • The role of the router (i.e., network) • Control congestion effectively with a network • Allocate bandwidth fairly

  11. AQM - 2 • Problems with current router algorithm • Use FIFO based tail-drop (TD) queue management • Two drawbacks with TD: lock-out, full-queue • Possible solution: AQM • Drop packets before buffer becomes full • Examples: RED, BLUE, ARED, SRED, FRED,…. • Use (exponentially weighted) average queue length as an congestion indicator

  12. AQM - 3 • Random Early Detection (RED) • use network algorithm to detect incipient congestion • Design goals: • minimize packet loss and queueing delay • avoid global synchronization • maintain high link utilization • removing bias against bursty source • Achieve goals by • randomized packet drop • queue length averaging

  13. RED P 1 maxp minth maxth K

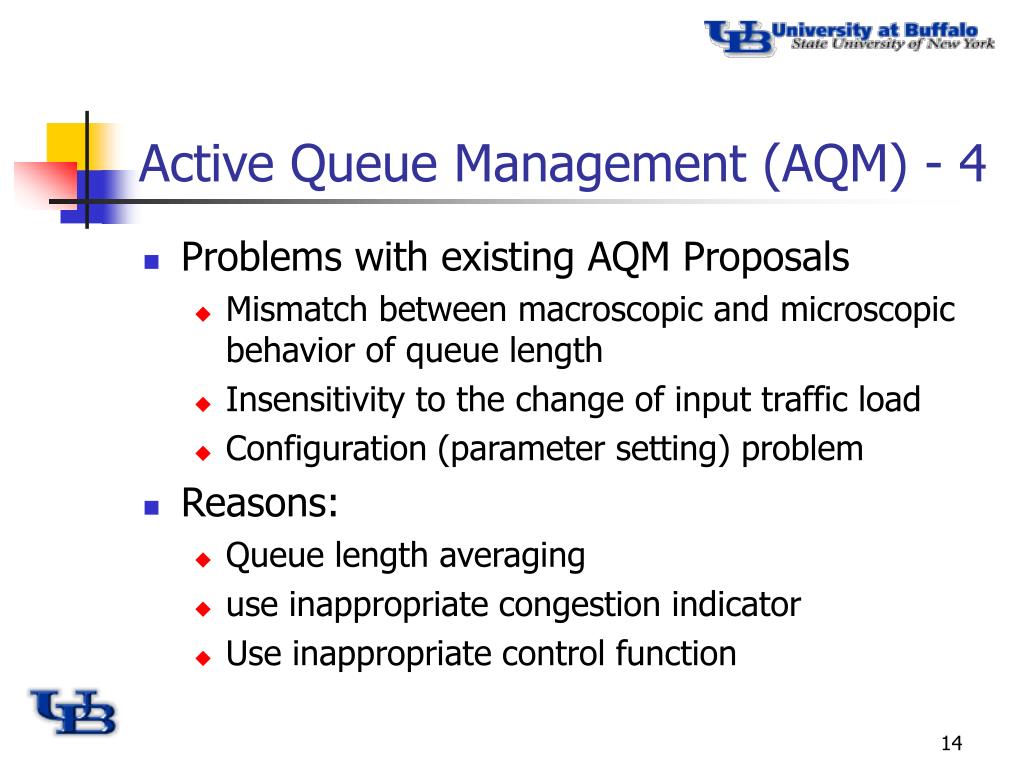

  14. Active Queue Management (AQM) - 4 • Problems with existing AQM Proposals • Mismatch between macroscopic and microscopic behavior of queue length • Insensitivity to the change of input traffic load • Configuration (parameter setting) problem • Reasons: • Queue length averaging • use inappropriate congestion indicator • Use inappropriate control function

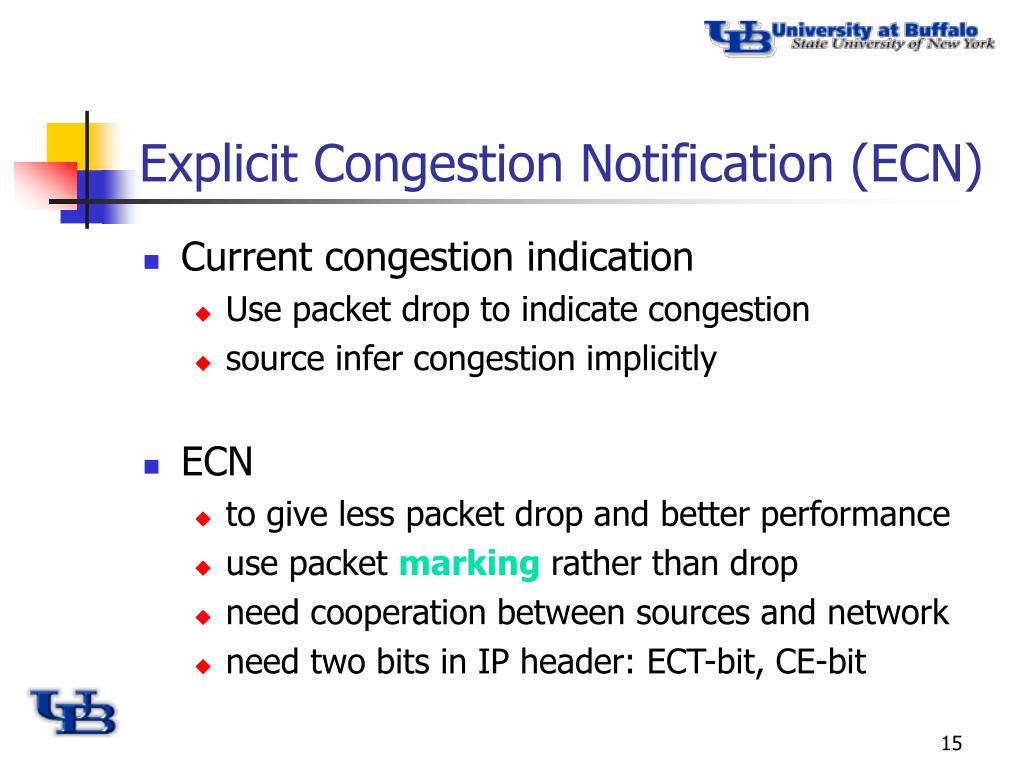

  15. Explicit Congestion Notification (ECN) • Current congestion indication • Use packet drop to indicate congestion • source infer congestion implicitly • ECN • to give less packet drop and better performance • use packet marking rather than drop • need cooperation between sources and network • need two bits in IP header: ECT-bit, CE-bit

  16. ECN - 2 ECT CE ECT CE 1 0 1 1 IP Header 1 TCP Header 0 0 2 CWR CWR 1 ACK TCP Header ECN-Echo 3 TCP Header 1 CWR 4 Source Router Destination

  17. Contents • Internet Congestion Control • Mathematical Modeling and Analysis • Adaptive AQM and User Response • Future Study Plan

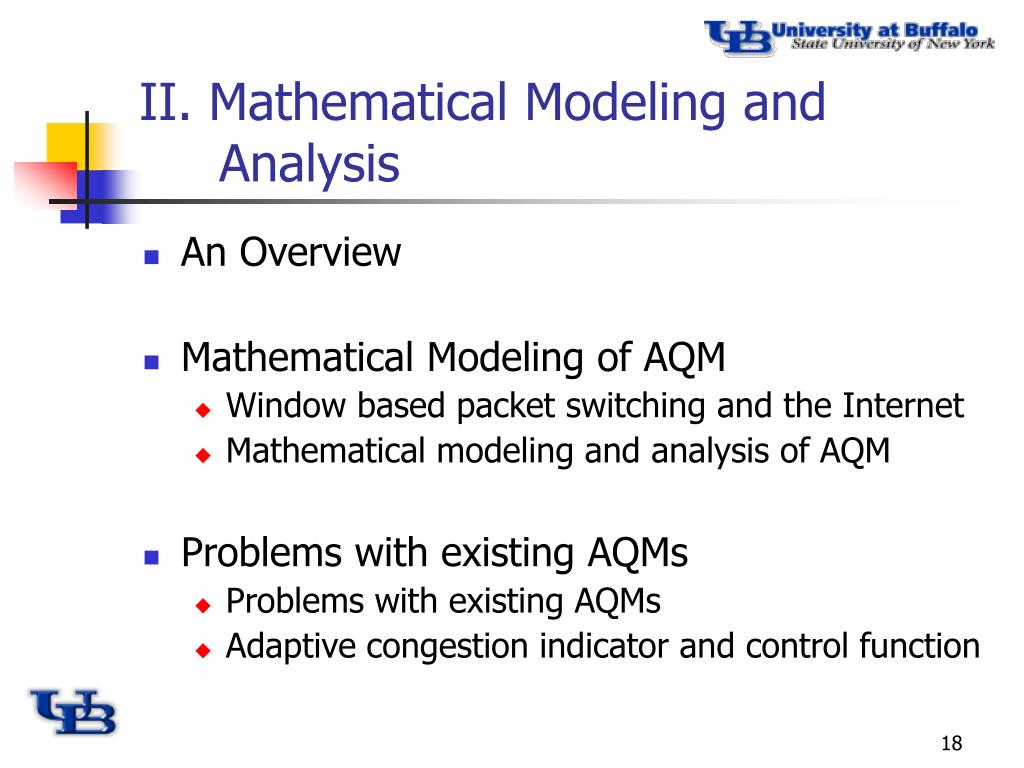

  18. II. Mathematical Modeling and Analysis • An Overview • Mathematical Modeling of AQM • Window based packet switching and the Internet • Mathematical modeling and analysis of AQM • Problems with existing AQMs • Problems with existing AQMs • Adaptive congestion indicator and control function

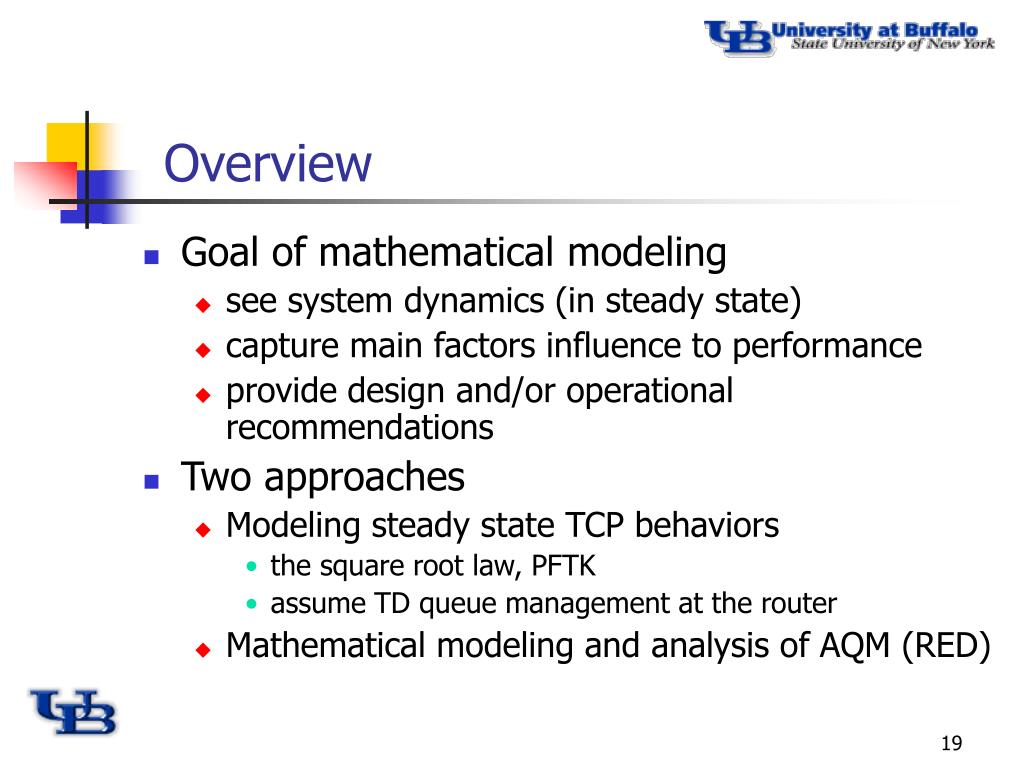

  19. Overview • Goal of mathematical modeling • see system dynamics (in steady state) • capture main factors influence to performance • provide design and/or operational recommendations • Two approaches • Modeling steady state TCP behaviors • the square root law, PFTK • assume TD queue management at the router • Mathematical modeling and analysis of AQM (RED)

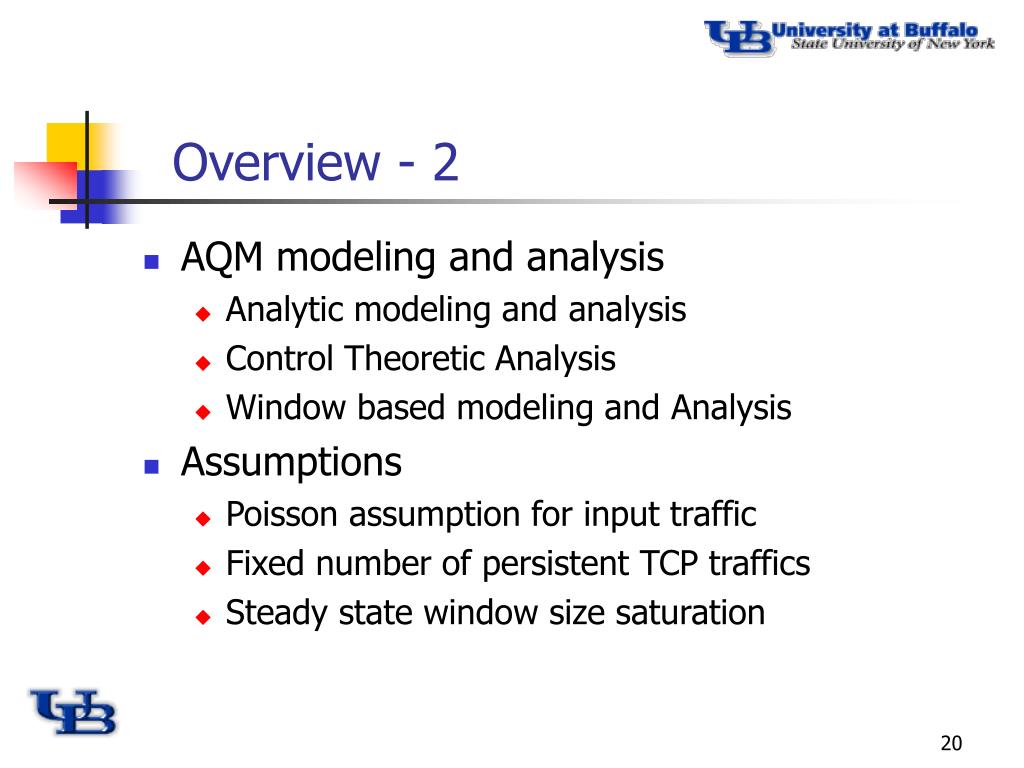

  20. Overview - 2 • AQM modeling and analysis • Analytic modeling and analysis • Control Theoretic Analysis • Window based modeling and Analysis • Assumptions • Poisson assumption for input traffic • Fixed number of persistent TCP traffics • Steady state window size saturation

  21. Mathematical Modeling of AQM • Window based packet switching Model (Yang 99) • If link j is not congested • If link j is congested

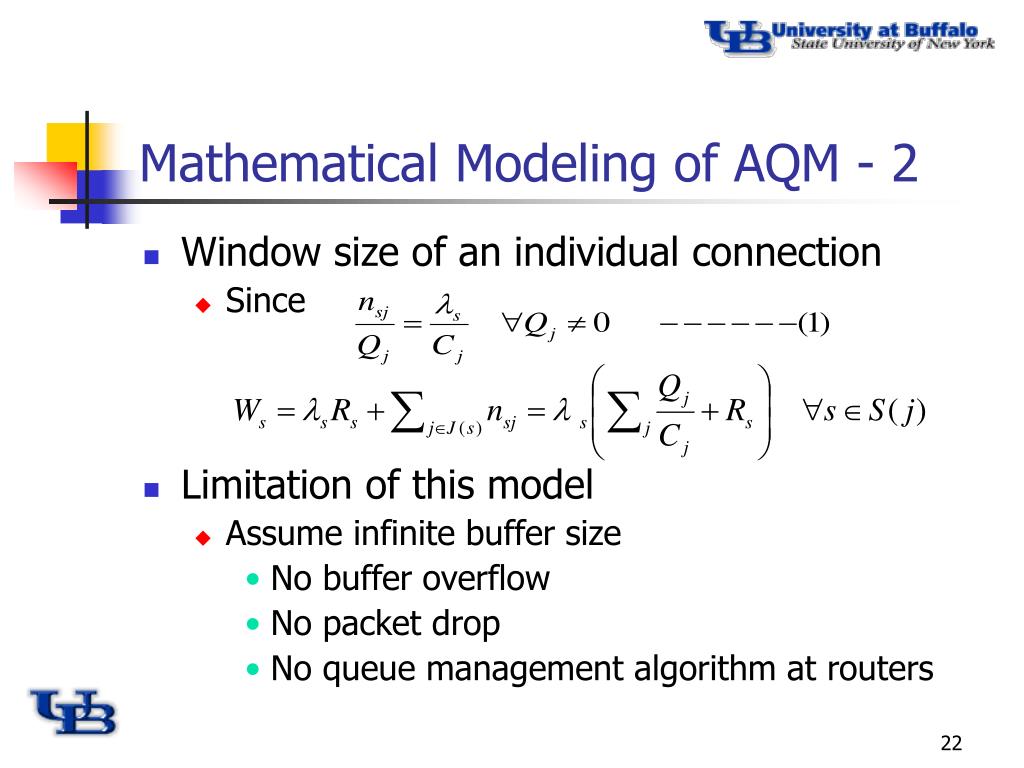

  22. Mathematical Modeling of AQM - 2 • Window size of an individual connection • Since • Limitation of this model • Assume infinite buffer size • No buffer overflow • No packet drop • No queue management algorithm at routers

  23. A simple AQM model Sources s1 1 AQM Router Destination Bottleneck Link S2 2 C S K Min_th SS Mathematical Modeling of AQM - 3

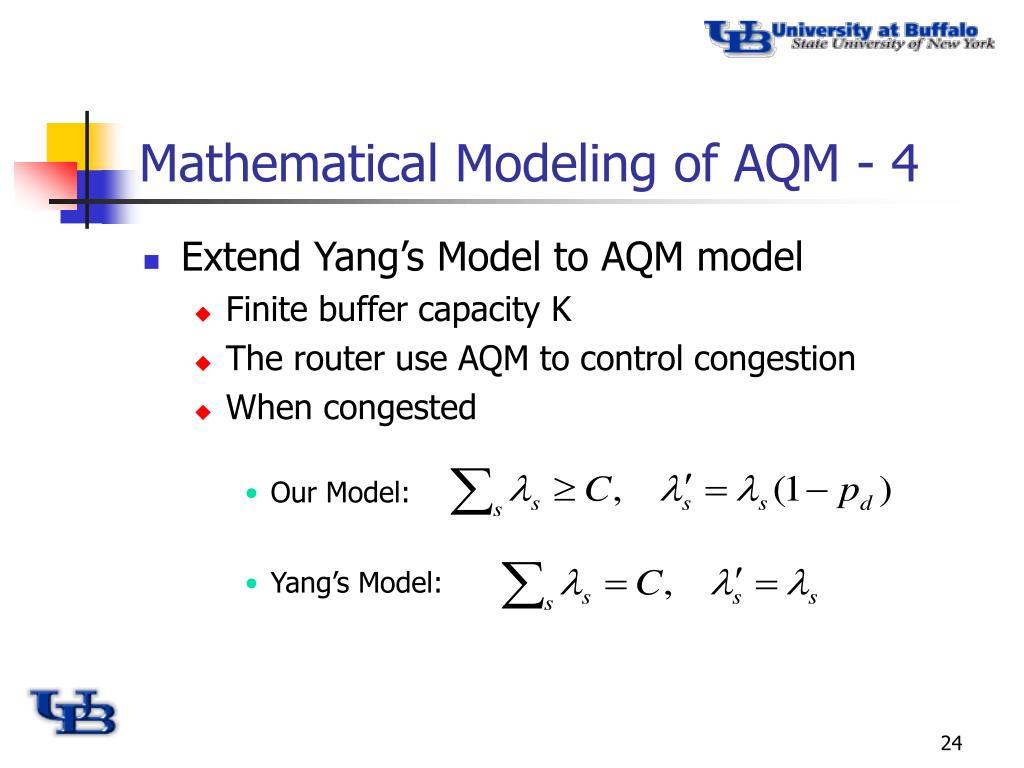

  24. Mathematical Modeling of AQM - 4 • Extend Yang’s Model to AQM model • Finite buffer capacity K • The router use AQM to control congestion • When congested • Our Model: • Yang’s Model:

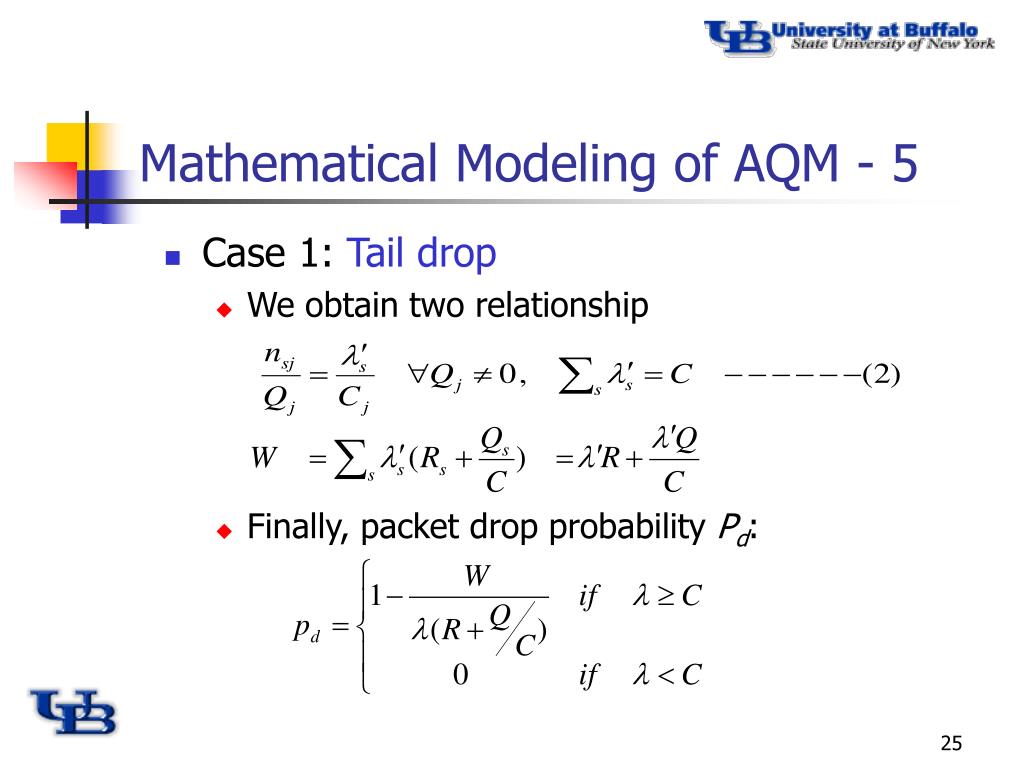

  25. Mathematical Modeling of AQM - 5 • Case 1: Tail drop • We obtain two relationship • Finally, packet drop probability Pd:

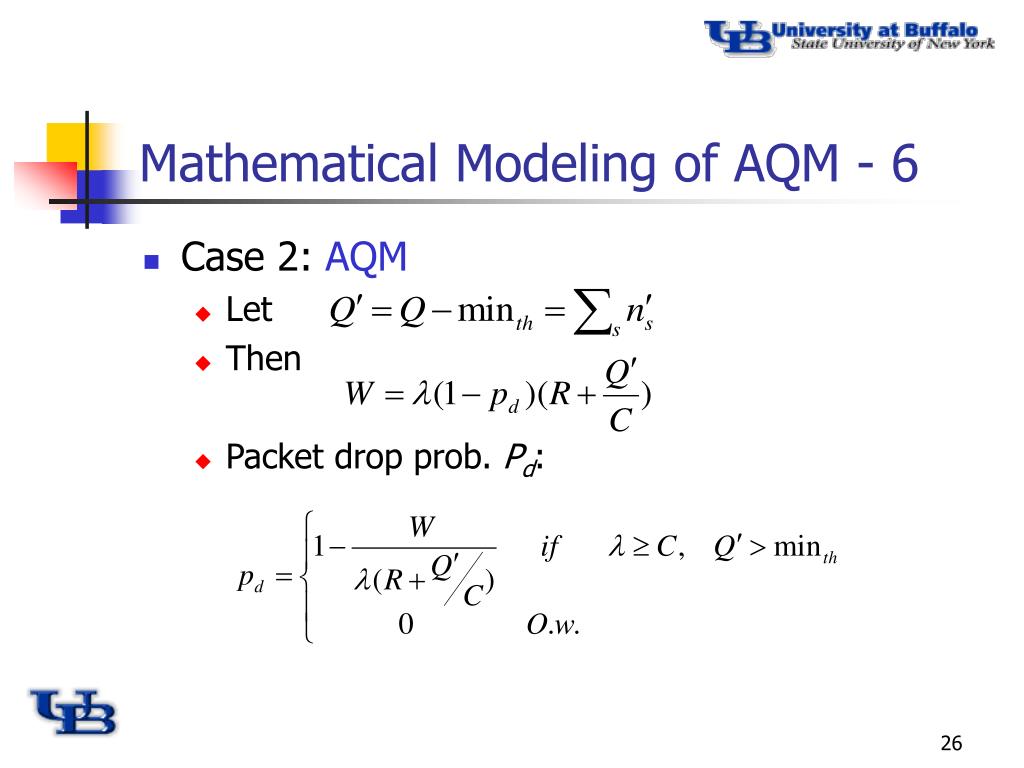

  26. Mathematical Modeling of AQM - 6 • Case 2: AQM • Let • Then • Packet drop prob. Pd:

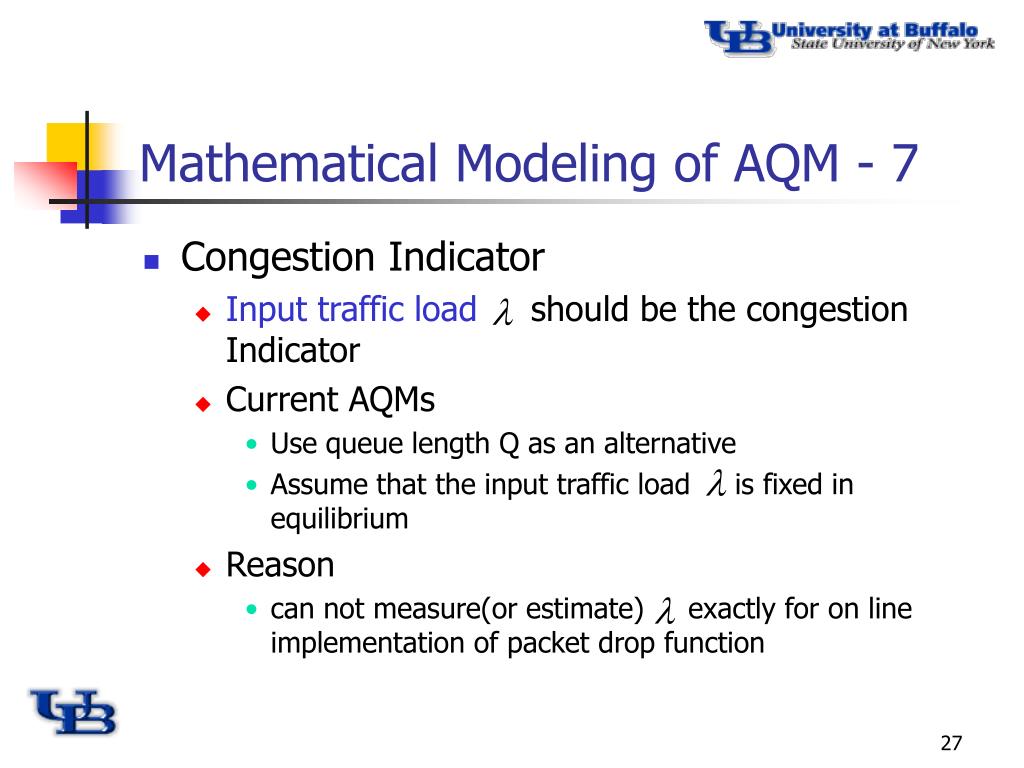

  27. Mathematical Modeling of AQM - 7 • Congestion Indicator • Input traffic load should be the congestion Indicator • Current AQMs • Use queue length Q as an alternative • Assume that the input traffic load is fixed in equilibrium • Reason • can not measure(or estimate) exactly for on line implementation of packet drop function

  28. Mathematical Modeling of AQM - 8 • Packet drop function • Reason • The traffic load fluctuate, NOT stay in equilibrium • queue length is a function of input traffic • Alternatively:

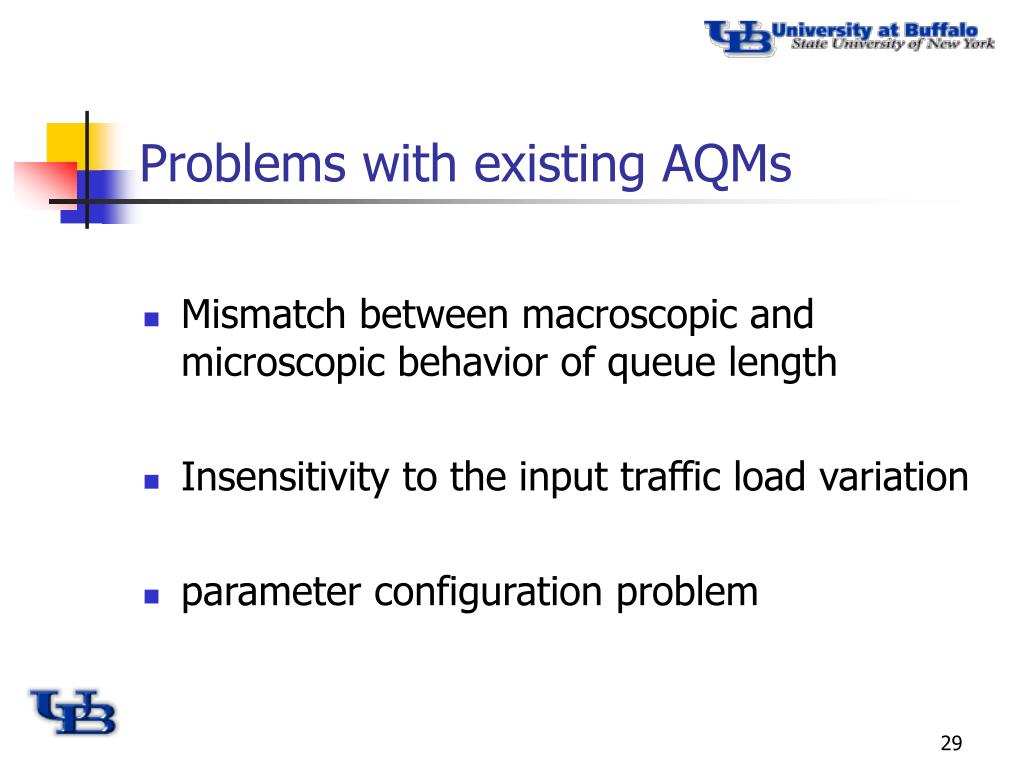

  29. Problems with existing AQMs • Mismatch between macroscopic and microscopic behavior of queue length • Insensitivity to the input traffic load variation • parameter configuration problem

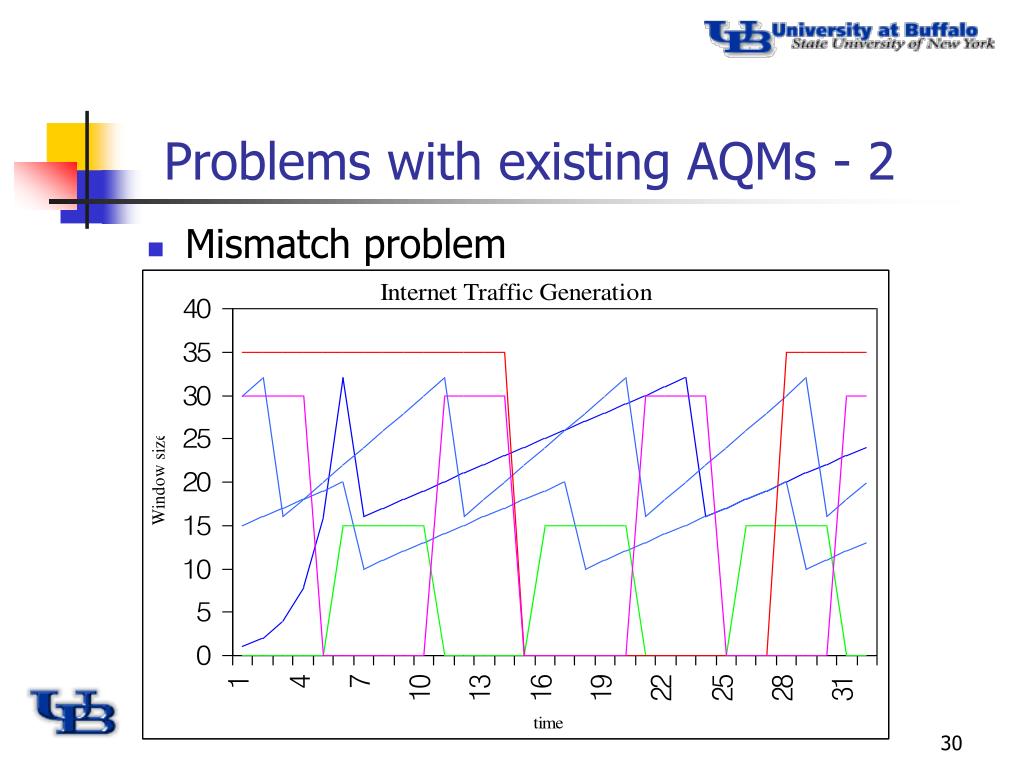

  30. Problems with existing AQMs - 2 • Mismatch problem

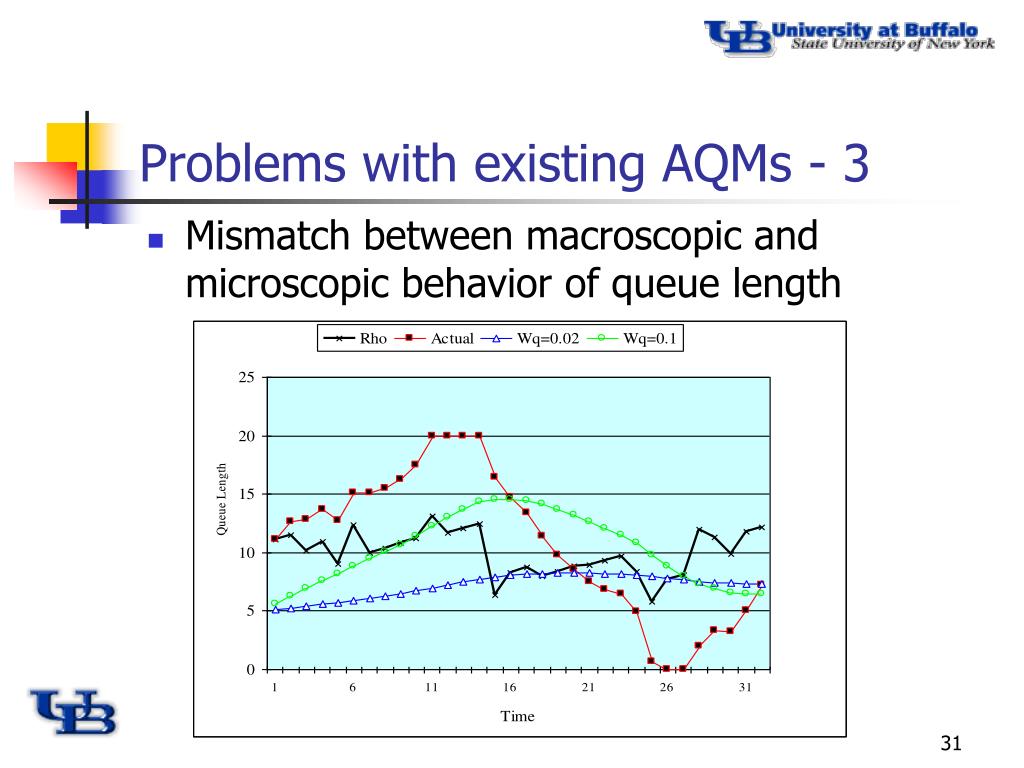

  31. Problems with existing AQMs - 3 • Mismatch between macroscopic and microscopic behavior of queue length

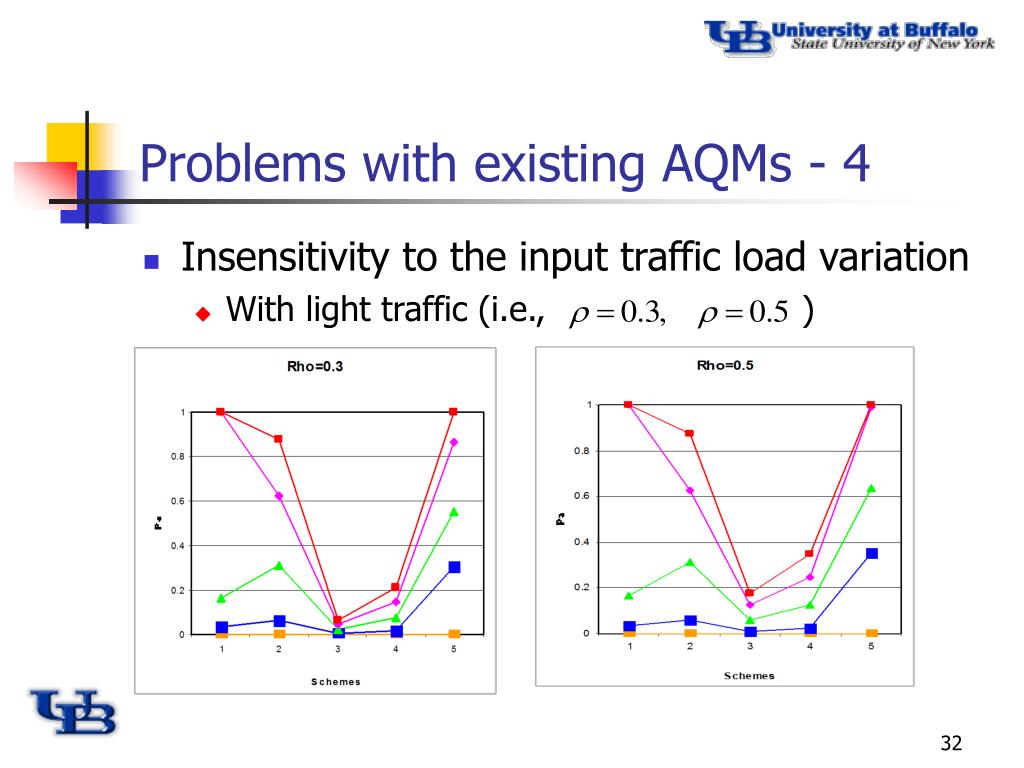

  32. Problems with existing AQMs - 4 • Insensitivity to the input traffic load variation • With light traffic (i.e., )

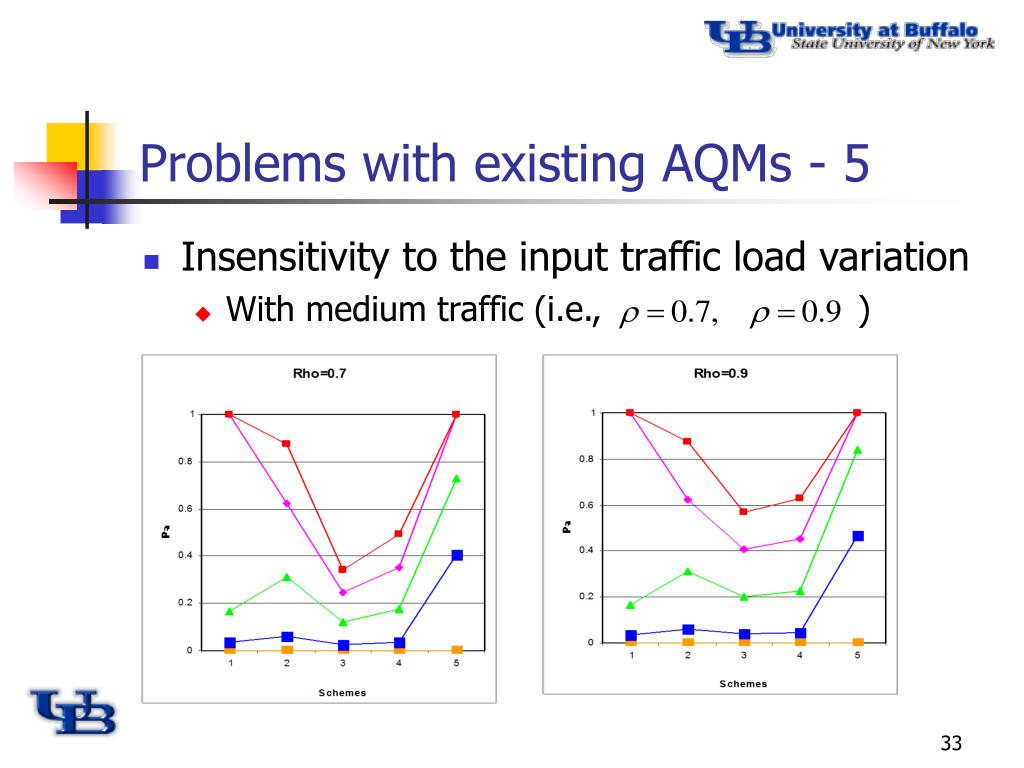

  33. Problems with existing AQMs - 5 • Insensitivity to the input traffic load variation • With medium traffic (i.e., )

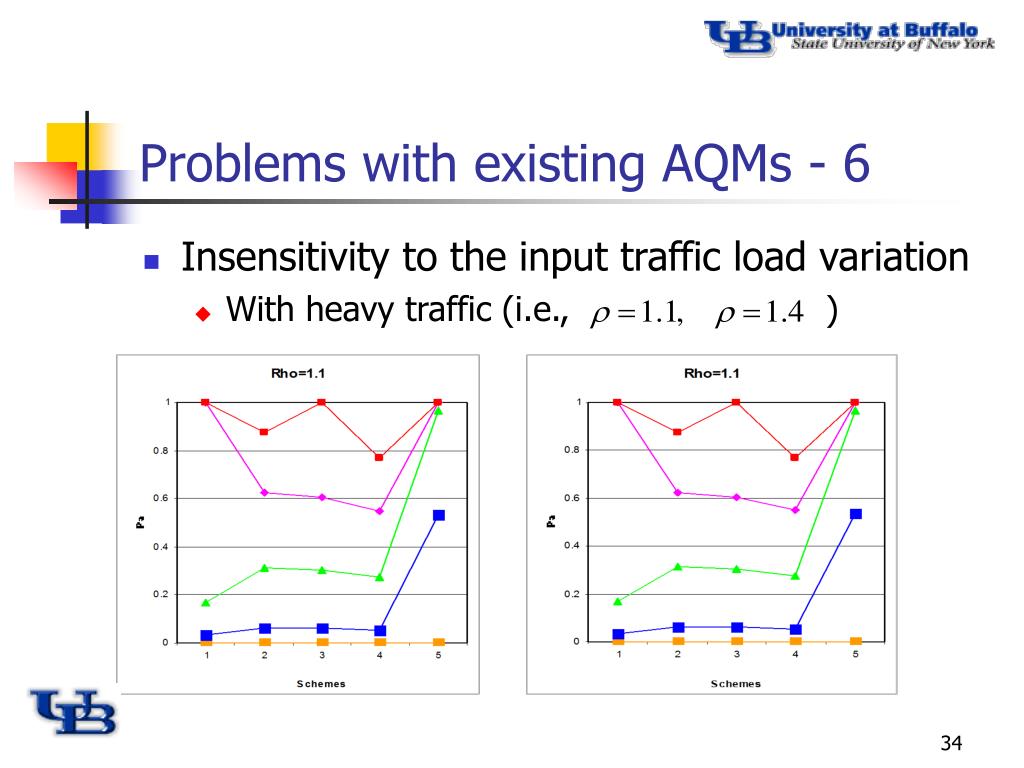

  34. Problems with existing AQMs - 6 • Insensitivity to the input traffic load variation • With heavy traffic (i.e., )

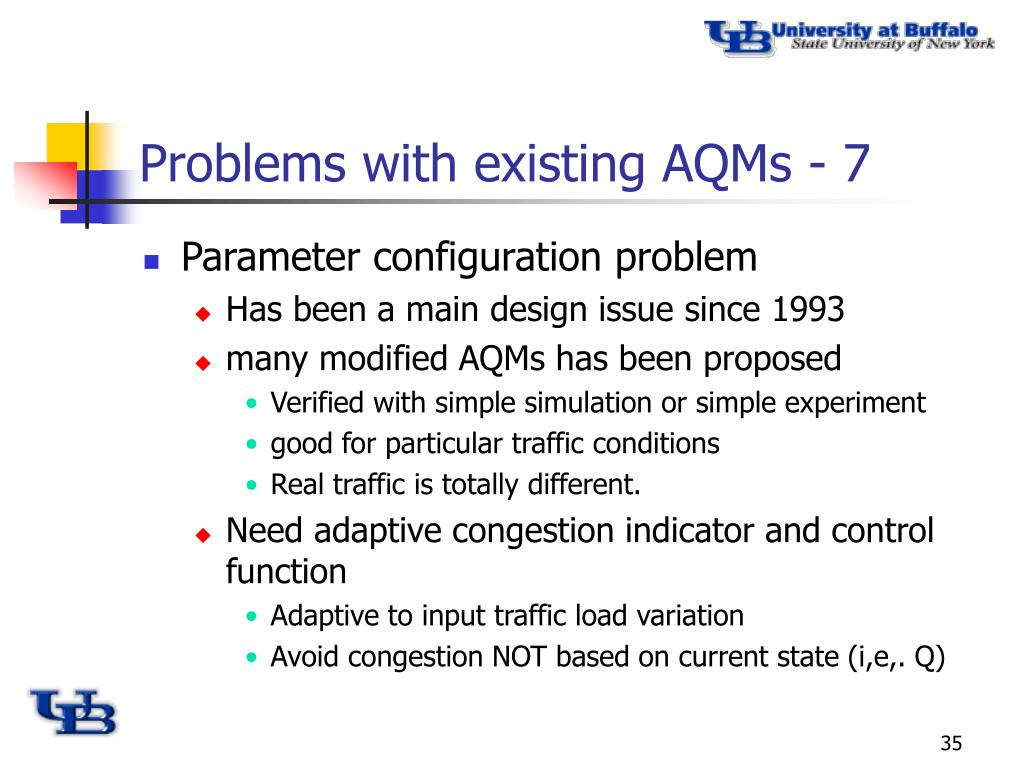

  35. Problems with existing AQMs - 7 • Parameter configuration problem • Has been a main design issue since 1993 • many modified AQMs has been proposed • Verified with simple simulation or simple experiment • good for particular traffic conditions • Real traffic is totally different. • Need adaptive congestion indicator and control function • Adaptive to input traffic load variation • Avoid congestion NOT based on current state (i,e,. Q)

  36. Contents • Internet Congestion Control • Mathematical Modeling and Analysis • Adaptive AQM and User Response • Future Study Plan

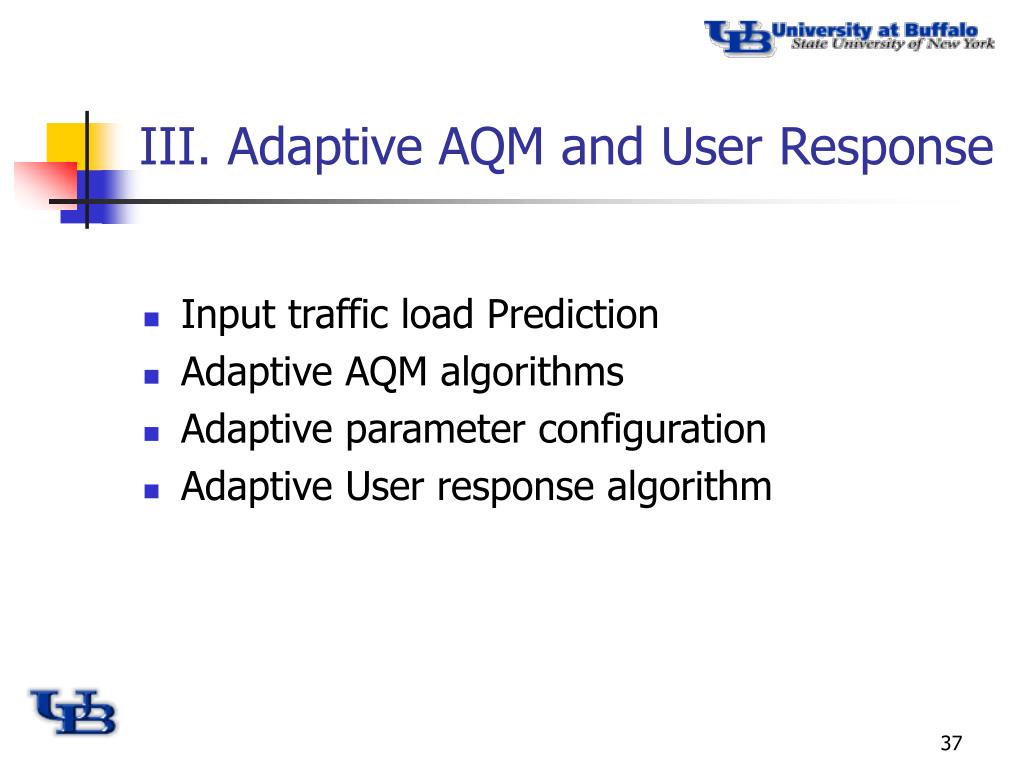

  37. III. Adaptive AQM and User Response • Input traffic load Prediction • Adaptive AQM algorithms • Adaptive parameter configuration • Adaptive User response algorithm

  38. Input traffic load Prediction • Consider time-slotted model • Time is divided into unit time slots, t, t=0,1,… • calculate parameters at the end of each slot • estimate Qt+1 to detect congestion proactively • Predict from measured input traffic t-1, t of past two time slots • Then, predict of next time slot t

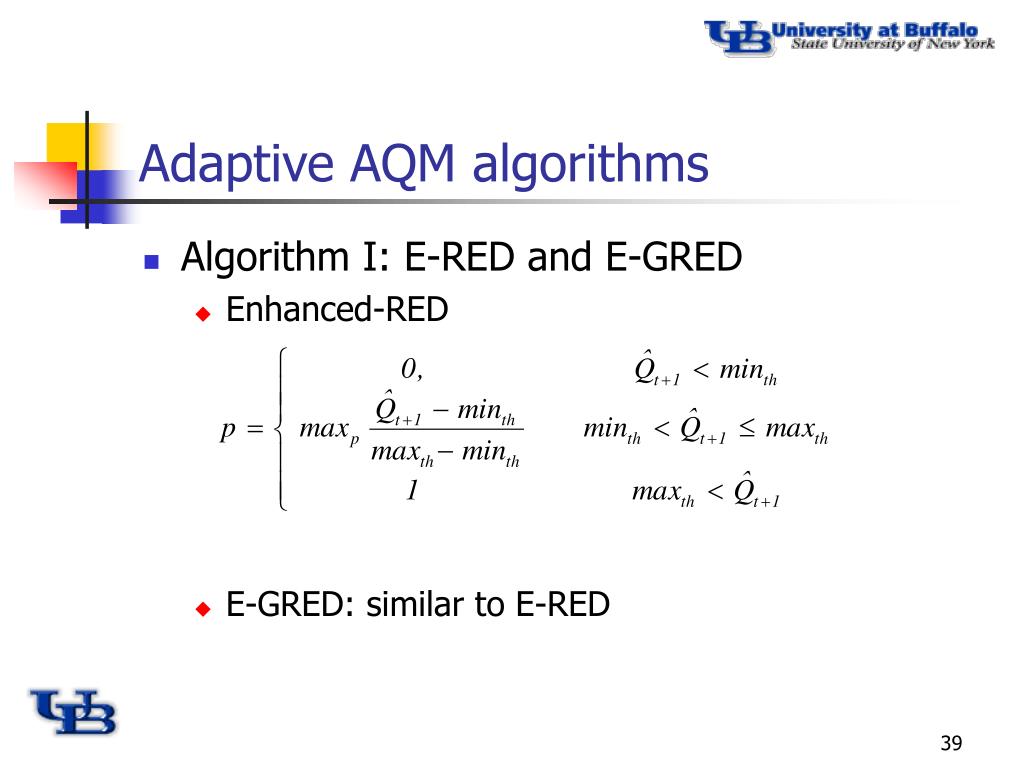

  39. Adaptive AQM algorithms • Algorithm I: E-RED and E-GRED • Enhanced-RED • E-GRED: similar to E-RED

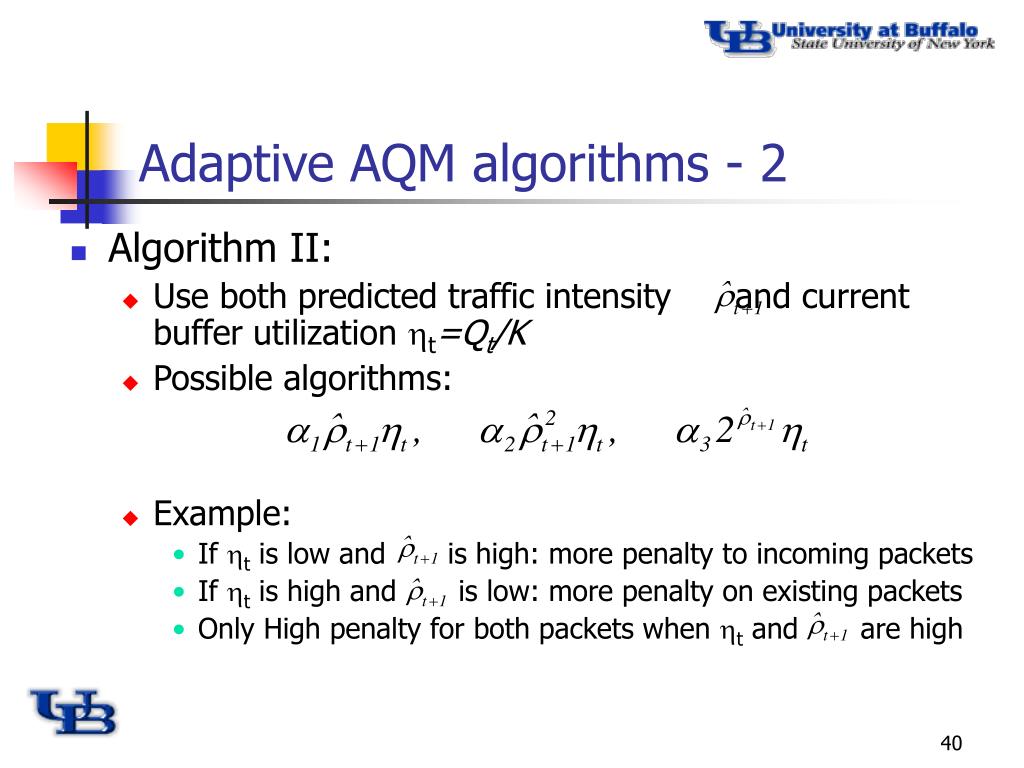

  40. Adaptive AQM algorithms - 2 • Algorithm II: • Use both predicted traffic intensity and current buffer utilization t=Qt/K • Possible algorithms: • Example: • If t is low and is high: more penalty to incoming packets • If t is high and is low: more penalty on existing packets • Only High penalty for both packets when t and are high

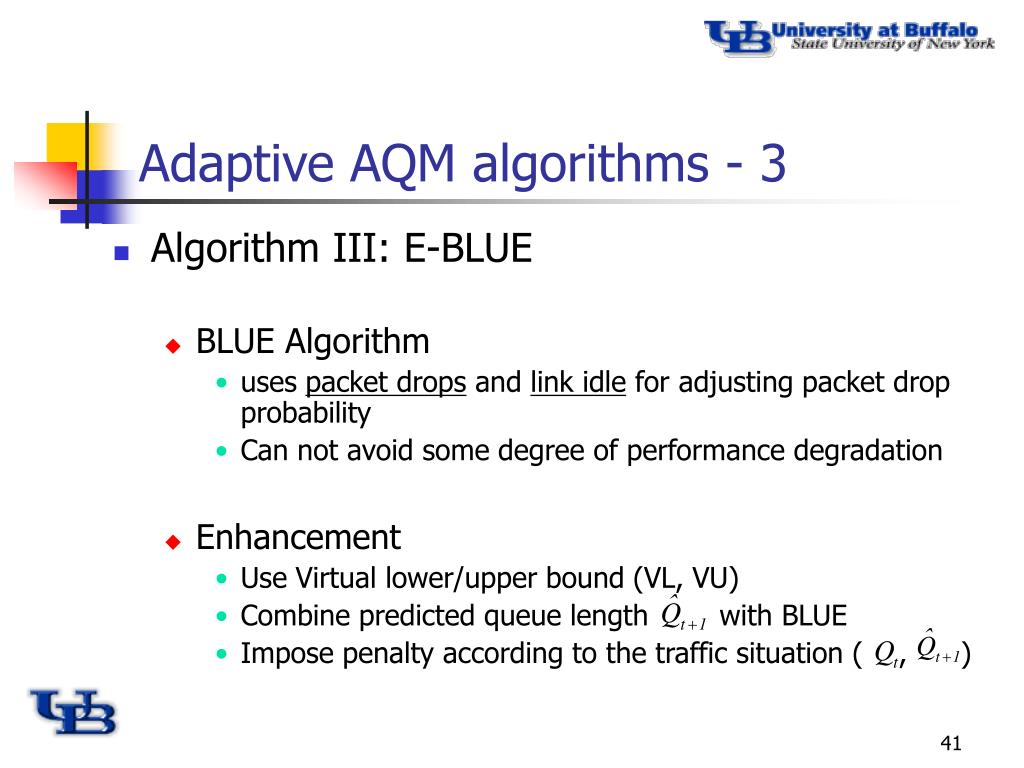

  41. Adaptive AQM algorithms - 3 • Algorithm III: E-BLUE • BLUE Algorithm • uses packet drops and link idle for adjusting packet drop probability • Can not avoid some degree of performance degradation • Enhancement • Use Virtual lower/upper bound (VL, VU) • Combine predicted queue length with BLUE • Impose penalty according to the traffic situation ( , )

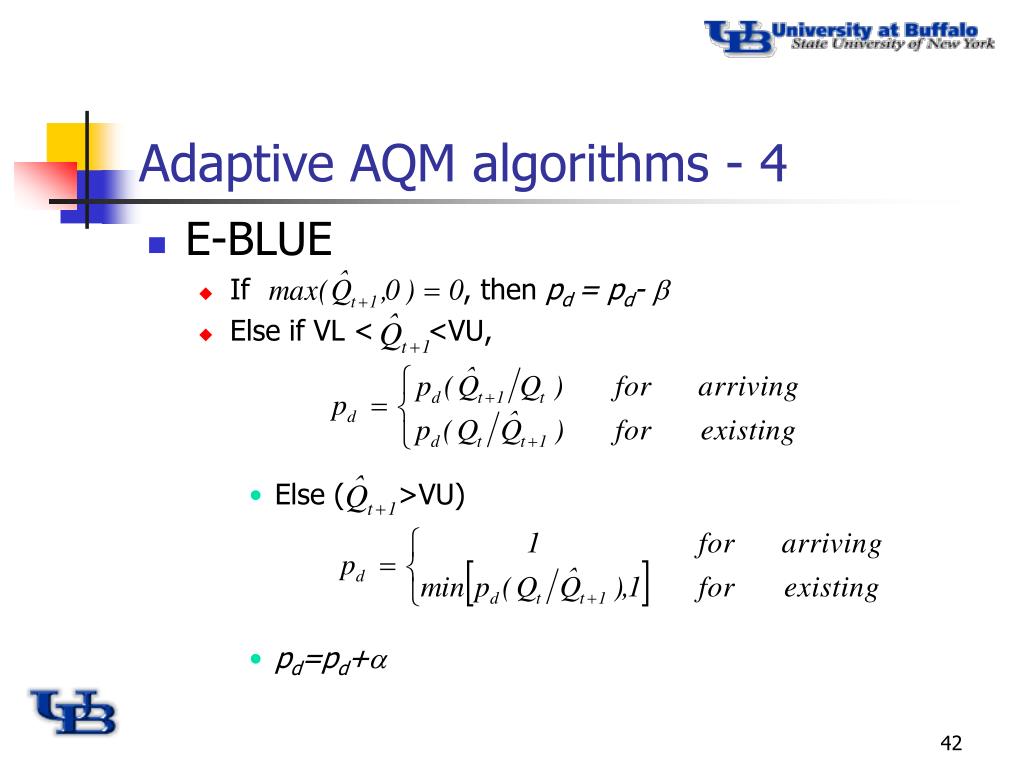

  42. Adaptive AQM algorithms - 4 • E-BLUE • If , then pd = pd-  • Else if VL < <VU, • Else ( >VU) • pd=pd+

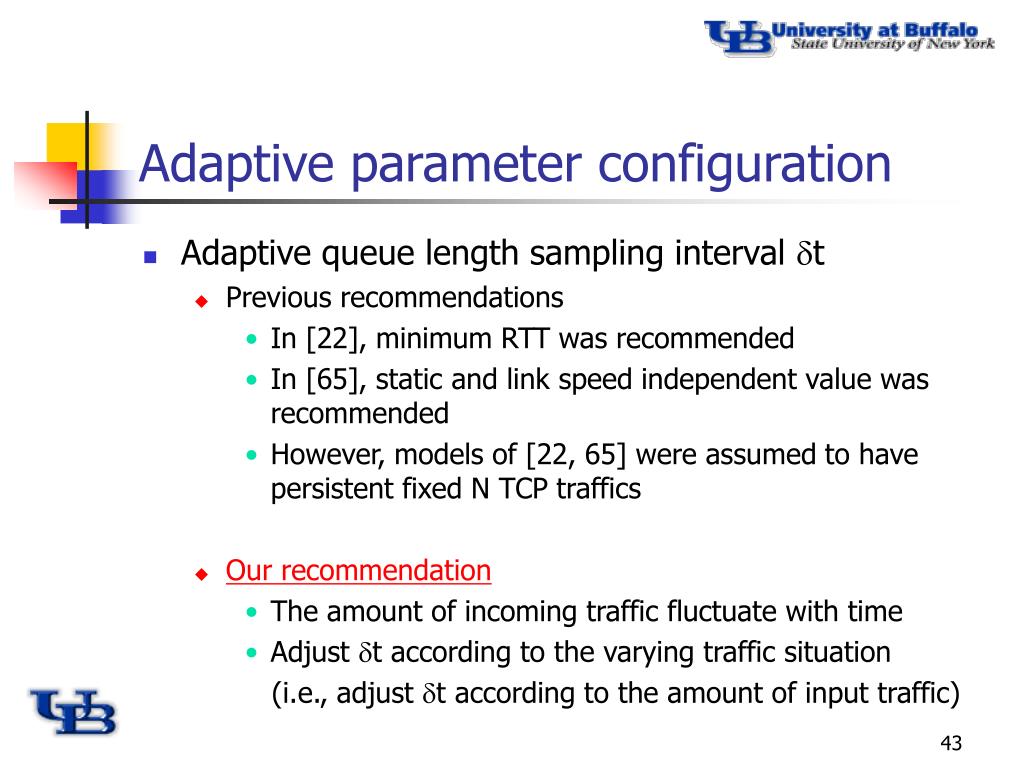

  43. Adaptive parameter configuration • Adaptive queue length sampling interval t • Previous recommendations • In [22], minimum RTT was recommended • In [65], static and link speed independent value was recommended • However, models of [22, 65] were assumed to have persistent fixed N TCP traffics • Our recommendation • The amount of incoming traffic fluctuate with time • Adjust t according to the varying traffic situation (i.e., adjust t according to the amount of input traffic)

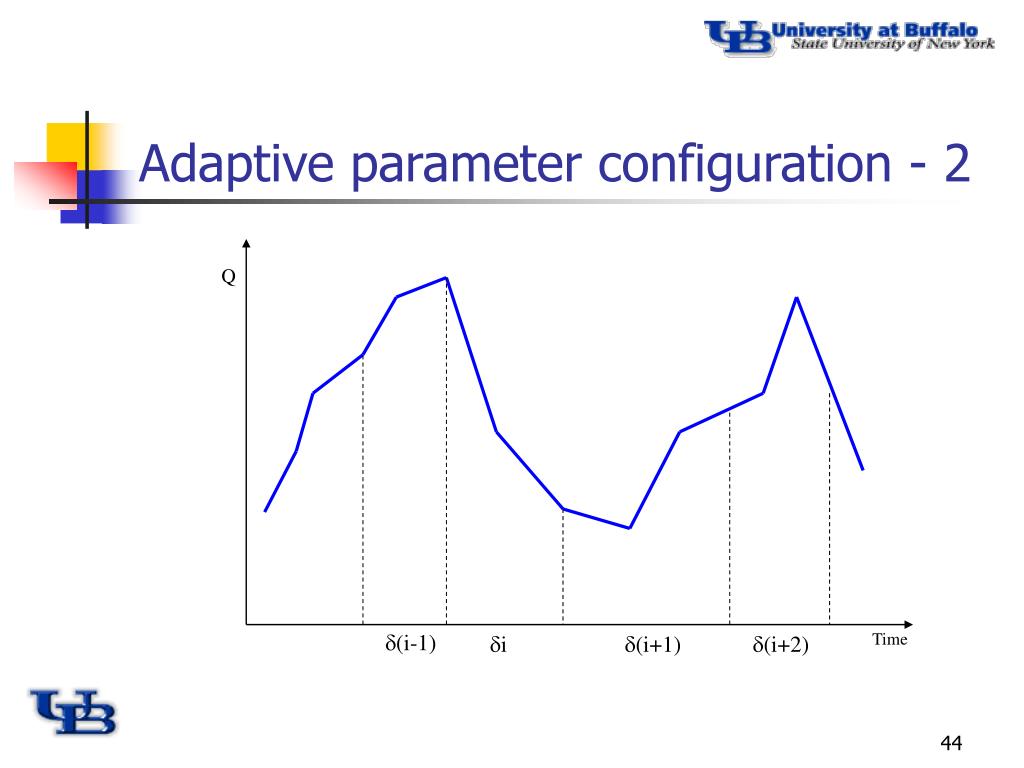

  44. Adaptive parameter configuration - 2 Q (i-1) Time i (i+1) (i+2)

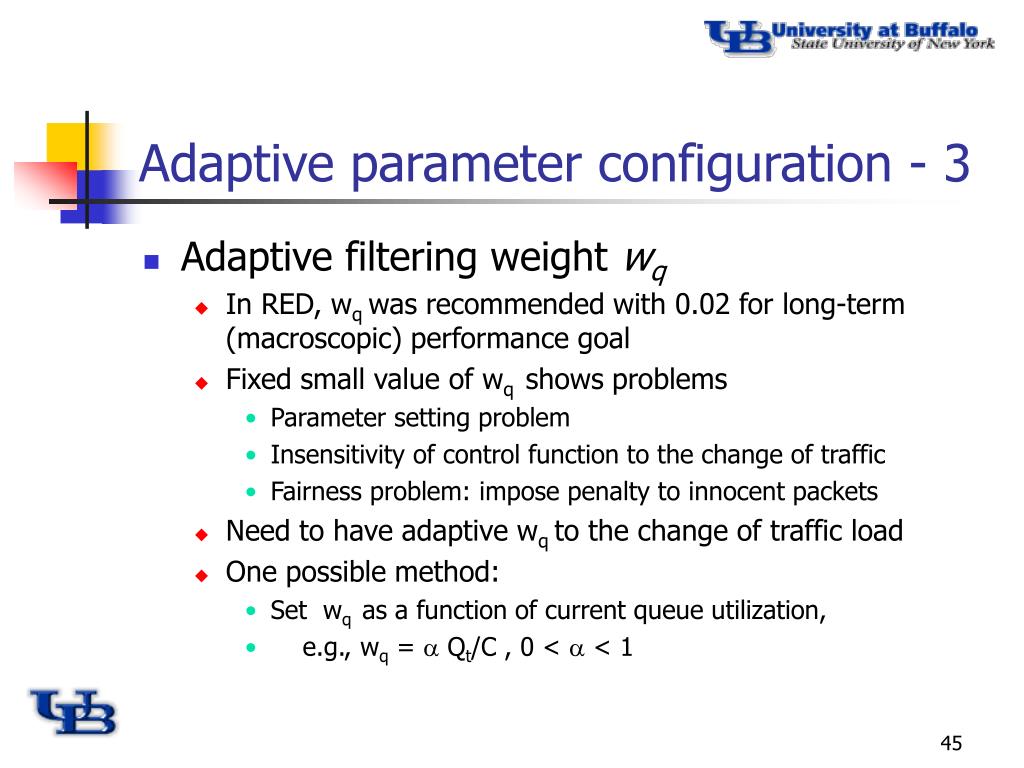

  45. Adaptive parameter configuration - 3 • Adaptive filtering weight wq • In RED, wq was recommended with 0.02 for long-term (macroscopic) performance goal • Fixed small value of wq shows problems • Parameter setting problem • Insensitivity of control function to the change of traffic • Fairness problem: impose penalty to innocent packets • Need to have adaptive wq to the change of traffic load • One possible method: • Set wq as a function of current queue utilization, • e.g., wq =  Qt/C , 0 <  < 1

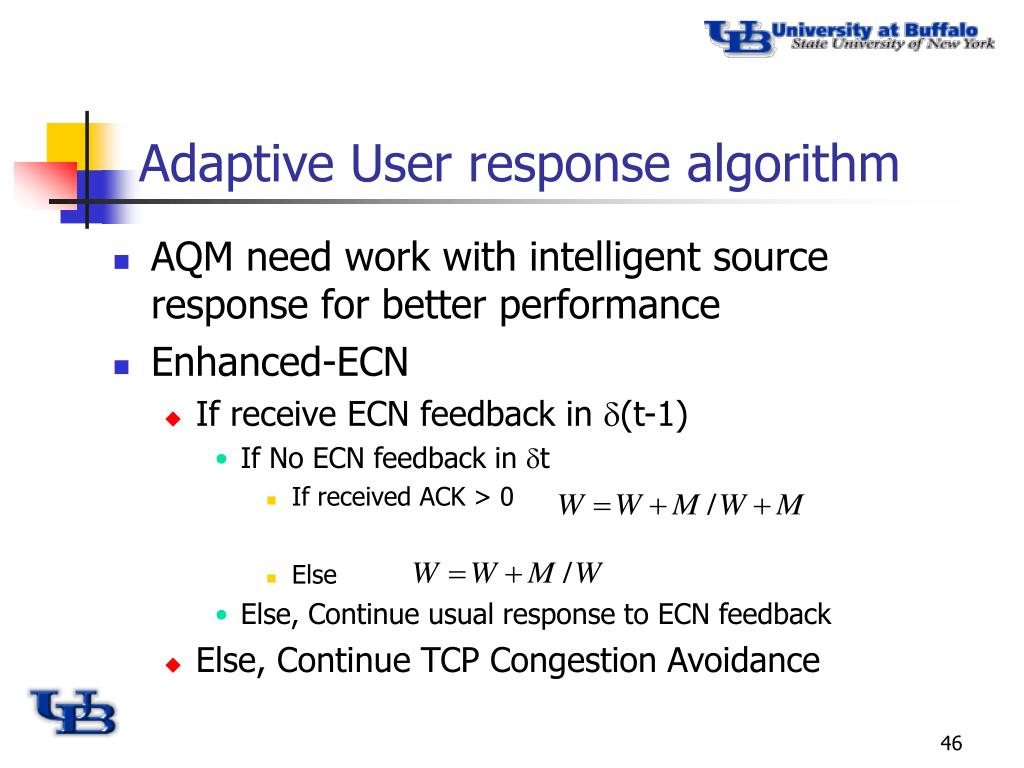

  46. Adaptive User response algorithm • AQM need work with intelligent source response for better performance • Enhanced-ECN • If receive ECN feedback in (t-1) • If No ECN feedback in t • If received ACK > 0 • Else • Else, Continue usual response to ECN feedback • Else, Continue TCP Congestion Avoidance

  47. Contents • Internet Congestion Control • Mathematical Modeling and Analysis • Adaptive AQM and User Response • Future Study Plan

  48. IV. Future Study Plan • Future Study plan: a schedule • Mathematical Modeling and Analysis • Stability and Control Dynamics • Alternative Modeling • Control Theoretic Consideration • Simulation plan • Traffics • Performance Metrics

  49. Future Study plan: a schedule • Documentation: • Mathematical Modeling and Analysis • Simulation plan • Performance Metrics

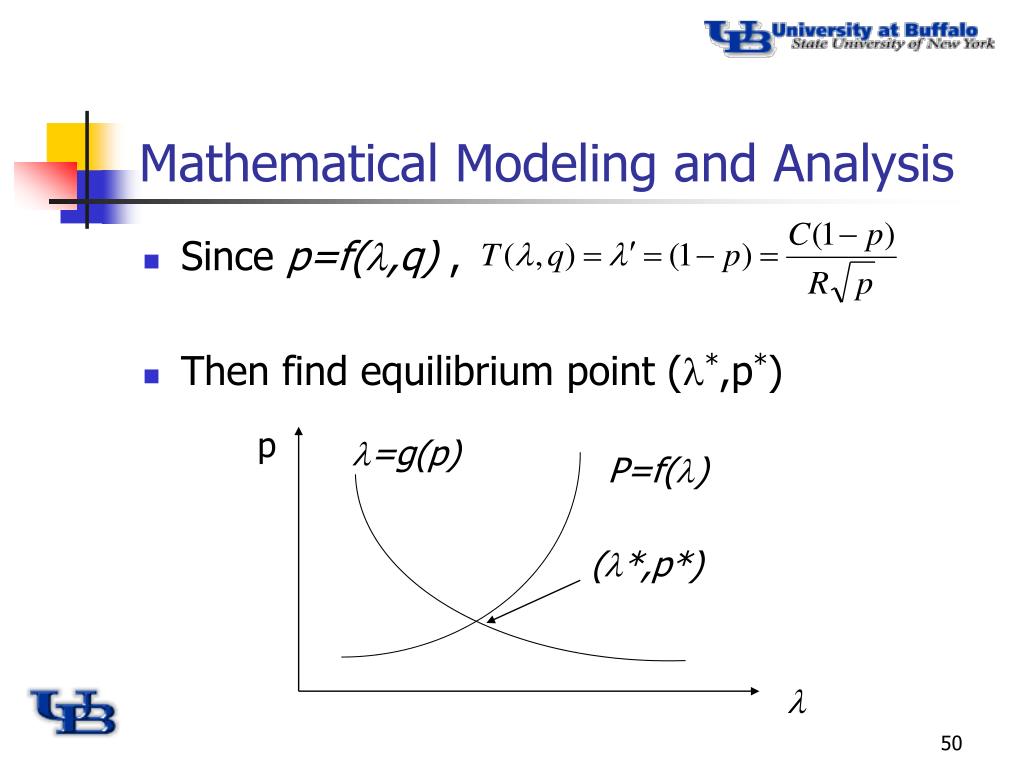

  50. Mathematical Modeling and Analysis • Since p=f(,q) , • Then find equilibrium point (*,p*) p =g(p) P=f() (*,p*) 
