  1. Turbulence measurements using lidars Ameya Sathe and Jakob Mann

  2. What do wemean by turbulence?

  3. Outline • How lidars measure turbulence? • Can lidars measure turbulence? • How can lidars measure turbulence?

  4. Part IHow lidars measure turbulence?

  5. Basic principles of measurement

  6. How are the wind speeds retrieved? • ZephIR • Windcube

  7. Lidarvs true turbulence measurement • True turbulence • Lidar turbulence 3D spectral velocity tensor • For detailed derivation

  8. Lidar turbulence derivation

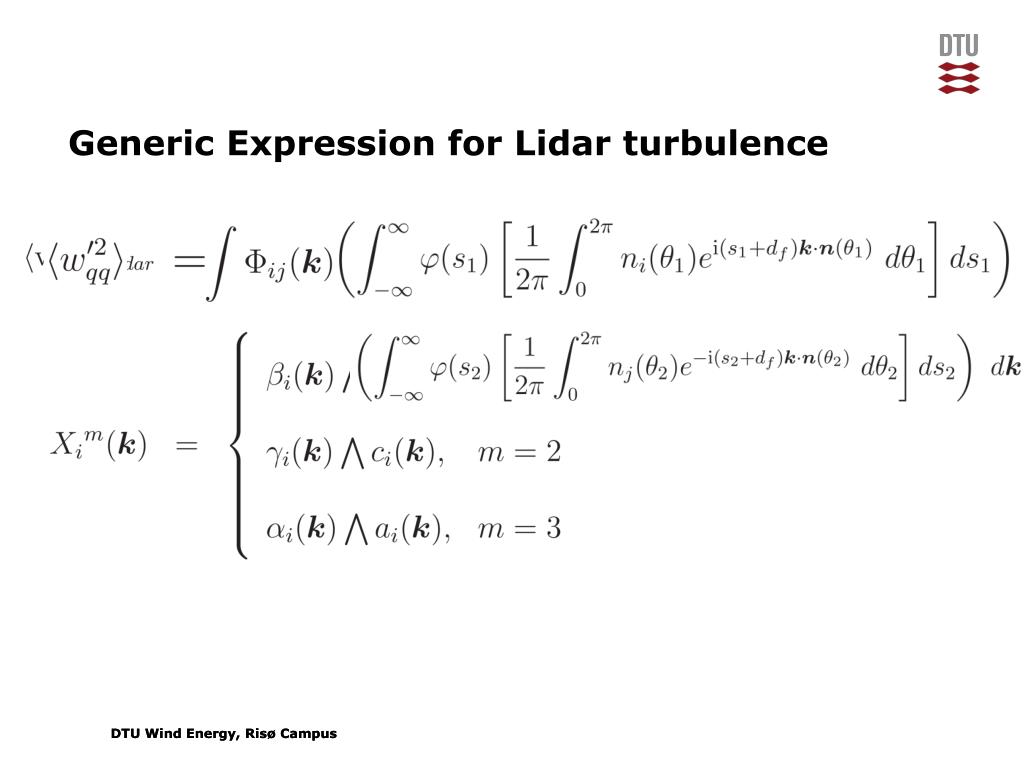

  9. Generic Expression for Lidar turbulence

  10. Lidarvs true turbulence measurement • True turbulence • Lidarturbulence –> m=1,n=1, i.e. u variance

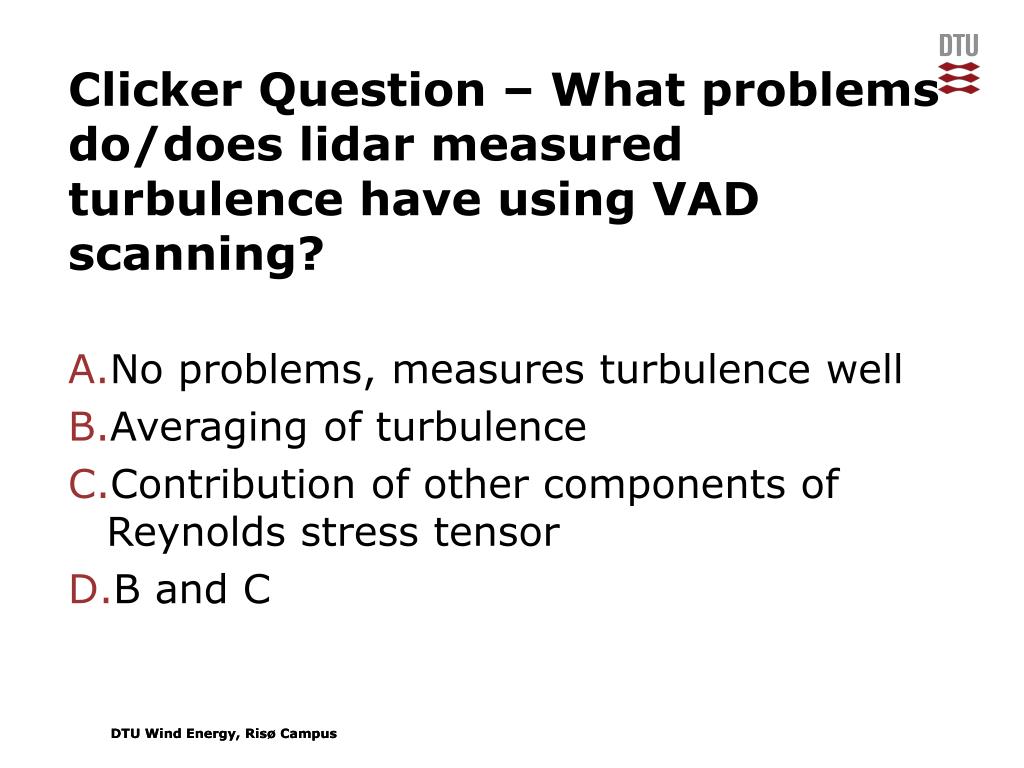

  11. ClickerQuestion – What problems do/doeslidarmeasuredturbulence have using VAD scanning? • No problems, measuresturbulencewell • Averaging of turbulence • Contribution of othercomponents of Reynolds stress tensor • B and C

  12. ClickerQuestion – Say, we have a perfectlidarthatmeasures at a point. What problems willthislidar have whilemeasuringturbulenceusing VAD scanning? • No problems, measuresturbulencewell • Averaging of turbulence • Contribution of othercomponents of Reynolds stress tensor • B and C

  13. TurbulenceSpectra definitions True autocovariancefunction

  14. Turbulencespectrameasured by lidars Lidarmeasuredautocovariancefunction Separation distance for the u-component • For detailed derivation

  15. Part IICan lidars measure turbulence?

  16. Comparison of the model and measurements – CW lidar Ideal case Model Measurements Neutral conditions

  17. Comparison of the model and measurements – CW lidar Ideal case Ideal case Model Model Measurements Measurements Stable conditions Unstable conditions

  18. Comparison of the model and measurements – Pulsed lidar Neutral conditions

  19. Comparison of the model and measurements – Pulsed lidar Stable conditions Unstable conditions

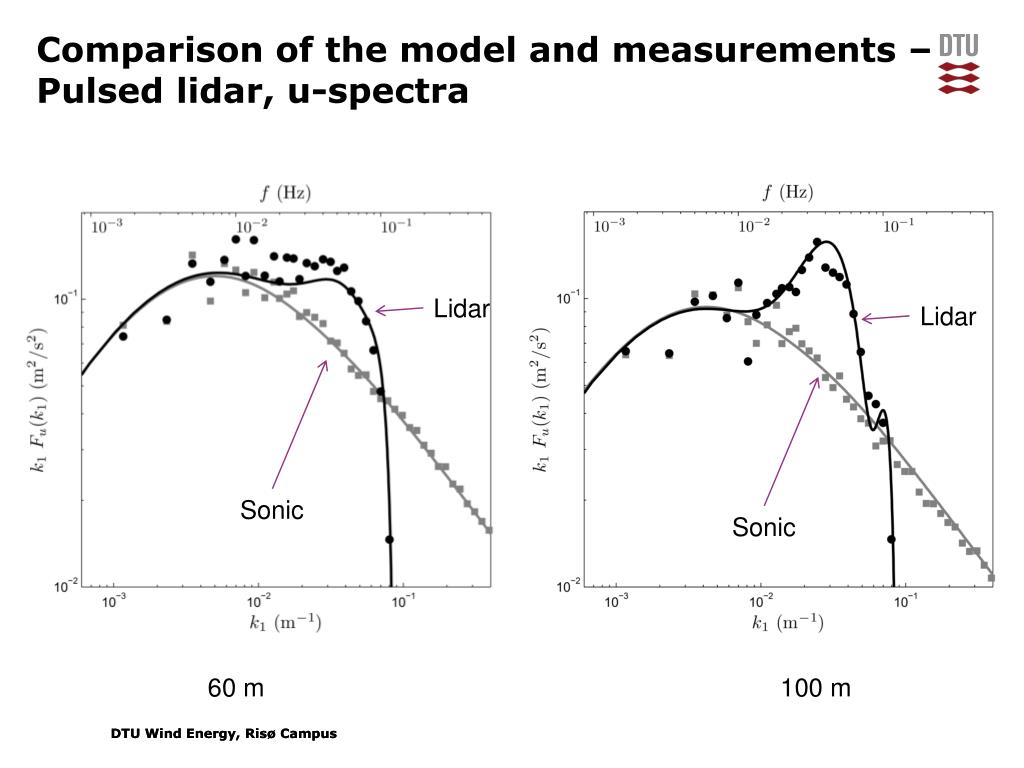

  20. Comparison of the model and measurements – Pulsed lidar, u-spectra Lidar Lidar Sonic Sonic 60 m 100 m

  21. Comparison of the model and measurements – Pulsed lidar, v-spectra Lidar Lidar Sonic Sonic 60 m 100 m

  22. Comparison of the model and measurements – Pulsed lidar, w-spectra Lidar Lidar Sonic Sonic 60 m 100 m

  23. ClickerQuestion – Canweretrieve true turbulence from the ratio • Yes • No • May be

  24. Part IIIHow can lidars measure turbulence?

  25. Basic Principles Recall !! In principle, only 6 beams are required to measure Reynolds stress tensor

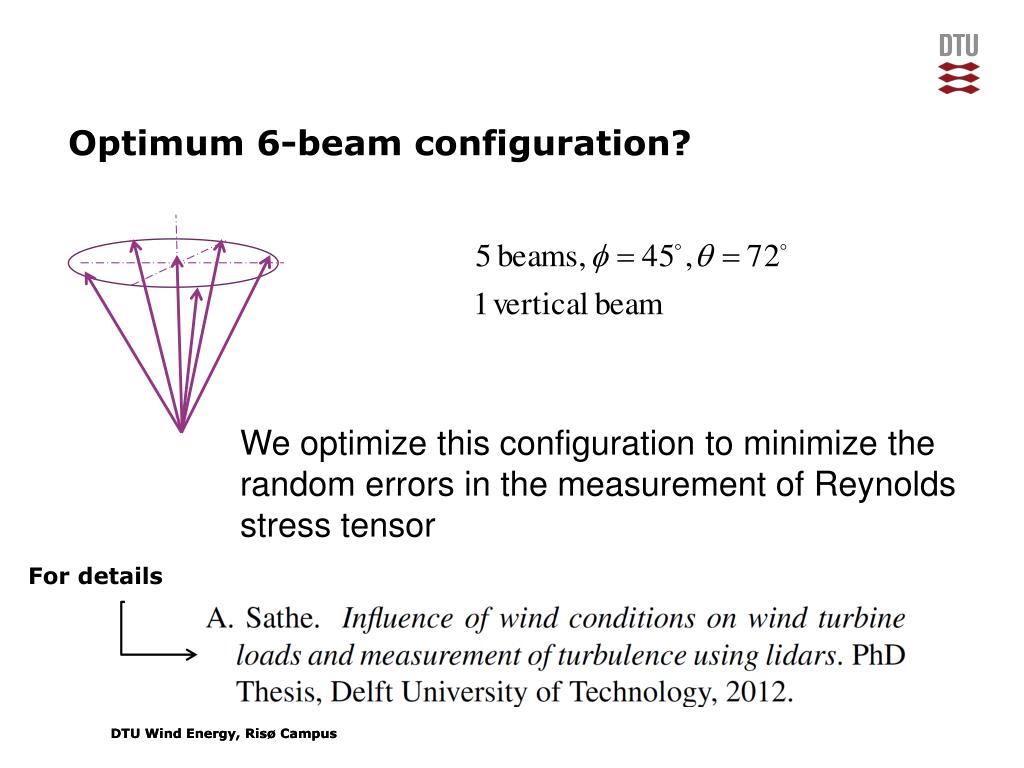

  26. Optimum 6-beam configuration? We optimize this configuration to minimize the random errors in the measurement of Reynolds stress tensor • For details

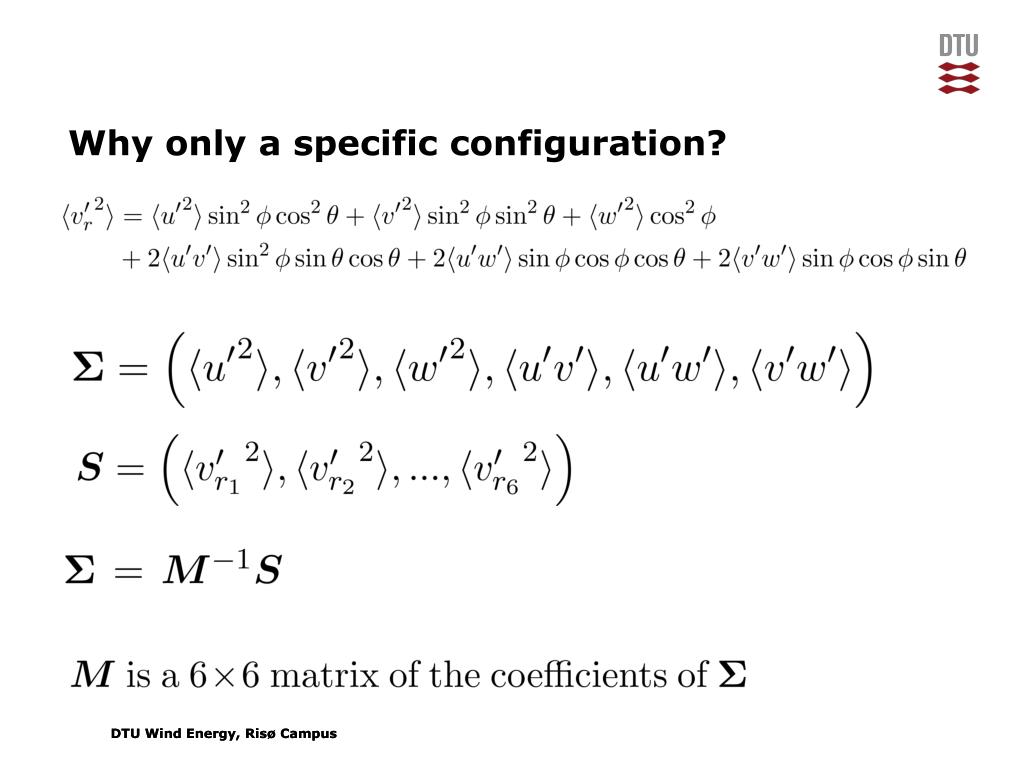

  27. Why only a specific configuration?

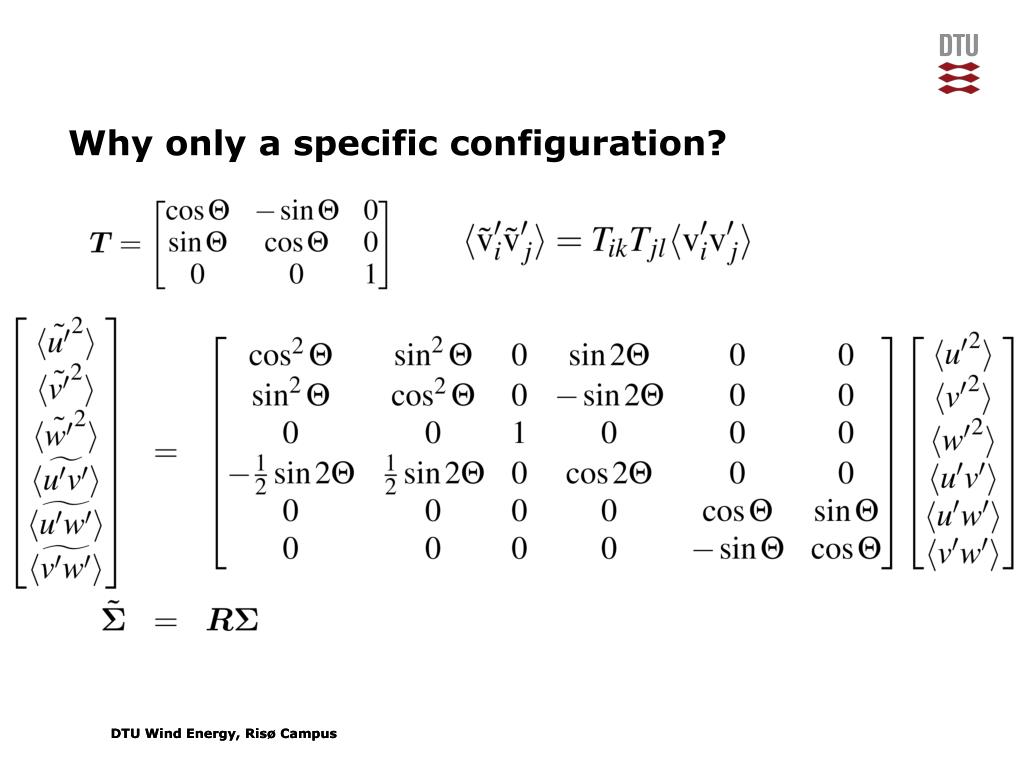

  28. Why only a specific configuration?

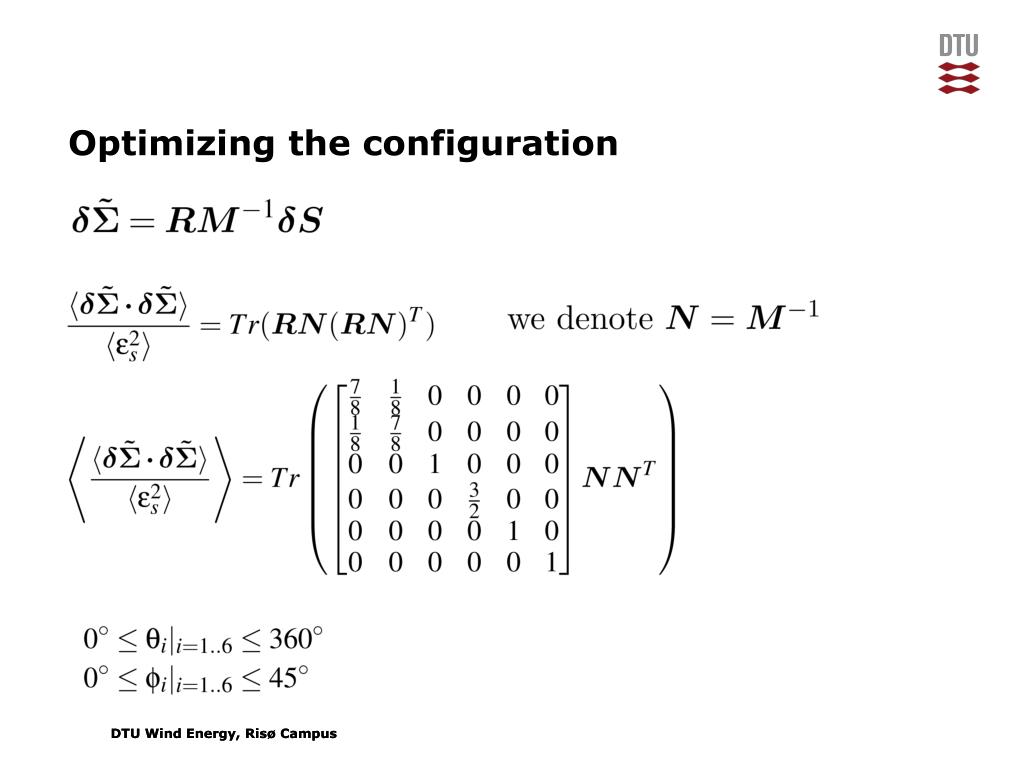

  29. Optimizing the configuration

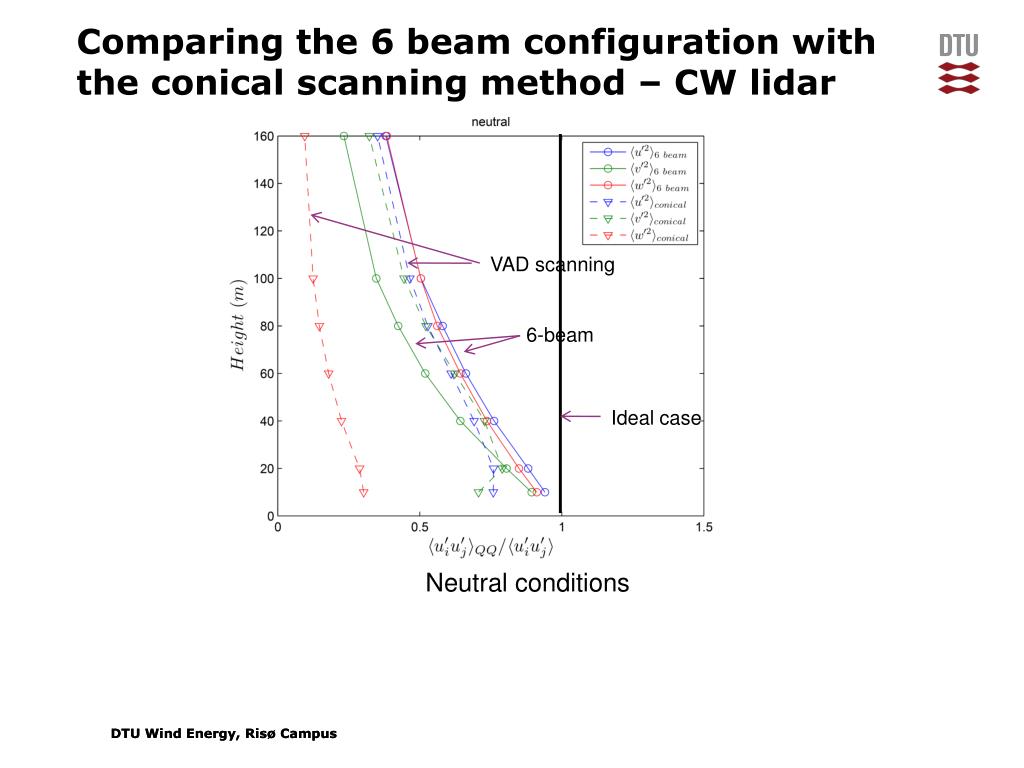

  30. Comparing the 6 beam configuration with the conical scanning method – CW lidar VAD scanning 6-beam Ideal case Neutral conditions

  31. Comparing the 6 beam configuration with the conical scanning method – CW lidar Ideal case Ideal case Unstable conditions Stable conditions

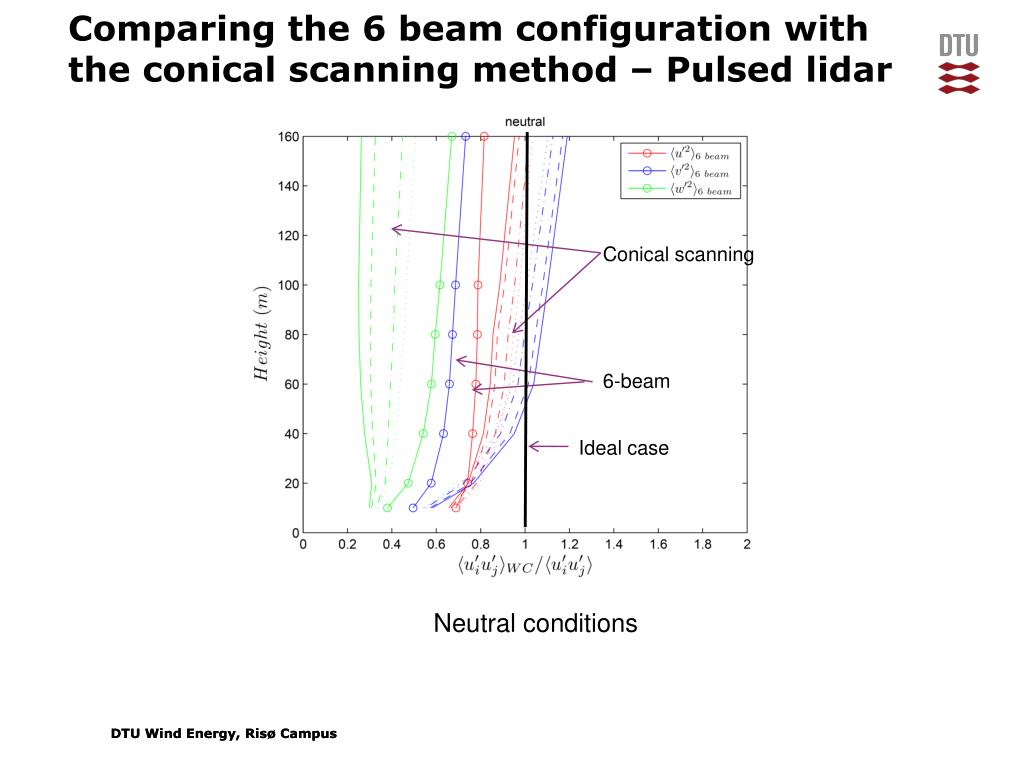

  32. Comparing the 6 beam configuration with the conical scanning method – Pulsed lidar Conical scanning 6-beam Ideal case Neutral conditions

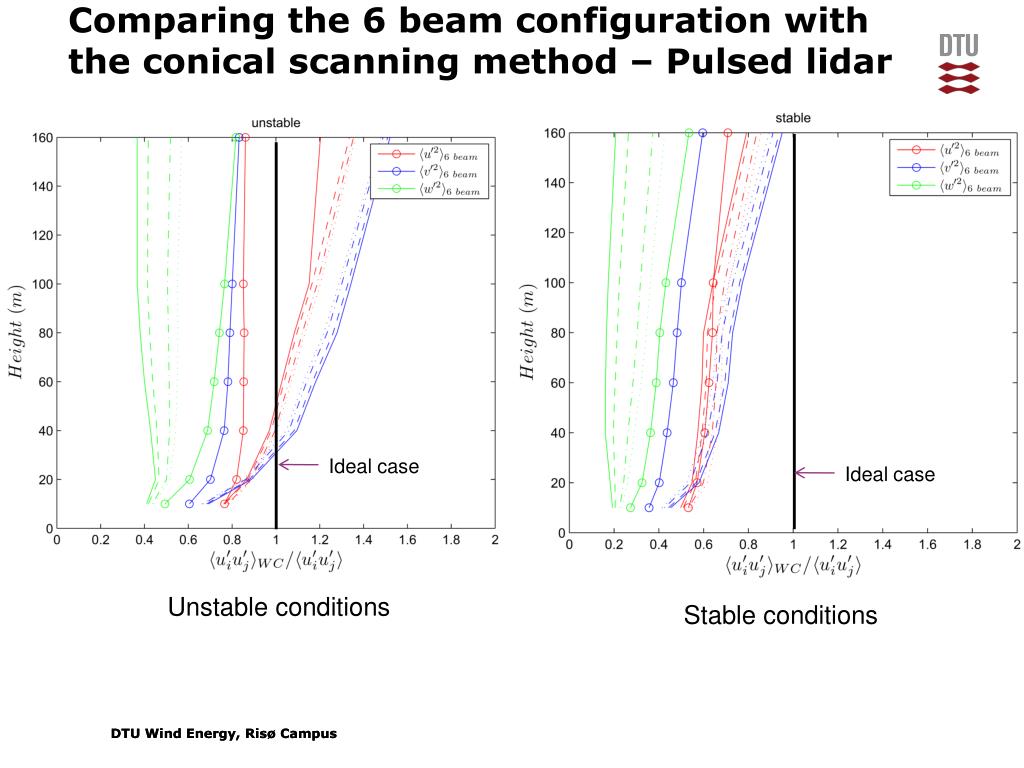

  33. Comparing the 6 beam configuration with the conical scanning method – Pulsed lidar Ideal case Ideal case Unstable conditions Stable conditions

  34. Summary • Howlidarsmeasure the Reynolds stress tensor under VAD scanning • Howlidarsmeasureturbulencespectra under VAD scanning • Twomechanismsareresponsible for large systematicerrorsusing VAD scanning: • Averaging in the probevolume • Contamination by othercomponents of the Reynolds stress tensor • If wewant to measureturbulence as per the standard definitions then VAD scanning should not beused • Sixbeammethoddoes not contaminateturbulencemeasurements, but averaging problem still remains Future work • 6-beam experiment planned at DTU Wind Energy, Risø Campus (but could be conducted elsewhere too!!) • Further data analysis to get rid of volume averaging

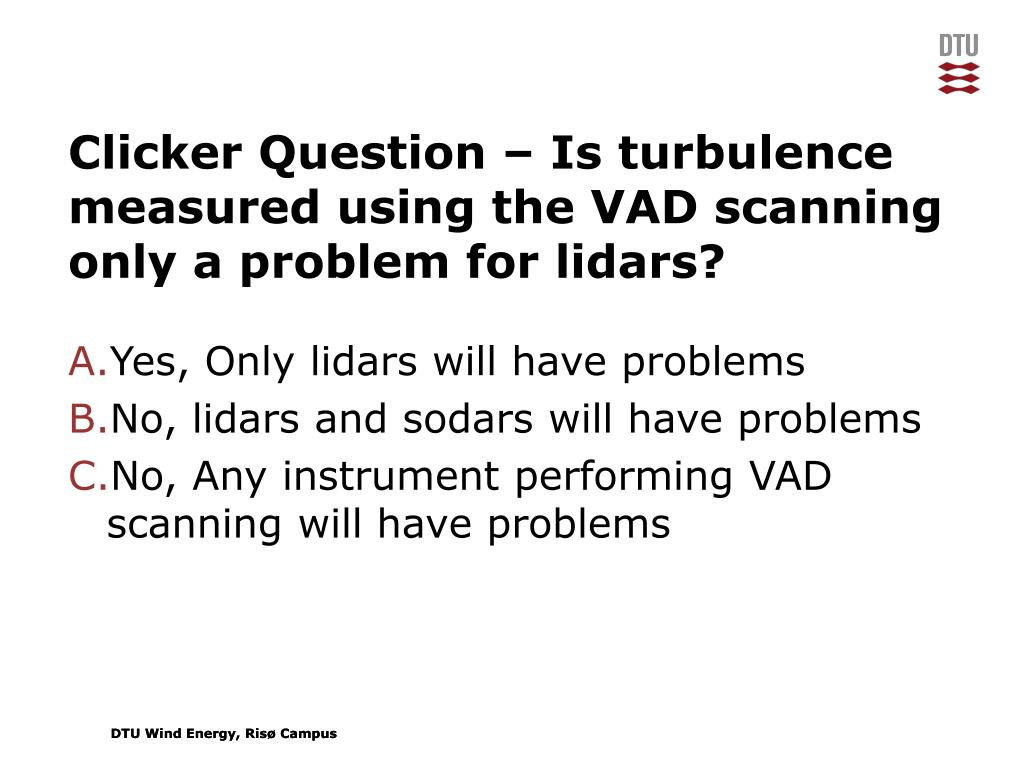

  35. ClickerQuestion – Is turbulencemeasuredusing the VAD scanning only a problem for lidars? • Yes, Onlylidarswill have problems • No, lidars and sodarswill have problems • No, Any instrument performing VAD scanning will have problems

  36. Thank youContact: amsat@dtu.dk
