  1. Mass Spec Auto Sampler Seth Yellin Kyle Sala Stephen Pearson Jake Ahrens

  2. Recap of Project • Mass Spectrometer Autosampler • Switched from needle puncture to direct tubing connection due to excessive costs and flow rate issues • Changed from heating plate to incubator, per MassSpec Research Group’s request

  3. Valving System • Operated and tested Solenoid Valves • Solenoids can overheat when operating current is too high (opening vs operating) • Power MOSFET (with extra components) design to reduce current through valves during extended use • CoolCube (“Hit and Hold”) • Diodes (Back EMF prevention) • This design was too costly(1 CoolCube = $40)

  4. Quad High Side Driver • Four independent outputs • Current reduction once switch is open (“sleep mode”) • Overheat shutoff • Designed for solenoids • Waiting for shipment…

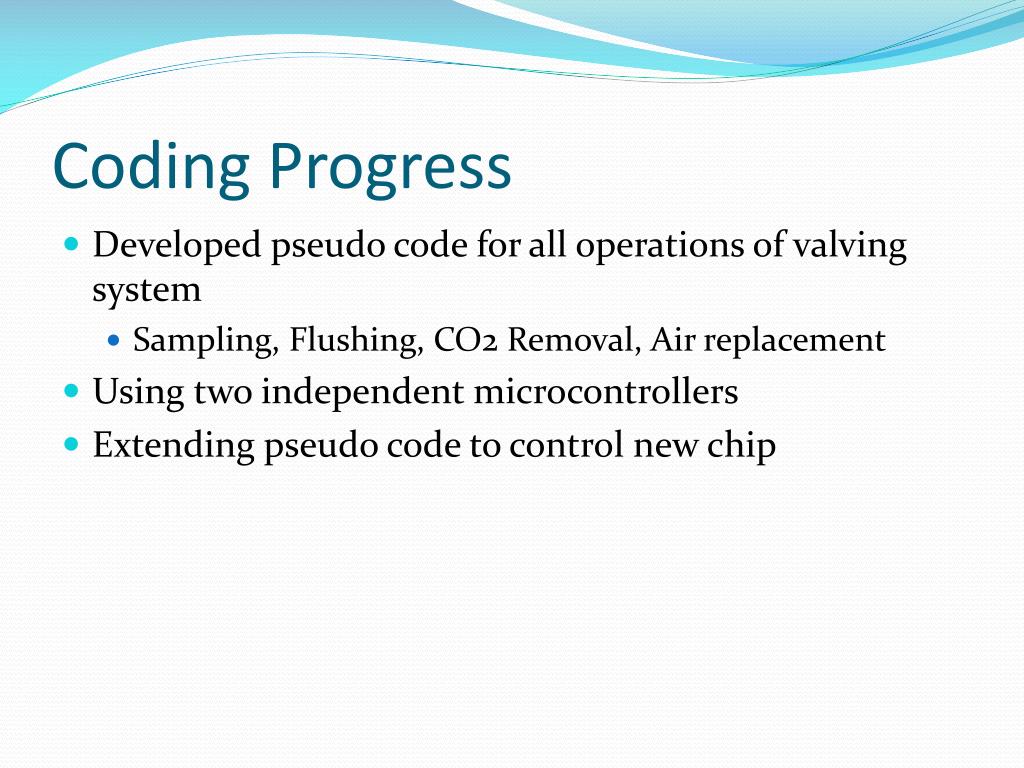

  5. Coding Progress • Developed pseudo code for all operations of valving system • Sampling, Flushing, CO2 Removal, Air replacement • Using two independent microcontrollers • Extending pseudo code to control new chip

  6. Incubator • Fisher Isotemp Incubator Senior Model (inside dimensions: 15”x 18” x 17”) • Maintain temperature at 37 degrees Celsius • Fit with magnetic stirrer and nine bottles • Feed tube and power cords inside and out via air duct on top • Valves and tubing positioned and fastened on the top shelf

  7. Magnetic Stirrer • Digital Multi-Position Stirrer, 9 positions, 230V 50/60Hz • Speed range 60 to 1400 rpm • Overall dimensions: 17” x 11” x 4” • Glass filled nylon top plate that is chemical resistant • Stirring function, with continuous duty motor and magnet, maintains set speed even under changing load or viscosity

  8. Questions?
