Presentation Transcript

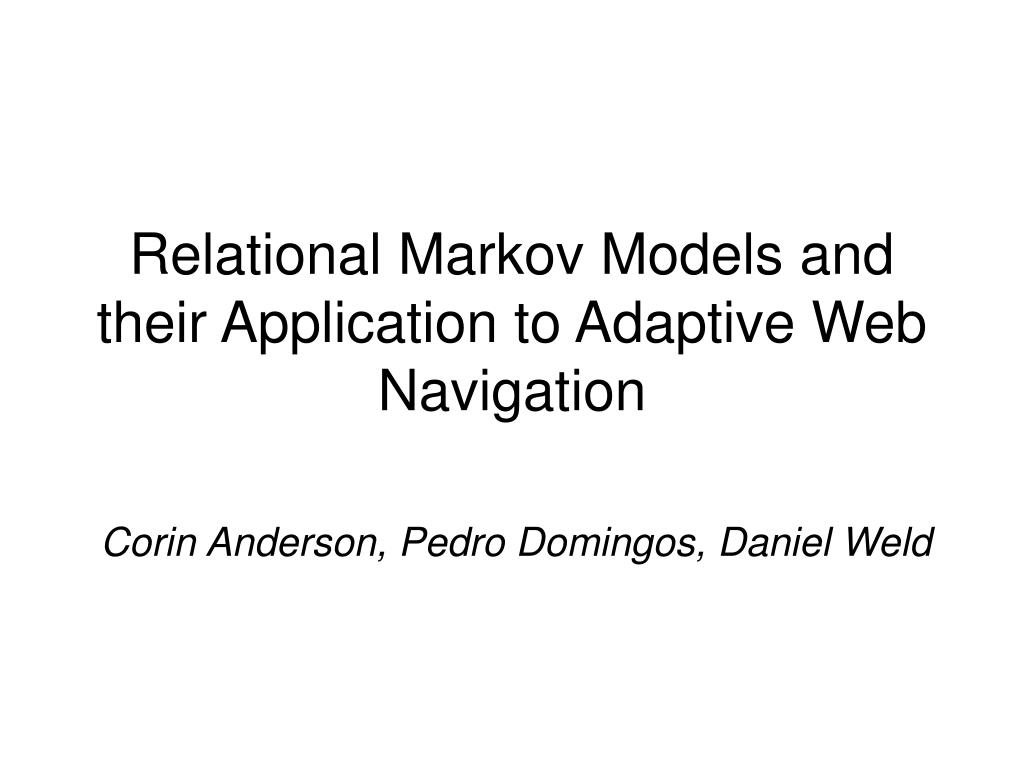

  1. Relational Markov Models and their Application to Adaptive Web Navigation Corin Anderson, Pedro Domingos, Daniel Weld

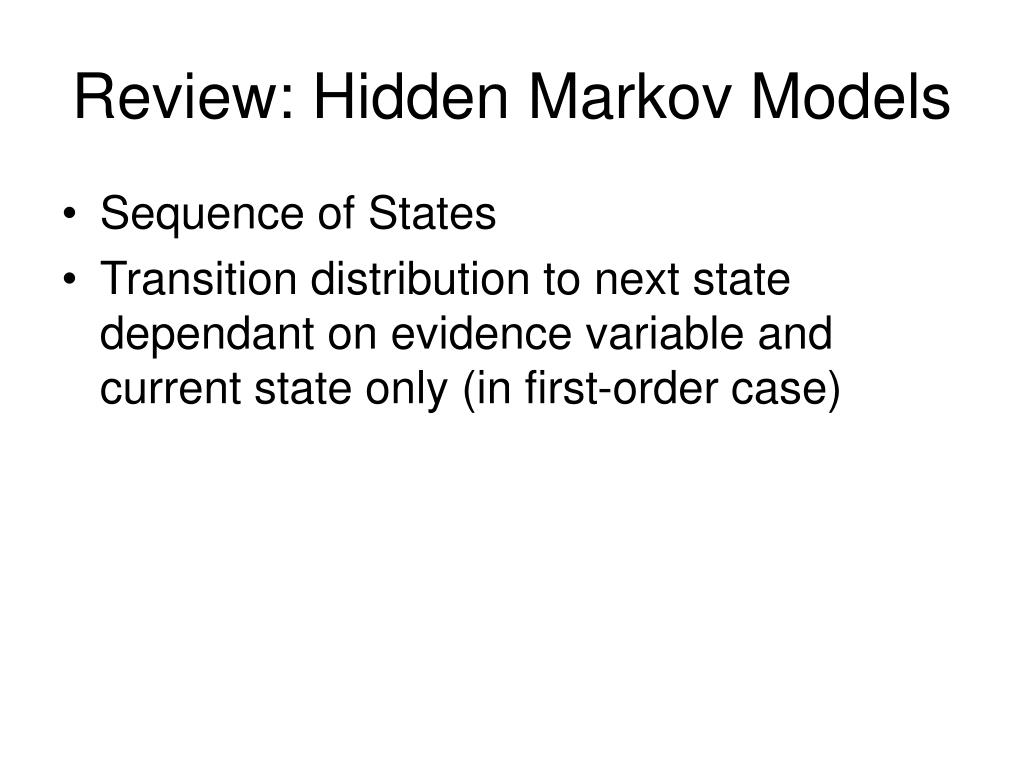

  2. Review: Hidden Markov Models • Sequence of States • Transition distribution to next state dependant on evidence variable and current state only (in first-order case)

  3. DBNs: A Step Up • Multiple nodes at each state in the sequence • “Object-oriented” view

  4. Complaint 1: Too General! • Absolute restriction imposed on structure of state • Could individual state structure be exploited? • Adopt “Polymorphic” view

  5. Complaint 2: Not General Enough! • Accurate probability estimation difficult with sparse data • P(Mac_instock|mainpage) = 0 • P(apple|mainpage) = 0.375 Web log for pages linked from main_page.html

  6. Solution: RMM • Represent sets of states as a relation (predicate) with instantiations of the relation defining specific states • E.g. – product_page(mac, in_stock) main_page() • Transitions can now occur from sets to sets and sets to states

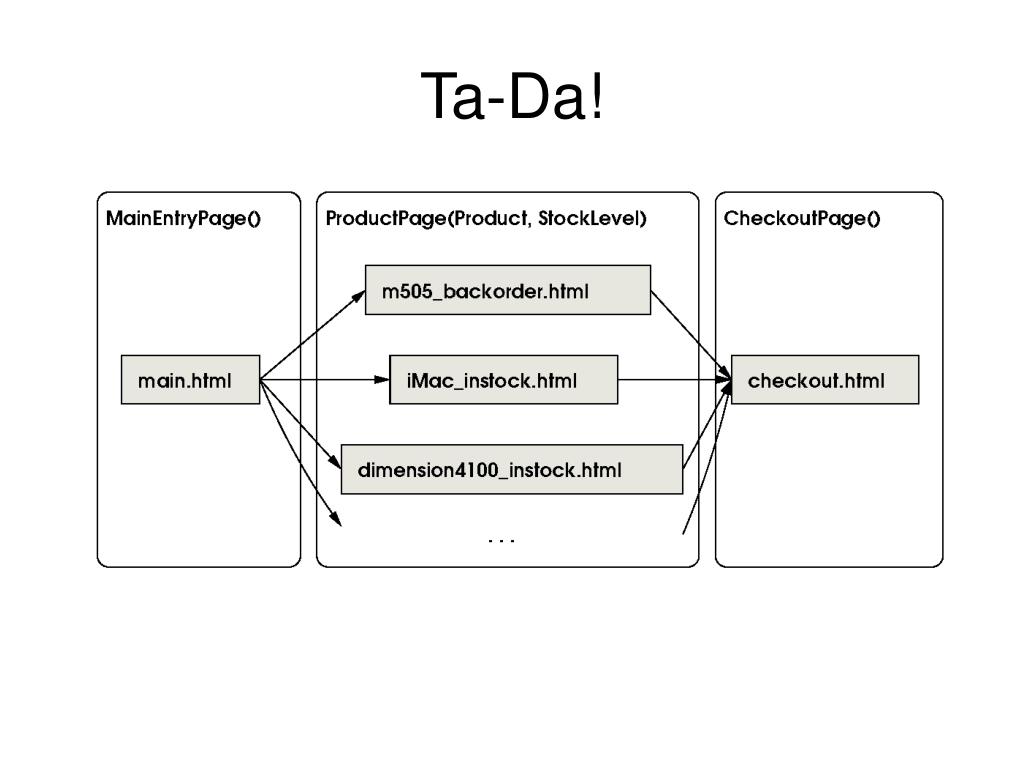

  7. Ta-Da!

  8. Going further . . . • Using predicates defines a basic hierarchy over the state space • Why not impose further structure within each predicate argument? • Tree leaves correspond to unique arguements

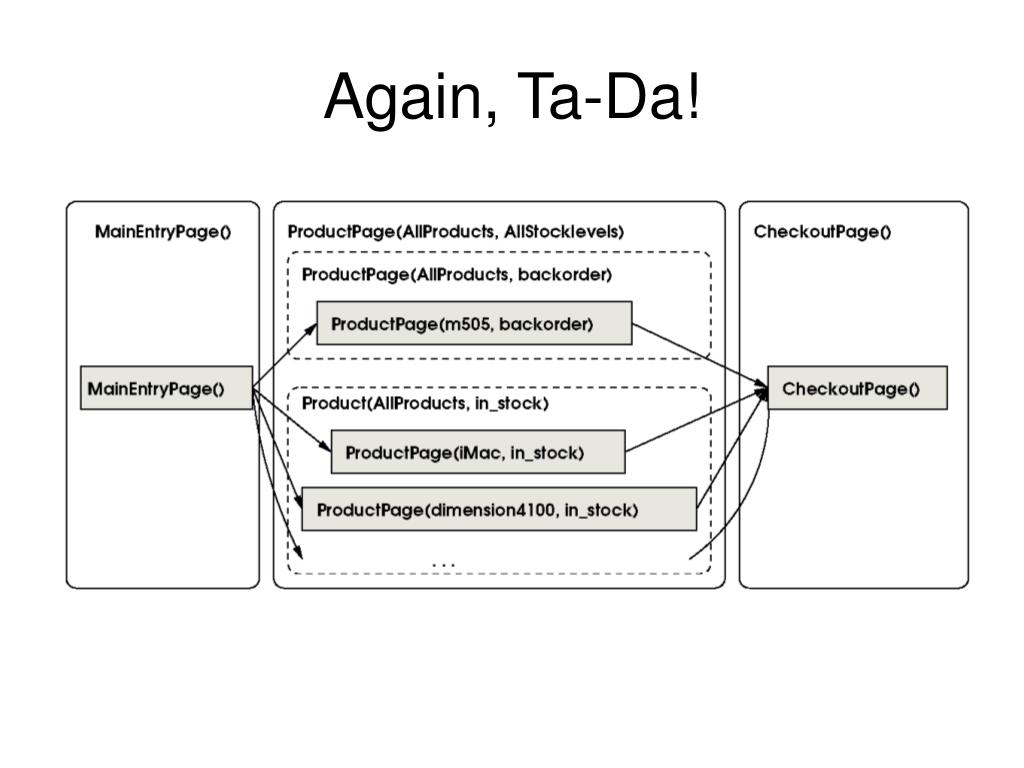

  9. Again, Ta-Da!

  10. Sets of sets • Define the set of abstractions of a given state q = R( . . .) to be a set of states such that each argument to R in the abstraction is an ancestor to the corresponding argument in q. • More Formally (scientists love fancy math): R – The relation, Q – set of all possible instantiations of R d – possible arguments, D – the tree of a particular type of argument, delta – the arguments to the predicate for the given state q.

  11. Learning with Abstractions • Transitions between a state and an abstraction: • In practice, we can just count instances in the data. Where a is a transition matrix, q is a ground state (individual state), and alpha and beta are abstracted arguments.

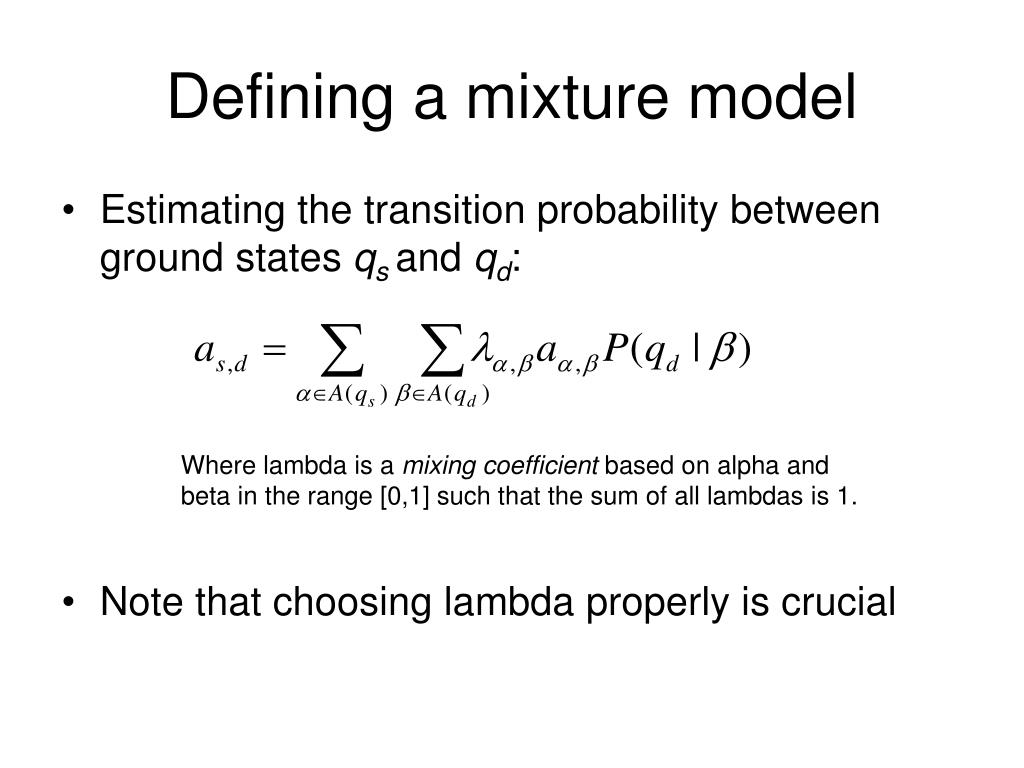

  12. Defining a mixture model • Estimating the transition probability between ground states qs and qd: • Note that choosing lambda properly is crucial Where lambda is a mixing coefficient based on alpha and beta in the range [0,1] such that the sum of all lambdas is 1.

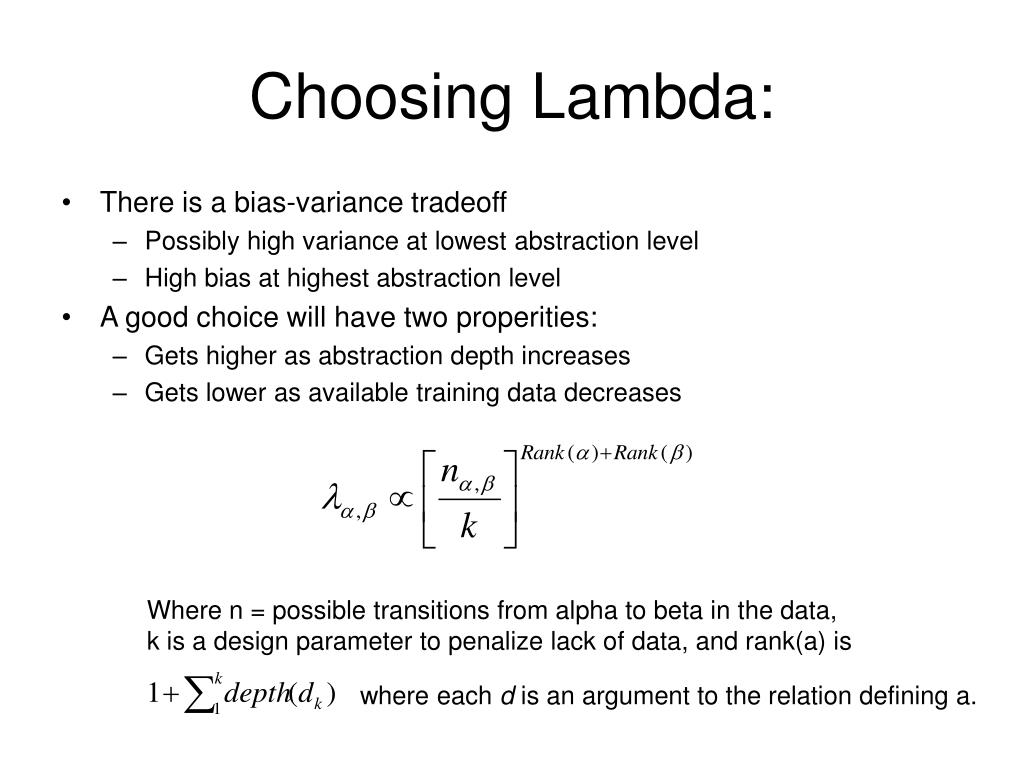

  13. Choosing Lambda: • There is a bias-variance tradeoff • Possibly high variance at lowest abstraction level • High bias at highest abstraction level • A good choice will have two properities: • Gets higher as abstraction depth increases • Gets lower as available training data decreases Where n = possible transitions from alpha to beta in the data, k is a design parameter to penalize lack of data, and rank(a) is where each d is an argument to the relation defining a.

  14. Probability Estimation Tree • With deep hierarchies and lots of arguments, considering every possible abstraction may not be feasible • Learn a decision tree over possible abstractions • To the left is the tree for the page Product_page(mac, in_stock)

  15. Empirical Evaluation • How well do the various flavors of RMM (RMM-uniform, RMM-Rank, RMM-PET) compare to traditional MMs? • Analyzed several web logs in various domains. • Tried to predict transition probabilities between pages using varied amounts of training data.

  16. Results 1: KDDCup 2000

  17. Results 2: CSE 142

  18. Related Work: The Cube • Exploiting structure within RMM states (DPRM)

  19. Fin.
