  1. Apron Markings By Gerhard Gruber Manager Rescue- and Airport Operations

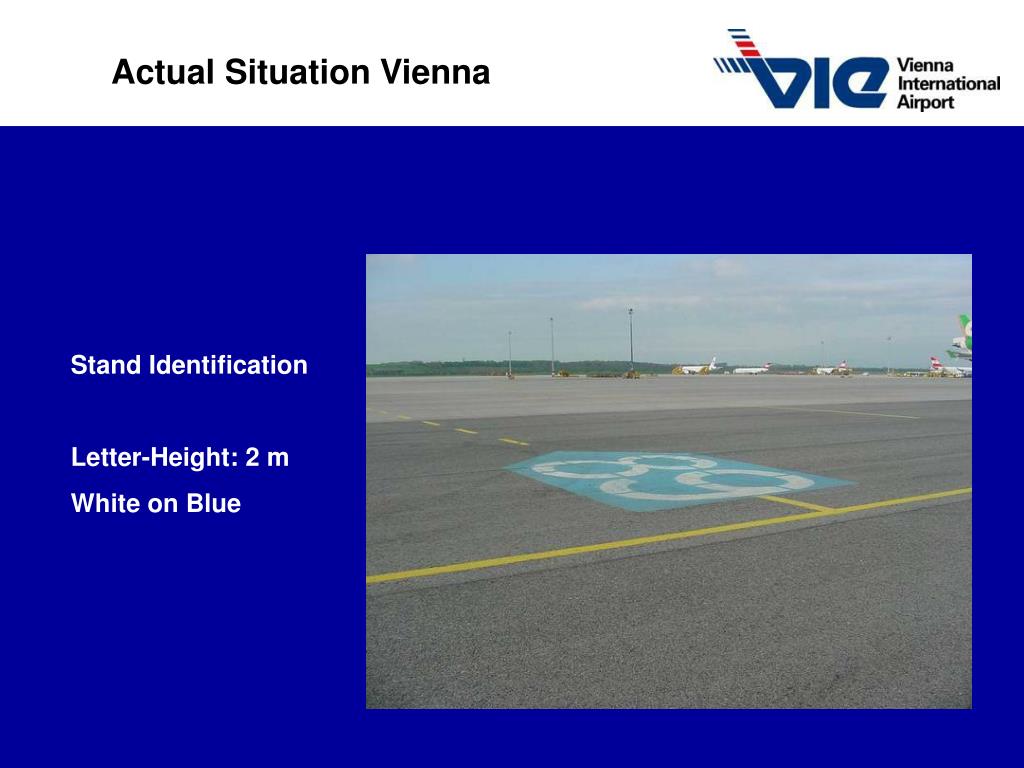

  2. Actual Situation Vienna Stand Identification Letter-Height: 2 m White on Blue

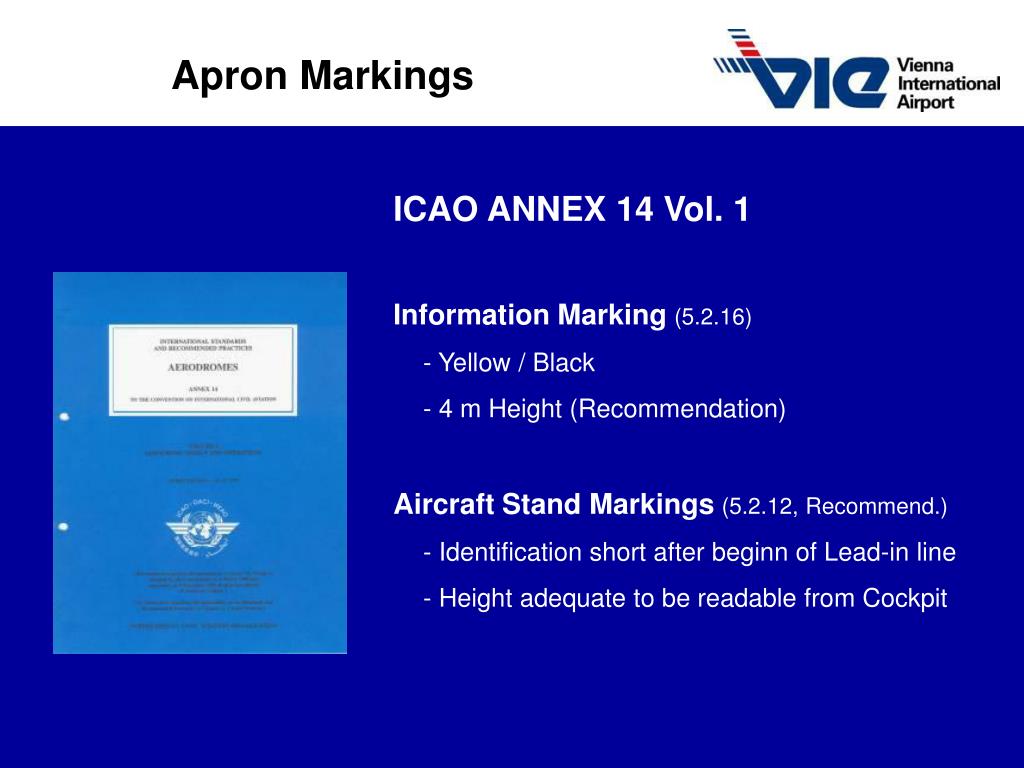

  3. Apron Markings • ICAO ANNEX 14 Vol. 1 • Information Marking (5.2.16) • - Yellow / Black • - 4 m Height (Recommendation) • Aircraft Stand Markings (5.2.12, Recommend.) • - Identification short after beginn of Lead-in line • - Height adequate to be readable from Cockpit

  4. Aircraft Stand MarkingsACI - Handbook

  5. Aircraft Stand MarkingsACI - Handbook CAT I CAT I

  6. Apron MarkingsOther Airports Questionaire Answers:

  7. Questionnaire Answers - Summary 12 Responses - 10 Europe (including Vienna), 1 Asia, 1 USA Letter-Height:2 Airports: 4 m (ACI / ICAO) 10 Airports: 1 to 2,7 m Ttl Height of Painting: 2 Airports: 5 m (ACI / ICAO) 8 Airports: 1,5 to 4,4 m Colour:6 Airports: black on white 3 Airports: white on blue

  8. Apron MarkingsExamples (Spain) Variable 2 – 4m Height 2m Height

  9. Apron MarkingsExamples (Swiss) Small, 1m Height, Commuter Large, 2.5m Height, Widebody‘s

  10. Apron MarkingsOther Airports Rome – FCO (Dassault Falcon 900)

  11. Apron MarkingsOther Airports Munich (B737)

  12. Apron MarkingsOther Airports Dallas (B767)

  13. H h L D Apron MarkingsGeometry Projection Situation

  14. Taxiway-Signs

  15. Taxiway-/Apron Markings

  16. Apron Markings How it should be ICAO – Annex 14 Appendix 3
