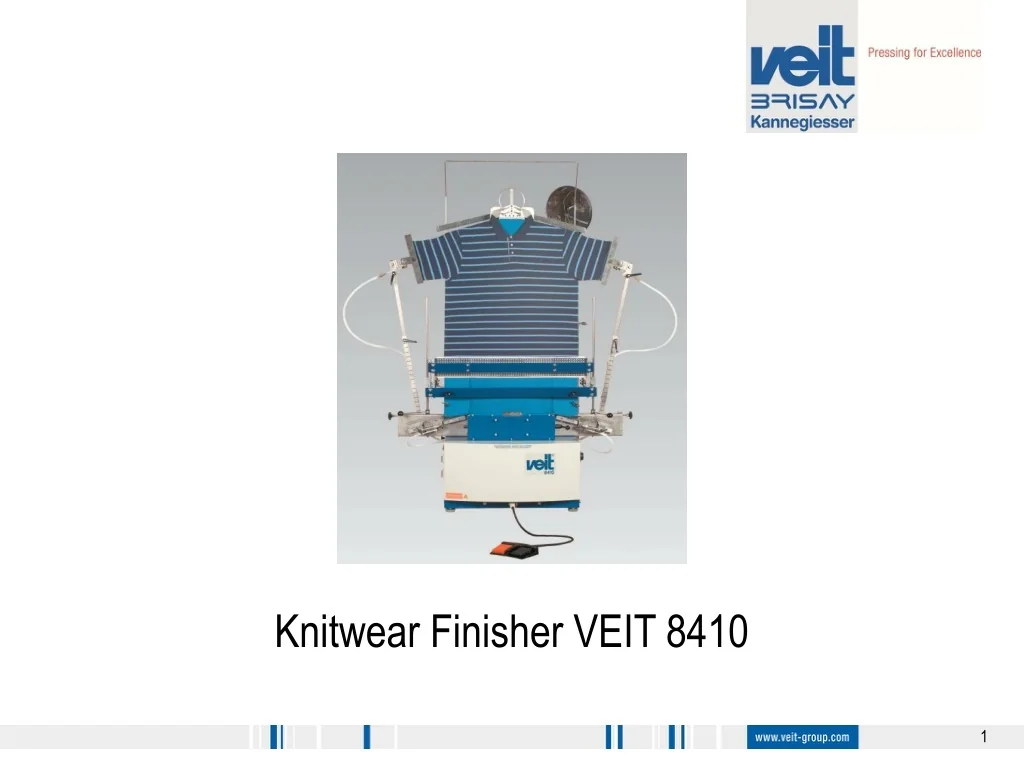

  1. Knitwear Finisher VEIT 8410

  2. Major Problems in the Garment Pressing Section • Non-availability of skilled labour • Cost of Labour • Cost of Electricity • Running cost of Power Genset • Cost of Space • Variations in Pressing Quality • Pressing Marks or Shinning marks

  3. VEIT Model 8410 Polo/ Sweater Finishers AND/OR Form Finisher for Sweater & Cardigans Form Finisher for T-shirts/ Polo Shirts

  4. Scale for Side Measurement Device for Blocking Collar Back Knob to open and close the clamps Device to Set the Size Device to measure garments length Device to measure shoulder length

  5. Optional: Half Sleeve Device Long Sleeve Device Support for Garment Loading Back Mirror Front Placket Holding Device Device for Bottom Pressing

  6. Timer for Air Blowing Time Timer for Steaming Time Thermostat for Steam Re-heating Sequential Programmed Pedal Air Flow Regulator Extra Steam Pedal Power Switch On/ Off Pressure controller Sleeve Clamp Pressure controller Sleeve Clamp

  7. Our Clientele Directly/ In-directly our machines have been used by many popular brands/ labels viz., Polo Ralph Lauren Adidas Zara Blue Mount Indian Terrain GSUS Van Heusen Reebok Arrow - USA Sportsking Espirit Tom & Tailor Bennetton Levis IZOD F O R C A S T Allen Solly Woolways Marks & Spencer G H B A S S Quick Silver Nautica EDC - Germany Ann Taylor Calvin Klien Zannier Otto - Germany F C U K Peacoks - UK Numero Uno Mexx C A G Oxford May Dept. Store

  8. Technical Details 2330 mm • Technical Details: • Electricity: 200V/1Ph/50Hz • Power : 2.00 Kw • Steam : 15-25kgs/ Hr - 6 bar • Com. Air : 1 Ltr/Min - 6 bar 1960 mm 772 mm 352 mm Rear View Lateral View

  9. Your Advantages • Substantial HIGH PRODUCTIVITY– increased output up to 55 Sweaters or 85 T-shirts per Hour with a single machine • No skilled operators are necessary due to the easy operation of the machine • Consistent HIGH QUALITY for all garments • Automatic seam clamping saves times with the placement of the garments • Adjusts quickly and easily to various styles and sizes • Heat Setting of garment’s size and shape. • Sizing is accurately controlled to exact body width and length specifications – avoiding extra operation of size checking • Big saving of Space, Electricity and Steam • Better work management
