  1. MUST HAVE SHOULD HAVE COULD HAVE Module # 140

  2. Practical Class Exercise’s, 2nd session • Objectives: • Know how to: • Setup a Flowmeter • add Channel based on a Flowmeter • Add and configure a Flowmeter based MP • Add and configure LIW MP • Add and configure Dump to Empty MP • Use the above Material Paths to do Feeds • Reference: Qi Technical manual.doc • Ch 3 – Flowmeter program block • Ch 4 – Flowmeter • Ch 4 – Assign Channels • Ch 4 – Configure Material Paths

  3. Class Exercise #1 – Setup a Flowmeter • Via the Flowmeter Button Configure Flowmeter (K) • Verify Flowmeter is functioning • How ? :Switch to the Flowmeter Channel and manually add water, check to see that the Qi display is counting. • Via the PAC Button Add a Flowmeter based Channel, use Channel 3 • Reference: Qi Technical manual.doc • Ch 3 – Flowmeter program block • Ch 4 – Flowmeter • Refer to next slides after your own attempt.

  4. A Configured Flow meter • A correctly configured Flow meter example

  5. Example of Flowmeter based Channel • Note: Some parameters are Instrument capacity dependent

  6. Class Exercise #2 • Add MP2, GIW & SPILL only • PAC >> Material Paths • Enter required MP number • Configure all Parameters • TIP: Save this page as : “Defaults” then this page can be loaded and edited • Do some Feeds using this Material Path (refer Module 090) • Check that Feeds are error free with a green screen • Example follows on next slide. Try on Own first

  7. A Configured MP2

  8. Class Exercise #3 • Add MP3, LIW & Dump to Empty • PAC >> Material Paths • Enter required MP number • Configure all Parameters • TIP: load previously saved “Defaults” and edit • Do some Feeds using this Material Path (refer Module 090) • Check that Feeds are error free with a green screen • Example follows on next slide. Try on Own first

  9. A Configured MP3

  10. Class Exercise #4 • Add MP4, LIW & K1 • PAC >> Material Paths • Enter required MP number • Configure all Parameters • TIP: load previously saved “Defaults” and edit • Do some Feeds using this Material Path (refer Module 090) • Check that Feeds are error free with a green screen • Example follows on next slide. Try on Own first

  11. A Configured MP4

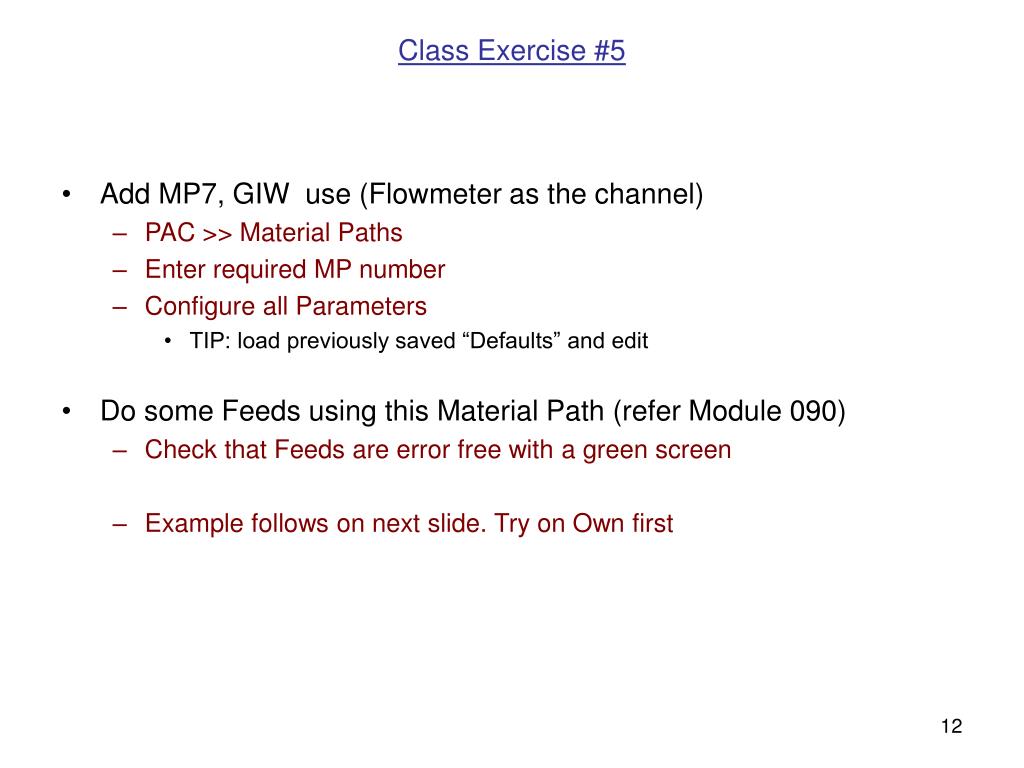

  12. Class Exercise #5 • Add MP7, GIW use (Flowmeter as the channel) • PAC >> Material Paths • Enter required MP number • Configure all Parameters • TIP: load previously saved “Defaults” and edit • Do some Feeds using this Material Path (refer Module 090) • Check that Feeds are error free with a green screen • Example follows on next slide. Try on Own first

  13. A Configured MP7

  14. Review Questions • Can you add a Material Path while still in “Run Mode” ? • Can you edit a Material Path while still in “Run Mode” ? • What are the Four Material Path “Feeder Types” ? • Bonus Questions • What is the meaning of the “Assembly Slot” number that is found on the Channel Setup Page? ? • Can it be edited
