  1. RADIO ALL IN ONE DIGIPLEXER 214

  2. The DIGIPLEXER 2/4 is the first multi-feature broadcast equipment that integrates: • 2 or 4 bands of Audio Processing for FM, HD, DAB, Internet • Dynamic RDS Encoding • Embedded Audio Backup • I/O Remote Control “Designed in partnership with the Audio Gurus from Sound4”

  3. Summary • General architecture • New Digiplexer range • Main features • Hardware features • Communication • Conclusion

  4. GENERAL ARCHITECTURE

  5. General architecture – On the transmitter site Use Digiplexer 2/4 as a backup processor (i.e. 2 band version) or main one (i.e. 4 band). Guarantee your audio with the Input/Output management and the embedded Audio Backup. Create high quality signals: Audio, RDS, MPX. Keep total control of the site with the I/O Remote Control functions and ScriptEasy Software.

  6. General architecture – In the Studio Use the Digiplexer 2/4 as a main Audio Processor at a Studio. Process the sound for any format (FM, Web stream, HD radio…) Encode your RDS data locally. Configure a Monitor Audio Output for local listening.

  7. General architecture – Studio and Tx sites Use the Digiplexer 2/4 as your main audio Processor at the Studio. (i.e. 4 band version) Use a 2 band version at each transmitter site to generate consistent high quality signals (MPX, RDS…) Configure each Digiplexer 2/4 remotely via TCP/IP. Use various user access levels.

  8. NEW DIGIPLEXER RANGE

  9. Product range AUDEMAT-AZTEC high end range with innovative features: • DIGIPLEXER 2/4 (2 or 4 band versions - 1 rack unit) SILVER range (Audio Processing with Stereo Encoding) • Silver Audio Processor 6B-FM • Silver Audio Processor 4B-FM • Silver Audio Processor 4Bmini-FM • Silver Stereo Encoder Silver Audio Processors are also available in AM and HD versions

  10. Product range • The DIGIPLEXER 2/4 can be upgraded: • 2-bands version  4-bands version • RDS Encoding BASIC  FULL • Easy updates by Patch (TCP/IP)

  11. MAIN FEATURES

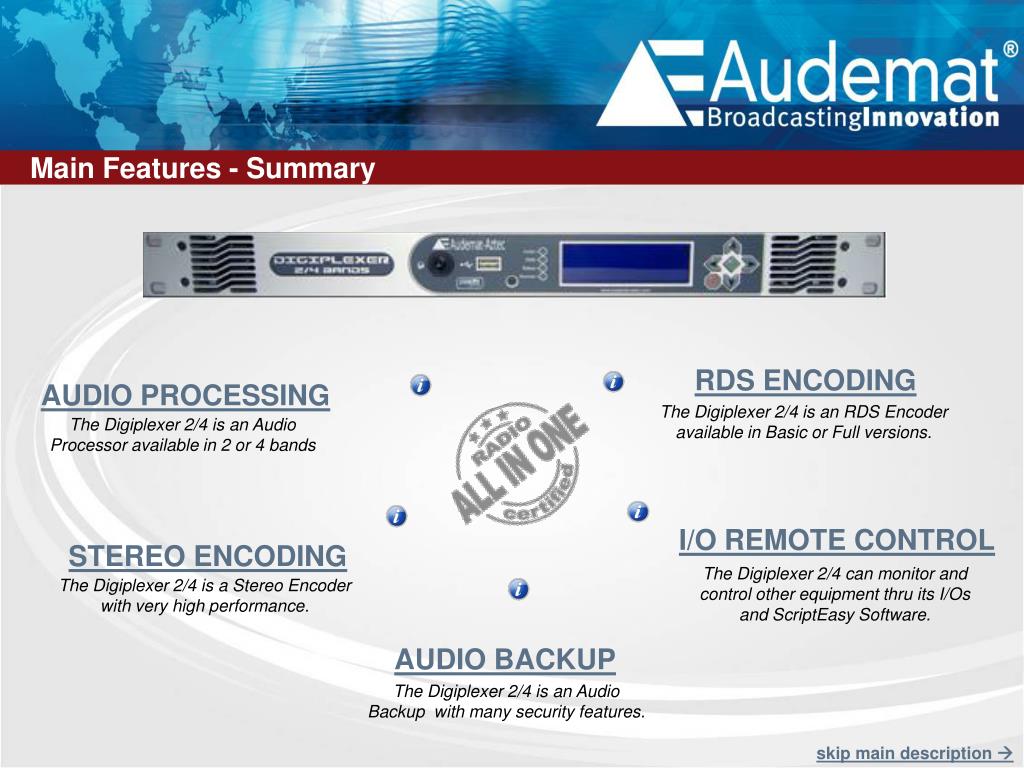

  12. Main Features - Summary RDS ENCODING AUDIO PROCESSING The Digiplexer 2/4 is an RDS Encoder available in Basic or Full versions. The Digiplexer 2/4 is an Audio Processor available in 2 or 4 bands I/O REMOTE CONTROL STEREO ENCODING The Digiplexer 2/4 can monitor and control other equipment thru its I/Os and ScriptEasy Software. The Digiplexer 2/4 is a Stereo Encoder with very high performance. AUDIO BACKUP The Digiplexer 2/4 is an Audio Backup with many security features. skip main description 

  13. AUDIO PROCESSING

  14. Audio Processing – User Interface • Friendly and intuitive user interface shows all parameters in 1 page. • Diagram of the processing structure shows audio I/O states(In use, fault, back up…) • Customizable Bargraph displays

  15. Audio Processing – General features

  16. Audio Processing – General features • Digiplexer 2/4: the first processor that operates at : • 192 kHz sample rate for main processing stages • 1.5 MHz sample rate for the final limiter • Processing delay is non-audible (less than 5ms). • A high pass filter can be set from 1 to 200Hz in order to control sub bass.

  17. Audio Processing – Automatic Gain Control • Predictive AGC (Automatic Gain Control): • Corrects large audio level variations (up to 30dB) • Without any pumping effect • With a Gatefunction The AGC will not increase the level in case of silence (configurable threshold)

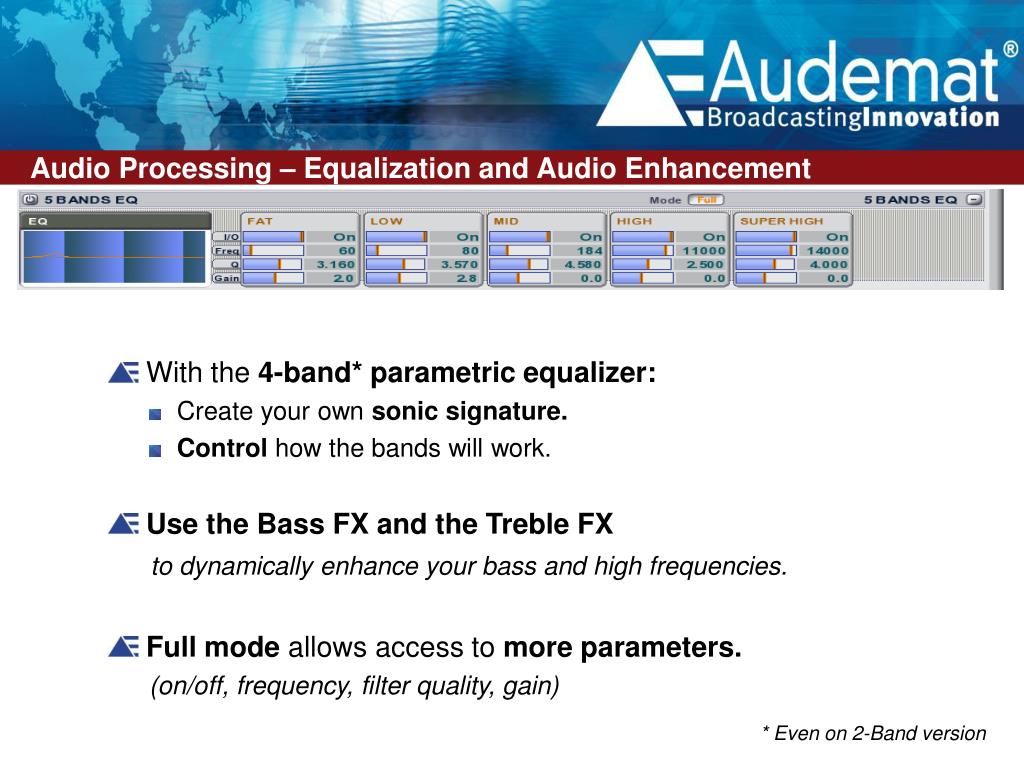

  18. Audio Processing – Equalization and Audio Enhancement • With the 4-band* parametric equalizer: • Create your own sonic signature. • Control how the bands will work. • Use the Bass FX and the Treble FX to dynamically enhance your bass and high frequencies. • Full mode allows access to more parameters. (on/off, frequency, filter quality, gain) * Even on 2-Band version

  19. Audio Processing – Stereo Enhancement • Stereo FX • Enhance your audio’s stereo effect. • A Stereo Limiter insures reception stability by controlling the L-R MPX signal – minimal multipath effects.

  20. Audio Processing – 2 or 4 Bands Process • Multi-Band Processing • A unique algorithm controls the gain for each band. • ‘Fidelity’ parameter enables control of audio coloration. (Purist / Processed) • Sound Impact System - a revolutionary algorithm to preserve dynamic and peak attack perception. • Use easy mode, or fullmode to access more parameters.

  21. Audio Processing – 2 or 4 Bands Limiter • Multi-band Limiter • Predictive function guarantees perfect peak control without the weaknesses of standard limiters. • Mix function enables control of the balance between each band. • Use easy mode, or fullmode to access to more parameters

  22. Audio Processing – Final Limiters • HF limiter controls HF energy • FM limiter is a revolutionary 1.5 MHzclipper(older processors work at 768kHz) • A clipper that works at 1.5MHz, a sampling rate never reached before! • Virtual Composite Clipper • HD limiter for high qualitydigital applications (HD, DAB, DRM, Webstream...) • Look ahead limiter • Low processing delay (5 ms)

  23. Audio Processing – Final Limiters • Both peak processing paths can be used at the same time: • FM limiter for FM applications • HD limiter for digital radio applications

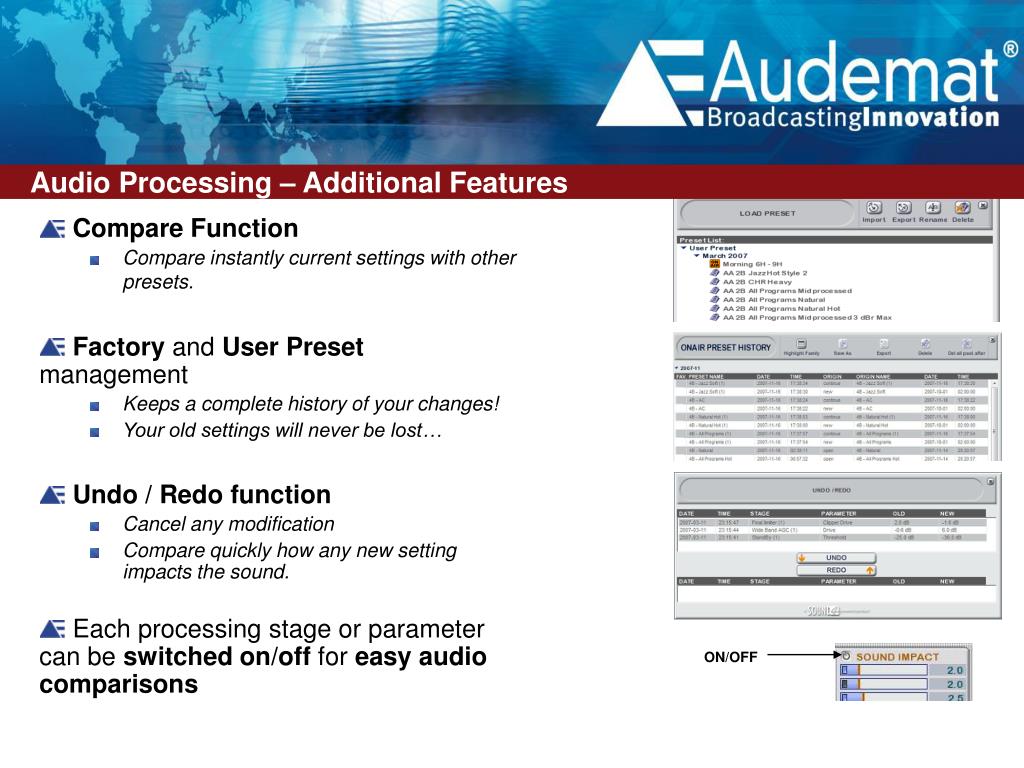

  24. Audio Processing – Additional Features • Compare Function • Compare instantly current settings with other presets. • Factory and User Preset management • Keeps a complete history of your changes! • Your old settings will never be lost… • Undo / Redo function • Cancel any modification • Compare quickly how any new setting impacts the sound. • Each processing stage or parameter can be switched on/off for easy audio comparisons ON/OFF

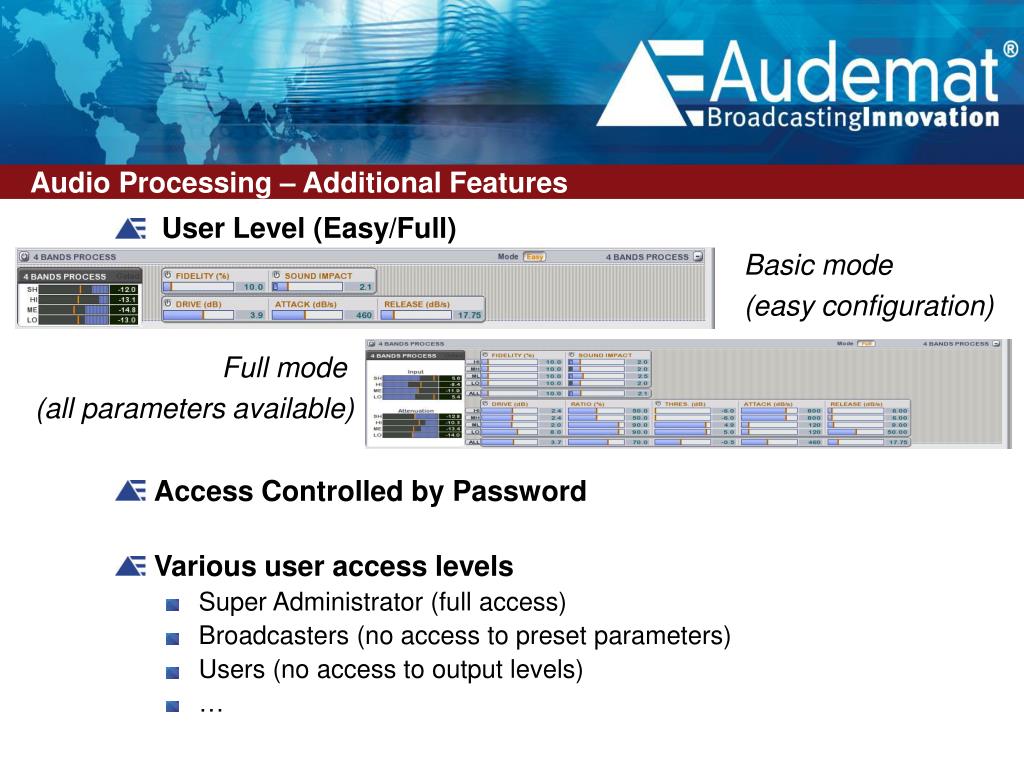

  25. Audio Processing – Additional Features • Basic mode • (easy configuration) • User Level (Easy/Full) • Access Controlled by Password • Various user access levels • Super Administrator (full access) • Broadcasters (no access to preset parameters) • Users (no access to output levels) • … • Full mode • (all parameters available)

  26. Audio Processing – Conclusion

  27. Main Features - Summary RDS ENCODING AUDIO PROCESSING The Digiplexer 2/4 is an RDS Encoder available in Basic or Full versions. The Digiplexer 2/4 is an Audio Processor available in 2 or 4 bands I/O REMOTE CONTROL STEREO ENCODING The Digiplexer 2/4 can monitor and control other equipment thru its I/Os and ScriptEasy Software. The Digiplexer 2/4 is a Stereo Encoder with very high performance. AUDIO BACKUP The Digiplexer 2/4 is an Audio Backup with many security features. skip main description 

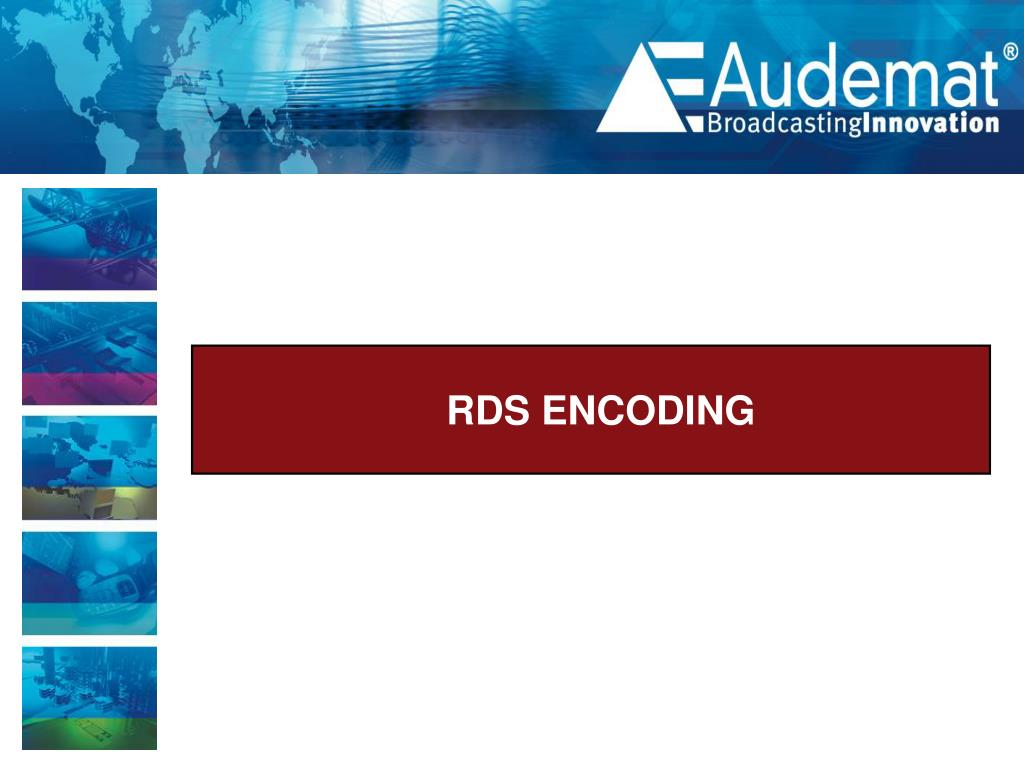

  28. RDS ENCODING

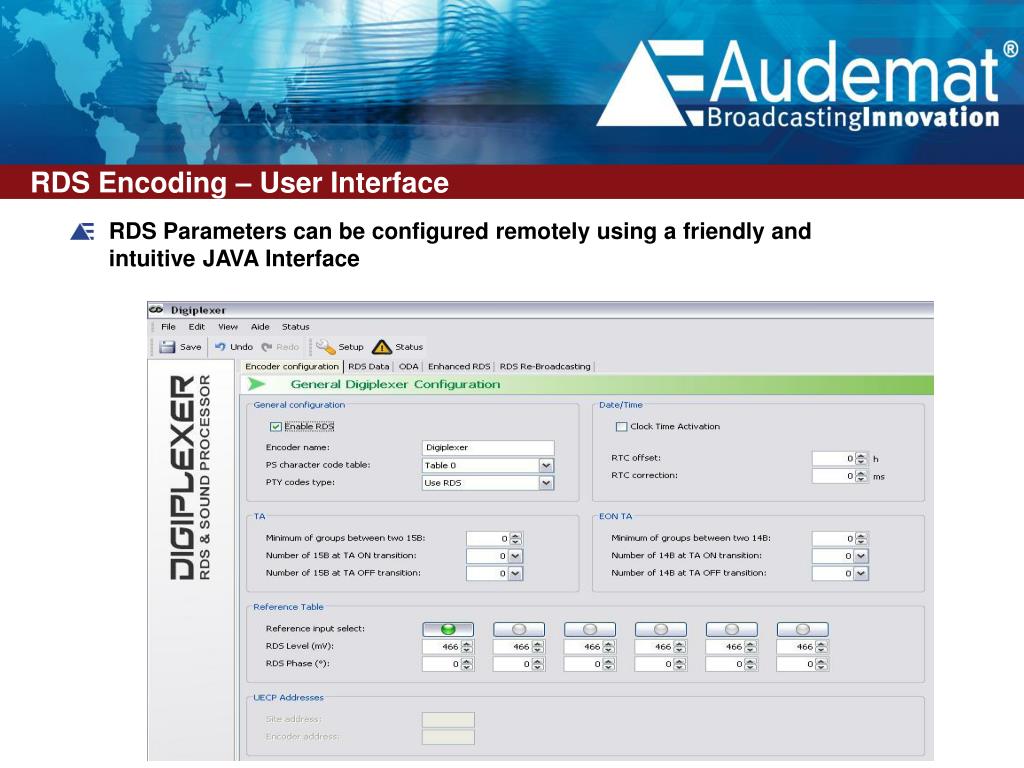

  29. RDS Encoding – User Interface • RDS Parameters can be configured remotely using a friendly and intuitive JAVA Interface

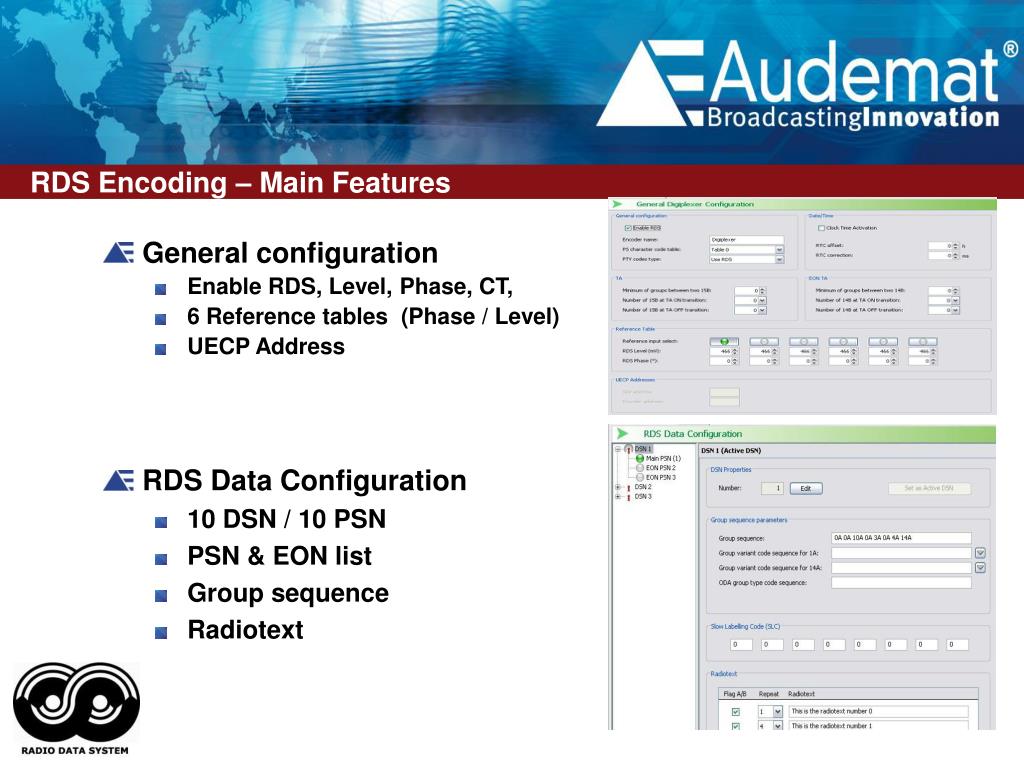

  30. RDS Encoding – Main Features • General configuration • Enable RDS, Level, Phase, CT, • 6 Reference tables (Phase / Level) • UECP Address • RDS Data Configuration • 10 DSN / 10 PSN • PSN & EON list • Group sequence • Radiotext

  31. RDS Encoding – Main Features • Scrolling PS by character • Scrolling PS by Word Up to 10 messages with specific # of repetitions

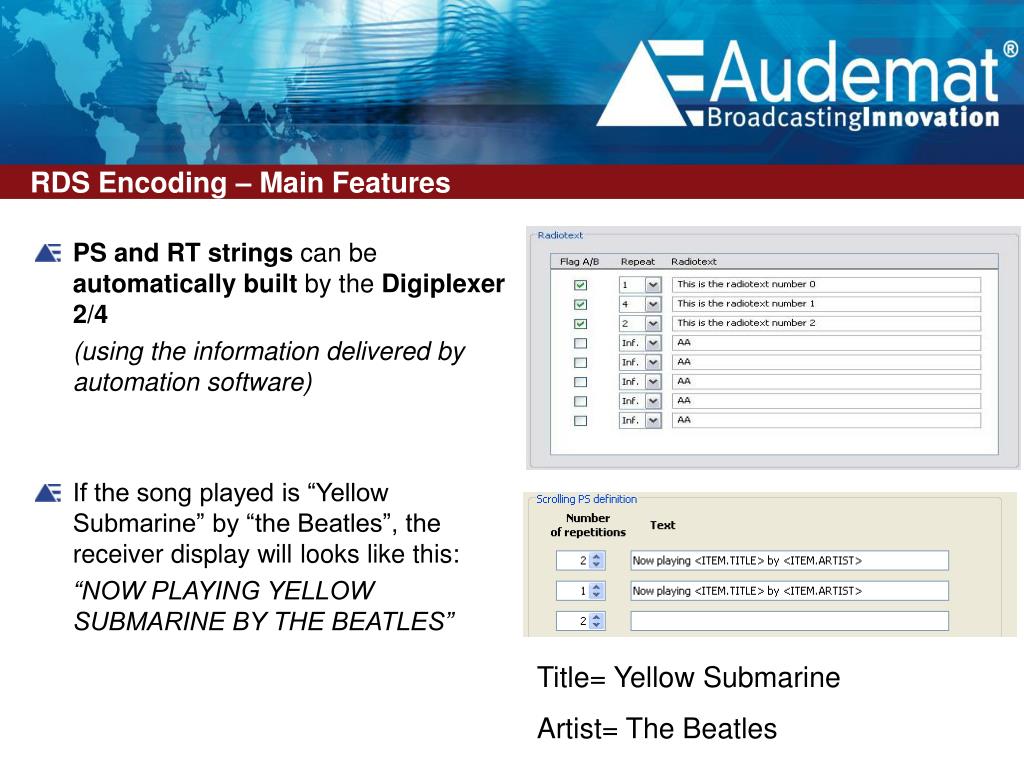

  32. RDS Encoding – Main Features • PS and RT strings can be automatically built by the Digiplexer 2/4 (using the information delivered by automation software) • If the song played is “Yellow Submarine” by “the Beatles”, the receiver display will looks like this: “NOW PLAYING YELLOW SUBMARINE BY THE BEATLES” Title= Yellow Submarine Artist= The Beatles

  33. RDS Encoding – RDS Rebroadcasting • Re-broadcasting of any RDS data or Groups • Data bridge application - any RDS information received at the MPX Input can be rebroadcast or modified • RDS data over IP (TCP/UDP)

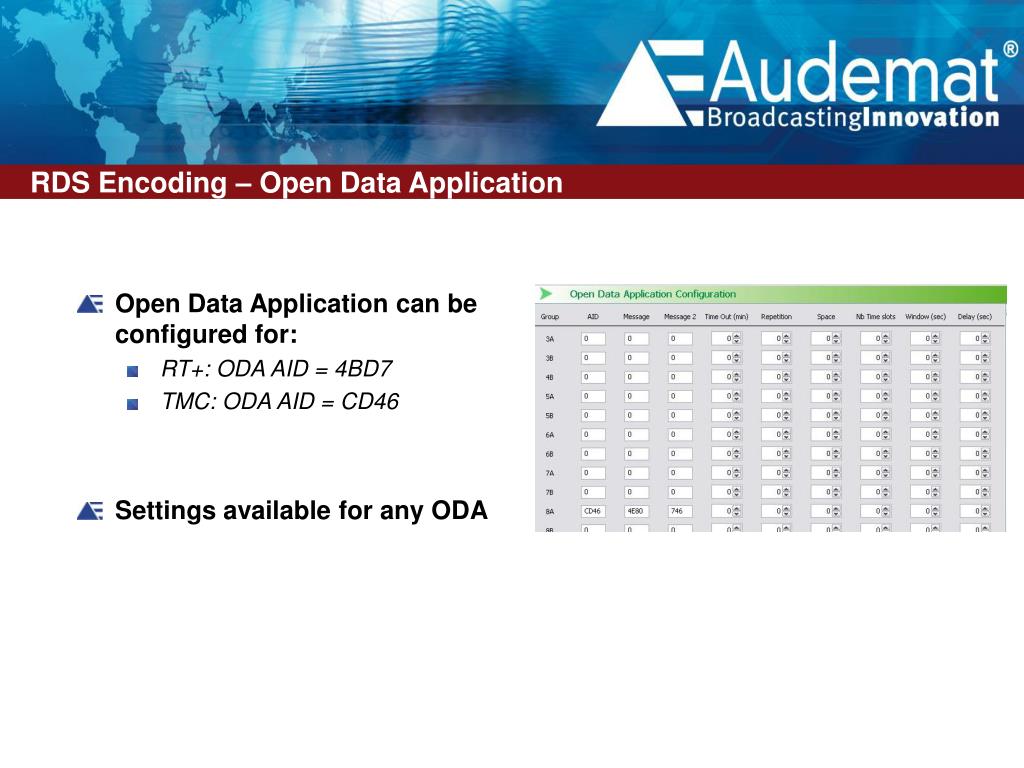

  34. RDS Encoding – Open Data Application • Open Data Application can be configured for: • RT+: ODA AID = 4BD7 • TMC: ODA AID = CD46 • Settings available for any ODA

  35. RDS Encoding • Full RDS Encoder Parameters • PI: Program Identification codes • PS: Program Service name (Scrolling PS) • TP – TA: Traffic Program and Traffic Announcement flags • MS: Music Speech flag • DI : Decoder Identification • PTY – PTYN : Program Type & Type Name • AF: Alternative Frequencies list • Method A (up to 25 Frequencies) • Method B (up to 900 frequencies) • RT: Radio Text (Scrolling RT) • EON, CT, PTYN, SLC, PIN, LINK, Paging, IH, TDC, TMC, ODA, EWS, Group Sequence control(up to 252 elements) • 10 DSN / 10 PSN

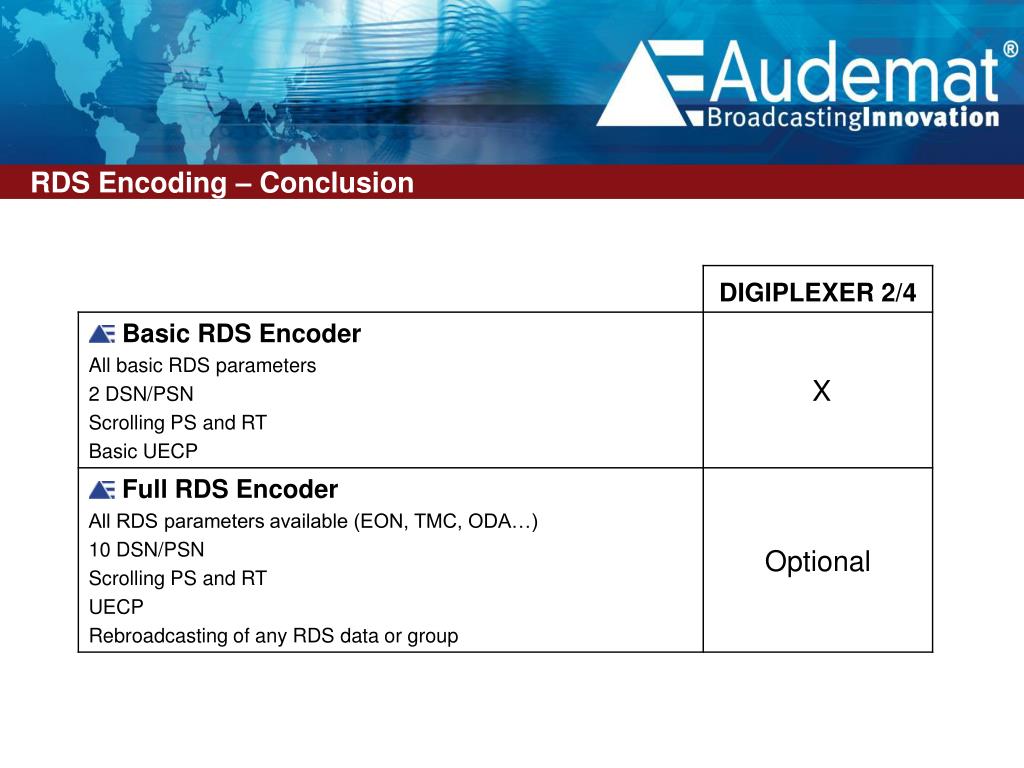

  36. RDS Encoding – Conclusion

  37. Main Features - Summary RDS ENCODING AUDIO PROCESSING The Digiplexer 2/4 is an RDS Encoder available in Basic or Full versions. The Digiplexer 2/4 is an Audio Processor available in 2 or 4 bands I/O REMOTE CONTROL STEREO ENCODING The Digiplexer 2/4 can monitor and control other equipment thru its I/Os and ScriptEasy Software. The Digiplexer 2/4 is a Stereo Encoder with very high performance. AUDIO BACKUP The Digiplexer 2/4 is an Audio Backup with many security features. skip main description 

  38. STEREO ENCODING

  39. Stereo Encoding • Control your modulation precisely (+/-75kHz): • 1.5Mhz FM Clipper (High sampling rate never reached before!) • Use the Virtual Composite Clipper to keep a high quality MPX signal. • Control your MPX Power (ITU-R412): • MPX Power Limiter that operates on the audio processing stages for better results. • Predictive Power calculation (for instantaneous MPX power display and limitation) • MPX Power Limiter and Virtual Composite Clipper are also active on any audio output configured in FM mode.

  40. Stereo Encoding • DSP technology and perfect synchronization of all subcarriers. • Audio, Pilot and RDS signals are produced in the same unit. • Stereo Encoder, highly over-sampled for amazing stereo performance. • High Quality Composite Signal • means higher audio quality for listeners • Digital 15kHz filter offers very high performance (better 19kHz stability, L-R quality…) • Stereo encoder performance that enables the audio bandwidth to be extended to 17kHzwithout affecting the 19kHz or L-R signals.

  41. Stereo Encoding – Conclusion

  42. Main Features - Summary RDS ENCODING AUDIO PROCESSING The Digiplexer 2/4 is an RDS Encoder available in Basic or Full versions. The Digiplexer 2/4 is an Audio Processor available in 2 or 4 bands I/O REMOTE CONTROL STEREO ENCODING The Digiplexer 2/4 can monitor and control other equipment thru its I/Os and ScriptEasy Software. The Digiplexer 2/4 is a Stereo Encoder with very high performance. AUDIO BACKUP The Digiplexer 2/4 is an Audio Backup with many security features. skip main description 

  43. AUDIO BACK UP & SECURITY

  44. Audio Backup • The Digiplexer 2/4 is an Audio Backup device that can play an audio file in case of silence on other inputs. • Play audio files previously uploaded (remotely via FTP). • Use the Backup as a 3rd audio input. • Stream the audio from a remote source • Use standard audio formats. • MP3 • Wave • Auto-switch between 3 audio inputs (analog, digital and backup audio) • Configure delay and threshold for silence detection. • Choose the order of priority between the 3 inputs • Configure crossfades for audio input switchovers. • Fade in / fade out, for smoother audio transitions

  45. Audio Backup – Security Reliability and Security: With the Digiplexer, you will always stay on the air! In case of Audio Signal Loss: • Auto-Switch (analog, digital and internal backup audio inputs): • Backup modeswitchesto a secondary input if silence is detected on the primary (configurable threshold and delay) • Priority mode switches to a main input when audio is detected. (configurable threshold and delay – useful for local programs) • Embedded Audio Backup • Play audio files previously uploaded (remotely via FTP). • Stream the audio from a remote server via TCP/IP • Use the Backup as a 3rd audio input.

  46. Audio Backup – Security Reliability and security: With the Digiplexer, you will always stay on the air! In case of Power Loss: • Hardware Audio Bypass (AES-AES and analog-analog) • 2 second Reboot! (from power on to on air with active audio processing) In case of system crash: • You stay On the Air: • An Internal controller will automatically reboot the system, but the audio card continues to run! • The Sound4 DSP audio card is independent of the system: • Plug in the Digiplexer:you are On the Air in only 2 seconds!

  47. Audio Backup – Conclusion

  48. Main Features - Summary RDS ENCODING AUDIO PROCESSING The Digiplexer 2/4 is an RDS Encoder available in Basic or Full versions. The Digiplexer 2/4 is an Audio Processor available in 2 or 4 bands I/O REMOTE CONTROL STEREO ENCODING The Digiplexer 2/4 can monitor and control other equipment thru its I/Os and ScriptEasy Software. The Digiplexer 2/4 is a Stereo Encoder with very high performance. AUDIO BACKUP The Digiplexer 2/4 is an Audio Backup with many security features. skip main description 

  49. I/O REMOTE CONTROL

  50. I/O Remote Control • The Digiplexer 2/4 has 2 slots for I/O cards: • 1 Digital (status) Input Card (16 inputs) • 1 Relay Output Card (8 SPDT relay outputs) • 4 USB ports and 1 RS232 port • I/O enables control and monitoring • Control RDS Parameters using the 16 digital inputs: • TA, TP, DSN, PTY, etc. • Monitor other equipment at the site • TX status, door alarms….. • Control other equipment at the site manually • Reset satellite receiver, turn on cooling fan…. • Send alarms or activate relays on Digiplexer events: (i.e. reboot a faulty codec if input audio is lost….)
