Readout Misbehaviors

Readout Misbehaviors. Hot/Dead Regions most frequently occuring in crate x50 generally occur in at least pairs of AFE boards when more than one pair at the same time, they are generally from the same sequencer data appears compromised during episode

fuller
Télécharger la présentation

Readout Misbehaviors

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

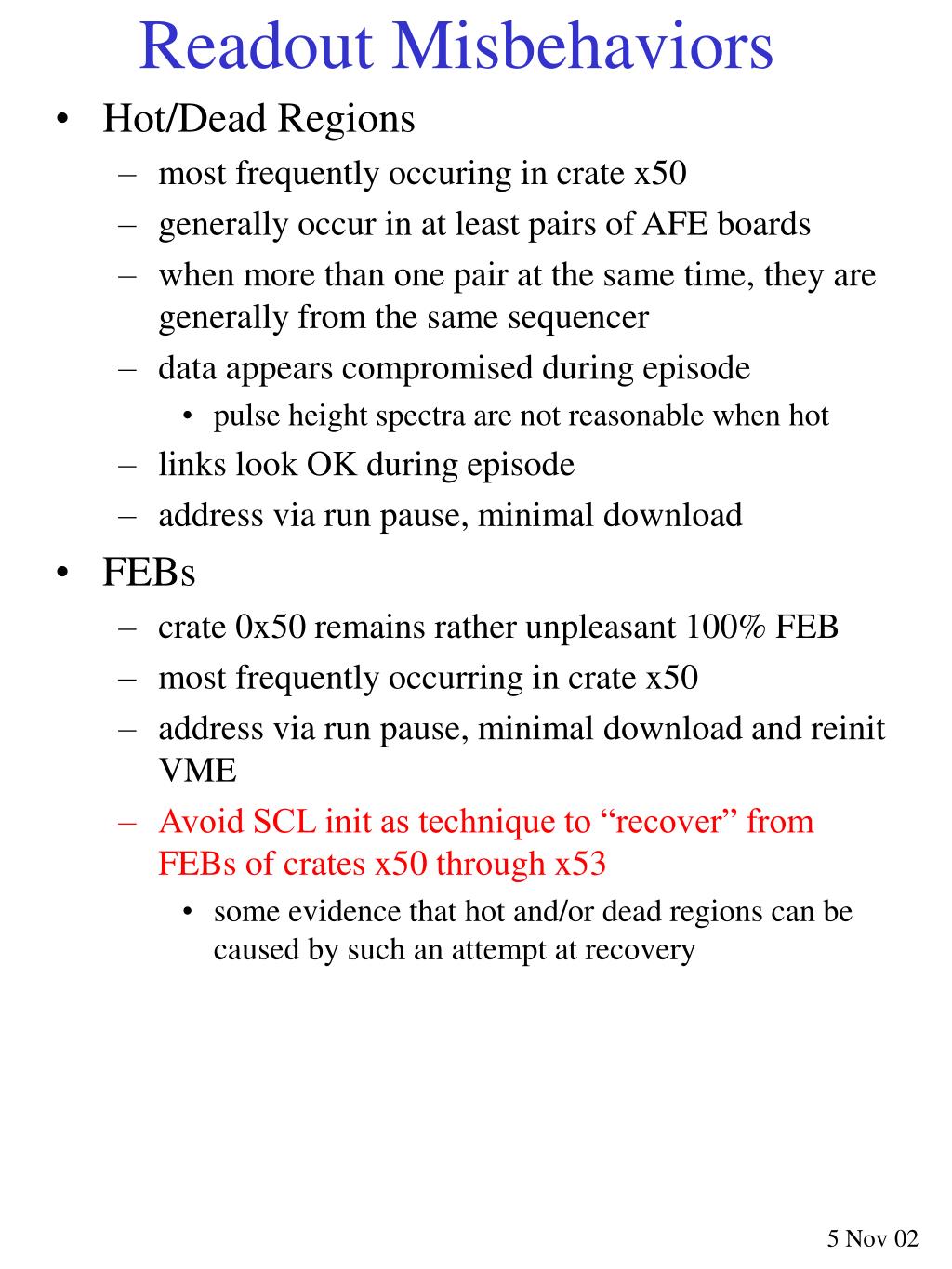

  1. Readout Misbehaviors • Hot/Dead Regions • most frequently occuring in crate x50 • generally occur in at least pairs of AFE boards • when more than one pair at the same time, they are generally from the same sequencer • data appears compromised during episode • pulse height spectra are not reasonable when hot • links look OK during episode • address via run pause, minimal download • FEBs • crate 0x50 remains rather unpleasant 100% FEB • most frequently occurring in crate x50 • address via run pause, minimal download and reinit VME • Avoid SCL init as technique to “recover” from FEBs of crates x50 through x53 • some evidence that hot and/or dead regions can be caused by such an attempt at recovery

  2. Attacking Readout Misbehaviors • CFT_GUI modifications to localize “fix” • Online Monitoring • examines • FEB_UTIL • Upgrades to SDAQ code • Data Integrity Checks • online software • offline analysis (dsdump and svxrawdump) • Firmware Review • CTS studies • Sequencer Logic Analyzer • Readout Clock Duty Cycle (and 53MHz readout) • VTM Glink synch check • VRB firmware updates to flag error conditions • C0C0 normal end of HDI string • CCCC Glink synch error • CECE Timeout (gap > 300 nsec in data stream) • CFCF Input Buffer Overflow

  3. CFT+PS Weeks in Review • Hot/Dead regions and FEBs significantly reduced • Six AFEs swapped to address weak channels • Virtual backplane swap • calibration database issue identified • returned grey cables to standard location • 1B0/1B1 calibration problems addressed • grey cable reseated at AFE backplane • PDAQ examine enhancements • most data integrity tests in place with results histogrammed • dump event feature added • AFE occupancy monitor development in progress • VRB crate x52 and x53 firmware update installed • CPS • identified CPS examine map problem • adjust bias voltages • prep to reduce gains for CPS channels • FPS • pulser issue under study • swapped 8 AFES to study dead regions

  4. CFT+PS Weeks in Review • Monitoring missing events • uMon replacing l3Xmon • Spying on Vertex Examine • L3 tracking • results sensitive to both CFT and SMT performance • trigger too • East cold block temperature issues • AFE slot 3B7 remains troublesome • cause of most FEB encountered in CFT+PS system • Power supply for AFE crate 2B • Discriminator threshold test • run at nominal +2pe

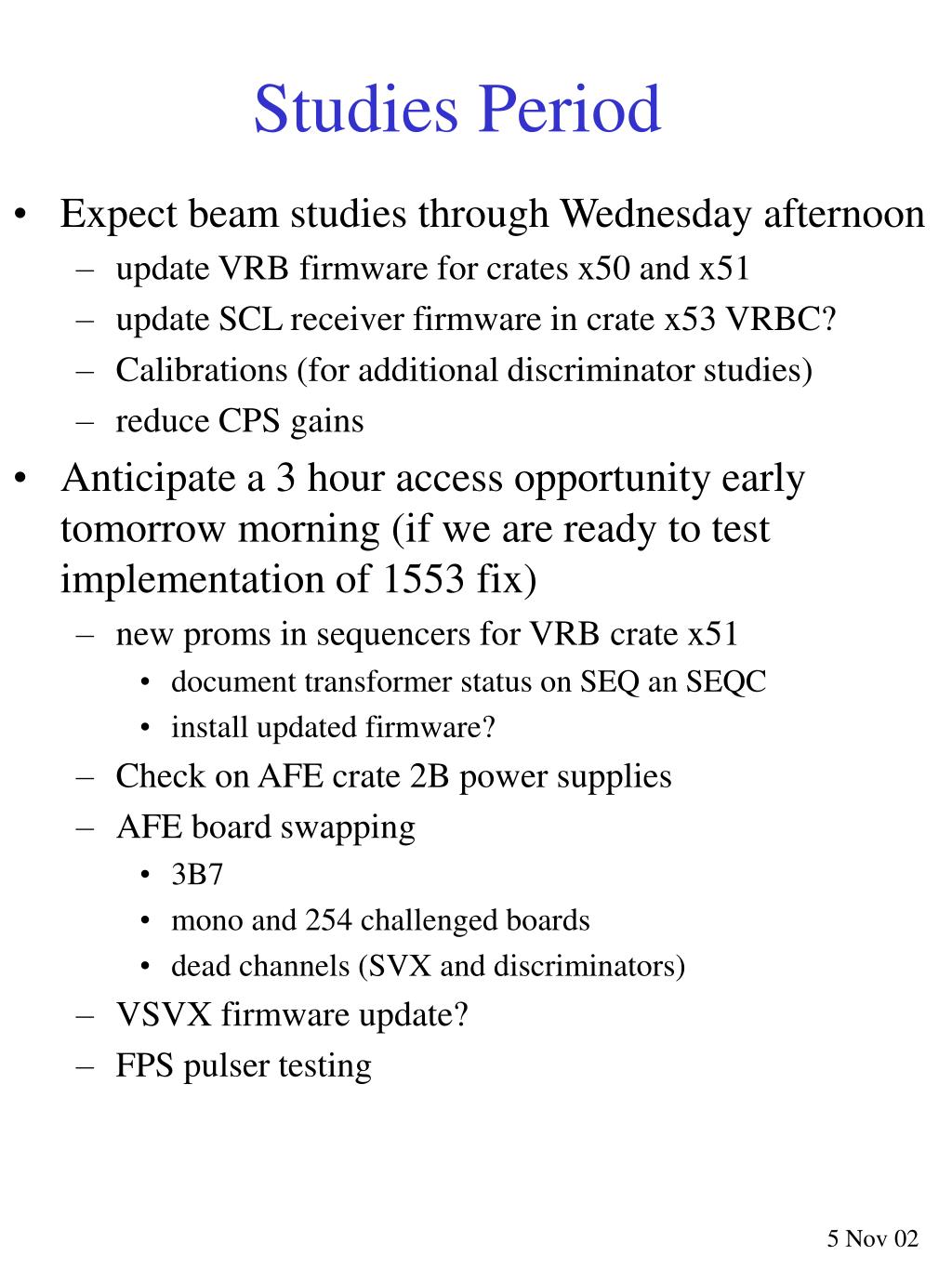

  5. Studies Period • Expect beam studies through Wednesday afternoon • update VRB firmware for crates x50 and x51 • update SCL receiver firmware in crate x53 VRBC? • Calibrations (for additional discriminator studies) • reduce CPS gains • Anticipate a 3 hour access opportunity early tomorrow morning (if we are ready to test implementation of 1553 fix) • new proms in sequencers for VRB crate x51 • document transformer status on SEQ an SEQC • install updated firmware? • Check on AFE crate 2B power supplies • AFE board swapping • 3B7 • mono and 254 challenged boards • dead channels (SVX and discriminators) • VSVX firmware update? • FPS pulser testing
