Abstraction in Programming Programming models and languages bridge the gap between “reality” and hardware – at different levels of abstraction - e.g., • assembly languages • general-purpose procedural languages • functional languages • very high-level domain-specific languages • libraries Abstraction implies loss of information – gain in simplicity, clarity, verifiability, portability versus potential performance degradation

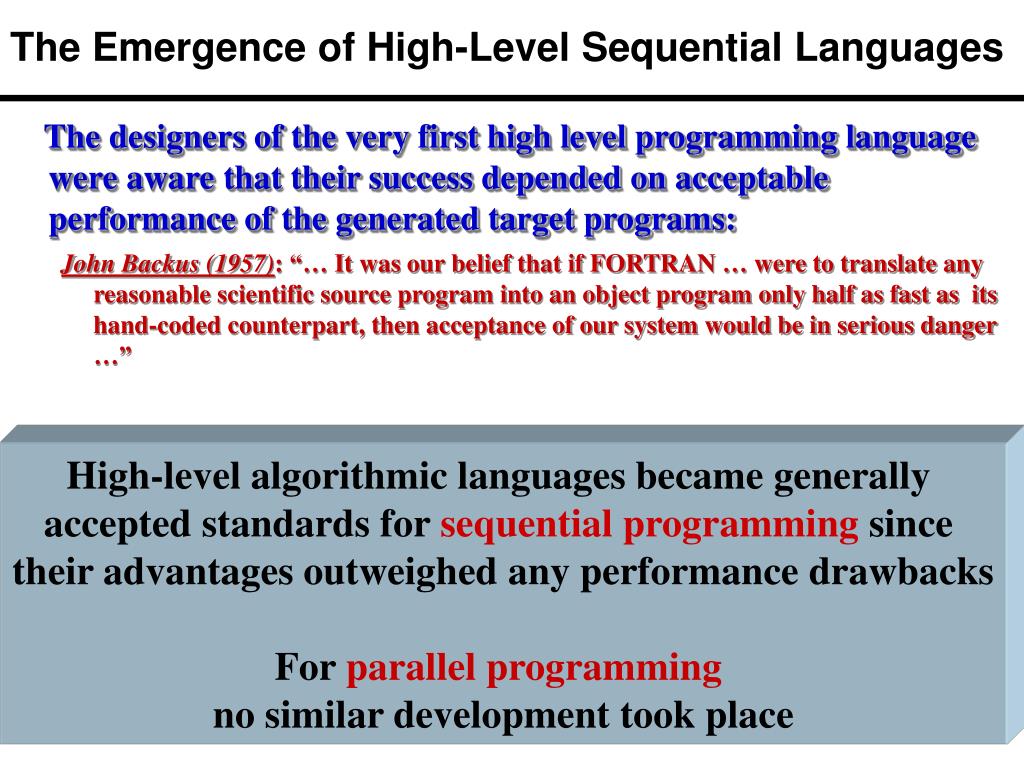

The Emergence of High-Level Sequential Languages The designers of the very first high level programming language were aware that their success depended on acceptable performance of the generated target programs: John Backus (1957): “… It was our belief that if FORTRAN … were to translate any reasonable scientific source program into an object program only half as fast as its hand-coded counterpart, then acceptance of our system would be in serious danger …” High-level algorithmic languages became generally accepted standards for sequential programming since their advantages outweighed any performance drawbacks For parallel programming no similar development took place

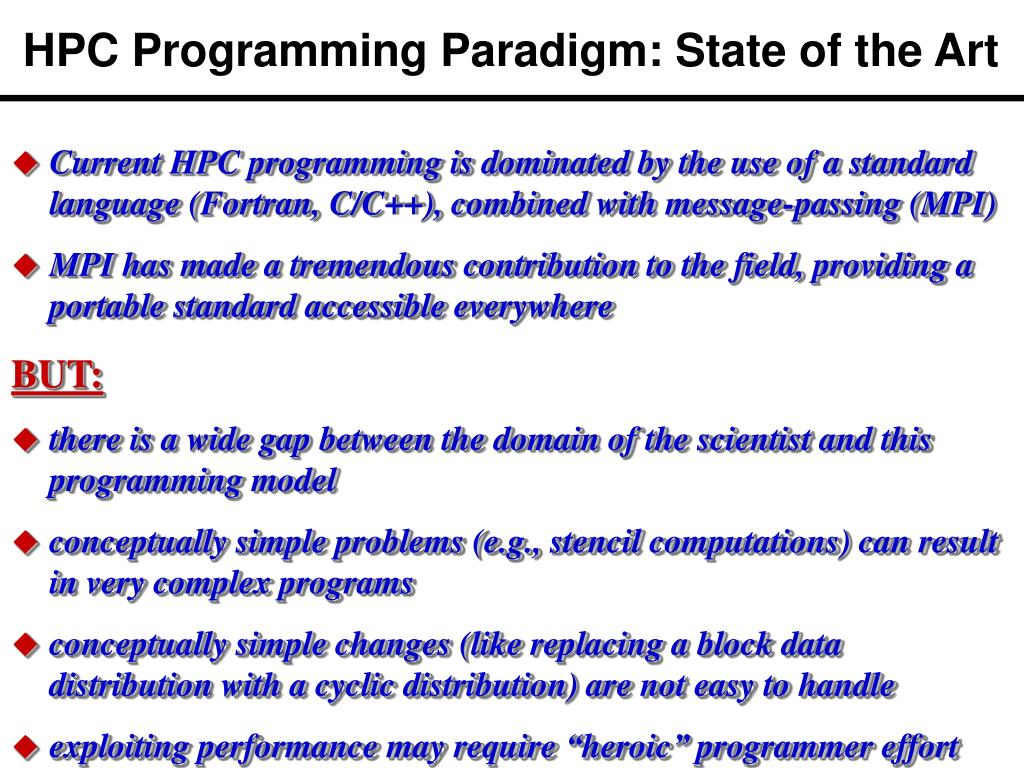

HPC Programming Paradigm: State of the Art • Current HPC programming is dominated by the use of a standard language (Fortran, C/C++), combined with message-passing (MPI) • MPI has made a tremendous contribution to the field, providing a portable standard accessible everywhere BUT: • there is a wide gap between the domain of the scientist and this programming model • conceptually simple problems (e.g., stencil computations) can result in very complex programs • conceptually simple changes (like replacing a block data distribution with a cyclic distribution) are not easy to handle • exploiting performance may require “heroic” programmer effort

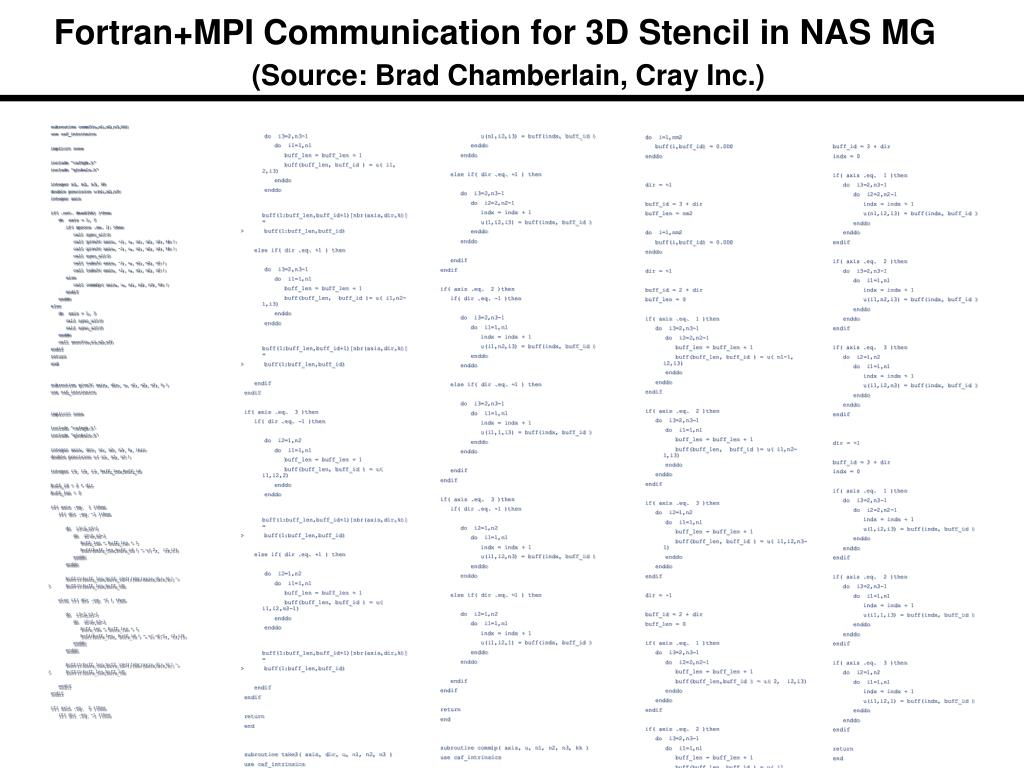

Fortran+MPI Communication for 3D Stencil in NAS MG (Source: Brad Chamberlain, Cray Inc.) do i=1,nm2 buff(i,buff_id) = 0.0D0 enddo dir = +1 buff_id = 3 + dir buff_len = nm2 do i=1,nm2 buff(i,buff_id) = 0.0D0 enddo dir = +1 buff_id = 2 + dir buff_len = 0 if( axis .eq. 1 )then do i3=2,n3-1 do i2=2,n2-1 buff_len = buff_len + 1 buff(buff_len, buff_id ) = u( n1-1, i2,i3) enddo enddo endif if( axis .eq. 2 )then do i3=2,n3-1 do i1=1,n1 buff_len = buff_len + 1 buff(buff_len, buff_id )= u( i1,n2-1,i3) enddo enddo endif if( axis .eq. 3 )then do i2=1,n2 do i1=1,n1 buff_len = buff_len + 1 buff(buff_len, buff_id ) = u( i1,i2,n3-1) enddo enddo endif dir = -1 buff_id = 2 + dir buff_len = 0 if( axis .eq. 1 )then do i3=2,n3-1 do i2=2,n2-1 buff_len = buff_len + 1 buff(buff_len,buff_id ) = u( 2, i2,i3) enddo enddo endif if( axis .eq. 2 )then do i3=2,n3-1 do i1=1,n1 buff_len = buff_len + 1 buff(buff_len, buff_id ) = u( i1, 2,i3) enddo enddo endif if( axis .eq. 3 )then do i2=1,n2 do i1=1,n1 buff_len = buff_len + 1 buff(buff_len, buff_id ) = u( i1,i2,2) enddo enddo endif do i=1,nm2 buff(i,4) = buff(i,3) buff(i,2) = buff(i,1) enddo dir = -1 buff_id = 3 + dir indx = 0 if( axis .eq. 1 )then do i3=2,n3-1 do i2=2,n2-1 indx = indx + 1 u(n1,i2,i3) = buff(indx, buff_id ) enddo enddo endif if( axis .eq. 2 )then do i3=2,n3-1 do i1=1,n1 indx = indx + 1 u(i1,n2,i3) = buff(indx, buff_id ) enddo enddo endif if( axis .eq. 3 )then do i2=1,n2 do i1=1,n1 indx = indx + 1 u(i1,i2,n3) = buff(indx, buff_id ) enddo enddo endif dir = +1 buff_id = 3 + dir indx = 0 if( axis .eq. 1 )then do i3=2,n3-1 do i2=2,n2-1 indx = indx + 1 u(1,i2,i3) = buff(indx, buff_id ) enddo enddo endif if( axis .eq. 2 )then do i3=2,n3-1 do i1=1,n1 indx = indx + 1 u(i1,1,i3) = buff(indx, buff_id ) enddo enddo endif if( axis .eq. 3 )then do i2=1,n2 do i1=1,n1 indx = indx + 1 u(i1,i2,1) = buff(indx, buff_id ) enddo enddo endif return end do i3=2,n3-1 do i1=1,n1 buff_len = buff_len + 1 buff(buff_len, buff_id ) = u( i1, 2,i3) enddo enddo buff(1:buff_len,buff_id+1)[nbr(axis,dir,k)] = > buff(1:buff_len,buff_id) else if( dir .eq. +1 ) then do i3=2,n3-1 do i1=1,n1 buff_len = buff_len + 1 buff(buff_len, buff_id )= u( i1,n2-1,i3) enddo enddo buff(1:buff_len,buff_id+1)[nbr(axis,dir,k)] = > buff(1:buff_len,buff_id) endif endif if( axis .eq. 3 )then if( dir .eq. -1 )then do i2=1,n2 do i1=1,n1 buff_len = buff_len + 1 buff(buff_len, buff_id ) = u( i1,i2,2) enddo enddo buff(1:buff_len,buff_id+1)[nbr(axis,dir,k)] = > buff(1:buff_len,buff_id) else if( dir .eq. +1 ) then do i2=1,n2 do i1=1,n1 buff_len = buff_len + 1 buff(buff_len, buff_id ) = u( i1,i2,n3-1) enddo enddo buff(1:buff_len,buff_id+1)[nbr(axis,dir,k)] = > buff(1:buff_len,buff_id) endif endif return end subroutine take3( axis, dir, u, n1, n2, n3 ) use caf_intrinsics implicit none include 'cafnpb.h' include 'globals.h' integer axis, dir, n1, n2, n3 double precision u( n1, n2, n3 ) integer buff_id, indx integer i3, i2, i1 buff_id = 3 + dir indx = 0 if( axis .eq. 1 )then if( dir .eq. -1 )then do i3=2,n3-1 do i2=2,n2-1 indx = indx + 1 u(n1,i2,i3) = buff(indx, buff_id ) enddo enddo else if( dir .eq. +1 ) then do i3=2,n3-1 do i2=2,n2-1 indx = indx + 1 u(1,i2,i3) = buff(indx, buff_id ) enddo enddo endif endif if( axis .eq. 2 )then if( dir .eq. -1 )then do i3=2,n3-1 do i1=1,n1 indx = indx + 1 u(i1,n2,i3) = buff(indx, buff_id ) enddo enddo else if( dir .eq. +1 ) then do i3=2,n3-1 do i1=1,n1 indx = indx + 1 u(i1,1,i3) = buff(indx, buff_id ) enddo enddo endif endif if( axis .eq. 3 )then if( dir .eq. -1 )then do i2=1,n2 do i1=1,n1 indx = indx + 1 u(i1,i2,n3) = buff(indx, buff_id ) enddo enddo else if( dir .eq. +1 ) then do i2=1,n2 do i1=1,n1 indx = indx + 1 u(i1,i2,1) = buff(indx, buff_id ) enddo enddo endif endif return end subroutine comm1p( axis, u, n1, n2, n3, kk ) use caf_intrinsics implicit none include 'cafnpb.h' include 'globals.h' integer axis, dir, n1, n2, n3 double precision u( n1, n2, n3 ) integer i3, i2, i1, buff_len,buff_id integer i, kk, indx dir = -1 buff_id = 3 + dir buff_len = nm2 subroutine comm3(u,n1,n2,n3,kk) use caf_intrinsics implicit none include 'cafnpb.h' include 'globals.h' integer n1, n2, n3, kk double precision u(n1,n2,n3) integer axis if( .not. dead(kk) )then do axis = 1, 3 if( nprocs .ne. 1) then call sync_all() call give3( axis, +1, u, n1, n2, n3, kk ) call give3( axis, -1, u, n1, n2, n3, kk ) call sync_all() call take3( axis, -1, u, n1, n2, n3 ) call take3( axis, +1, u, n1, n2, n3 ) else call comm1p( axis, u, n1, n2, n3, kk ) endif enddo else do axis = 1, 3 call sync_all() call sync_all() enddo call zero3(u,n1,n2,n3) endif return end subroutine give3( axis, dir, u, n1, n2, n3, k ) use caf_intrinsics implicit none include 'cafnpb.h' include 'globals.h' integer axis, dir, n1, n2, n3, k, ierr double precision u( n1, n2, n3 ) integer i3, i2, i1, buff_len,buff_id buff_id = 2 + dir buff_len = 0 if( axis .eq. 1 )then if( dir .eq. -1 )then do i3=2,n3-1 do i2=2,n2-1 buff_len = buff_len + 1 buff(buff_len,buff_id ) = u( 2, i2,i3) enddo enddo buff(1:buff_len,buff_id+1)[nbr(axis,dir,k)] = > buff(1:buff_len,buff_id) else if( dir .eq. +1 ) then do i3=2,n3-1 do i2=2,n2-1 buff_len = buff_len + 1 buff(buff_len, buff_id ) = u( n1-1, i2,i3) enddo enddo buff(1:buff_len,buff_id+1)[nbr(axis,dir,k)] = > buff(1:buff_len,buff_id) endif endif if( axis .eq. 2 )then if( dir .eq. -1 )then

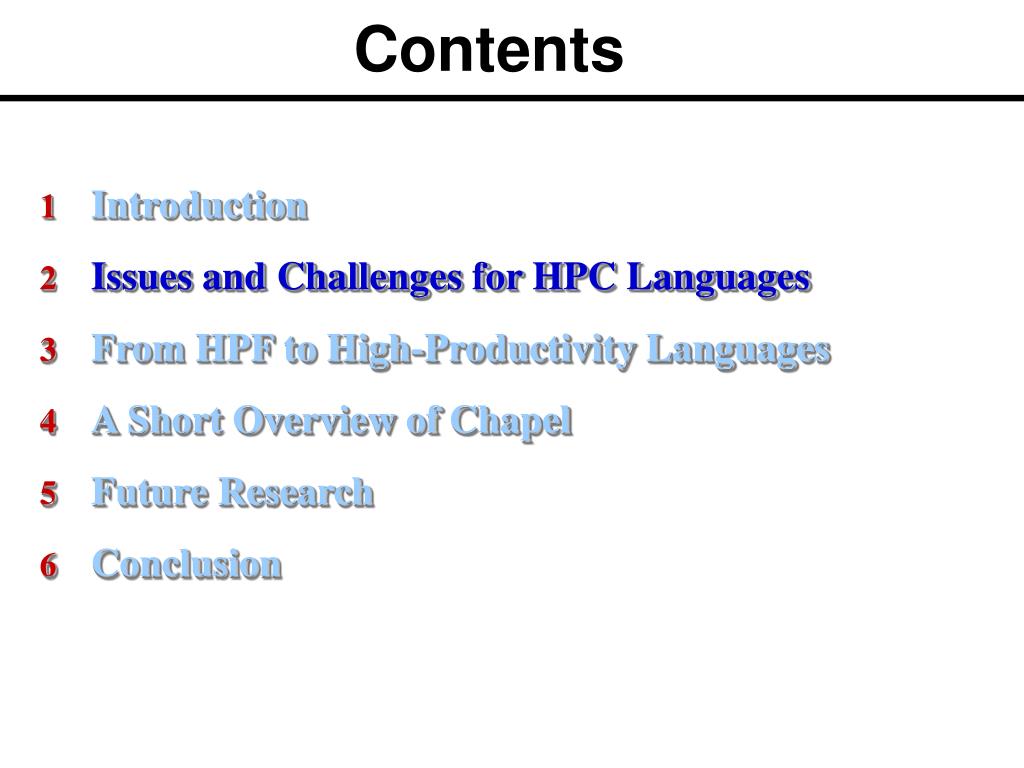

Contents • Introduction • Issues and Challenges for HPC Languages • From HPF to High-Productivity Languages • A Short Overview of Chapel • Future Research • Conclusion

Productivity Challenges for Peta-Scale Systems • Large-scale architectural parallelism • tens of thousands to hundreds of thousands of processors • component failures may occur frequently • Extreme non-uniformity in data access • more than 1000 cycles to access local memory • Applications: large, complex, and long-lived • multi-disciplinary, multi-language, multi-paradigm • dynamic, irregular, and adaptive • long-lived, surviving many hardware generations: support for efficient migration has high priority

Key Requirements for High-Productivity Languages High-Level Support for: • Explicit concurrency • Locality-awareness • Distributed collections • Multi-lingual, multi-paradigm, multi-disciplinary programming-in-the-large

Goal and Vision • Goal: Enhance productivity of scientists and engineers, without compromising performance • Vision: A programming environment built around a universal high-productivity language, a common intermediate language and execution model, and an associated common infrastructure: • auniversal High Productivity Language, to serve as a standard for programming parallel systems over the next 20-30 years • a common Intermediate Language and Execution Model,providing a common infrastructure for multi-platform, multi-lingual, multi-paradigm compilation and performance-portable migration of legacy codes • an infrastructure for an Intelligent ProgrammingEnvironment supporting autonomous system operation and self-tuning based on advanced expert system and introspection technology

UNCOL Revisited: Portable Compilation/Tool Environment legacy lg 1 source program HPL source program … architecture-independent unified compiler front end Front End legacy lg m source program IHPL intermediate program optimization transformations … architecture-specific compiler back ends Back End n Back End 1 TPL n target program TPL 1 target program

The Path to High Productivity Languages • High Performance Fortran (HPF) Language Family • HPF Predecessors: CM-Fortran, Fortran D, Vienna Fortran • High Performance Fortran (HPF): HPF-1 (1993); HPF-2(1997) • Post-HPF Developments: HPF+, JAHPF • OpenMP • ZPL • Partitioned Global Address Space (PGAS) Languages • Co-Array Fortran, UPC, Titanium • High-Productivity Languages • Chapel, X10, Fortress

The High Performance Fortran Idea Message Passing Approach HPF Approach initialize MPI global computation do while (.not. converged) do J=1,N do I=1,N B(I,J) = 0.25 * (A(I-1,J)+A(I+1,J)+ A(I,J-1)+A(I,J+1)) end do end do A(1:N,1:N) = B(1:N,1:N) local computation do while (.not. converged) do J=1,M do I=1,N B(I,J) = 0.25 * (A(I-1,J)+A(I+1,J)+ A(I,J-1)+A(I,J+1)) end do end do A(1:N,1:N) = B(1:N,1:N) data distribution processors P(NUMBER_OF_PROCESSORS) distribute(*,BLOCK) onto P :: A, B if (MOD(myrank,2) .eq. 1) then call MPI_SEND(B(1,1),N,…,myrank-1,..) call MPI_RCV(A(1,0),N,…,myrank-1,..) if (myrank .lt. s-1) then call MPI_SEND(B(1,M),N,…,myrank+1,..) call MPI_RCV(A(1,M+1),N,…,myrank+1,..) endif else … … communication compiler-generated

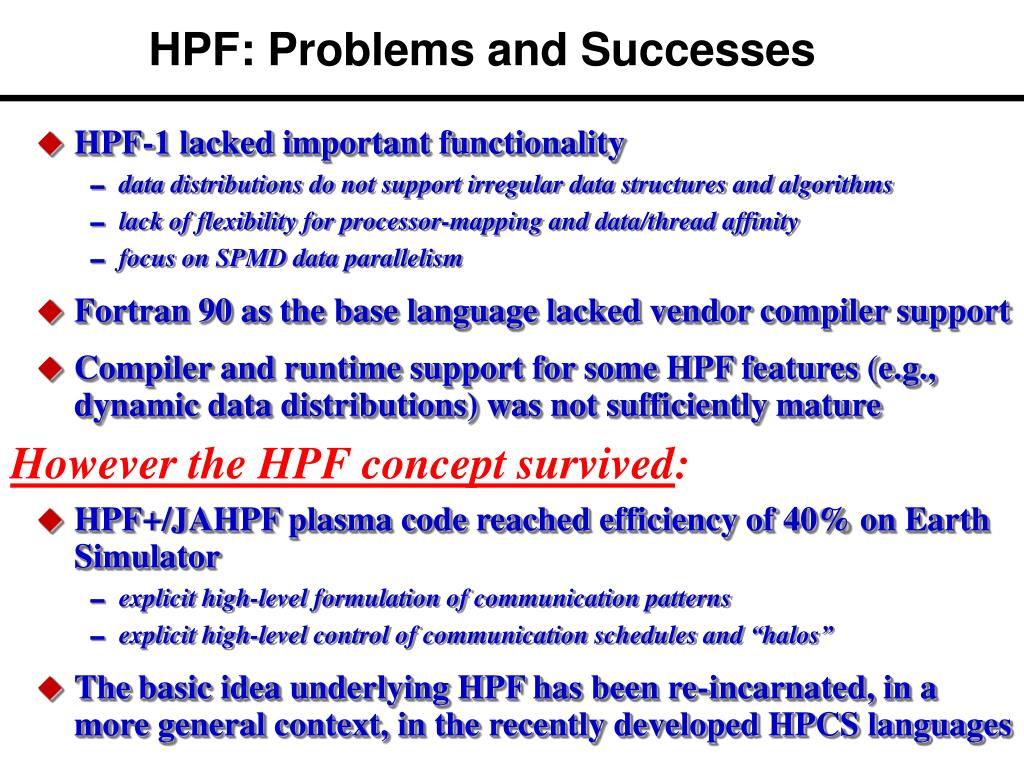

HPF: Problems and Successes • HPF-1 lacked important functionality • data distributions do not support irregular data structures and algorithms • lack of flexibility for processor-mapping and data/thread affinity • focus on SPMD data parallelism • Fortran 90 as the base language lacked vendor compiler support • Compiler and runtime support for some HPF features (e.g., dynamic data distributions) was not sufficiently mature • HPF+/JAHPF plasma code reached efficiency of 40% on Earth Simulator • explicit high-level formulation of communication patterns • explicit high-level control of communication schedules and “halos” • Thebasic idea underlying HPF has been re-incarnated, in a more general context, in the recently developed HPCS languages However the HPF concept survived:

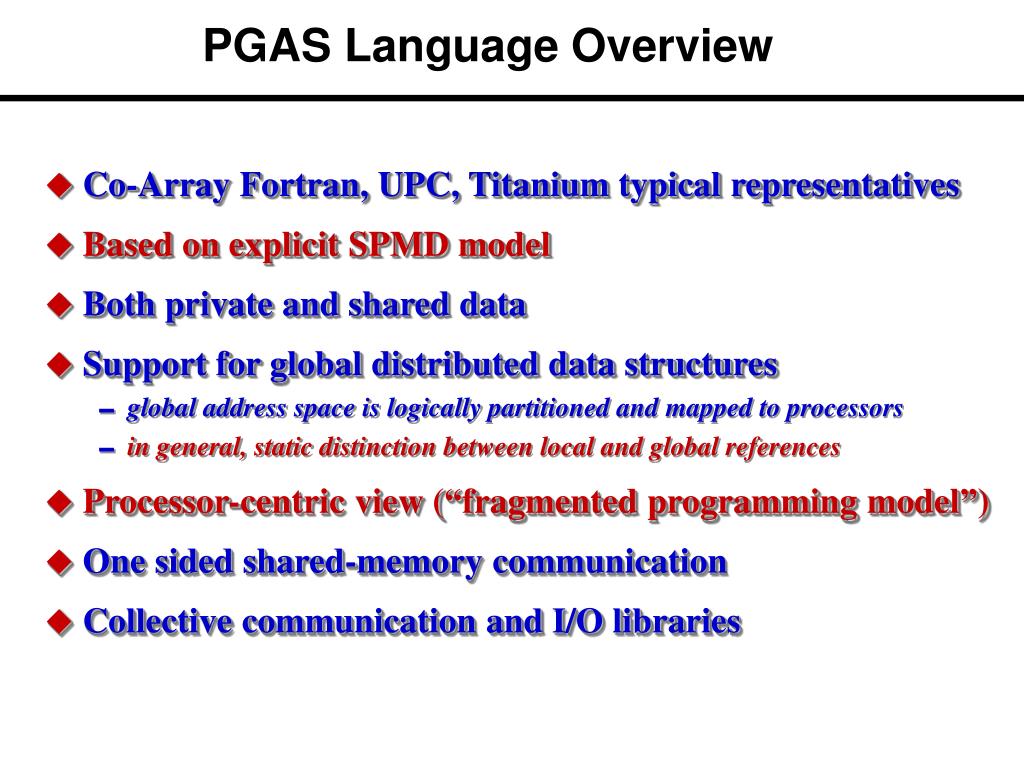

PGAS Language Overview • Co-Array Fortran, UPC, Titanium typical representatives • Based on explicit SPMD model • Both private and shared data • Support for global distributed data structures • global address space is logically partitioned and mapped to processors • in general, static distinction between local and global references • Processor-centric view (“fragmented programming model”) • One sided shared-memory communication • Collective communication and I/O libraries

Example: Setting up a block-distributedarray in Titanium // determine parameters of local block: Point<3> startCell = myBlockPos * numCellsPerBlockSide; Point<3> endCell = startCell + (numCellsPerBlockSide-[1,1,1]); //create local myBlock array: double [3d] myBlock = new double[startCell:endCell]; //build the distributed structure: //declare blocks as a 1D-array of references (one element per processor) blocks.exchange(myBlock); P0 P1 P2 blocks blocks blocks myBlock myBlock myBlock Source: K.Yelick et al.: Parallel Languages and Compilers: Perspective from the Titanium Experience

Example: Setting up a block-distributed array in Chapel Standard Distribution Library class block: Distribution{…} class cyclic: Distribution{…} … class sparse-brd: Distribution{…} const D: domain(3) distributed (block) = [l1..u1,l2..u2,l3..u3]; … var A: [D] float; … 14

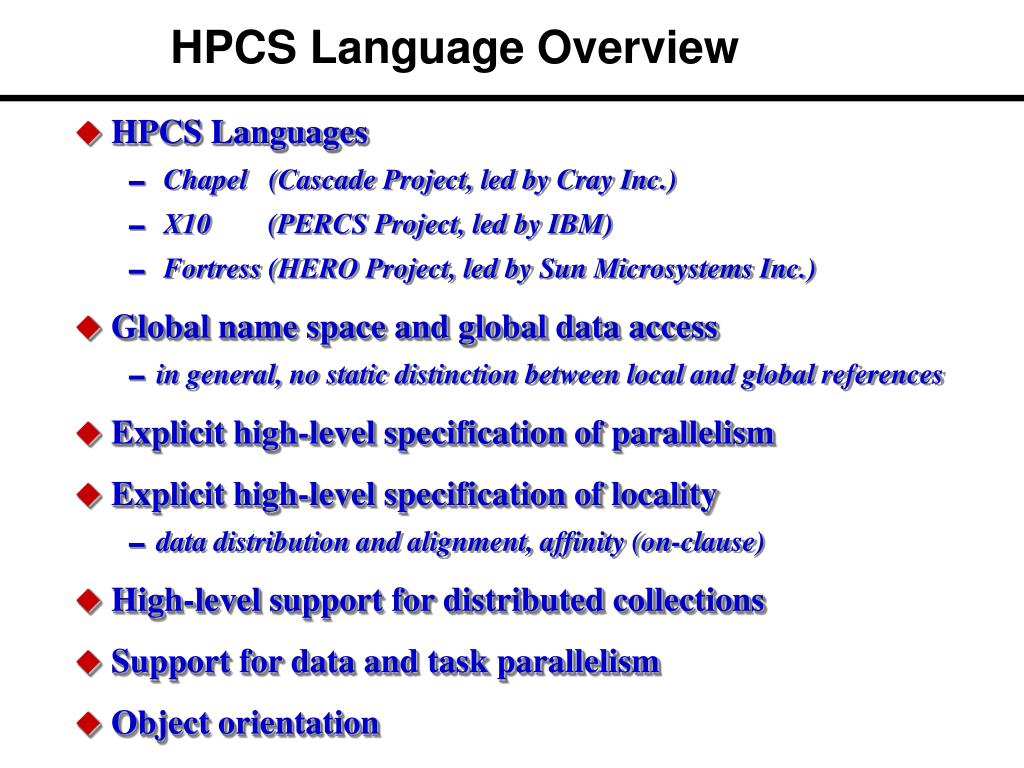

HPCS Language Overview • HPCS Languages • Chapel (Cascade Project, led by Cray Inc.) • X10 (PERCS Project, led by IBM) • Fortress (HERO Project, led by Sun Microsystems Inc.) • Global name space and global data access • in general, no static distinction between local and global references • Explicit high-level specification of parallelism • Explicit high-level specification of locality • data distribution and alignment, affinity (on-clause) • High-level support for distributed collections • Support for data and task parallelism • Object orientation

The Cascade Project • Phase 1: Concept Study July 2002 -- June 2003 • Phase 2: Prototyping Phase July 2003 -- July 2006 • Led by Cray Inc. • Cascade Partners • Caltech/JPL • University of Notre Dame • Stanford University • Chapel is the Cascade High Productivity Language David Callahan, Brad Chamberlain, Steve Deitz, Roxana Diaconescu, John Plevyak, Hans Zima

High-Level Control of Locality • Locality Control is Key for Performance • all modern HPC architectures have distributed memory • Fully Automatic Control is Beyond State-of-the-Art • automatic locality analysis had some limited successes for regular codes • for irregular and adaptive applications compiler knowledge is not sufficient to exploit locality efficiently; runtime analysis can be highly expensive • explicit user control of locality is essential for achieving high performance • Chapel Approach • responsibility for generating communication delegated to compiler/runtime system • locality specified by data distributions, data alignment, and affinity • all data distributions are user-defined • additional user-provided locality assertions help the compiler where static knowledge is not available

Example: Matrix-Vector Multiplication (dense) var Mat: domain(2) = [1..m, 1..n]; var MatCol: domain(1) = Mat(2); var MatRow: domain(1) = Mat(1); var A:[Mat] float; var v:[MatCol] float; var s:[MatRow] float; s = sum(dim=2) [i,j in Mat] A(i,j)*v(j); Version 1 var L:[1..p1,1..p2] locale = reshape(Locales); var Mat: domain(2) distributed(myB,myB) on L =[1..m,1..n]; var MatCol: domain(1) aligned(*,Mat(2))= Mat(2); var MatRow: domain(1) aligned(Mat(1),*)= Mat(1); var A:[Mat] float; var v:[MatCol] float; var s:[MatRow] float; s = sum(dim=2) [i,j in Mat] A(i,j)*v(j); Version 2: distributions added, algorithm unchanged Sparse code can be formulated in a similar way

Locality Control in Chapel: Basic Concepts • Locale • “locale”: abstract unit of locality, bound to an execution • user-defined views of locale sets • explicit allocation of data and computations on locales • Domain • first-class entity • components: index set, distribution, associated arrays, iterators • Array --- Mapping from a Domain to a Set of Variables • User-Defined Distributions • original ideas in Vienna Fortran and library-based approaches • user can work with distributions at three levels • naïve use of a predefined library distribution • explicit specification of a distribution by its global mapping • explicit specification of a distribution by global mapping and data layout

Key Functionality of the Distribution Framework • Two levels: global mapping and layout mapping • User-Defined Global Mappings from Index Sets to Locales • “standard” distributions (block, block-cyclic, etc.) • distribution of irregular meshes, links to external partitioners • distribution of hierarchical structures (multiblock) • User-Defined Layout Specifications • layout specifies data arrangement within a locale • sparse data structures important target • Dynamic Reallocation, Redistribution • High-Level Control of Communication • user-defined specification of halos (ghost cells) • user-defined assertions on communication

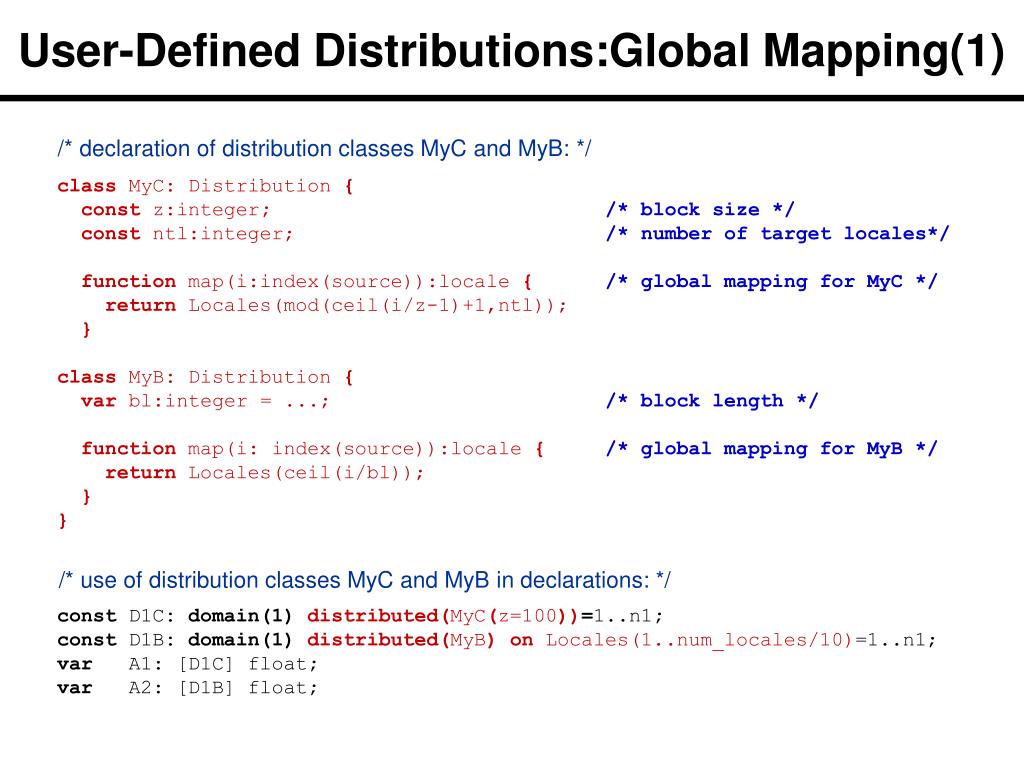

User-Defined Distributions:Global Mapping(1) class MyC:Distribution { const z:integer; /* block size */ const ntl:integer; /* number of target locales*/ function map(i:index(source)):locale { /* global mapping for MyC */ return Locales(mod(ceil(i/z-1)+1,ntl)); } class MyB: Distribution { var bl:integer = ...; /* block length */ function map(i: index(source)):locale { /* global mapping for MyB */ return Locales(ceil(i/bl)); } } const D1C: domain(1) distributed(MyC(z=100))=1..n1; const D1B: domain(1) distributed(MyB) onLocales(1..num_locales/10)=1..n1; var A1: [D1C] float; var A2: [D1B] float; /* declaration of distribution classes MyC and MyB: */ /* use of distribution classes MyC and MyB in declarations: */

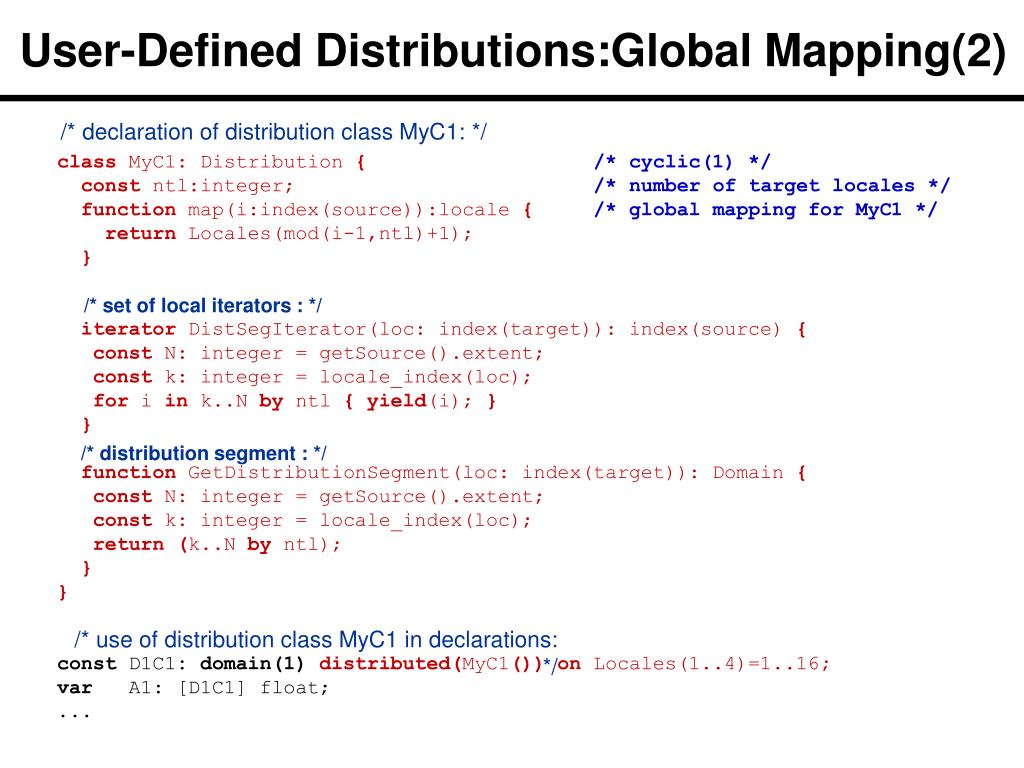

User-Defined Distributions:Global Mapping(2) class MyC1:Distribution { /* cyclic(1) */ const ntl:integer; /* number of target locales */ function map(i:index(source)):locale { /* global mapping for MyC1 */ return Locales(mod(i-1,ntl)+1); } iterator DistSegIterator(loc: index(target)): index(source) { const N: integer = getSource().extent; const k: integer = locale_index(loc); for i in k..N by ntl {yield(i); } } function GetDistributionSegment(loc: index(target)): Domain { const N: integer = getSource().extent; const k: integer = locale_index(loc); return (k..N by ntl); } } const D1C1: domain(1) distributed(MyC1()) on Locales(1..4)=1..16; var A1: [D1C1] float; ... /* declaration of distribution class MyC1: */ /* set of local iterators : */ /* distribution segment : */ /* use of distribution class MyC1 in declarations: */

An Artificial Example: Banded Distribution* 5 6 7 8 d 2 3 4 9 Diagonal A/d = { A(i,j) | d=i+j } 10 j bw = 3 (bandwidth) 1 2 3 4 5 7 6 8 9 11 p=4 (number of locales) 1 1 12 Distribution—global map: 2 Blocks of bw diagonals are cyclically mapped to locales 2 13 3 14 Layout: 3 4 Each diagonal is represented as a one-dimensional dense array. Arrays in a locale are referenced by a pointer array i 15 5 4 16 6 17 7 1 18 8 2 9 *This example was proposed by Brad Chamberlain (Cray Inc.)

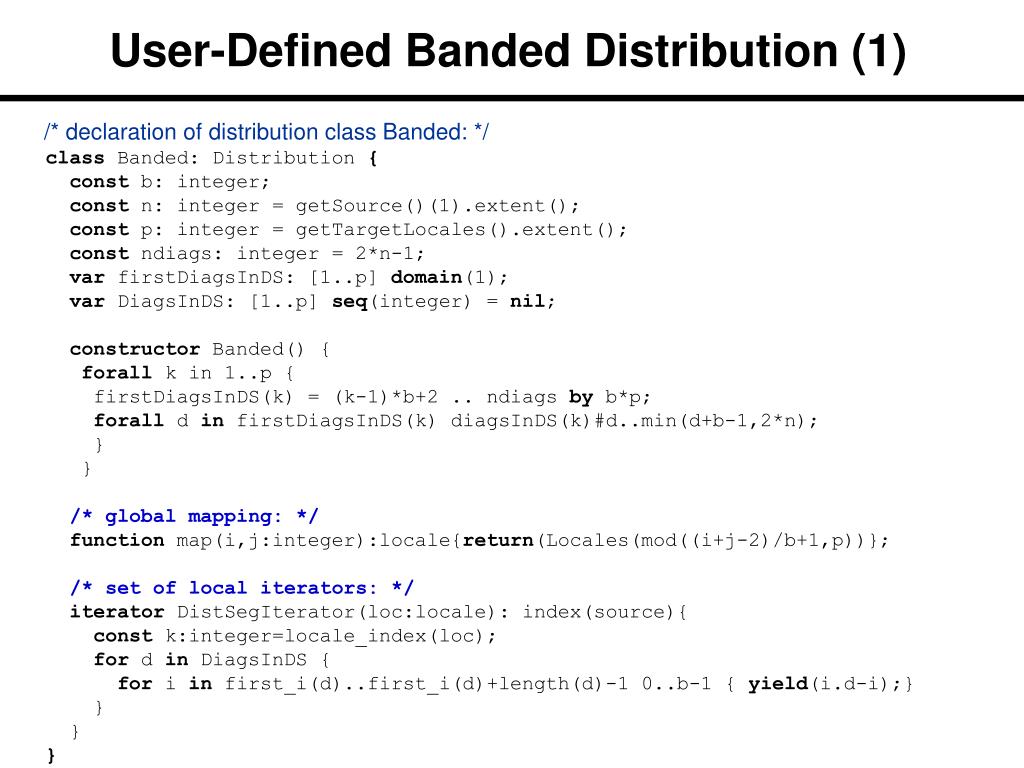

User-Defined Banded Distribution (1) /* declaration of distribution class Banded: */ class Banded:Distribution { const b: integer; const n: integer = getSource()(1).extent(); const p: integer = getTargetLocales().extent(); const ndiags: integer = 2*n-1; var firstDiagsInDS: [1..p] domain(1); var DiagsInDS: [1..p] seq(integer) = nil; constructor Banded() { forall k in 1..p { firstDiagsInDS(k) = (k-1)*b+2 .. ndiags by b*p; forall d in firstDiagsInDS(k) diagsInDS(k)#d..min(d+b-1,2*n); } } /* global mapping: */ function map(i,j:integer):locale{return(Locales(mod((i+j-2)/b+1,p))}; /* set of local iterators: */ iterator DistSegIterator(loc:locale):index(source){ const k:integer=locale_index(loc); for d in DiagsInDS { for i in first_i(d)..first_i(d)+length(d)-1 0..b-1 { yield(i.d-i);} } } }

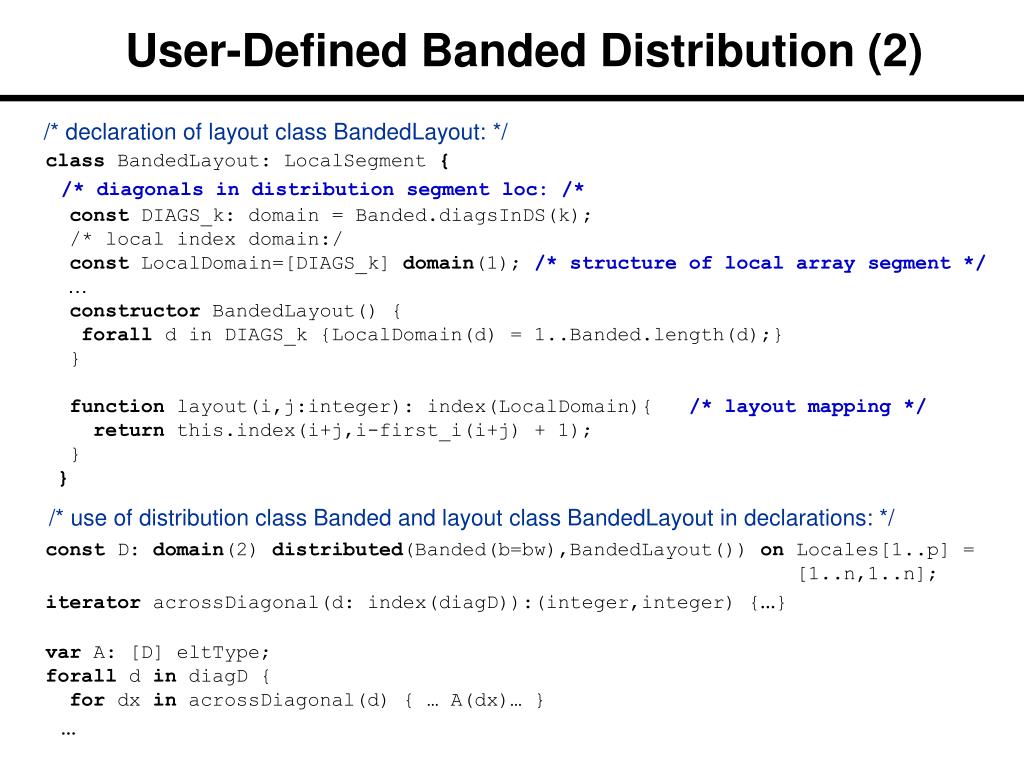

User-Defined Banded Distribution (2) class BandedLayout:LocalSegment { /* diagonals in distribution segment loc: /* const DIAGS_k: domain = Banded.diagsInDS(k); /* local index domain:/ const LocalDomain=[DIAGS_k] domain(1); /* structure of local array segment */ … constructor BandedLayout() { forall d in DIAGS_k {LocalDomain(d) = 1..Banded.length(d);} } function layout(i,j:integer): index(LocalDomain){ /* layout mapping */ return this.index(i+j,i-first_i(i+j) + 1); } } const D: domain(2) distributed(Banded(b=bw),BandedLayout()) on Locales[1..p] = [1..n,1..n]; iterator acrossDiagonal(d: index(diagD)):(integer,integer) {…} var A: [D] eltType; forall d in diagD { for dx in acrossDiagonal(d) { … A(dx)… } … /* declaration of layout class BandedLayout: */ /* use of distribution class Banded and layout class BandedLayout in declarations: */

Example: Matrix-Vector Multiplication (sparse CRS) 0 53 0 0 0 0 0 0 0 0 19 0 0 0 0 0 0 0 0 0 0 0 0 17 0 0 0 0 0 93 0 0 0 0 0 0 0 0 0 21 0 0 0 16 72 0 0 0 0 0 0 0 0 0 13 0 C0 ____ 2 1 4 5 C1 ____ 7 8 6 7 R0 ____ 1 2 2 3 3 4 5 5 R1 ____ 1 1 2 3 4 4 4 5 R0 ____ 1 2 2 3 3 4 5 5 C0 ____ 2 1 4 5 D0 ____ 53 19 17 93 D1 ____ 21 16 72 13 D0 ____ 53 19 17 93 D0 ____ 53 19 17 93 44 0 0 19 37 0 0 0 0 0 64 0 0 0 0 0 0 2369 0 27 0 0 11 R3 ____ 1 3 4 5 C2 ____ 2 3 1 4 D0 ____ 53 19 17 93 D2 ____ 23 69 27 11 C3 ____ 5 8 5 7 D3 ____ 44 19 37 64 R2 ____ 1 1 3 5 const D: domain(2)=[1..m,1..n]; const DD: domain(D) sparse(CRS)= …; distribute(DD,Block_CRS); var AA: [DD] float; …

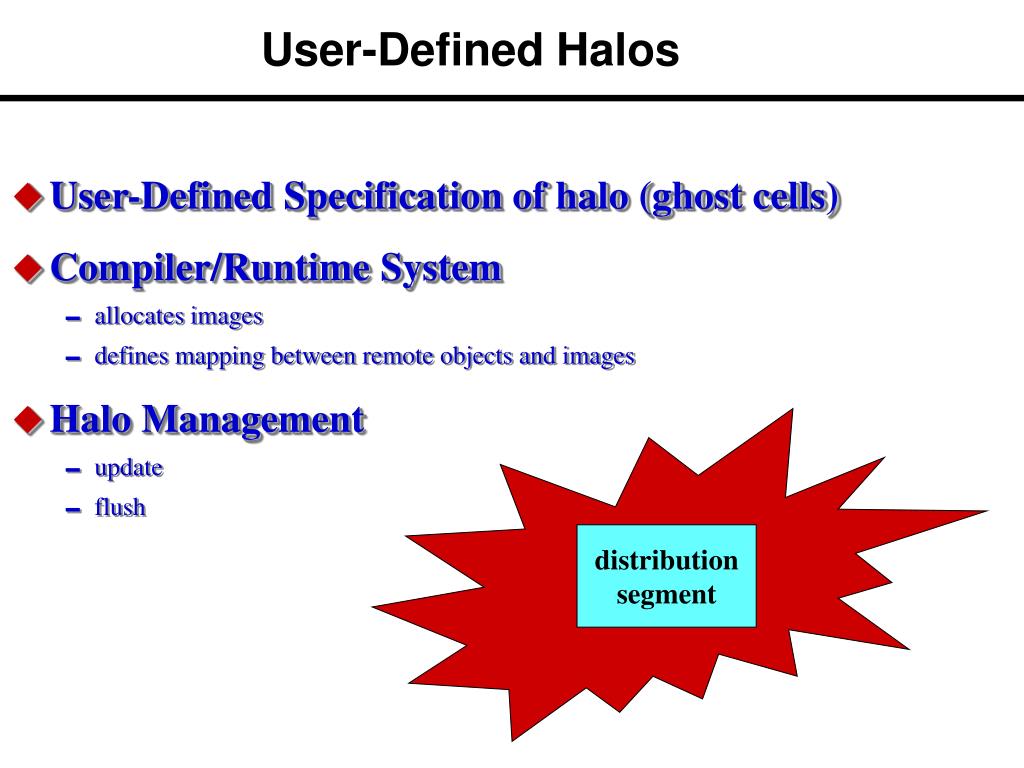

User-Defined Halos • User-Defined Specification of halo (ghost cells) • Compiler/Runtime System • allocates images • defines mapping between remote objects and images • Halo Management • update • flush distribution segment

Intelligent Programming Environments Objective: Create an infrastructure for an intelligent programming environment that supports: • a portable framework for introspection • fault tolerance and resilience to component failures for large-scale systems • autonomy and dynamic adaptation (self-tuning) for complex applications • tool integration and support for high productivity • knowledge acquisition, learning, consulting, and knowledge presentation • shared user interface

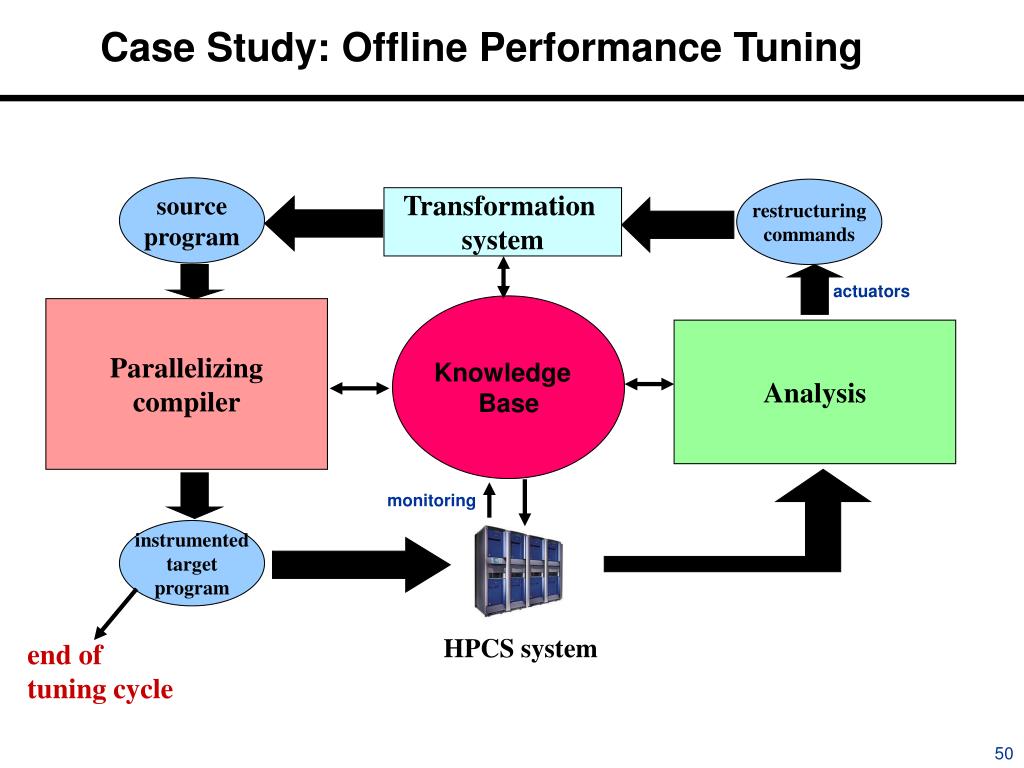

Case Study: Offline Performance Tuning source program restructuring commands Transformation system actuators Parallelizing compiler Analysis Knowledge Base monitoring instrumented target program HPCS system end of tuning cycle 50

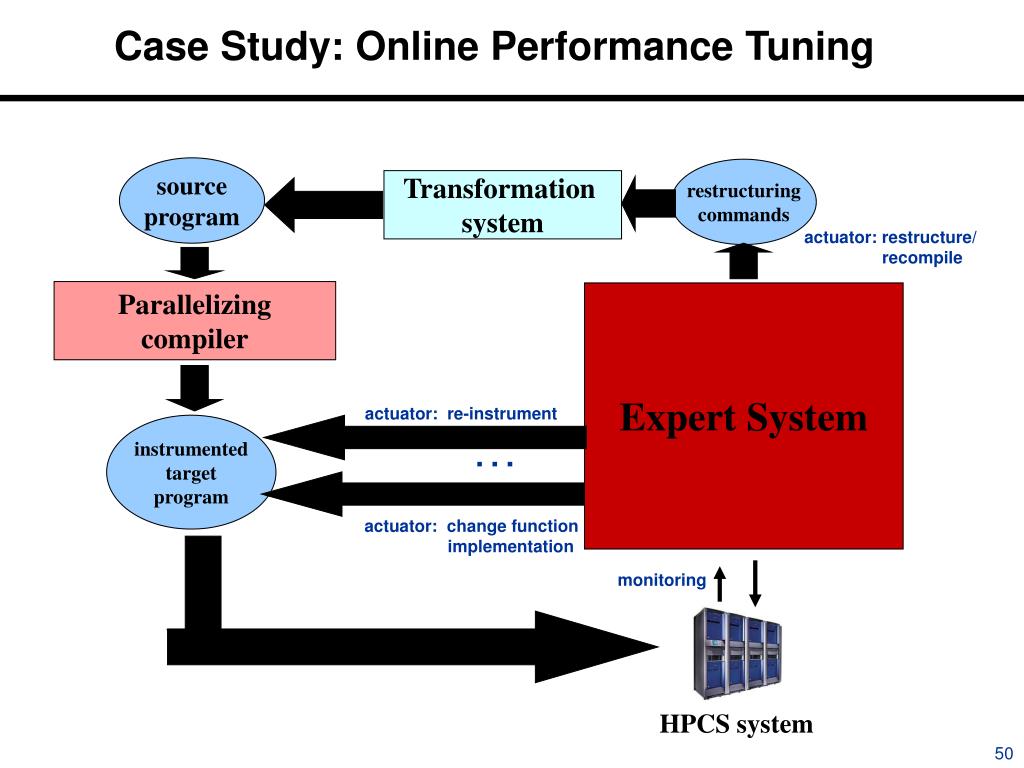

Case Study: Online Performance Tuning source program restructuring commands Transformation system actuator: restructure/ recompile Parallelizing compiler Expert System actuator: re-instrument instrumented target program … actuator: change function implementation monitoring HPCS system 50

Introspection Framework Overview KNOWLEDGE BASE INTROSPECTION FRAMEWORK hardware operating system languages compilers libraries … System Knowledge A P SENSORS P … Inference Engine L Application Domain Knowledge I A A C Agent System for - monitoring - analysis - tuning A ACTUATORS T … … I components semantics performance experiments … Application Knowledge O N Presentation Knowledge 50

Heterogeneous System Example: Future On-Board Systems • Future space missions will require enhanced on-board computing systems • deep-space missions, operating in hazardous environments • advanced sensor technology producing large amounts of high-quality data • latency and bandwidth limitations for transmissions between spacecraft and Earth • real-time on-board decisions concerning navigation, planning of science experiments, and analysis of unexpected phenomena • On-board systems consist of two major components: • radiation-hardened control system • heterogeneous, highly parallel, reduced-reliability computational subsystem • New, high-level, fault-tolerant programming models for such systems are needed Spacecraft Control Computer Computational Subsystem on-board system structure Earth

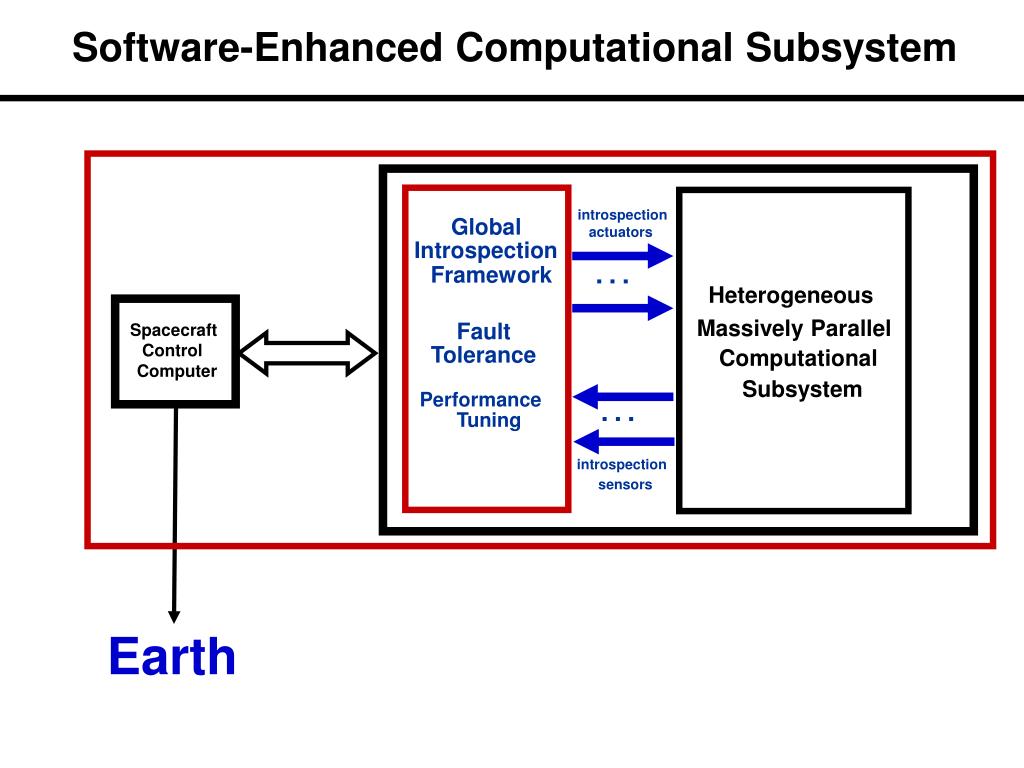

Software-Enhanced Computational Subsystem introspection Global actuators Introspection … Framework Heterogeneous Massively Parallel Fault Spacecraft Control Computer Tolerance Computational Subsystem … Performance Tuning introspection sensors Earth

Conclusion • MPI provides a key infrastructure for HPC that is here to stay • However, productivity and reliability considerations will, in the long term, enforce a programming paradigm in which MPI is the target – not the source • From a practical point of view, general agreement on a single HPC language combined with a common intermediate language, front end, and programming environment would be the best solution to address the difficult open problems • Acceptance of a new language depends on many criteria, including: • functionality and target code performance • mature compiler and runtime system technology • intelligent programming environment closely integrated with the language • familiarity of users with syntax and semantics for conventional (sequential) features • support by funding agencies and major vendors • Open research issues include models for heterogeneous systems, design of intelligent programming environments, fault tolerance and automatic performance tuning
