  1. Vision POWERstation LNX Redefining Functional Imaging

  2. More Clinical Applications New Work flow analysis with DICOM Work-list New Hardware configuration Talairach grid MyoFlex New Generation of POWERstation on LINUX

  3. The Latest clinical Application available today: • Full Cedar Sinai suite (QGS, QPS, BPGS, MoCo) • Emory University Cardiac Tool Box • PER - Unique Scatter Correction method available • BrainQuant™ • MyoFlex – Unique ‘Fuzzy Logic’ Protocol • The latest Workstation technology • High performance PC with LINUX Operating System • CD-RW for Archiving (MOD Available) LNX: High Performance Workstation

  4. Vision Power Station Performances MyoSPECT7 seconds OSEM (Bone)28 seconds CPU: 1,7GHz RAM: 512MB Disk: 32GB CPU: 375MHz RAM: 512MB Disk: 18GB CPU: 250MHz RAM: 128MB Disk: 9GB SPX System MPX System LNX System Meets requirements for intensive computive applications

  5. “Protocol Driven” User Interface Cardiac Applications “Tasks Bar”

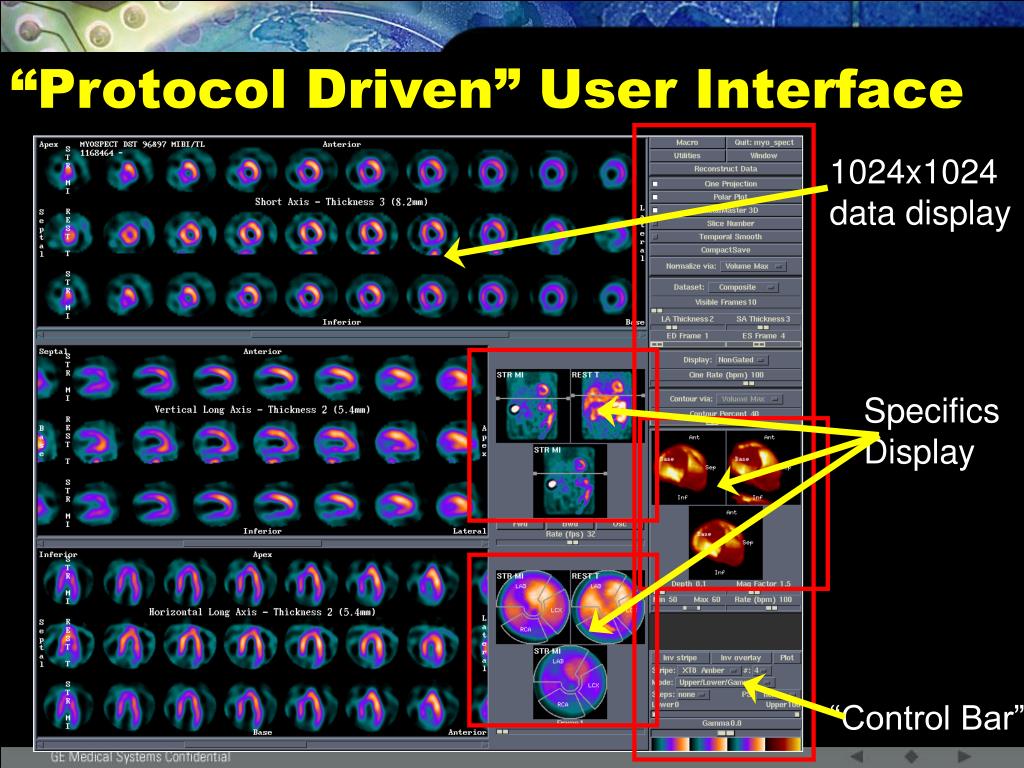

  6. “Protocol Driven” User Interface 1024x1024 data display Specifics Display “Control Bar”

  7. A Unique Protocol that does everything... MulitDIM MyoSPECT ECToolBox QGS+ BPGS QPS

  8. POWERstation continues to build on it’s full suite of display, analysis & connectivity tools to optimize work flow. • Cardiac Application • MyoVista™ MyoQuant™ Target™ • Circumferential Profile Analysis • Planar Gated Blood Pool Analysis • First Pass • Planar Thallium Analysis • StasisTM - Cross-correlation motion correction • MyoFlex • POWERstation also provides the following Optional Protocols: • Emory Cardiac Toolbox • Cedars-Sinai QGS • Cedars-Sinai QPS • Cedars-Sinai Gated Blood Pool SPECT • Cedars MoCo • TAC™ - Iterative reconstruction package for transmission-based attenuation correction

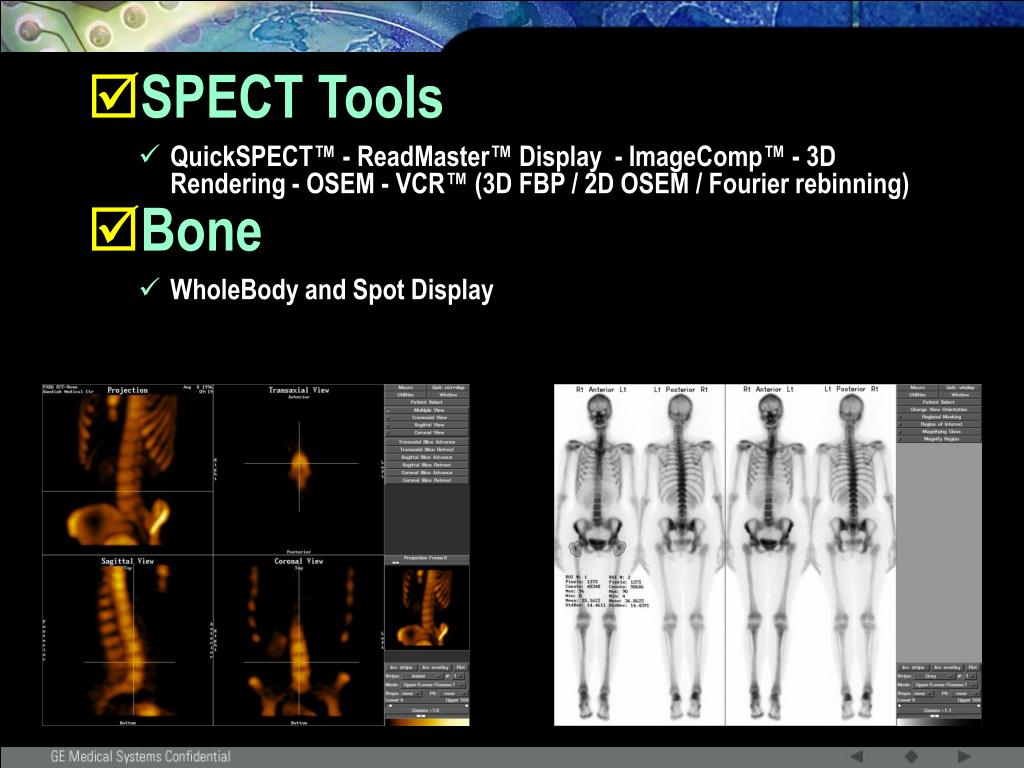

  9. SPECT Tools • QuickSPECT™ - ReadMaster™ Display - ImageComp™ - 3D Rendering - OSEM - VCR™ (3D FBP / 2D OSEM / Fourier rebinning) • Bone • WholeBody and Spot Display

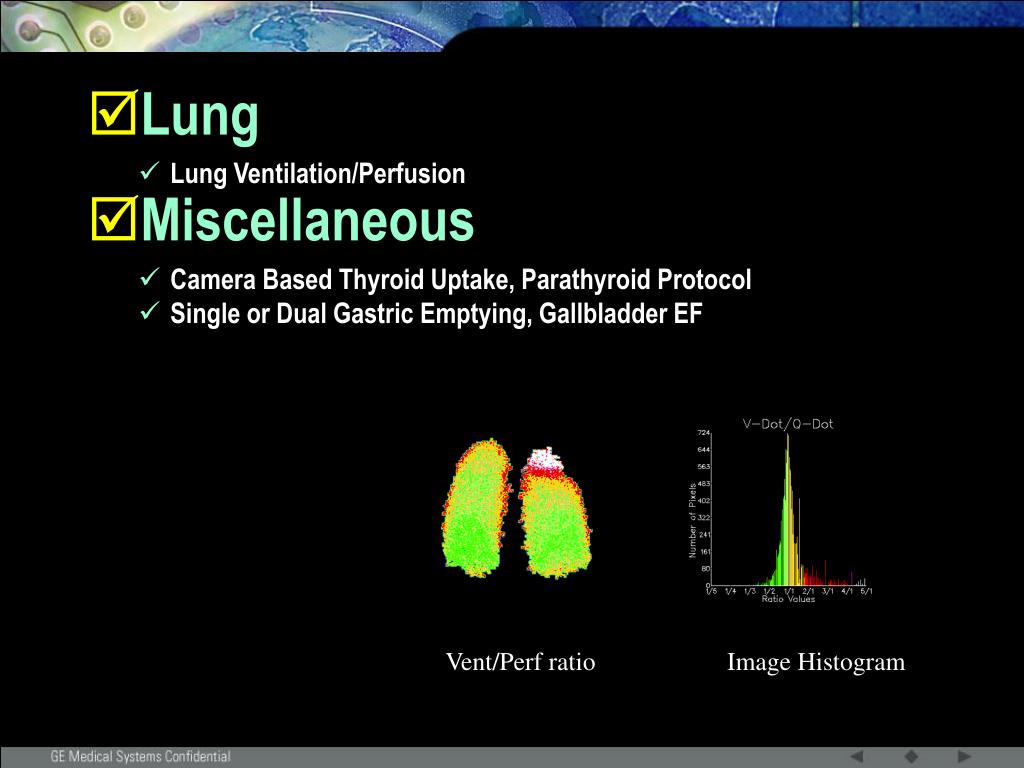

  10. Lung • Lung Ventilation/Perfusion • Miscellaneous • Camera Based Thyroid Uptake, Parathyroid Protocol • Single or Dual Gastric Emptying, Gallbladder EF Vent/Perf ratio Image Histogram

  11. Renal • Gates GFR, Jackson GFR, Dubovsky ERPF, MAG3 ERPF, Schlegel ERPF & Renal Transplant Protocols • Neurology • Brain SPECT Cerebral Blood Flow Analysis • BrainQuant™ Cerebral SPECT Analysis w/Talairach Grid

  12. Tc-99m anterior bone scan PER™ - Scatter Correction • Objectives: • Improve the effective energy resolution of acquisition system, • Correct the images for • Compton scatter • Crosstalk down scatter contamination • => Multispectral analysis based on iterative energy spectrum deconvolution • Benefits • Better image contrast • Improved spatial resolution • More accurate quantification

  13. Most Flexible Display and Print Out • Hardcopy Manager • Macro Recorder • ROI Analysis • Curve Analysis • Image Processing The most complete workstation with the most intelligent customization tools

  14. Connectivity • DICOM Exchange Software in standard • STP 3 Protocol for connection to GE Camera • And DICOM Modality Worklist • Connection to your HIS • Automatic Patient Entry definition • Automatic forward from the Acquisition to the Processing station

  15. Installed Base Commitment • Connectivity • Compatible with 100% of the GE Product Lines • 100% Backward compatible with the SMV IB • Archive • CD Media • SP/MP & SPX/MPX Optical Disks • Reporting / Hardcopy • DICOM Print and Postscript Printer • Helios Printer • Screen capture

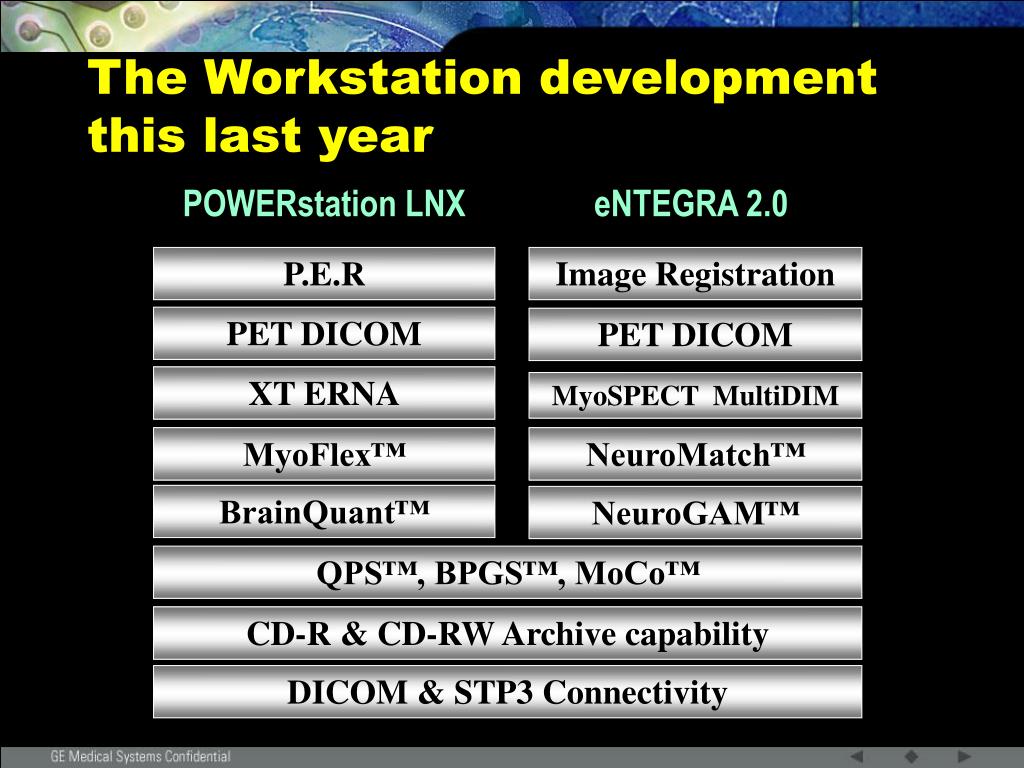

  16. The Workstation development this last year POWERstation LNX eNTEGRA 2.0 P.E.R Image Registration PET DICOM PET DICOM XT ERNA MyoSPECT MultiDIM MyoFlex™ NeuroMatch™ BrainQuant™ NeuroGAM™ QPS™, BPGS™, MoCo™ CD-R & CD-RW Archive capability DICOM & STP3 Connectivity
