  1. Smart Grids Michael KriechbaumGerhard Schmidt 0830187Josef Schöggl 0512064 Lars van Doremalen

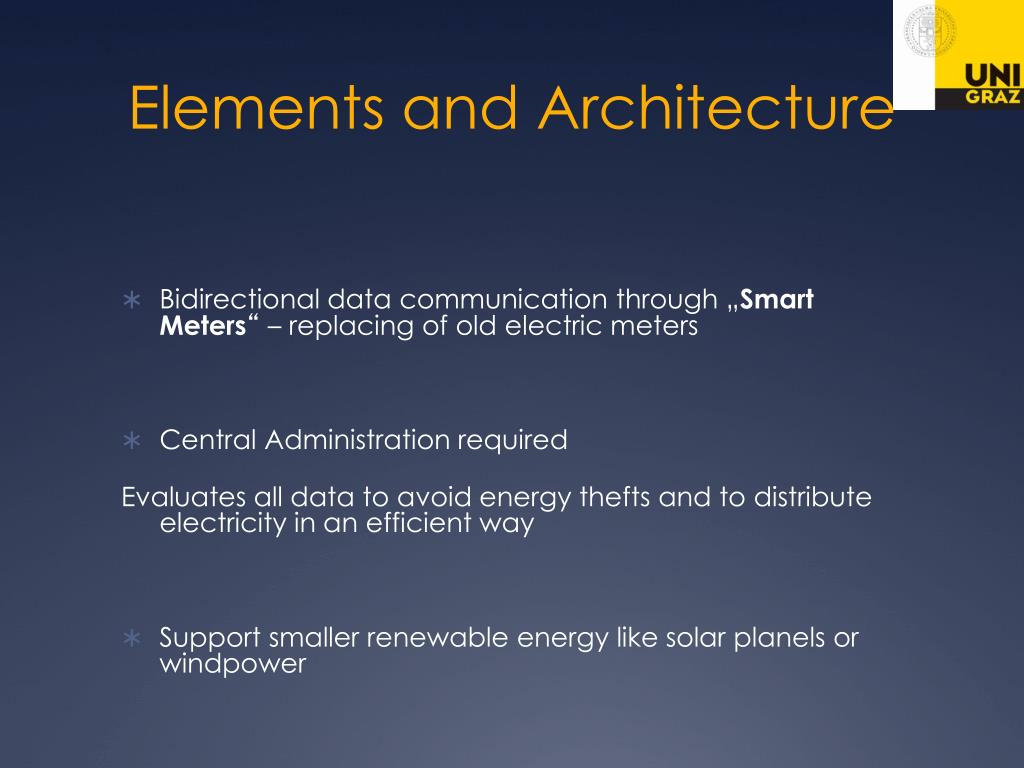

  2. Elements and Architecture • Bidirectional data communication through „Smart Meters“ – replacing of old electric meters • Central Administration required Evaluates all data to avoid energy thefts and to distribute electricity in an efficient way • Support smaller renewable energy like solar planels or windpower

  3. Benefits • avoid energy thefts • distribute electricity in an efficient way • Households can save Energy • Only one new meter is needed

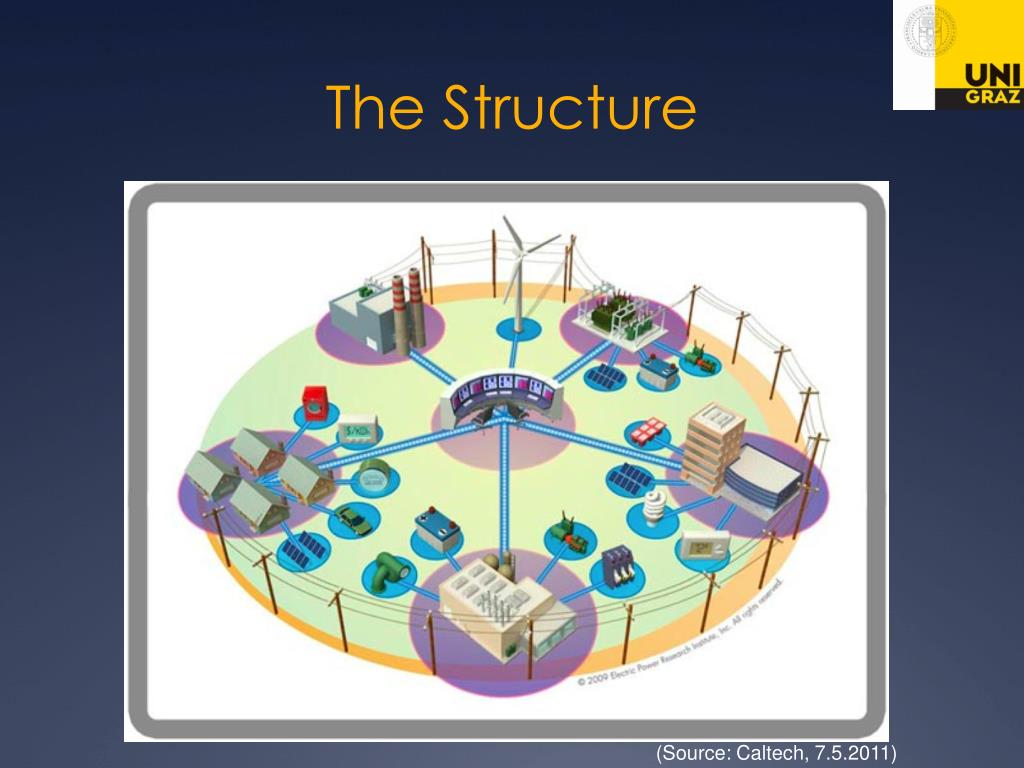

  4. The Structure (Source: Caltech, 7.5.2011)

  5. Implementing Smart Grids DrivingFactors • Competition • Security andqualityofsupply • Global targets on environmental protection

  6. Implementing Smart Grids Enabling Technologies • mostimportantbasisfor a comprehensiveimplementation: Information andcommunicationtechnologies • Sensingandmeasurementtechnologies • Advancedcomponents • Advancedcontrolmethods • Improvedinterfacesanddecisionsupport

  7. Case Study: Great Walser Valley 1. Reserves are available (Source: BMVIT 2010)

  8. Case Study: Great Walser Valley 2. No measures will cause undue transgression of the maximal eletrical potential (Source: BMVIT 2010)

  9. Case Study: Great Walser Valley 3. Solution with a permantent demand management (Source: BMVIT 2010)

  10. Future of Smart grids • HDVC Powerlines • Smart meters • Smart Grid 2.0

  11. Visions • US-Strategies (Source: DOE 2010)

  12. Visions • EU-Strategies (Source: European Union 2006)

  13. Conclusion • Information andcommunicationtechnologiesofgreatimportance • competition, societalchangesanddemandforsecurityandqualityofsupplyarethemostimportantdrivingfactors • High implementationspeed in China -> possibleforerunners

  14. References • Bmvit (2010). Intelligente Energiesysteme der Zukunft, Smart Grids Pioniere in Österreich, Wien 2010 • Caltech Workshop, 2010: “Smart Grids” <http://www.cds.caltech.edu/~motee/smartgrid.html> (7.5.2011) • European Union. (2006). European SmartGrids Technology Platform: Vision and Strategy for Europe’s Electricity Networks of the Future. Luxembourg: Office for Official Publications of the European Communities. • U.S.A. - Department of Energy. (2008). the Smartgrid: An introduction. Washington D.C.

  15. Thankyouforyourattention!
