  1. Fasteners

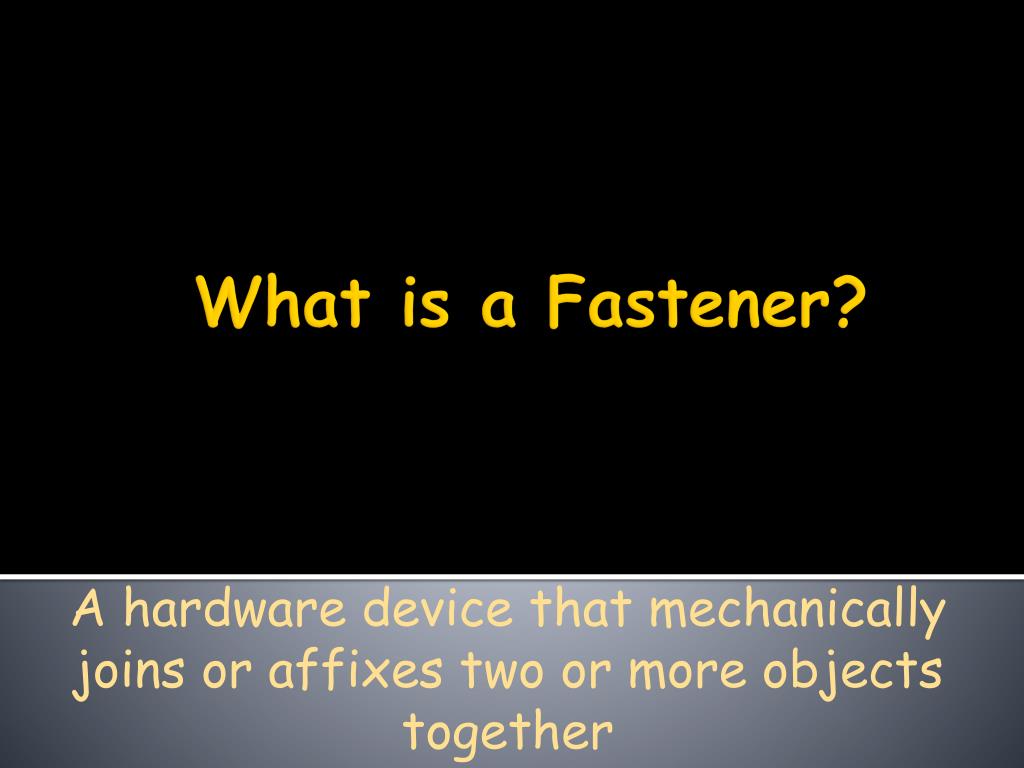

  2. What is a Fastener? A hardware device that mechanically joins or affixes two or more objects together

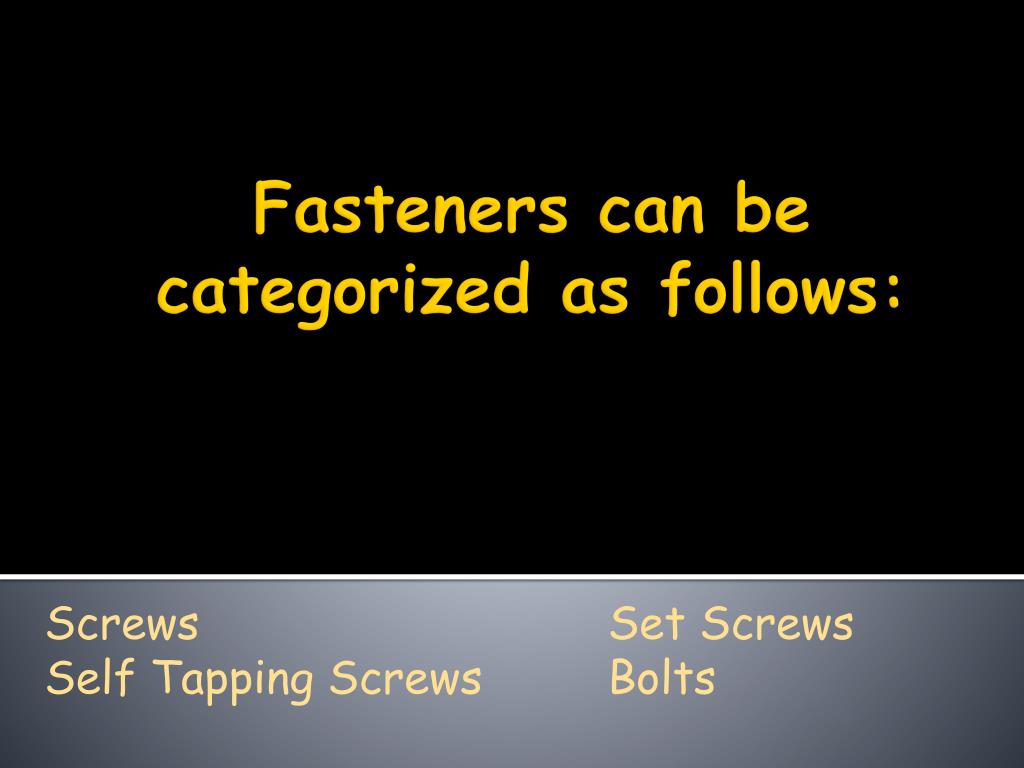

  3. Fasteners can be categorized as follows: Screws Set Screws Self Tapping Screws Bolts

  4. Screws Screws pass through one part and thread into another

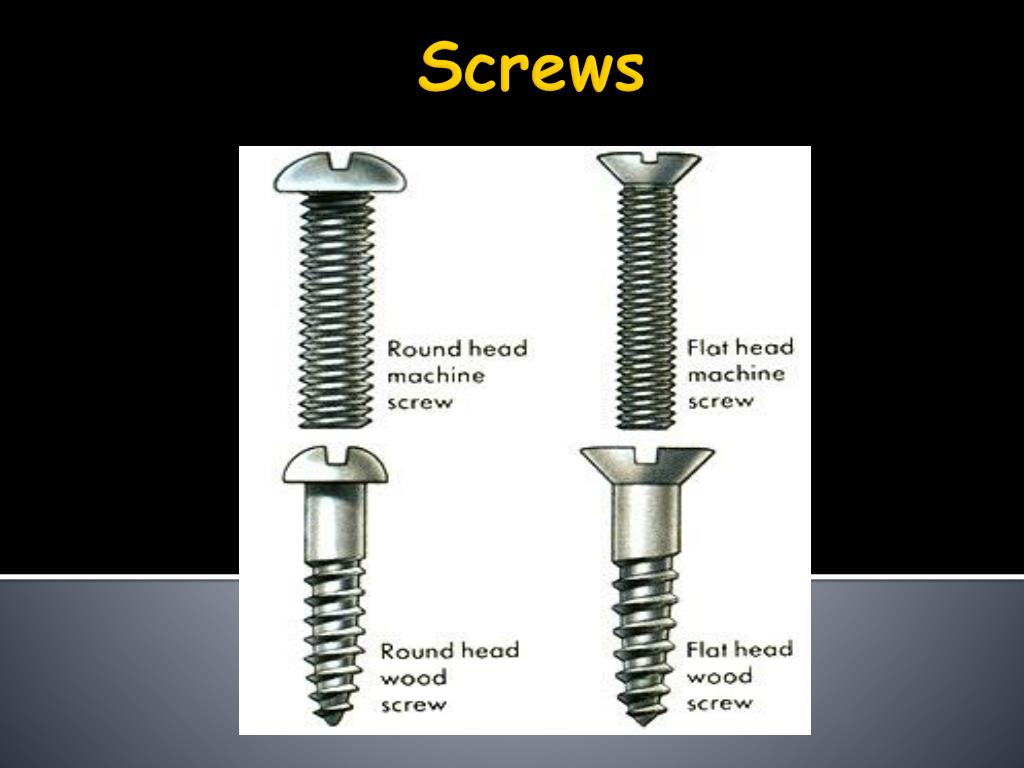

  5. Screws

  6. Screws

  7. Screws

  8. Set Screws The screw passes through a threaded hole in the outer object and is tightened against the inner object A type of screw generally used to secure an object within another object Set Screws are used to secure things such as pulleys, gears & shafts

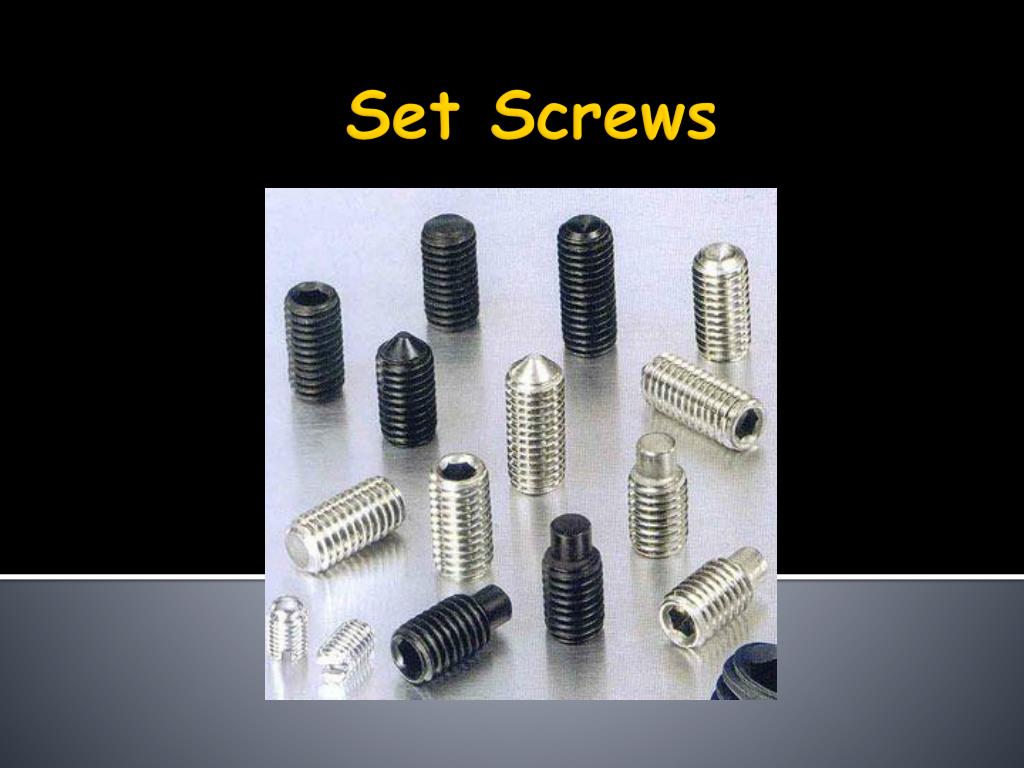

  9. Set Screws

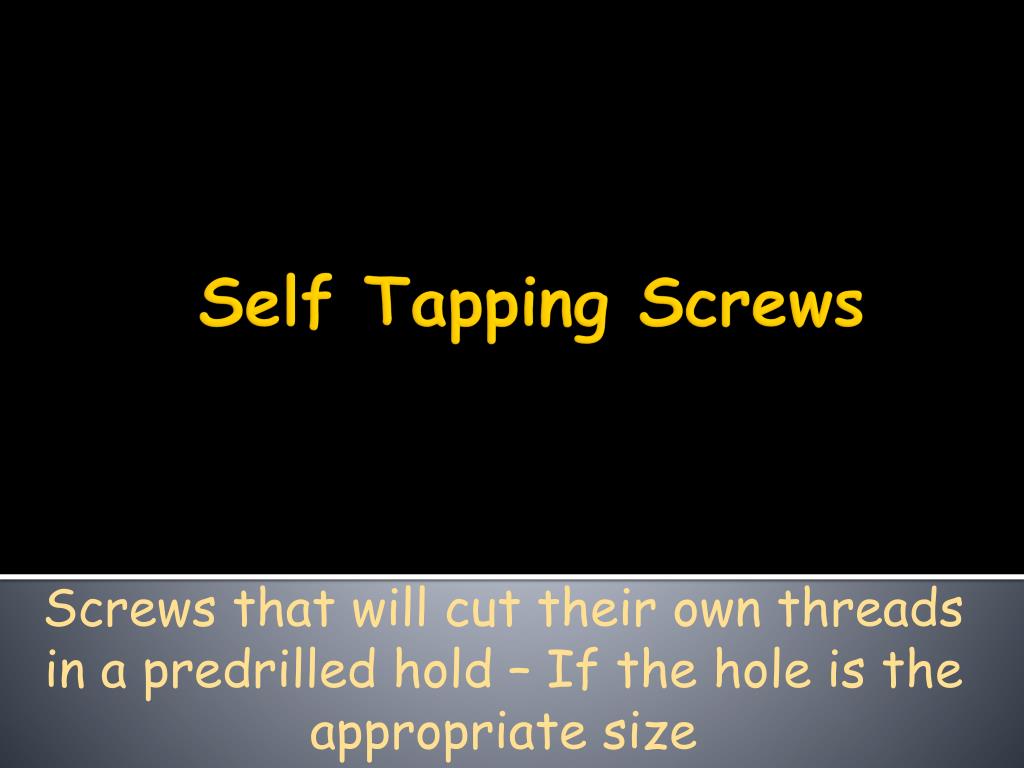

  10. Self Tapping Screws Screws that will cut their own threads in a predrilled hold – If the hole is the appropriate size

  11. Self Tapping Screws

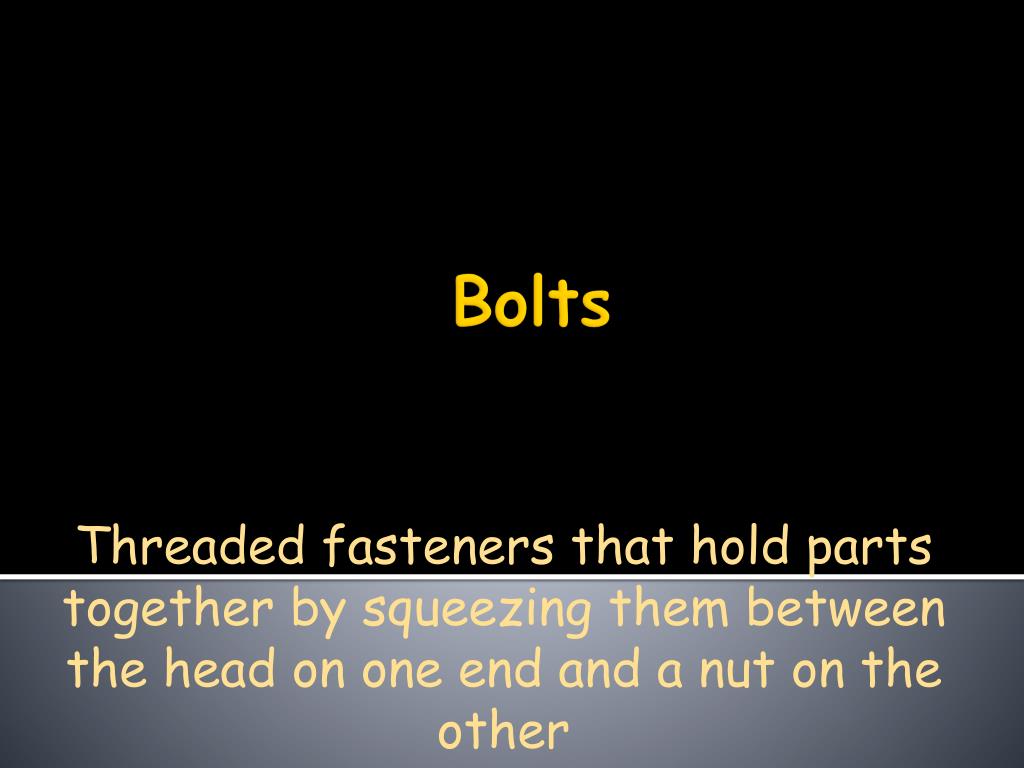

  12. Bolts Threaded fasteners that hold parts together by squeezing them between the head on one end and a nut on the other

  13. Bolts
