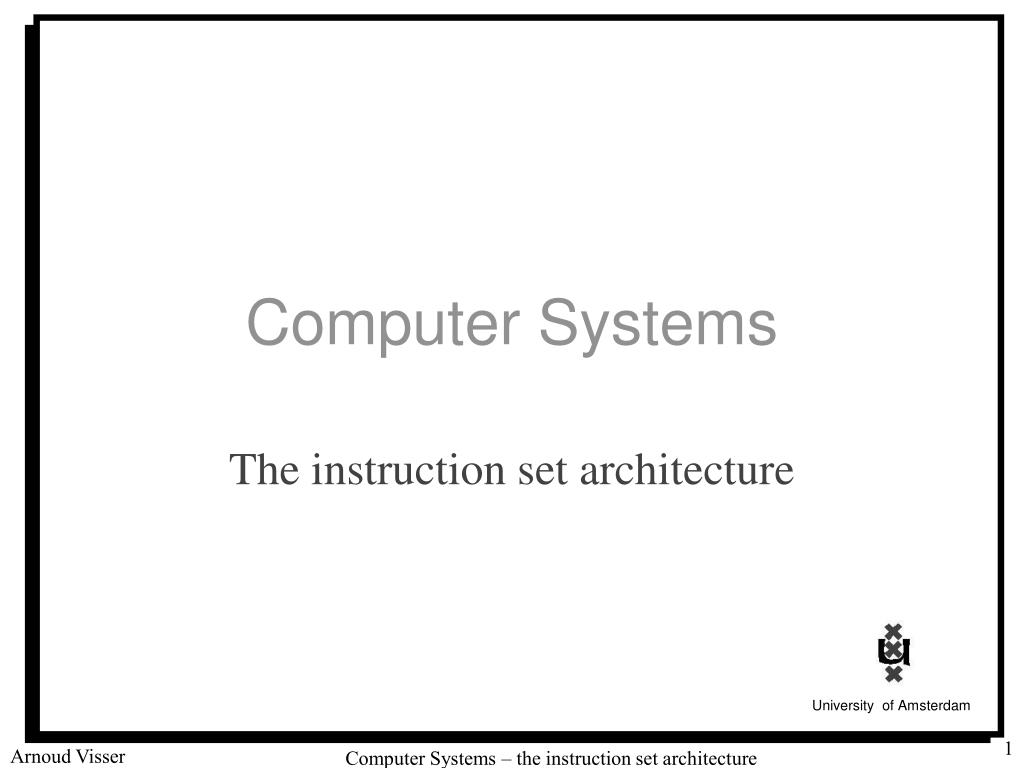

Computer Systems

1. Computer Systems The instruction set architecture Computer Systems – the instruction set architecture

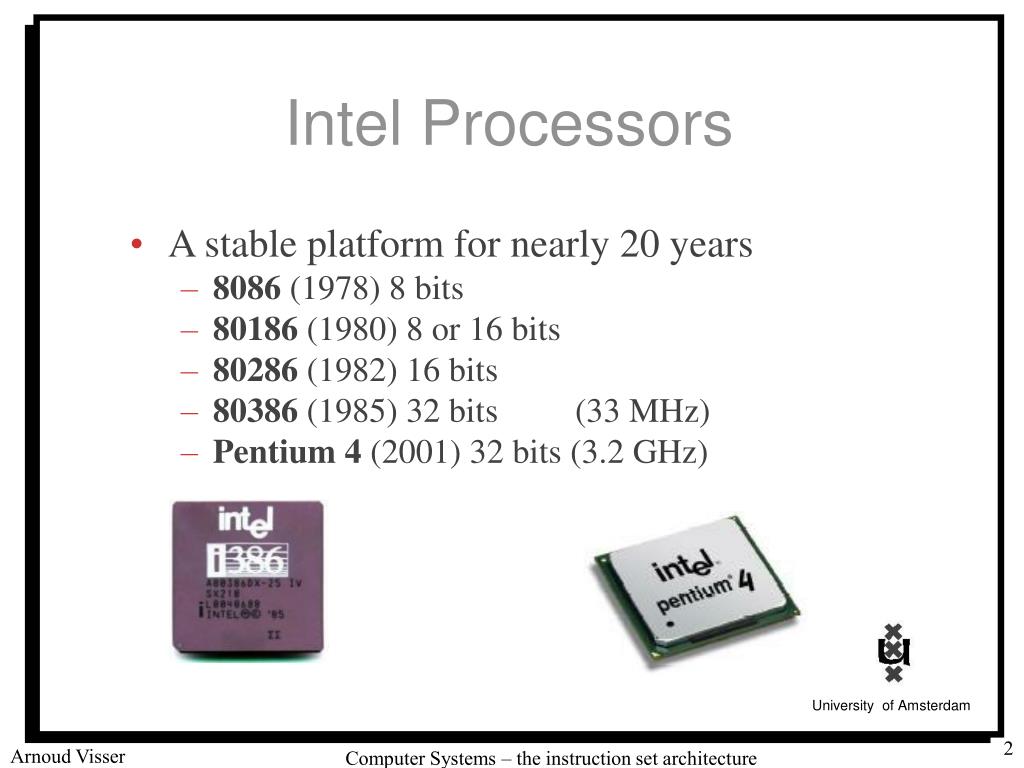

2. Intel Processors • A stable platform for nearly 20 years • 8086 (1978) 8 bits • 80186 (1980) 8 or 16 bits • 80286 (1982) 16 bits • 80386 (1985) 32 bits (33 MHz) • Pentium 4 (2001) 32 bits (3.2 GHz) Computer Systems – the instruction set architecture

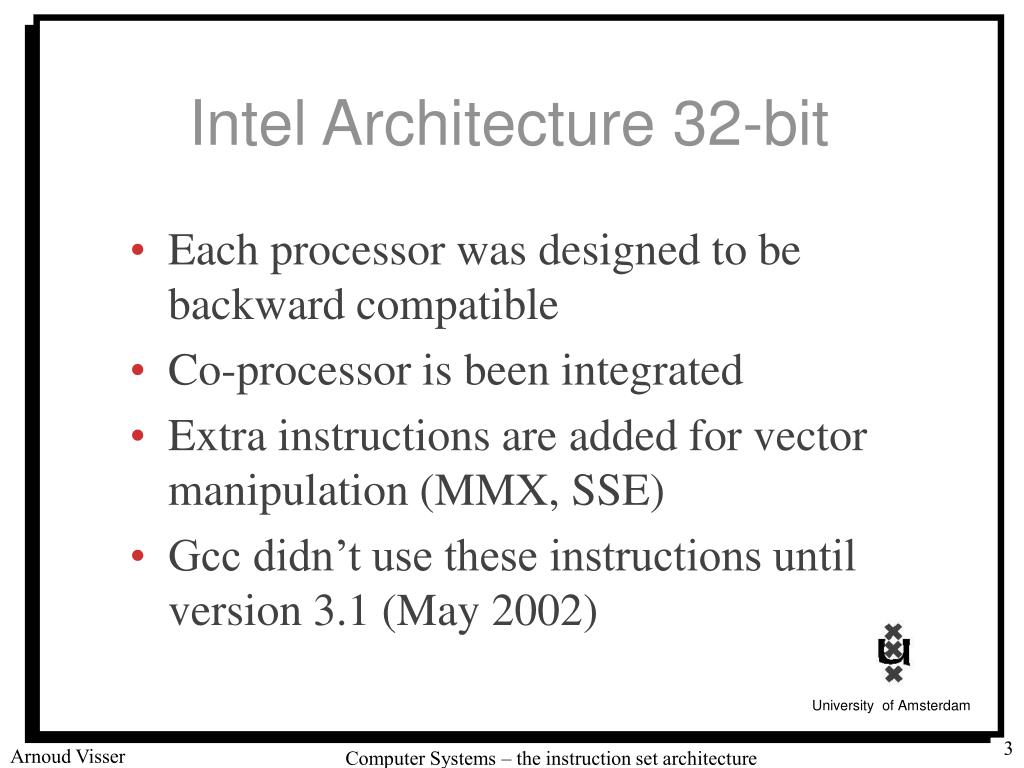

3. Intel Architecture 32-bit • Each processor was designed to be backward compatible • Co-processor is been integrated • Extra instructions are added for vector manipulation (MMX, SSE) • Gcc didn’t use these instructions until version 3.1 (May 2002) Computer Systems – the instruction set architecture

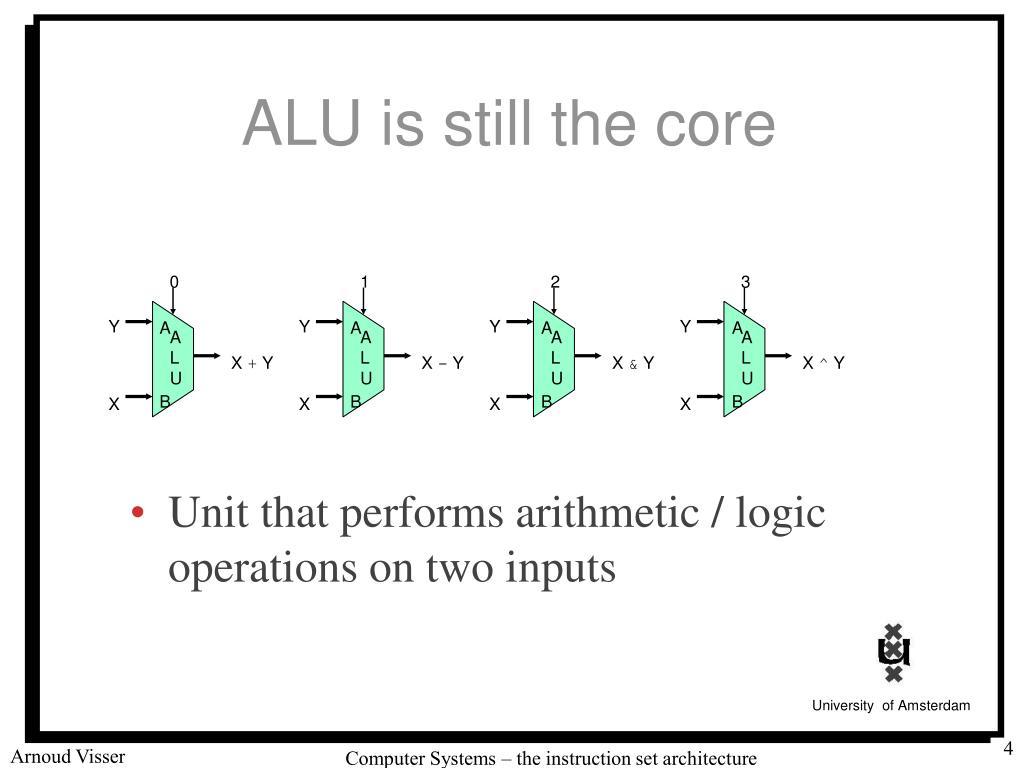

4. 2 3 1 0 Y Y Y Y A A A A X & Y X + Y X ^ Y X - Y B B B B X X X X A L U A L U A L U A L U ALU is still the core • Unit that performs arithmetic / logic operations on two inputs Computer Systems – the instruction set architecture

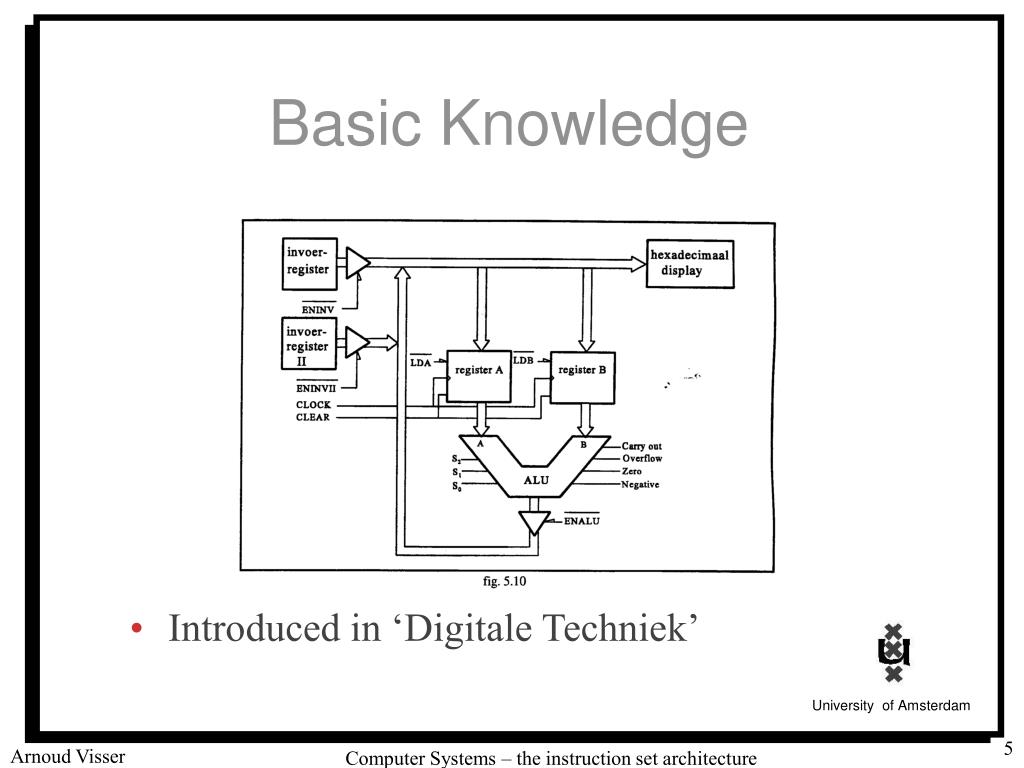

5. Basic Knowledge • Introduced in ‘Digitale Techniek’ Computer Systems – the instruction set architecture

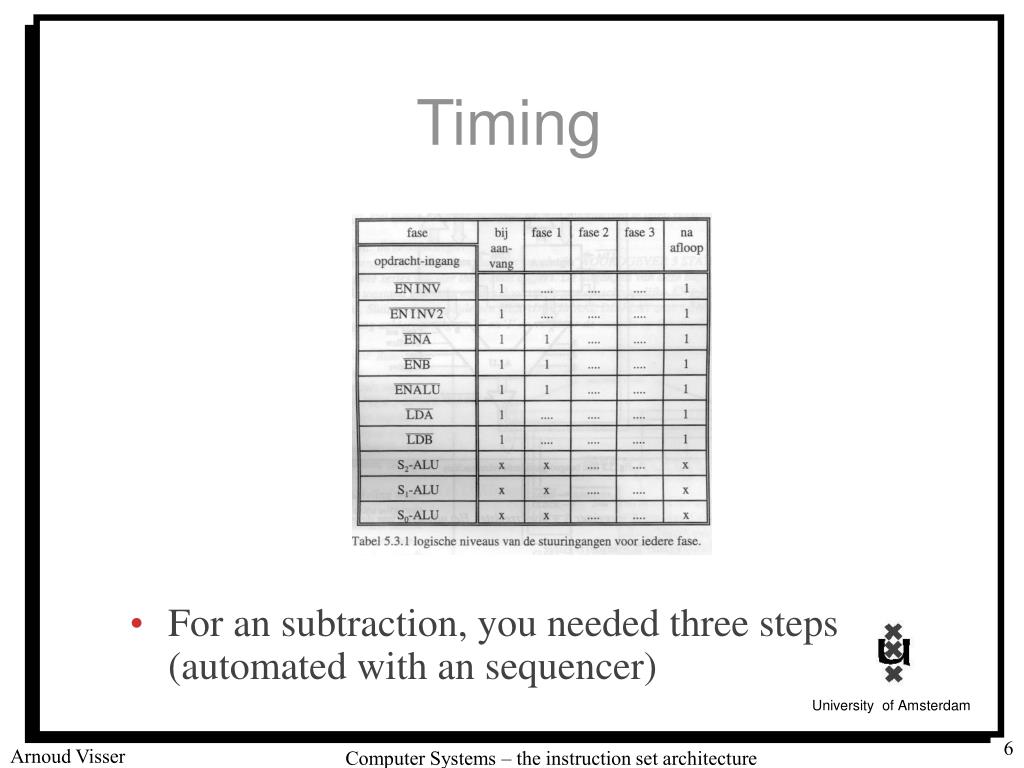

6. Timing • For an subtraction, you needed three steps (automated with an sequencer) Computer Systems – the instruction set architecture

7. Registerfile ALU Micro-instructions int subtract(int invoer1, int invoer2) { return (invoer1 - invoer2); } _subtract: pushl %ebp movl %esp, %ebp movl 12(%ebp), %edx movl 8(%ebp), %eax subl %edx, %eax popl %ebp ret Gcc -S • The ‘invoer’ is moved from memory to two registers (a,d), followed by operation subl Computer Systems – the instruction set architecture

8. Integer Arithmetic Operations Of the 15 operations, we concentrate on 4 (Y86) Computer Systems – the instruction set architecture

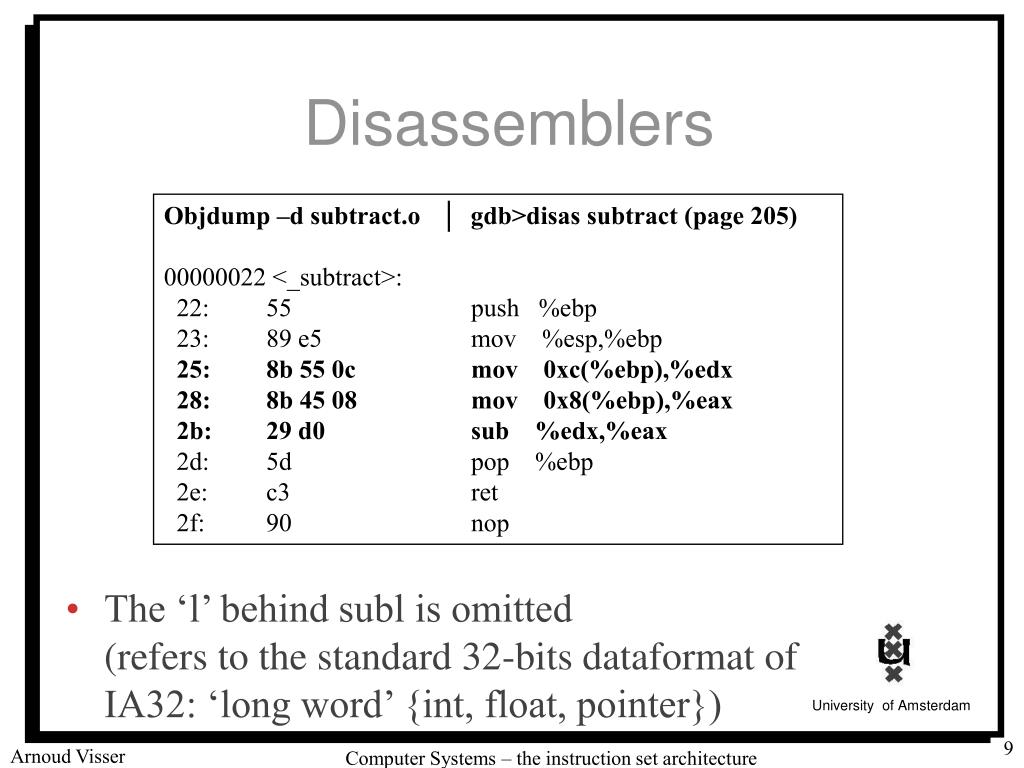

9. Disassemblers Objdump –d subtract.o│ gdb>disas subtract (page 205) 00000022 <_subtract>: 22: 55 push %ebp 23: 89 e5 mov %esp,%ebp 25: 8b 55 0c mov 0xc(%ebp),%edx 28: 8b 45 08 mov 0x8(%ebp),%eax 2b: 29 d0 sub %edx,%eax 2d: 5d pop %ebp 2e: c3 ret 2f: 90 nop • The ‘l’ behind subl is omitted (refers to the standard 32-bits dataformat of IA32: ‘long word’ {int, float, pointer}) Computer Systems – the instruction set architecture

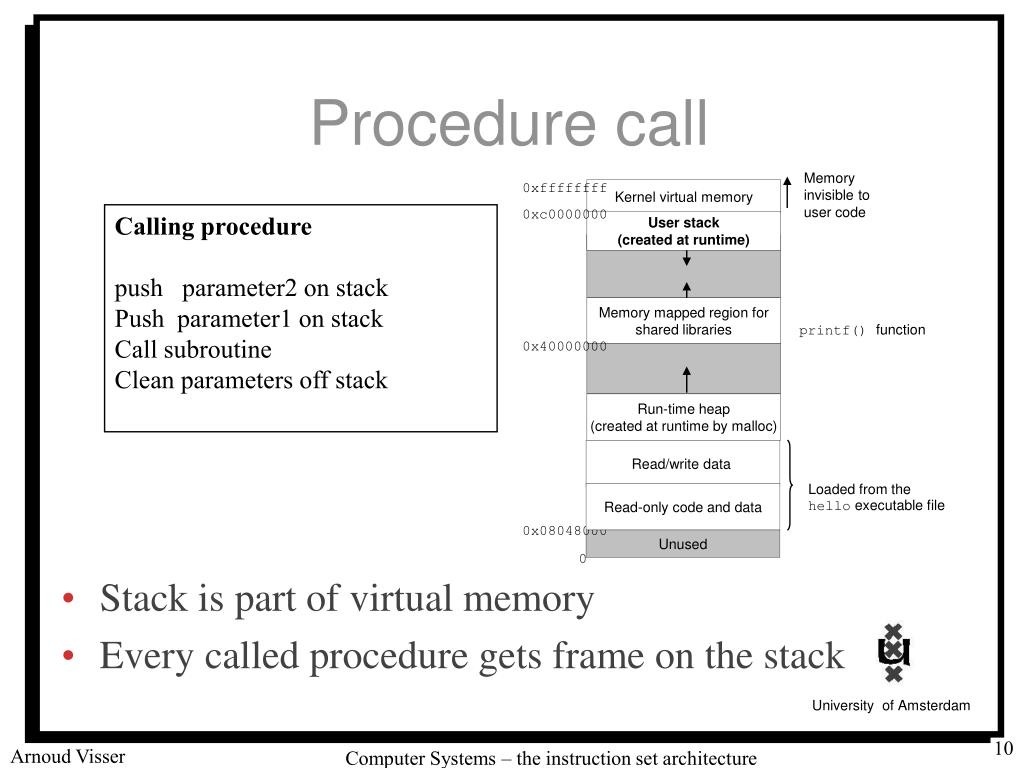

10. Memory invisible to user code 0xffffffff Kernel virtual memory 0xc0000000 User stack (created at runtime) Memory mapped region for shared libraries printf() function 0x40000000 Run-time heap (created at runtime by malloc) Read/write data Loaded from the hello executable file Read-only code and data 0x08048000 Unused 0 Procedure call Calling procedure push parameter2 on stack Push parameter1 on stack Call subroutine Clean parameters off stack • Stack is part of virtual memory • Every called procedure gets frame on the stack Computer Systems – the instruction set architecture

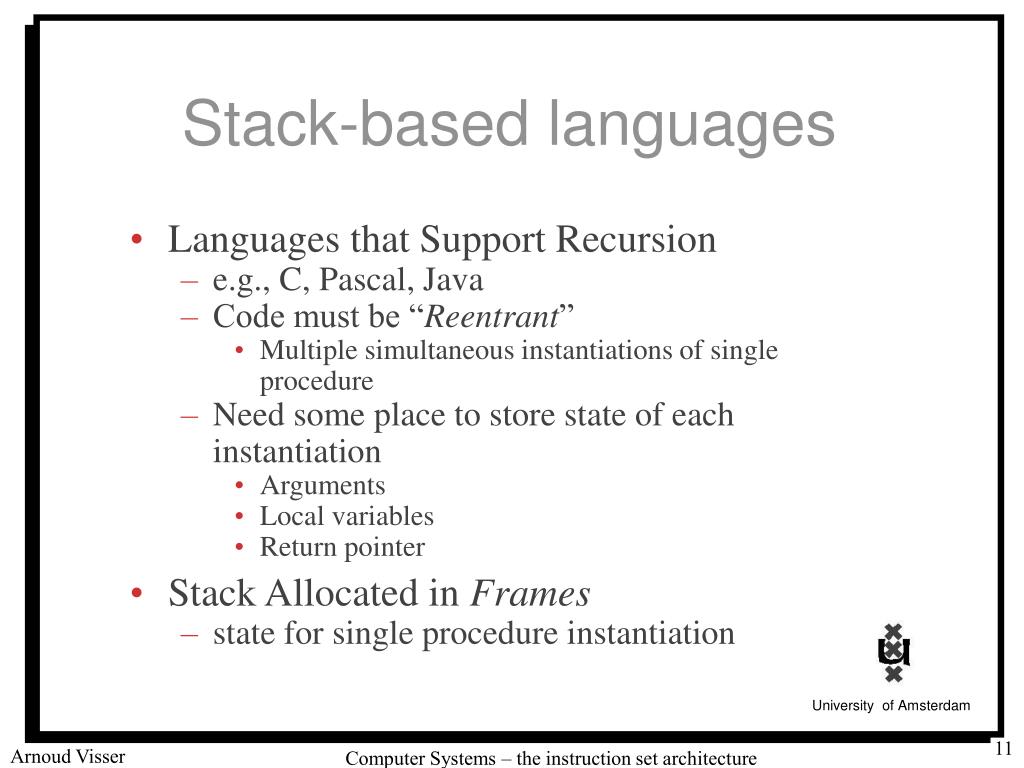

11. Stack-based languages • Languages that Support Recursion • e.g., C, Pascal, Java • Code must be “Reentrant” • Multiple simultaneous instantiations of single procedure • Need some place to store state of each instantiation • Arguments • Local variables • Return pointer • Stack Allocated in Frames • state for single procedure instantiation Computer Systems – the instruction set architecture

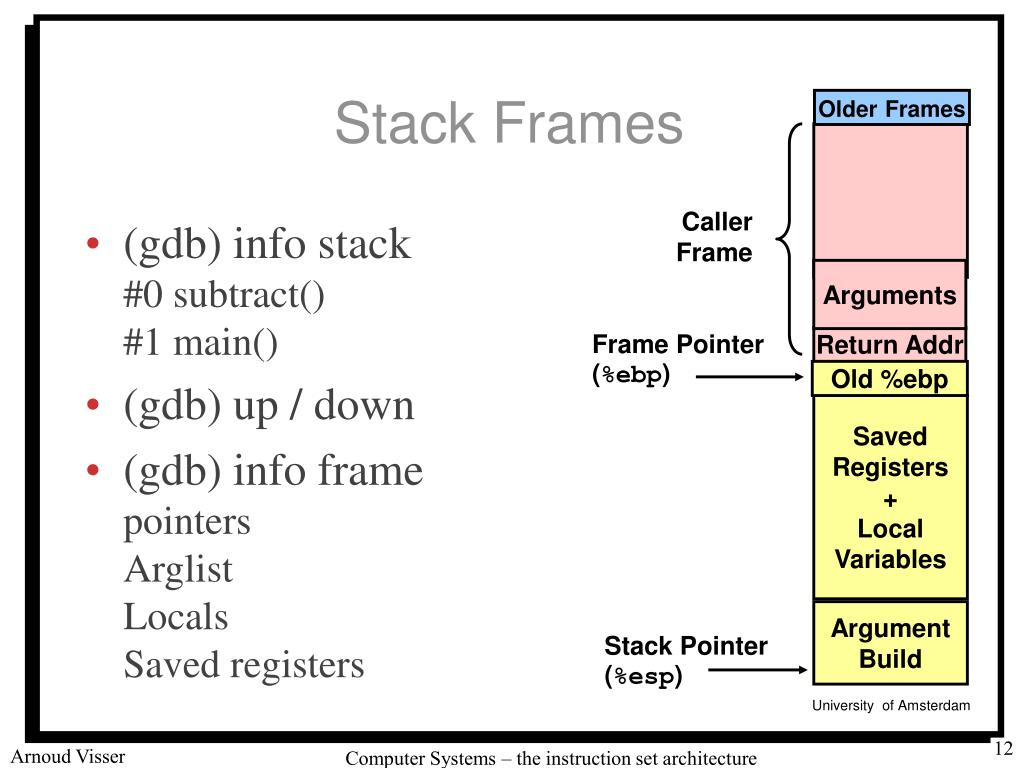

12. Stack Frames OlderFrames Caller Frame • (gdb) info stack#0 subtract()#1 main() • (gdb) up / down • (gdb) info framepointersArglistLocalsSaved registers Arguments Frame Pointer (%ebp) Return Addr Old %ebp Saved Registers + Local Variables Argument Build Stack Pointer (%esp) Computer Systems – the instruction set architecture

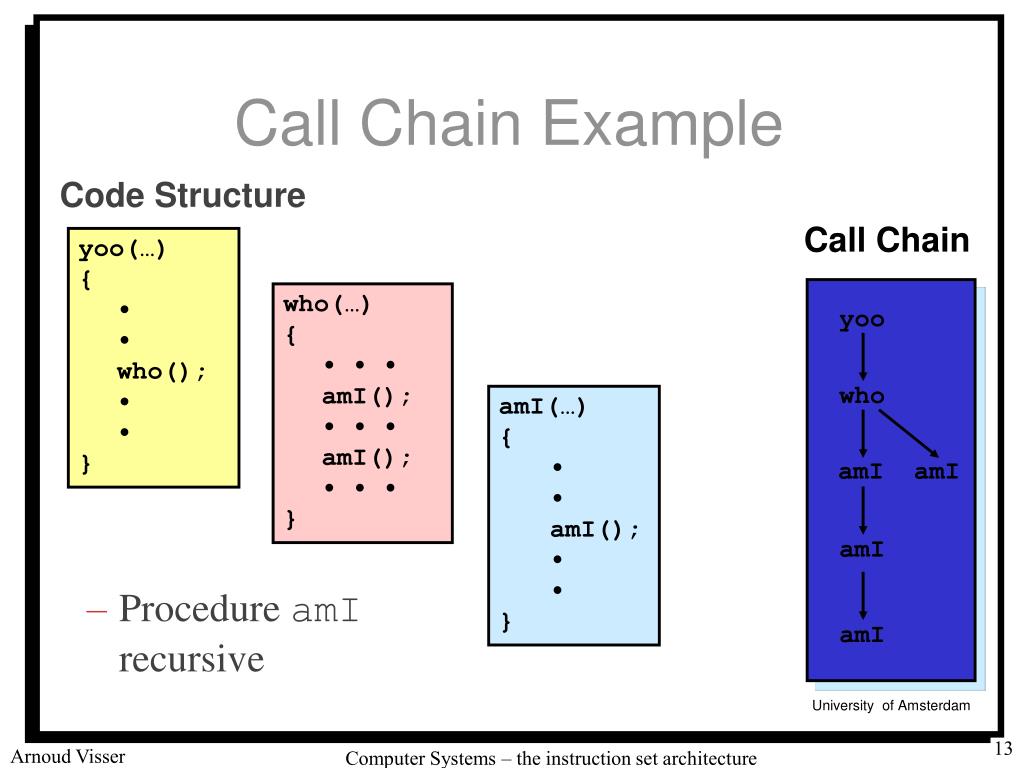

13. Call Chain Example Code Structure Call Chain • yoo(…) • { • • • • • who(); • • • • • } • who(…) • { • • • • • amI(); • • • • • amI(); • • • • • } yoo who • amI(…) • { • • • • • amI(); • • • • • } amI amI amI • Procedure amI recursive amI Computer Systems – the instruction set architecture

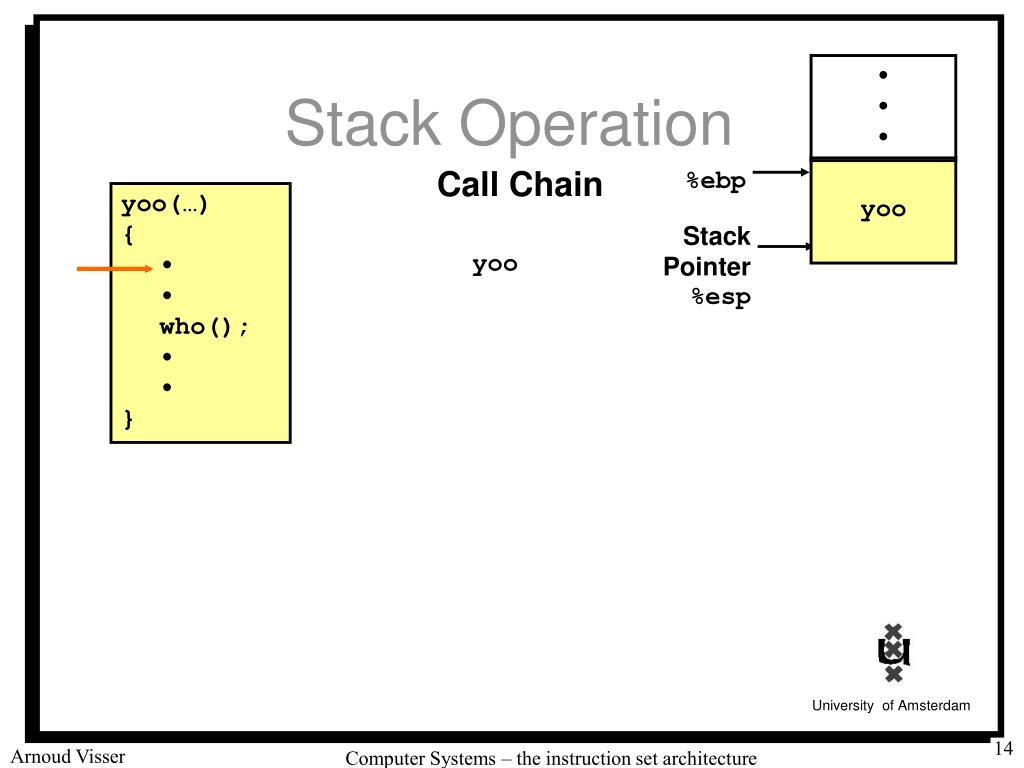

14. %ebp Stack Pointer %esp • • • Stack Operation Call Chain yoo • yoo(…) • { • • • • • who(); • • • • • } yoo Computer Systems – the instruction set architecture

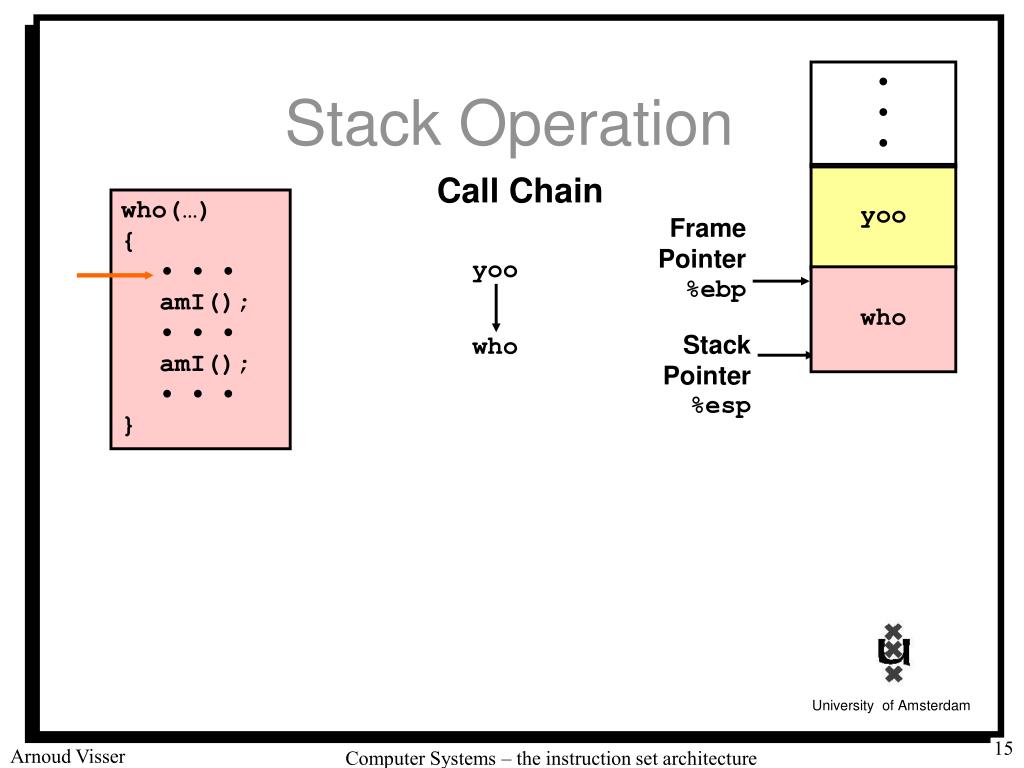

15. Frame Pointer %ebp Stack Pointer %esp • • • Stack Operation Call Chain yoo • who(…) • { • • • • • amI(); • • • • • amI(); • • • • • } yoo who who Computer Systems – the instruction set architecture

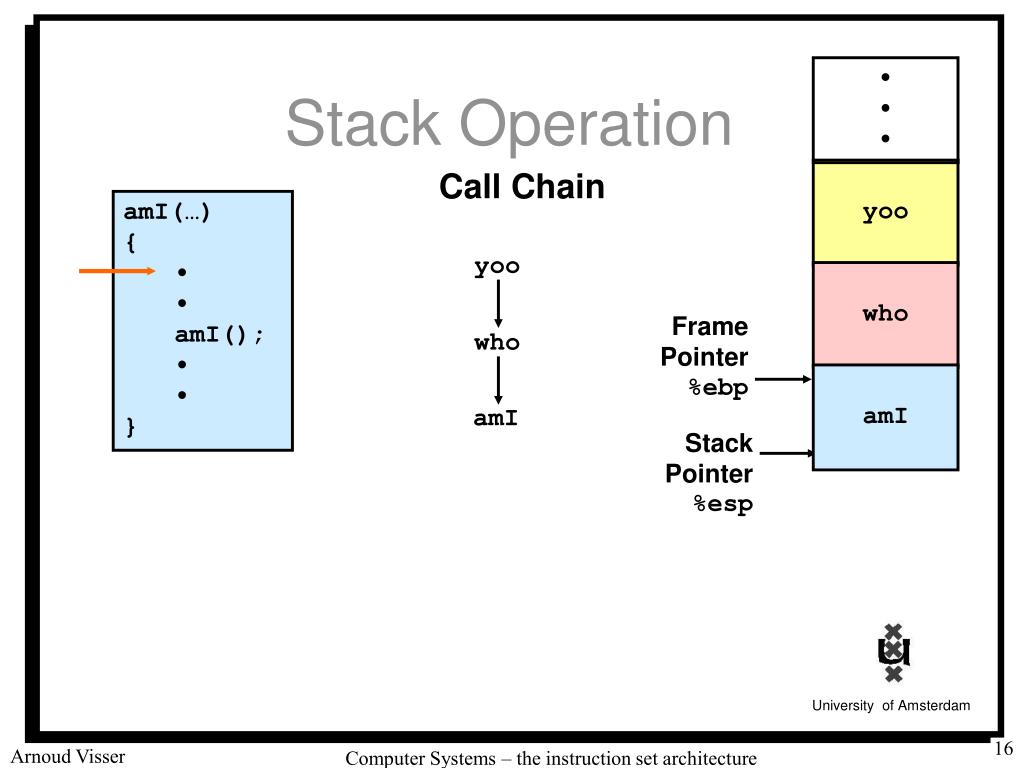

16. Frame Pointer %ebp Stack Pointer %esp • • • Stack Operation Call Chain yoo • amI(…) • { • • • • • amI(); • • • • • } yoo who who amI amI Computer Systems – the instruction set architecture

17. Frame Pointer %ebp Stack Pointer %esp • • • Stack Operation Call Chain yoo • amI(…) • { • • • • • amI(); • • • • • } yoo who who amI amI amI amI Computer Systems – the instruction set architecture

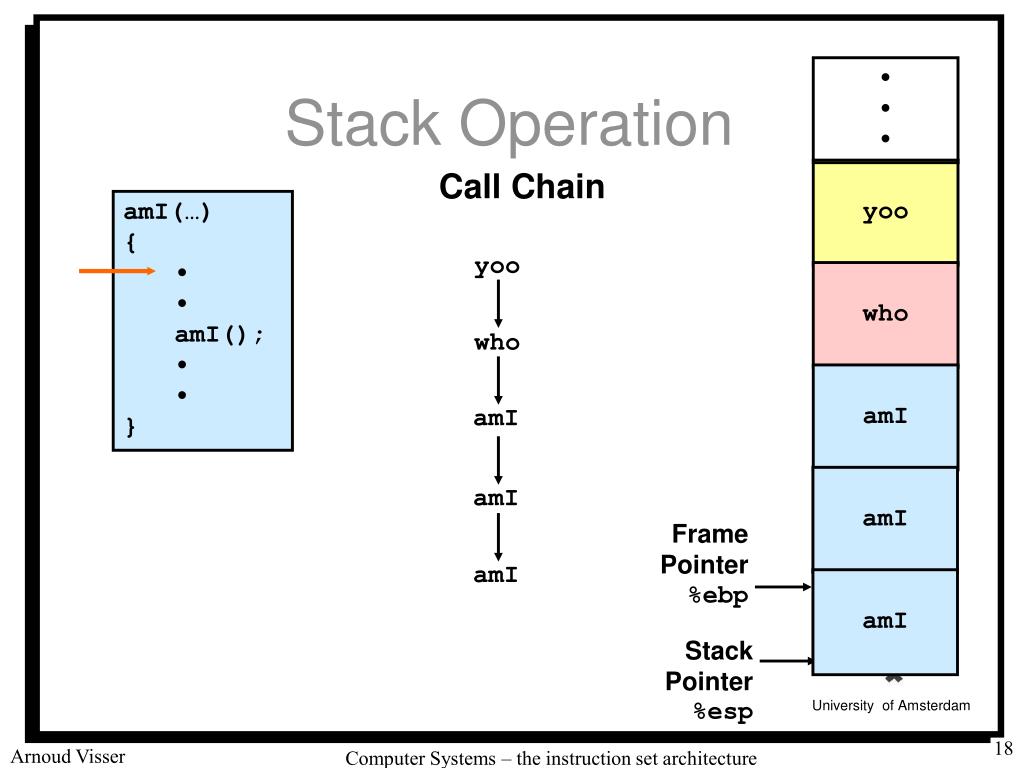

18. Frame Pointer %ebp Stack Pointer %esp • • • Stack Operation Call Chain yoo • amI(…) • { • • • • • amI(); • • • • • } yoo who who amI amI amI amI amI amI Computer Systems – the instruction set architecture

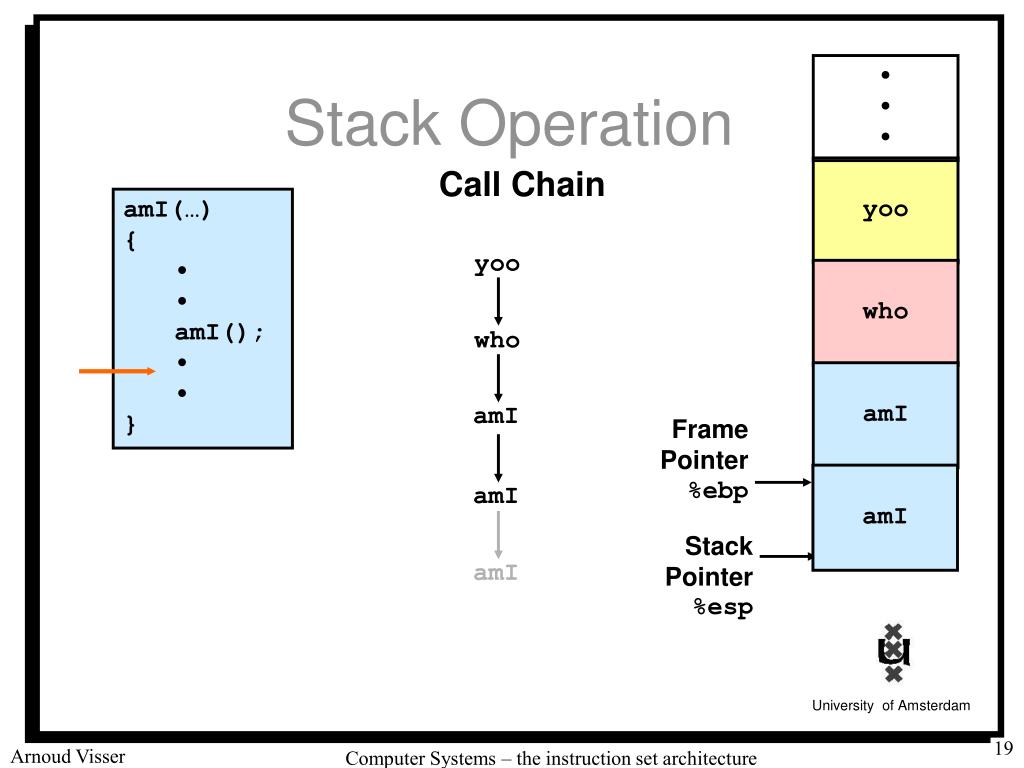

19. Frame Pointer %ebp Stack Pointer %esp • • • Stack Operation Call Chain yoo • amI(…) • { • • • • • amI(); • • • • • } yoo who who amI amI amI amI amI Computer Systems – the instruction set architecture

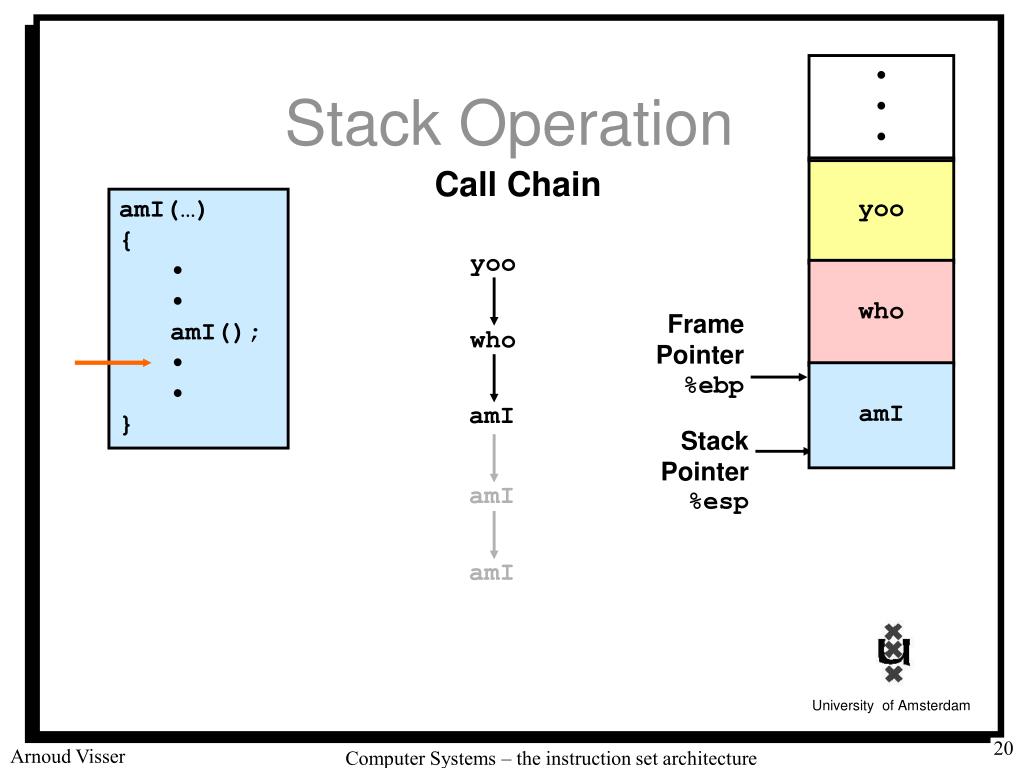

20. Frame Pointer %ebp Stack Pointer %esp • • • Stack Operation Call Chain yoo • amI(…) • { • • • • • amI(); • • • • • } yoo who who amI amI amI amI Computer Systems – the instruction set architecture

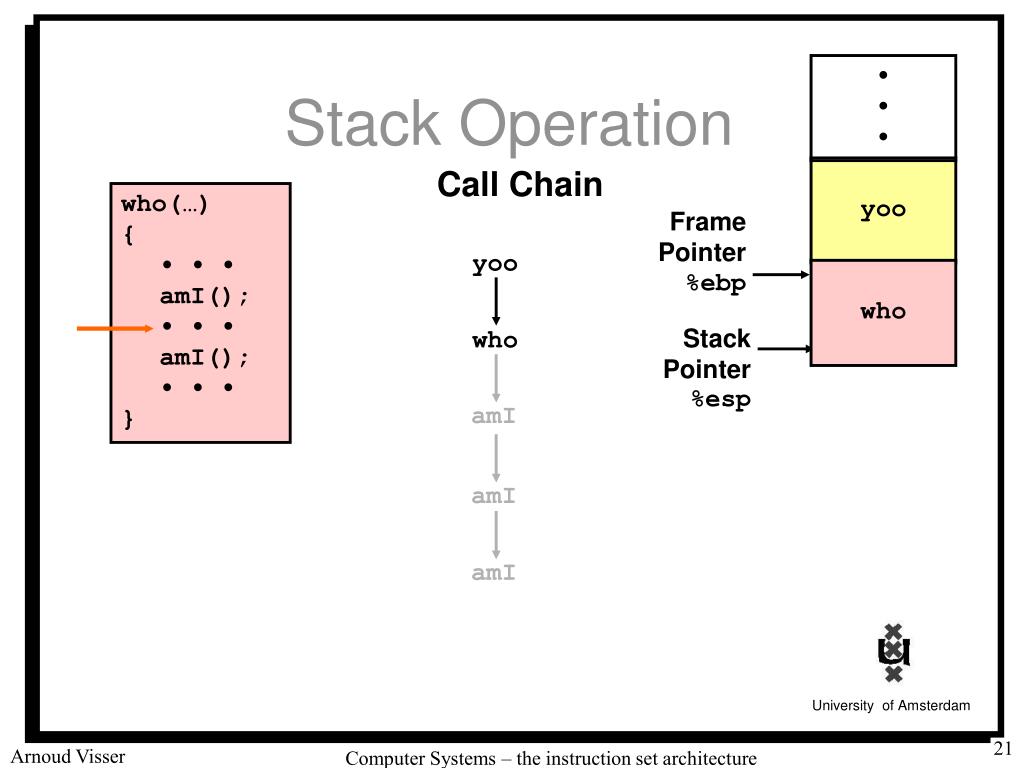

21. Frame Pointer %ebp Stack Pointer %esp • • • Stack Operation Call Chain yoo • who(…) • { • • • • • amI(); • • • • • amI(); • • • • • } yoo who who amI amI amI Computer Systems – the instruction set architecture

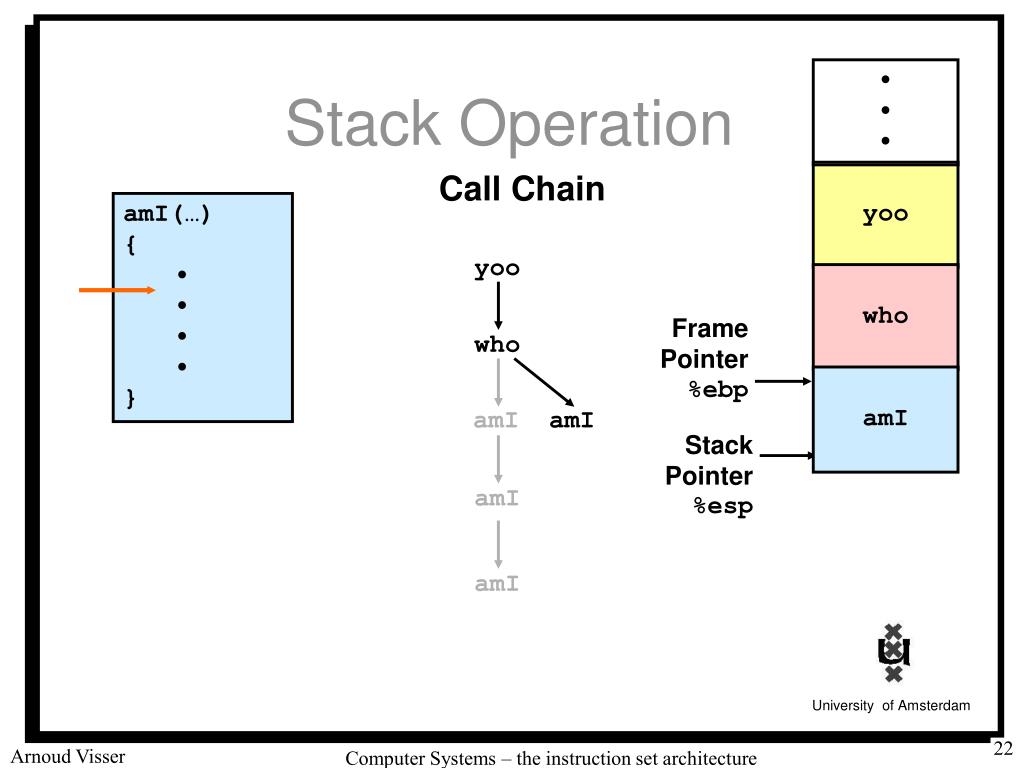

22. Frame Pointer %ebp Stack Pointer %esp • • • Stack Operation Call Chain yoo • amI(…) • { • • • • • • • • • } yoo who who amI amI amI amI amI Computer Systems – the instruction set architecture

23. Frame Pointer %ebp Stack Pointer %esp • • • Stack Operation Call Chain yoo • who(…) • { • • • • • amI(); • • • • • amI(); • • • • • } yoo who who amI amI amI amI Computer Systems – the instruction set architecture

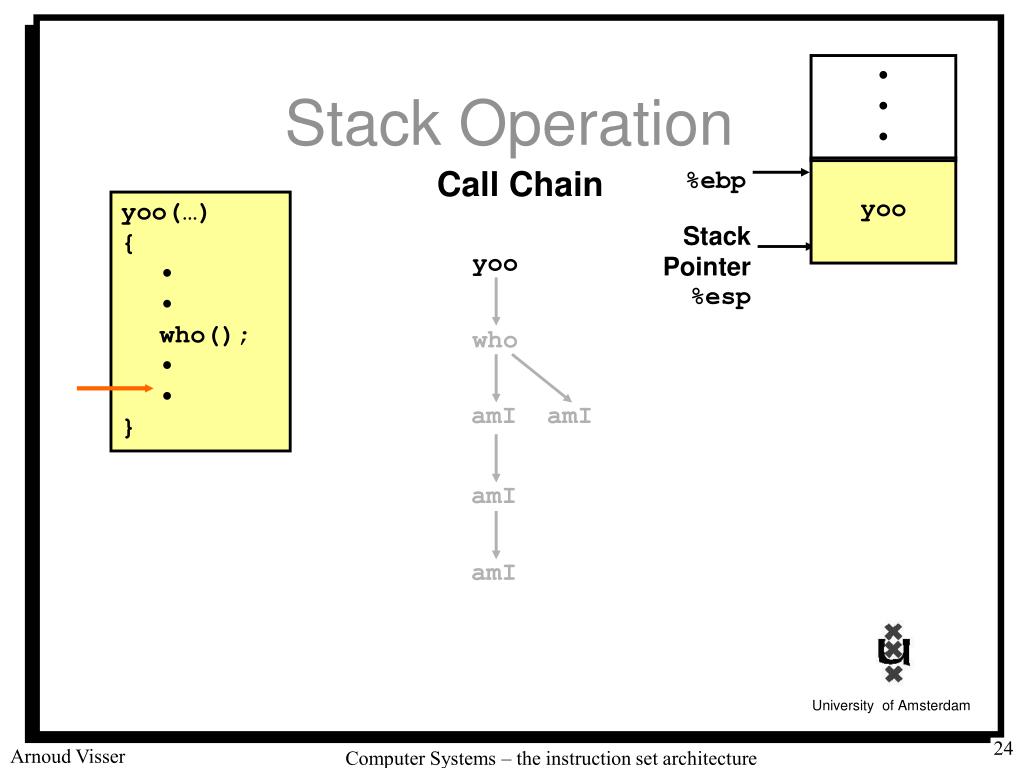

24. %ebp Stack Pointer %esp • • • Stack Operation Call Chain yoo • yoo(…) • { • • • • • who(); • • • • • } yoo who amI amI amI amI Computer Systems – the instruction set architecture

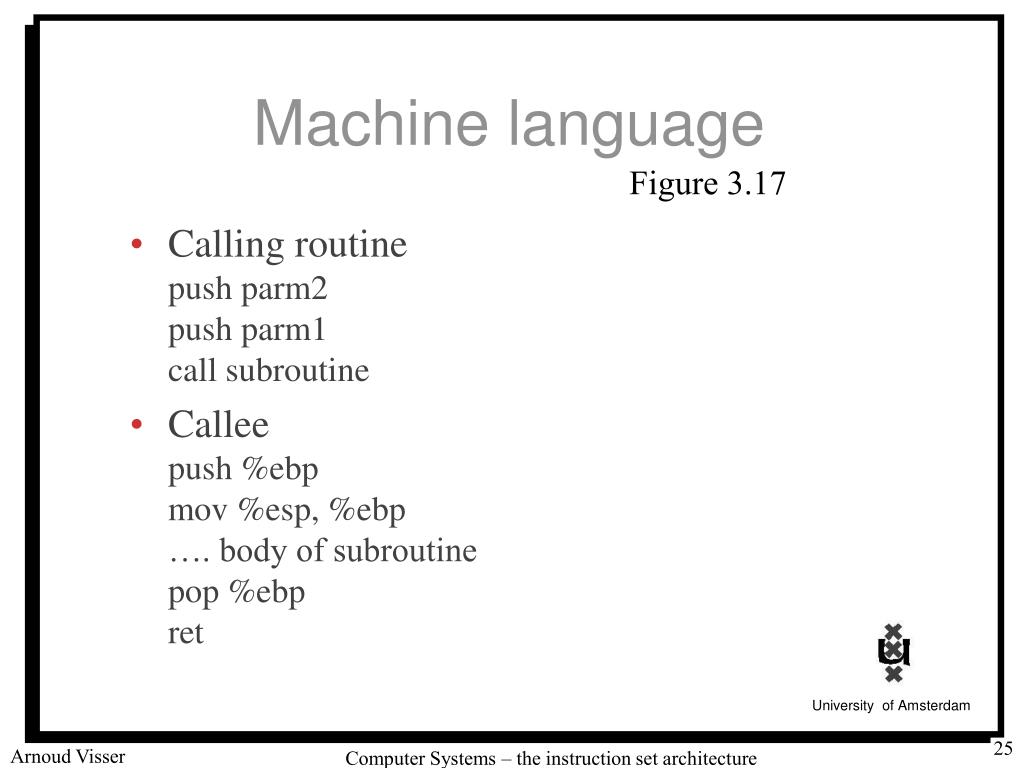

25. Machine language Figure 3.17 • Calling routinepush parm2push parm1call subroutine • Calleepush %ebpmov %esp, %ebp…. body of subroutinepop %ebpret Computer Systems – the instruction set architecture

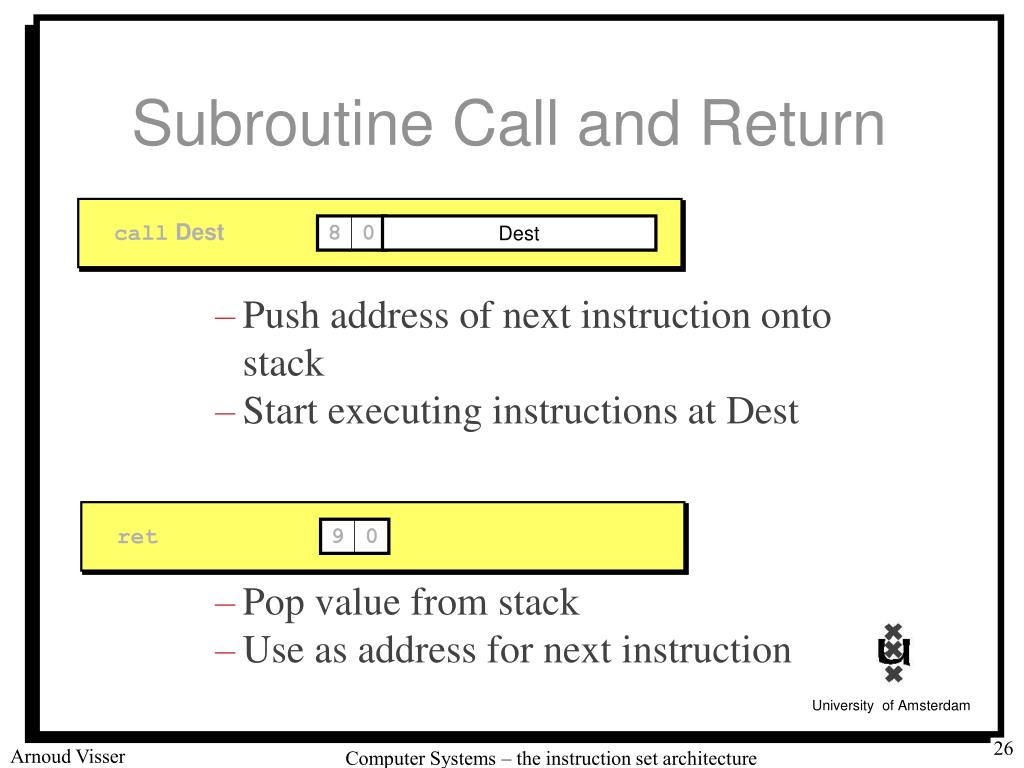

26. call Dest Dest ret 8 9 0 0 Subroutine Call and Return • Push address of next instruction onto stack • Start executing instructions at Dest • Pop value from stack • Use as address for next instruction Computer Systems – the instruction set architecture

27. IA32/Linux Register Usage %eax Integer Registers • Two for the stack %ebp, %esp • Three are callee-save %ebx, %esi, %edi save on stack prior to using • Three are as caller-save %eax, %edx, %ecx save on stack prior to calling subroutine • Register %eax also stores returned value Caller-Save Temporaries %edx %ecx %ebx Callee-Save Temporaries %esi %edi %esp Special %ebp Computer Systems – the instruction set architecture

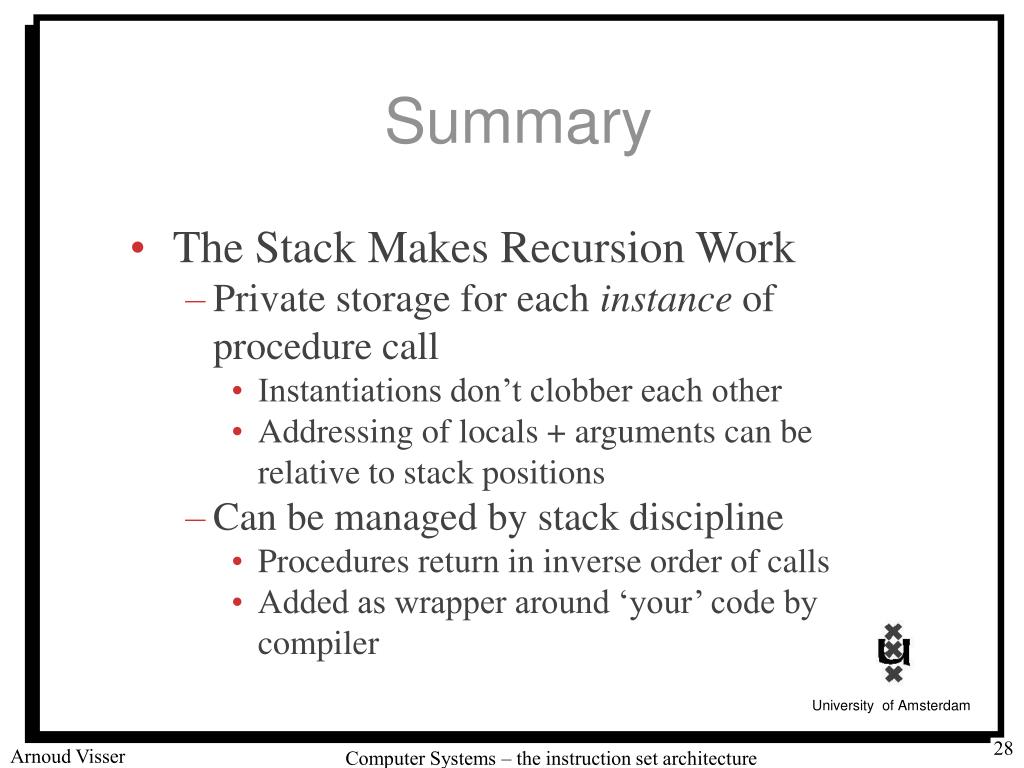

28. Summary • The Stack Makes Recursion Work • Private storage for each instance of procedure call • Instantiations don’t clobber each other • Addressing of locals + arguments can be relative to stack positions • Can be managed by stack discipline • Procedures return in inverse order of calls • Added as wrapper around ‘your’ code by compiler Computer Systems – the instruction set architecture

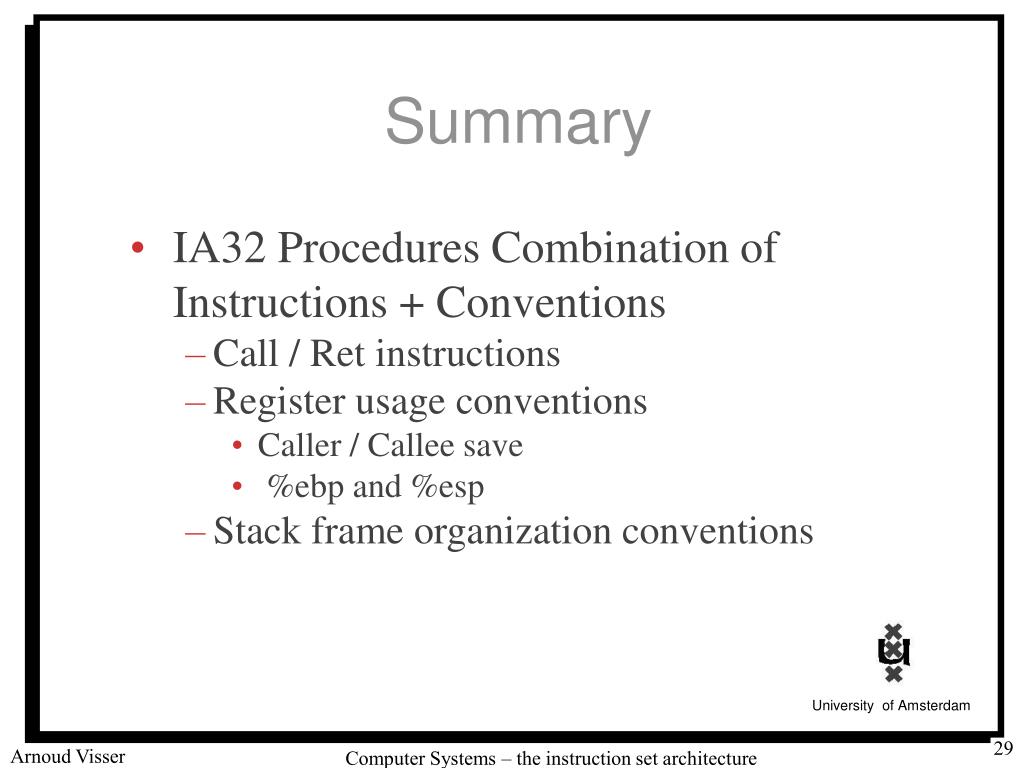

29. Summary • IA32 Procedures Combination of Instructions + Conventions • Call / Ret instructions • Register usage conventions • Caller / Callee save • %ebp and %esp • Stack frame organization conventions Computer Systems – the instruction set architecture

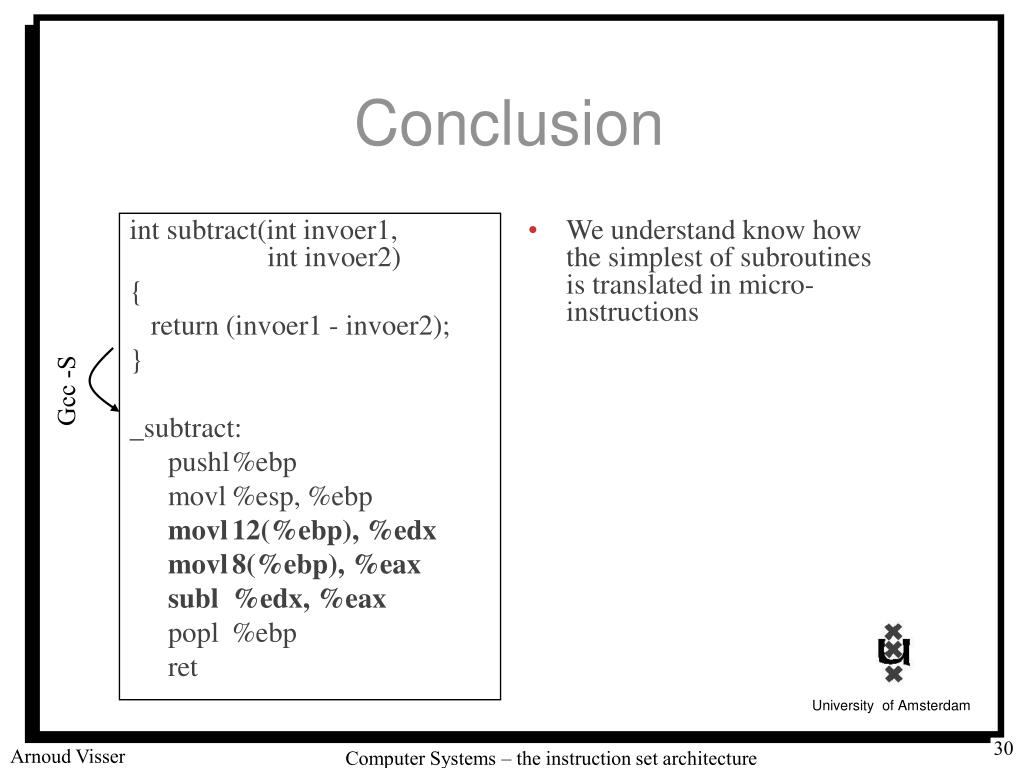

30. We understand know how the simplest of subroutines is translated in micro-instructions int subtract(int invoer1, int invoer2) { return (invoer1 - invoer2); } _subtract: pushl %ebp movl %esp, %ebp movl 12(%ebp), %edx movl 8(%ebp), %eax subl %edx, %eax popl %ebp ret Conclusion Gcc -S Computer Systems – the instruction set architecture

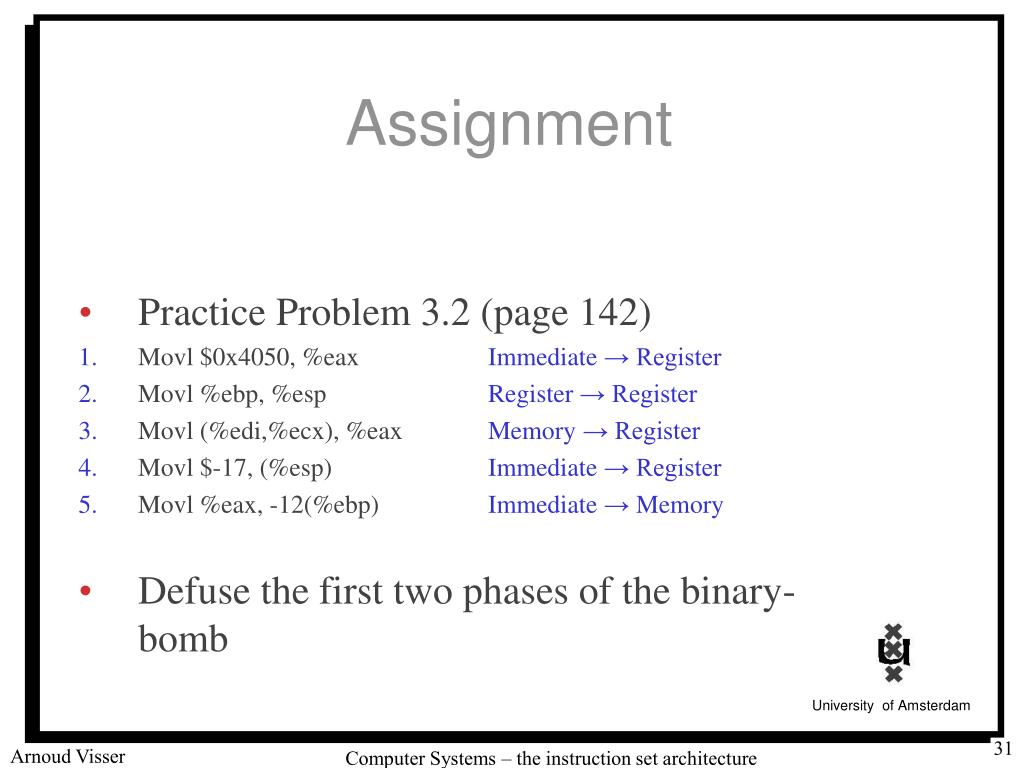

31. Assignment • Practice Problem 3.2 (page 142) • Movl $0x4050, %eax Immediate → Register • Movl %ebp, %esp Register→ Register • Movl (%edi,%ecx), %eax Memory → Register • Movl $-17, (%esp) Immediate → Register • Movl %eax, -12(%ebp) Immediate → Memory • Defuse the first two phases of the binary-bomb Computer Systems – the instruction set architecture
