  1. CMOS Addersfor theSimplified MIPS Processor

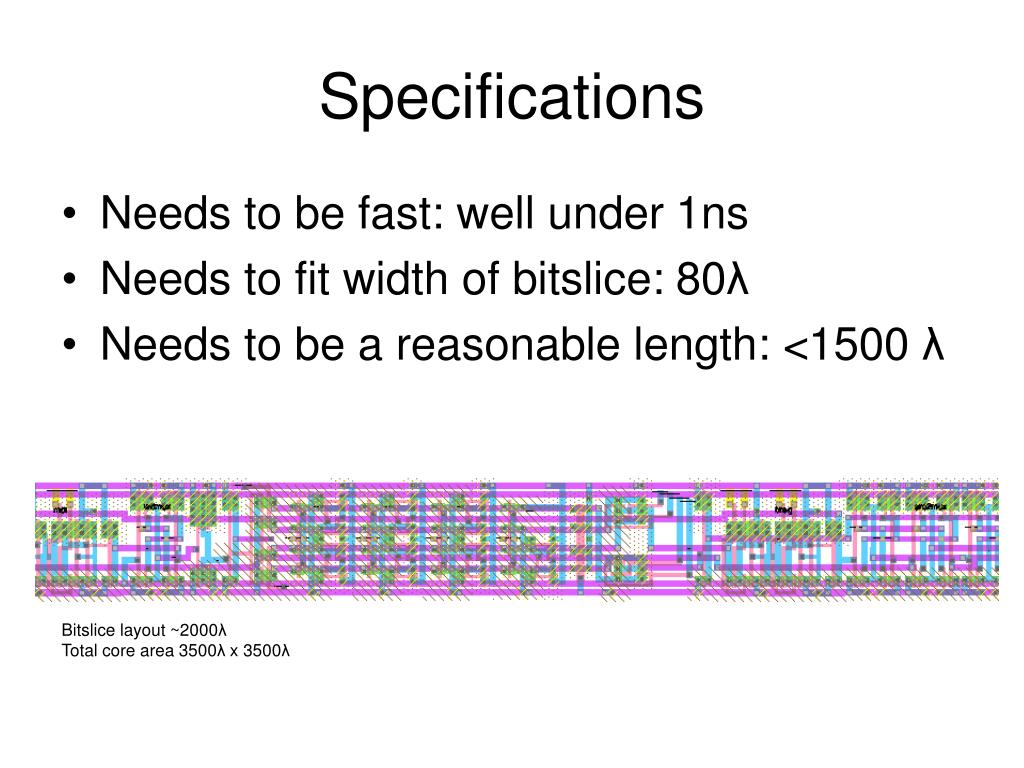

  2. Specifications • Needs to be fast: well under 1ns • Needs to fit width of bitslice: 80λ • Needs to be a reasonable length: <1500 λ Bitslice layout ~2000λ Total core area 3500λ x 3500λ

  3. Exploring the Options • Static CMOS? • Easy to design and layout • Not very fast though • Dynamic CMOS? • Not easy to design • Fast Dynamic CMOS Manchester Carry Chain

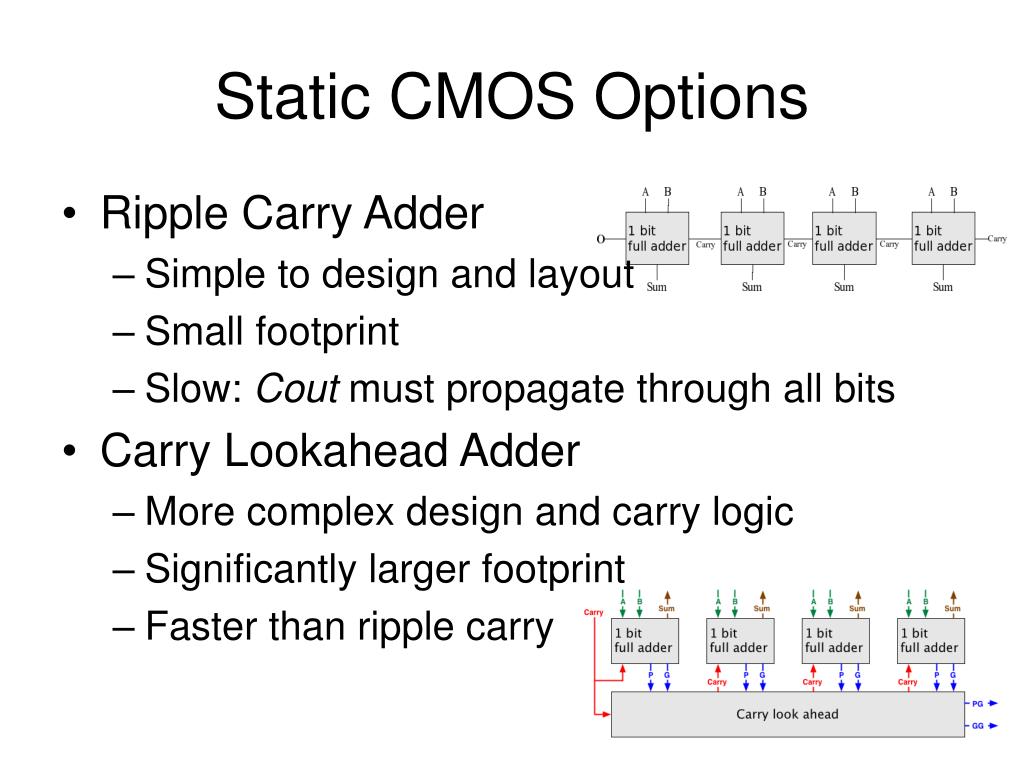

  4. Static CMOS Options • Ripple Carry Adder • Simple to design and layout • Small footprint • Slow: Cout must propagate through all bits • Carry Lookahead Adder • More complex design and carry logic • Significantly larger footprint • Faster than ripple carry

  5. Static CMOS Options cont. • Carry Skip Adder • Faster than ripple carry adder • Slower than carry lookahead adder • Smaller footprint than carry lookahead adder • Larger footprint than ripple carry addder 16-bit carry skip adder with 4-bit carry lookahead groups

  6. Static CMOS Ripple Carry Adders • Zhuang Full Adder • Fast: Transmission gates as MUXs • Low transistor count (22) leads to small layout • Already have it laid out, tested and spec’ed

  7. Static CMOS Ripple Carry Adders • Full Adder structure • Higher transistor count (28) • Larger transistors (8x for some pMOS!) • Carry out is no longer critical path

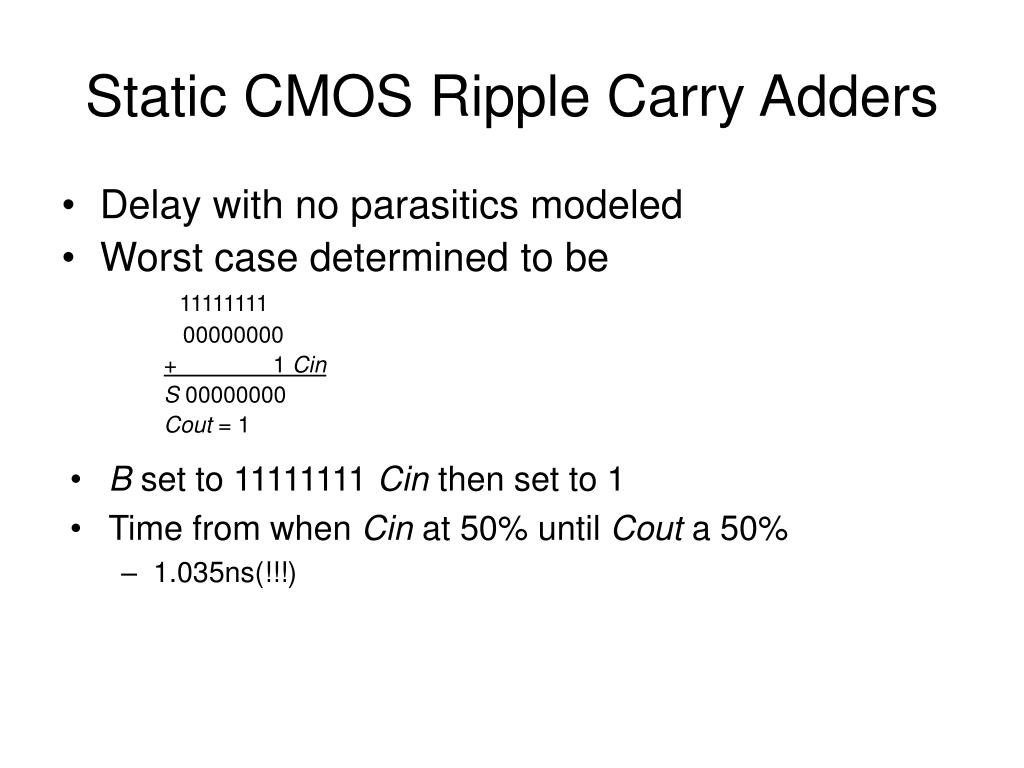

  8. Static CMOS Ripple Carry Adders • Delay with no parasitics modeled • Worst case determined to be 11111111 00000000 + 1 Cin S 00000000 Cout = 1 • B set to 11111111 Cin then set to 1 • Time from when Cin at 50% until Cout a 50% • 1.035ns(!!!)

  9. Zhuang Full Adder • Same test case as before • Delay found to be .662ns • Significanly faster than other static CMOS implementation

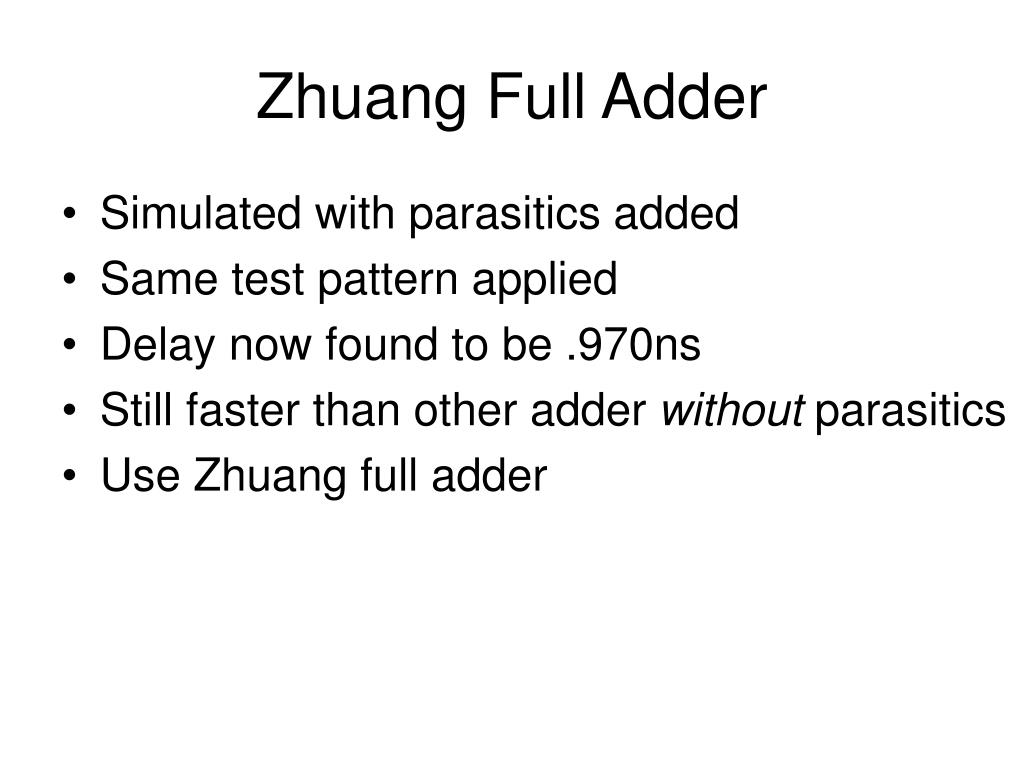

  10. Zhuang Full Adder • Simulated with parasitics added • Same test pattern applied • Delay now found to be .970ns • Still faster than other adder without parasitics • Use Zhuang full adder

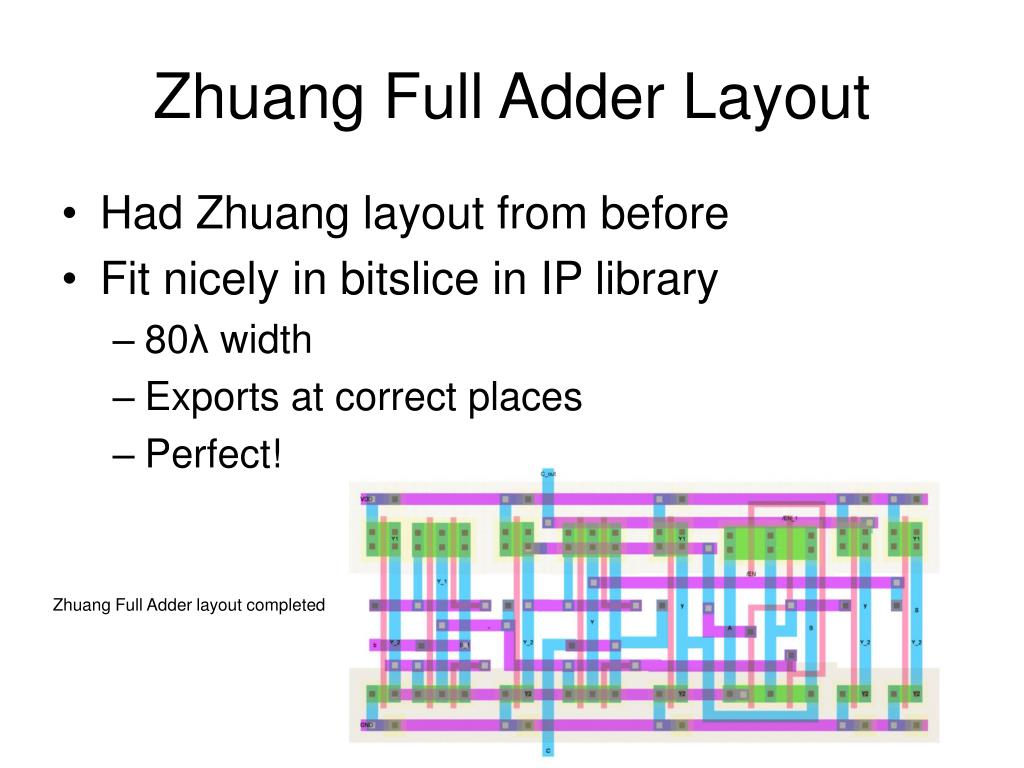

  11. Zhuang Full Adder Layout • Had Zhuang layout from before • Fit nicely in bitslice in IP library • 80λ width • Exports at correct places • Perfect! Zhuang Full Adder layout completed

  12. Zhuang Full Adder Simulation • Exported layout to SPICE • Same test case as used before • Delay is now 1.23ns Completed ALU ready to be placed in bitslice ~550 λ

  13. Adders Wrap Up • Total bitslice size ~2500λ • Well under 3500λ Distorted (squished horizontally, too long to display) view of completed bitslice.

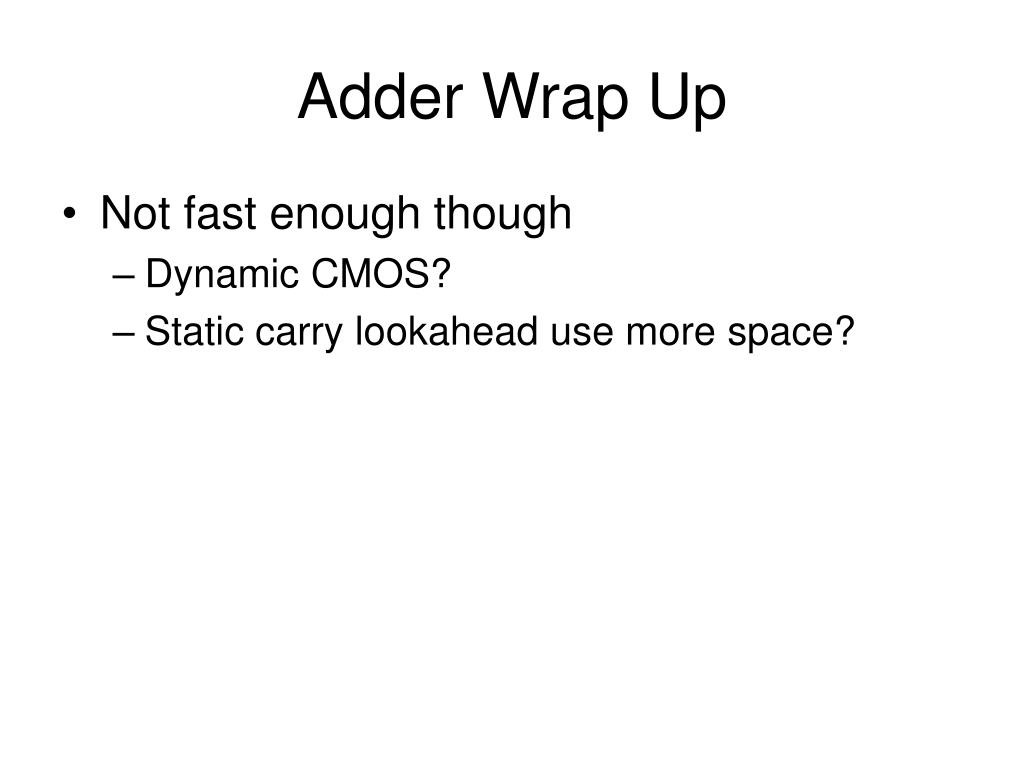

  14. Adder Wrap Up • Not fast enough though • Dynamic CMOS? • Static carry lookahead use more space?
