  1. IBM PureFlex SystemsIBM Flex System Overview xtw280t1Abril 2012

  2. Agenda • IBM Flex System Overview • IBM Flex System Enterprise Chassis Overview • Nodes Overview • I/O Overview • Management Overview • Power Overview • Cooling Overview • Rack Overview • SoluçõesOferecidas

  3. IBM Flex System Overview • Proteção de investimento de avançada tecnologia por diversos anos • Novosprocessadores, memória, I/O, Storage • Barramentosinternos de maiorvelocidade • I/Osaindamaisrápidos • Novo IBM Flex System Manager • SuportadoparagerenciarmúltiplosIBM Flex System Enterprise Chassis • Novos Compute e Storage Systems • Novos Scalable Switch Elements (ScSE) e I/O adapters • Novo IBM Flex System Enterprise Chassis Management Module • Maiseficiência de energia e sistema de resfriamento • Componentes de máximaeficiência • Sofisticado e práticocontrole do sistema • Compatível com futurasinstalações de infraestruturade Data Centersde altaeficiência

  4. IBM Flex System Enterprise Chassis - Overview • Chassis • 10 U (Rack Units) • 14 baias de Nodes • Suportepara Nodes de tamanhos half e full • Suportepara Nodes duplos • Suportainterconexão de Nodes de expanção • 4 baias de Switch • 2 baias de Gerenciamento • 6 Power Supplies (2 jáinclusas) • 10 baias de FANs

  5. IBM Flex System Enterprise Chassis - Frente Storage node Half node Full node Manager node

  6. IBM Flex System Enterprise Chassis - Trás 40 mm Fans (2X) 80 mm FanPacks (8X) IBM Flex System Enterprise Chassis Management Modules (2X) Fan MuxCard (2X) Power Supplies (6X) Scalable Switch Elements (4X)

  7. IBM Flex System Enterprise Chassis - Baias Shuttle IBM Flex System Enterprise Chassis Node Bay Shelf - Remove para Node Full Wide - Remove dois Shelves para Node Full Wide, Double High

  8. Compute Nodes - Flex System Manager • IBM Flex System Manager (8731) • Appliance de gerenciamento • Node de baia Half-wide • 2 sockets Sandy Bridge-EP • 1 – 8 Cores 2.0GHz 20MB L3 95W • 24 LP DDR3 DIMM Sockets / 1600MT/s • 32GB DDR3 SDRAMS • 8x 4GB • 1x HS 2.5” 1TB SAS HDD • 2x 1.8” 200GB SSDs (RAID 1) • Systems Management Software Stack • Ferramenta de fácilimplementação • Ferramentas de Automação de Virtualização • Ferramentas de Migração de Workload

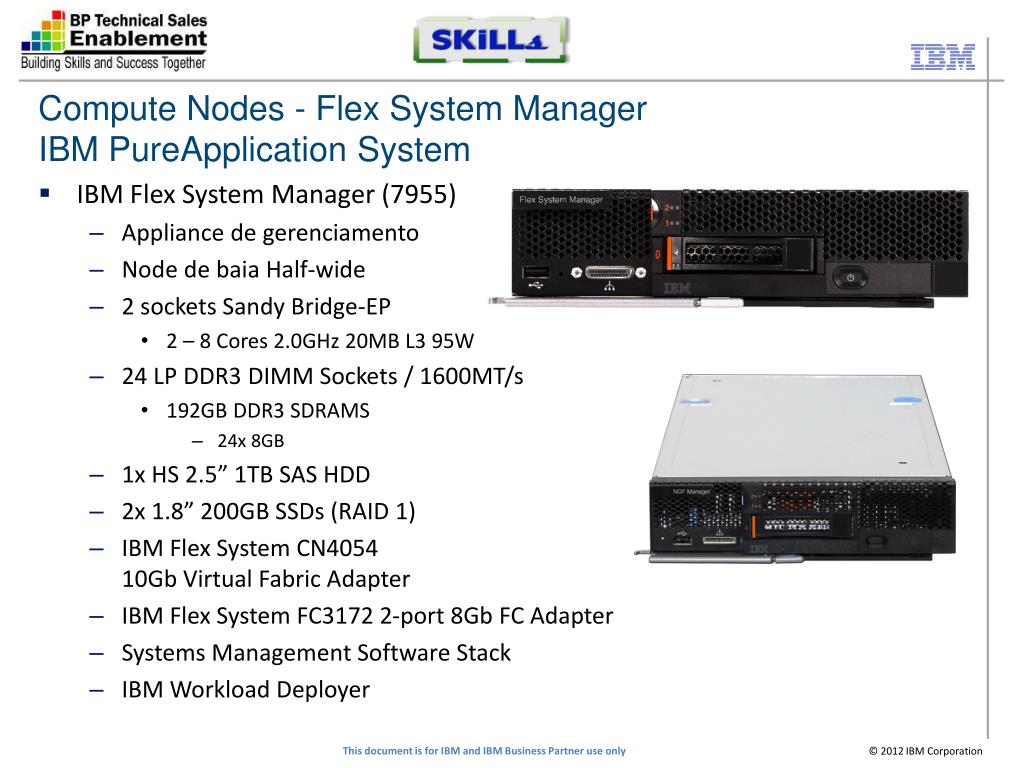

  9. Compute Nodes - Flex System Manager IBM PureApplication System • IBM Flex System Manager (7955) • Appliance de gerenciamento • Node de baia Half-wide • 2 sockets Sandy Bridge-EP • 2 – 8 Cores 2.0GHz 20MB L3 95W • 24 LP DDR3 DIMM Sockets / 1600MT/s • 192GB DDR3 SDRAMS • 24x 8GB • 1x HS 2.5” 1TB SAS HDD • 2x 1.8” 200GB SSDs (RAID 1) • IBM Flex System CN4054 10Gb Virtual Fabric Adapter • IBM Flex System FC3172 2-port 8Gb FC Adapter • Systems Management Software Stack • IBM Workload Deployer

  10. Compute Nodes - Intel EP • IBM Flex System x240 Compute Node • Node de baia Half-wide • 2 sockets Sandy Bridge-EP • 24 LP DDR3 DIMMs / 1600MT/s • 2 HS 2.5” SAS/SATA HDDs or SSDs Frente Trás

  11. Compute Nodes - POWER 7 • IBM Flex System p260 Compute Node • Node de baia Half-wide • 2 sockets POWER 7 • 64-bit Power7 RISC processor 190w • 8 cores • 16 VLP DIMMs DDR3, 1066MT/s, 256GB Max • 2x 2.5 SAS/SATA HDDs ouSSDs • IBM Flex System p460 Compute Node • Node de baia Full wide • 4 sockets POWER 7 • 64-bit Power7 RISC processor 190w • 4 / 8 cores • 32 VLP DIMMs DDR3, 1066MT/s, 256GB Max • 2x 2.5 SAS/SATA HDDs ouSSDs

  12. IBM Flex System V7000 Storage Node • IBM Storewize V7000 Storage System • Node de baias Double High / Full Width • 24x 2.5” HDDs ou SSDs • Duascontroladoras hot swappable paraaltadisponibilidade Frente Trás

  13. Compute Nodes - I/O • Ethernet • IBM Flex System EN2024 4-port 1Gb Ethernet Adapter P e X • IBM Flex System EN4054 4-port 10Gb Ethernet Adapter P somente • IBM Flex System CN4054 10Gb Virtual Fabric Adapter X somente • IBM Flex System CN4054 Virtual Fabric Adapter X somente • IBM Flex System EN4132 2-port 10Gb Ethernet Adapter X somente • FibreChannel • IBM Flex System FC3172 2-port 8Gb FC Adapter P e X • IBM Flex System FC5022 2-port 16Gb FC Adapter X somente, P futuro • IBM Flex System FC3052 2-port 8Gb FC Adapter P* e X • InfiniBand • IBM Flex System IB6132 2-port QDR InfiniBand Adapter P somente • IBM Flex System IB6132 2-port FDR InfiniBand Adapter X somente * Nãosuportado com AIX

  14. I/O - Scalable Switch Element (ScSE) • Ethernet I/O • IBM Flex System EN4091 10Gb Ethernet Pass-thru • IBM Flex System EN2092 1Gb Ethernet Scalable Switch • IBM Flex System EN4093 10Gb Virtual Fabric Scalable Switch • FoD Enhancement Licenses • FibreChannel I/O • IBM Flex System FC5022 16Gb SAN Scalable Switch • IBM Flex System FC5022 16Gb ESB SAN Scalable Switch • FoD Enhancement Licenses • InfiniBand I/O • IBM Flex System IB6131 InfiniBand Switch • FoD Enhancement Licenses

  15. IBM Flex SystemEnterprise Chassis Management Module • Monitors IBM Flex System Operating Parameters • Coleta de inventário • Atualização de Firmwares • Gerenciamento Low Level de Nodes • Configuração L2 de Switch e gerenciamento • Interface de usuário Web, CLI, SNMP, CIM Para redundância, utilize dois Enterprise Chassis Management Module

  16. IBM Flex System - Power Supplies • Suporteparaaté 6 Power Supplies • Inclui 2 Power supplies porpadrão • I2C Managed Element • 2500W • 208 - 240VAC Input Range • 12.2VDC 205A - 225A Output Range • 92% eficiênciaem plena carga • Redundância N+M, N+N, N+1

  17. Cooling • Resfriamentodirecionado - Nodes (esq./ dir.), switches • Escalável / Expansível • 2x FANs de 40mm paraScSEs (Scalable Switches) • Até 8 FANs de 80mm para Nodes (4 inclusos) • Controle de resfriamentoadaptável • Acústicaavançada e otimizada • Eficiêncialíde de indústria • Melhoria das característicasde operacionalidade Fan Multiplexer Card 40mm Fan 80mm Fan

  18. IBM 42U 1100mm Deep Dynamic Rack Thermal Sealing Plane (front EIA flange) • Novo IBM Rack otimizado • 100mm maisfundoqueos racks padrões, ocupando 2 placas de pisoelevado • Nova porta com dissipador de calordisponível • Trilhos do chassis de fácilinstalação • Orgnização de cabosaprimorado • Amplasaída de cabos • Pistas de cabos da frenteparatrás • 6 encaixeslaterais de PDU Cable Egress Rear PDU Access 6x Cable Channels Cable Channels Cable Egress Strip PDU Support 4X Cable Tie Points Outrigger Cable Egress Front of Rack Rear of Rack

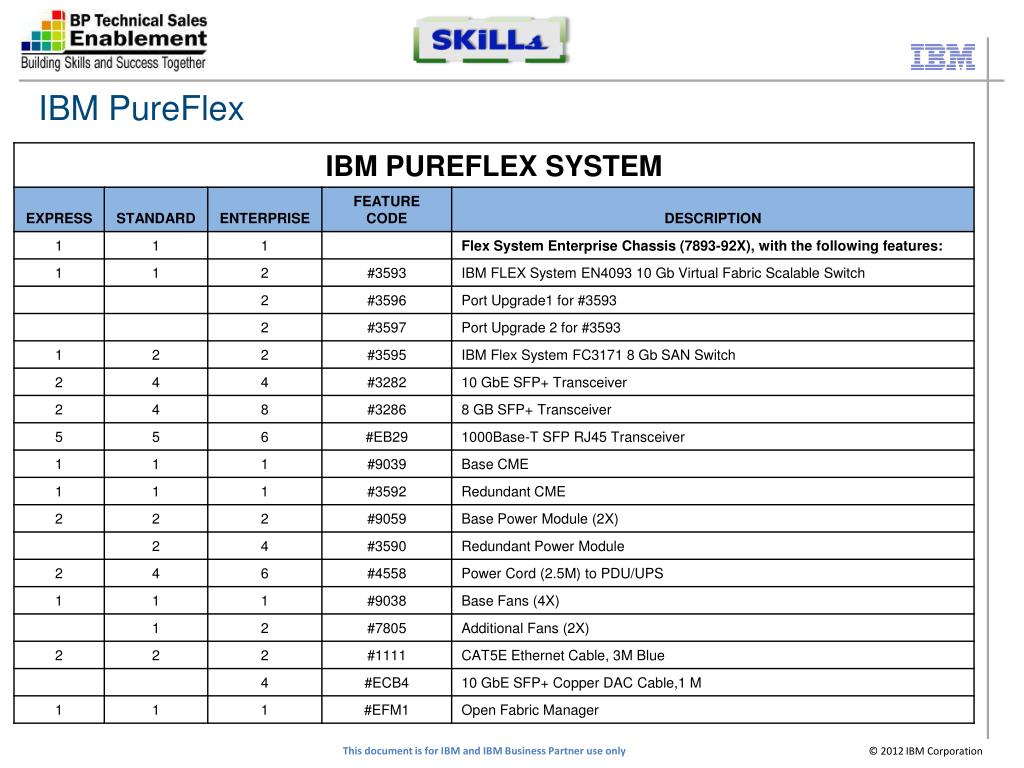

  19. IBM PureFlex

  20. IBM PureFlex

  21. IBM PureFlex

  22. IBM PureFlex

  23. IBM SmartCloud Entry • Self Service Private Cloud Portal • Permite o cliente: • Provisionar (implantação) e de-provisionarservidoresvirtuais • Elaboração e clone de workloads virtualizados • Tirar workloads snapshots • Inicializando e desligandoservidoresvirtuaiscomo parte de um workload • Redimensionandoservidoresvirtuaisexistentes Estes e muitos outros features estãoinclusosnestaversão do IBM SmartCloud Entry https://www.ibm.com/developerworks/mydeveloperworks/wikis/home/wiki/W21ed5ba0f4a9_46f4_9626_24cbbb86fbb9?lang=en

  24. Cable ingress / egress 42 U BNT 64 PT Enet SW 41 U BNT 64 PT Enet SW 40 U 39 U V 7000 Expansion Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute Intel Compute 38 U 37 U V 7000 Controller 36 U 35 U V 7000 Expansion 34 U 33 U V 7000 Controller 32 U 31 U 30 U 29 U MGMT MGMT MGMT MGMT 28 U 27 U PDU PDU 26 U 25 U 24 U 23 U 22 U 21 U 20 U 19 U 18 U 17 U 16 U 15 U 14 U 13 U 12 U PDU PDU 11 U 10 U 9 U 8 U 7 U 6 U 5 U 4 U 3 U 2 U 1 U Cable ingress / egress IBM PureApplicationSystem - High Performance Model Storage Controller IBM Storwize V7000 Disk System 4 x 400 GB SAS SSD per enclosure 20 x 600 GB SAS HDD per enclosure Top of Rack Switches BLADE Network Technologies Top of Rack Switches Customer Data Center & Rack-to-rack communications V7000 Disk Expansion Per enclosure: 4 x 400 GB SAS SSD 20 x 600 GB SAS HDD New Chassis Common Management Module 2x 10Gb Ethernet Switch 2x 16 Gb FC Switch Intel Compute 2.6 GHz 8C Intel processor, 110 W 256 KB L2 per core 4 MB eDRAM L3 per core 2x 4 Port 10 GbE 2x 2 Port 8 Gb/s FC IBM PureApplication System Management Node IBM Workload Deployer VM Management Node http://www-01.ibm.com/software/webservers/workload-deployer/

  25. Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes Compute Nodes IBM PureApplication – SoluçõesOferecidas Small (Part 1) Medium (Part 2) Large (Part 3) Part #5 Part #6 Part #7 Mgmt Mgmt Mgmt Mgmt Mgmt Mgmt Mgmt Mgmt

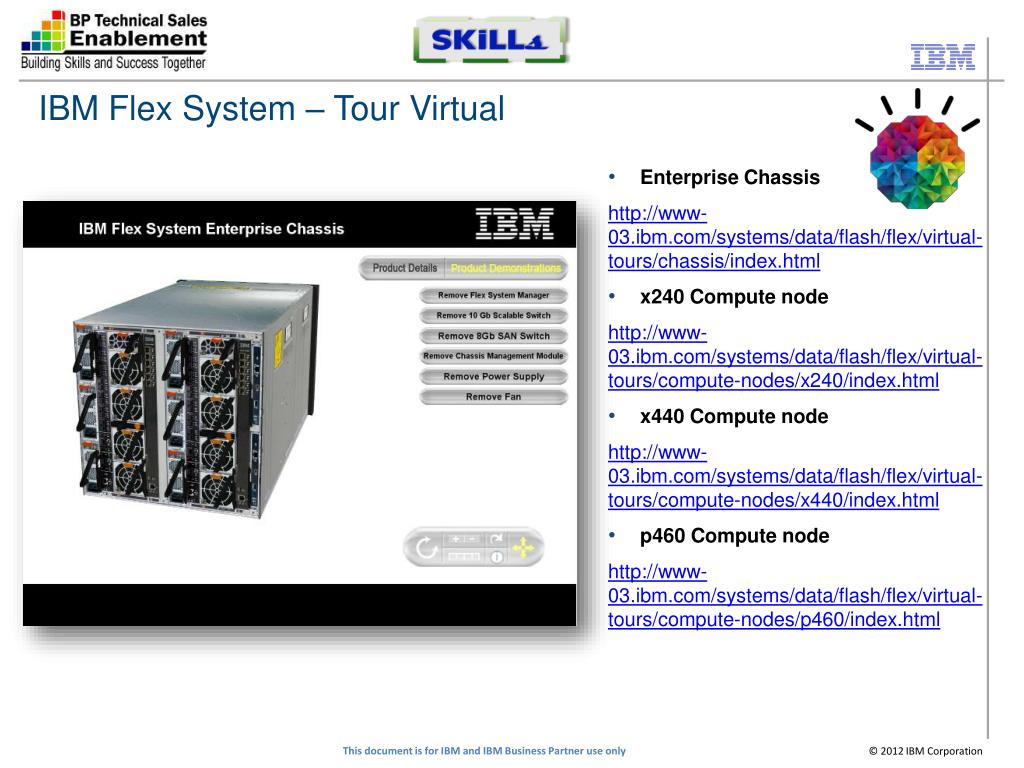

  26. IBM Flex System – Tour Virtual • Enterprise Chassis • http://www-03.ibm.com/systems/data/flash/flex/virtual-tours/chassis/index.html • x240 Compute node • http://www-03.ibm.com/systems/data/flash/flex/virtual-tours/compute-nodes/x240/index.html • x440 Compute node • http://www-03.ibm.com/systems/data/flash/flex/virtual-tours/compute-nodes/x440/index.html • p460 Compute node • http://www-03.ibm.com/systems/data/flash/flex/virtual-tours/compute-nodes/p460/index.html

  27. PureSystems - Webcasts Brasil 2H-2012Foco na certificação técnica Skill1 - IBM PureFlex Systems - Posicionamento (Técnico/Comercial) Dia: 16/08/2012 Horário: das 10:00h às 11:30h Link de inscrição:https://www-950.ibm.com/events/wwe/ap/apeptreg.nsf/enrollall?openform&seminar=kworfbm8wqpru&lang=pt-BR Skill 2 - IBM PureFlex Systems - IBM Flex System Enterprise Chassis Overview (Técnico) Dia: 23/08/2012 Horário: das 10:00h às 11:30h Link de inscrição: https://www-950.ibm.com/events/wwe/ap/apeptreg.nsf/enrollall?openform&seminar=kworfbm8wqpta&lang=pt-BR Skill 2 - IBM PureFlex Systems - IBM Flex System Nodes Overview Dia: 30/08/2012 Horário: das 10:00h às 11:30h Link de inscrição:https://www-950.ibm.com/events/wwe/ap/apeptreg.nsf/enrollall?openform&seminar=kworfbm8wqpuh&lang=pt-BR Acompanhe o comunicado de canais para mais datas!

  28. Dúvidas? Jacob Fredjacobf@br.ibm.com

  29. Obrigado!
