  1. IBM DS5000 Overview Ryan Leonard Storage and Solutions Architect

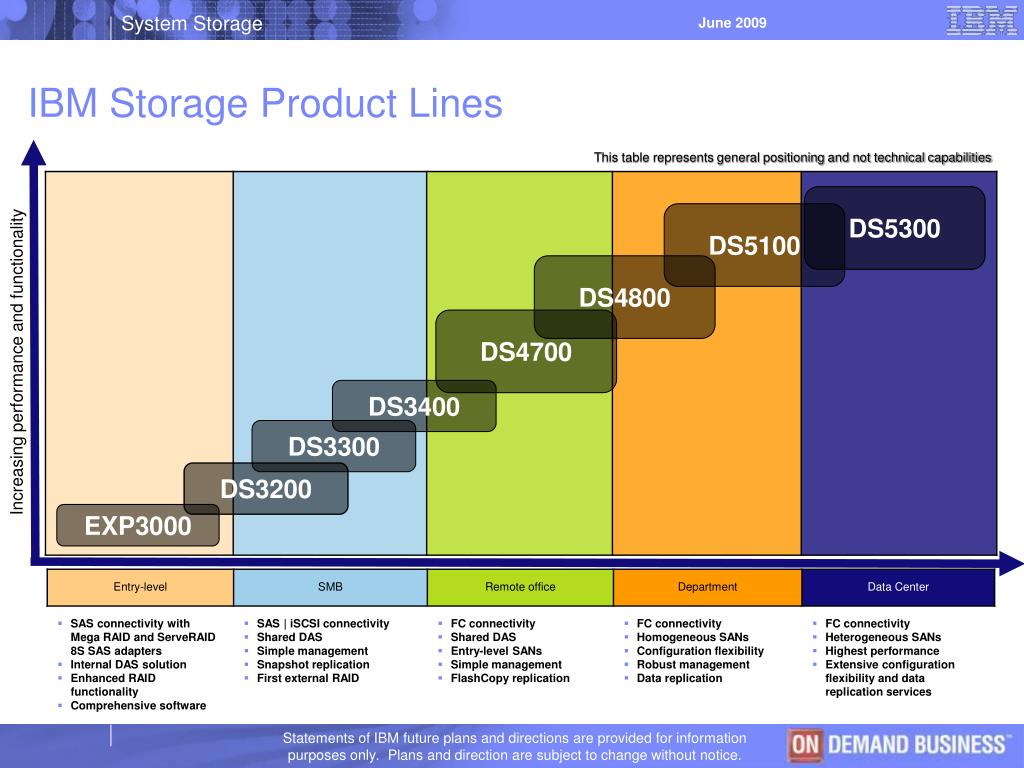

  2. DS5300 DS5100 DS4800 DS4700 DS3400 DS3300 DS3200 EXP3000 IBM Storage Product Lines This table represents general positioning and not technical capabilities Increasing performance and functionality

  3. DS5000 SeriesThinking Beyond Today Real-world performanceSustainable, scalable, balanced, responsive Interface adaptability4 Gbps FC, 8 Gbps FC, 1 Gbps iSCSI(future) Continuous and reliable access to InformationOnline administration, active-active redundancy, advanced diagnostics Application integrationCertifications, solutions, meet SLAs Green efficiencyDo more with less

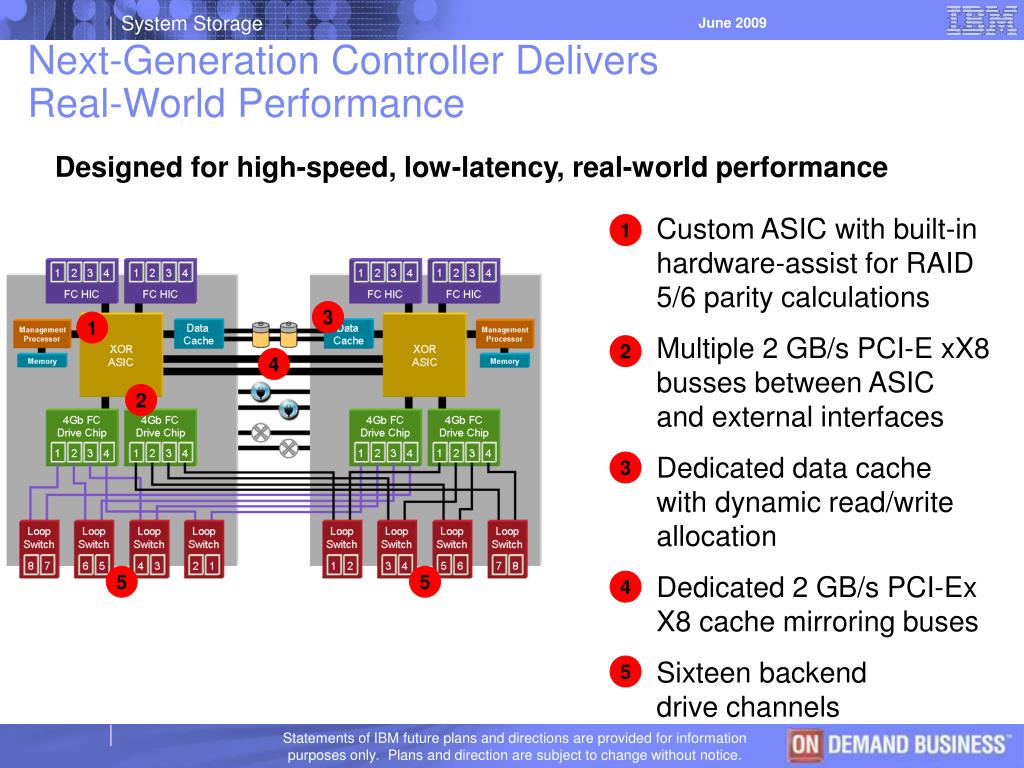

  4. Next-Generation Controller Delivers Real-World Performance Designed for high-speed, low-latency, real-world performance • Custom ASIC with built-in hardware-assist for RAID 5/6 parity calculations • Multiple 2 GB/s PCI-E xX8 busses between ASIC and external interfaces • Dedicated data cache with dynamic read/write allocation • Dedicated 2 GB/s PCI-Ex X8 cache mirroring buses • Sixteen backend drive channels 1 3 1 2 4 2 3 5 5 4 5

  5. DS5000 Enclosures DS5100/DS5300 EXP5000/EXP810 Power/cooling ESMs Interconnect module Controllers FC/SATA drives Power/cooling

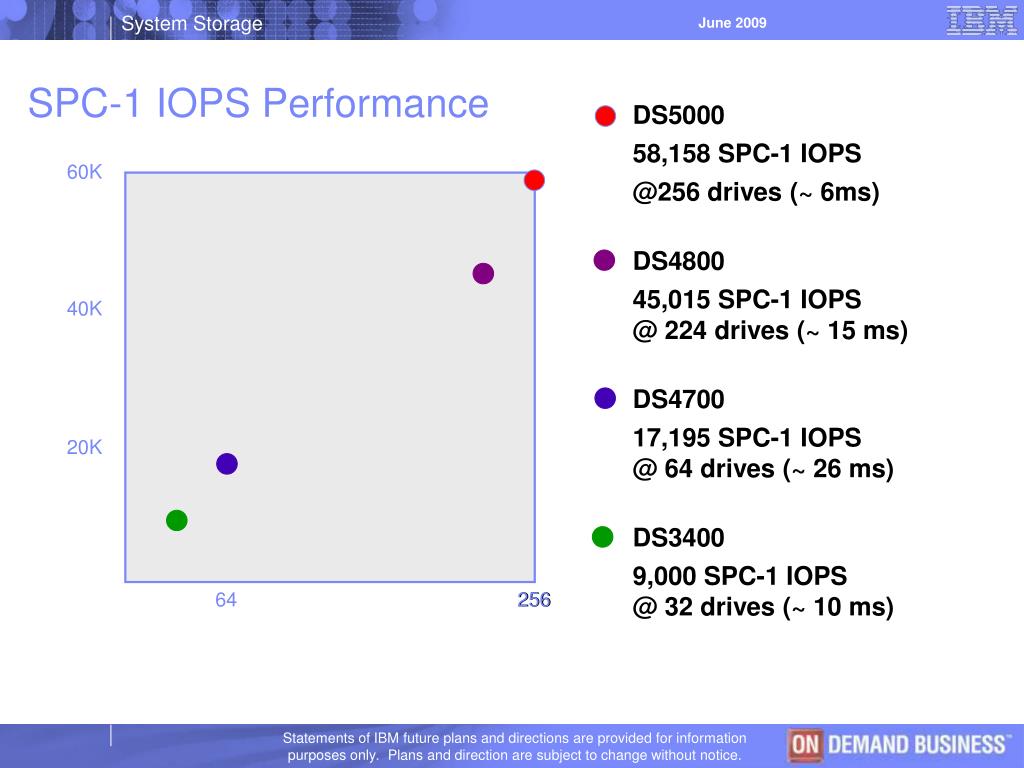

  6. SPC-1 IOPS Performance DS5000 58,158 SPC-1 IOPS @256 drives (~ 6ms) DS4800 45,015 SPC-1 IOPS @ 224 drives (~ 15 ms) DS4700 17,195 SPC-1 IOPS @ 64 drives (~ 26 ms) DS3400 9,000 SPC-1 IOPS@ 32 drives (~ 10 ms) 60K 40K 20K 64 256 256 Response time at 100% workload. Max allowed is 30 ms.

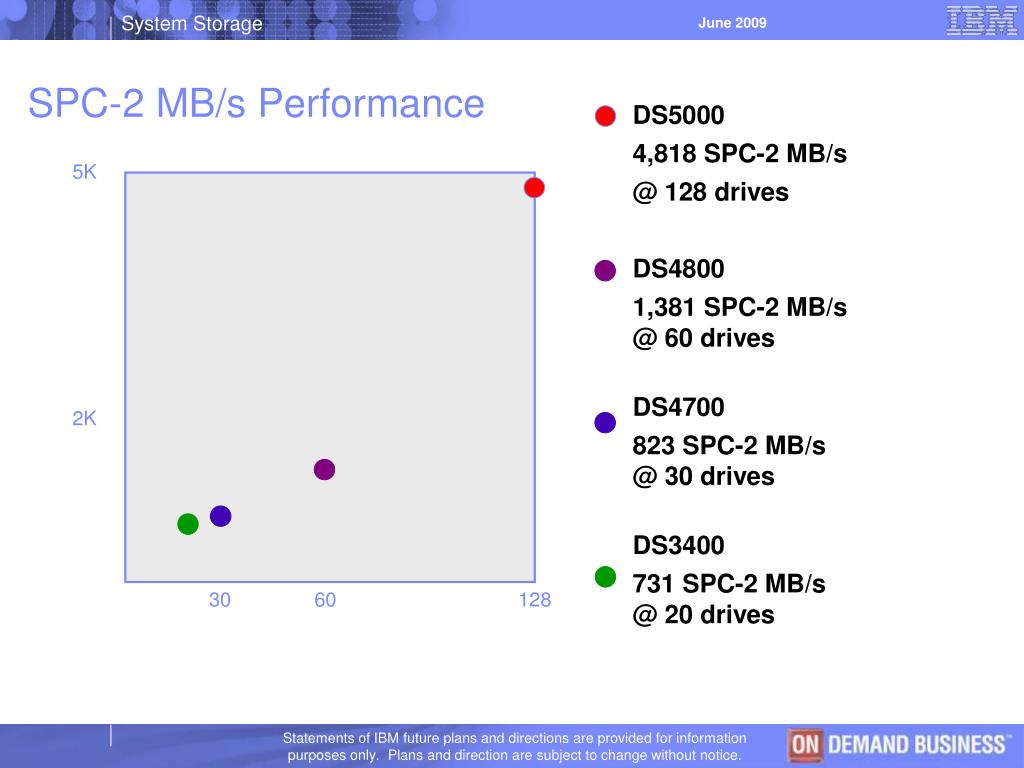

  7. SPC-2 MB/s Performance DS5000 4,818 SPC-2 MB/s @ 128 drives DS4800 1,381 SPC-2 MB/s @ 60 drives DS4700 823 SPC-2 MB/s @ 30 drives DS3400 731 SPC-2 MB/s@ 20 drives 5K 2K 30 60 128

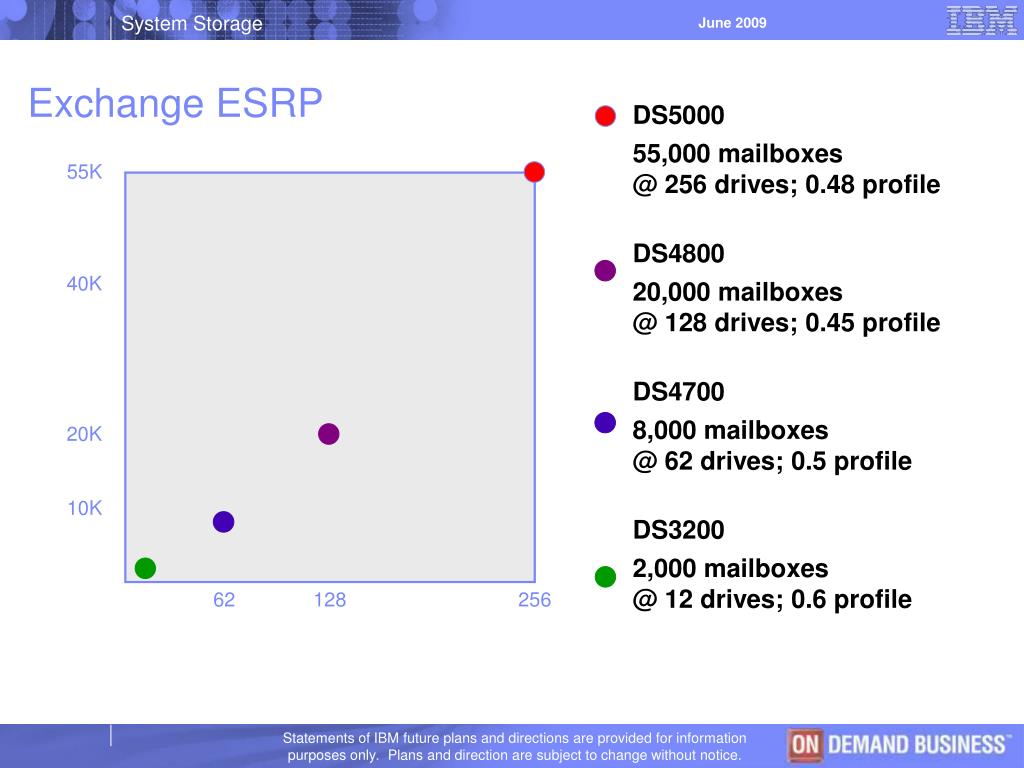

  8. Exchange ESRP DS5000 55,000 mailboxes@ 256 drives; 0.48 profile DS4800 20,000 mailboxes @ 128 drives; 0.45 profile DS4700 8,000 mailboxes@ 62 drives; 0.5 profile DS3200 2,000 mailboxes@ 12 drives; 0.6 profile 55K 40K 20K 10K 62 128 256

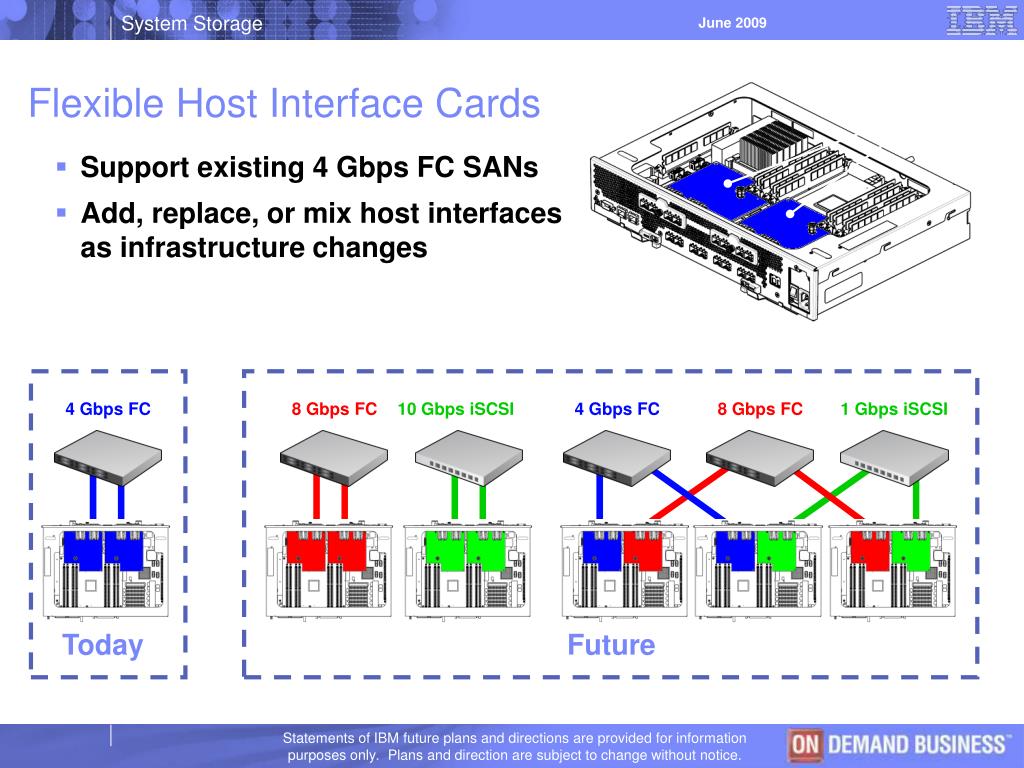

  9. HIC Flexible Host Interface Cards • Support existing 4 Gbps FC SANs • Add, replace, or mix host interfaces as infrastructure changes 4 Gbps FC 8 Gbps FC 10 Gbps iSCSI 4 Gbps FC 8 Gbps FC 1 Gbps iSCSI Today Future

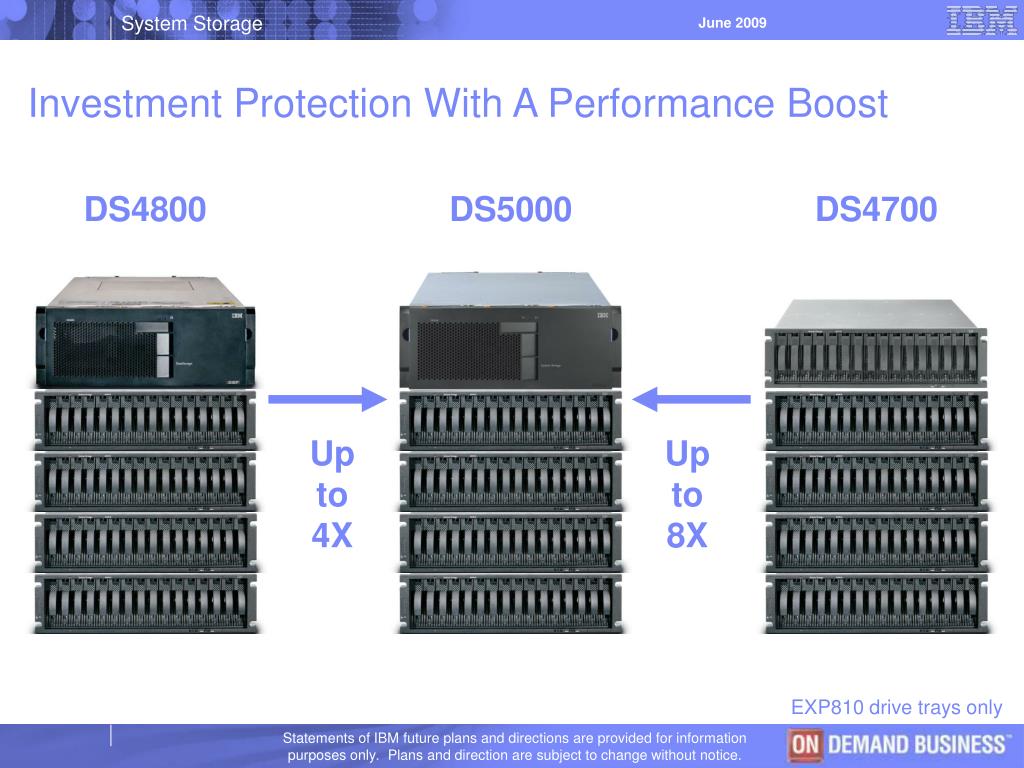

  10. Investment Protection With A Performance Boost DS4800 DS5000 DS4700 Up to 4X Up to 8X EXP810 drive trays only

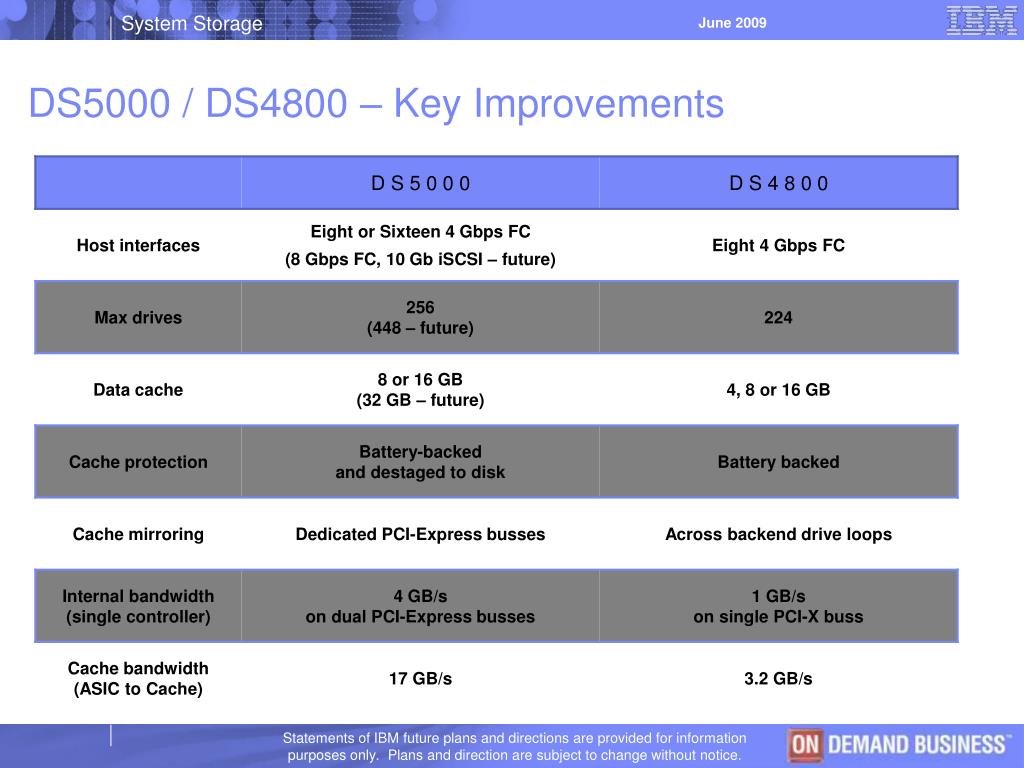

  11. DS5000 / DS4800 – Key Improvements

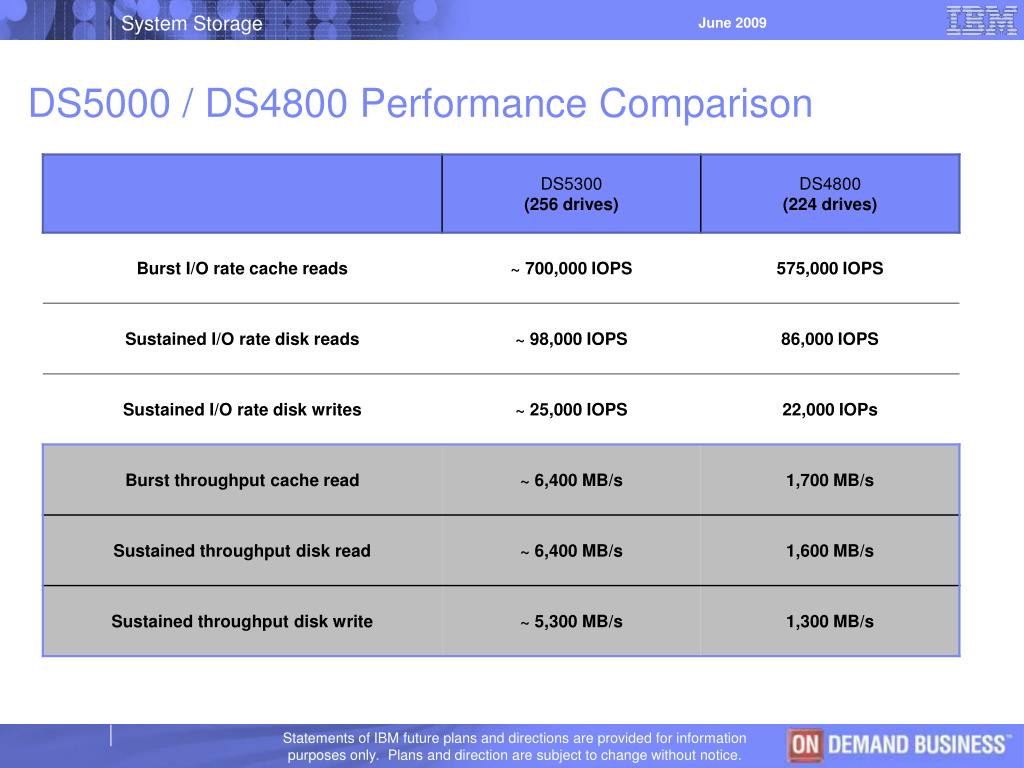

  12. DS5000 / DS4800 Performance Comparison * Based on performance testing by LSI. DS5000 performance numbers are preliminary estimates and not committed. Actual results based on testing are to be determined. All numbers were done using RAID 5 using switched drive modules and FC drives.

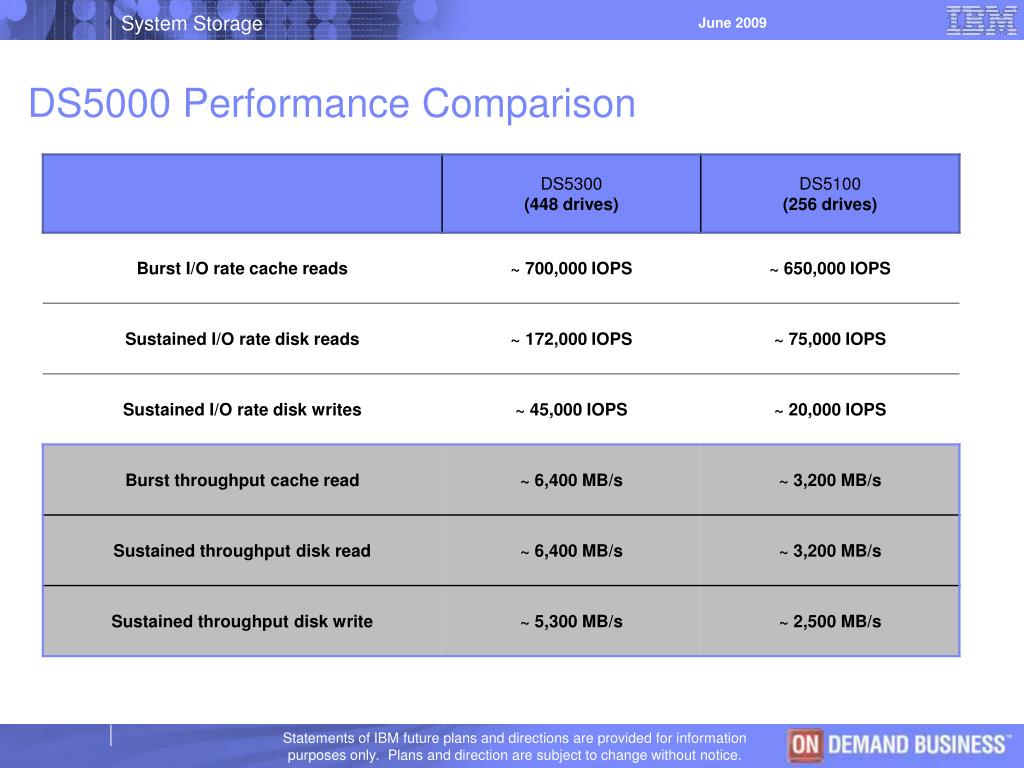

  13. DS5000 Performance Comparison * Based on performance testing by LSI. DS5000 performance numbers are preliminary estimates and not committed. Actual results based on testing are to be determined. All numbers were done using RAID 5 using switched drive modules and FC drives.

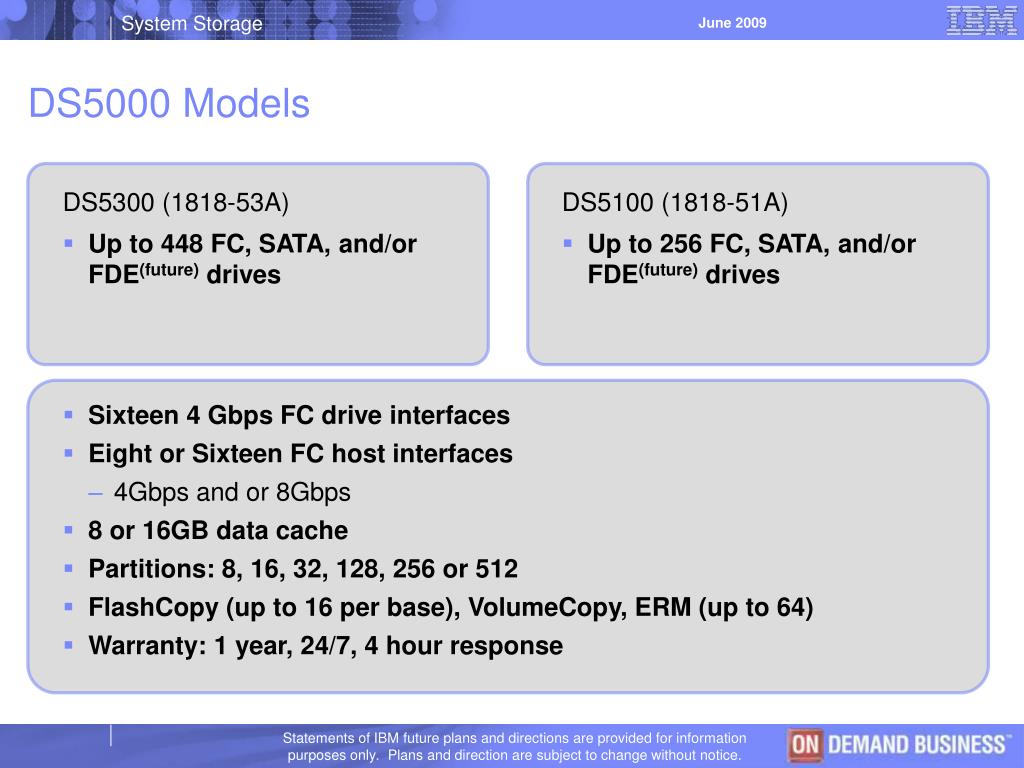

  14. DS5000 Models DS5300 (1818-53A) • Up to 448 FC, SATA, and/or FDE(future) drives DS5100 (1818-51A) • Up to 256 FC, SATA, and/or FDE(future) drives • Sixteen 4 Gbps FC drive interfaces • Eight or Sixteen FC host interfaces • 4Gbps and or 8Gbps • 8 or 16GB data cache • Partitions: 8, 16, 32, 128, 256 or 512 • FlashCopy (up to 16 per base), VolumeCopy, ERM (up to 64) • Warranty: 1 year, 24/7, 4 hour response http://www-03.ibm.com/systems/storage/disk/ds4000/pdf/interop-matrix.pdf

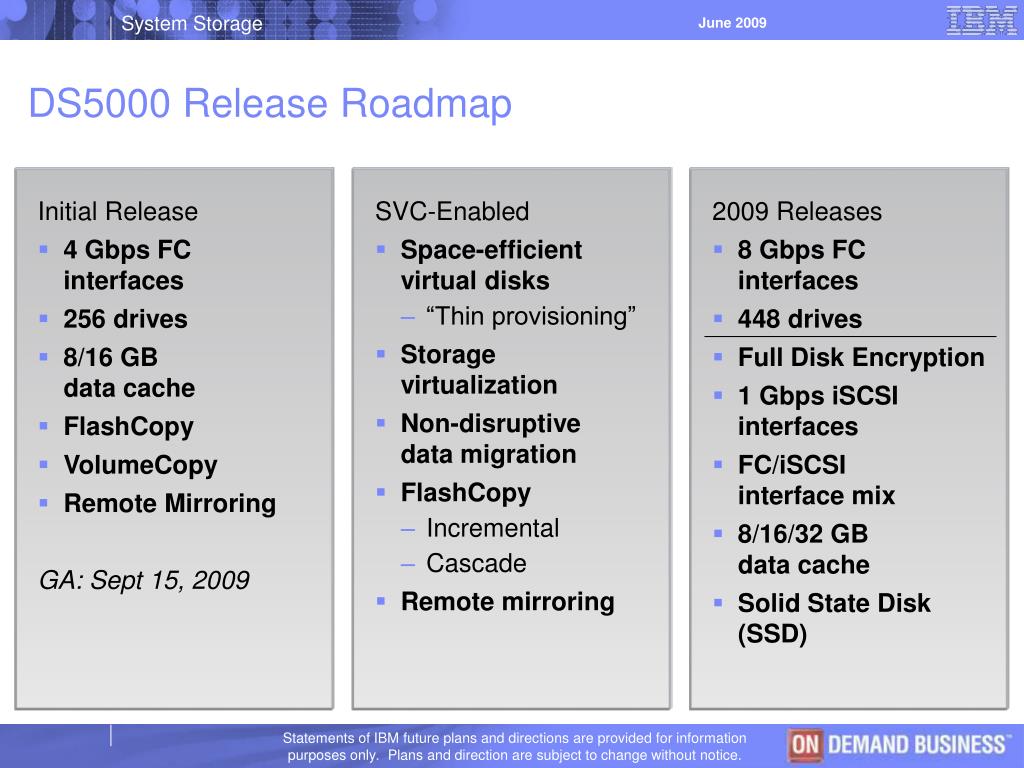

  15. DS5000 Release Roadmap Initial Release • 4 Gbps FC interfaces • 256 drives • 8/16 GB data cache • FlashCopy • VolumeCopy • Remote Mirroring GA: Sept 15, 2009 SVC-Enabled • Space-efficient virtual disks • “Thin provisioning” • Storage virtualization • Non-disruptivedata migration • FlashCopy • Incremental • Cascade • Remote mirroring 2009 Releases • 8 Gbps FC interfaces • 448 drives • Full Disk Encryption • 1 Gbps iSCSIinterfaces • FC/iSCSI interface mix • 8/16/32 GB data cache • Solid State Disk (SSD)

  16. Lifecycle longevity • Protect against risks of change/growth over the next 5+ years Sustainable performance • Real-world mixed workloads, virtualization and consolidation Green efficiency • Lower your storage acquisition, support and environmental costs Enterprise support • Large DataCenter support for a scalable modular package DS5000 Corner Stone Value Propositions
