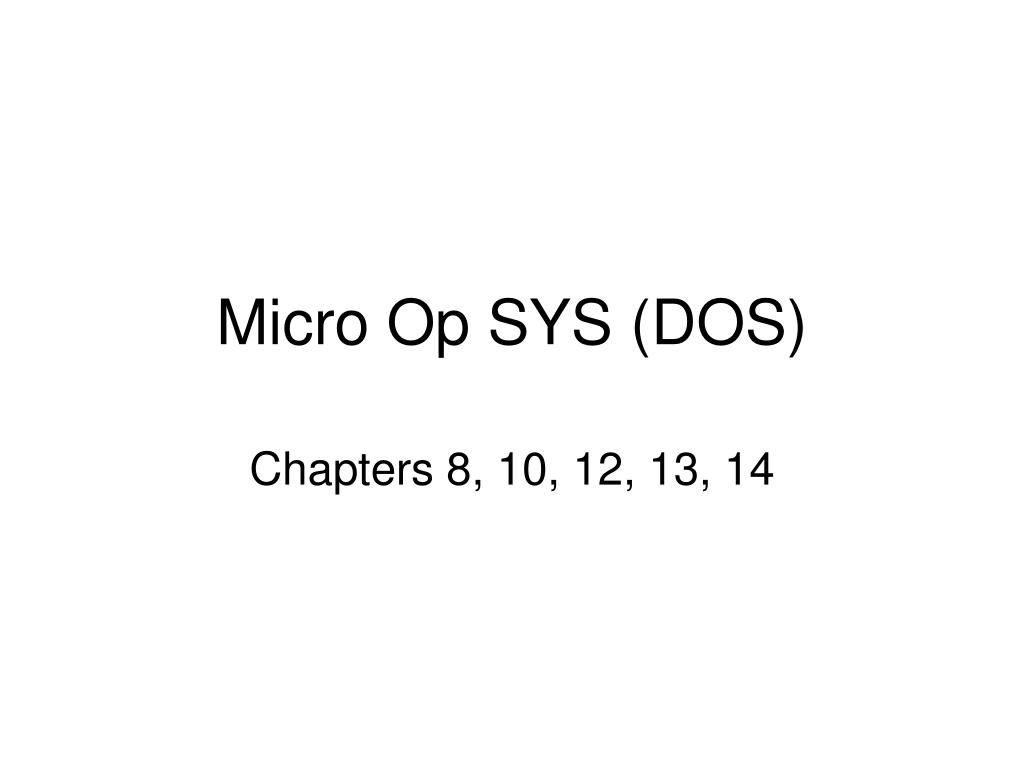

  1. Micro Op SYS (DOS) Chapters 8, 10, 12, 13, 14

  2. DOS Commands • DEFRAG • SCANDISK • MSAV • MSBACKUP

  3. DOS Commands (cont) • FDISK • MSD • SYS

  4. Types of RAM Memory • Conventional Memory • 0K to 640K • Everything must run in conventional memory • Upper Memory • 640K to 1MB (1024K) • Device drivers and BIOS • Extended Memory • Above 1MB

  5. HIMEM.SYS and EMM386.EXE • Contain in the CONFIG.SYS file • device=c:\dos\himem.sys • This allows the usage above conventional memory • Device=c:\dos\emm386.exe • This manages items in upper memory • Must come after HIMEM.SYS

  6. Loading Items in Memory • DEVICE = • Loads a driver into conventional memory • device=c:\mouse.sys • DEVICEHIGH = • Loads a driver into upper memory • devicehigh=c:\mouse.sys • DOS=HIGH • Loads DOS into extended memory

  7. DOS Commands • MEM /C – what is running in conventional memory • Memmaker

  8. Batch Files • Group of commands that the computer automatically executes as a set • Similar to a program • Must popular batch file is the AUTOEXEC.BAT • Executed each time DOS starts

  9. Batch file Commands • REM • Allows you to make comments inside the batch file that will not be executed • PAUSE • Temporarily halts execution of a batch file • Message appears after this is executed saying: “Press any key when ready…”

  10. Batch file Commands (cont) • ECHO • Lets the computer know if to just execute command or to execute and display command • @ECHO OFF – just execute • @ECHO ON – execute and display • Also allows for messages to be printed • ECHO This is a test • This is a test • ECHO : • Gives a blank line

  11. Create a Batch File • EDIT filename.bat • To move around the screen, you have to use the arrow keys • To access the menu at the top, press the ALT key and then the appropriate arrow keys

  12. Special DOS commands inside Batch Files • GOTO • Allows you to skip DOS commands • CHOICE • Allows you to pick from a menu • choice /C:123E /N Choose a menu option: • /c – tells the computer to have options. If /c is not used, then CHOICE uses Y/N • /n – do not display the options after the statement • IF ERRORLEVEL number • Evaluates as true when the previously executed batch file command has an error condition equal to or greater than the number • if errorlevel 1 goto end

  13. @ECHO OFF:STARTCLSECHO :ECHO Main MenuECHO :ECHO 1. Word ProcessingECHO 2. SpreadsheetsECHO 3. DatabaseECHO :ECHO :CHOICE /C:123E Choose a menu option:IF ERRORLEVEL 4 GOTO ENDIF ERRORLEVEL 3 GOTO DBIF ERRORLEVEL 2 GOTO SSIF ERRORLEVEL 1 GOTO WPGOTO END:DBCD\DBASEDBASEGOTO START:SS CD\LOTUS123GOTO START:WPCD\WP51WPGOTO START:END

  14. Main Menu1. Word Processing2. Spreadsheets3. DatabaseChoose a menu option: [123E]

  15. PROJECT
