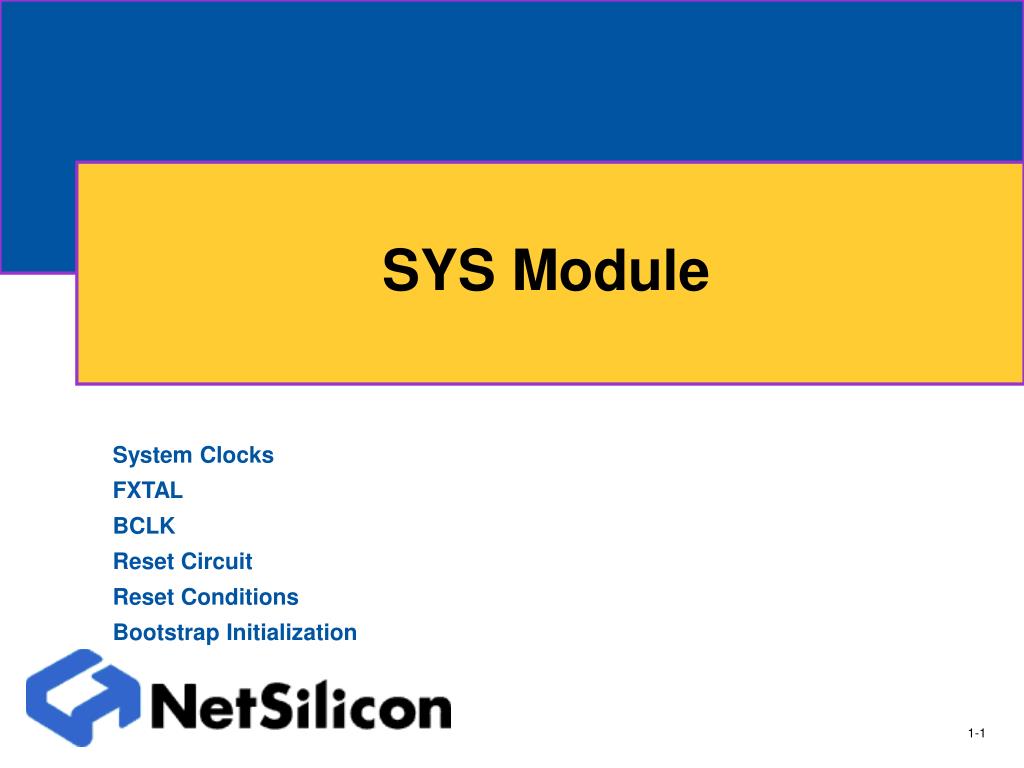

  1. SYS Module System Clocks FXTAL BCLK Reset Circuit Reset Conditions Bootstrap Initialization 1-1

  2. The NET+ARM Clocks • There are 4 clock symbols referred to by documentation • FCRYSTAL – External Crystal Frequency (between xtal1 & xtal2) • Or Oscillator Connected to xtal1 pin • FSYSCLK – Central Clock; ARM core clock • FXTAL – Timing Reference for subsystems • BCLK – System Bus Clock; I/O, Memory • Development Board / BSP Clock Configuration • FCRYSTAL – 18.432 MHz • FSYSCLK – 44.2368 MHz • BCLK – 44.2368 MHz • FXTAL – 3.6864 MHz 1-2

  3. FSYSCLK Generation • FSYSCLK is determined by FCRYSTAL, PLLTST* & PLLCNT • PLLTST* is pin on NET+ARM chip • When Hi, FSYSCLK determined by PLLCNT and FCRYSTAL • When Lo, FSYSCLK is simply = FCRYSTAL • PLLCNT is a field in the PLL control register with range 0..15 If PLLCNT <= 3, PLLTST* = 3.3V (Crystal Input) Else, 1-3

  4. FXTAL Generation • FXTAL is determined by FCRYSTAL, or PLLCNT & External Oscillator, and PLLTST* PLLTST* = 3.3V (Crystal) If PLLCNT <= 3, PLLTST* = 0V (Ext. Oscillator) Else, So, range of FXTAL is 1/18(FXTAL1) to1/6(FXTAL1) 1-4

  5. BCLK • The System Bus Clock, BCLK is controlled by the two bit configuration field, BSPEED, in the System Control Register, as a fraction of FSYSCLK: • 00 – ¼ Speed • 01 – ½ Speed • 10 – Full Speed • 11 – Reserved • Note: The reset condition is ’00’ 1-5

  6. Reset Circuit • Reset Circuit - Five sources: Power-up, External, Watchdog, ENI, SW • Power-up Reset (special ground pad produces active high reset pulse when power voltage is outside specifications) - CPU, EFE, DMA, ENI, GEN, MEM, SER • External Reset (drive RESET* pin active low during power-up) - CPU, EFE, DMA, ENI, GEN, MEM, SER • Watchdog Reset (watchdog timer configured for system reset) - CPU, EFE, DMA, ENI, GEN, MEM, SER 1-6

  7. SYS Module • ENI Reset - CPU, EFE, DMA, GEN, SER • Software Reset - EFE, DMA, GEN, SER 1-7

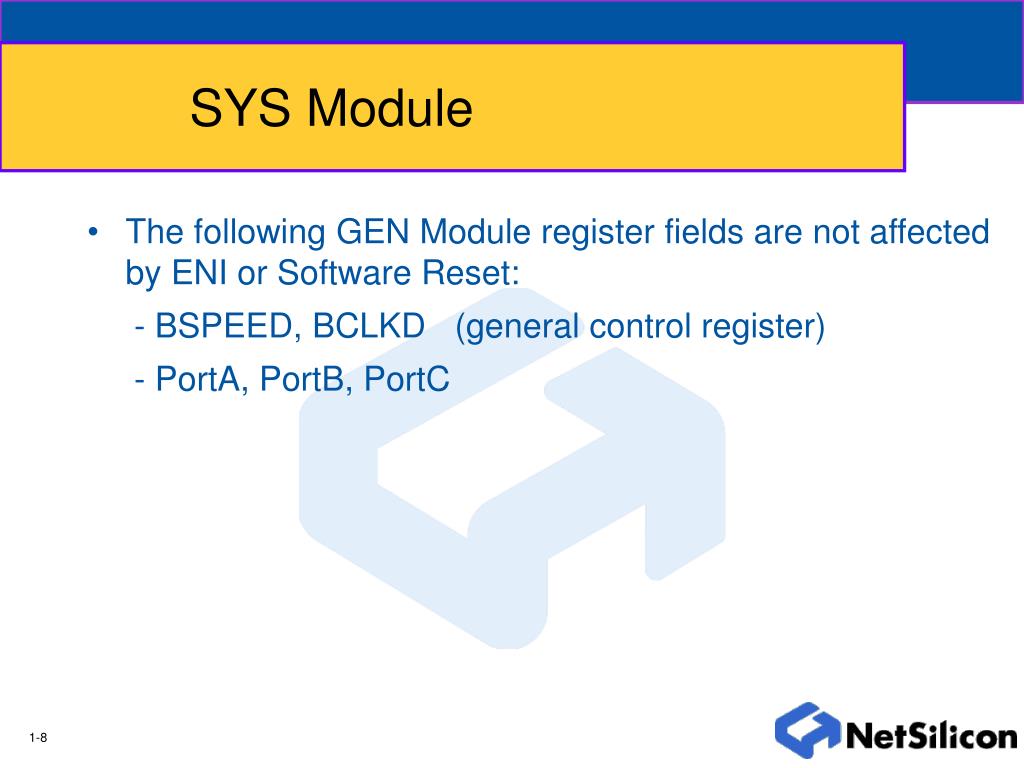

  8. SYS Module • The following GEN Module register fields are not affected by ENI or Software Reset: - BSPEED, BCLKD (general control register) - PortA, PortB, PortC 1-8

  9. Hardware reset requirements From the Hardware Reference Guide • Vcc becomes stable (3.0 – 3.6 Volts) • Reset pin is de-asserted 40 msec later • Or reset line is pulsed for 1 usec while running • Recommend using reset part on board 1-9

  10. Reset Circuit • Reset Circuit - Five sources: Power-up, External, Watchdog, ENI, SW • Power-up Reset (special ground pad produces active high reset pulse when power voltage is outside specifications) - CPU, EFE, DMA, ENI, GEN, MEM, SER • External Reset (drive RESET* pin active low during power-up) - CPU, EFE, DMA, ENI, GEN, MEM, SER • Watchdog Reset (watchdog timer configured for system reset) - CPU, EFE, DMA, ENI, GEN, MEM, SER 1-10

  11. After reset is de-asserted • 512 clocks after reset goes away, NET+ARM starts fetching instructions from CS0, location 0x0 • During this time, the entire memory map is CS0 • Execution from FLASH only • Program Execution begins 1-11

  12. The Hardware RESET State • Each module of the NET+ARM is reset • All internal registers set to zero except… • Values specifically set with bootstrap resistors • CS0 special register considerations • Maximum wait states (0xF = 15) • CS0 is the only valid chip select (V bit is SET) • Port size copied from bootstrap settings • System Clock runs at quarter speed 1-12

  13. The ARM Vector table 1-13

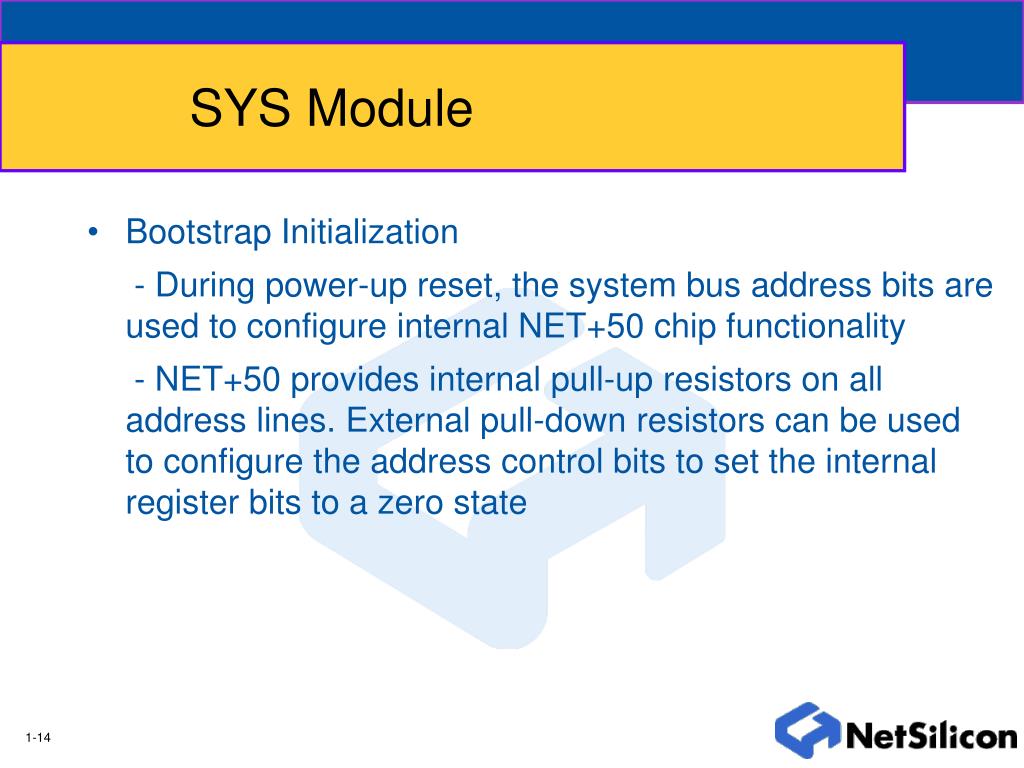

  14. SYS Module • Bootstrap Initialization - During power-up reset, the system bus address bits are used to configure internal NET+50 chip functionality - NET+50 provides internal pull-up resistors on all address lines. External pull-down resistors can be used to configure the address control bits to set the internal register bits to a zero state 1-14

  15. SYS Module • Bootstrap Initialization ADDR[27] Endian configuration 0 Little-endian 1 Big-endian Note: Inverted endian bit is loaded into LENDIAN (bit 31) of System Control Register ADDR[26] CPU Bootstrap 0 CPU disabled (GEN_BUSER set to 1) 1 CPU enabled (GEN_BUSER set to 0) 1-15

  16. SYS Module • Bootstrap Initialization ADDR[25] Bus Arbitration (GEN_IARB) 0 Use External system bus arbiter 1 Use Internal system bus arbiter ADDR[24:23] CS0 Bootstrap “00” Bootstrap disabled “01” 32-bit SRAM port; 15 wait states “10” 32-bit DRAM port; 15 wait states “11” 16-bit SRAM port; 15 wait states 1-16

  17. SYS Module • Bootstrap Initialization ADDR[22:20] ENI Configuration ( sets ENIMODE bits of General Control Register) “000” GPIO mode “001” 1284 mode “010” Reserved “011” Reserved “100” 16-bit Shared Ram mode “101” 8-bit Shared Ram mode “110” 16-bit FIFO mode, w/ 8K Shared Ram “111” 8-bit FIFO mode, w/8K Shared Ram 1-17

  18. SYS Module • Bootstrap Initialization ADDR[19:09] GEN_ID Setting ( sets GEN_ID bits of System Status Register) user-defined for application-specific configuration ADDR[08] Reserved ADDR[07] ENI Control PSIO* (ENI Control Register) 0 PSIO* 1 Normal Note: Inverted address bit is loaded into PSIO (bit 9) of ENI Control Register 1-18

  19. SYS Module • Bootstrap Initialization ADDR[06] ENI Control WR_OC 0 Output Driver is TTL 1 Output Driver is “Open Collector” ADDR[05] ENI Control DINT2* 0 INT2* pin configured for pulsed interrupt from ENI 1 PINT1* or PINT2* selectable by ENI ADDR[04] ENI Control I_OC 0 Output Driver is TTL 1 Output Driver is “Open Collector” 1-19

  20. SYS Module • Bootstrap Initialization ADDR[03] ENI Control DMAE* 0 Enable DACK*, DRQO*, DRQ1* for FIFO mode 1 Disable FIFO mode DMA ADDR[02] Reserved ADDR[01] ENI Control EPACK* 0 ACK pin is configured as active low Data Acknowledgement signal 1 ACK pin is configured as active low WAIT signal ADDR[00] ENI Control PULINT* 0 Interrupts are issued via pulsed interrupt register 1 Interrupts are issued via STSINT or VDAINT bits 1-20
