  1. Wrap Up Jean-Sebastien Graulich, Geneva • Control and Monitoring • DDAQ • Interface between DDAQ and MCM • Infrastructure Jean-Sébastien Graulich

  2. Control and Monitoring • Peter Owens presented General Architecture, Subsystem Integration and User Interface • Subsystem integration: Recommendations • Use File System convention • Use standard hardware (Hytec 9010 IOC) • Use Simulation • Name Convention Jean-Sébastien Graulich

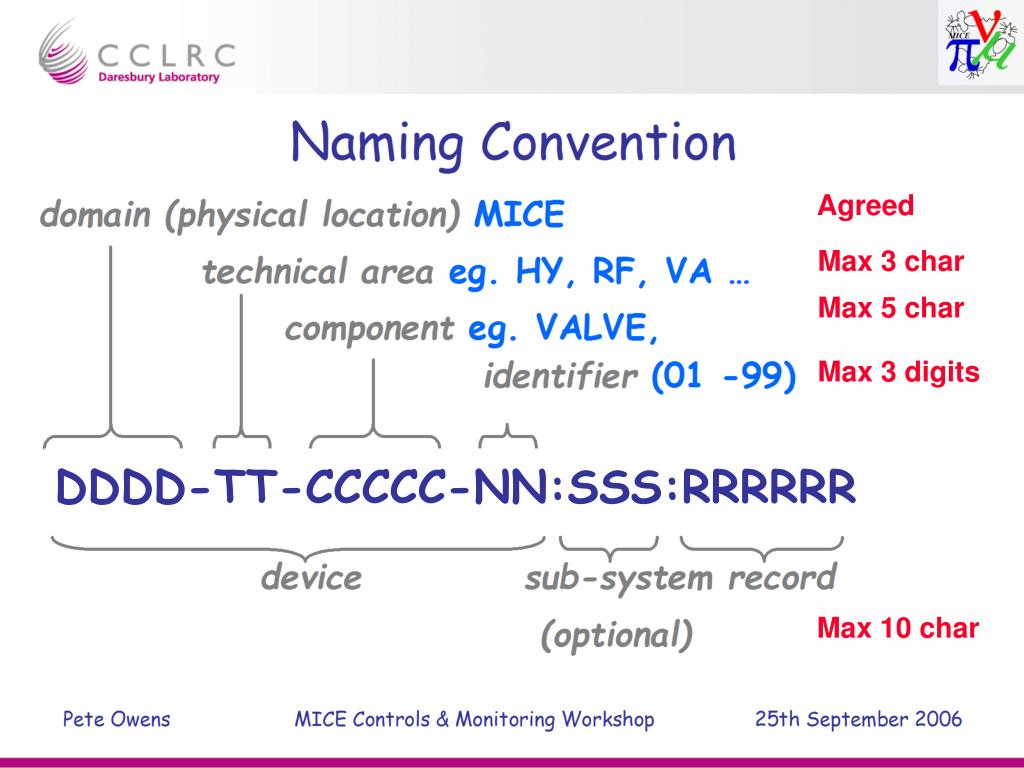

  3. Agreed DDDD-TT-CCCCC-NN:SSS:RRRRRR Max 3 char Max 5 char Max 3 digits Max 10 char

  4. Actions: • Prepare the list of Technical Area codes (Equipment codes are under the responsibility of the subsystem developer). Names should be approved by Peter Owens • Set up a DAQ web site web master: Vassil Verguilov Jean-Sébastien Graulich

  5. Jean-Sébastien Graulich

  6. Colour Scheme • Grey - background • Blue - control • Green – monitor/on/open/OK • Yellow – • Red – alarm/off/closed • White – • Brown - Clickable warning invalid

  7. RF Control System • Andy Moss introduced the Direct Digital Synthesizers as very flexible way to produce RF • Can be programmed via serial ports • Exists in 4 channel version: Allows independent control of 4 RF channels synchronised to the same clock, with excellent isolation between channels • Can be interfaced with Epics • Digital timing system with 5 outputs • Can EPICS provide the timing signal? ->Triggered Discussion on • RF phase measurement • RF amplitude measurement Jean-Sébastien Graulich

  8. Basic Layout of LLRF system

  9. RF • Decision • RF phase: A logic pulse with precise constant phase w.r.t the RF should be sent to the TOF TDC We’ll use the locking signal and not zero crossing of the probed RF field A signal should be sent to the DDAQ when the cavities are locked • Action • Investigate the possibility of using ~GHz waveform digitizer (oscilloscope) to measure the RF amplitude • Contact MTA people for tests Jean-Sébastien Graulich

  10. Fritz Bartlett presented D0 EPICS Extensions for MICE • Significant Event System Replaces the standard Alarm handler Fritz is willing to make SES “D0 independent” • COMICS (Experiment Control System) • GUI • The possibility to use SES will be seriously considered • The need for an Experiment Configuration System is recognized Jean-Sébastien Graulich

  11. Subnets • Fritz strongly recommended to set up a subnet for the C&M (IOC are not protected) • A separate subnet is needed for DDAQ Jean-Sébastien Graulich

  12. Tracker C&M • Alan Bross has shown that the basic infrastructure for the MICE tracker C&M can be copied from D0 • GUI • Python Code • EPICS implementation • To do • Customization to MICE (considerable weight loss) • Develop a stand-alone VLPC cryostat C&M application Jean-Sébastien Graulich

  13. PID Control • Naming convention Channel # MICE-DDD-HVPS-##:###:HVSP TOF Station 01, 02, 03 EMC Part # (01 for KL, 02 for SW) CKV Part # (01 or 02) Jean-Sébastien Graulich

  14. USC DSC EMCAL • The Ideal GUI TOF2 TOF0 TOF1 Tracker 2 Tracker 1 • Each Detector has a color:Green= FULL_READY Yellow= OUT_OF_RANGE_L2 Red= OUT_OF_RANGE_L3 or TRIPPED or NOT_READY White= INACTIVE • Each Detector is clickable, a panel pops up with the status of each individual channel • The same panel can be used to edit the settings, providing a password Jean-Sébastien Graulich

  15. DDAQ & MCM Interface 1) MCM should know and archive the status of DDAQ 2) DDAQ should not run when MICE is not ready In particular the run should be stopped when something goes wrong in one subsystem 3) DDAQ should incorporate some data under the control of MCM which have a physical meaning: e.g. Hall Temperature, Pressure and Temperature in the Absorber, Current in the magnets, etc At some point we will need a list… This data will be collected asynchronously during the run, written in file and included in the data stream at the end of the run Control Interface Data Interface Jean-Sébastien Graulich

  16. Data base • Discussion initiated • Some Data Base is needed • Detector Configuration • Calibration and Geometry • DATE is using MySQL • C&M archive should allow random access • Action • ORACLE cost estimation – Paul Kyberd • Find other options - All Jean-Sébastien Graulich

  17. Trigger • 4 Particle Trigger Conditions for Normal Events • Burst: All ISIS bunch crossing with the target can produce a particle trigger, providing the FEE is not busy • Beam: Burst x TOF0 • Timing given by Burst • Upstream: Beam x TOF1 • Timing given by TOF1 • Traversing: Upstream x TOF2 • Timing given by TOF1 • Trigger Receiver: CAEN V977 16 Ch I/O Jean-Sébastien Graulich

  18. Jean-Sébastien Graulich
