C-Class Enclosure Power Components. 403320-B21 HP c7000 Single-Phase Enclosure with 2 Power Supplies and 6 Fans with 8 Insight Control Trial Licenses 403321-B21 HP c7000 Single-Phase Enclosure with 2 Power Supplies and 6 Fans with 16 Insight Control Licenses.

gisela-hutchinson
Télécharger la présentation

C-Class Enclosure Power Components

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. C-Class Enclosure Power Components • 403320-B21 • HP c7000 Single-Phase Enclosure with 2 Power Supplies and 6 Fans with 8 Insight Control Trial Licenses • 403321-B21 • HP c7000 Single-Phase Enclosure with 2 Power Supplies and 6 Fans with 16 Insight Control Licenses Single-phase power configuration with red. 3+3 C19 cord plug-ins • Three-phase power configuration IEC 309 5 Pin 403318-B21 HP c7000 Three-Phase International Enclosure with 6 Power Supplies and 6 Fans with 8 Insight Control Trial Licenses 403319-B21 HP c7000 Three-Phase International Enclosure with 6 Power Supplies and 6 Fans with 16 Insight Control Licenses

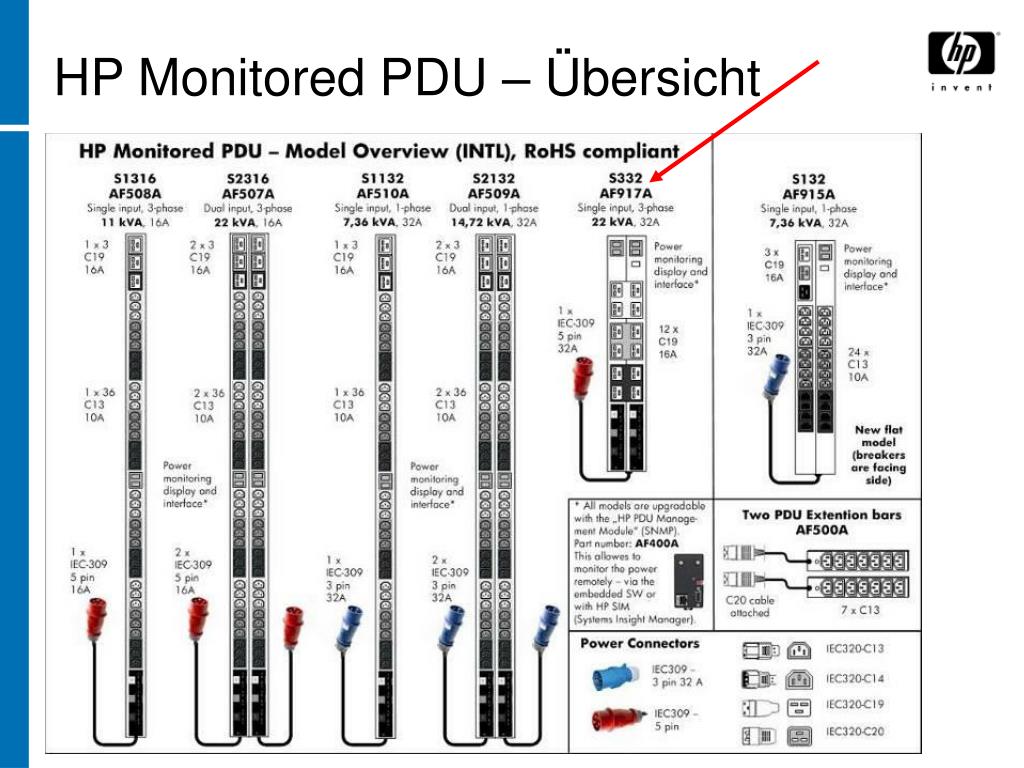

  2. HP Monitored PDU – Übersicht

  3. HP Modular PDU – Übersicht Neu

  4. Power supplies • 2250W output = ~ 9.78Ampere @230VAC • Self-cooled • Self monitoring • AC input detection • DC output measurement DC powerbackplane connector AC input module connector

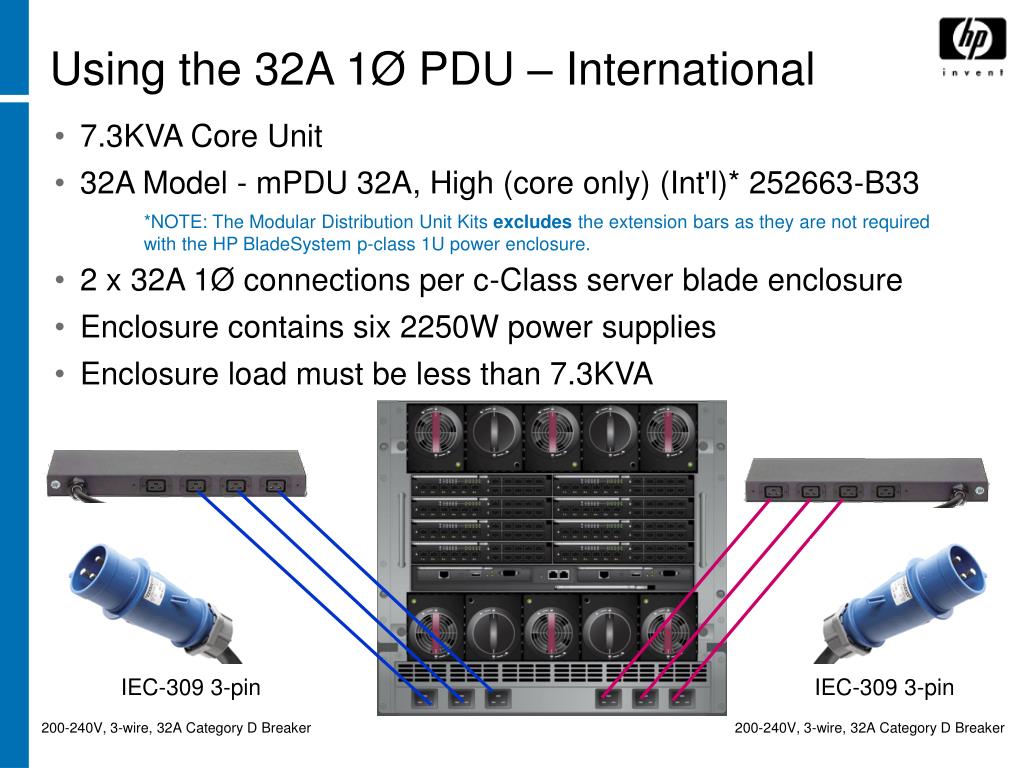

  5. Using the 32A 1Ø PDU – International • 7.3KVA Core Unit • 32A Model - mPDU 32A, High (core only) (Int'l)* 252663-B33 • *NOTE: The Modular Distribution Unit Kits excludes the extension bars as they are not required with the HP BladeSystem p-class 1U power enclosure. • 2 x 32A 1Ø connections per c-Class server blade enclosure • Enclosure contains six 2250W power supplies • Enclosure load must be less than 7.3KVA IEC-309 3-pin IEC-309 3-pin 200-240V, 3-wire, 32A Category D Breaker 200-240V, 3-wire, 32A Category D Breaker

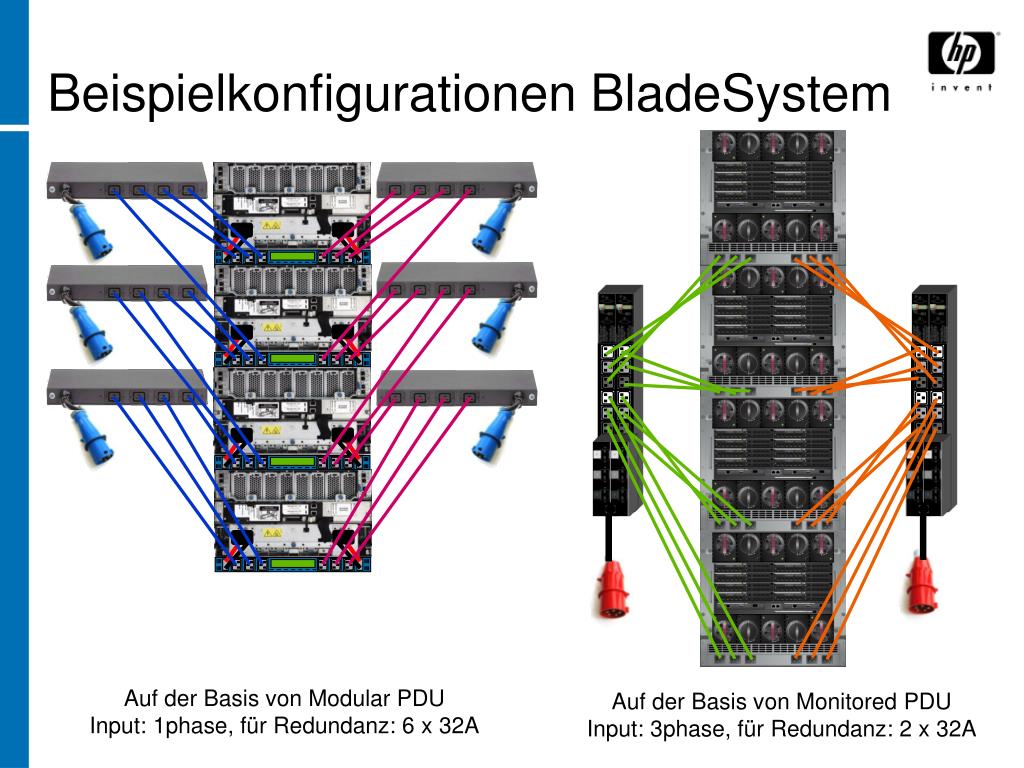

  6. Beispielkonfigurationen BladeSystem Auf der Basis von Modular PDU Input: 1phase, für Redundanz: 6 x 32A Auf der Basis von Monitored PDU Input: 3phase, für Redundanz: 2 x 32A
