  1. II. Plasma Physics Fundamentals 4. The Particle Picture 5. The Kinetic Theory 6. The Fluid Description of Plasmas

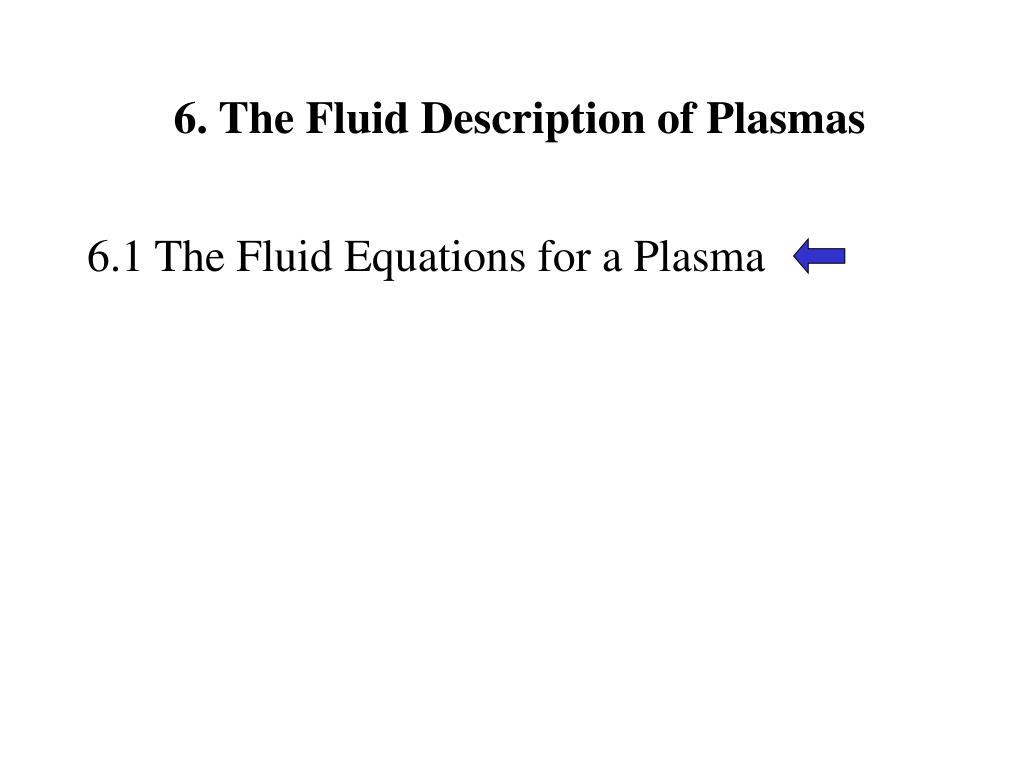

  2. 6. The Fluid Description of Plasmas 6.1 The Fluid Equations for a Plasma

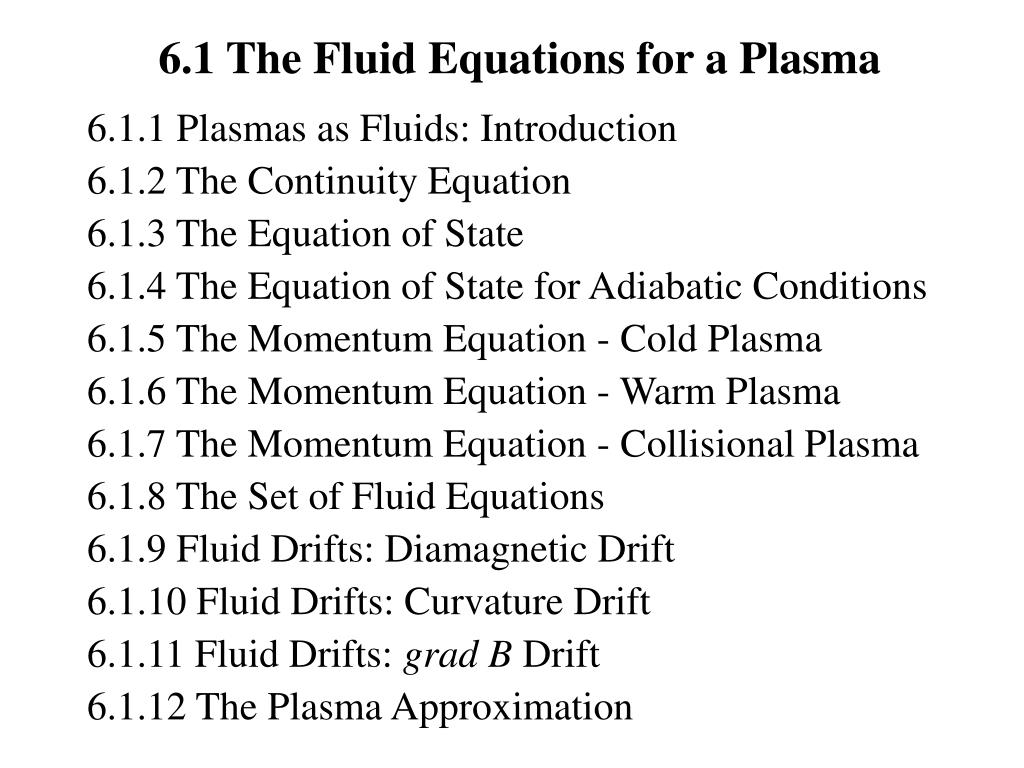

  3. 6.1 The Fluid Equations for a Plasma 6.1.1 Plasmas as Fluids: Introduction 6.1.2 The Continuity Equation 6.1.3 The Equation of State 6.1.4 The Equation of State for Adiabatic Conditions 6.1.5 The Momentum Equation - Cold Plasma 6.1.6 The Momentum Equation - Warm Plasma 6.1.7 The Momentum Equation - Collisional Plasma 6.1.8 The Set of Fluid Equations 6.1.9 Fluid Drifts: Diamagnetic Drift 6.1.10 Fluid Drifts: Curvature Drift 6.1.11 Fluid Drifts: grad B Drift 6.1.12 The Plasma Approximation

  4. 6.1.1 Plasmas as Fluids: Introduction • The particle description of a plasma was based on trajectories for given electric and magnetic fields • Computational particle models allow in principle to obtain a microscopic description of the plasma with its self-consistent electric and magnetic fields • The kinetic theory yields also a microscopic, self-consistent description of the plasma based on the evolution of a “continuum” distribution function • Most practical applications of the kinetic theory rely also on numerical implementation of the kinetic equations

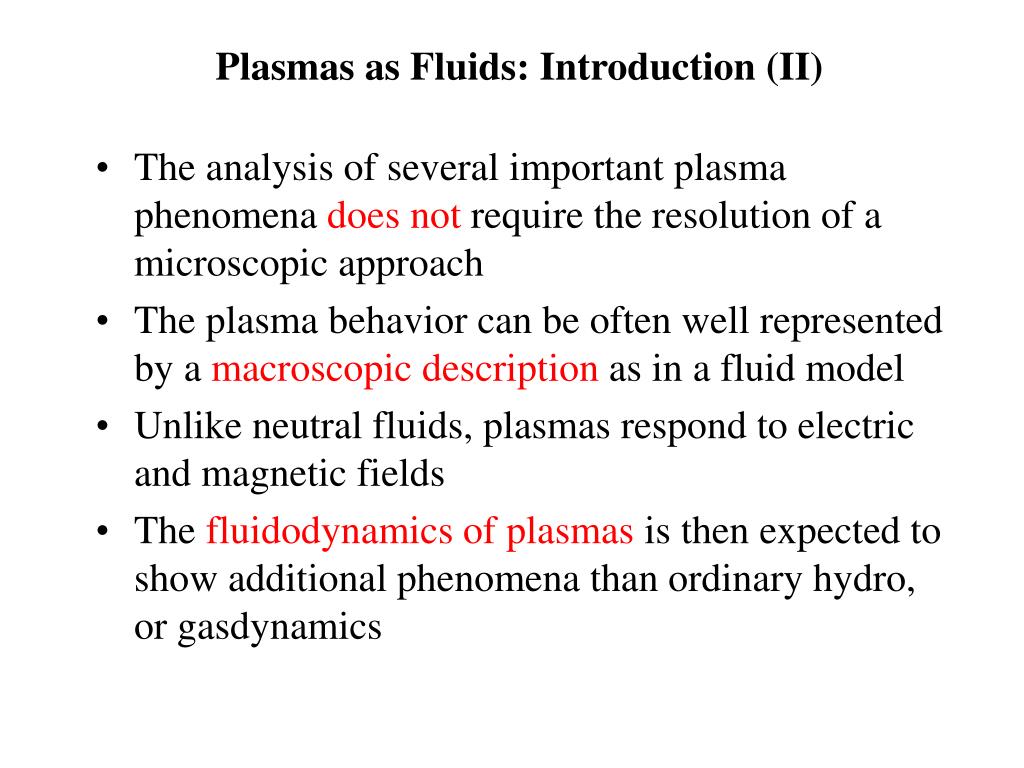

  5. Plasmas as Fluids: Introduction (II) • The analysis of several important plasma phenomena does not require the resolution of a microscopic approach • The plasma behavior can be often well represented by a macroscopic description as in a fluid model • Unlike neutral fluids, plasmas respond to electric and magnetic fields • The fluidodynamics of plasmas is then expected to show additional phenomena than ordinary hydro, or gasdynamics

  6. Plasmas as Fluids: Introduction (III) • The “continuum” or “fluid-like” character of ordinary fluids is essentially due to the frequent (short-range) collisions among the neutral particles that neutralize most of the microscopic patterns • Plasmas are, in general, less subject to short-range collisions and properties like collective effects and quasi-neutrality are responsible for the fluid-like behavior

  7. Plasmas as Fluids: Introduction (IV) • Plasmas can be considered as composed of interpenetrating fluids (one for each particle species) • A typical case is a two-fluid model: an electron and an ion fluids interacting with each other and subject to e.m. forces • A neutral fluid component can also be added, as well as other ion fluids (for different ion species or ionization levels)

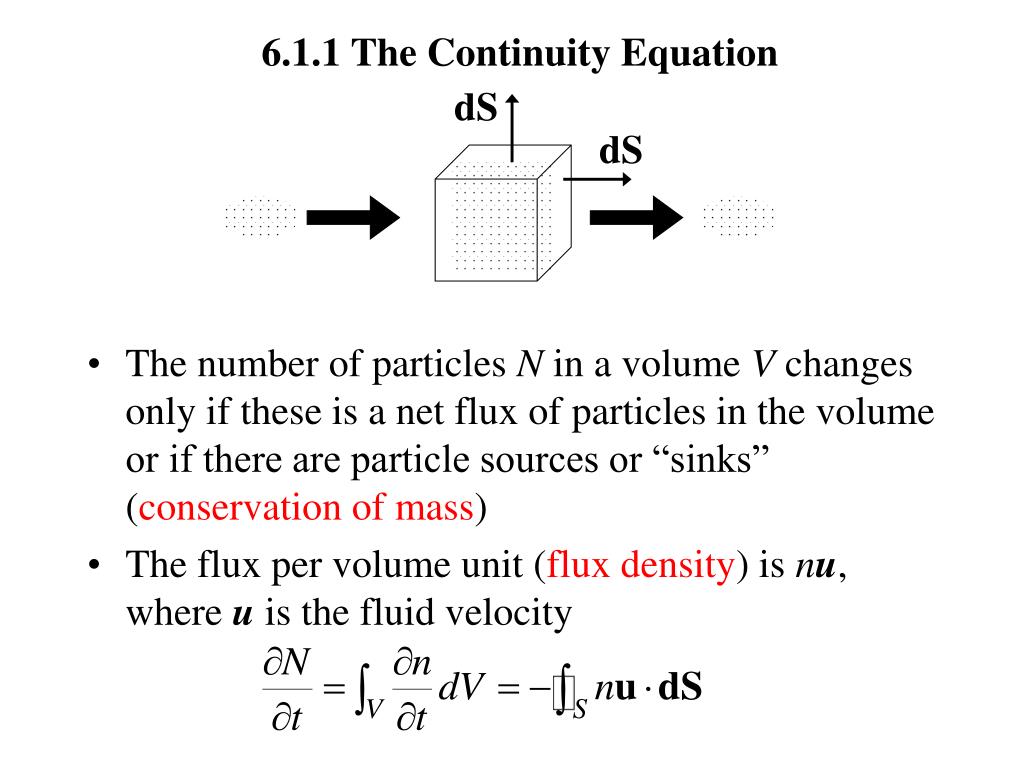

  8. 6.1.1 The Continuity Equation dS dS • The number of particles N in a volume V changes only if these is a net flux of particles in the volume or if there are particle sources or “sinks” (conservation of mass) • The flux per volume unit (flux density) is nu, where u is the fluid velocity

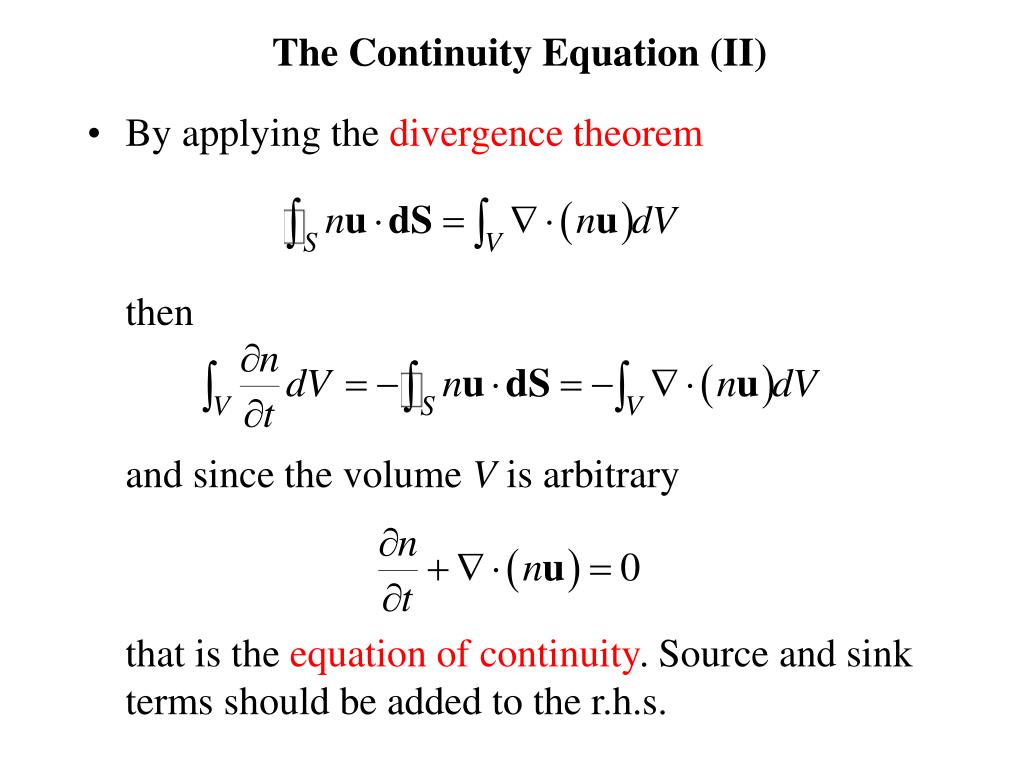

  9. The Continuity Equation (II) • By applying the divergence theorem then and since the volume V is arbitrary that is the equation of continuity. Source and sink terms should be added to the r.h.s.

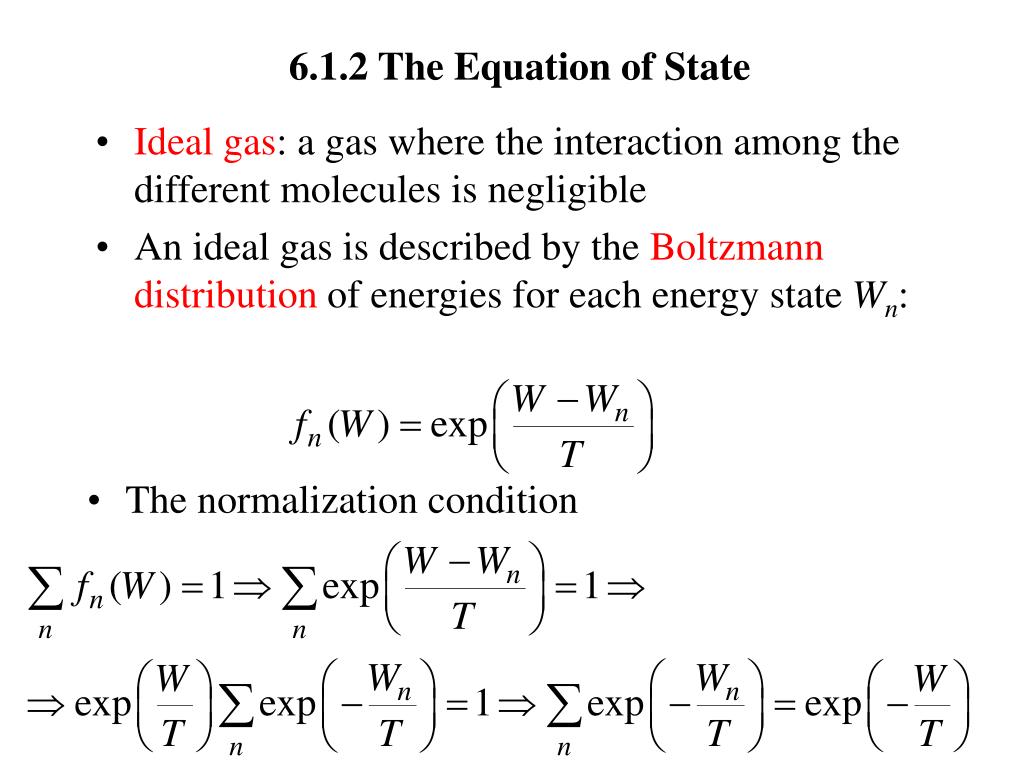

  10. 6.1.2 The Equation of State • Ideal gas: a gas where the interaction among the different molecules is negligible • An ideal gas is described by the Boltzmann distribution of energies for each energy state Wn: • The normalization condition

  11. The Equation of State (II) • By taking the log of it is found • The sum over the energy statesWn can be expressed in terms of the energiesek of each of the N molecules of the gas as

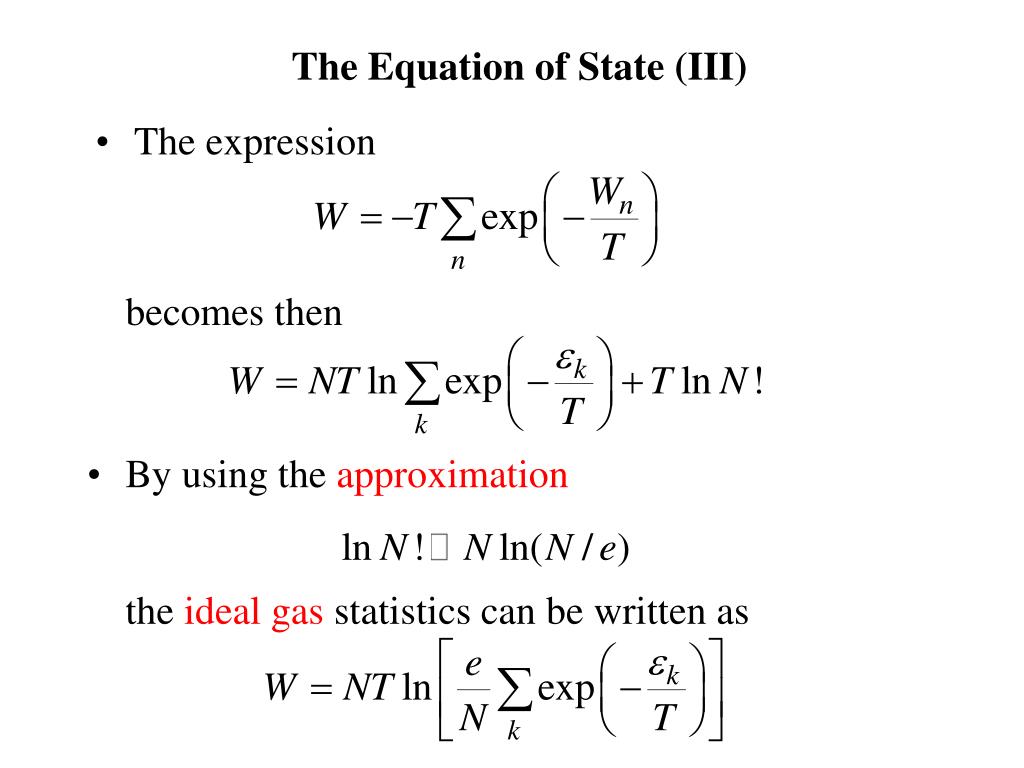

  12. The Equation of State (III) • The expression becomes then • By using the approximation the ideal gas statistics can be written as

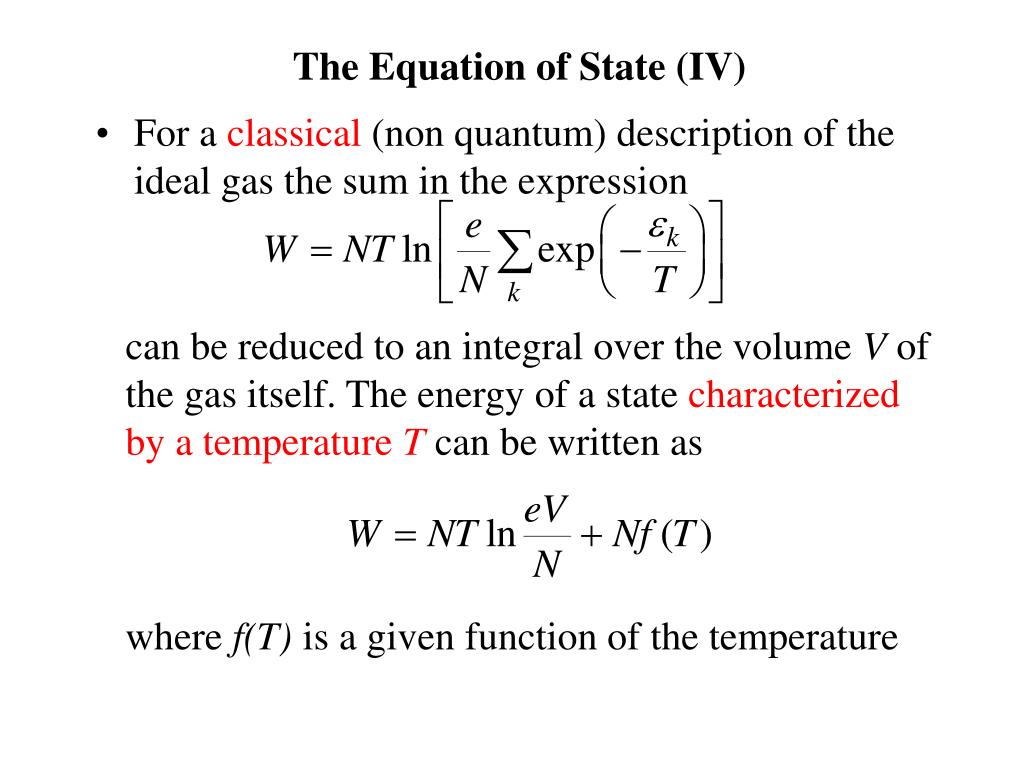

  13. The Equation of State (IV) • For a classical (non quantum) description of the ideal gas the sum in the expression can be reduced to an integral over the volume V of the gas itself. The energy of a state characterized by a temperature T can be written as where f(T) is a given function of the temperature

  14. The Equation of State (V) • Since the pressurep is defined as it is found or (equation of state of an ideal gas) • For T expressed in kelvin and observing that the density is just n=N/V

  15. 6.1.3 The Equation of State for Adiabatic Conditions • For an ideal gas in adiabatic conditions the entropy is constant and a relationship links volume, temperature and pressure with the specific heats • The specific heat at constant volumecv is the variation of the total energy with respect the temperature • The specific heat at constant pressurecp is the variation of the free (thermal) energy (W) with respect the temperature

  16. The Equation of State for Adiabatic Conditions (II) • The ratio cp / cv is a constant that can be expressed in terms of the number of degrees of freedomNdf of the system • For an ideal gas in adiabatic conditions the following relation holds: • By using the ideal gas equation of statep=nkBT it can also be written, for adiabatic conditions:

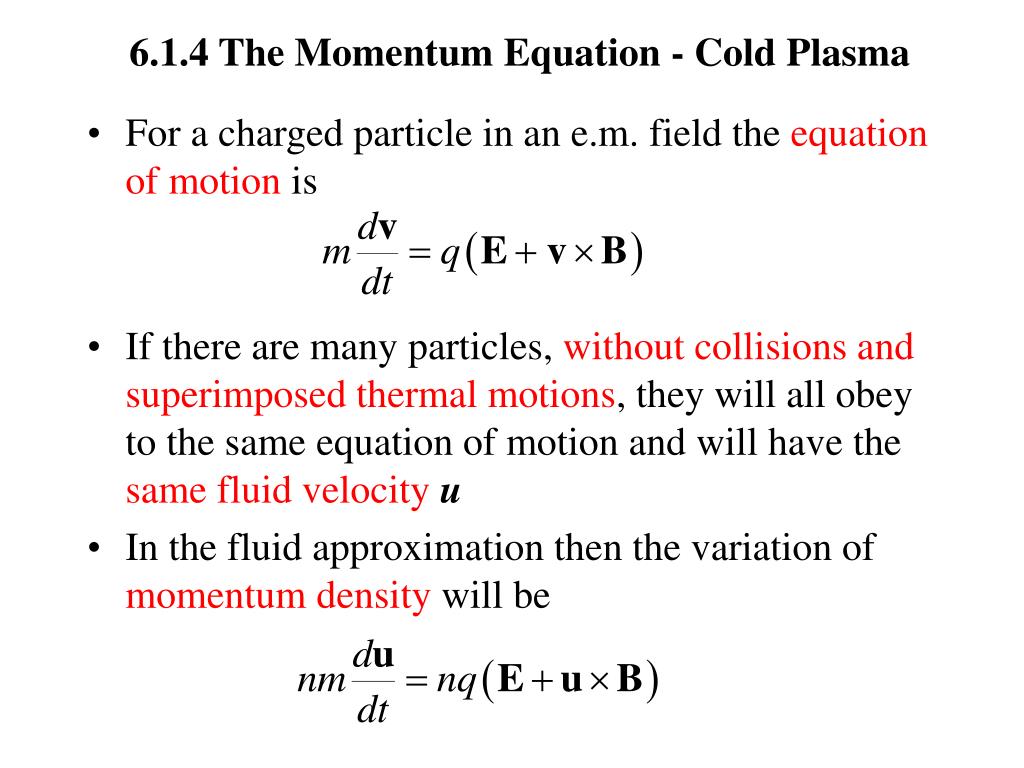

  17. 6.1.4 The Momentum Equation - Cold Plasma • For a charged particle in an e.m. field the equation of motion is • If there are many particles, without collisions and superimposed thermal motions, they will all obey to the same equation of motion and will have the same fluid velocityu • In the fluid approximation then the variation of momentum density will be

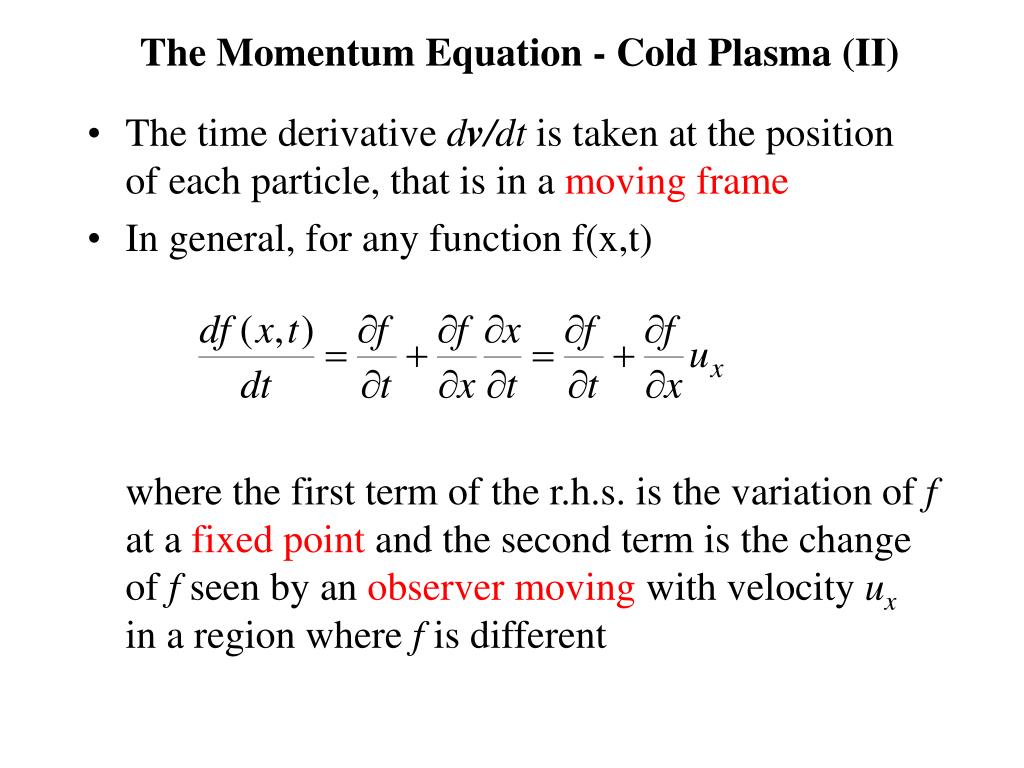

  18. The Momentum Equation - Cold Plasma (II) • The time derivative dv/dt is taken at the position of each particle, that is in a moving frame • In general, for any function f(x,t) where the first term of the r.h.s. is the variation of f at a fixed point and the second term is the change of f seen by an observer moving with velocity ux in a region where f is different

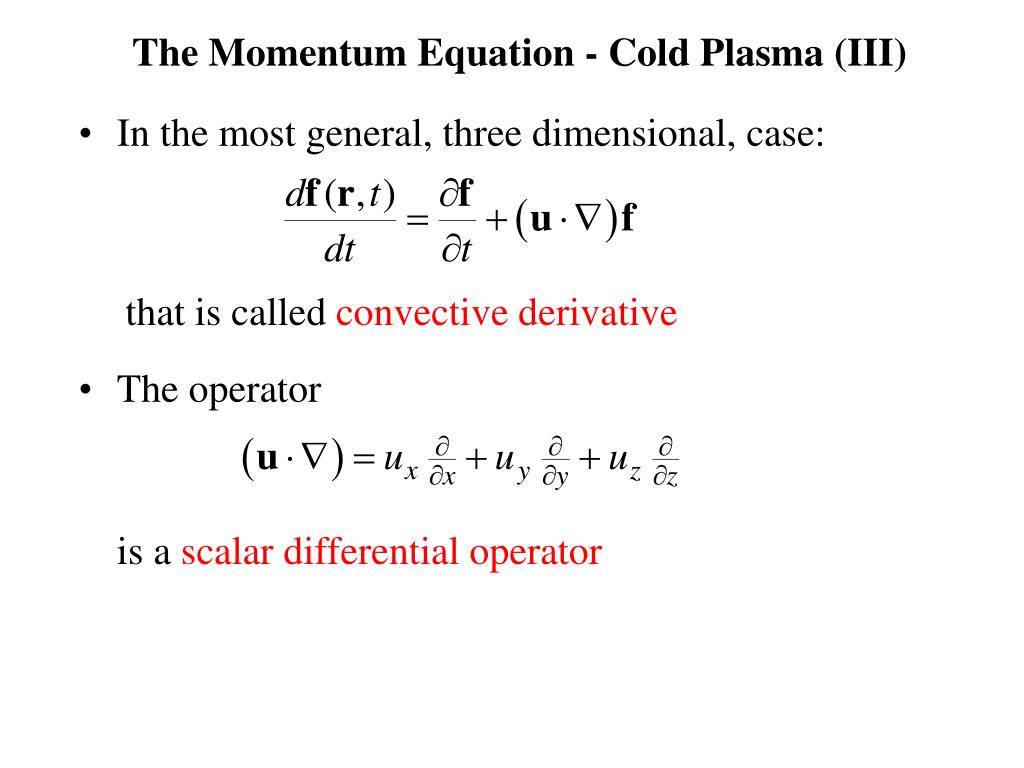

  19. The Momentum Equation - Cold Plasma (III) • In the most general, three dimensional, case: that is called convective derivative • The operator is a scalar differential operator

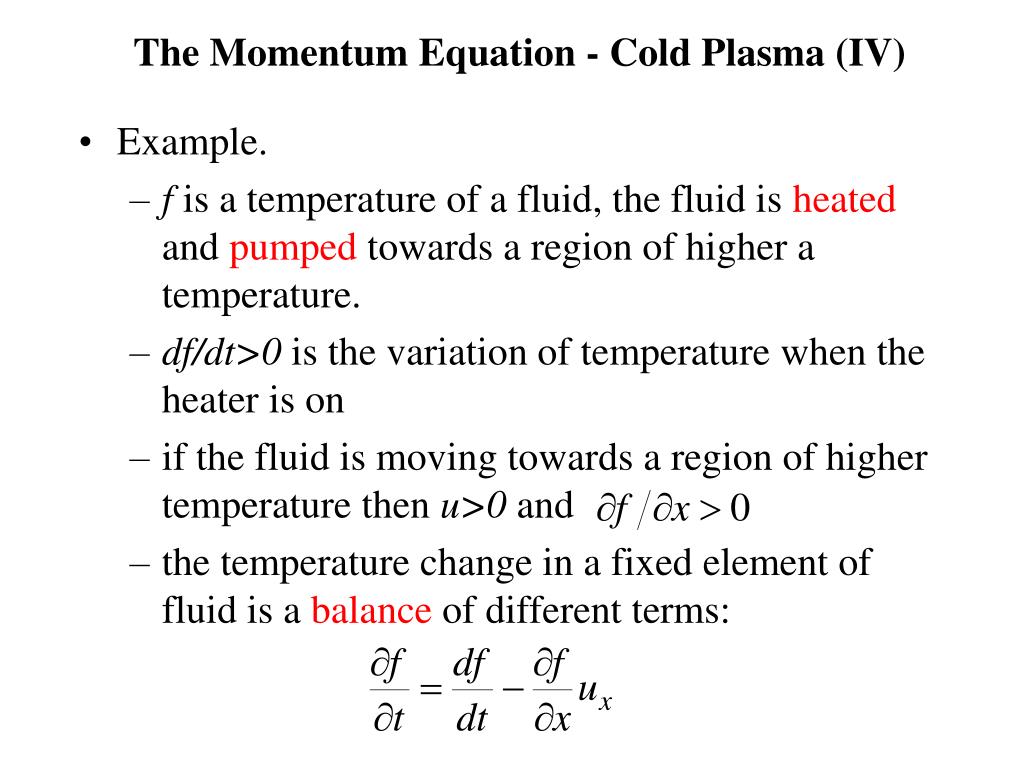

  20. The Momentum Equation - Cold Plasma (IV) • Example. • f is a temperature of a fluid, the fluid is heated and pumped towards a region of higher a temperature. • df/dt>0 is the variation of temperature when the heater is on • if the fluid is moving towards a region of higher temperature then u>0 and • the temperature change in a fixed element of fluid is a balance of different terms:

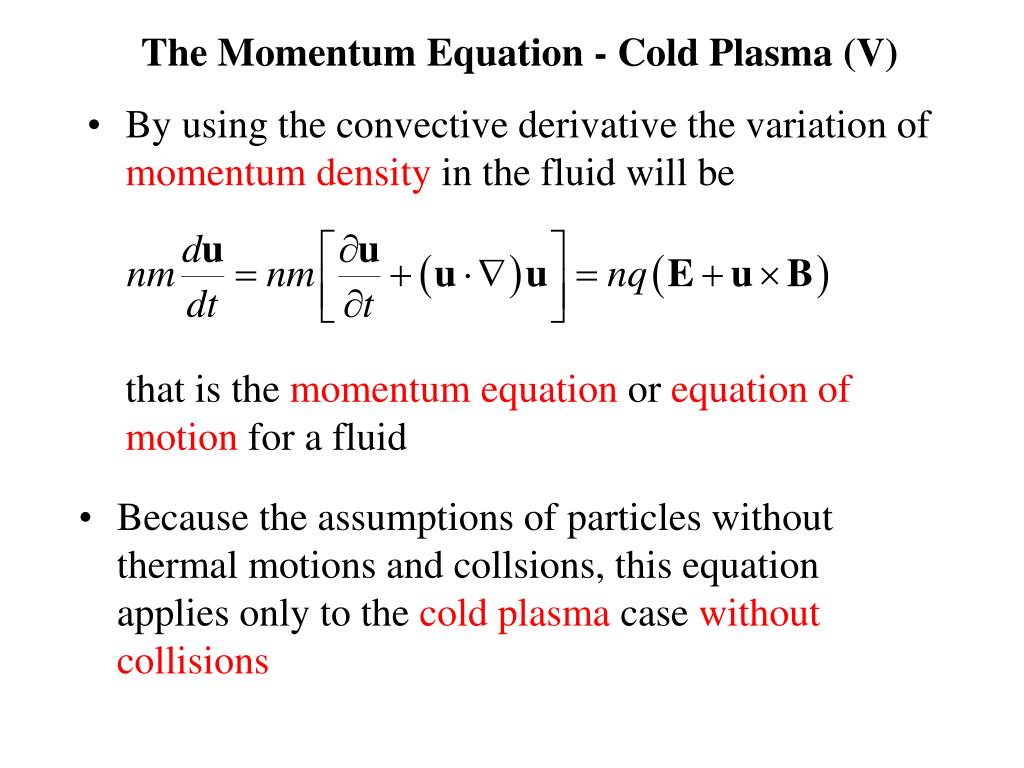

  21. The Momentum Equation - Cold Plasma (V) • By using the convective derivative the variation of momentum density in the fluid will be that is the momentum equation or equation of motion for a fluid • Because the assumptions of particles without thermal motions and collsions, this equation applies only to the cold plasma case without collisions

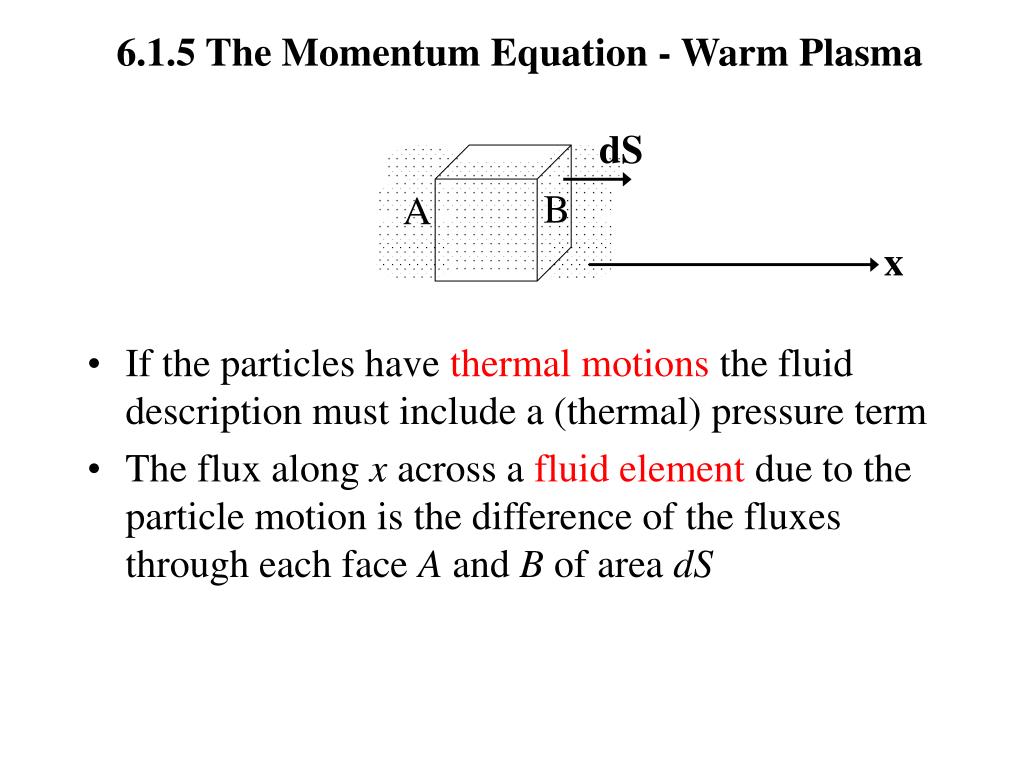

  22. 6.1.5 The Momentum Equation - Warm Plasma dS B A x • If the particles have thermal motions the fluid description must include a (thermal) pressure term • The flux along x across a fluid element due to the particle motion is the difference of the fluxes through each face A and B of area dS

  23. The Momentum Equation - Warm Plasma (II) • The number of particles per time unit crossing A with velocity between vx and vx+Dvx is where • Each particle carries a momentummvx. The total momentum carried per time unit across A is where the average is taken over the distribution and n/2 is the density of particles going toward A (the others are going away from A)

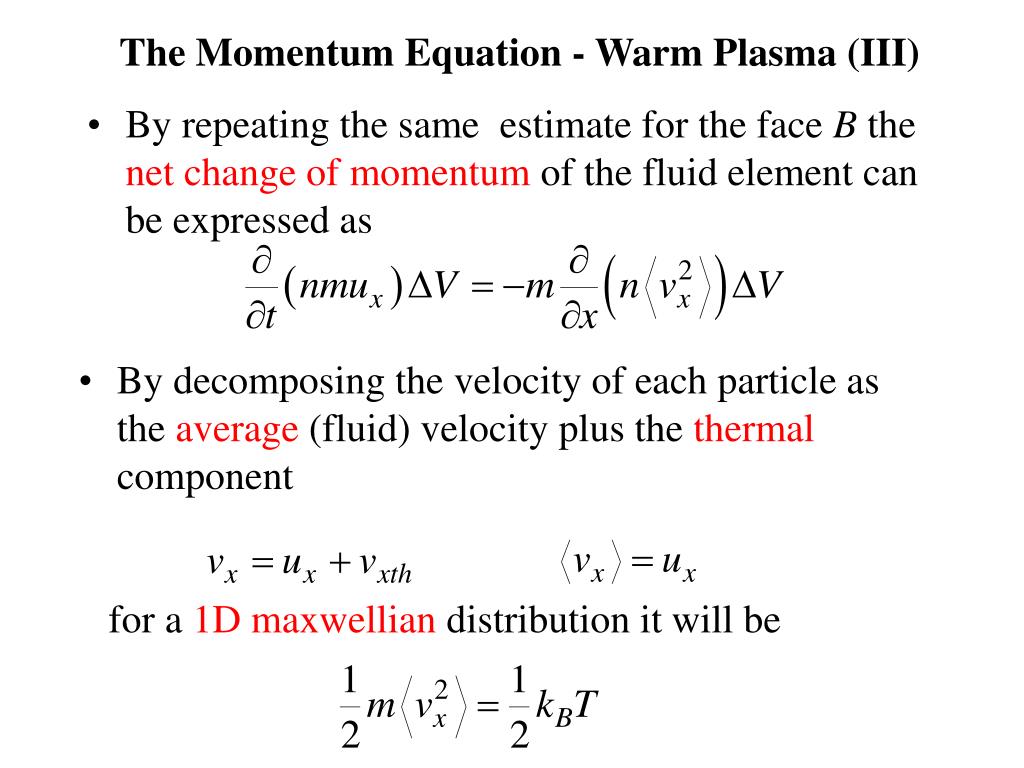

  24. The Momentum Equation - Warm Plasma (III) • By repeating the same estimate for the face B the net change of momentum of the fluid element can be expressed as • By decomposing the velocity of each particle as the average (fluid) velocity plus the thermal component for a 1D maxwellian distribution it will be

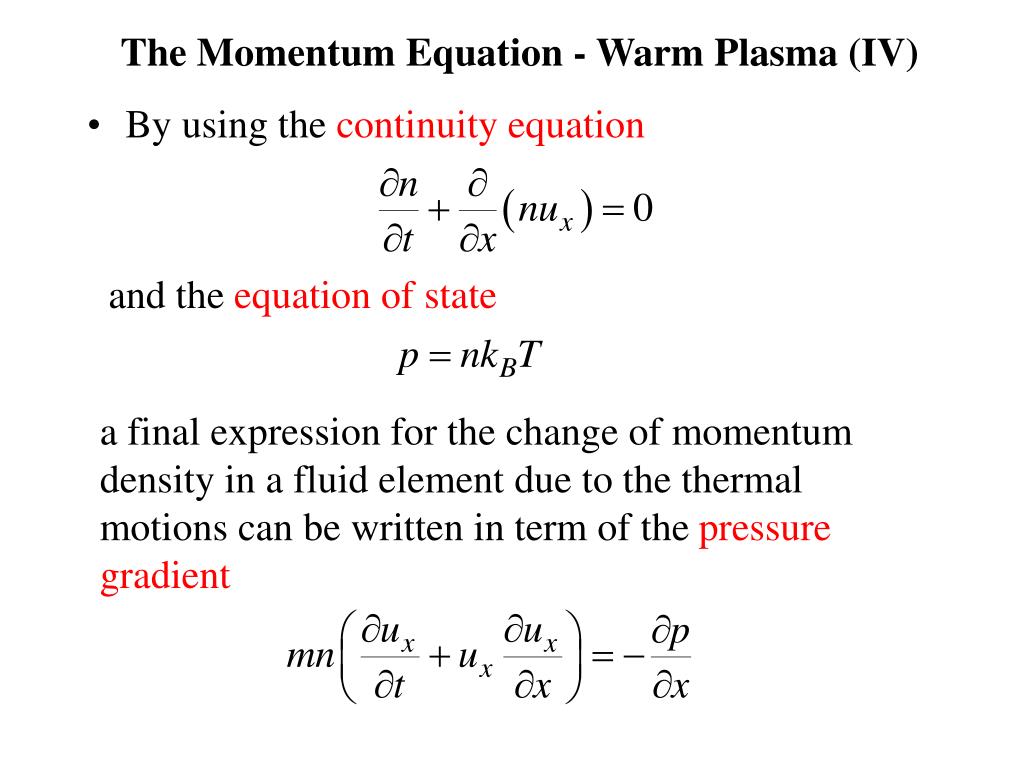

  25. The Momentum Equation - Warm Plasma (IV) • By using the continuity equation and the equation of state a final expression for the change of momentum density in a fluid element due to the thermal motions can be written in term of the pressure gradient

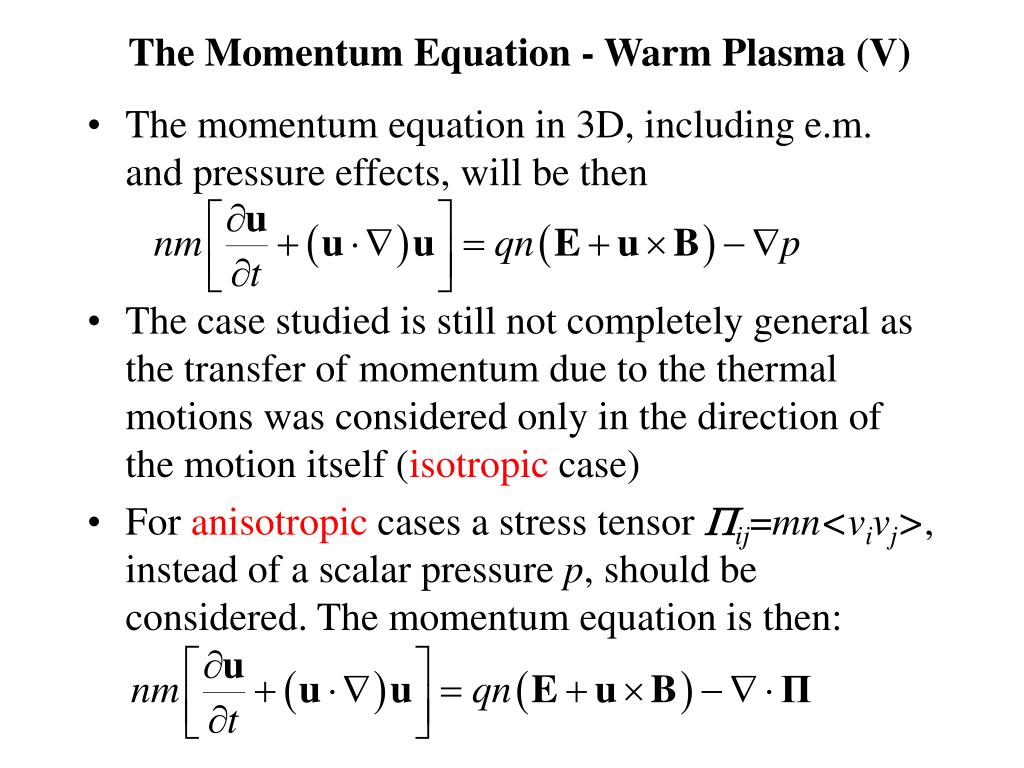

  26. The Momentum Equation - Warm Plasma (V) • The momentum equation in 3D, including e.m. and pressure effects, will be then • The case studied is still not completely general as the transfer of momentum due to the thermal motions was considered only in the direction of the motion itself (isotropic case) • For anisotropic cases a stress tensor Pij=mn<vivj>, instead of a scalar pressure p, should be considered. The momentum equation is then:

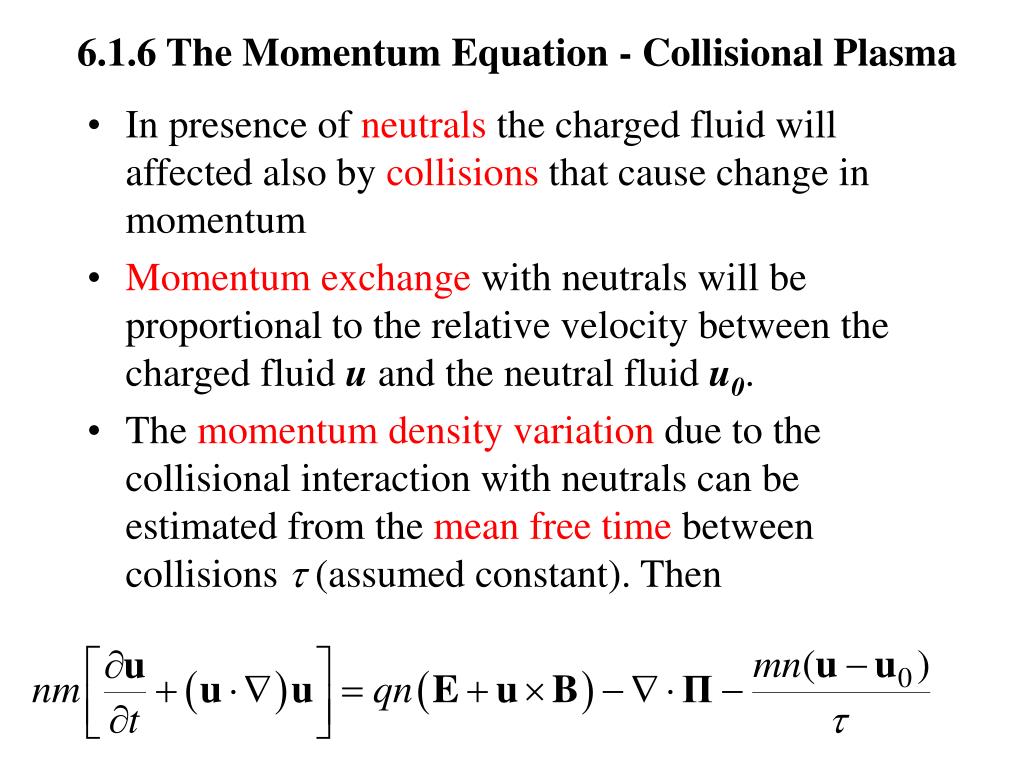

  27. 6.1.6 The Momentum Equation - Collisional Plasma • In presence of neutrals the charged fluid will affected also by collisions that cause change in momentum • Momentum exchange with neutrals will be proportional to the relative velocity between the charged fluid u and the neutral fluid u0. • The momentum density variation due to the collisional interaction with neutrals can be estimated from the mean free time between collisions t (assumed constant). Then

  28. The Momentum Equation - Collisional Plasma (II) • The reciprocal of the mean free time between collisions is the collision frequencyn • Collisions among charged particles will cause additional change in momentum • There will be in general a different collision frequency for different types of collisions (ion-electron, electron-ion, ion-ion, electron-electron) • For example, for electron-ion and electron neutrals the momentum equation will be

  29. 6.1.7 Comparison with the Navier-Stokes Equation • Navier-Stokes equation for ordinary fluid: where r=mn and n is the kinematic viscosity that includes the anisotropic effects (as in the tensor P) • The Navier-Stokes equation resembles the plasma fluid momentum equation, without the e.m. term • The N-S equation represent a (neutral) fluid dominated by collisions • The plasma fluid momentum equation was derived under the assumption of a maxwellian distribution function (to compute <v2>)

  30. Comparison with the Navier-Stokes Equation (II) • The maxwellian distribution function is typically the result of a collisional process that reaches an equilibrium • The same derivation would hold for other distributions as long as they yield the same average square velocity • The fluid theory is therefore not very sensitive to deviations from the maxwellian distribution

  31. 6.1.8 Fluid Equation Set • The fluid equations for a plasma, along with the Maxwell equations, constitute a self-consistent set of equations for the plasma in an e.m. field • Maxwell Equations • Fluid equations (continuity, momentum) for electron and ion species (j=i,e):

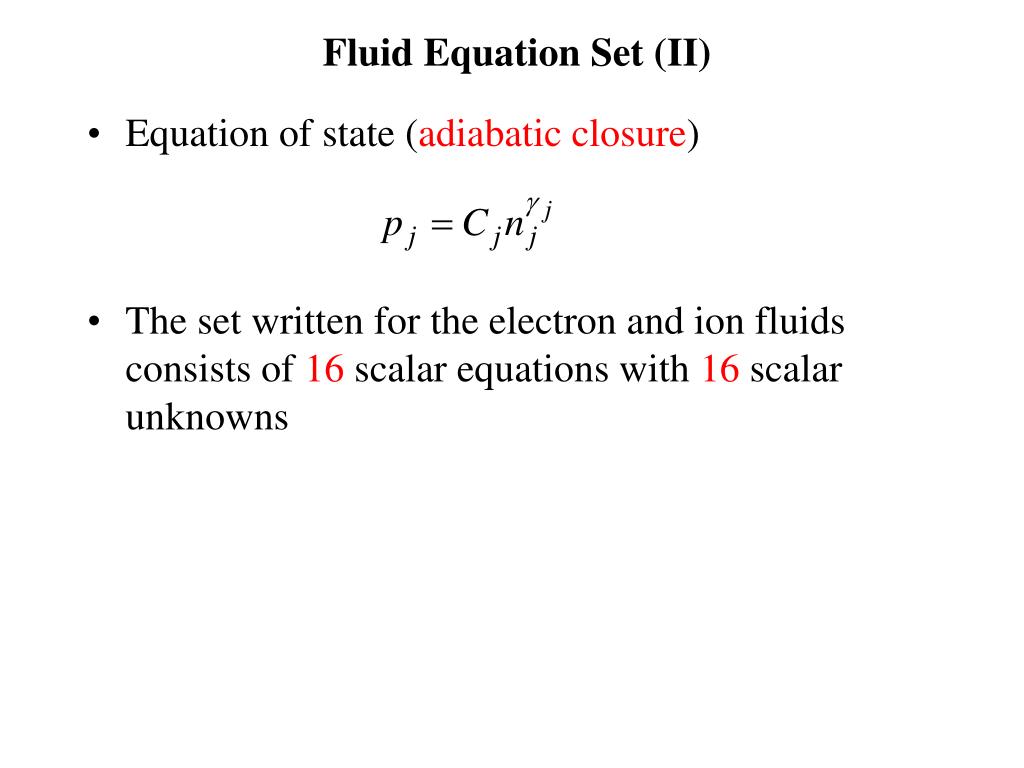

  32. Fluid Equation Set (II) • Equation of state (adiabatic closure) • The set written for the electron and ion fluids consists of 16 scalar equations with 16 scalar unknowns

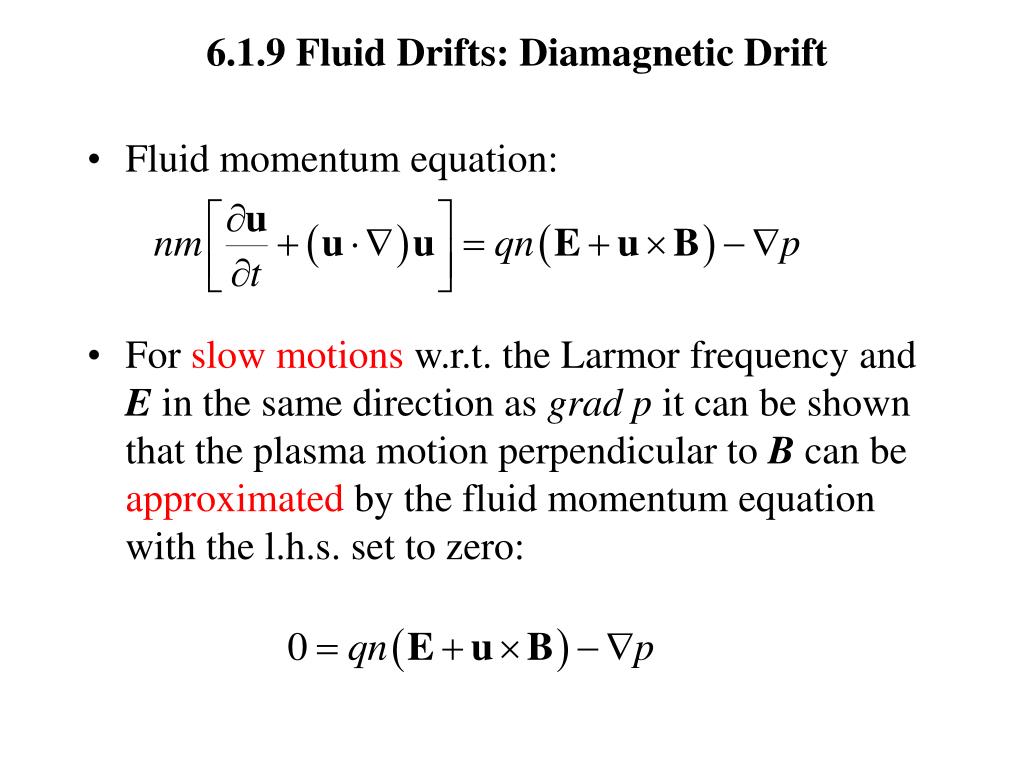

  33. 6.1.9 Fluid Drifts: Diamagnetic Drift • Fluid momentum equation: • For slow motions w.r.t. the Larmor frequency and E in the same direction as grad p it can be shown that the plasma motion perpendicular to B can be approximated by the fluid momentum equation with the l.h.s. set to zero:

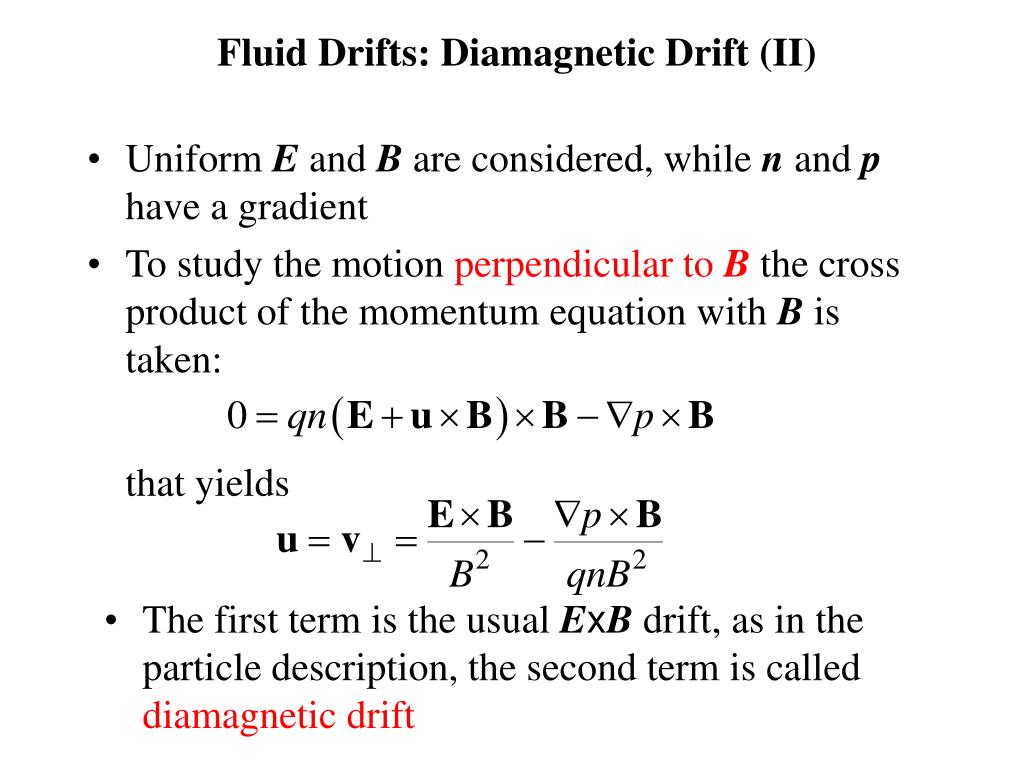

  34. Fluid Drifts: Diamagnetic Drift (II) • Uniform E and B are considered, while n and p have a gradient • To study the motion perpendicular to B the cross product of the momentum equation with B is taken: that yields • The first term is the usual ExB drift, as in the particle description, the second term is called diamagnetic drift

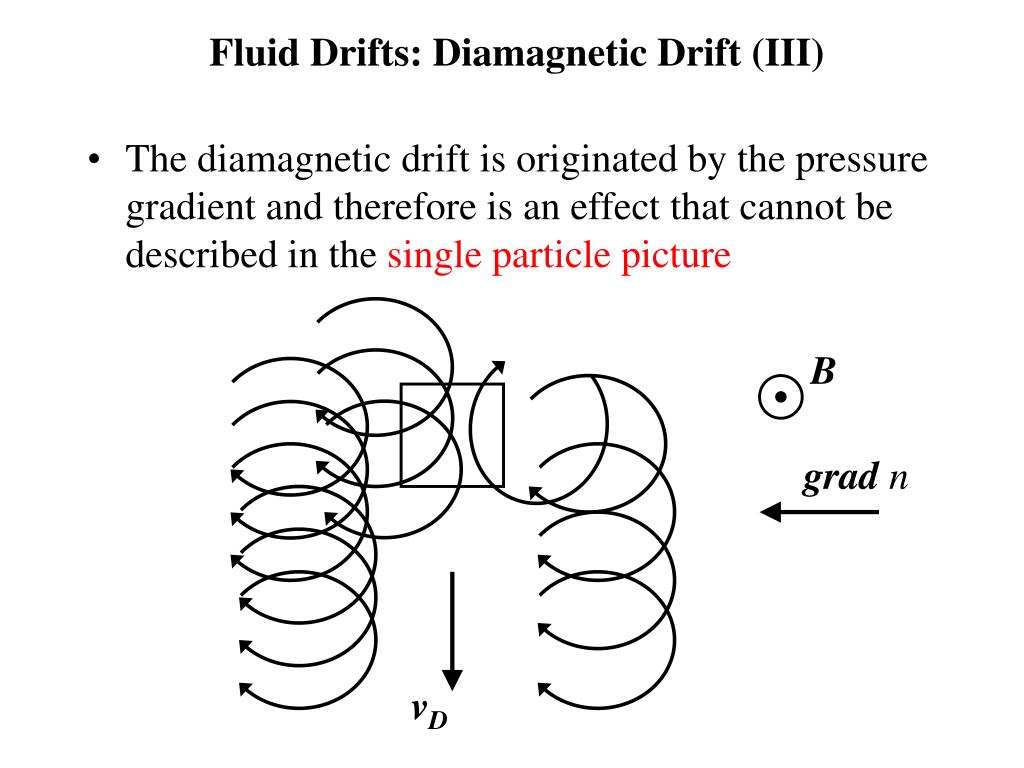

  35. Fluid Drifts: Diamagnetic Drift (III) • The diamagnetic drift is originated by the pressure gradient and therefore is an effect that cannot be described in the single particle picture B grad n vD

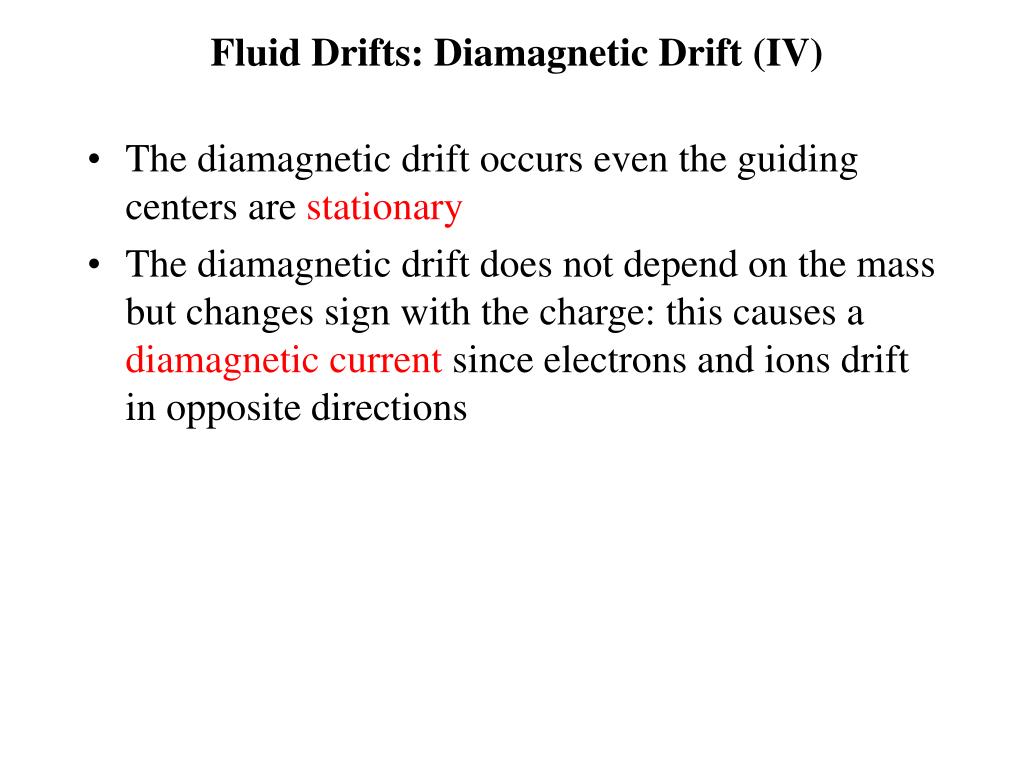

  36. Fluid Drifts: Diamagnetic Drift (IV) • The diamagnetic drift occurs even the guiding centers are stationary • The diamagnetic drift does not depend on the mass but changes sign with the charge: this causes a diamagnetic current since electrons and ions drift in opposite directions

  37. 6.1.10 Fluid Drifts: Curvature Drift • In a bend magnetic field all the particles in a fluid element are subjected to the centrifugal force • The r.h.s. of the fluid momentum equation should also include a centrifugal force density term as where the r.h.s. is obtained for a maxwellian distribution with one degree of freedom • Analogously to the diamagnetic drift caused by grad p, the centrifugal force drift will be

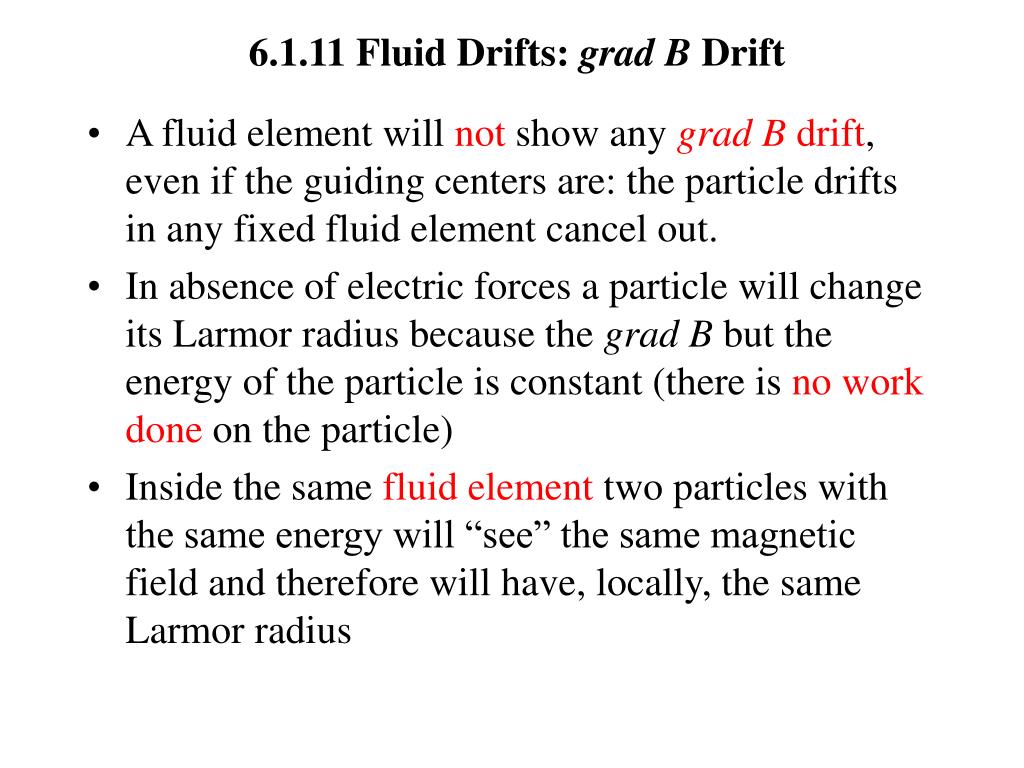

  38. 6.1.11 Fluid Drifts: grad B Drift • A fluid element will not show any grad B drift, even if the guiding centers are: the particle drifts in any fixed fluid element cancel out. • In absence of electric forces a particle will change its Larmor radius because the grad B but the energy of the particle is constant (there is no work done on the particle) • Inside the same fluid element two particles with the same energy will “see” the same magnetic field and therefore will have, locally, the same Larmor radius

  39. Fluid Drifts: grad B Drift (II) • In fluid element the particle drifts are canceling out • The fluid theory is “filtering out” the grad B drift shown in the particle trajectory analisis Fluid Element grad |B| B

  40. 6.1.12 The Plasma Approximation • In a plasma, for low-frequency motions and when the electron inertia can be neglected, the electrons will follow the ion motions ensuring, on average, equal ion and electron densities • At the same time electric field are considered in the plasma, for example computed from the fluid equation on motion, then • This is the plasma approximation: the Poisson equation will be not used to compute electric fields in the plasma and quasineutrality is assumed
