  1. Chapter 33 Invertebrates

  2. Let’s meet the … Invertebrates

  3. Life Without a Backbone • Invertebrates • Are animals that lack a backbone • Account for 95% of known animal species Xmas Tree Worm

  4. Porifera Cnidaria Chordata Echinodermata Other bilaterians (including Nematoda, Arthropoda, Mollusca, and Annelida) Deuterostomia Bilateria Eumetazoa Ancestral colonial choanoflagellate A review of animal phylogeny

  5. CNIDARIA (10,000 species) PORIFERA (5,500 species) A sponge A jelly PLACOZOA (1 species) KINORHYNCHA (150 species) 0.5 mm 250 µm A placozoan (LM) A kinorhynch (LM) ROTIFERA (1,800 species) PLATYHELMINTHES (20,000 species) A marine flatworm A rotifer (LM) PHORONIDA (20 species) ECTOPROCTA (4,500 species) Ectoprocts Phoronids Invertebrate diversity

  6. BRACHIOPODA (335 species) NEMERTEA (900 species) A brachiopod A ribbon worm ACANTHOCEPHALA (1,100 species) CTENOPHORA (100 species) 5 mm An acanthocephalan A ctenophore, or comb jelly MOLLUSCA (93,000 species) ANNELIDA (16,500 species) An octopus A marine annelid LORICIFERA (10 species) PRIAPULA (16 species) 50 µm A priapulan A loriciferan (LM) Invertebrate Diversity

  7. ARTHROPODA (1,000,000 + species) NEMATODA (25,000 species) A roundworm A scorpion (an arachnid) CYCLIOPHORA (1 species) TARDIGRADA (800 species) 100 µm 100 µm A cycliophoran (colorized SEM) Tardigrades (colorized SEM) HEMICHORDATA (85 species) ONYCHOPHORA (110 species) An onychophoran An acorn worm ECHINODERMATA (7,000 species) CHORDATA (52,000 species) A sea urchin A tunicate Invertebrate Diversity

  8. Sponges (Phylum Porifera) • Sponge characteristics • Sessile • Porous body • Choanocytes: flagellated collar cells generate a water current through the sponge and ingest suspended food by phagocytosis • Live in both fresh and marine waters • Lack true tissues (groups of similar cells that form a functional unit). All animals except sponges belong to the clade Eumetazoa, the animals with true tissues • Most sponges are hermaphrodites (each individual functions as both male and female)

  9. Choanocytes. The spongocoel is lined with feeding cells called choanocytes. By beating flagella, the choanocytes create a current that draws water in through the porocytes. 5 Flagellum Food particles in mucus Choanocyte Collar Azure vase sponge (Callyspongia plicifera) Osculum Spongocoel. Water passing through porocytes enters a cavity called the spongocoel. 4 Phagocytosis of food particles Amoebocyte Porocytes. Water enters the epidermis through channels formed by porocytes, doughnut-shaped cells that span the body wall. 3 The movement of the choanocyte flagella also draws water through its collar of fingerlike projections. Food particles are trapped in the mucus coating the projections, engulfed by phagocytosis, and either digested or transferred to amoebocytes. 6 Spicules Epidermis. The outer layer consists of tightly packed epidermal cells. 2 Water flow Amoebocyte. Amoebocytes transport nutrients to other cells of the sponge body and also produce materials for skeletal fibers (spicules). 7 Mesohyl. The wall of this simple sponge consists of two layers of cells separated by a gelatinous matrix, the mesohyl (“middle matter”). 1 Sponges • Sponges are suspension feeders • Capturing food particles suspended in the water that passes through their body

  10. Cnidarians (Phylum Cnidaria) • A diverse range of both sessile and floating organisms including hydras, jellies, sea anemones, and corals • Cnidarian characteristics • radial symmetry • gastrovascular cavity (digestive compartment) • Cnidocytes movie

  11. Medusa Mouth/anus Polyp Tentacle Gastrovascular cavity Gastrodermis Mesoglea Epidermis Body stalk Tentacle Mouth/anus Cnidarian Body Plan • Relatively simple diploblastic (two germ layers), radial body plan • Basic body plan of a cnidarian is a sac with a central digestive compartment, the gastrovascular cavity • A single opening functions as both mouth and anus • There are two variations on this body plan • The sessile polyp and the floating medusa

  12. Prey Tentacle “Trigger” Discharge Of thread Nematocyst Coiled thread Cnidocyte Cnidarian Feeding • Cnidarians are carnivores • That use tentacles to capture prey • The tentacles are armed with cnidocytes • Unique cells that function in defense and the capture of prey Threads can inject poison into the prey, or stick to or entangle the target

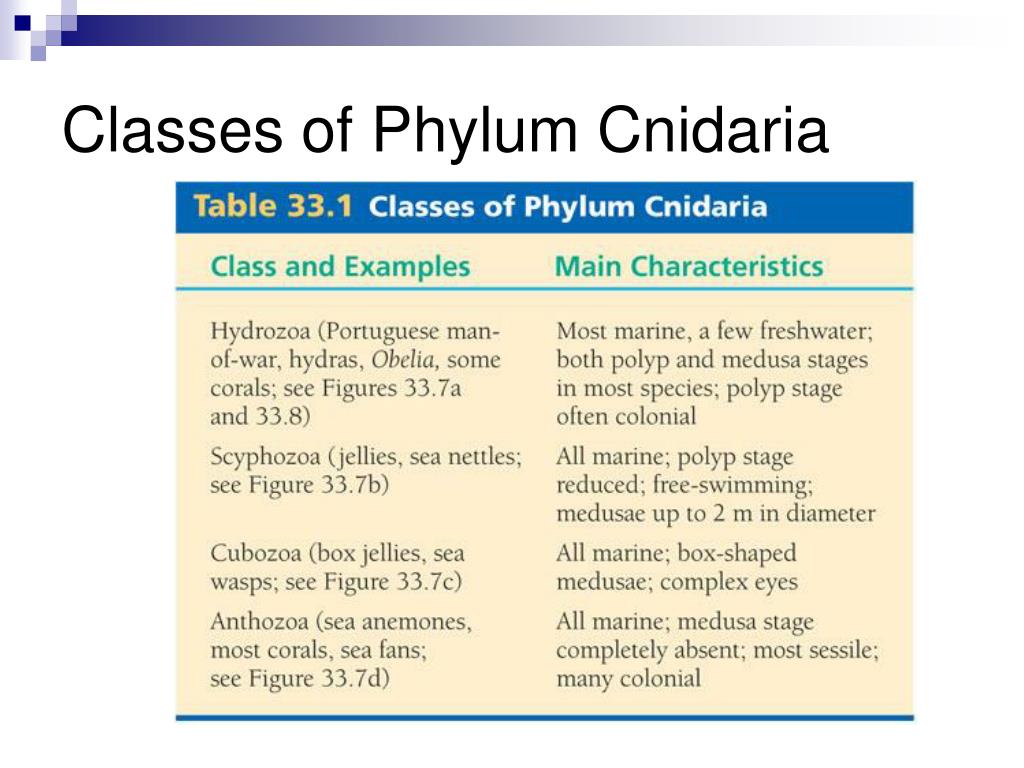

  13. Classes of Phylum Cnidaria

  14. Other polyps, specialized for reproduction, lack tentacles and produce tiny medusae by asexual budding. 3 Some of the colony’s polyps, equipped with tentacles, are specialized for feeding. The medusae swim off, grow, and reproduce sexually. 2 4 Reproductive polyp Feeding polyp A colony of interconnected polyps (inset, LM) results from asexual reproduction by budding. 1 Medusa bud MEIOSIS Gonad Medusa SEXUAL REPRODUCTION Sperm Egg ASEXUAL REPRODUCTION (BUDDING) Portion of a colony of polyps FERTILIZATION Zygote Developing polyp Mature polyp Planula (larva) Key Haploid (n) 1 mm Diploid (2n) Hydrozoan Life Cycle The planula eventually settles and develops into a new polyp. The zygote develops into a solid ciliated larva called a planula. 6 5

  15. (d) Sea anemones and othermembers of class Anthozoaexist only as polyps. (b) Many species of jellies (classScyphozoa), including thespecies pictured here, are bioluminescent. The largest scyphozoans have tentaclesmore than 100 m long dangling from a bell-shaped body up to 2 m in diameter. (c) The sea wasp (Chironex fleckeri) is a member of class Cubozoa. Its poison,which can subdue fish andother large prey, is more potent than cobra venom. (a) These colonial polyps are members of class Hydrozoa. Classes: Hydrozoa, Scyphozoa, Cubozoa, and Anthozoa

  16. Cnidarian Classes • In the class Hydrozoa • Most hydrozoans alternate between polyp and medusa forms. Freshwater Hydras exist only in the polyp form. • In the class Scyphozoa • Jellies (medusae) are the prevalent form of the life cycle • In the class Cubozoa, which includes box jellies and sea wasps • The medusa is box-shaped and has complex eyes • Class Anthozoa includes the corals and sea anemones • Which occur only as polyps Hydra Purple coral

  17. Hydra movie 1

  18. Hydra movie 2

  19. Coral reproduction

  20. Jellyfish movie

  21. Bilateria • Most animals have bilateral symmetry • The vast majority of animal species belong to the clade Bilateria • Which consists of animals with bilateral symmetry and triploblastic development

  22. Flatworms • Members of phylum Platyhelminthes • Live in marine, freshwater, and damp terrestrial habitats. Some are parasitic. • Are flattened dorsoventrally and have bilateral symmetry • Undergo triploblastic development • Are acoelomates (lack a coelom) with gastrovascular cavities. • Lack a digestive system entirely and absorb nutrients across their body surface.

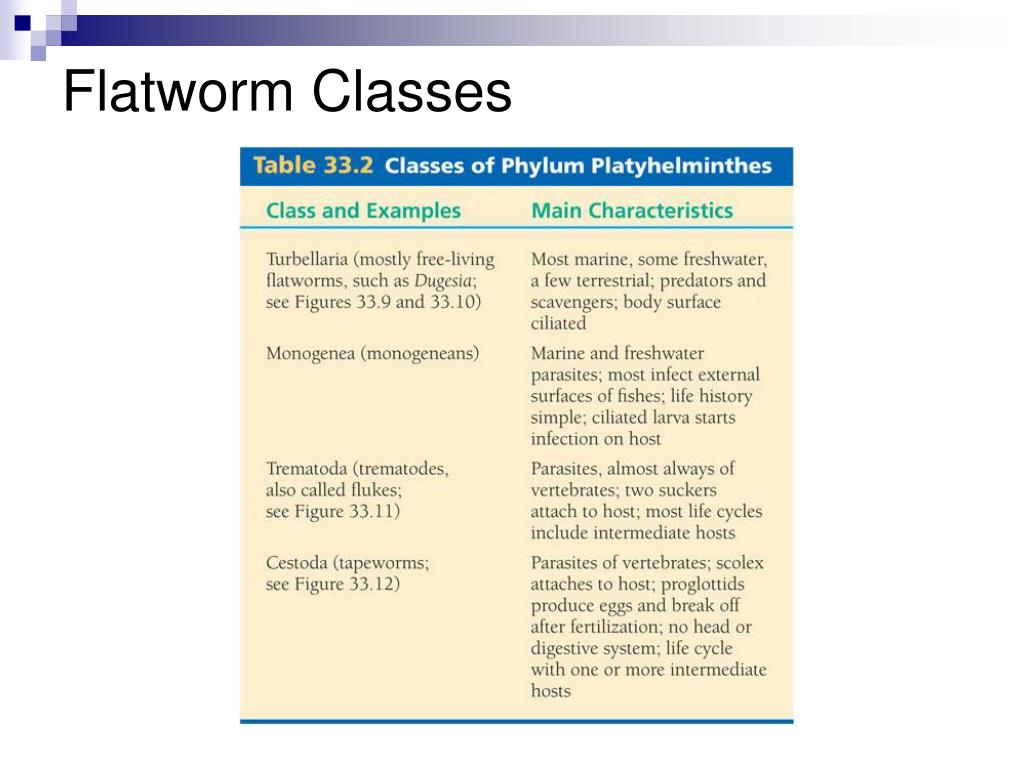

  23. Flatworm Classes

  24. Turbellarians • Are nearly all free-living and mostly marine

  25. Digestion is completed within the cells lining the gastro- vascular cavity, which has three branches, each with fine subbranches that pro- vide an extensive surface area. Pharynx. The mouth is at the tip of a muscular pharynx that extends from the animal’s ventral side. Digestive juices are spilled onto prey, and the pharynx sucks small pieces of food into the gastrovascular cavity, where digestion continues. Undigested wastes are egested through the mouth. Gastrovascular cavity Eyespots Ganglia. Located at the anterior end of the worm, near the main sources of sensory input, is a pair of ganglia, dense clusters of nerve cells. Ventral nerve cords. From the ganglia, a pair of ventral nerve cords runs the length of the body. Turbellarians • Planarians are common examples of turbellarians • They have light-sensitive eyespots and centralized nerve nets

  26. Mature flukes live in the blood vessels of the human intestine. A female fluke fits into a groove running the length of the larger male’s body, as shown in the light micrograph at right. 1 Male Female 1 mm These larvae penetrate the skin and blood vessels of humans working in irrigated fields contaminated with infected human feces. 5 Blood flukes reproduce sexually in the human host. The fertilized eggs exit the host in feces. 2 The eggs develop in water into ciliated larvae. These larvae infect snails, the intermediate hosts. 3 Asexual reproduction within a snail results in another type of motile larva, which escapes from the snail host. 4 Snail host Monogeneans and Trematodes • Live as parasites in or on other animals They parasitize a wide range of hosts • Most monogeneans are parasites of fish • Trematodes (Flukes) that parasitize humans spend part of their lives in snail hosts

  27. Proglottids with reproductive structures 200 µm Hooks Scolex Sucker Tapeworms (Class Cestoda) • Are also parasitic and lack a digestive system

  28. 0.1 mm Rotifers (Phylum Rotifera) • Are tiny animals that inhabit fresh water, the ocean, and damp soil • Rotifers are smaller than many protists • But are truly multicellular and have specialized organ systems • Rotifers have an alimentary canal • A digestive tube with a separate mouth and anus that lies within a fluid-filled pseudocoelom • Some species of rotifers reproduce by parthenogenesis • In which females produce more females from unfertilized eggs

  29. Rotifers (Phylum Rotifera)

  30. Rotifer movie 2

  31. Three Phyla of Lophophorates: Ectoprocts, Phoronids, and Brachiopods • Lophophorates have a lophophore • A horseshoe-shaped, suspension-feeding organ bearing ciliated tentacles that trap suspended food particles

  32. Lophophore Ectoprocts, such as this sea mat (Membranipora membranacea), are colonial lophophorates. (a) Ectoprocts Are colonial animals that superficially resemble plants

  33. Lophophore (b) In phoronids such as Phoronis hippocrepia, the lophophore and mouth are at one end of an elongated trunk. Phoronids • Are tube-dwelling marine worms ranging from 1 mm to 50 cm in length

  34. Lophophore Brachiopods have a hinged shell. The two parts of the shell are dorsal and ventral. (c) Brachipods • Superficially resemble clams and other hinge-shelled molluscs • But the two halves of the shell are dorsal and ventral rather than lateral, as in clams

  35. Nemerteans (Phylum Nemertea) • Commonly called proboscis worms or ribbon worms • The nemerteans unique proboscis • Is used for defense and prey capture • Is extended by a fluid-filled sac • Nemerteans also have a closed circulatory system • In which the blood is contained in vessels distinct from fluid in the body cavity

  36. Molluscs (Phylum Mollusca) • Phylum Mollusca: Includes snails and slugs, oysters and clams, and octopuses and squids • Mollusc characteristics • Body plan: muscular foot, visceral mass, and a mantle • Mantle is a fold of tissue that drapes over the visceral mass and secretes the shell. • Most molluscs are marine, though some inhabit fresh water and some are terrestrial • Molluscs are soft-bodied animals, but most are protected by a hard shell • Most molluscs have separate sexes with gonads located in the visceral mass • The life cycle of many molluscs includes a ciliated larval stage called a trochophore

  37. Heart. Most molluscs have an open circulatory system. The dorsally located heart pumps circulatory fluid called hemolymph through arteries into sinuses (body spaces). The organs of the mollusc are thus continually bathed in hemolymph. Nephridium. Excretory organs called nephridia remove metabolic wastes from the hemolymph. The long digestive tract is coiled in the visceral mass. Visceral mass Coelom Intestine Gonads Mantle Stomach Radula. The mouth region in many mollusc species contains a rasp-like feeding organ called a radula. This belt of backward- curved teeth slides back and forth, scraping and scooping like a backhoe. Mantle cavity Shell Mouth Radula Anus The nervous system consists of a nerve ring around the esophagus, from which nerve cords extend. Gill Nerve cords Foot Mouth Esophagus Mollusc anatomy

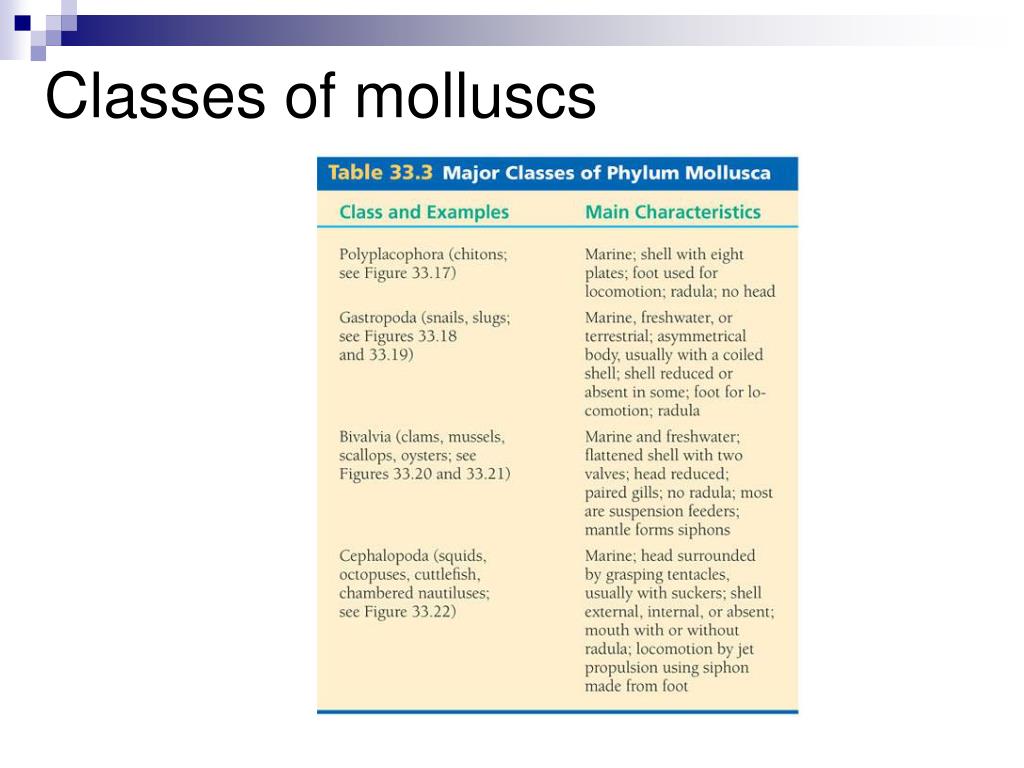

  38. Classes of molluscs

  39. Chitons • Class Polyplacophora is composed of the chitons (Oval-shaped marine animals encased in an armor of eight dorsal plates)

  40. (a) A land snail A sea slug. Nudibranchs, or sea slugs, lost their shell during their evolution. (b) Gastropods • About three-quarters of all living species of molluscs belong to class Gastropoda

  41. Stomach Mantle cavity Intestine Anus Mouth Gastropods • Gastropod characteristics • Most are marine, but there are also many freshwater and terrestrial species • Possess a single, spiraled shell • Slugs lack a shell or have a reduced shell • The most distinctive characteristic of this class is a developmental process known as torsion, which causes the animal’s anus and mantle to end up above its head

  42. Bivalves (Molluscs of class Bivalvia) • Include many species of clams, oysters, mussels, and scallops • Have a shell divided into two halves

  43. Hinge area Coelom Gut Mantle Heart Shell Adductor muscle Mouth Anus Excurrent siphon Palp Water flow Foot Incurrent siphon Mantle cavity Gill Bivalves • The mantle cavity of a bivalve contains gills that are used for feeding as well as gas exchange

  44. Clam locomotion

  45. Cephalopods • Class Cephalopoda includes squids and octopuses • Carnivores with beak-like jaws surrounded by tentacles of their modified foot

  46. (a) Octopuses are considered among the most intelligent invertebrates. Octopus • Most octopuses creep along the sea floor in search of prey

  47. (b) Squids are speedy carnivores with beaklike jaws and well-developed eyes. Squid • Squids use their siphon to fire a jet of water, which allows them to swim very quickly

  48. (c) Chambered nautiluses are the only living cephalopods with an external shell. ` • One small group of shelled cephalopods • The nautiluses, survives today

  49. Annelids • Annelids • Segmented worms • Have bodies composed of a series of fused rings • 3 Classes Oligochaeta, Polychaeta, Hirudinea

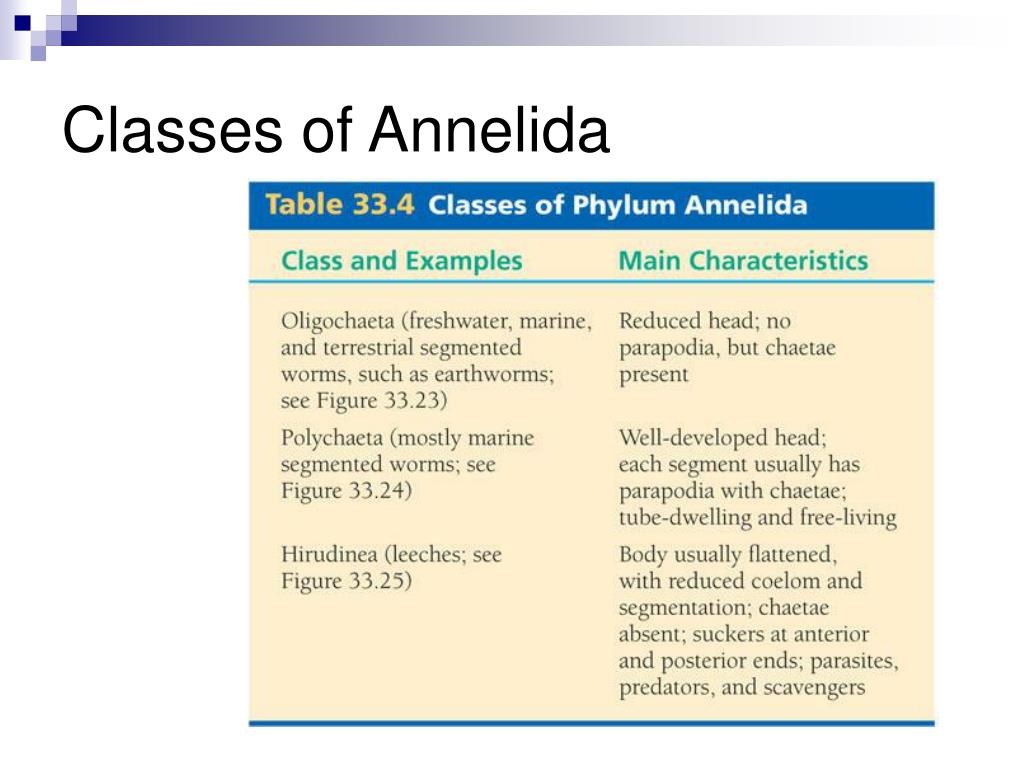

  50. Classes of Annelida
