  1. Coadsorption of Complementary and Noncomplementary Bases on Au(111) A. P. M. Camargo, C. Donner Free University Berlin Institute of Physical and Theoretical Chemistry

  2. Nonstandard base pair Mutagenicity Cancer Therapy  How does it work? -Mutagenicity: one DNA base (thymine) is replaced by a nonstandard base (BrU) -Cancer Therapy: substitution of one base by BrU at DNA leads to a greater sensitivity to ionising radiation Nitrogened bases Problem Phosphate group Deoxyribose * * M. Orozco et al., J. Phys.Chem. B, 1998,102, 5228

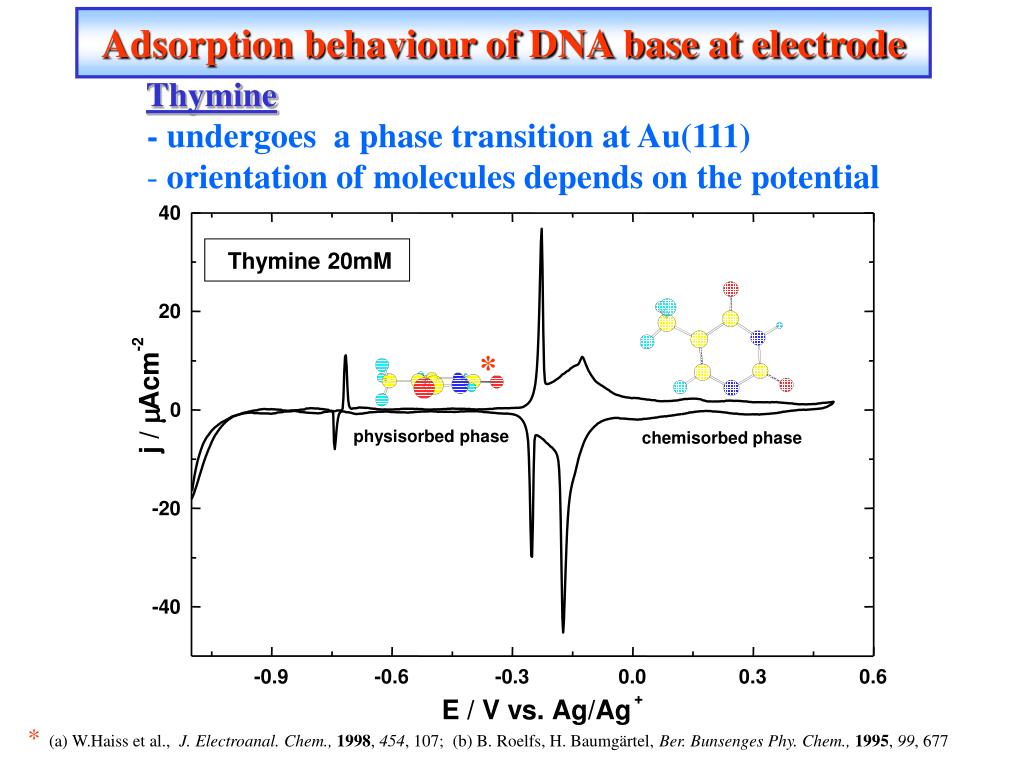

  3. Is it possible • to obtain interaction of standard /nonstandard base pairs? • to distinguish between the different interactions? Idea Thymine - undergoes a phase transition at Au(111) - orientation of molecules depends on the potential Adsorption behaviour of DNA base at electrode 40 Thymine 20mM -Complementary base pair: Adenine / Thymine -Noncomplementary base pairs:Adenine / Bromouracil Guanine / Bromouracil Investigation 20 * -2 Acm m 0 j / physisorbed phase chemisorbed phase -20 -40 -0.9 -0.6 -0.3 0.0 0.3 0.6 + E / V vs. Ag/Ag *(a) W.Haiss et al., J. Electroanal. Chem.,1998, 454, 107; (b) B. Roelfs, H. Baumgärtel, Ber. Bunsenges Phy. Chem.,1995, 99, 677

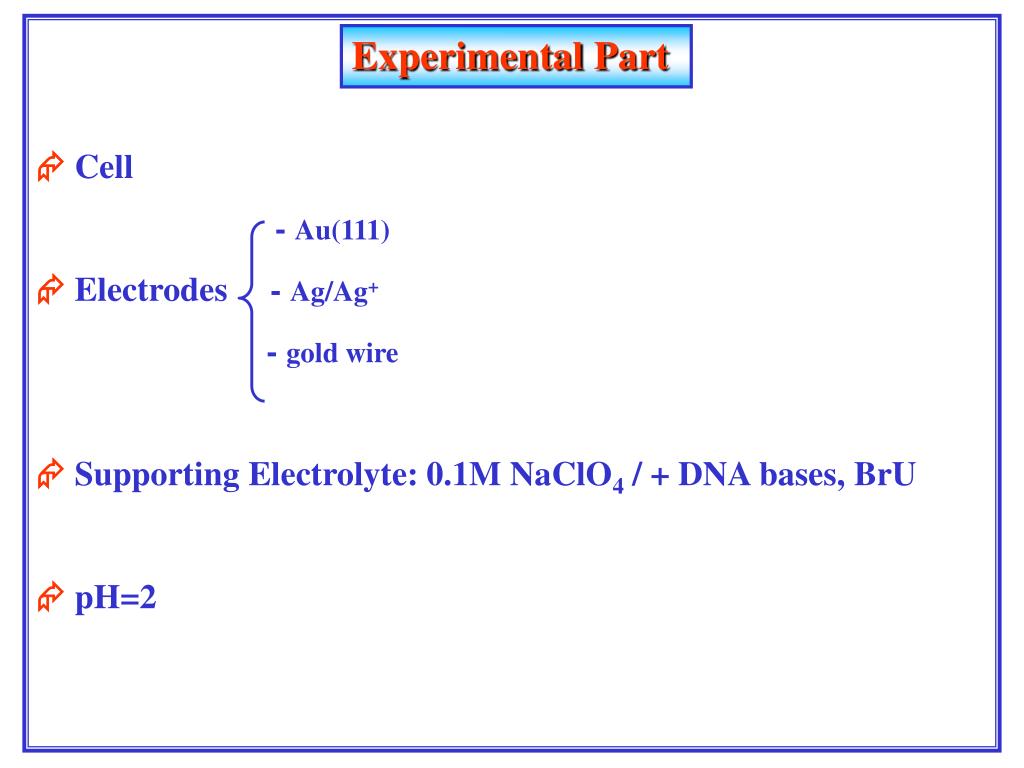

  4. Cell - Au(111)  Electrodes - Ag/Ag+ - gold wire  Supporting Electrolyte: 0.1M NaClO4 / + DNA bases, BrU  pH=2 Experimental Part

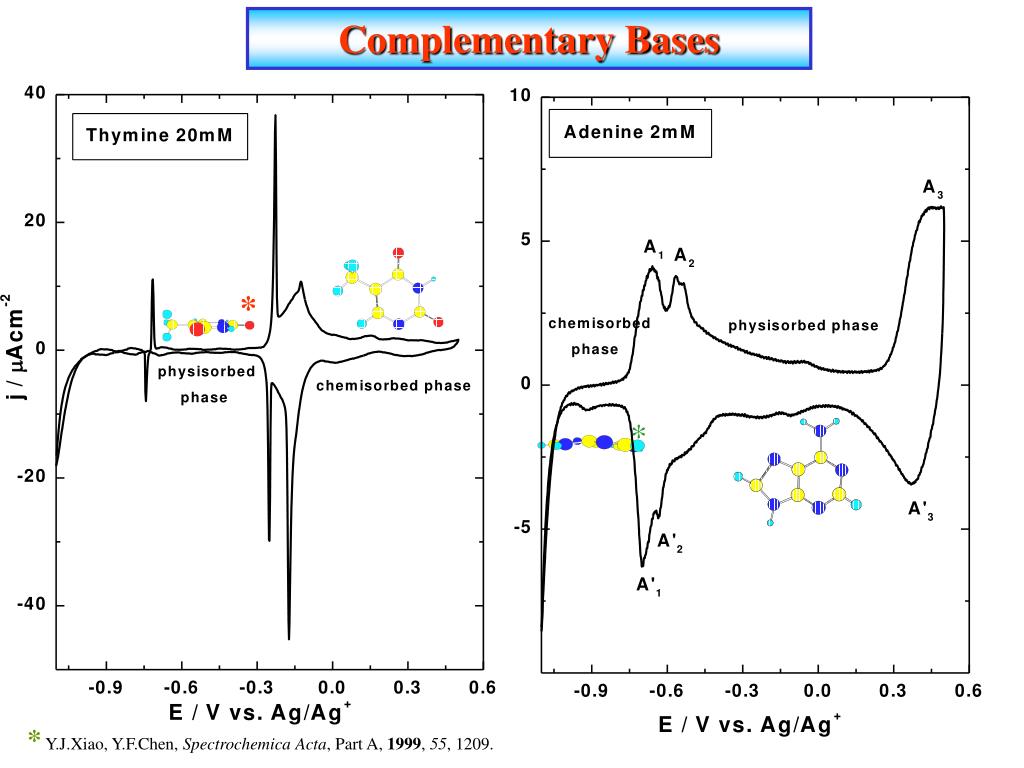

  5. * * Complementary Bases *Y.J.Xiao, Y.F.Chen, Spectrochemica Acta, Part A, 1999, 55, 1209.

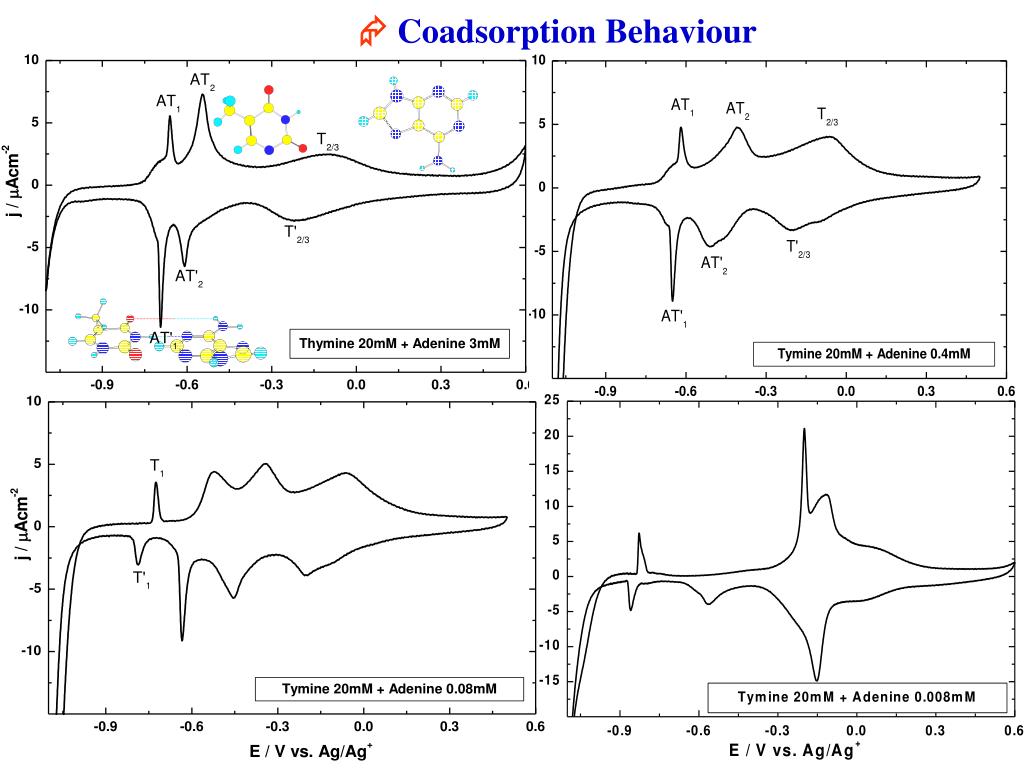

  6. H+ Adenine-Dimers Coadsorption Behaviour

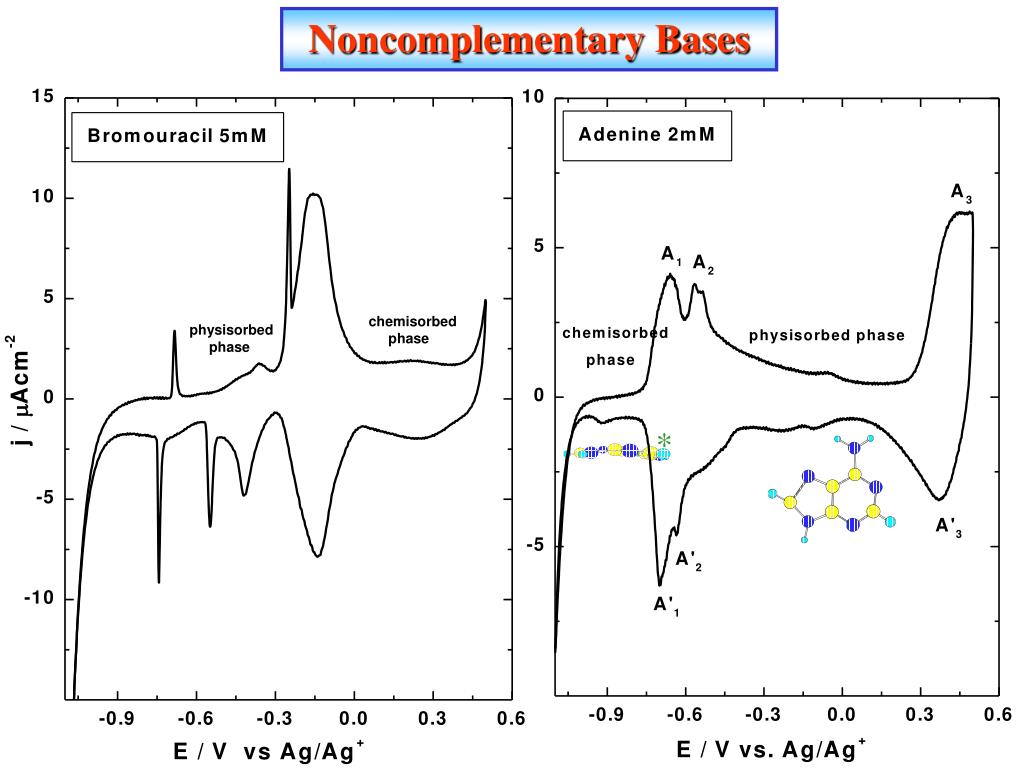

  7. * Noncomplementary Bases chemisorbed phase physisorbed phase

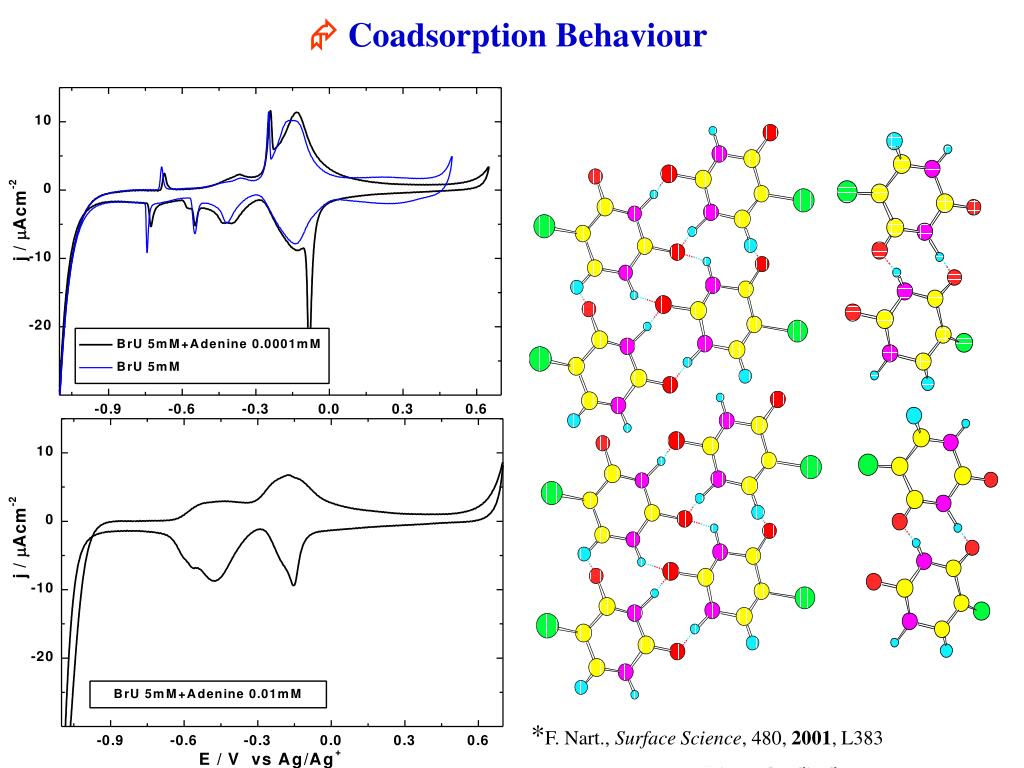

  8. *F. Nart., Surface Science, 480, 2001, L383 Coadsorption Behaviour

  9. * Noncomplementary Bases

  10. Coadsorption Behaviour

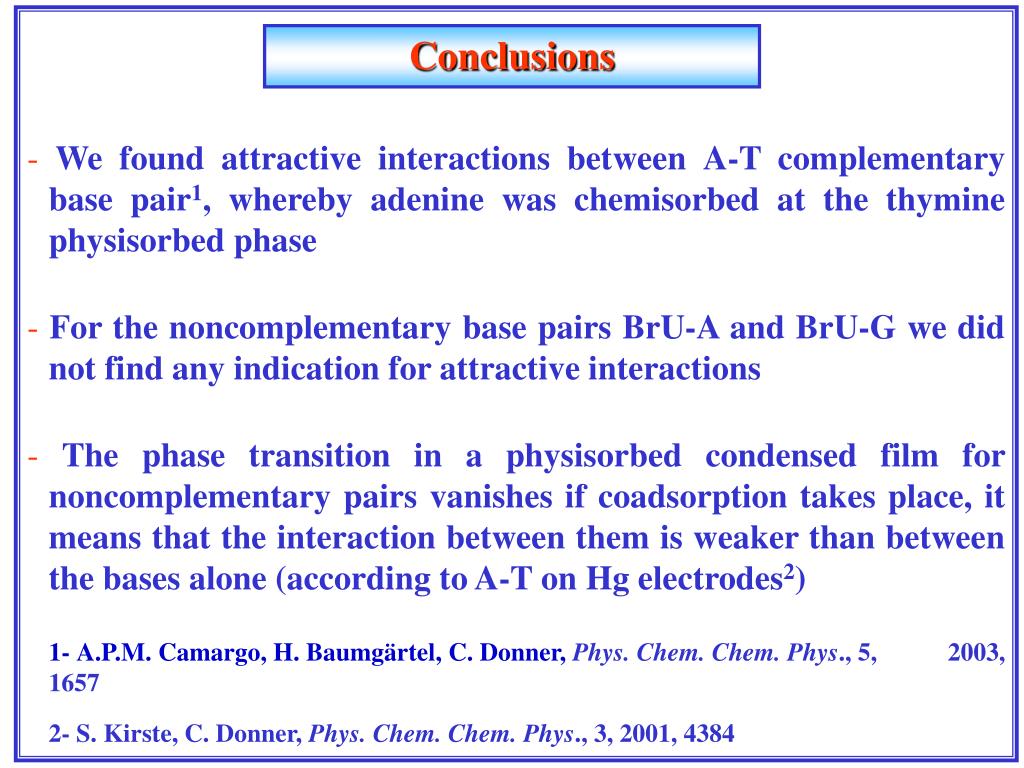

  11. -We found attractive interactions between A-T complementary base pair1, whereby adenine was chemisorbed at the thymine physisorbed phase • - For the noncomplementary base pairs BrU-A and BrU-G we did not find any indication for attractive interactions • -The phase transition in a physisorbed condensed film for noncomplementary pairs vanishes if coadsorption takes place, it means that the interaction between them is weaker than between the bases alone (according to A-T on Hg electrodes2) • 1- A.P.M. Camargo, H. Baumgärtel, C. Donner, Phys. Chem. Chem. Phys., 5, 2003, 1657 • 2- S. Kirste, C. Donner, Phys. Chem. Chem. Phys., 3, 2001, 4384 Conclusions

  12. Adenine Guanine Uracil Tymine Cytosine

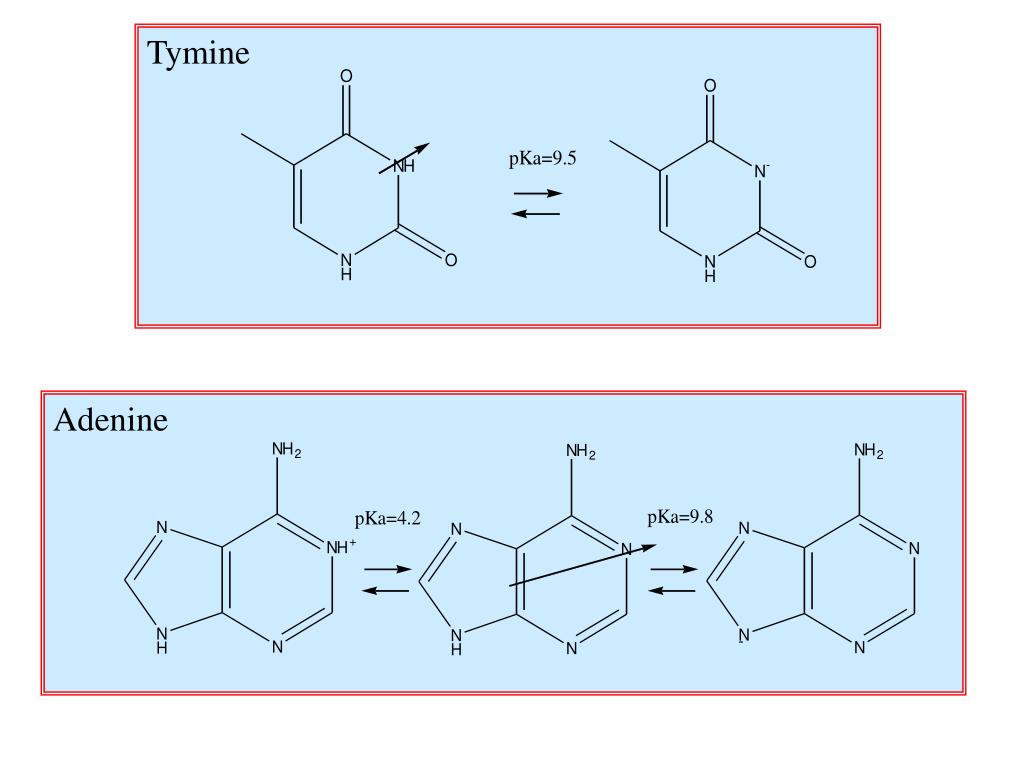

  13. Tymine Adenine
