Designing multi-anvil assemblies: The COMPRES cell assembly project. Kurt Leinenweber. Challenges:. Thermocouple has to work well Wide range of P and T desirable for each assembly Easy to assemble Not expensive Specs have to be repeatable from year to year (well-documented).
E N D
Designing multi-anvil assemblies:The COMPRES cell assembly project Kurt Leinenweber

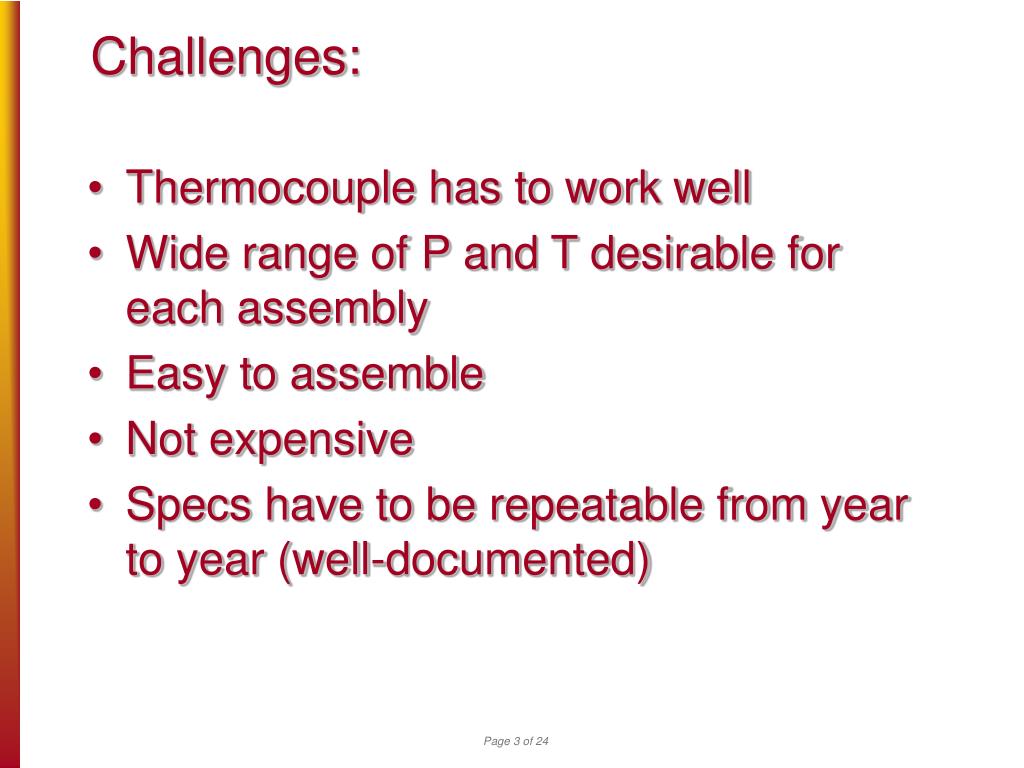

Challenges: • Thermocouple has to work well • Wide range of P and T desirable for each assembly • Easy to assemble • Not expensive • Specs have to be repeatable from year to year (well-documented)
Five sizes of octahedra - 8 mm, 10 mm, 14 mm, 18 mm and 25 mm - used in the COMPRES assemblies.

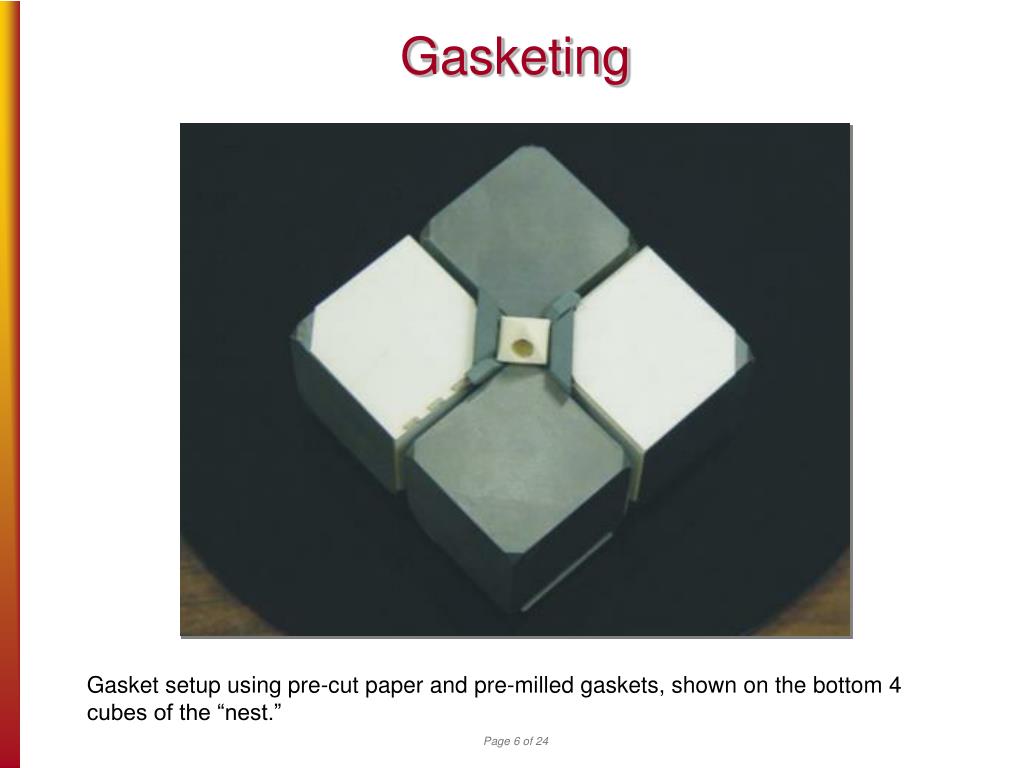

Gasketing Gasket setup using pre-cut paper and pre-milled gaskets, shown on the bottom 4 cubes of the “nest.”

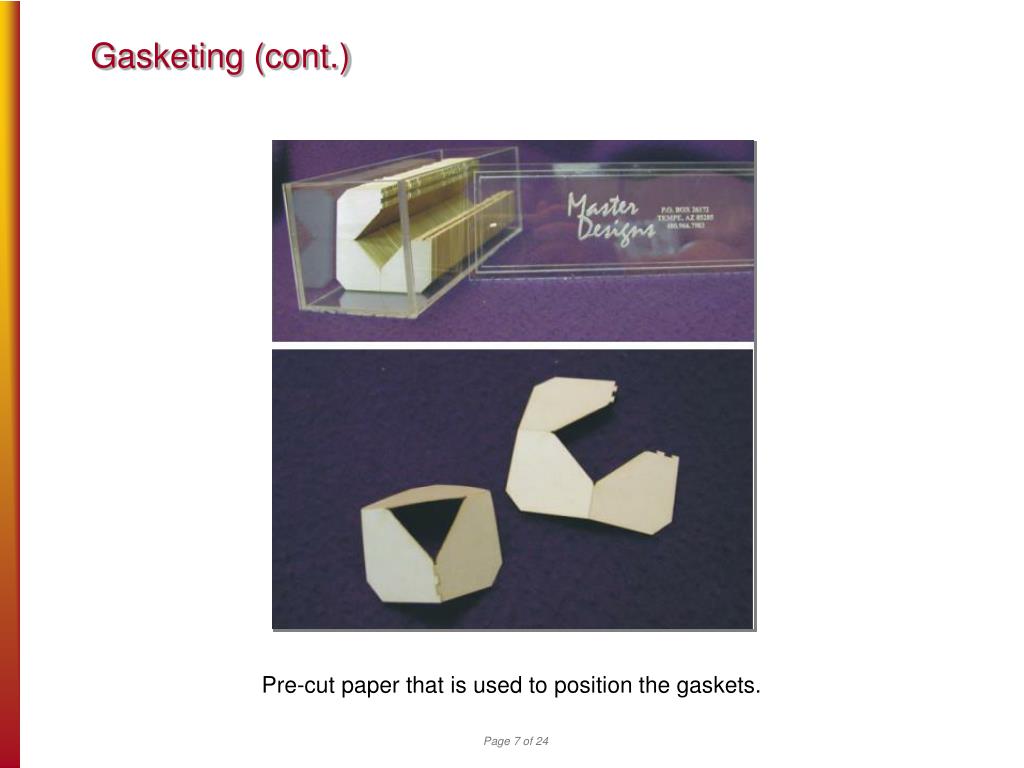

Gasketing (cont.) Pre-cut paper that is used to position the gaskets.

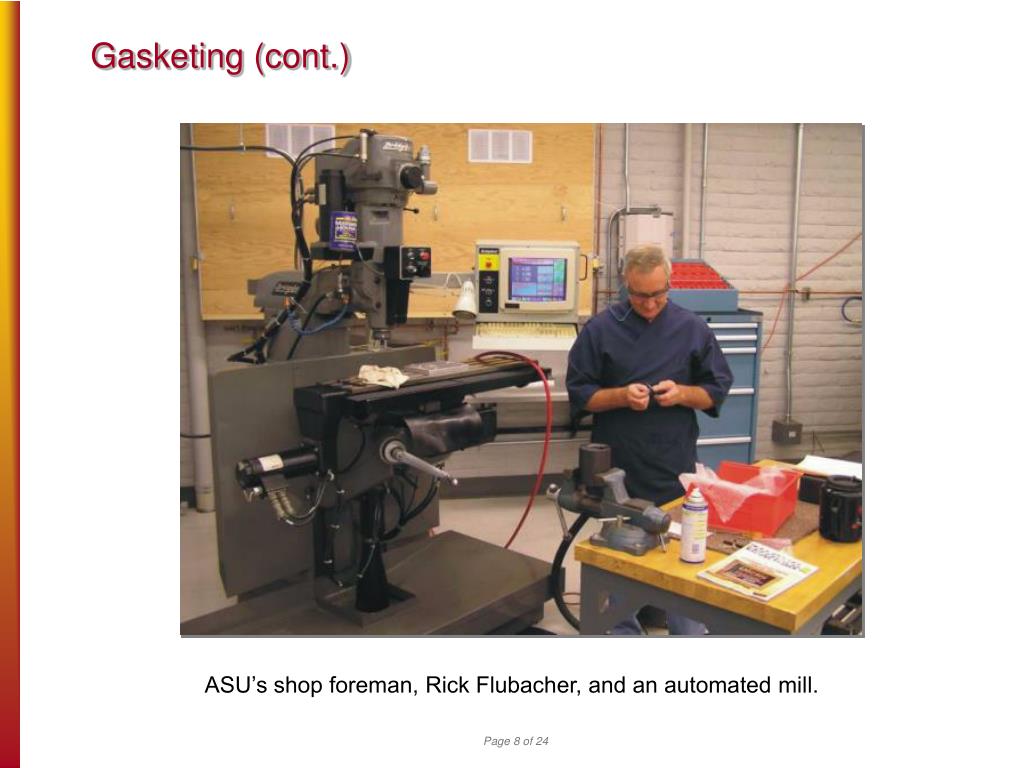

Gasketing (cont.) ASU’s shop foreman, Rick Flubacher, and an automated mill.

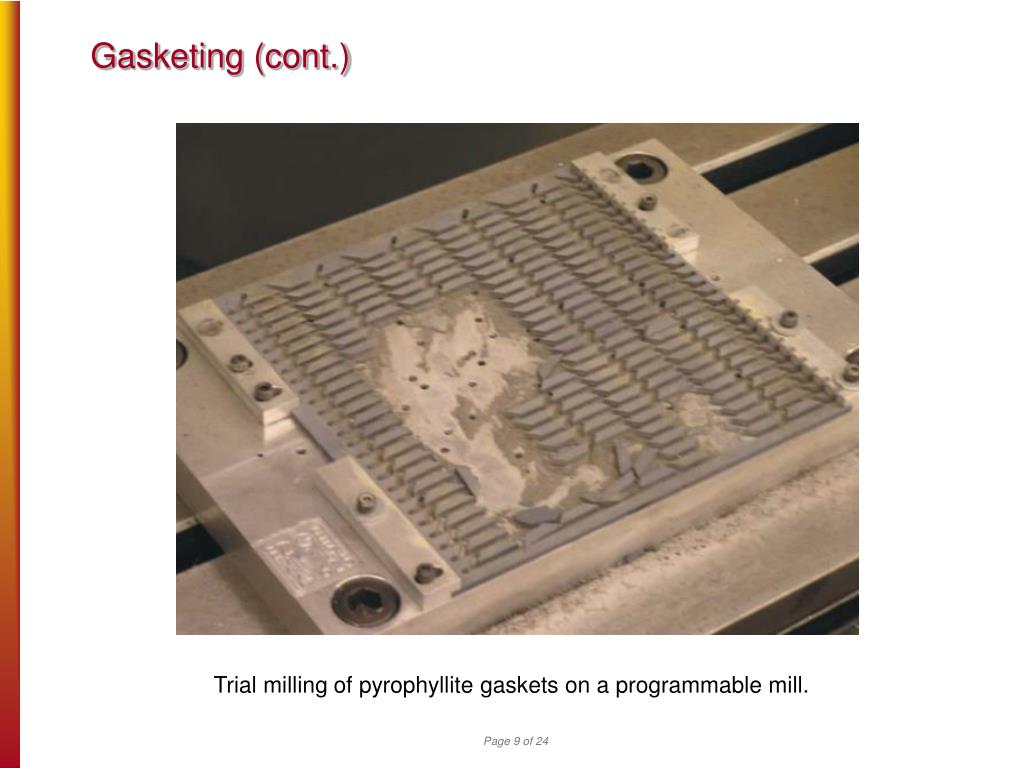

Gasketing (cont.) Trial milling of pyrophyllite gaskets on a programmable mill.

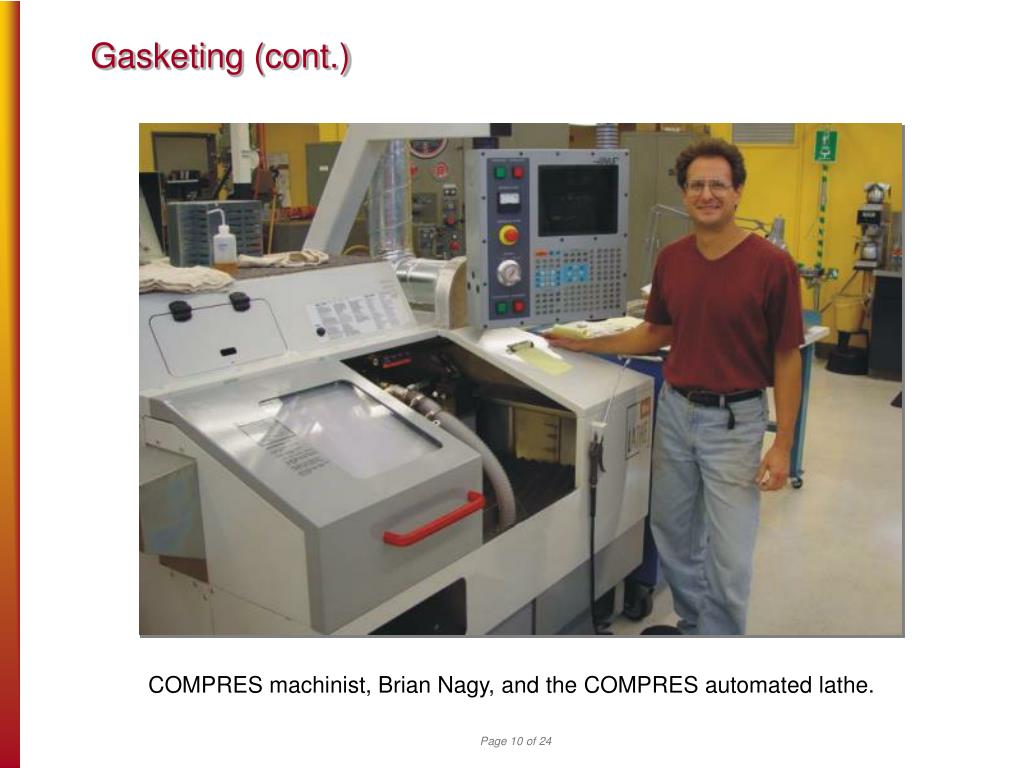

Gasketing (cont.) COMPRES machinist, Brian Nagy, and the COMPRES automated lathe.
Assembly Cutting thermocouple slots in a lanthanum chromite sleeve for the 8/3 assembly on the automated lathe.

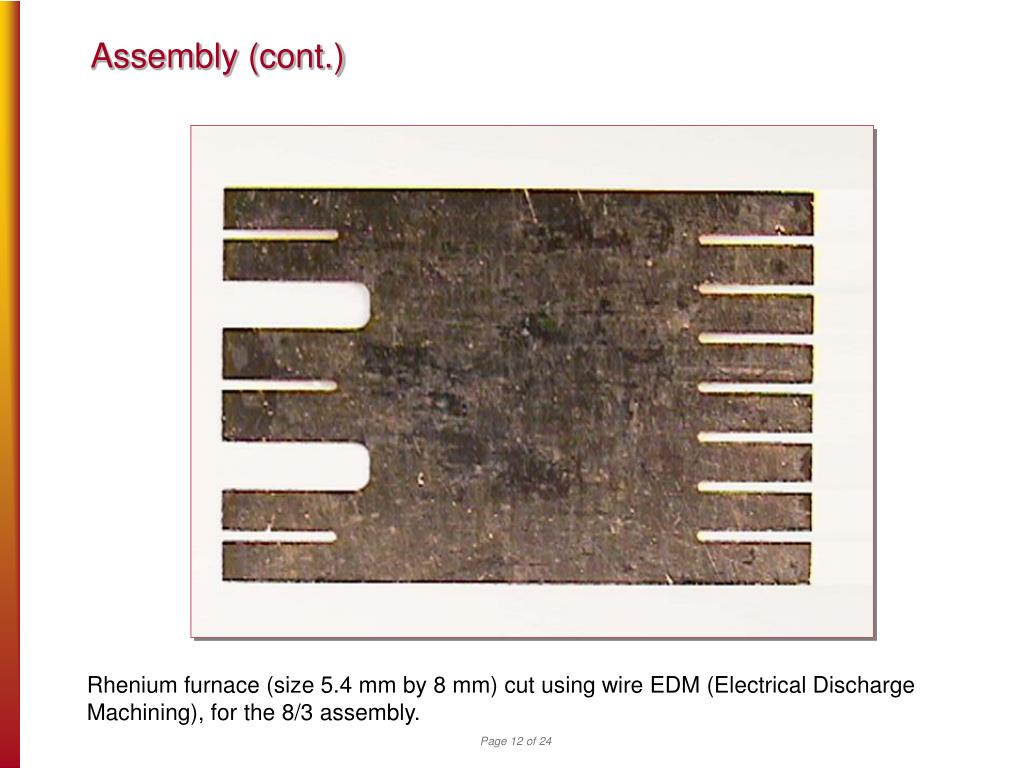

Assembly (cont.) Rhenium furnace (size 5.4 mm by 8 mm) cut using wire EDM (Electrical Discharge Machining), for the 8/3 assembly.
Assembly (cont.) The 8/3 assembly with the lanthanum chromite sleeve and the rhenium furnace in place.

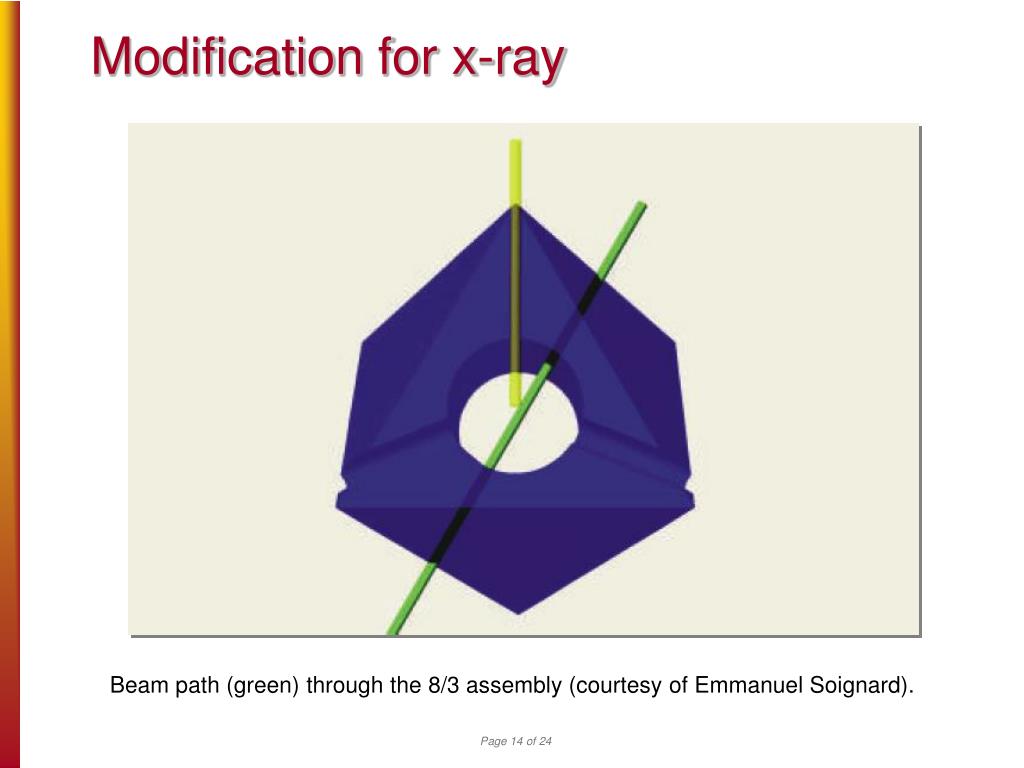

Modification for x-ray Beam path (green) through the 8/3 assembly (courtesy of Emmanuel Soignard).

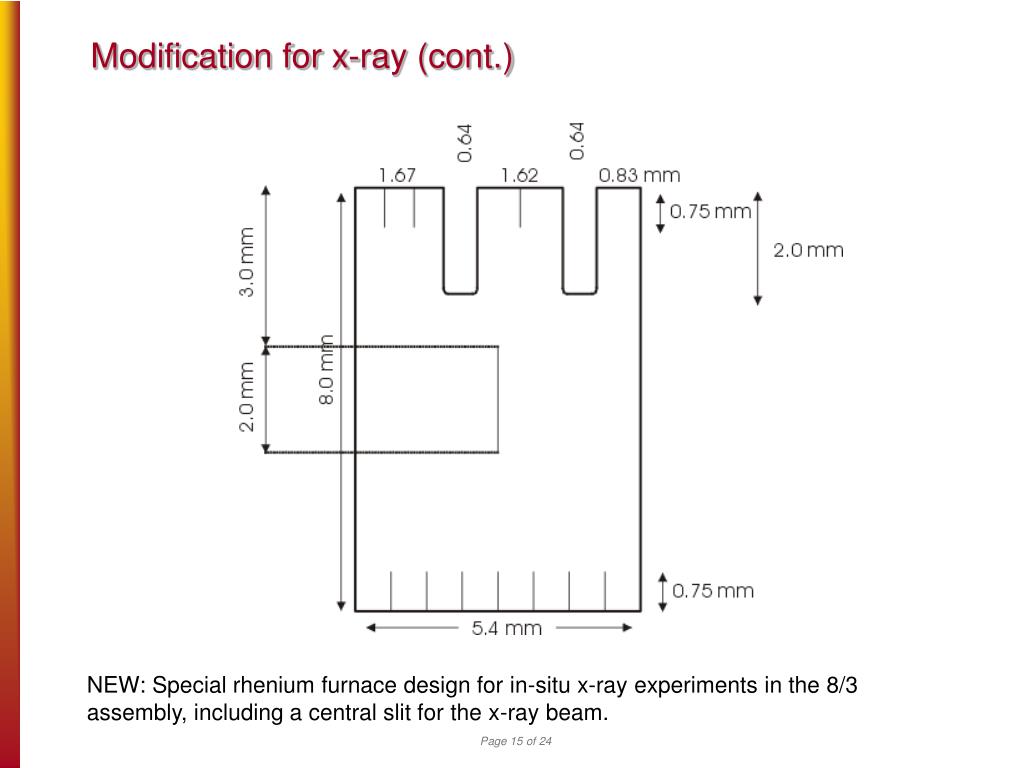

Modification for x-ray (cont.) NEW: Special rhenium furnace design for in-situ x-ray experiments in the 8/3 assembly, including a central slit for the x-ray beam.

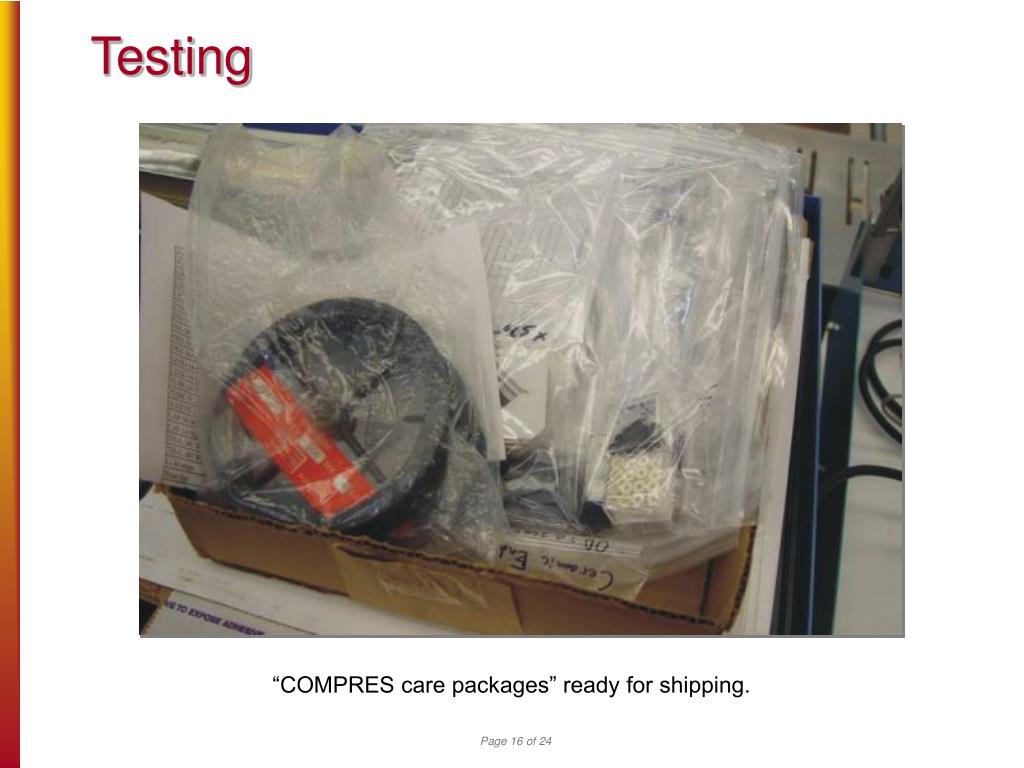

Testing “COMPRES care packages” ready for shipping.

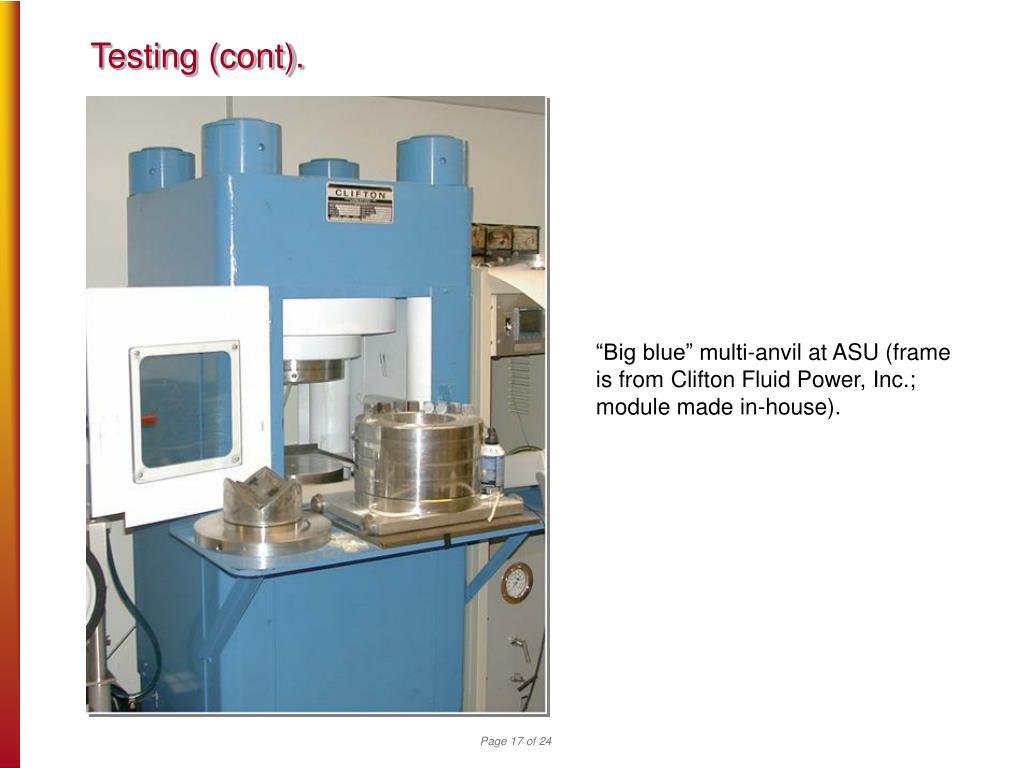

Testing (cont). “Big blue” multi-anvil at ASU (frame is from Clifton Fluid Power, Inc.; module made in-house).

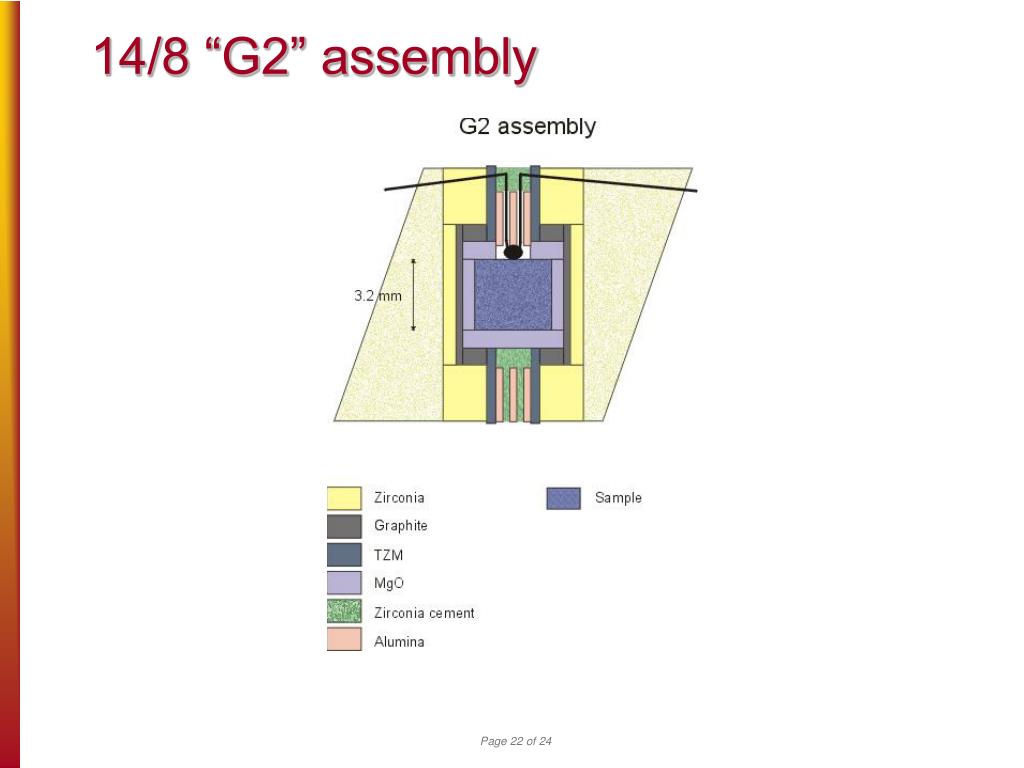

Testing (cont). 14/8 “G2” assembly after squeezing.

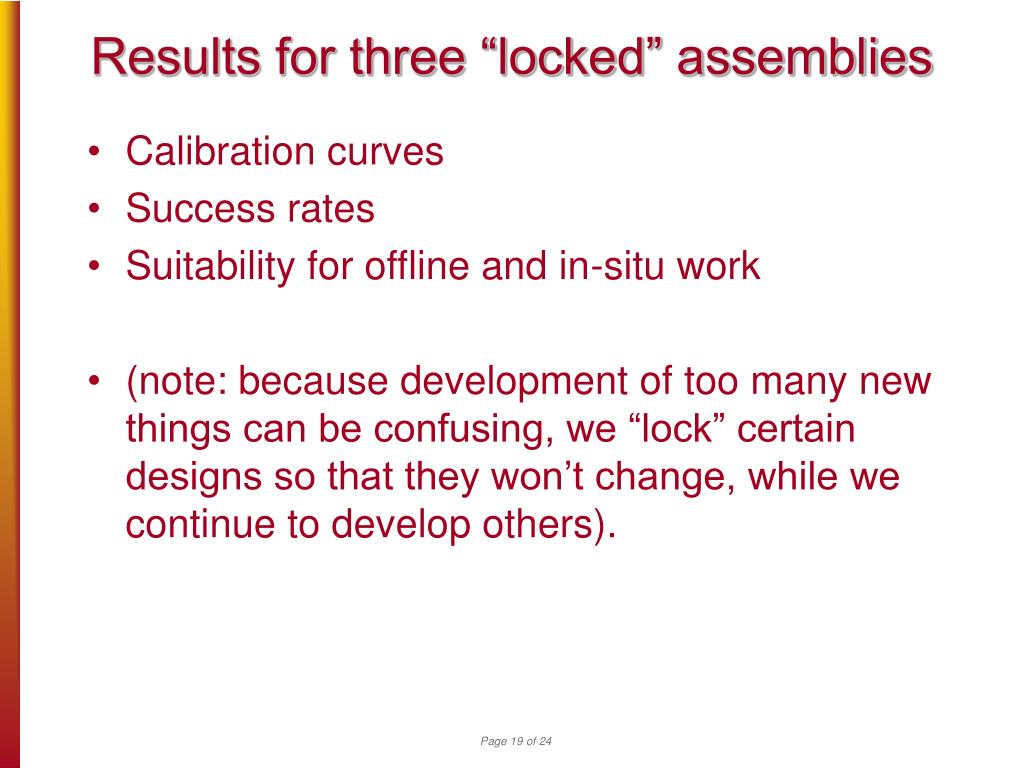

Results for three “locked” assemblies • Calibration curves • Success rates • Suitability for offline and in-situ work • (note: because development of too many new things can be confusing, we “lock” certain designs so that they won’t change, while we continue to develop others).

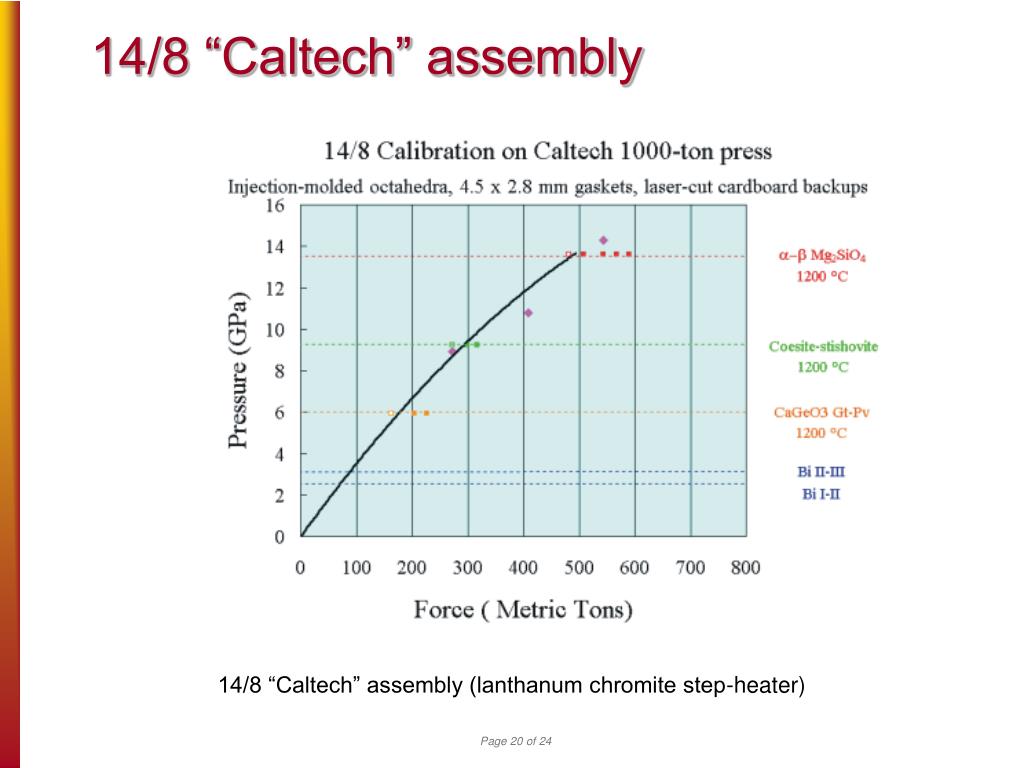

14/8 “Caltech” assembly 14/8 “Caltech” assembly (lanthanum chromite step-heater)
