Enhancing Cutting Efficiency with the Magnum Shear™ and Double Blade Technology

This project focuses on improving the cutting mechanism of the Magnum Shear™ to enhance edge quality and reduce blowout during flooring material cutting. A test apparatus was developed to measure load versus blade position, leading to recommendations for a customized load cell to optimize performance. The introduction of a double blade significantly reduces blowout by over 50%, though it requires more force and results in wasted material. Future improvements aim to lower operator force and enhance usability with thinner blades and better material management.

grady
Télécharger la présentation

Enhancing Cutting Efficiency with the Magnum Shear™ and Double Blade Technology

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Team Clean Cut Sponsors: Composite Decking Blade Team Members: Brian Norman Craig Daniels Vince Mayer Ted Florence Wes Anderson Advisor: Jay McCormack

  2. Background • The Magnum Shear™ cuts flooring material in a “dustless” manner. • It is lightweight and requires no electrical input.

  3. Introduction • Objective: • Create a test apparatus to measure load versus blade position • Improve the quality of a cut edge produced by the Magnum Shear™ • Motivation: • Expand target client base • Improve understanding of cutting mechanics

  4. Force Analysis Apparatus Force as a function of position Test prototype blades Test various materials Re-locatable to Bullet Tools

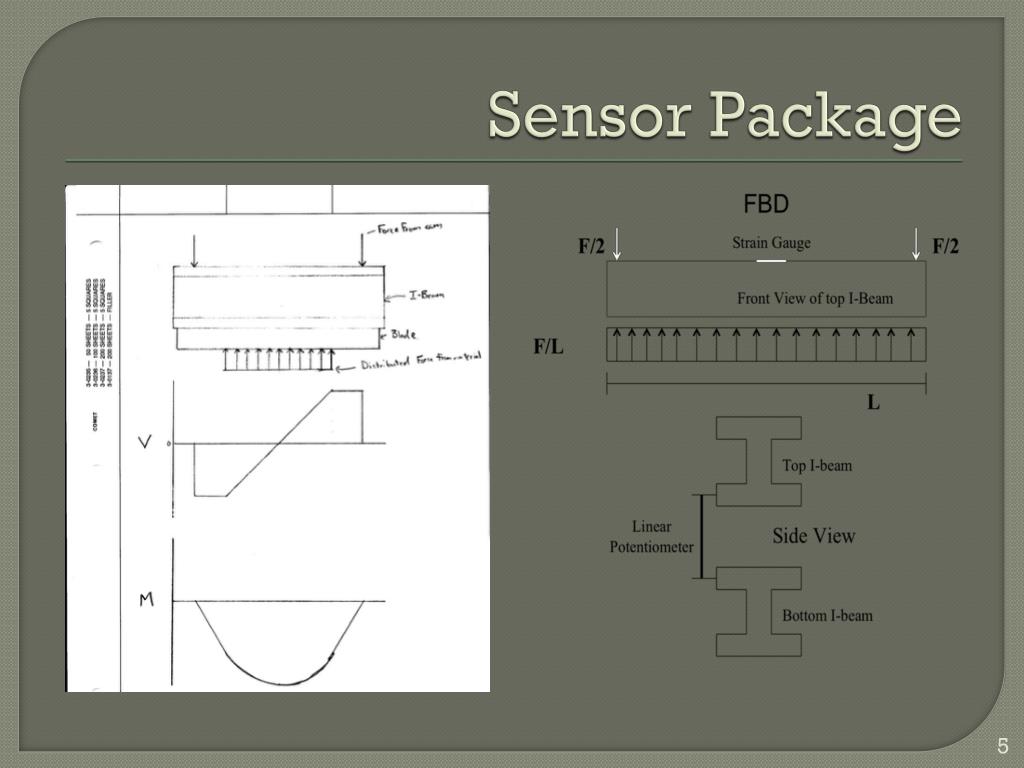

  5. Sensor Package

  6. Circuit Diagram

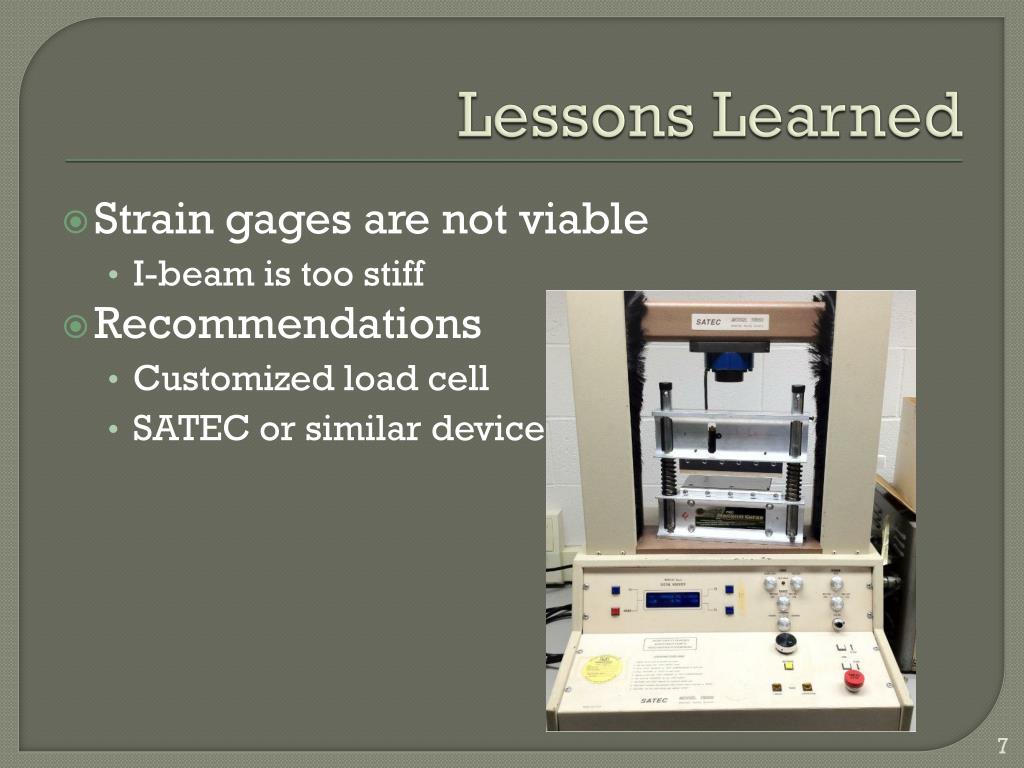

  7. Lessons Learned • Strain gages are not viable • I-beam is too stiff • Recommendations • Customized load cell • SATEC or similar device

  8. Composite Decking Blade Reduce the blow out by 50%

  9. Crack Formation

  10. Double Blade: Origin • Discovered by conserving test material • Thin slices change crack propagation

  11. Double Blade: Cut Sample Stock Magnum Shear™ Double Blade Cut

  12. Double Blade: Pros and Cons Pros • Reduces blowout by over 50% • Easily installed on stock Magnum Shear™ Cons • Greater force required for cut • Material between blades is wasted

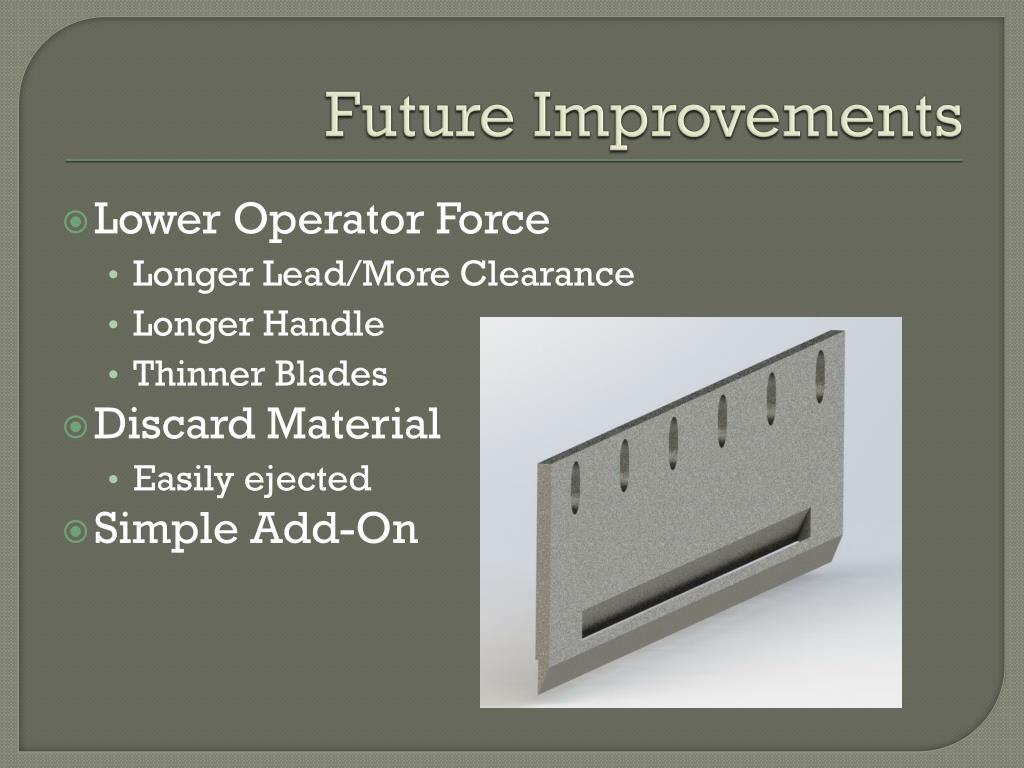

  13. Future Improvements • Lower Operator Force • Longer Lead/More Clearance • Longer Handle • Thinner Blades • Discard Material • Easily ejected • Simple Add-On
