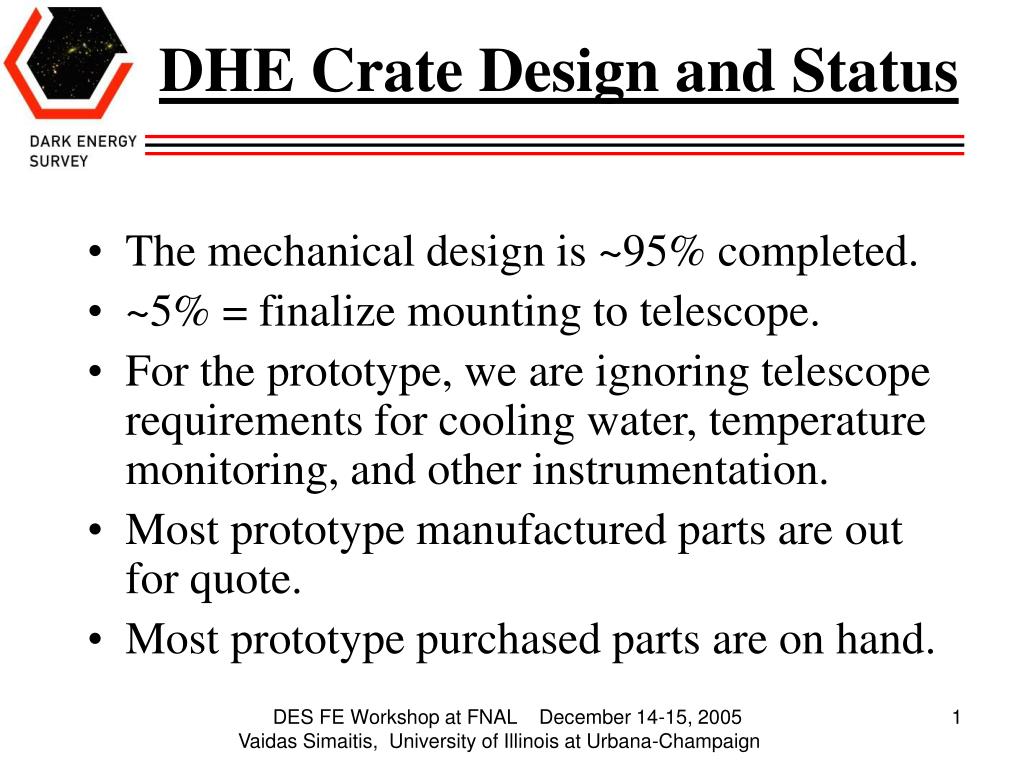

  1. DHE Crate Design and Status • The mechanical design is ~95% completed. • ~5% = finalize mounting to telescope. • For the prototype, we are ignoring telescope requirements for cooling water, temperature monitoring, and other instrumentation. • Most prototype manufactured parts are out for quote. • Most prototype purchased parts are on hand. DES FE Workshop at FNAL December 14-15, 2005 Vaidas Simaitis, University of Illinois at Urbana-Champaign

  2. 6-SLOT + 4-SLOT Crate Schroff Card Guides and Rails are on hand. 4-slot backplane is on hand, 6-slot on order Chassis plate designs finished, drawings out for quote. DES FE Workshop at FNAL December 14-15, 2005 Vaidas Simaitis, University of Illinois at Urbana-Champaign

  3. HEAT EXCHANGERS & FANS 2 Fan Manifold and 2 Cooling Manifold drawings out for quote 2 fans on hand from early Monsoon design 1 heat exchanger on hand, 1 on back order DES FE Workshop at FNAL December 14-15, 2005 Vaidas Simaitis, University of Illinois at Urbana-Champaign

  4. MAIN MANIFOLDS 2 Main manifold drawings out for quote Heat sink extrusion just arrived. 2 Thermo-electric coolers (TEC) not yet ordered. DES FE Workshop at FNAL December 14-15, 2005 Vaidas Simaitis, University of Illinois at Urbana-Champaign

  5. POWER SUPPLIES 2 Power Supply Mount drawings out for quote 2 Power Supplies to be ordered by Todd DES FE Workshop at FNAL December 14-15, 2005 Vaidas Simaitis, University of Illinois at Urbana-Champaign

  6. POWER SUPPLY MANIFOLDS 2 power supply manifold drawings out for quote 2 delrin crate mounting bars on hold until mounting design is done (not shown) DES FE Workshop at FNAL December 14-15, 2005 Vaidas Simaitis, University of Illinois at Urbana-Champaign

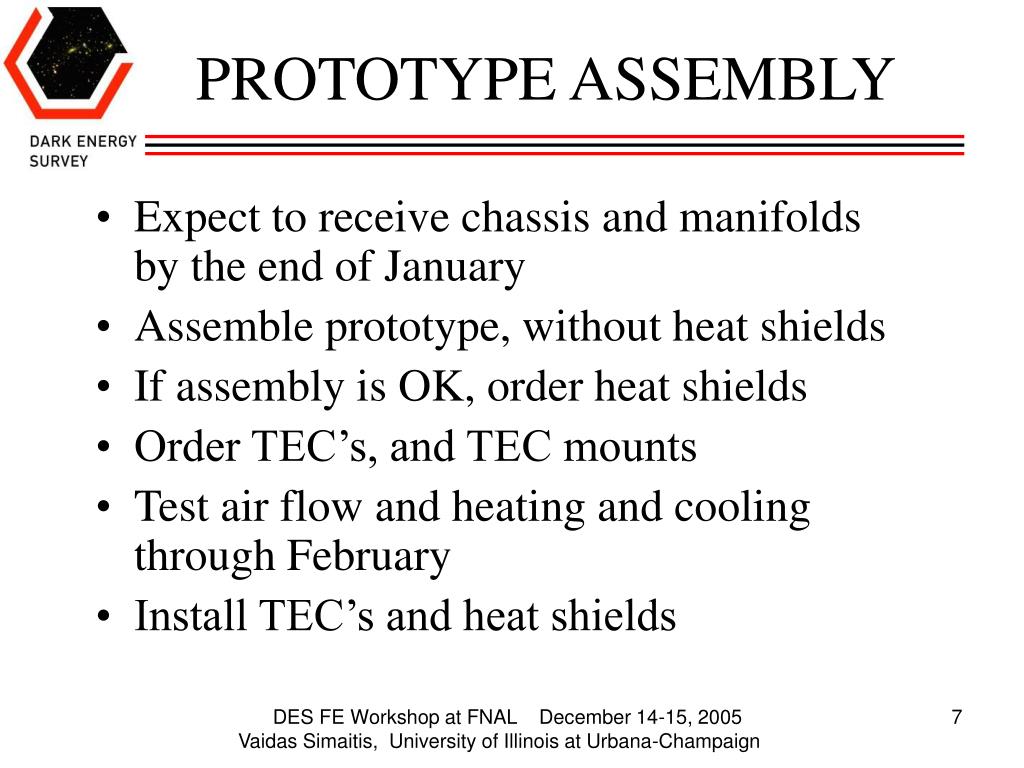

  7. PROTOTYPE ASSEMBLY • Expect to receive chassis and manifolds by the end of January • Assemble prototype, without heat shields • If assembly is OK, order heat shields • Order TEC’s, and TEC mounts • Test air flow and heating and cooling through February • Install TEC’s and heat shields DES FE Workshop at FNAL December 14-15, 2005 Vaidas Simaitis, University of Illinois at Urbana-Champaign

  8. THERMOELECTRIC MOUNT DELRIN INSULATOR / SPACER TEC HEAT SHIELD WILL ATTACH TO COPPER PLATE DES FE Workshop at FNAL December 14-15, 2005 Vaidas Simaitis, University of Illinois at Urbana-Champaign

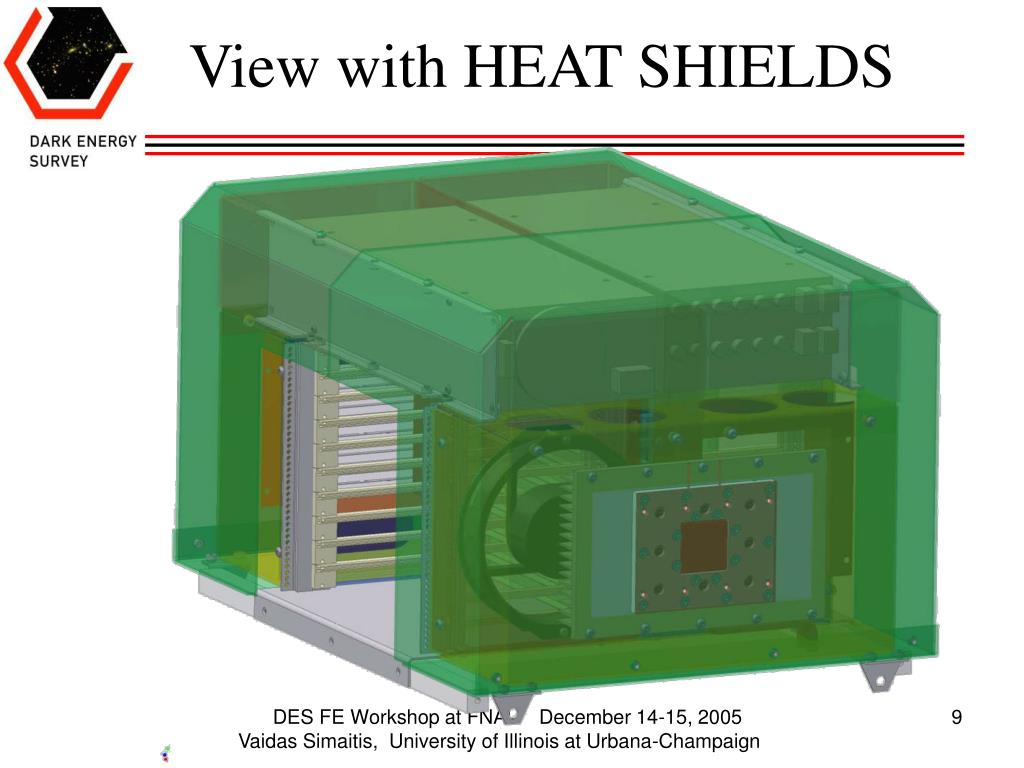

  9. View with HEAT SHIELDS DES FE Workshop at FNAL December 14-15, 2005 Vaidas Simaitis, University of Illinois at Urbana-Champaign

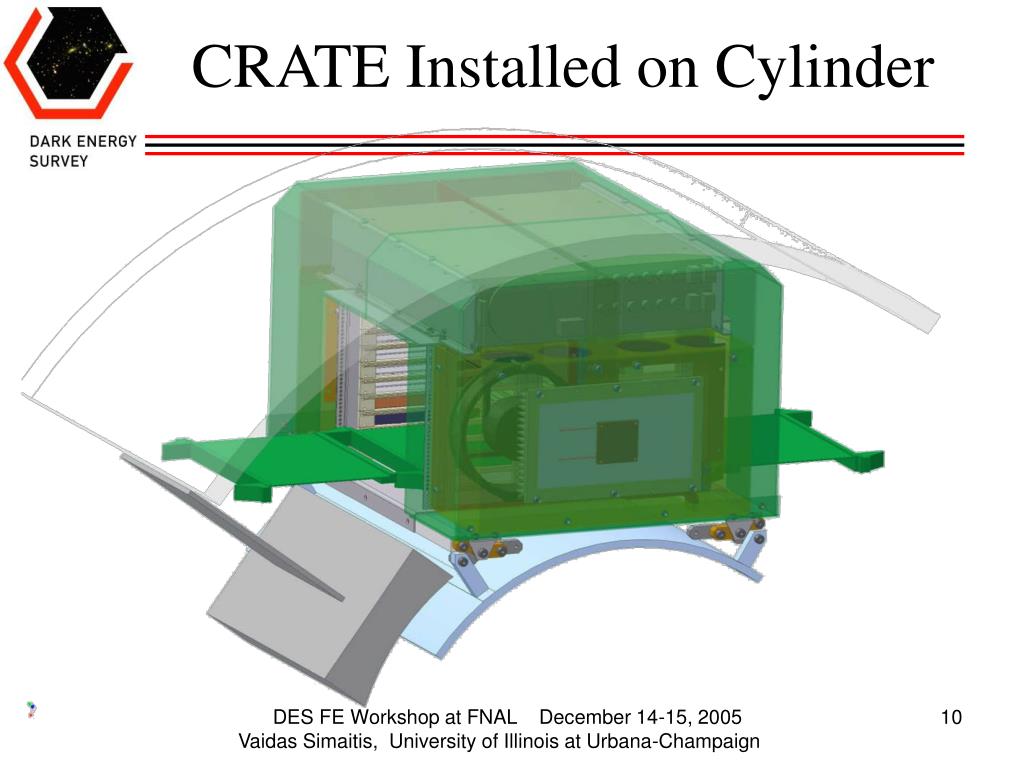

  10. CRATE Installed on Cylinder DES FE Workshop at FNAL December 14-15, 2005 Vaidas Simaitis, University of Illinois at Urbana-Champaign

  11. MOUNTING PIVOTS NORMAL LOCKED POSITION LOCK EXTENDED POSITION PIVOT DES FE Workshop at FNAL December 14-15, 2005 Vaidas Simaitis, University of Illinois at Urbana-Champaign

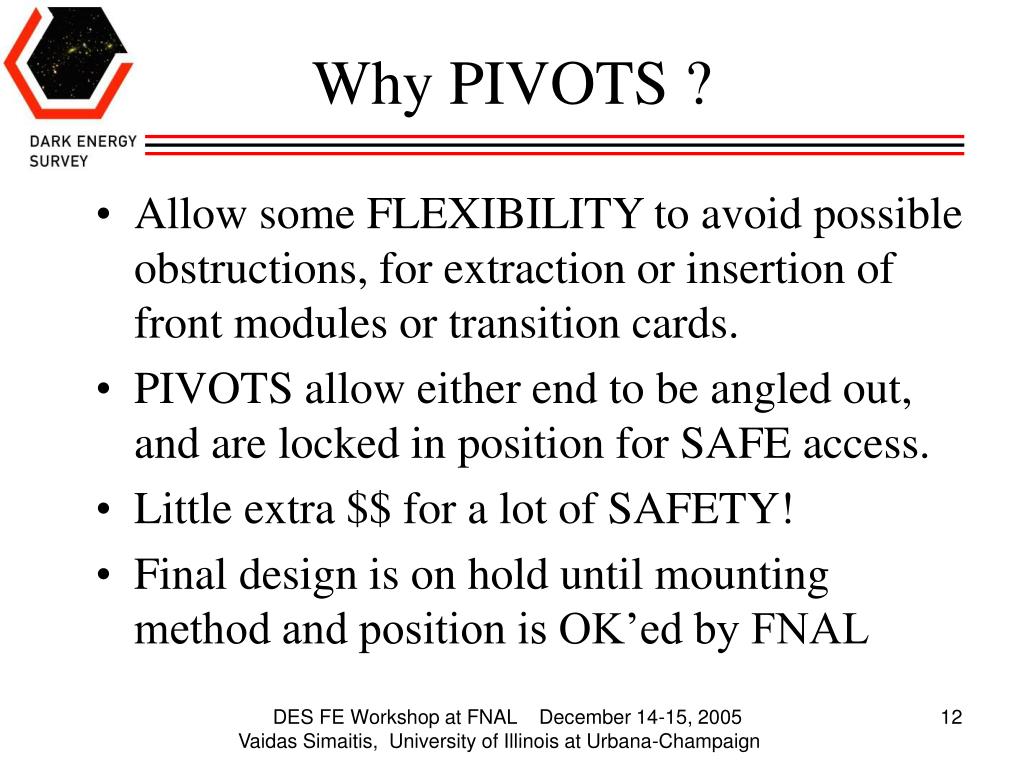

  12. Why PIVOTS ? • Allow some FLEXIBILITY to avoid possible obstructions, for extraction or insertion of front modules or transition cards. • PIVOTS allow either end to be angled out, and are locked in position for SAFE access. • Little extra $$ for a lot of SAFETY! • Final design is on hold until mounting method and position is OK’ed by FNAL DES FE Workshop at FNAL December 14-15, 2005 Vaidas Simaitis, University of Illinois at Urbana-Champaign

  13. Z-AXIS VIEW WITH R=52” ID DES FE Workshop at FNAL December 14-15, 2005 Vaidas Simaitis, University of Illinois at Urbana-Champaign

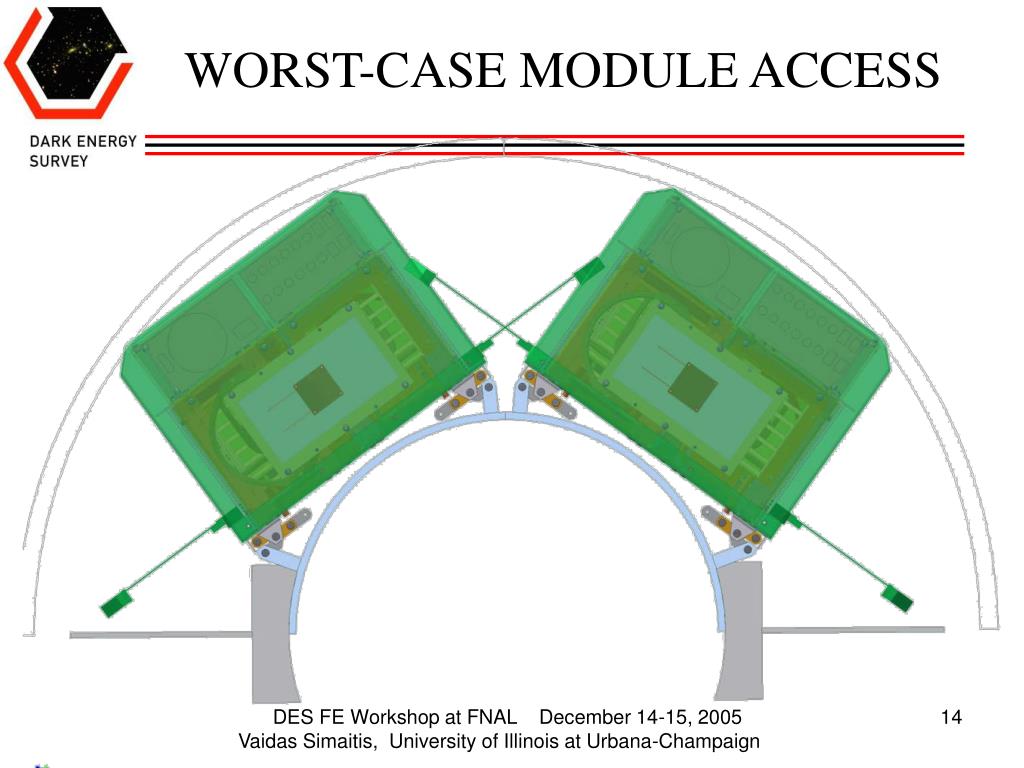

  14. WORST-CASE MODULE ACCESS DES FE Workshop at FNAL December 14-15, 2005 Vaidas Simaitis, University of Illinois at Urbana-Champaign

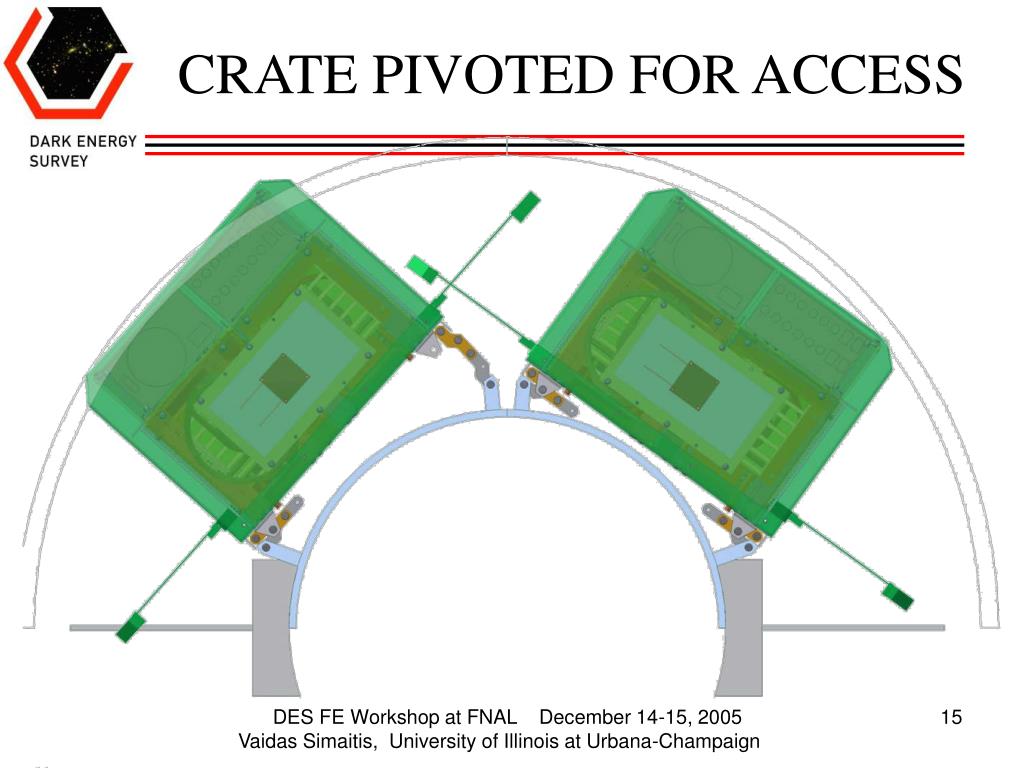

  15. CRATE PIVOTED FOR ACCESS DES FE Workshop at FNAL December 14-15, 2005 Vaidas Simaitis, University of Illinois at Urbana-Champaign

  16. DESIGN DETAILS • Our design resides in much detail at our UIUC website at CLICK HERE or copy and paste: • web.hep.uiuc.edu/Engin/DES/DHE_10_Crate/DHE_10_Crate.html • The best way to see the design is to download the free DWF Viewer. • You can then rotate, zoom in/out, hide parts in assemblies so you can see the insides, and print any view you like. • Else, you’re stuck with the 2D PDF views. DES FE Workshop at FNAL December 14-15, 2005 Vaidas Simaitis, University of Illinois at Urbana-Champaign
