  1. The Human Ear and Hearing Sound concept research project By Alice Gold

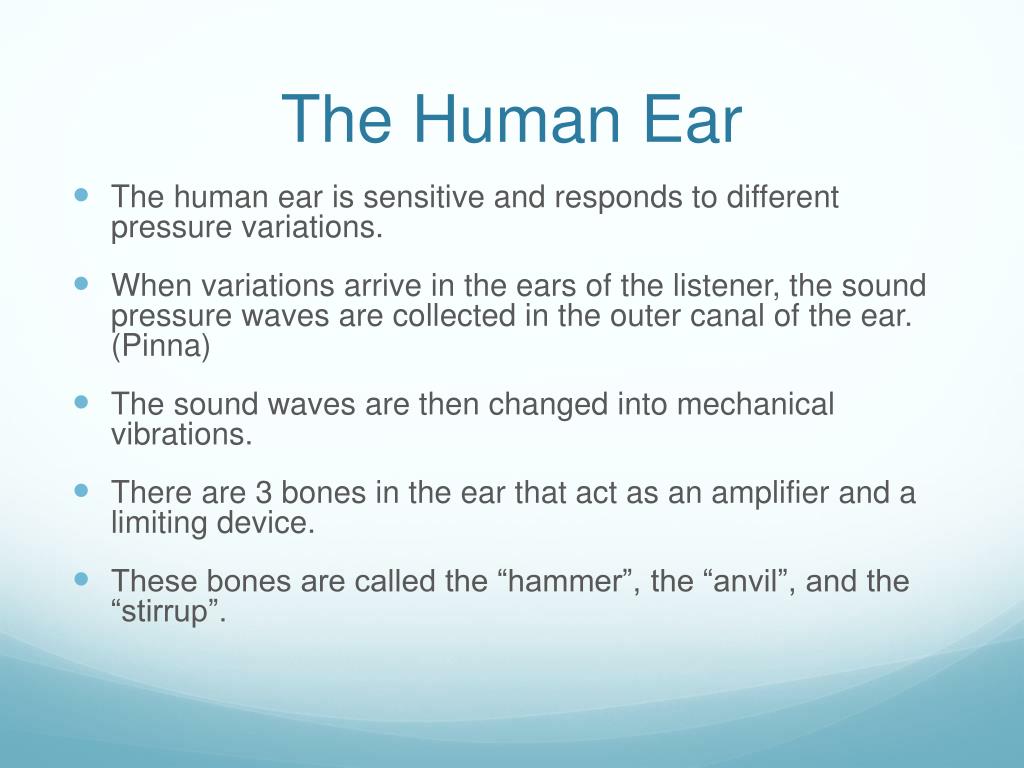

  2. The Human Ear • The human ear is sensitive and responds to different pressure variations. • When variations arrive in the ears of the listener, the sound pressure waves are collected in the outer canal of the ear. (Pinna) • The sound waves are then changed into mechanical vibrations. • There are 3 bones in the ear that act as an amplifier and a limiting device. • These bones are called the “hammer”, the “anvil”, and the “stirrup”.

  3. The Human Ear • The “Amplifier” significantly increases the vibrations that are transmitted from the eardrum. • The “Protection Device” reduces the level of loud, transient sounds. • The vibrations are then applied to the inner ear (called the Cochlea), which contains 2 fluid filled chambers. • There are tiny hair receptors that respond to certain frequencies depending on their placement in the ear. • The result in the neural stimulation gives us the sensation of hearing.

  4. Hearing • The threshold of hearing: the minimum sound pressure that produces the phenomenon of hearing in hearing in most people. It equals 0.0002 microbars. • One microbar is equal to 1 millionth of normal atmospheric pressure. • This shows how sensitive the ear is. • 0 dB SPL is defined as the level that an average person can hear at a specific frequency only 50% of the time.

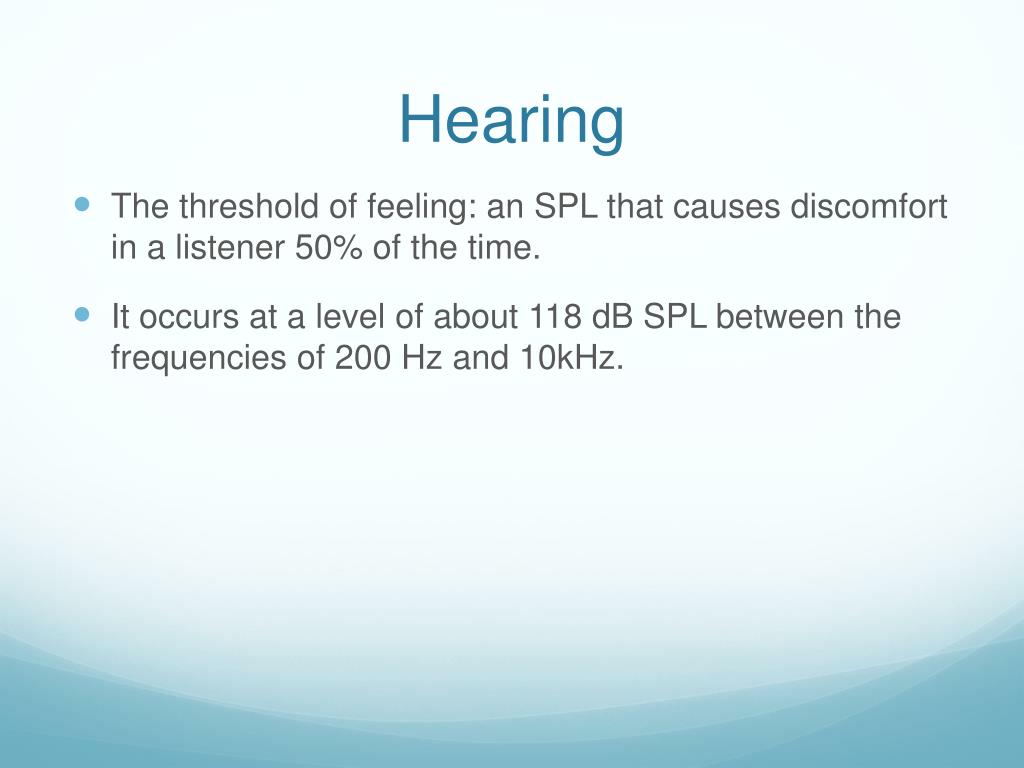

  5. Hearing • The threshold of feeling: an SPL that causes discomfort in a listener 50% of the time. • It occurs at a level of about 118 dB SPL between the frequencies of 200 Hz and 10kHz.

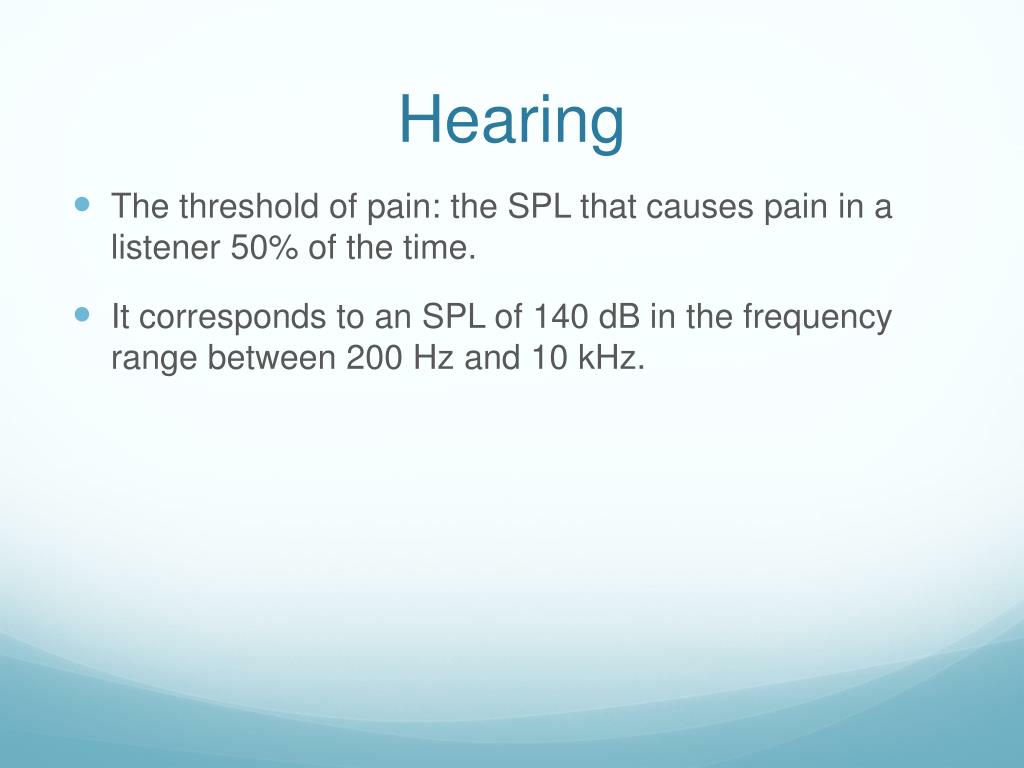

  6. Hearing • The threshold of pain: the SPL that causes pain in a listener 50% of the time. • It corresponds to an SPL of 140 dB in the frequency range between 200 Hz and 10 kHz.

  7. Hearing loss • Hearing loss generally occurs when the hair/nerve combinations are damaged or as they deteriorate with age. • To take care of your hearing you should: 1. Avoid hazardous sound environments. 2. (if thais not possible) Wear hearing protection devices (foam ear plugs, custom-molded ear plugs, or in-ear monitors.) 3. Monitor the sound-pressure levels at around 85 dB. 4. Take 15 minute “quiet breaks” every few hours. 5. Avoid practicing at concert-hall levels. 6. Have your hearing checked periodically by an audiologist.

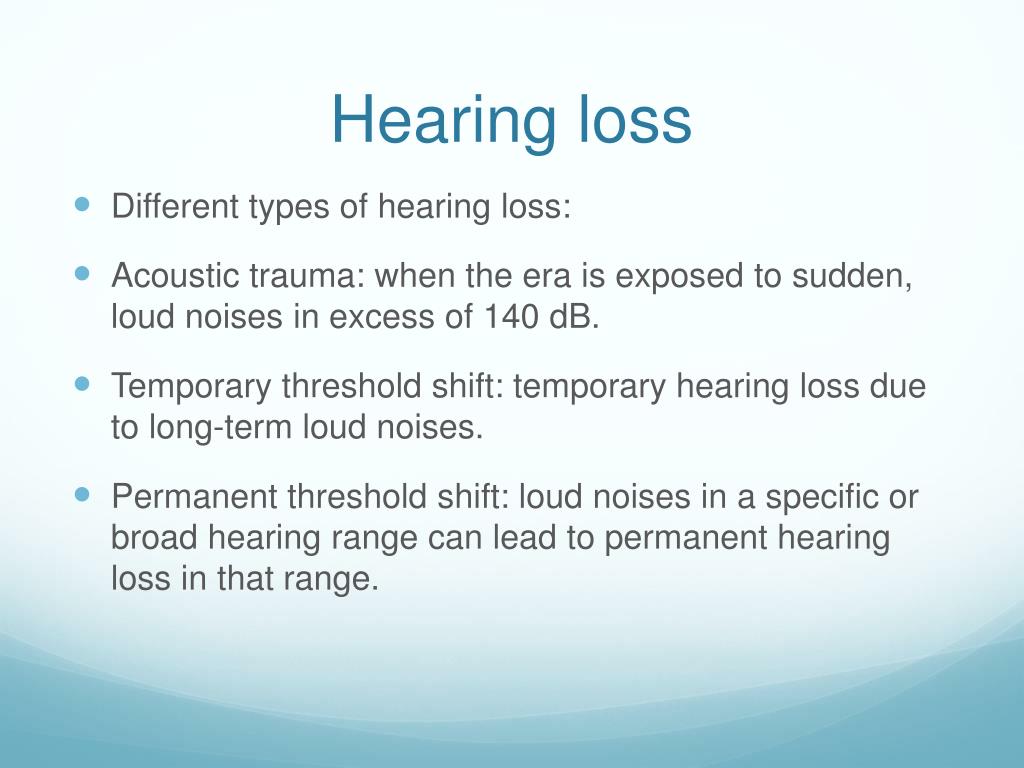

  8. Hearing loss • Different types of hearing loss: • Acoustic trauma: when the era is exposed to sudden, loud noises in excess of 140 dB. • Temporary threshold shift: temporary hearing loss due to long-term loud noises. • Permanent threshold shift: loud noises in a specific or broad hearing range can lead to permanent hearing loss in that range.

  9. Human Audio Spectrum • http://www.youtube.com/watch?v=qNf9nzvnd1k
