  1. Course contents • Labview basics • virtual instruments, data flow, palettes • Structures • for, while, case, ... • editing techniques • Controls&Indicators • arrays, clusters, charts, graphs • Additional lecture • State machines, SubVIs, MainCluster • Modular programming + recording • SubVIs • File I/O • Analysis • Signal processing • Communication between loops • Instrument control • DAQ , Data collection, GPIB, Serial • Additional lecture • Data Acquisition, Instrument control

  2. Measurement & Automation Explorer (MAX) • View and control your devices and software

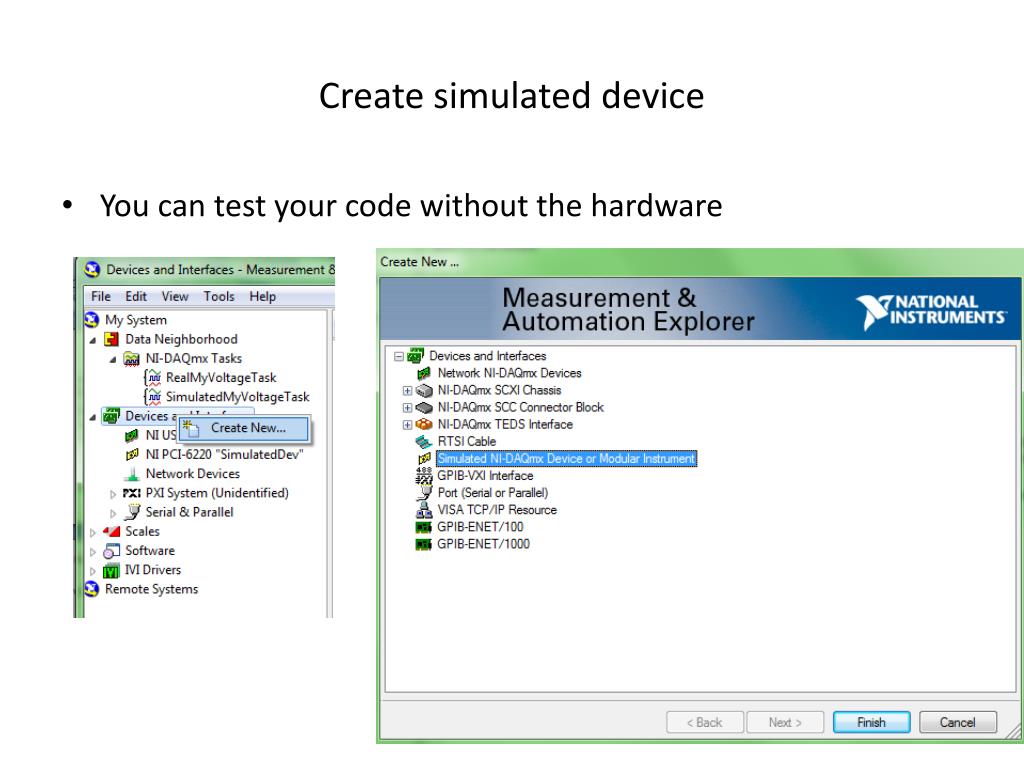

  3. Create simulated device • You can test your code without the hardware

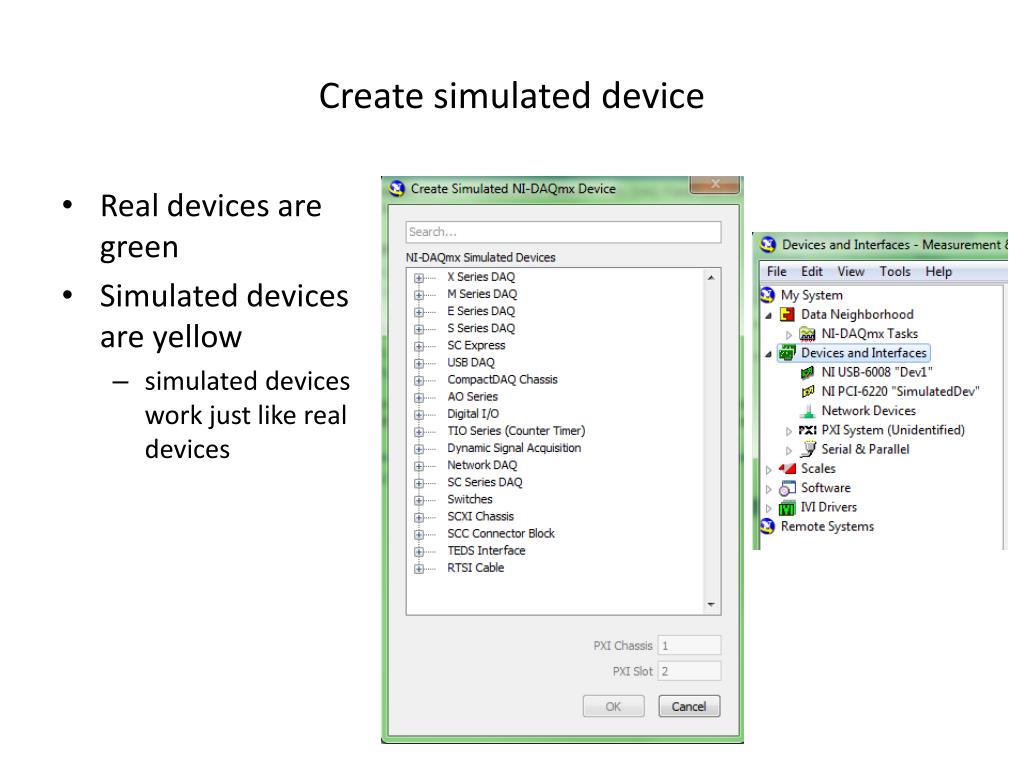

  4. Create simulated device • Real devices are green • Simulated devices are yellow • simulated devices work just like real devices

  5. Test panel

  6. MAX • Check pinouts

  7. MAX • Self Test

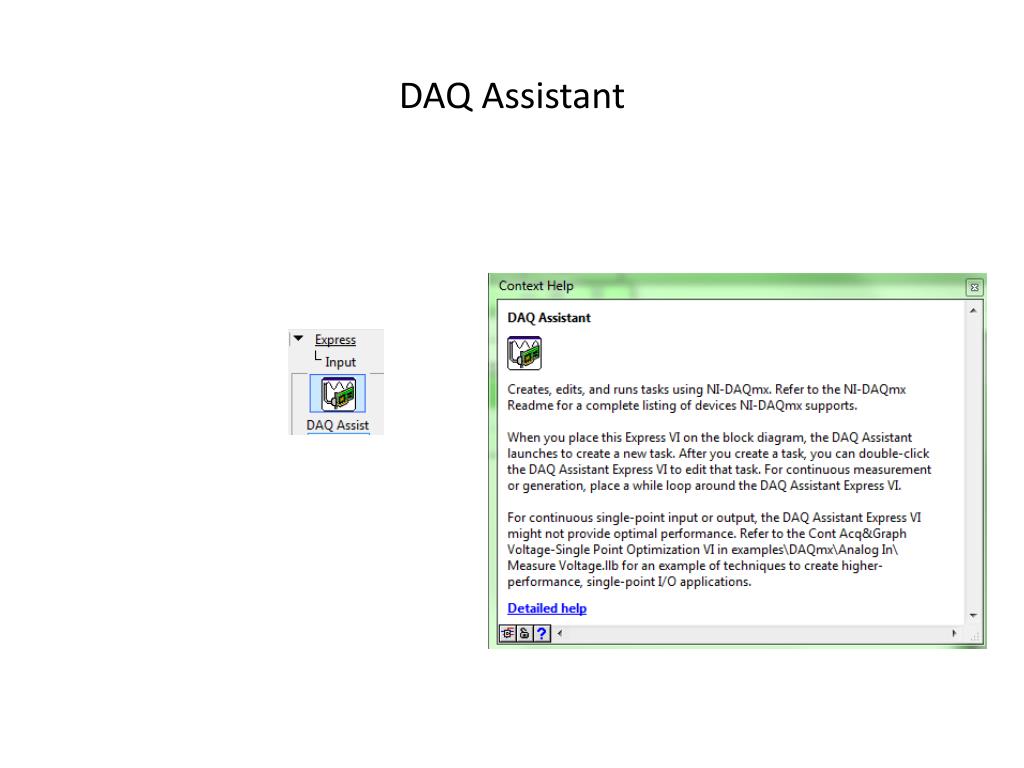

  8. DAQ Assistant

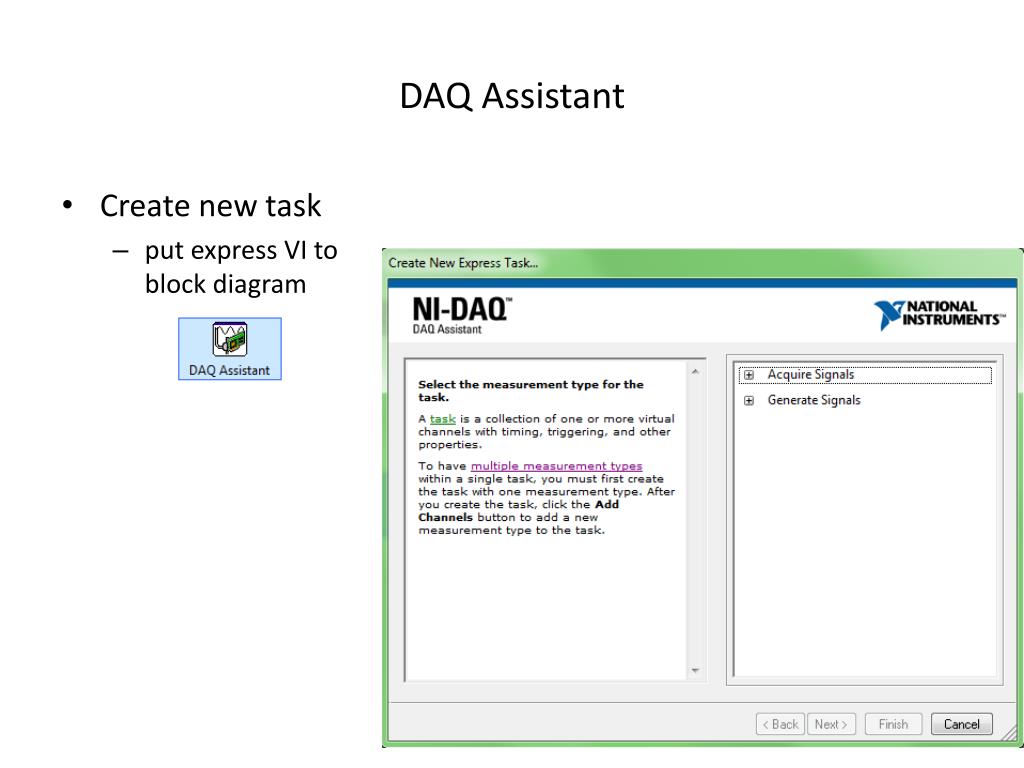

  9. DAQ Assistant • Create new task • put express VI to block diagram

  10. DAQ Assistant

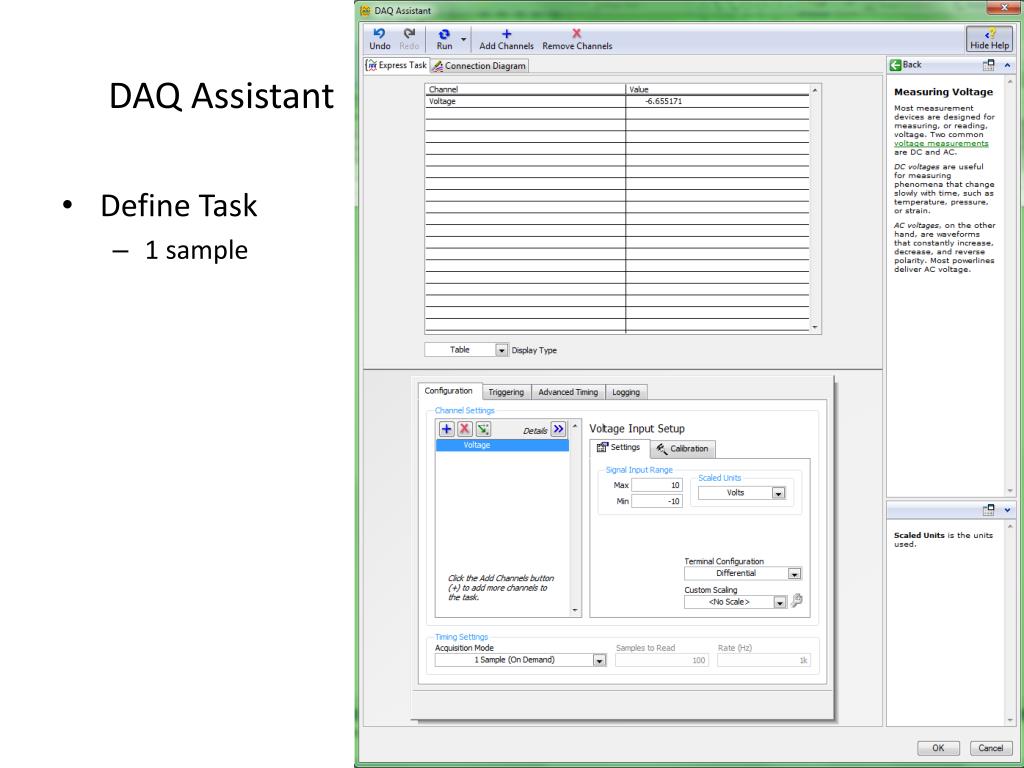

  11. DAQ Assistant • Define Task • 1 sample

  12. Acquire 1 sample with DAQ assistant

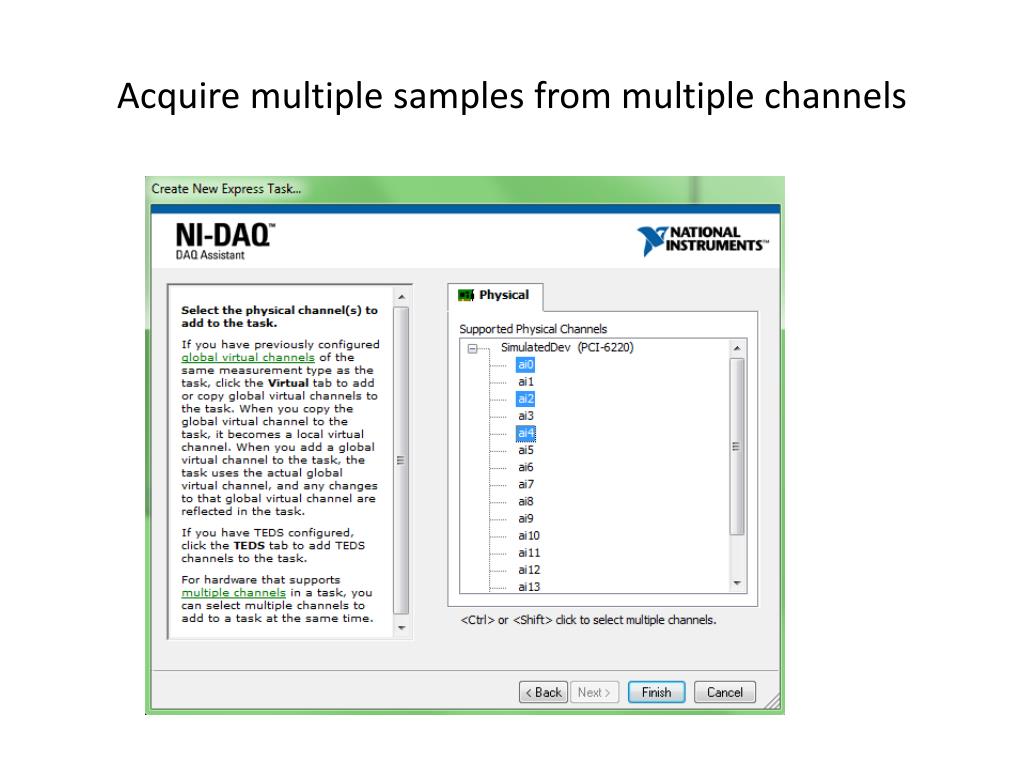

  13. Acquire multiple samples from multiple channels

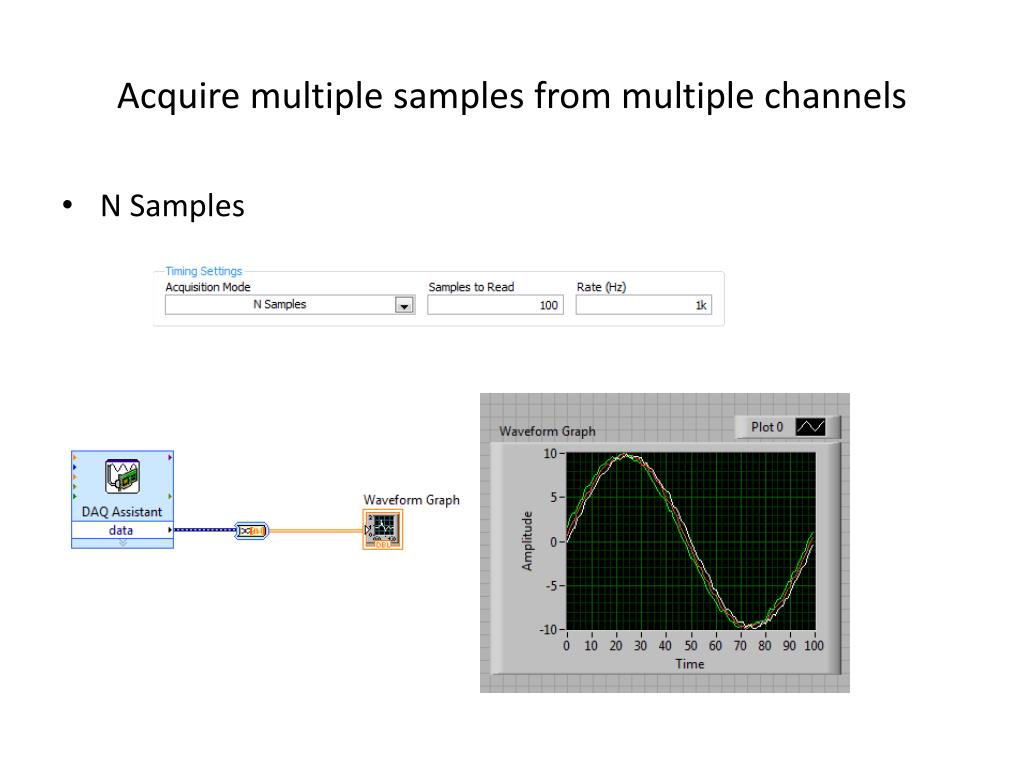

  14. Acquire multiple samples from multiple channels • N Samples

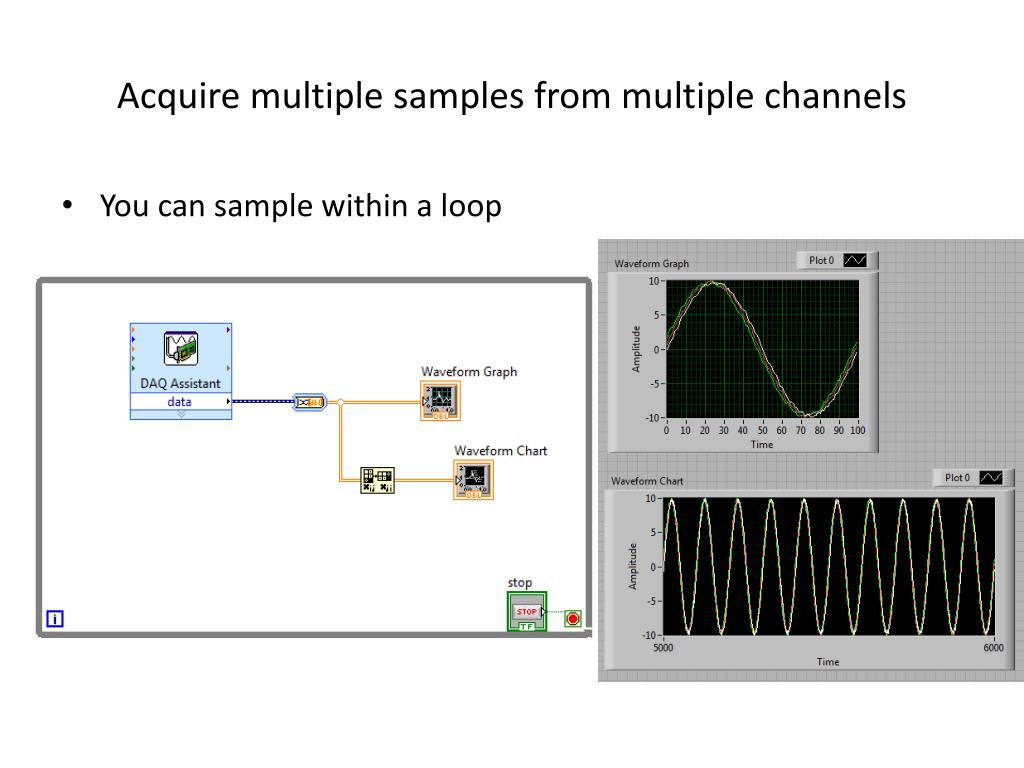

  15. Acquire multiple samples from multiple channels • You can sample within a loop

  16. Acquire continuosly

  17. Acquire continuosly

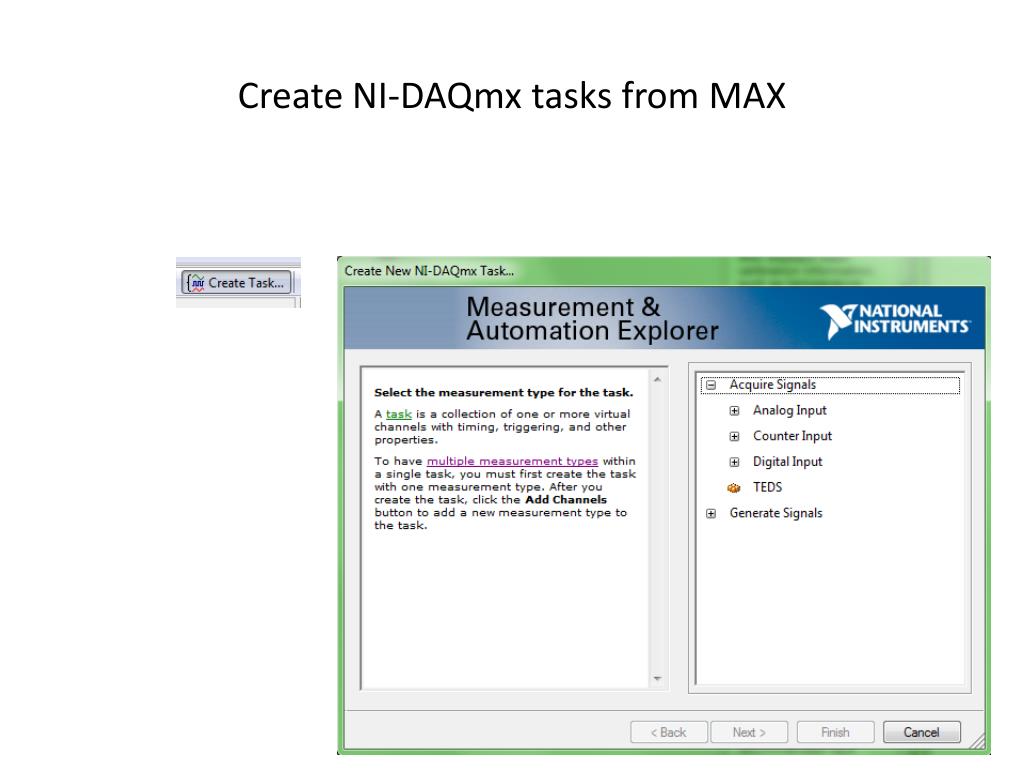

  18. Create NI-DAQmx tasks from MAX

  19. Define Task

  20. Define Task • Tasks are visible in all LabVIEW applications

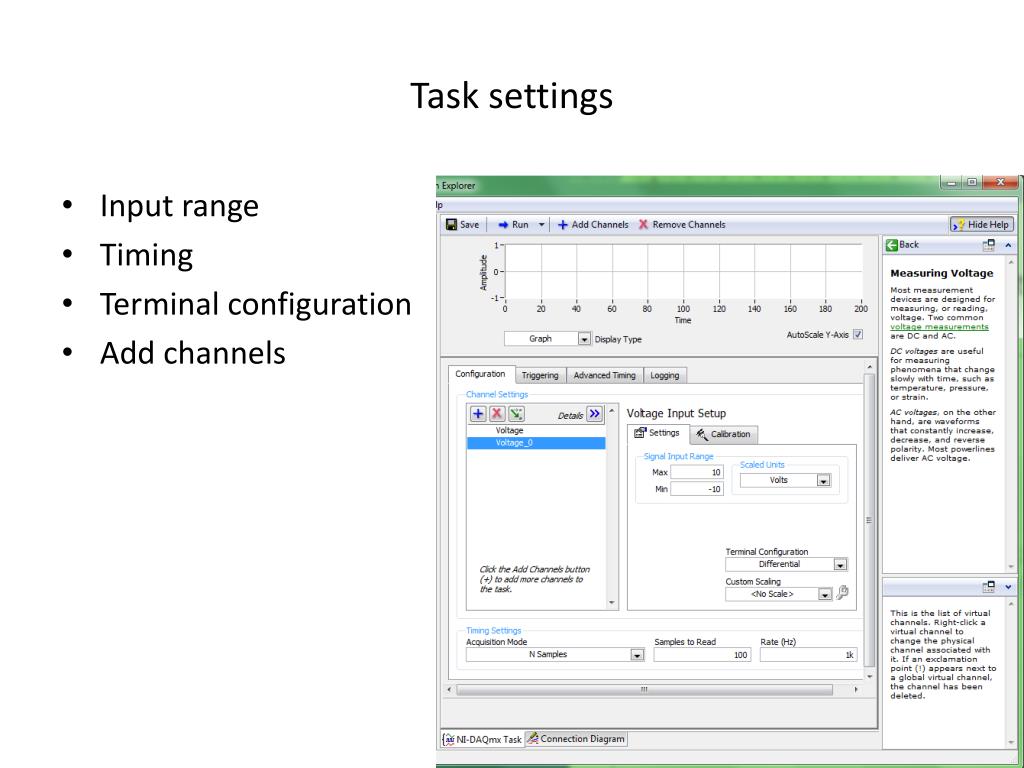

  21. Task settings • Input range • Timing • Terminal configuration • Add channels

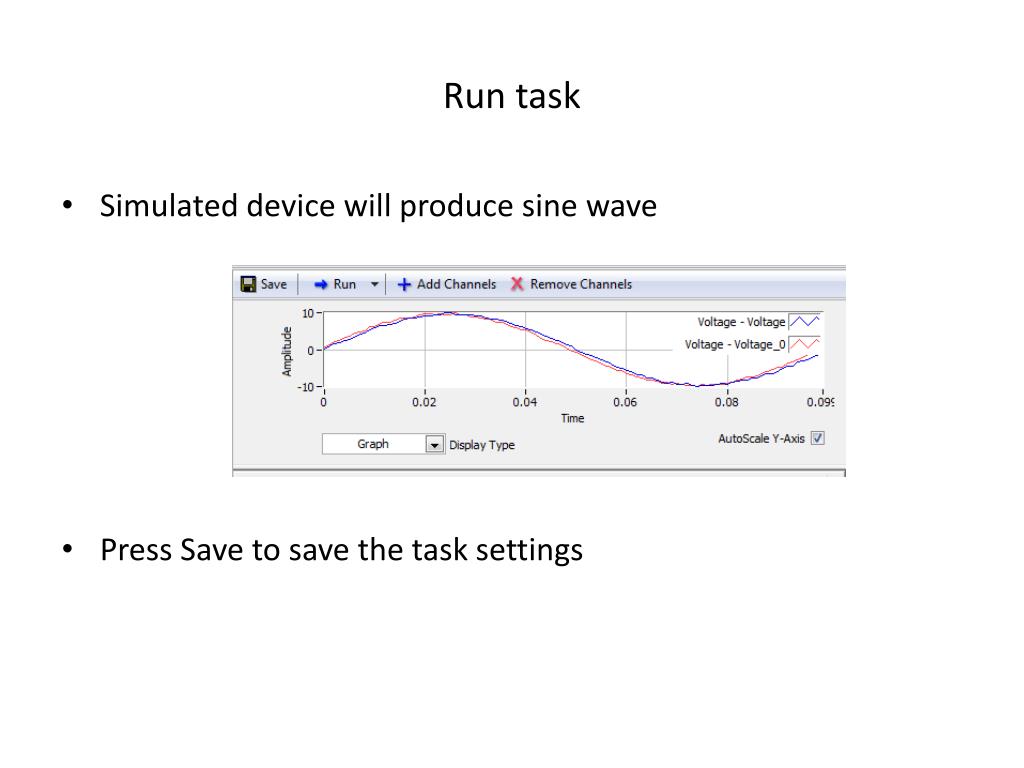

  22. Run task • Simulated device will produce sine wave • Press Save to save the task settings

  23. Test simulated device on LabVIEW • Hardware Input and Output»DAQmx»AnalogMeasurements»Voltage»ContAcq&Graph Voltage-Int Clk.VI

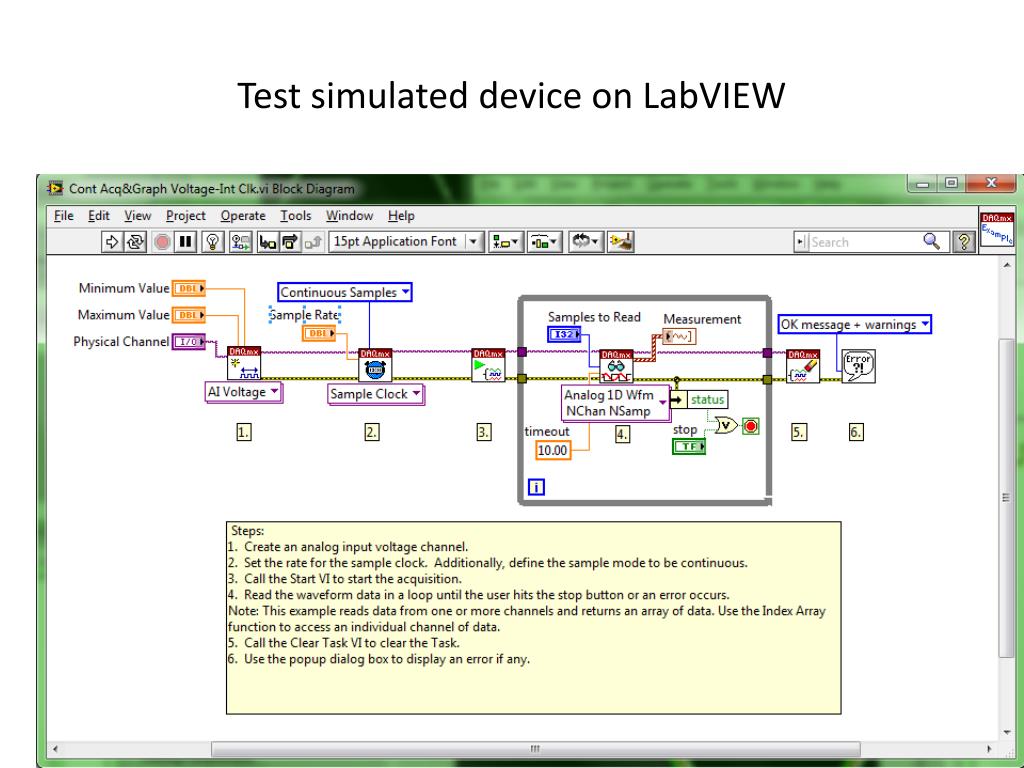

  24. Test simulated device on LabVIEW

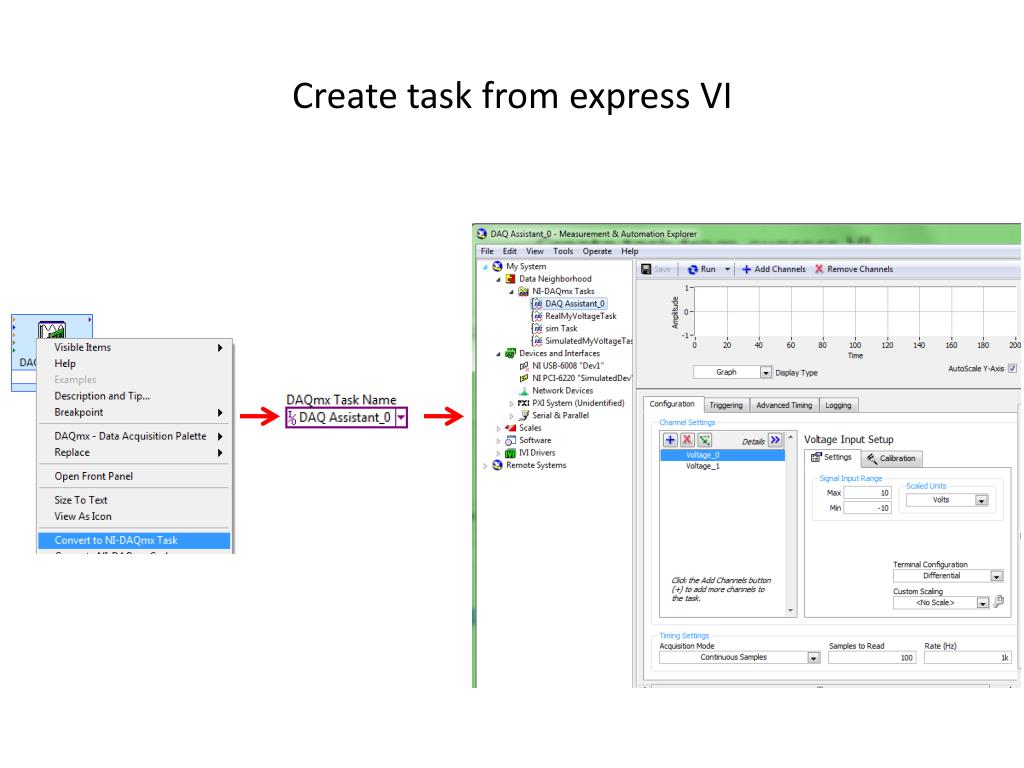

  25. Create task from express VI

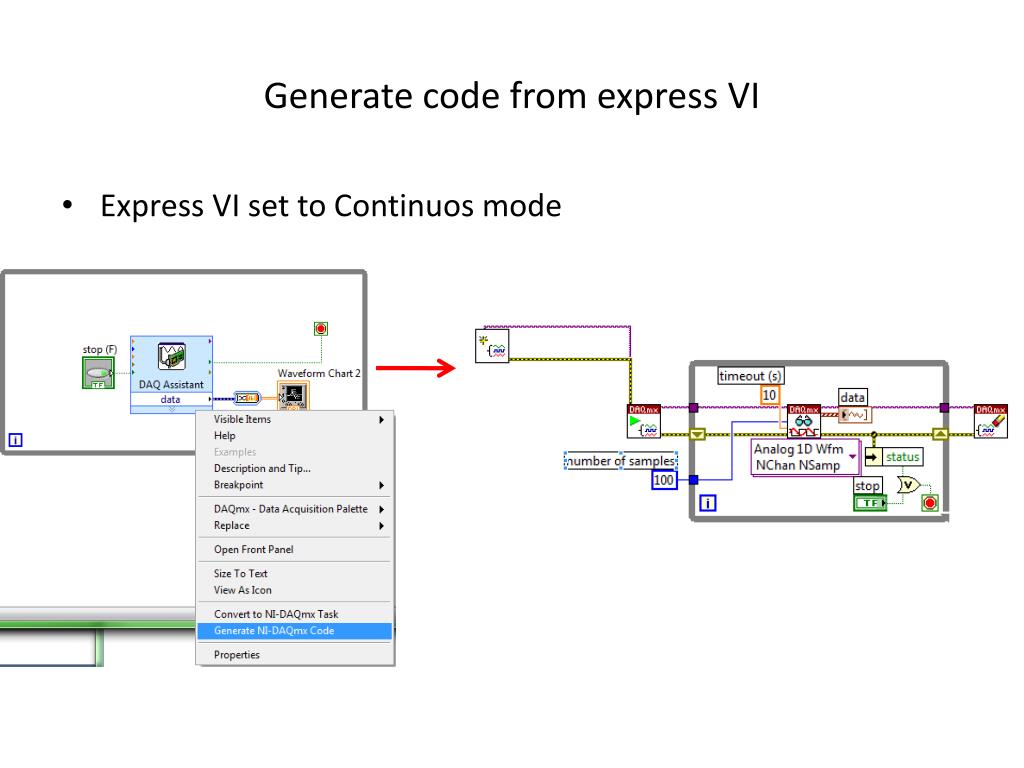

  26. Generate code from express VI • Express VI set to Continuos mode

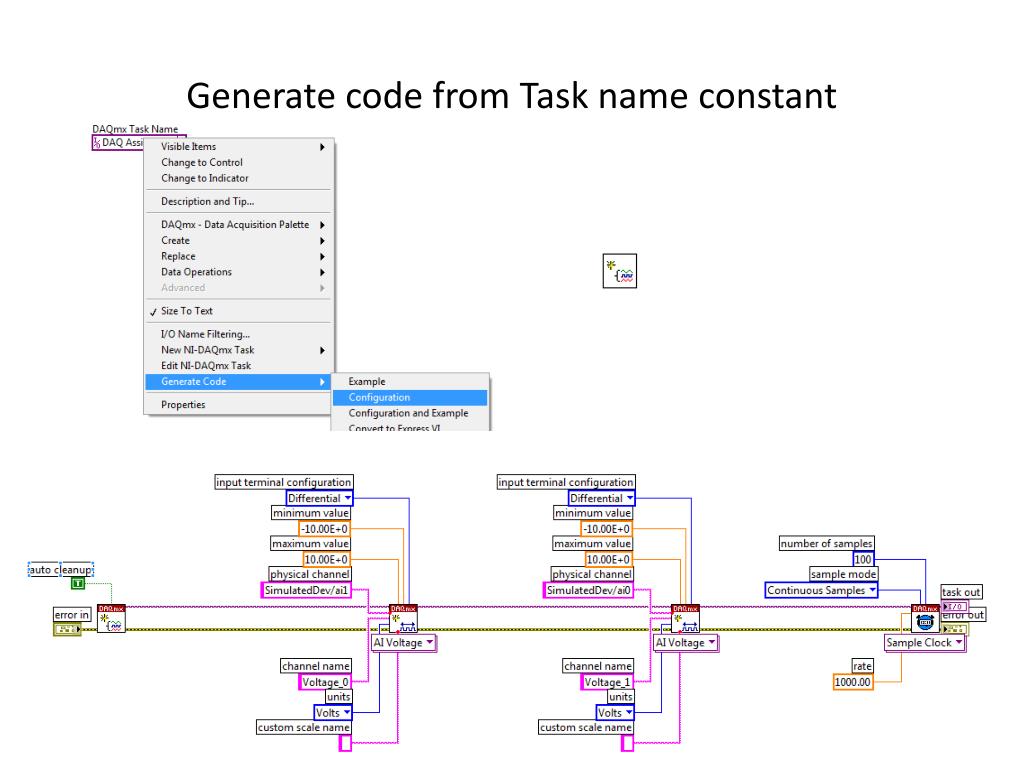

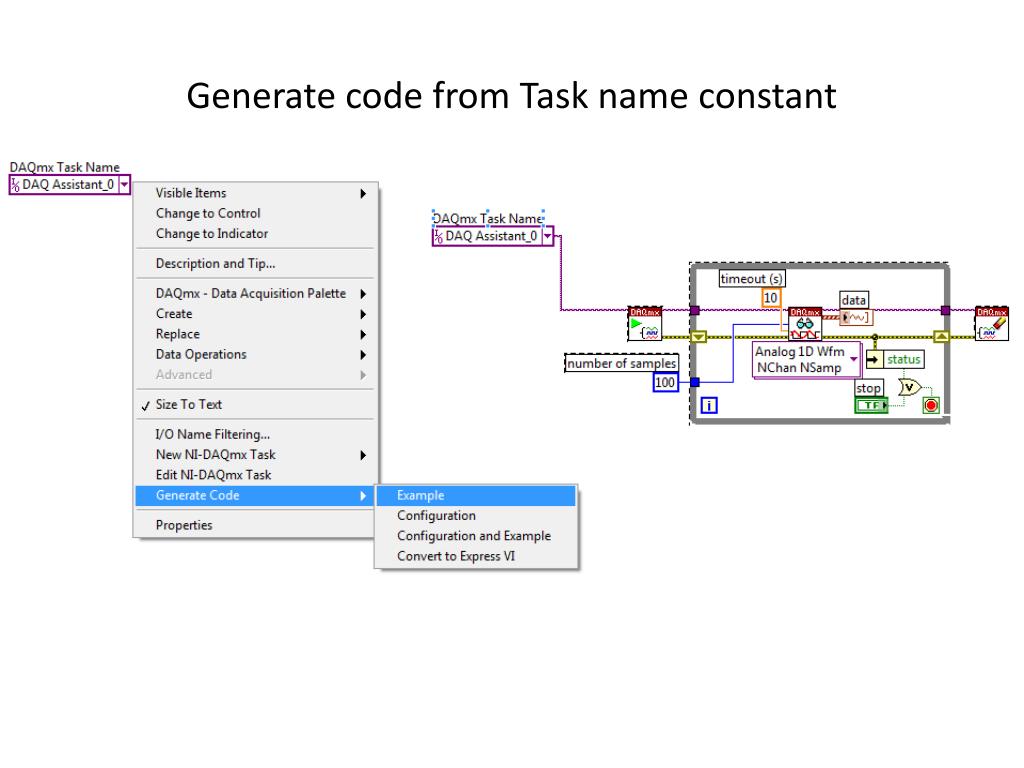

  27. Generate code from Task name constant

  28. Generate code from Task name constant

  29. Output voltages

  30. Output Voltages • N samples • Generate >> Example

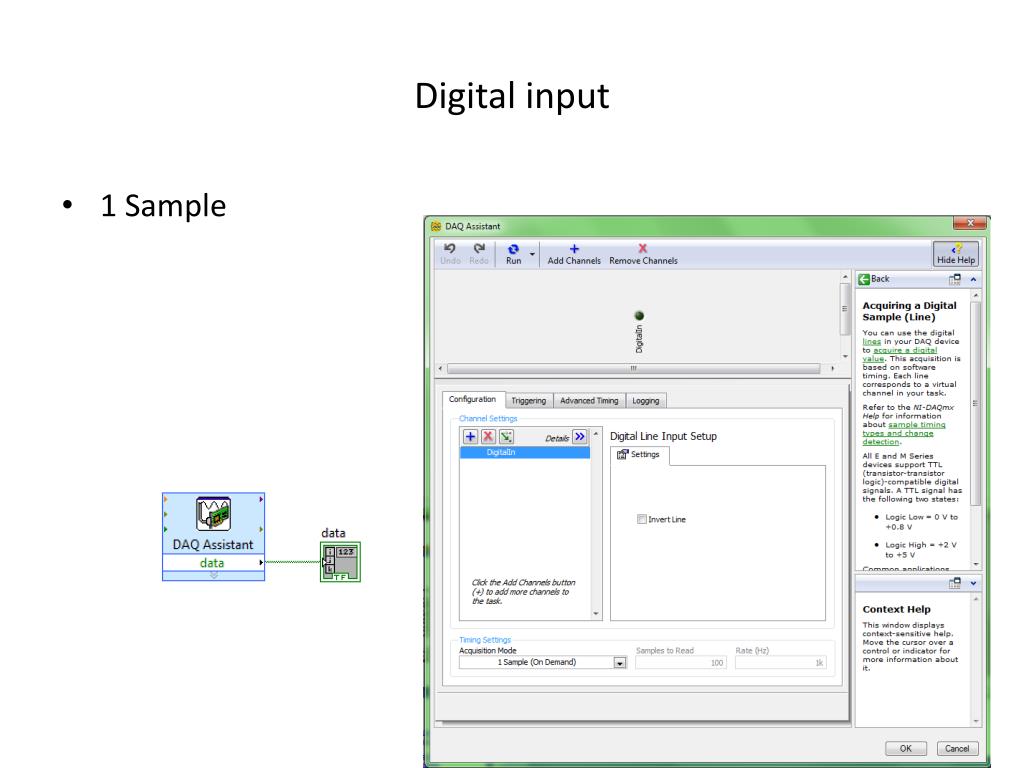

  31. Digital input • 1 Sample

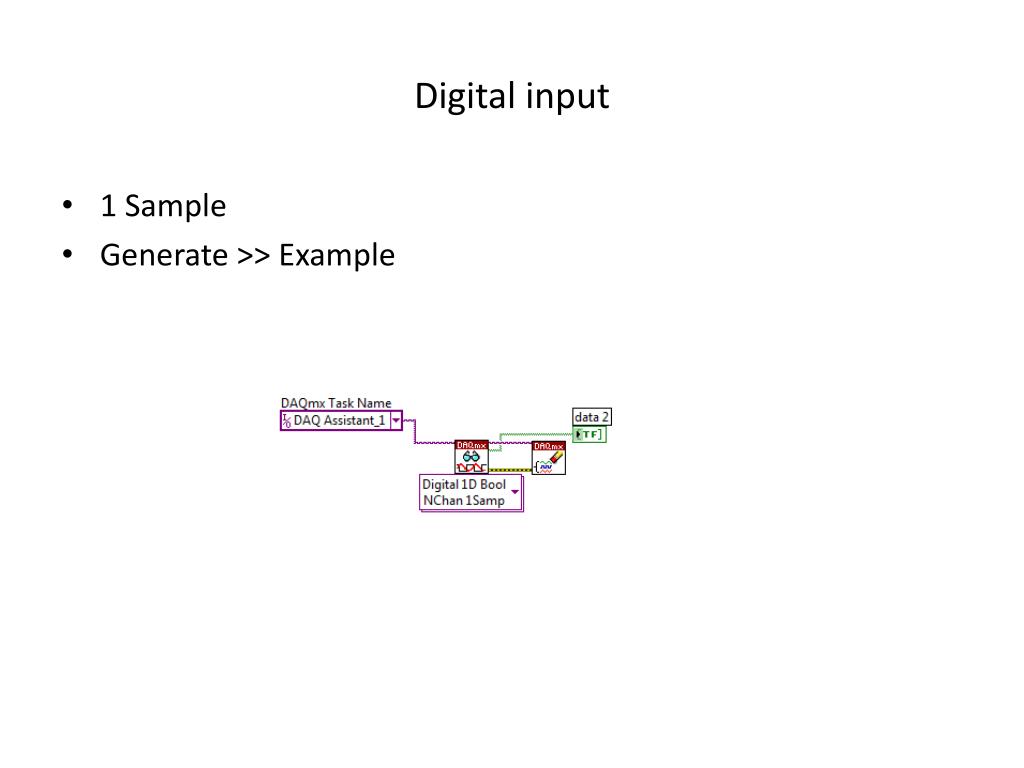

  32. Digital input • 1 Sample • Generate >> Example

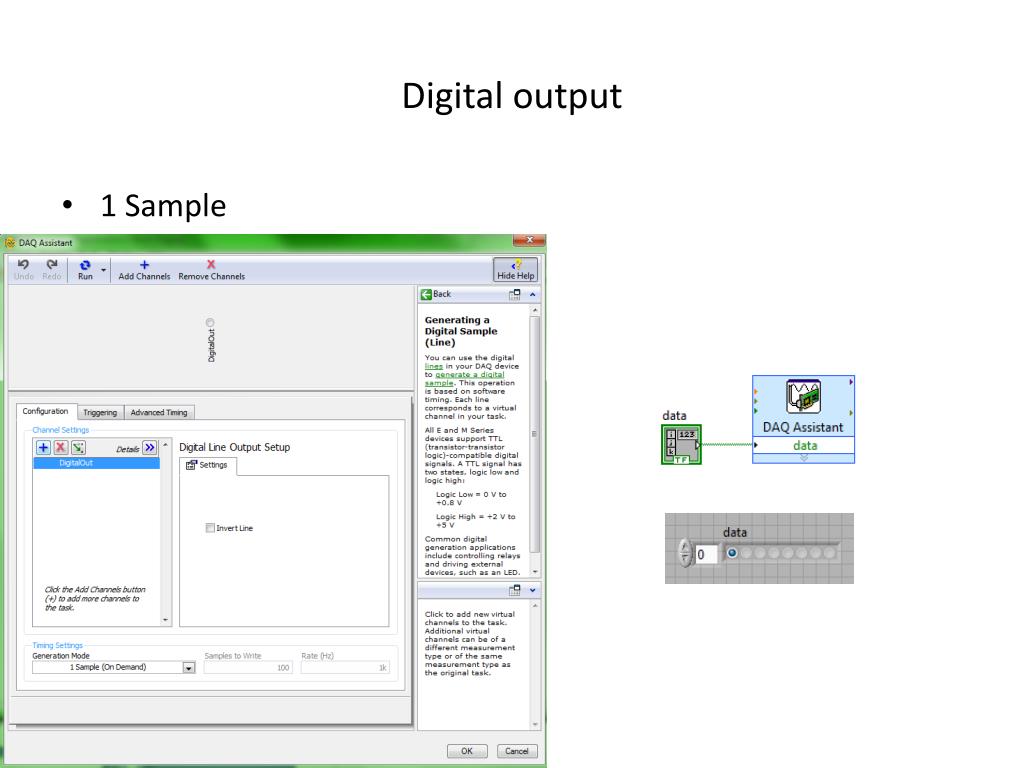

  33. Digital output • 1 Sample

  34. Triggered acquisition

  35. Counter

  36. NI DAQmx Help • Start»Programs»NationalInstruments»NI-DAQ

  37. Terms • Physical channel - A terminal or pin at which you can measure or generate an analog or digital signal. • Virtual channel - A collection of settings that can include a name, a physical channel, input terminal connections, the type of measurement or generation, and scaling information. In NI-DAQmx, virtual channels are integral to every measurement. You can configure virtual channels with the DAQ Assistant, which you can open from Measurement & Automation Explorer (MAX) or your application software. You also can configure virtual channels with the NI-DAQmx API in your application program. • Task - A collection of one or more virtual channels with timing, triggering, and other properties. Conceptually, a task represents a measurement or generation you want to perform. You can set up and save all of the configuration information in a task and use the task in an application. In NI-DAQmx, you can configure virtual channels as part of a task or separate from a task. • Local channels - Virtual channels created inside a task. • Global channels - Virtual channels defined outside a task. You can create global channels in MAX or in your application software. You can use global channels in any application or add them to a number of different tasks. If you modify a global channel, the change affects all tasks in which you reference that global channel. In most cases, it is simpler to use local channels.

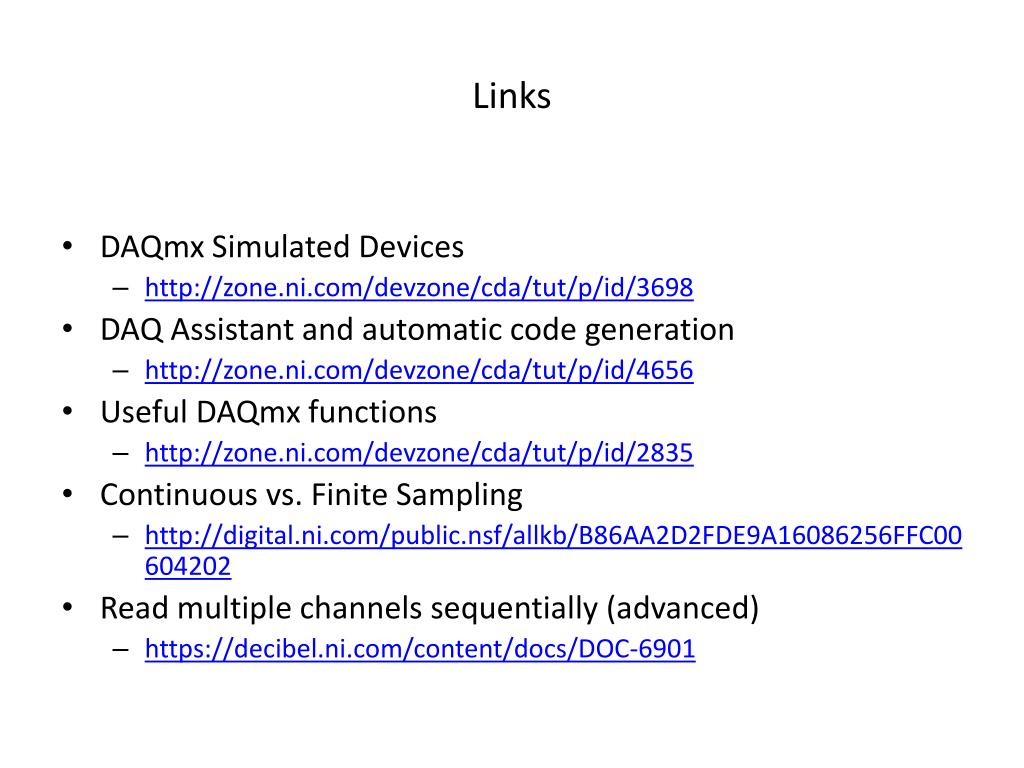

  38. Links • DAQmx Simulated Devices • http://zone.ni.com/devzone/cda/tut/p/id/3698 • DAQ Assistant and automatic code generation • http://zone.ni.com/devzone/cda/tut/p/id/4656 • Useful DAQmx functions • http://zone.ni.com/devzone/cda/tut/p/id/2835 • Continuous vs. Finite Sampling • http://digital.ni.com/public.nsf/allkb/B86AA2D2FDE9A16086256FFC00604202 • Read multiple channels sequentially (advanced) • https://decibel.ni.com/content/docs/DOC-6901
