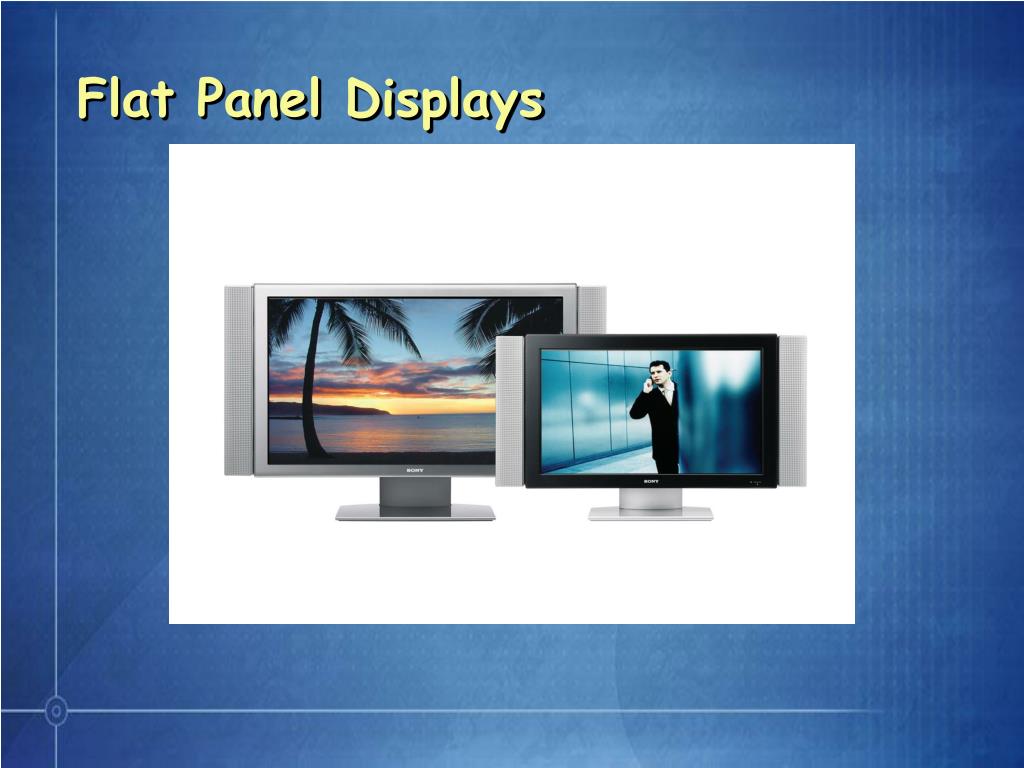

  1. Flat Panel Displays

  2. Flat Panel Displays by Size • 32” • FWD32LX1 (LCD Pro Monitor) - $2,500 • KDL32S2000 (LCD Consumer TV) - $1,900 • KLV32U100M (LCD Consumer Monitor)- $1,700 • 40” • FWD40LX1 (LCD Pro Monitor) - $5,550 • KDL40S2000 (LCD Consumer TV) - $2,700 • KLV40U100M (LCD Consumer Monitor) - $2,600 • 42” • FWD42PV1 (Plasma Pro Monitor) - $2,500 • FWD42PX2 (Plasma Pro Monitor) - $3,350 46” KDL46S2000 (LCD Consumer TV) - $3,700 50” FWD50PX2 (Plasma Pro Monitor) - $4,400

  3. Professional Displays Plasma & LCD Colors:Silver and Black(LCD matte colors now available) LCD Colors:Crystal Silver, Frosted Black and Pearl White Optional detachable speakers available in matching colors Side covers create clean look (shown with optional speakers)*Note: FWD-42PV1 does not include side doors Top mounted button placement keeps front bezel uncluttered

  4. Professional LCD Displays FWD-40LX1 40-inch (WXGA / 1366 x 768)TFT LCDPC Input (DVI / Analog) Video Inputs (DVI-HDCP / Analog HD / Composite / S-Video)Dual card slots for digital signage and expandability FWD-32LX1/R32-inch (WXGA / 1366 x 768)TFT LCDVideo Inputs (DVI-HDCP / Analog HD / Composite / S-Video)Single card slot for digital signage and expandability LCD Available colors:Crystal Silver, Frosted Black and Pearl White **NEW** FWD-40LX1I & FWD-32LX1/RI Matte finish design – like PDP monitors. Target:Lower cost for digital signage bid business.

  5. FWD-32LX1/R / FWD-40LX1 LCD Displays Common Features • 1366 x 768 Progressive LCD Panels • 60,000 hour rated life (half brightness) • 16mS response time • High Brightness and Contrast • Wide viewing angle (170 degrees H & V) • RGB/YUV (HD-15), DVI-D, Composite • RS232 and IR Multi-function remote • Closed caption decoder • 7Watt x 2 Stereo Power Amp built-in • Auto videowall mode (up to 16 x 16) • Pip / PaP

  6. FWD-32LX1/R - LCD Product Specifications Panel Resolution 1366 x 768 Pixel Pitch 0.51 x 0.51 mmViewing Angle (H/V) 170 degree x 170 degree Contrast Ratio 1,000:1 Inputs DVI (HDCP) 1 (3m DVI cable provided) Analog (Component/RGB) 1 (3m Component to HD15 cable provided) Option Video Card 1 S-Video (in/out) / Composite (BNC) (In/Out) (BNC adapter provided) Option Slots 2 (One slot populated with S-Video/Composite card)RS232C 1 (9 Pin serial) Control-S 2 (In and Out – for IR input) Features PIP/PAP Picture In Picture / Picture & Picture Multi-Display Set up Quick set up for display walls and matrix Control Systems RS232 control, IR input/out through Control-S, discrete IR codes for all inputs General Information Dimensions 31.57 x 19.37 x 4.21 (inches) / 802 x 492 x 107 (mm) Weight 38.58 lbs / 17.5 kg (approx) Power Consumption 220W FCC Regulation FCC Class B Available in Silver, Black & Pearl White Crystal Bezel finish Optional Silver & Black Speakers Side covers create clean look(speakers optional)

  7. FWD-40LX1 - LCD Product Specifications Panel Resolution 1366 x 768 Pixel Pitch 0.648 x 0.648 mmViewing Angle (H/V) 178 degree x 178 degree Contrast Ratio 1,000:1 Inputs DVI (HDCP) 1 (3m DVI cable provided) Analog (Component/RGB) 1 (3m Component to HD15 cable provided) Option Video Card 1 S-Video (in/out) / Composite (BNC) (In/Out) (BNC adapter provided) Option Slots 2 (One slot populated with S-Video/Composite card)RS232C 1 (9 Pin serial) Control-S 2 (In and Out – for IR input) Features PIP/PAP Picture In Picture / Picture & Picture Multi-Display Set up Quick set up for display walls and matrix Control Systems RS232 control, IR input/out through Control-S, discrete IR codes for all inputs General Information Dimensions 39.13 x 23.5 x 4.92 (inches) / 994 x 597 x 125 (mm) Weight 60.63 lbs / 27.5 kg (approx) Power Consumption 220W FCC Regulation FCC Class B Available in Silver, Black & Pearl White Crystal Bezel finish Optional Silver & Black Speakers Side covers create clean look(speakers optional)

  8. Consumer Bravia LCD TVs KDL-46S2000 46-inch (WXGA / 1366 x 768) KDL-40S200040-inch (WXGA / 1366 x 768) KDL-32S200040-inch (WXGA / 1366 x 768) Common Features Latest S-PVA LCD TechnologyBravia Engine Technology ATSC (HD) Tuner 8mS Response Time 1300:1 Contrast Ratio PC Input (HD15) Video Inputs (HDMI / Analog HD / Composite / S-Video)

  9. Consumer Bravia LCD Monitors KLV-40U100M 40-inch (WXGA / 1366 x 768) KLV-32U100M32-inch (WXGA / 1366 x 768) Common Features PVA LCD TechnologyPC Input (HD15) Video Inputs (HDMI / Analog HD / Composite / S-Video)

  10. Consumer Bravia XBR TVs KDL-V40XBR1 40-inch (WXGA / 1366 x 768) Common Features 7th Generation LCD TechnologyWEGA Engine Processing ATSC Tuner PC Input (HD15) Video Inputs (HDMI / Analog HD / Composite / S-Video)

  11. Consumer Grand WEGA SXRD TVs KDS-R60XBR1 60-inch HDTV (1920 x 1080) KLS-60A200060-inch HDTV(1902 x 1080) KDS-55A200055-inch HDTV(1902 x 1080) KDS-50A200050-inch HDTV(1902 x 1080) Common Features SXRD Rear Screen LCD TechnologyWEGA Engine Processing 2.5mS Response Time ATSC Tuner PC Input (HD15) Video Inputs (HDMI / Analog HD / Composite / S-Video)

  12. Plasma Displays FWD-50PX250-inch wide (WXGA / 1366 x 768)HD Professional Plasma DisplayPC Input (DVI / Analog) Video Inputs (DVI-HDCP / Analog HD / Composite / S-Video)Dual card slots for digital signage and expandability FWD-42PX2 42-inch wide (WXGA / 1024 x 768)HD Professional Plasma DisplayPC Input (DVI / Analog) Video Inputs (DVI-HDCP / Analog HD / Composite / S-Video)Dual card slots for digital signage and expandability Available colors: Silver and Black FWD-42PV142-inch wide (WVGA / 852 x 480)ED Professional Plasma DisplayPC Input (DVI / Analog) / Video (Composite / S-Video / Component)Dual card slots for digital signage and expandability FWD-42PV1P (portrait model)42-inch wide (WVGA / 852 x 480)ED Professional Plasma DisplayPC Input (DVI / Analog) / Video (Composite / S-Video / Component)Dual card slots for digital signage and expandability Available color: Black

  13. PlasmaPro Flat Panel Displays Common Features • Composite, RGB/YUV (HD-15), Y/C Inputs • 60,000 hour rated life (1/2 brightness) • Excellent Brightness and Contrast • 10-bit processing – 1.07 Billion Colors • Built-in screen saver modes • Accepts SD, HD and PC signals • Closed caption decoder • 2yr warranty parts & labor, 1 yr panel • 7Watt stereo amplifier built-in • Available in Black or Silver

  14. FWD-50PX2 - Plasma Product Specifications Panel Resolution 1366 x 768 Contrast Ratio 10,000:1 Colors 1.07 billion Panel Life 60,000 hours to half brightness Inputs DVI (HDCP) 1 (3m DVI cable provided) Analog (Component/RGB) 1 (3m Component to HD15 cable provided) Option Video Card 1 S-Video (in/out) / Composite (BNC) (In/Out) (BNC adapter provided) Option Slots 2 (One slot populated with S-Video/Composite card)RS232C 1 (9 Pin serial) Control-S 2 (In and Out – for IR input) Features PIP/PAP Picture In Picture / Picture & Picture Multi-Display Set up Quick set up for display walls and matrix Anti-Image Retention Auto Dimmer detects still image and dims display to reduce potential for image retention Control Systems RS232 control, IR input/out through Control-S, discrete IR codes for all inputs General Information Dimensions 1256 x 753 x 112 mm Weight 44 kg Power Consumption 440W FCC Regulation FCC Class B Available in Black and Silver finish Optional Silver & Black Speakers Side covers create clean look(speakers optional)

  15. FWD-42PX2 - Plasma Product Specifications Panel Resolution 1024 x 768 Contrast Ratio 10,000:1 Colors Over billion Panel Life 60,000 hours to half brightness Inputs DVI (HDCP) 1 (3m DVI cable provided) Analog (Component/RGB) 1 (3m Component to HD15 cable provided) Option Video Card 1 S-Video (in/out) / Composite (BNC) (In/Out) (BNC adapter provided)Option Slots 2 (One slot populated with S-Video/Composite card) RS232C 1 (9 Pin serial) Control-S 2 (In and Out – for IR input) Features PIP/PAP Picture In Picture / Picture & Picture Anti-Image Retention Orbit / Inversion Control Systems RS232 control, IR input/out through Control-S, discrete IR codes for all inputs General Information Dimensions 40.75” x 24.875” x 4.0” (WxHxD) Weight 66 lbs Power Consumption 400W FCC Regulation FCC Class B Available in Black and Silver finish Optional Silver & Black Speakers Side covers create clean look(speakers optional)

  16. FWD-42PV1 - Plasma Product Specifications Panel Resolution 852 x 480 Contrast Ratio 10,000:1 Colors 1.07 billion Panel Life 60,000 hours to half brightness Inputs DVI (HDCP) 1 (3m DVI cable provided) Analog (Component/RGB) 1 (3m Component to HD15 cable provided) Option Video Card 1 S-Video (in/out) / Composite (BNC) (In/Out) (BNC adapter provided) Option Slots 2 (One slot populated with S-Video/Composite card)RS232C 1 (9 Pin serial) Control-S 2 (In and Out – for IR input) Features PIP/PAP Picture In Picture / Picture & Picture Multi-Display Set up Quick set up for display walls and matrix Anti-Image Retention Orbit / Inversion Control Systems RS232 control, IR input/out through Control-S, discrete IR codes for all inputs General Information Dimensions 40.75” x 24.875” x 3.375” (WxHxD) Weight 59 lbs, 8 oz Power Consumption 260W FCC Regulation FCC Class B Available in Black and Silver finish Optional Silver & Black Speakers Side covers create clean look(speakers optional)

  17. Supported Accessories (Pro) Optional Cards Detachable Speakers BKM-FW115xBNC Component/RGB Card BKM-FW32Network Control Card BKM-FW12Active Loop Through Card (Component / RGB) SS-SPxxFW/S Wall Mounts & Table Stands ICS-SP20TV Tuner Card with Lodging Support BKM-FW50Network Media Card Content Networking / Digital Signage SFM1 or SFM2Flat Wall Mount PLP-91/DTilt Wall Mount EBS-N200DNetwork Media Player BKM-FW50Network Media Card EBS-N100Network Control Device SPM-TRI/CClear Acrylic Base SPM-TRI/ESilver Color Base

  18. Pro Flat Panel DisplaysColor Matrix Crystal Silver Pearl White Frosted Black Silver Blue Black Color Matrix LCD 40LX1 32LX1/R 40LX1/I 32LX1/RIPlasma 50PX2 42PX2 42PV1

  19. Flat Panel Display Integration Options • BKFW-32 – Int. Network Interface (FWD only) • BKFW-50 – Network Media Interface • EBS-N100 – Ext. Network Interface (all) • EBS-N200 – Ext. Network / Streaming Decoder • EBS-N200D – Ext. Network / Streaming Decoder • Includes 2GB Hard Drive for local content storage • EBS-SP10 – Ext. Cable TV tuner w/Hospitality System • EBS-SP15 – Hospitality System Programming Unit • ICSSP20 – Int. Cable TV tuner w/ Hospitality System • NSP-1 Ext. Network Storage Player • SSSP-series Side Speakers • SPMTRI/C Clear Base Table Stand

  20. Digital Signage Options • EBS-N200 / N200D • IP Streaming decoder / controller • PC-based content sent over IP network • N200D includes local content storage • Display status and control over network. • PC application provides playlisting of content and stream encoding.

  21. EBS-N200DNetwork Control / Player Network Protocol Support Internet IP, TCP, UDP, ICMP, ARP, DHCP HTTP, FTP, IGMP, Remote DisplayHard Disk Drive 2.0 GB available for user storage Device Support Plasma 42PV1, 42X1, 50PX2LCD 40LX1, 32LX1/R Control InterfaceWeb Page, PJNET, Display Commander Power Input Voltage 12V DC +/- 10% Power Dissipation 20 Watts Environmental Operating Temperature 0° to 70° C Operating Humidity 80% maximum relative humidity, non-condensing General Dimensions 2.0" H x 7.0" W x 7.0" DUnit Weight 2.0 lb Video Output VGA Up to 1600x1200 S-Video 720x480 Composite 720x480 Audio Output Analog Stereo (L/R), Center, Surround Network Connections LAN 10/100BASE-T Local USB1.1 (x2) Control Input Ethernet / USB Control Output RS232 DB-9 Ethernet RJ45 Video Format Support MPEG1/2/4 MP@MLAVI, VOB Graphics Format Support JPEG, GIF, TIF, PNG, HTML, Flash, PowerPoint, PDFAudio Format Support MP3

  22. Digital Signage Options • NSP-1 Network Storage Player • Internal 40GB HD for content. • Multiple display layers for video, text, graphics and background. • External video input from tuner or VCR • Streaming decoder for immediate playout. • Flash file playback • Web browser for display • Synchronized playback • Web server for control and status.

  23. BKM-FW50Network Media Interface Network Connections LAN 10/100BASE-T Control Input Ethernet Control Output RS232 DB-9 Ethernet RJ45 Video Format Support MPEG2 Graphics Format Support JPEG, GIF, PNGAudio Format Support MP3Storage Compact Flash card slot for local storage Device Support Plasma 42PV1, 42PX2, 50PX2LCD 40LX1, 32LX1/R Control InterfaceWeb Page, SNMP

  24. Digital Signage Made Simple Compact Flash Card BKM-FW50Digital Signage Card Result is a clean, internal digital signage solution Also available in portrait orientation • Automatic Timer Function (starts with power on / stops with power off) • JPG / MPEG2 play lists with MP3 audio background • Stream from Network Server, or local playback

  25. Real World Solution San Diego Airport Authority Request: Eight 40LX1 LCD Monitors for running portable DVD player strapped to back Solution: Eight 40LX1 LCD Monitors Internal BKM-FW50 card Compact Flash Cards MPEG2 Video ContentUsage: Airport Terminals with Automatic On/Off Timer (No Networking) 6:00 AM Display Turns On – FW50 Starts Video 11:00 PM Display Turns Off 17-hours per day, 7 days a week Launched November 29, 2005 Two weeks after launch, Airport Authority ordered four more systems

  26. Introducing BKM-FW40 June Introduction High Definition Streaming Card Specifications Video Formats: - MPEG2 480i, 480p, 720p, 1080i (supports MPEG2-TS and RTP over UDP/IP) (system layer protocol for lip-synch) - MPEG4 - MPEG4 – H.264 (up to 1080i) - WM9HD (up to 1080i) - AVI Graphic Formats: - JPEG, TIF, GIF, PNG, BMP, HTML, Web Audio Formats: - MP3, AACControl Software: Display Commander (N200D) SNMPInputs: - Ethernet (10/100 Base-T) - Mini PCI bus (for Compact Flash or Wireless 802.11g) - USB2.0 (TBD) (for external storage) ID TBD

  27. Real World Solution Arsenal Football Club Request: 300 40LX1 LCD Monitors for HD simulcast broadcast of games Solution: 300 40LX1 LCD Monitors Internal BKM-FW40 card MPEG4 H.264 Video Integrated with Tandburg ServerLaunch: April 15, 2006 shipment
