  1. SAT-based verification: underlying methods Mary Sheeran Chalmers University of Technology and Prover Technology AB

  2. Synchronous Observer ok Program Obs

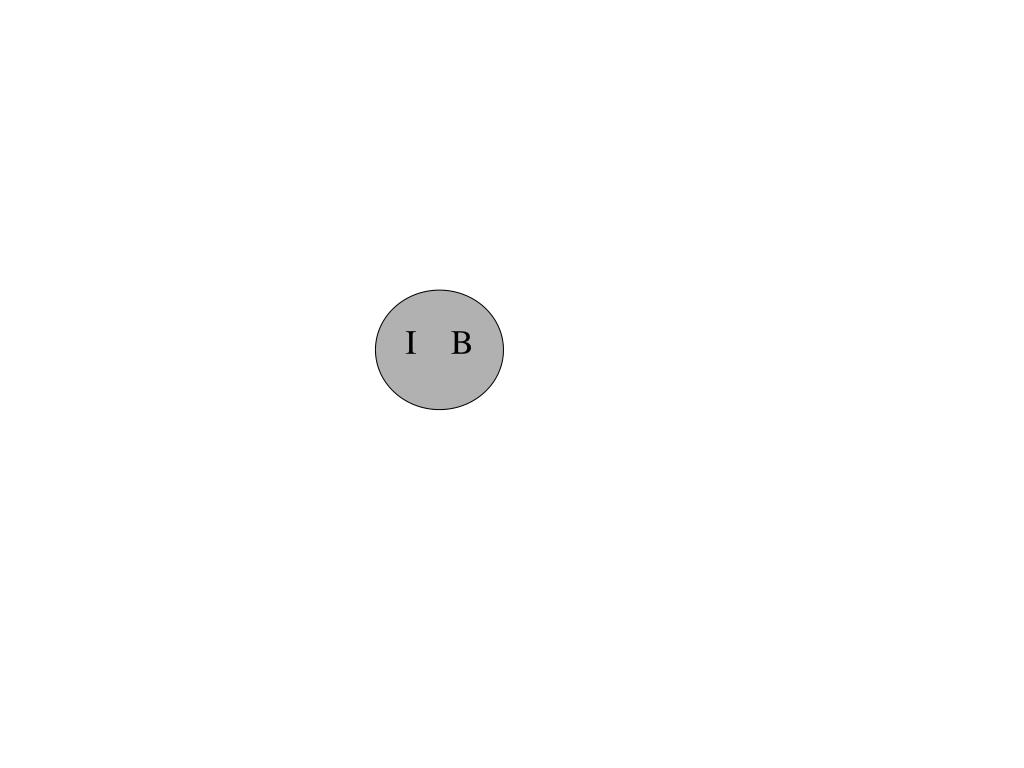

  3. I B

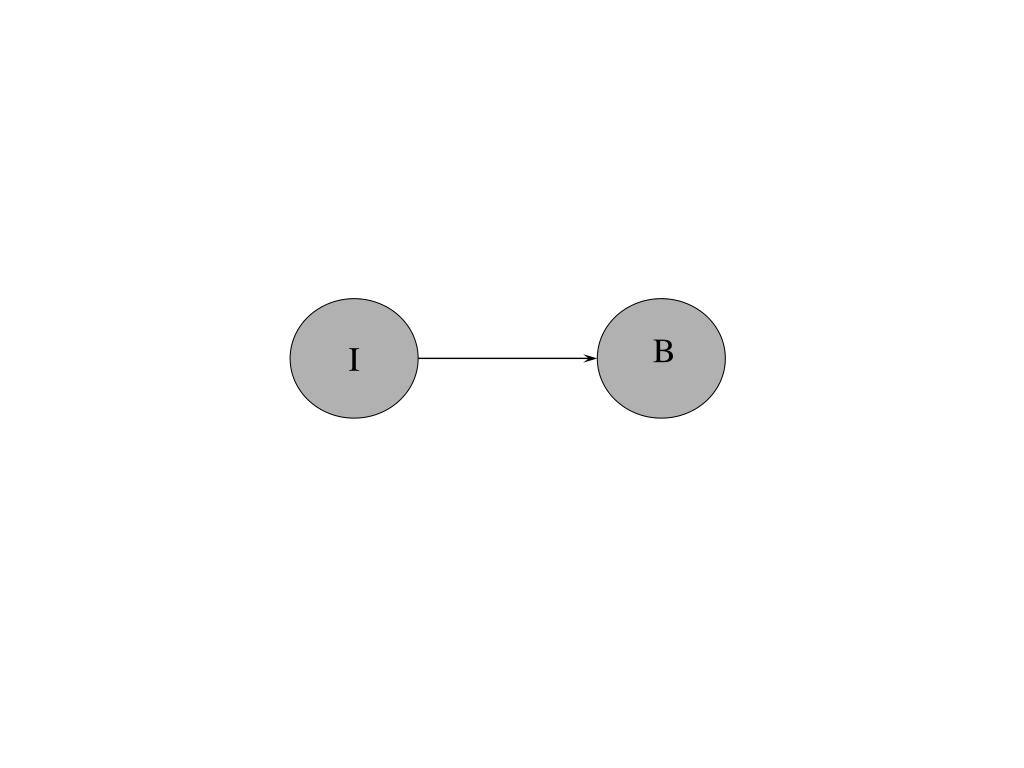

  4. B I

  5. I B

  6. I B

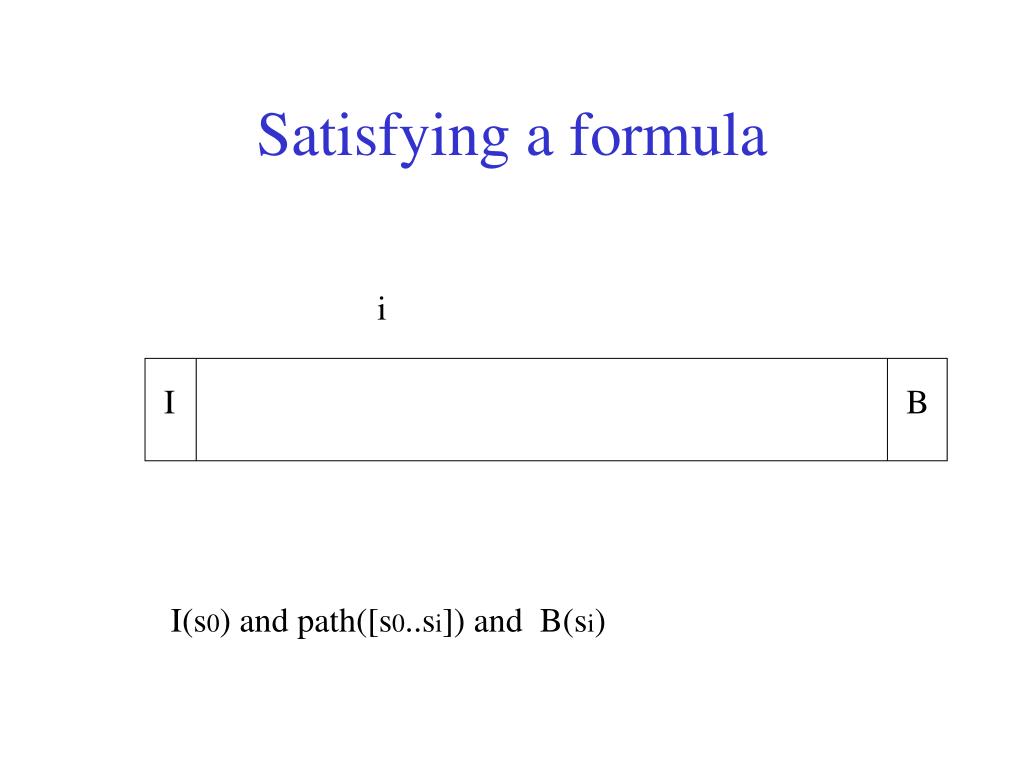

  7. i I B Satisfying a formula I(s0) and path([s0..si]) and B(si)

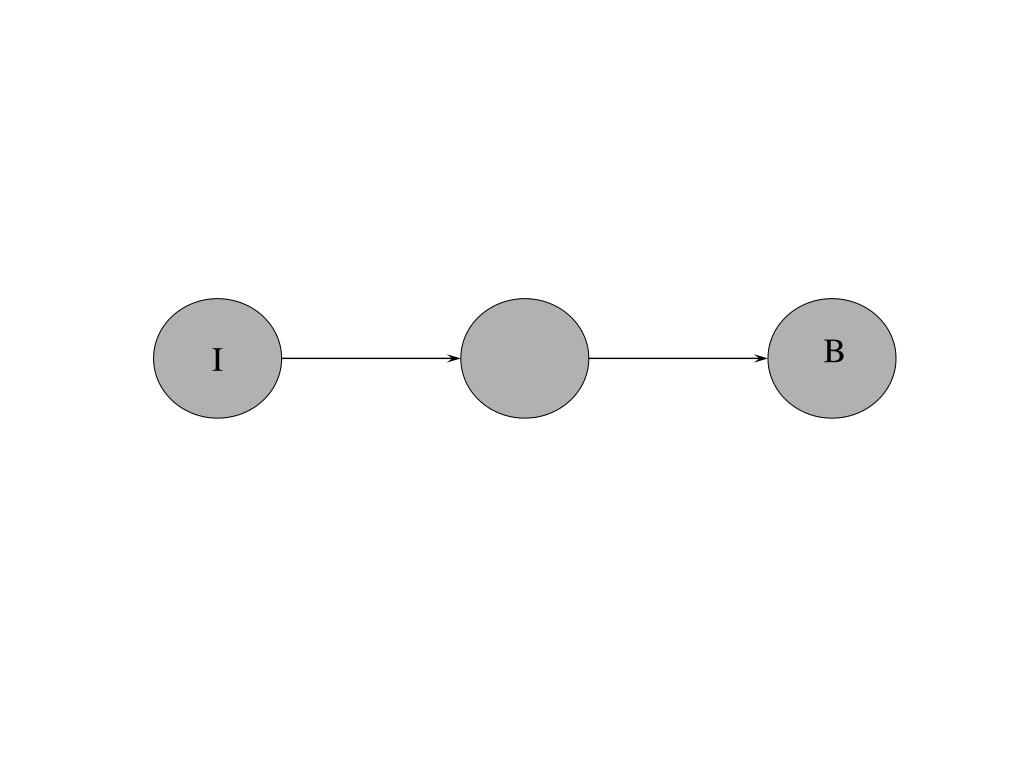

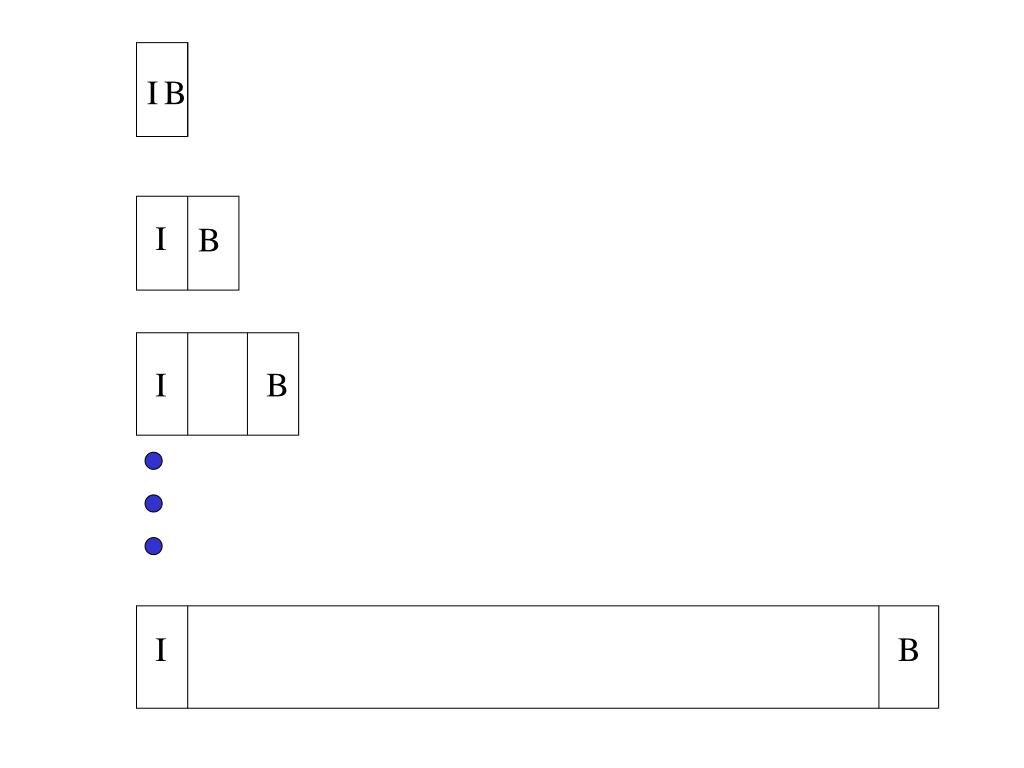

  8. I B I B I B I B

  9. If system is bad • Finds a shortest countermodel • Error trace for debugging

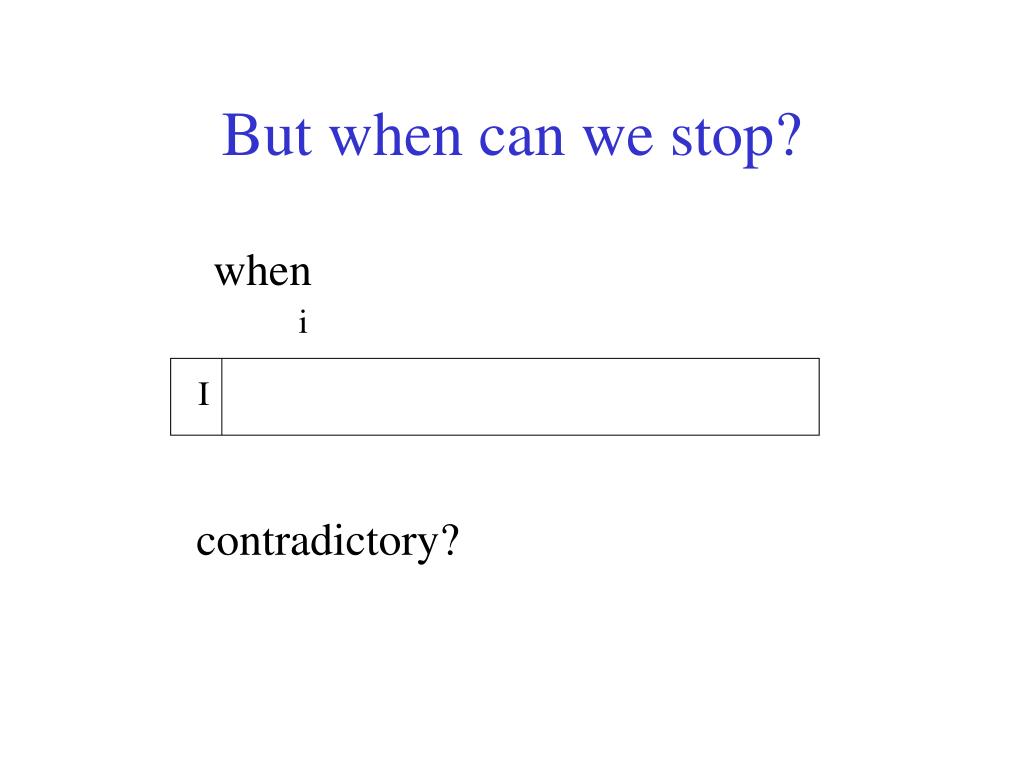

  10. I But when can we stop? when i contradictory?

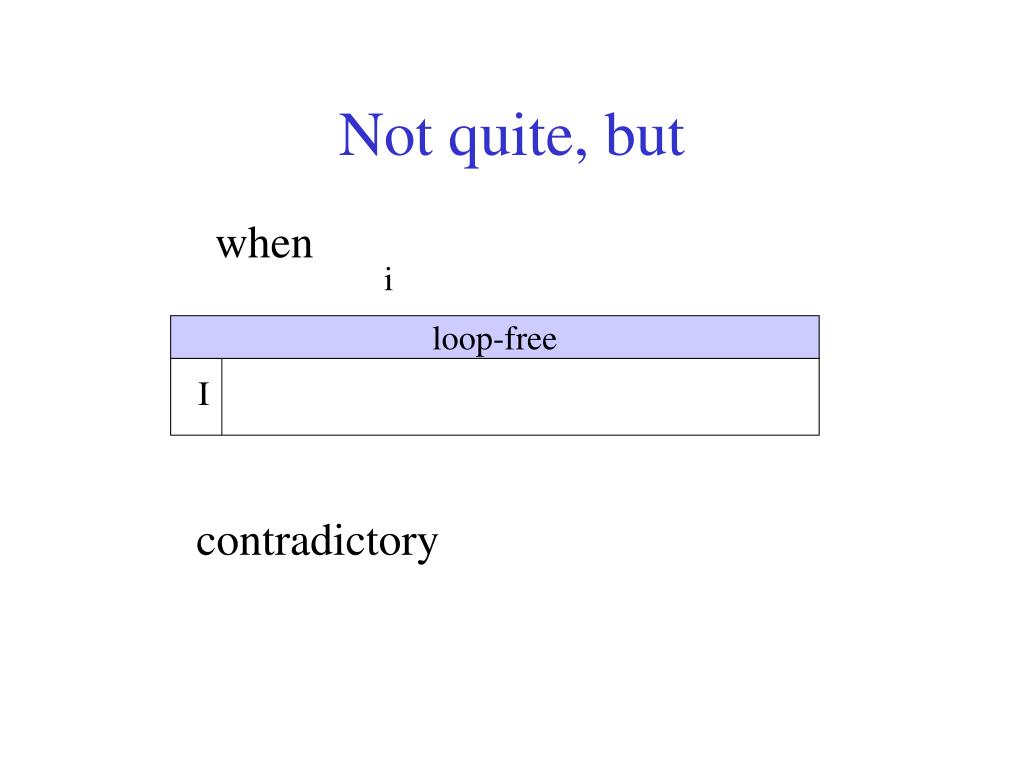

  11. I Not quite, but when i loop-free contradictory

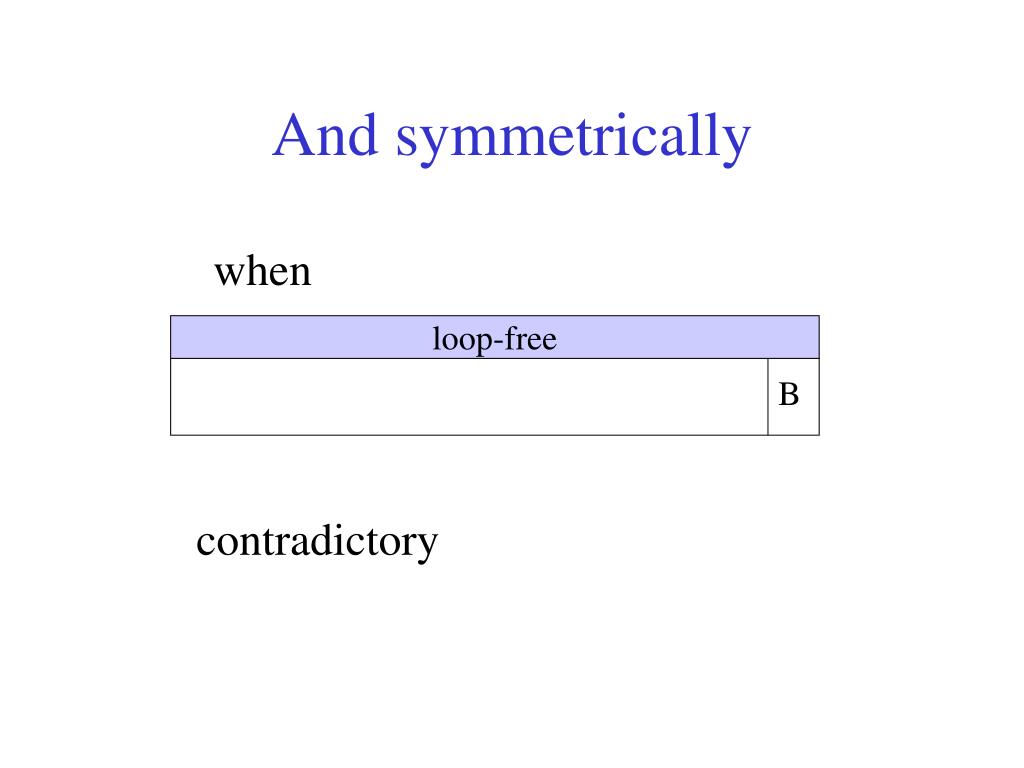

  12. And symmetrically when loop-free B contradictory

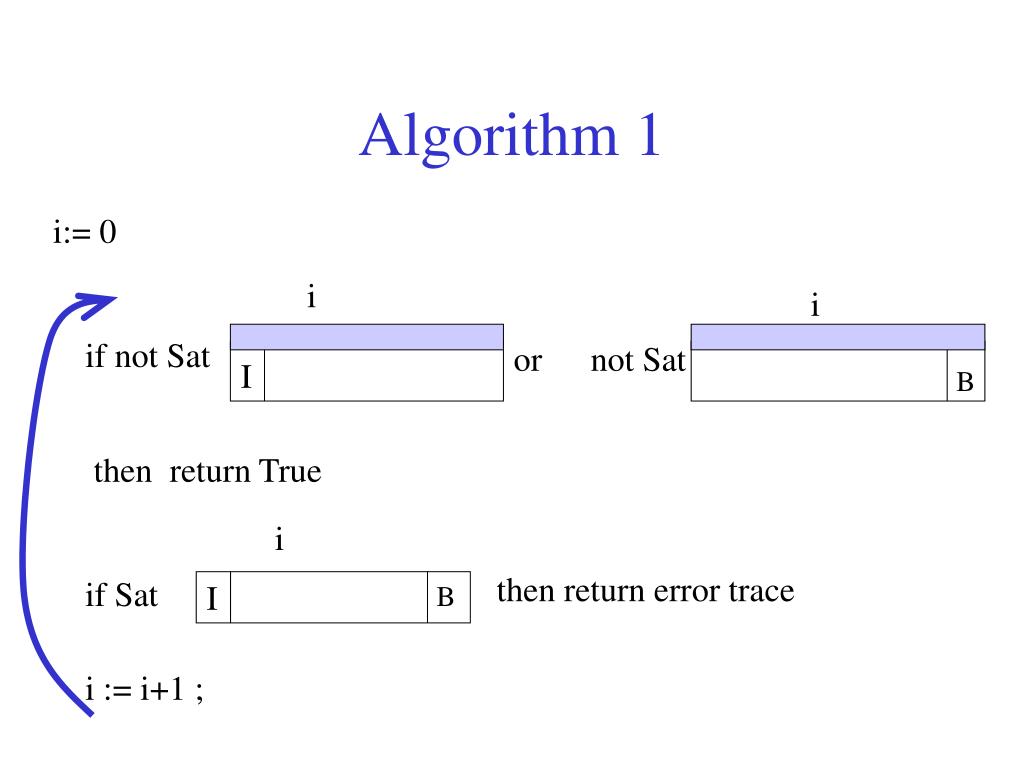

  13. I i I B Algorithm 1 i:= 0 i i if not Sat or not Sat B then return True then return error trace if Sat i := i+1 ;

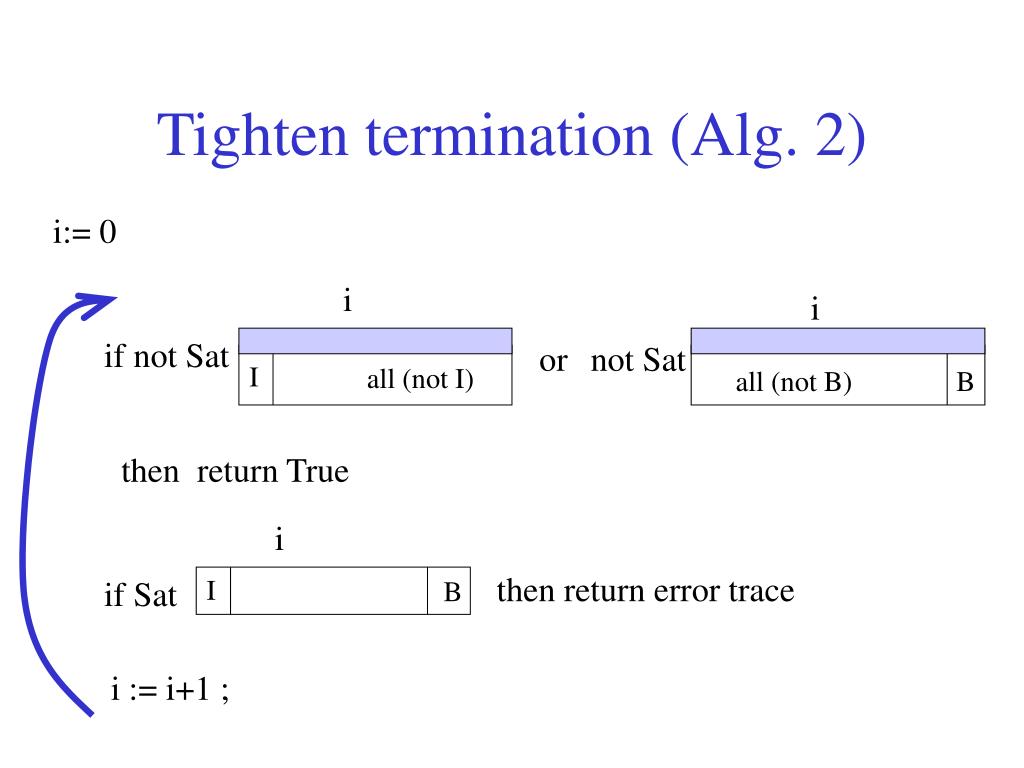

  14. I i I B Tighten termination (Alg. 2) i:= 0 i i if not Sat or not Sat all (not I) all (not B) B then return True then return error trace if Sat i := i+1 ;

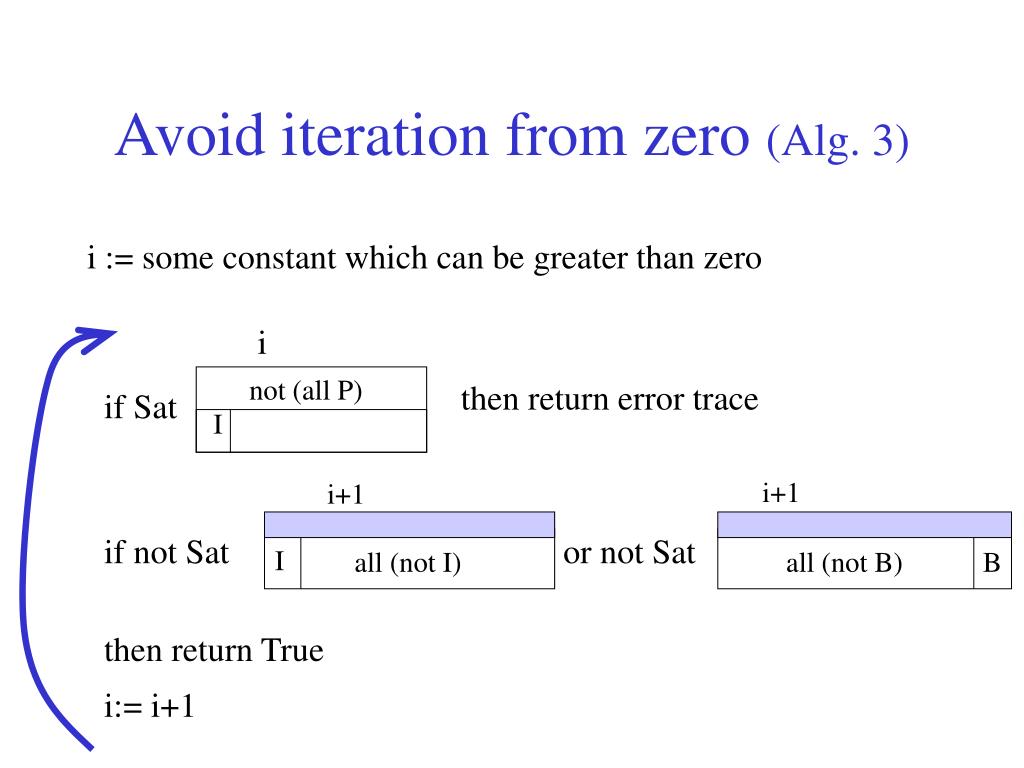

  15. Avoid iteration from zero (Alg. 3) i := some constant which can be greater than zero i not (all P) then return error trace if Sat I i+1 i+1 if not Sat or not Sat I all (not I) all (not B) B then return True i:= i+1

  16. Base I

  17. Base I

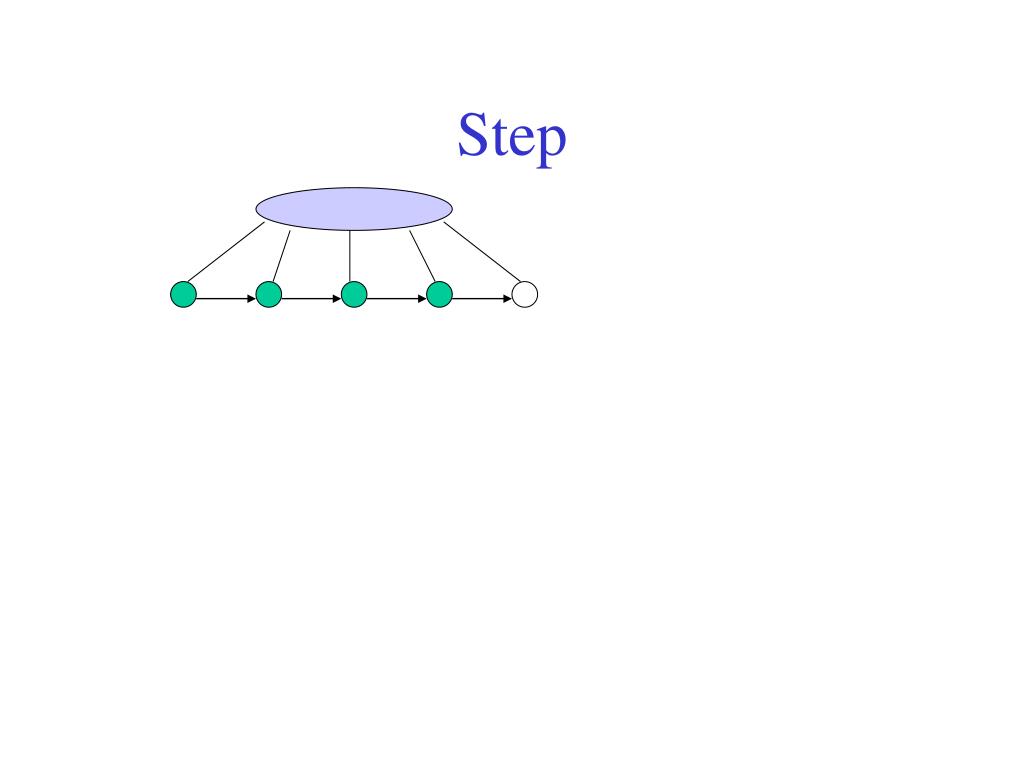

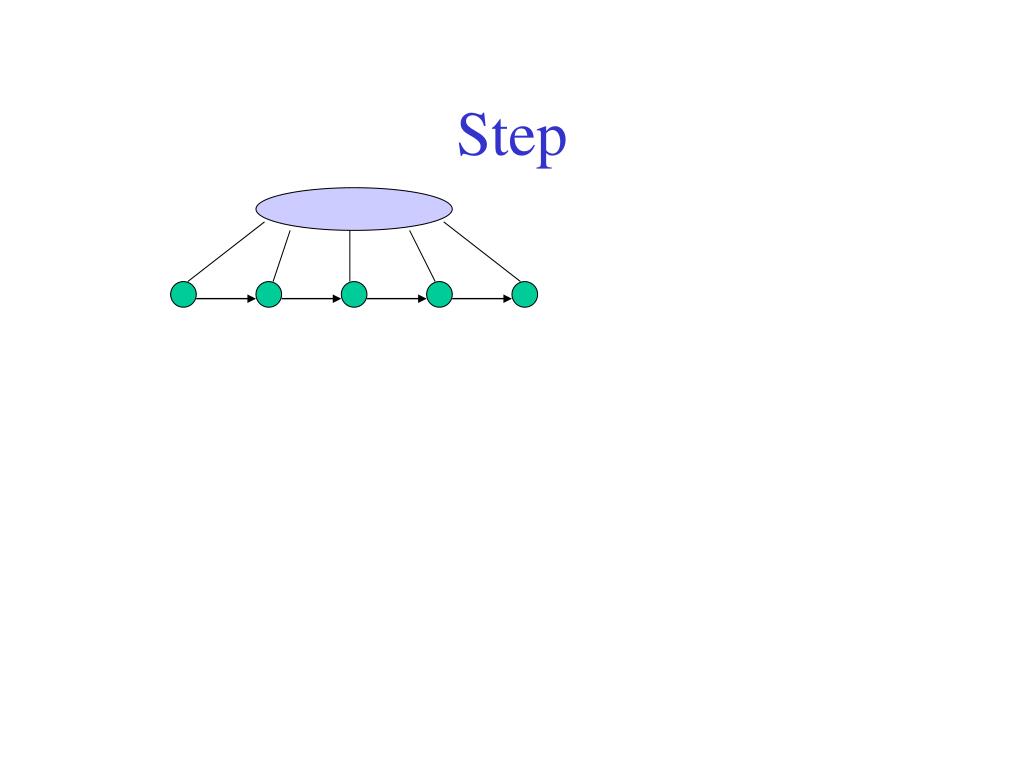

  18. Step

  19. Step

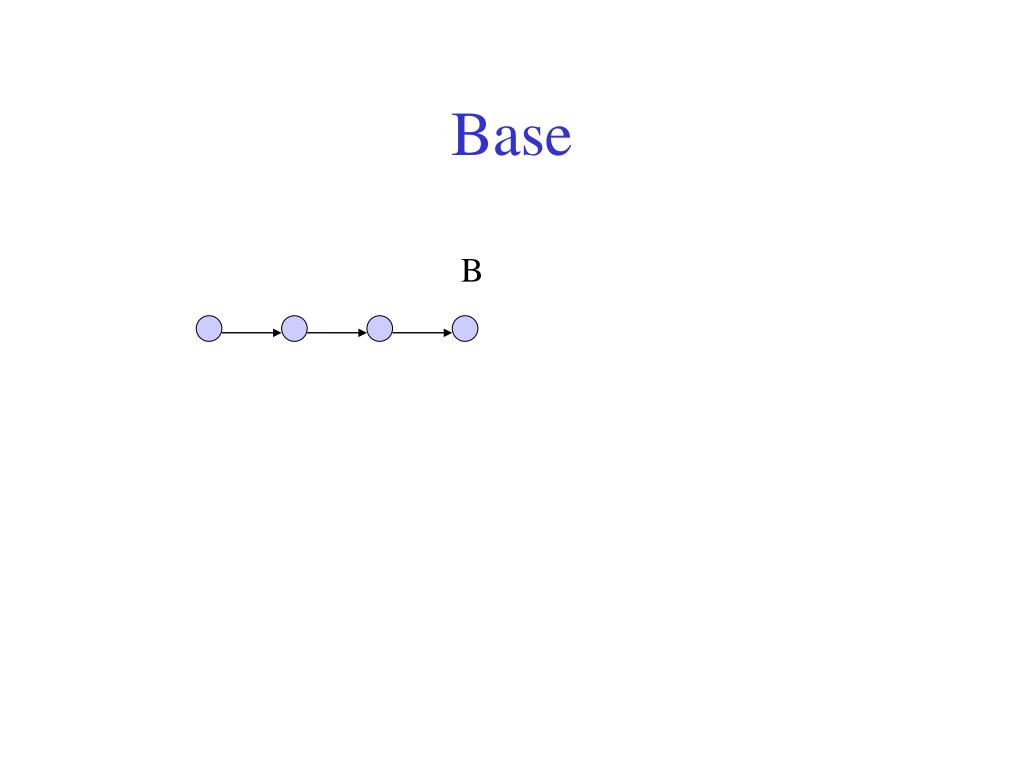

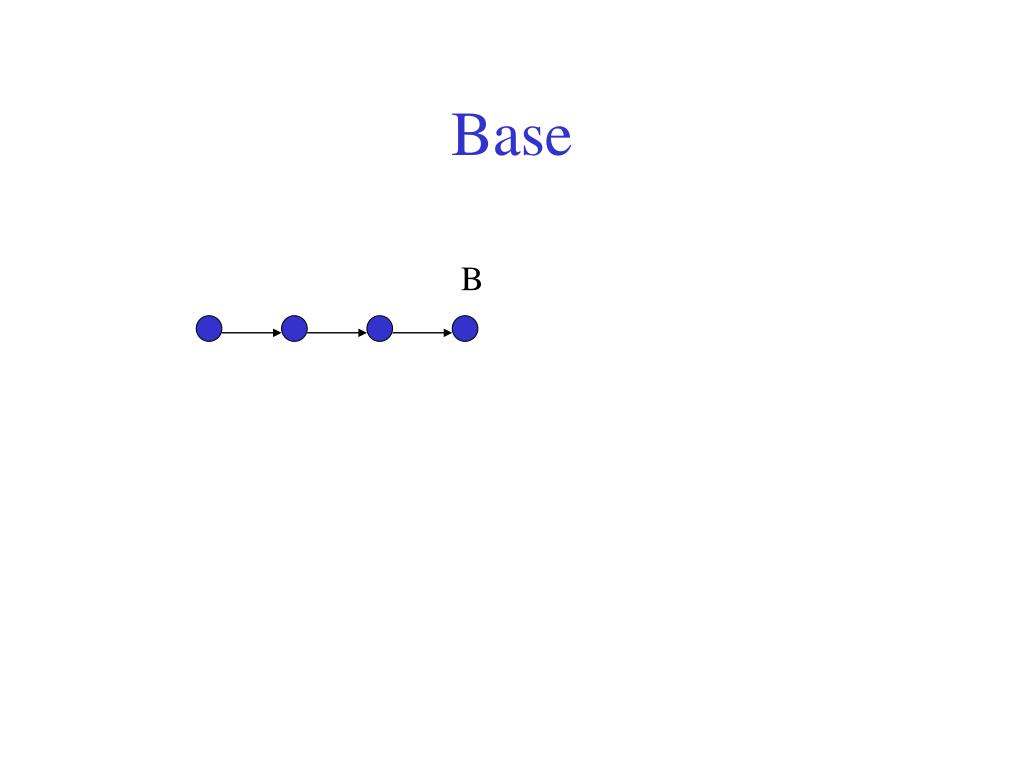

  20. Base B

  21. Base B

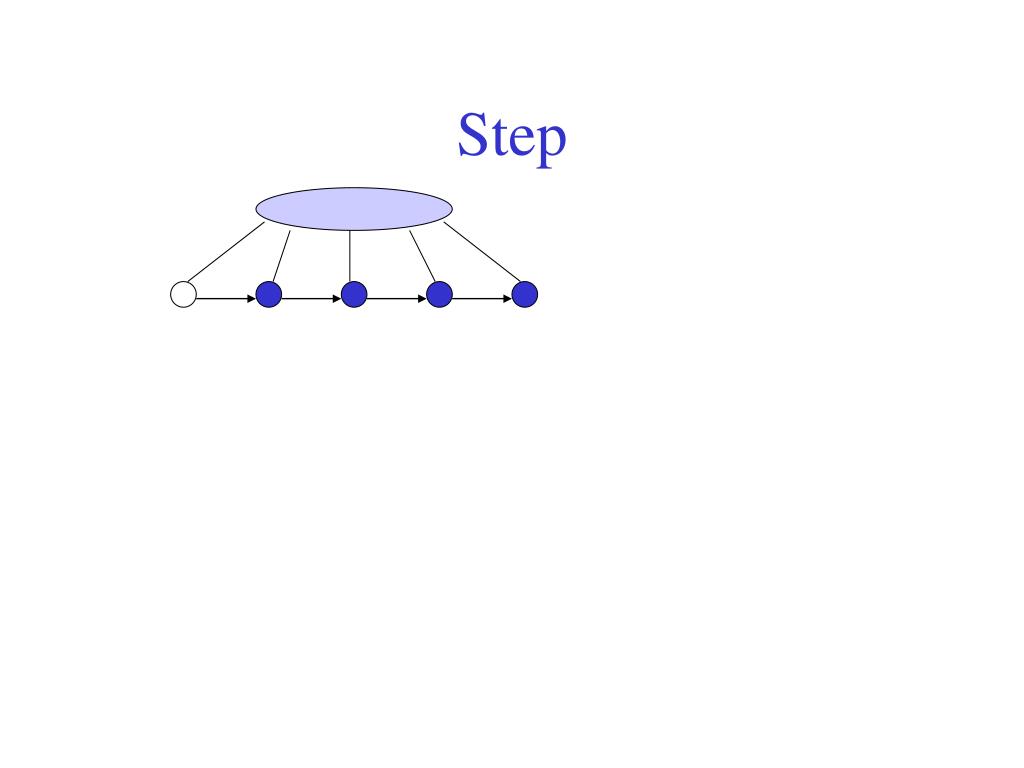

  22. Step

  23. Step

  24. Complete method i := some constant which can be greater than zero i not (all P) then return error trace if Sat I i+1 i+1 if not Sat or not Sat I all (not I) all (not B) B then return True i:= i+1

  25. Strengthen i := some constant which can be greater than zero i not (all P) then return error trace if Sat I i+1 i+1 if not Sat or not Sat I all (not I) all (not B) B then return True i:= i+1

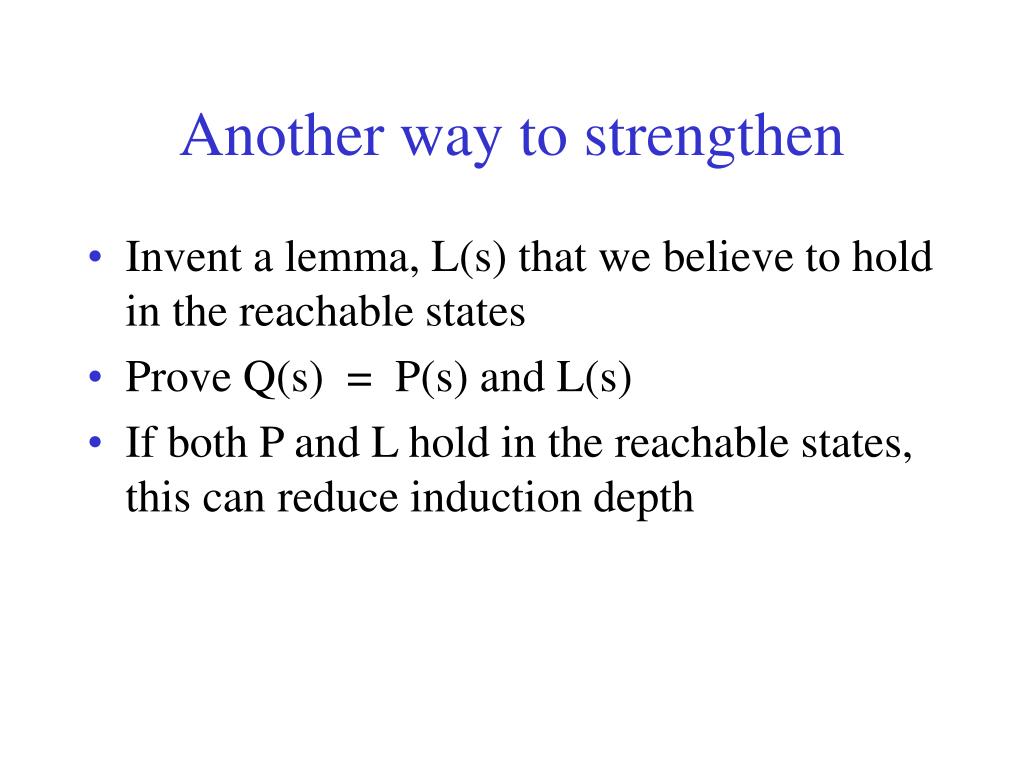

  26. Another way to strengthen • Invent a lemma, L(s) that we believe to hold in the reachable states • Prove Q(s) = P(s) and L(s) • If both P and L hold in the reachable states, this can reduce induction depth

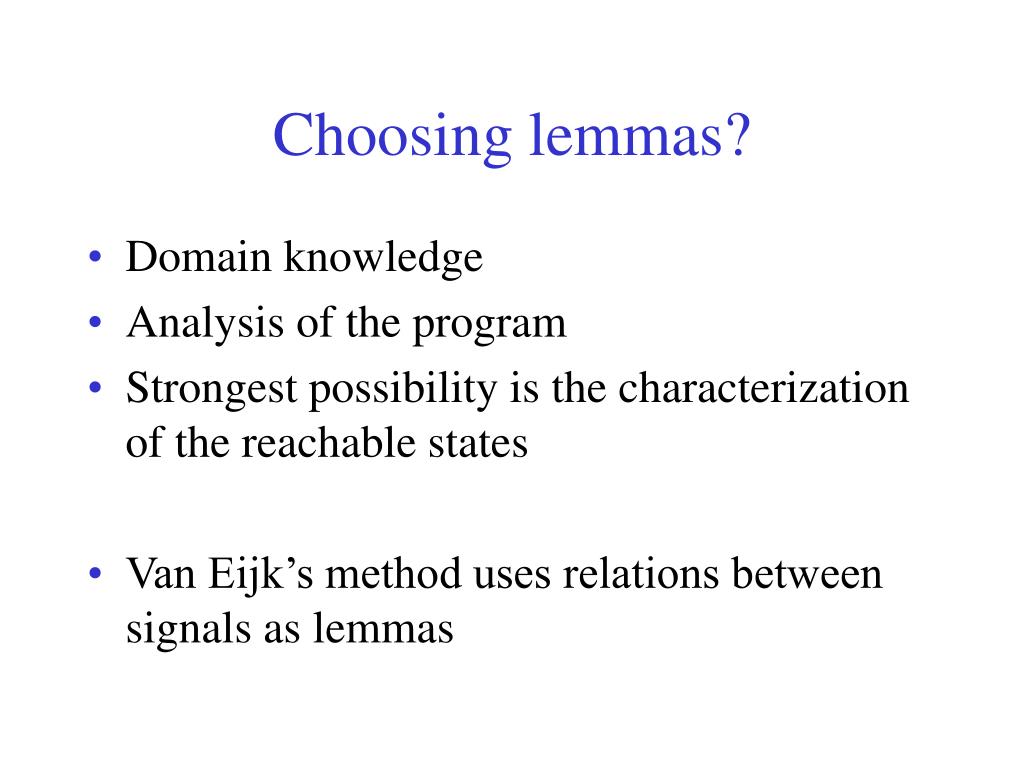

  27. Choosing lemmas? • Domain knowledge • Analysis of the program • Strongest possibility is the characterization of the reachable states • Van Eijk’s method uses relations between signals as lemmas

  28. Reachability analysis • Standard approach to safety property verification using Binary Decision Diagrams (BDDs) • Generate larger and larger subset of the reachable states. Stop when no new states added • Check whether intersects with bad states

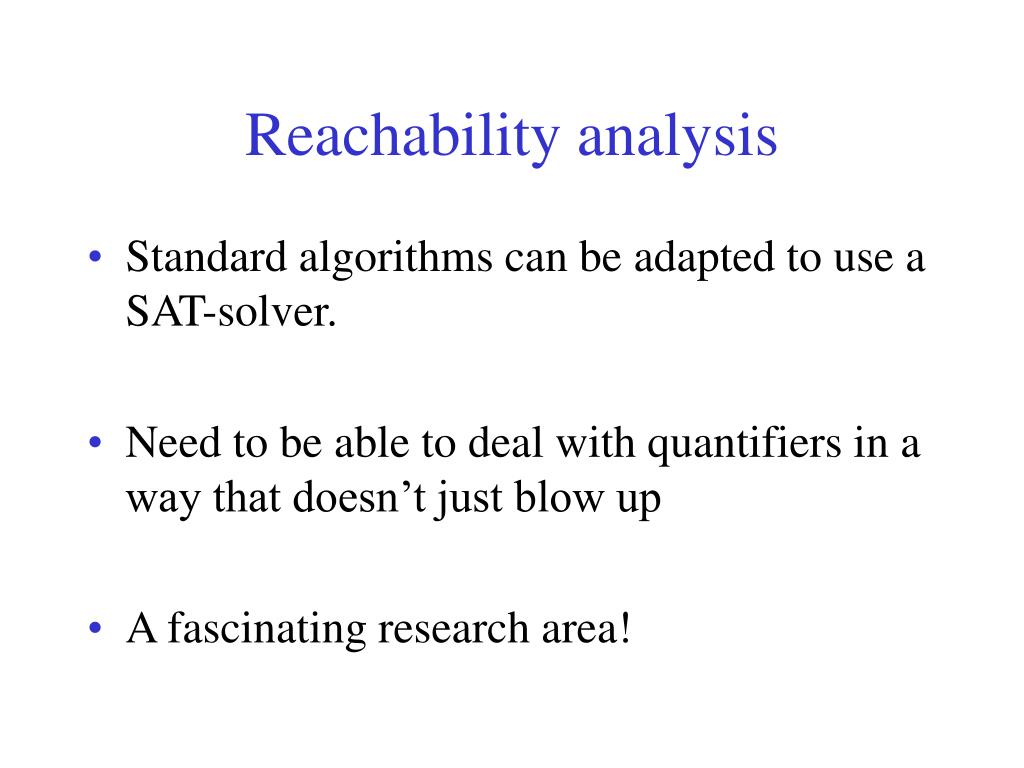

  29. Reachability analysis • Standard algorithms can be adapted to use a SAT-solver. • Need to be able to deal with quantifiers in a way that doesn’t just blow up • A fascinating research area!

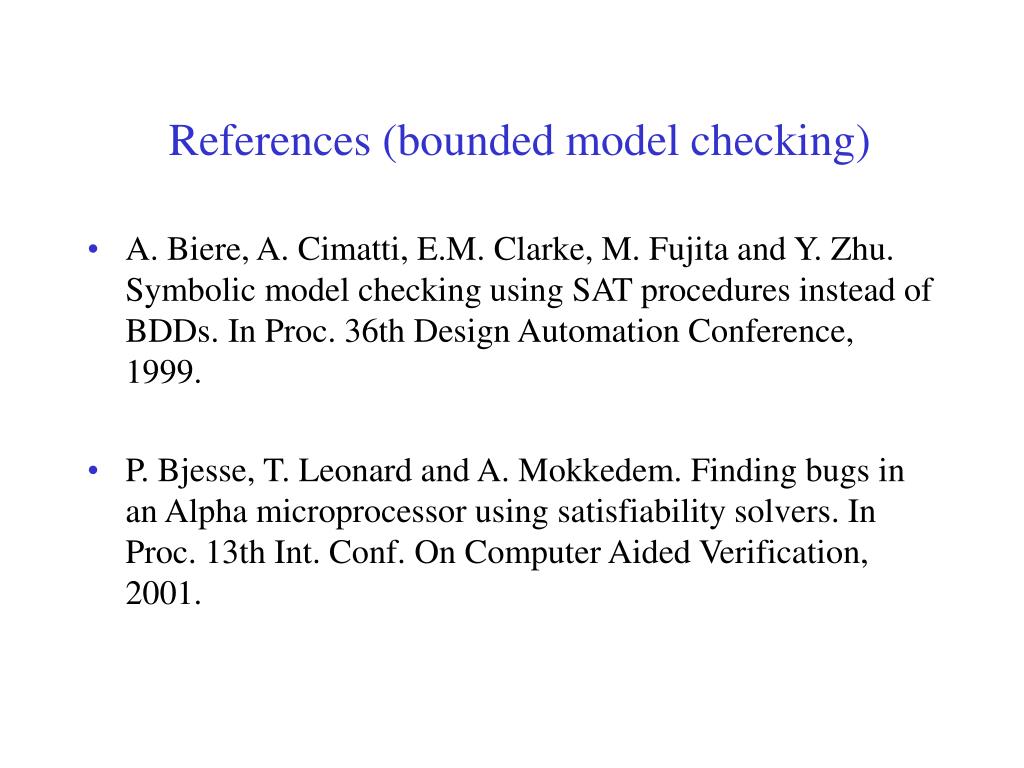

  30. References (bounded model checking) • A. Biere, A. Cimatti, E.M. Clarke, M. Fujita and Y. Zhu. Symbolic model checking using SAT procedures instead of BDDs. In Proc. 36th Design Automation Conference, 1999. • P. Bjesse, T. Leonard and A. Mokkedem. Finding bugs in an Alpha microprocessor using satisfiability solvers. In Proc. 13th Int. Conf. On Computer Aided Verification, 2001.

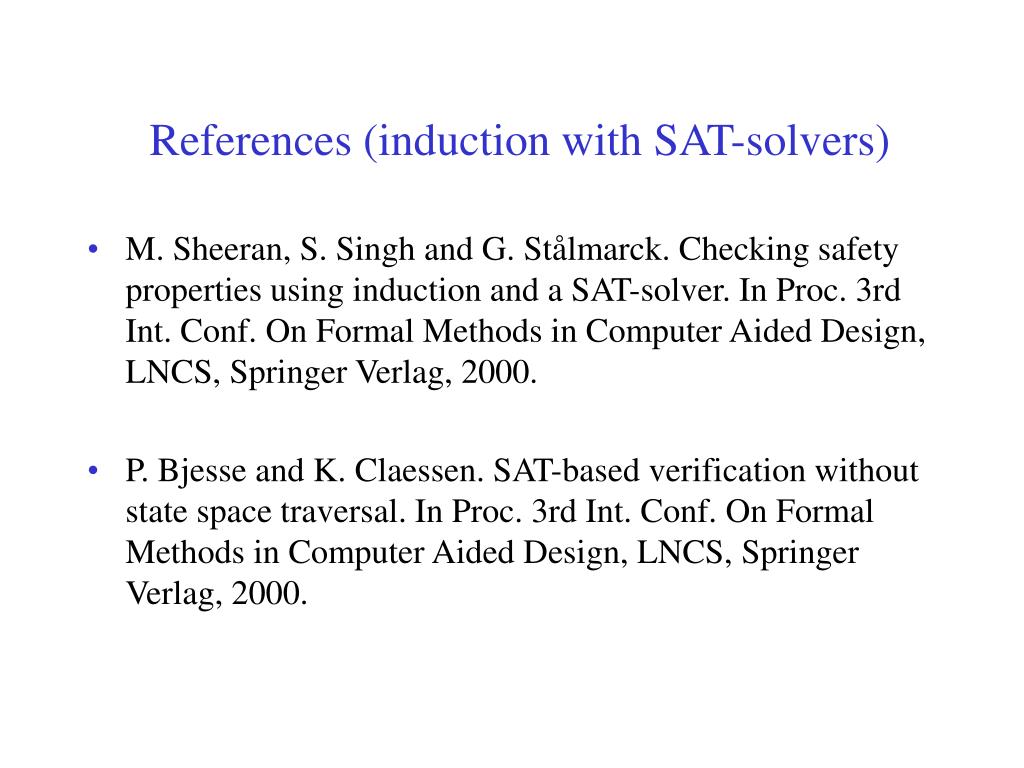

  31. References (induction with SAT-solvers) • M. Sheeran, S. Singh and G. Stålmarck. Checking safety properties using induction and a SAT-solver. In Proc. 3rd Int. Conf. On Formal Methods in Computer Aided Design, LNCS, Springer Verlag, 2000. • P. Bjesse and K. Claessen. SAT-based verification without state space traversal. In Proc. 3rd Int. Conf. On Formal Methods in Computer Aided Design, LNCS, Springer Verlag, 2000.

  32. References (SAT-based reachability analysis) • P. A. Abdulla, P. Bjesse and N. Een. Symbolic reachability analysis based on SAT-solvers. In Proc. TACAS’00. • P. F. Williams, A. Biere, E. M. Clarke and A. Gupta. Combining decision diagrams and SAT procedures for efficient symbolic model checking. In CAV’00. • A. Gupta, Z. Yang and P. Ashar, SAT-based image computation with application in reachability analysis for verification. In FMCAD’00.

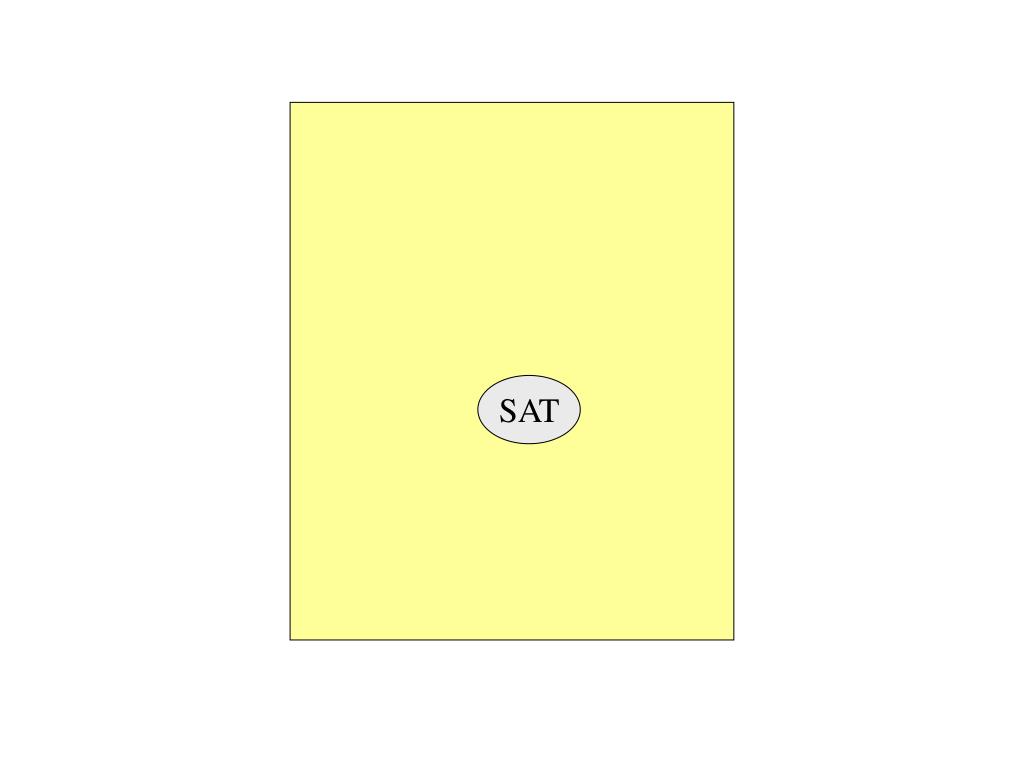

  33. SAT

  34. BMC IND SAT RA … ARITH

  35. The future? • Increasingly powerful proof engines • Integration in system development tools • Combining different engines or methods (for example BDDs and SAT or interactive and automatic methods) • Use of formal methods in test pattern generation
