The Efficiency Imperative: The Importance of Making Your Applications “Energy Smart”

1. Required Slide SESSION CODE: DPR308 The Efficiency Imperative: The Importance of Making Your Applications “Energy Smart” Kim Shearer Senior Program Manager Microsoft Corporation

2. Agenda • The growing importance of IT efficiency initiatives • The role of applications in IT efficiency • First steps towards Energy Smart Applications

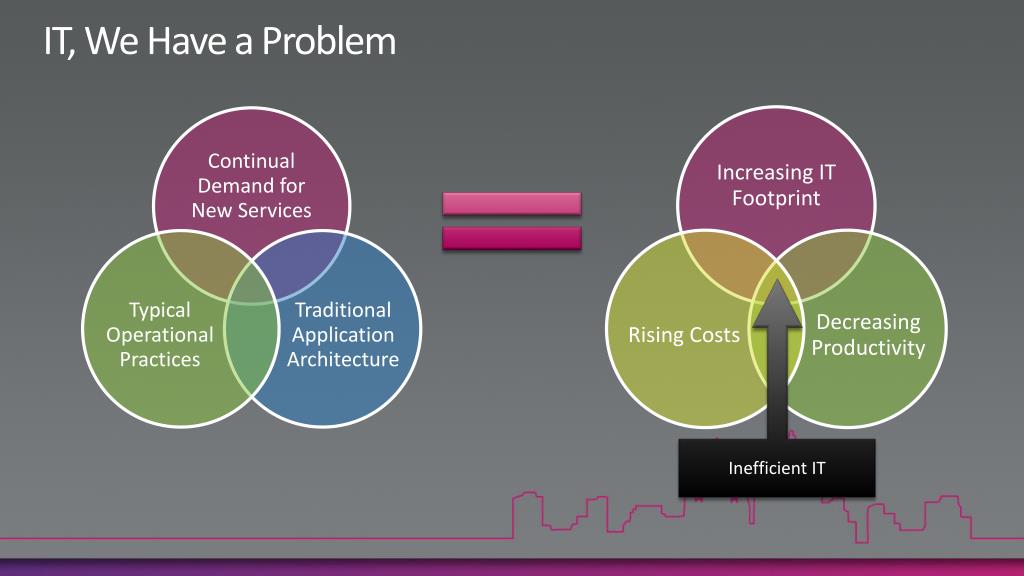

3. IT, We Have a Problem Inefficient IT

4. And, It Gets Worse • Stressed Power Systems

5. And Worse Still… • Stressed Power Systems

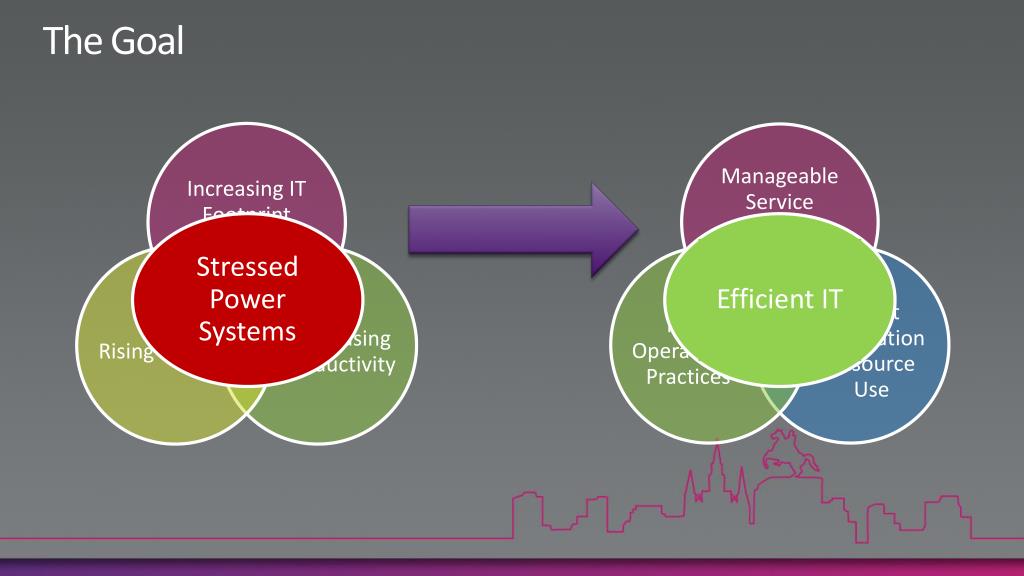

6. The Goal • Stressed Power Systems • Efficient IT

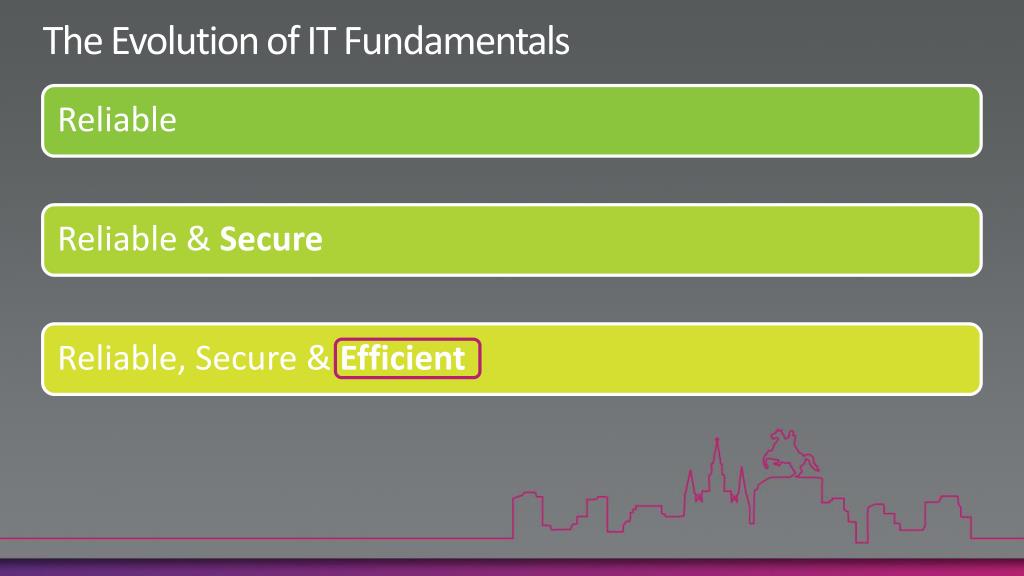

7. The Evolution of IT Fundamentals

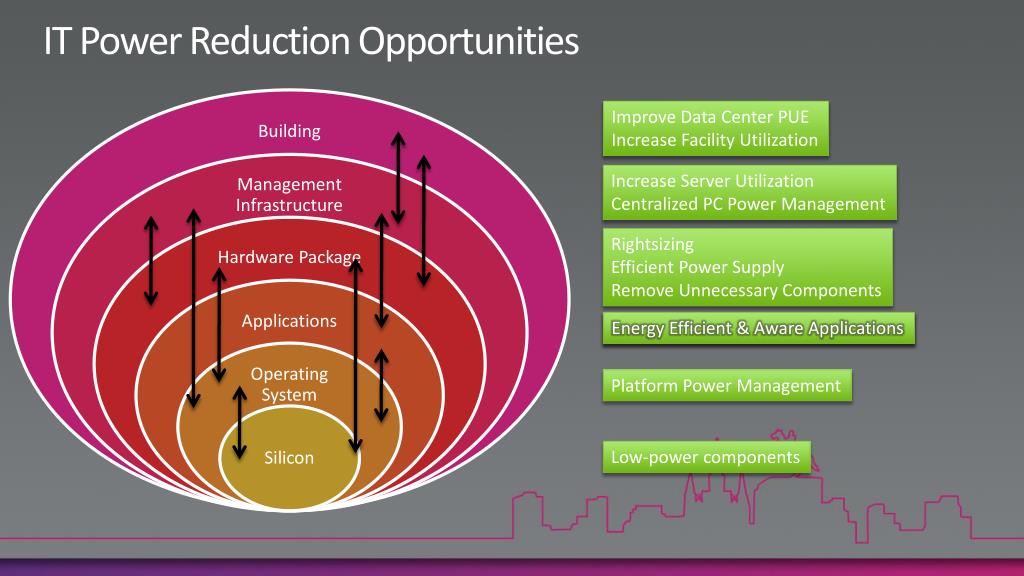

8. IT Power Reduction Opportunities • Building • Management Infrastructure Improve Data Center PUE Increase Facility Utilization • Hardware Package Increase Server Utilization Centralized PC Power Management • Applications Rightsizing Efficient Power Supply Remove Unnecessary Components • Operating System Energy Efficient & Aware Applications Energy Efficient & Aware Applications • Silicon Platform Power Management Low-power components

9. Impacts of software-related inefficiencies

10. Platform Power Management

11. Whose Job is this Anyway? Power Efficient System

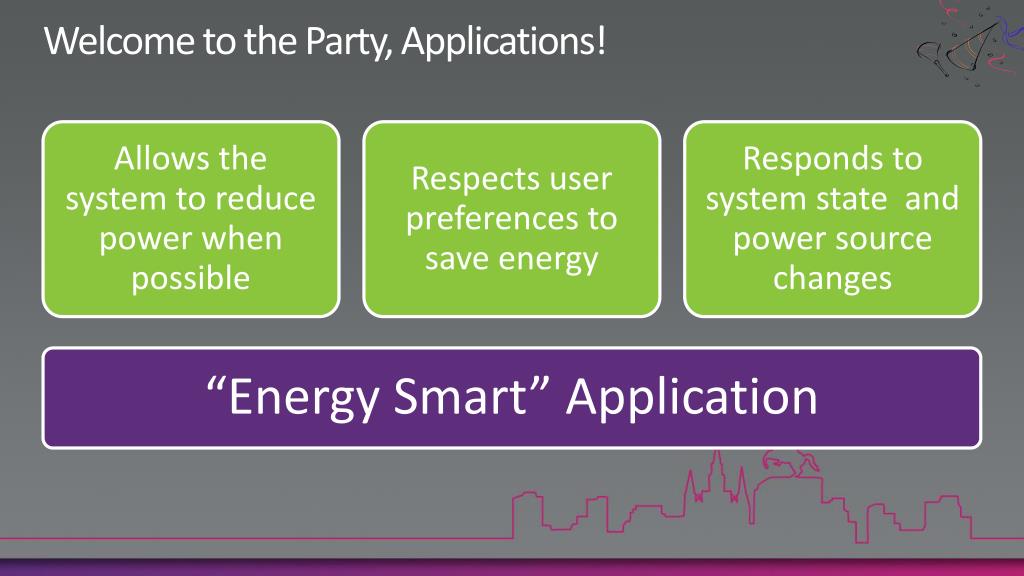

12. Welcome to the Party, Applications!

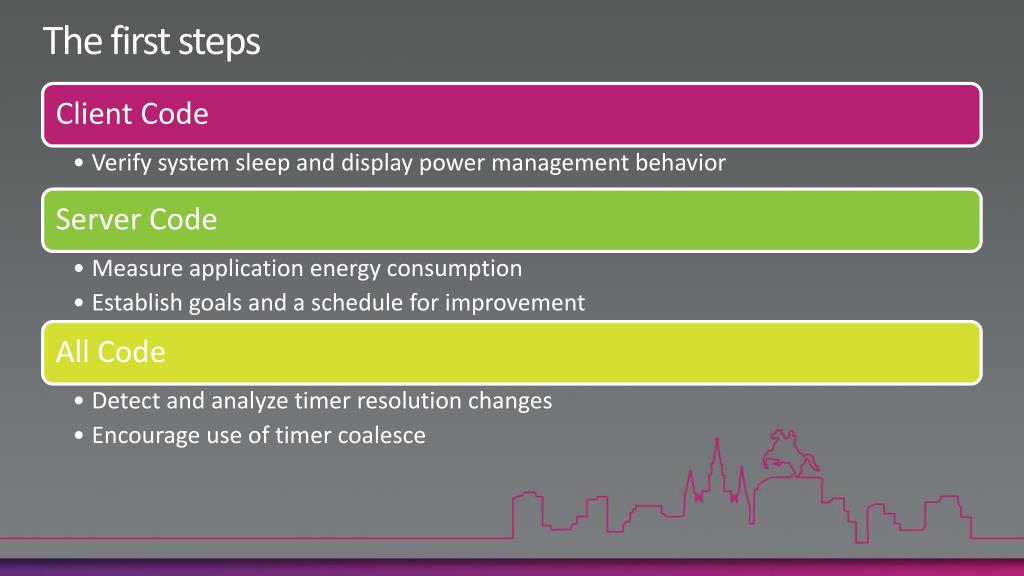

13. The first steps

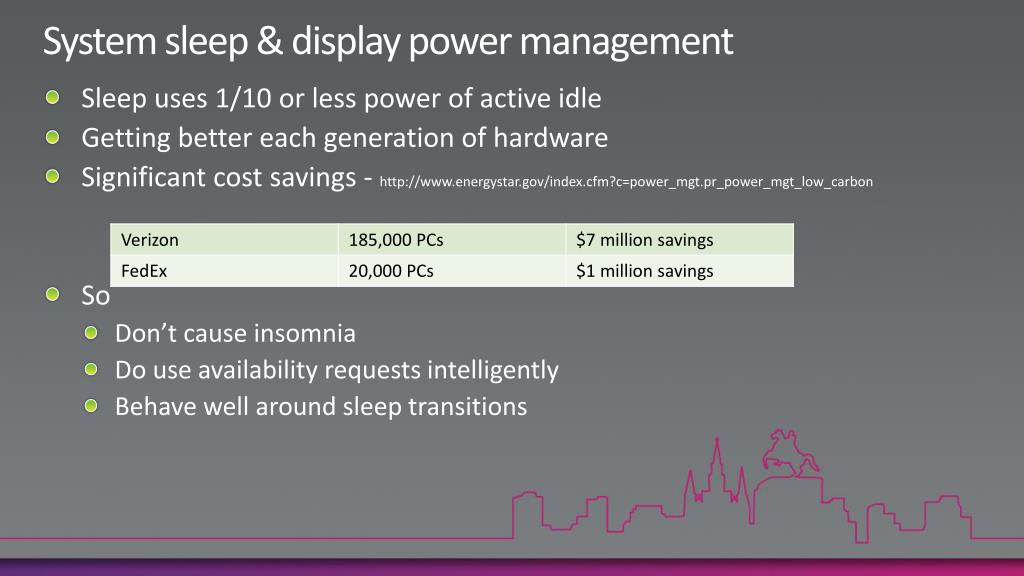

14. System sleep & display power management • Sleep uses 1/10 or less power of active idle • Getting better each generation of hardware • Significant cost savings - http://www.energystar.gov/index.cfm?c=power_mgt.pr_power_mgt_low_carbon • So • Don’t cause insomnia • Do use availability requests intelligently • Behave well around sleep transitions

15. Availability request APIs • Availability request API methods • These can be used to: • Prevent display power management dimming the screen • Prevent display power management turning off the screen • Prevent the system entering automatic sleep • Enable away mode (intended for media systems)

16. Accidental insomnia • Look carefully at any availability requests you raise • Don’t prevent sleep unless it is critical • Don’t prevent sleep for a system on battery unless it is really critical • If a task will require preventing sleep, but was not user initiated, should you start it on battery? • Be aware of indirect PA requests you may cause • Open file shares? • Audio stack open? • Other libraries

17. Debugging insomnia • Powercfg /requests • Additional energy efficiency information with Powercfg /energy C:\Windows\system32>powercfg /requests DISPLAY: None. SYSTEM: [SERVICE] \Device\HarddiskVolume2\Windows\System32\svchost.exe (RasMan) Active RAS connection AWAYMODE: None.

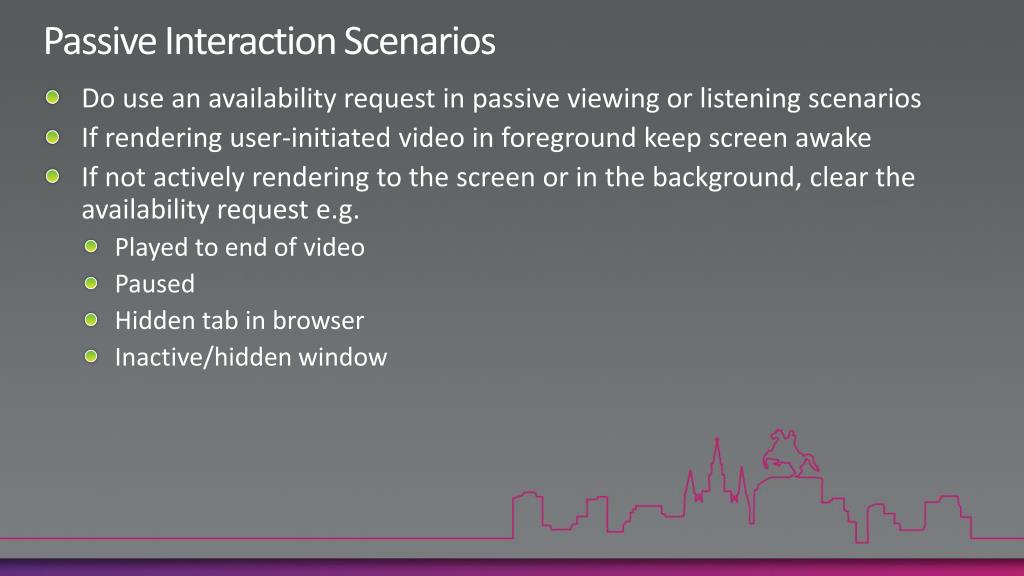

18. Passive Interaction Scenarios • Do use an availability request in passive viewing or listening scenarios • If rendering user-initiated video in foreground keep screen awake • If not actively rendering to the screen or in the background, clear the availability request e.g. • Played to end of video • Paused • Hidden tab in browser • Inactive/hidden window

19. Sleep/Resume Transition Behavior • Do return from sleep in a “reasonable” manner • Allow system to be responsive – don’t hog resources on wake • Make sure application is responsive • Forced sleep has no veto, make sure you handle this • PwrTest tool helps in testing these scenarios • http://msdn.microsoft.com/en-us/library/ff550682(VS.85).aspx • Many parameters including – cycles, duration, sleep state, critical… • PwrTest /sleep /c:10 /s:rnd /d:180 /p:600

20. Timer resolution • Default resolution is 15.6ms • Maximum resolution is 1ms • 1ms can increase power consumption by 20%! • Which decreases battery run time by 20%! • Try to be event or interrupt driven • Use least resolution that is good enough • Set high resolution only when you need it • Aggressively reset resolution to default • Play back is paused • Tab is not active in browser • Screen is dimmed or sleeping…

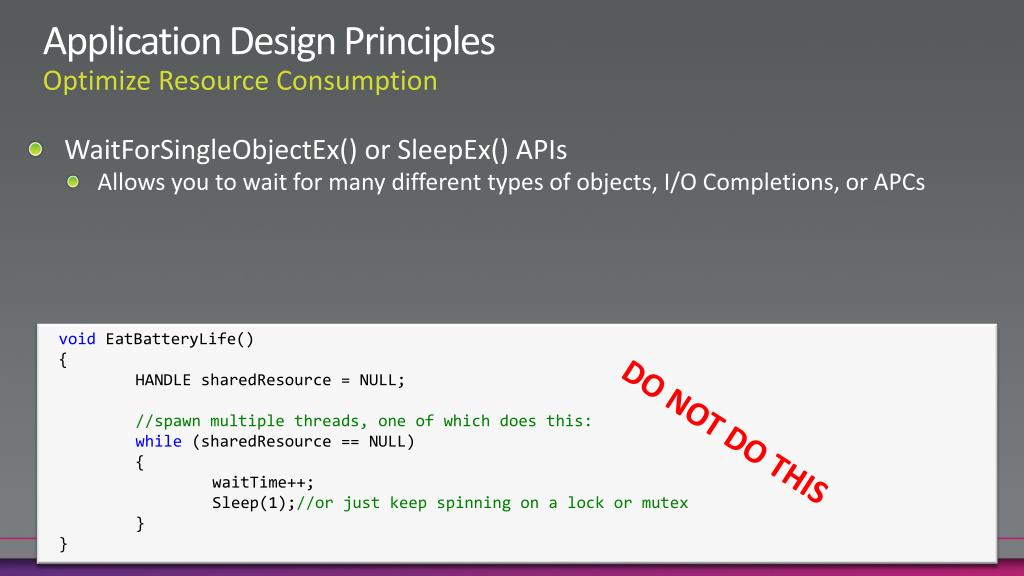

21. Application Design PrinciplesOptimize Resource Consumption • WaitForSingleObjectEx() or SleepEx() APIs • Allows you to wait for many different types of objects, I/O Completions, or APCs voidEatBatteryLife() { HANDLE sharedResource = NULL; //spawn multiple threads, one of which does this: while(sharedResource == NULL) { waitTime++; Sleep(1);//or just keep spinning on a lock or mutex } } DO NOT DO THIS

22. Application Design PrinciplesEvent Driven Example //thread 1’s code voidUpdateSharedResource() { //set sharedResource sharedResource= UpdateResource(); //Set sharedResourceIsReadyEventto signaled SetEvent(sharedResourceIsReadyEvent); } /thread 2's code voidConsumeSharedResource() { DWORD dwWaitResult; dwWaitResult = WaitForSingleObject( sharedResourceIsReadyEvent, INFINITE); // indefinite wait switch (dwWaitResult) { case WAIT_OBJECT_0: // // TODO: use sharedResource // break; default: return 0; } }

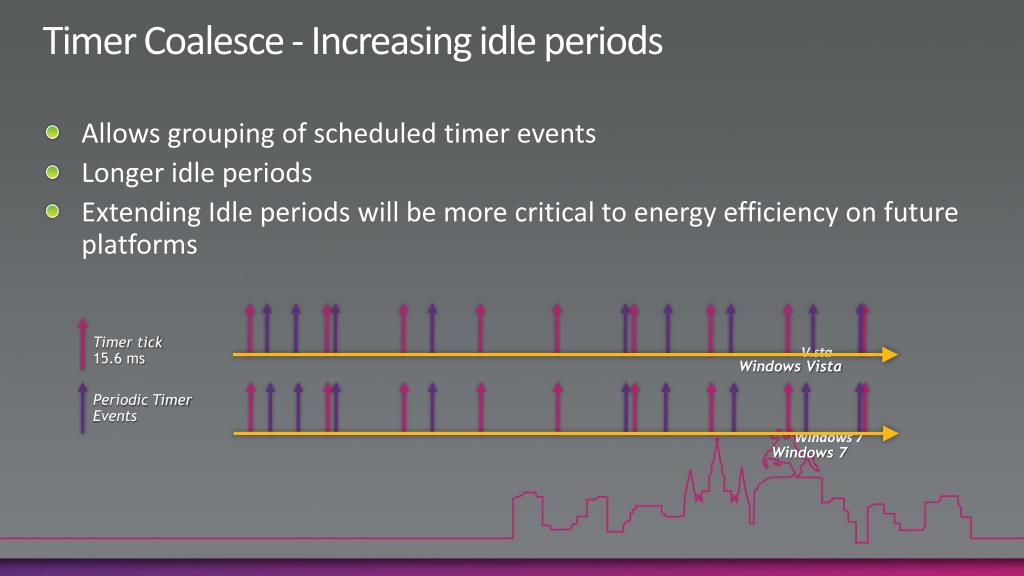

23. Timer Coalesce - Increasing idle periods • Allows grouping of scheduled timer events • Longer idle periods • Extending Idle periods will be more critical to energy efficiency on future platforms Timer tick 15.6 ms Vista Windows Vista Periodic Timer Events Windows 7 Windows 7

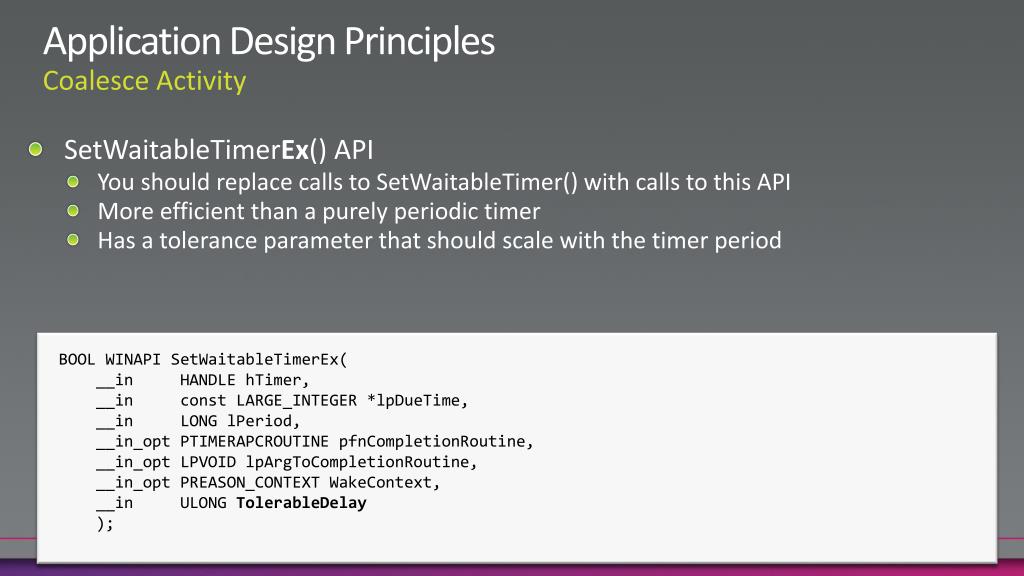

24. Application Design PrinciplesCoalesce Activity • SetWaitableTimerEx() API • You should replace calls to SetWaitableTimer() with calls to this API • More efficient than a purely periodic timer • Has a tolerance parameter that should scale with the timer period BOOL WINAPI SetWaitableTimerEx( __in HANDLE hTimer, __in const LARGE_INTEGER *lpDueTime, __in LONG lPeriod, __in_opt PTIMERAPCROUTINE pfnCompletionRoutine, __in_opt LPVOID lpArgToCompletionRoutine, __in_opt PREASON_CONTEXT WakeContext, __in ULONG TolerableDelay );

25. Application Design PrinciplesCoalesce Activity voidCreateAndSetPeriodicTimer() { myTimer= CreateWaitableTimerEx(NULL, TimerName, //string with chosen timer name NULL, TIMER_MODIFY_STATE); //required security attribute to call //SetWaitableTimerEx bError= SetWaitableTimerEx(myTimer, DueTime, //UTC due time 10000, //periodic timer duration is ten seconds CompletionRoutinePointer, //APC completion routine ArgsToCompletionRoutine, //completion routine arguments WakeContext, //only if waking the machine 1000); //tolerable delay is one second //DO WORK bError= CancelWaitableTimer(myTimer); //be sure to cancel periodic timers! }

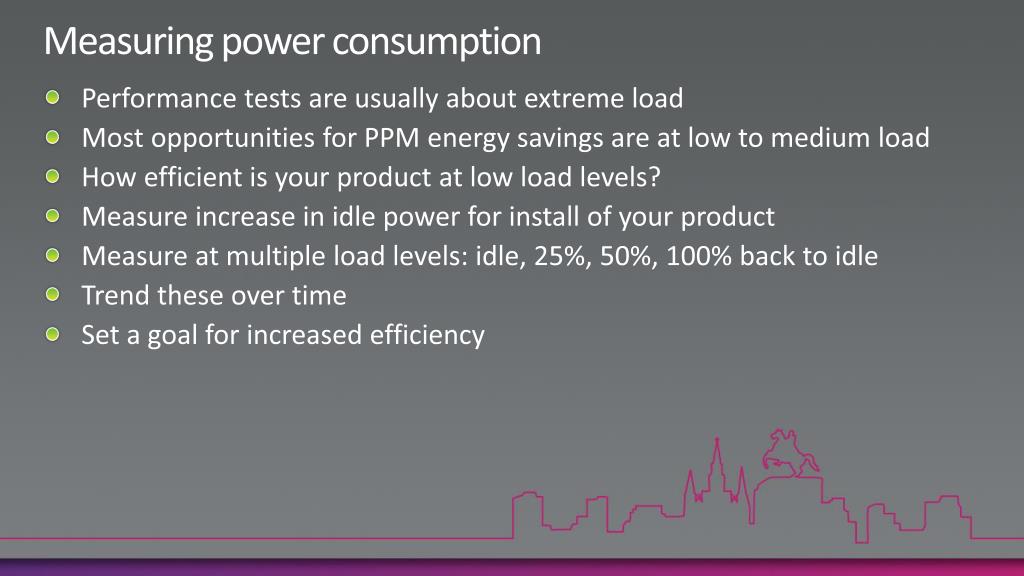

26. Measuring power consumption • Performance tests are usually about extreme load • Most opportunities for PPM energy savings are at low to medium load • How efficient is your product at low load levels? • Measure increase in idle power for install of your product • Measure at multiple load levels: idle, 25%, 50%, 100% back to idle • Trend these over time • Set a goal for increased efficiency

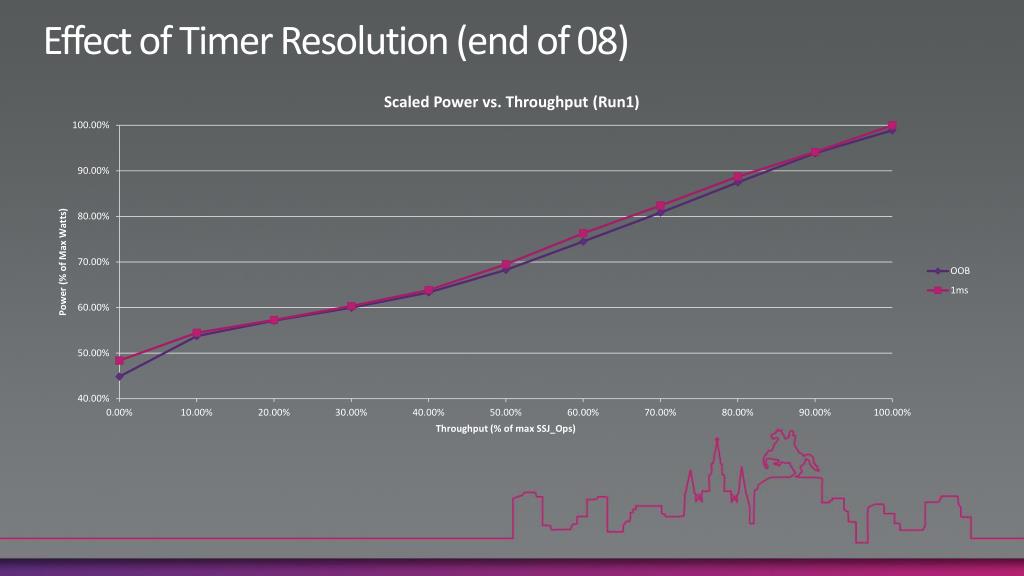

27. Effect of Timer Resolution (end of 08)

28. Register for Power Events • Use RegisterPowerSettingNotification to register for power events • Receive PBT_POWERSETTINGCHANGE notifications with • WM_POWERBROADCAST messages for interactive applications • Through the HandleEX callback registered with RegisterServiceCtrlHanderEx for service applications • PowerEvent monitoring tool provides example code

29. Register for Power Events // // Register for Power Setting Notifications. // // The RegisterPowerSettingNotification API returns a handle to the // registration which we cache in a local variable so that we can // unregister when the window is closed. We also do the registration here // because it is explicitly obvious that the dialog is initialized and the // handle to the window is valid. // hPowerPersonality = RegisterPowerSettingNotification(m_hWnd, &GUID_POWERSCHEME_PERSONALITY, DEVICE_NOTIFY_WINDOW_HANDLE); hBatteryPercentage = RegisterPowerSettingNotification(m_hWnd, &GUID_BATTERY_PERCENTAGE_REMAINING, DEVICE_NOTIFY_WINDOW_HANDLE); hACDCSource = RegisterPowerSettingNotification(m_hWnd, &GUID_ACDC_POWER_SOURCE, DEVICE_NOTIFY_WINDOW_HANDLE);

30. Listen and Take Action //Custom handler for processing WM_POWERBROADCAST messages LRESULT CPowerMonDlg::OnWMPowerBroadcast(WPARAM wParam, LPARAM lParam) { … switch(LOWORD(wParam)) { case PBT_POWERSETTINGCHANGE: // // This is the type of message sent by the power manager when a // power event such as a power plan personality or a system power source // change event occurs. We need to take the // POWERBROADCAST_SETTING struct pointed to by the lParam and // analyze it to determine what setting changed. // PowerMessageSetting= (PPOWERBROADCAST_SETTING)lParam; if (IsEqualGUID(PowerMessageSetting->PowerSetting, GUID_POWERSCHEME_PERSONALITY) && PowerMessageSetting->DataLength == sizeof(GUID)) { // // This is a powerscheme personality change. // Determine power scheme, then take appropriate actions // PowerMessageGUID= *(GUID*)PowerMessageSetting->Data; if (IsEqualGUID(PowerMessageGUID, GUID_TYPICAL_POWER_SAVINGS)){ // Balanced

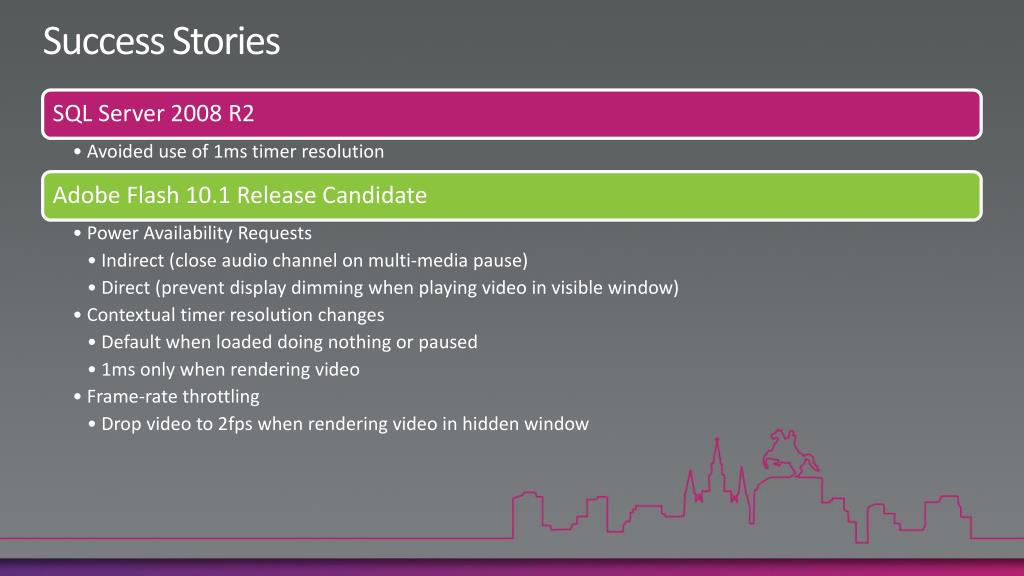

31. Success Stories

32. Tools • Powercfg – detect many power efficiency issues and modify power plans • http://www.microsoft.com/whdc/system/pnppwr/mobile_bat_Win7.mspx • Pwrtest – test sleep and resume behavior • http://msdn.microsoft.com/en-us/library/ff550682(VS.85).aspx • PowerEvent monitoring tool – example app • http://www.microsoft.com/whdc/system/pnppwr/powermgmt/PM-apps_samp.mspx

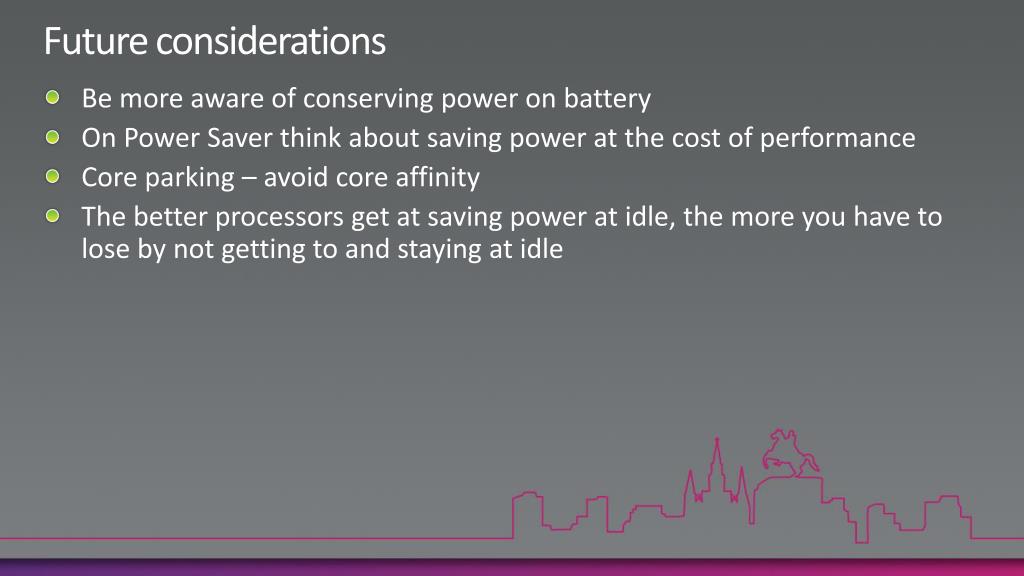

33. Future considerations • Be more aware of conserving power on battery • On Power Saver think about saving power at the cost of performance • Core parking – avoid core affinity • The better processors get at saving power at idle, the more you have to lose by not getting to and staying at idle

34. Call to Action • Download and read the guidance • Explore the tools • Test your applications for appropriate use of: • Timer resolution changes (client and server apps) • Direct and Indirect Power availability requests (client apps) • For client apps, ensure: • Good behavior after sleep/resume transition • For client and server apps, plan for: • Mobile power source changes or server power capping • Increasing power savings at idle – get to idle and stay at idle • Working effectively with PPM
