Challenges and Lessons Learned in MSP430 Temperature Sensor Project

DESCRIPTION

This project chronicles the experiences of a group working on an MSP430 microcontroller temperature sensor. With contributions from Chris Pendley, George Fournadjiev, Howell Peebles, and Brad Lackie (with assistance from Muwafa Albaraqi), the team faced numerous challenges, including soldering components, selecting the LM35DT sensor, and troubleshooting inconsistent temperature outputs. The project highlights the intricacies of soldering and programming while offering valuable lessons on problem-solving and the importance of careful handling of power supplies.

1 / 9

Télécharger la présentation

Challenges and Lessons Learned in MSP430 Temperature Sensor Project

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. MSP430 Project Chris Pendley, George Fournadjiev, Howell Peebles, Brad Lackie (with an assist from Muwafa Albaraqi)

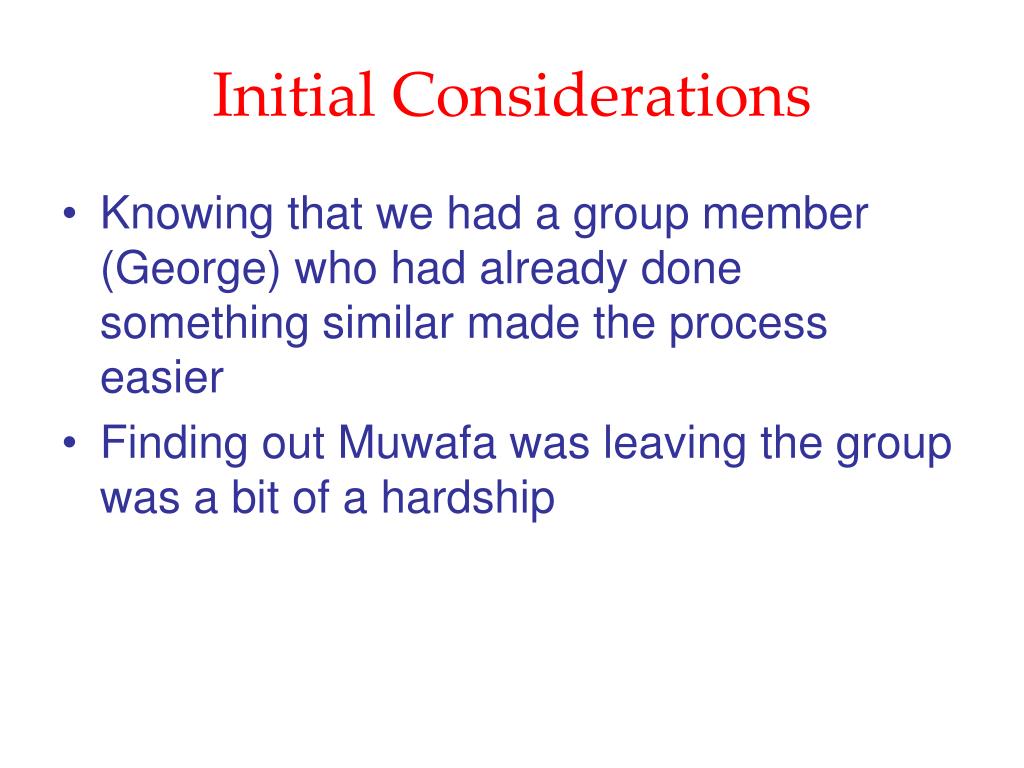

  2. Initial Considerations • Knowing that we had a group member (George) who had already done something similar made the process easier • Finding out Muwafa was leaving the group was a bit of a hardship

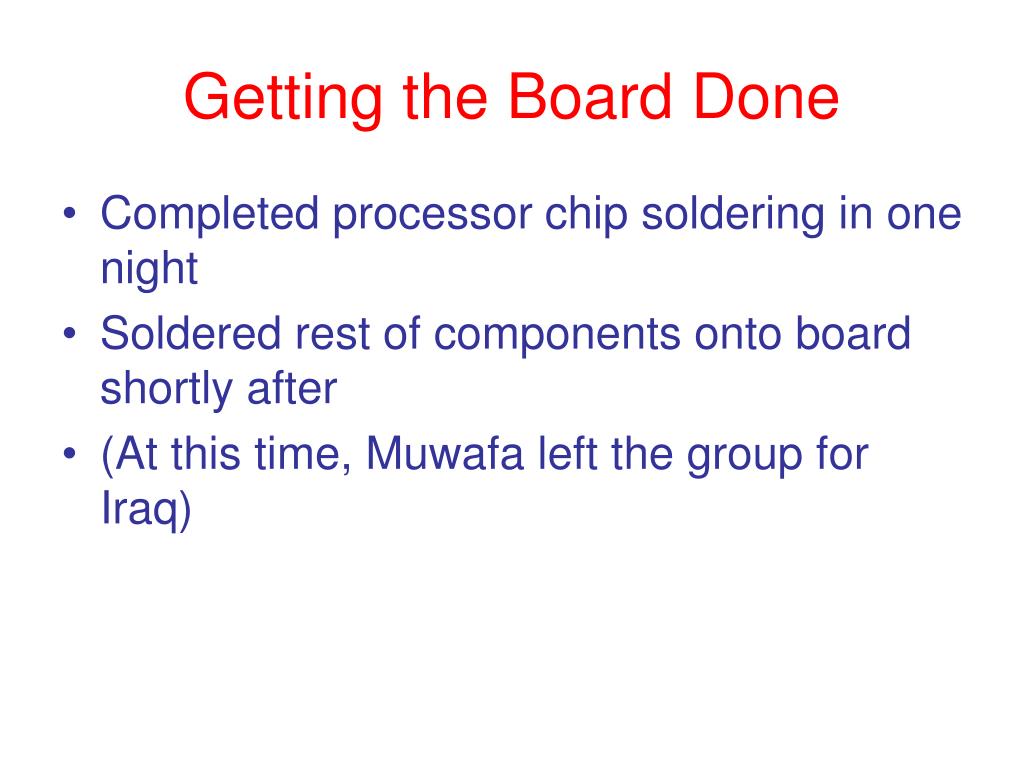

  3. Getting the Board Done • Completed processor chip soldering in one night • Soldered rest of components onto board shortly after • (At this time, Muwafa left the group for Iraq)

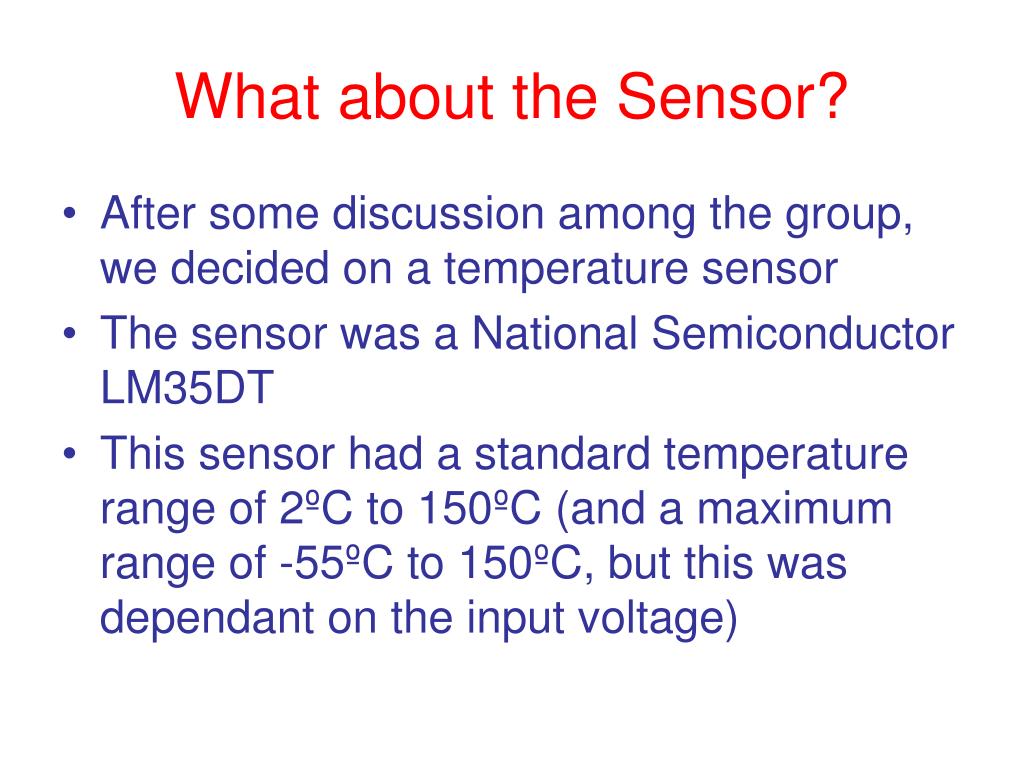

  4. What about the Sensor? • After some discussion among the group, we decided on a temperature sensor • The sensor was a National Semiconductor LM35DT • This sensor had a standard temperature range of 2ºC to 150ºC (and a maximum range of -55ºC to 150ºC, but this was dependant on the input voltage)

  5. More Sensor Stuff • Standard 10 mV/ºC scale factor (i.e., 0 V -> 0.1 V is a 1ºC temperature increase) • Output voltage from -1 V to 6 V

  6. Coding the Sensor • After playing around with the software for awhile, we finally figured out how to get the voltage output converted to a temperature output • This was successful • But….

  7. Problems Begin • The output wasn’t consistent! • Temperature output would read correctly, then die out (reset). This process would repeat indefinitely, no matter how many burnings took place • After some discussion, we decided it was due to some faulty connections on the chip (the soldering failed)

  8. The Last Gasp • After doing some more work on it (fiddling around with the connections, etc.), we determined that anything we did there wasn’t doing anything • Switching to playing with the power supply, BOOM! Controller starts to smoke • Started to smoke after the parallel/series connections were switched

  9. The Learning Process • Soldering, by its nature, is a intricate and delicate process – it’s easy to mess up! • Programming a chip – in its entirety – is also an incredibly complicated process; use what’s come before you • Don’t play around with a power supply too much. Bad things can happen.
