  1. Chapter 11 Lower End Theory and Service

  2. Engine Lower End • The lower end of an engine is the cylinder block assembly • Includes the block, crankshaft, bearings, pistons, connecting rods, oil pump, and camshaft on OHV designs • This assembly is called a short block • A short block plus the cylinder head(s) is called a long block

  3. Lower End

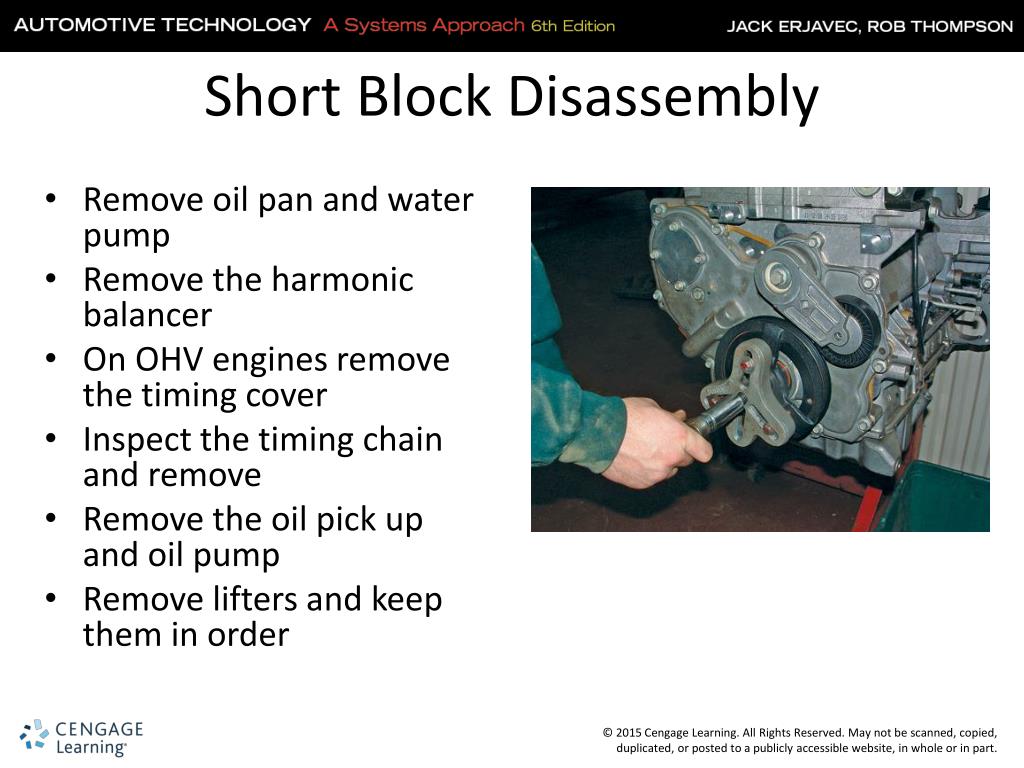

  4. Short Block Disassembly • Remove oil pan and water pump • Remove the harmonic balancer • On OHV engines remove the timing cover • Inspect the timing chain and remove • Remove the oil pick up and oil pump • Remove lifters and keep them in order

  5. Cylinder Block Disassembly • Check balance shaft clearances if necessary and remove • Rotate crankshaft so cylinder #1 is at BDC • Carefully remove all cylinder ring ridges

  6. Cylinder Block Disassembly • Check bearing cap positions and mark if necessary

  7. Cylinder Block Disassembly (Cont.) • Position piston at BDC for removal • Remove connecting rod cap and cover rod bolts to prevent cylinder damage • Carefully push the piston and rod with wooden handle • Be sure connecting rod does not damage the cylinder wall

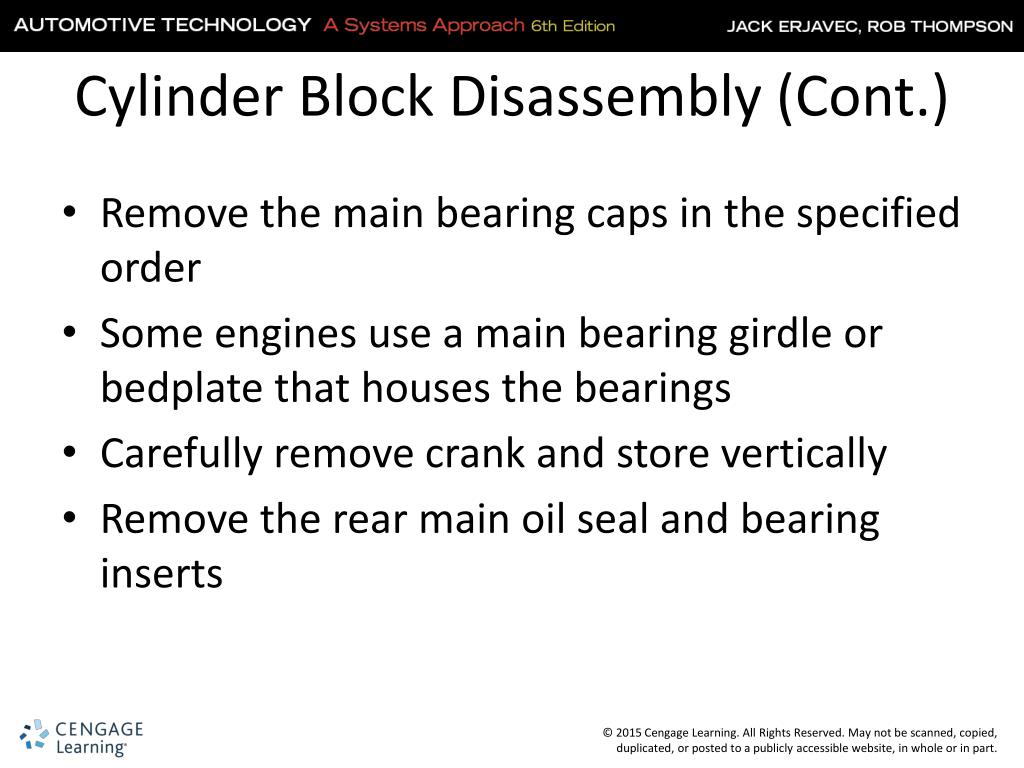

  8. Cylinder Block Disassembly (Cont.) • Remove the main bearing caps in the specified order • Some engines use a main bearing girdle or bedplate that houses the bearings • Carefully remove crank and store vertically • Remove the rear main oil seal and bearing inserts

  9. Cylinder Block Disassembly (Cont.) • Remove the block core plugs and oil plugs to ensure thorough cleaning Oil gallery plugs

  10. Cylinder Block • Houses areas where combustion takes place • Can be cast iron, aluminum or magnesium • Cast iron is very strong but heavy

  11. Cylinder Block (Cont.) • Most aluminum blocks use cylinder liners • Usually cannot be machined

  12. Cylinder Block (Cont.) • Oil and coolant passages within the block allow for the flow of oil and coolant

  13. Block Reconditioning • Inspect the block for cracks and damage • Clean all threaded bores with a thread chaser • Bolt holes should be slightly chamfered

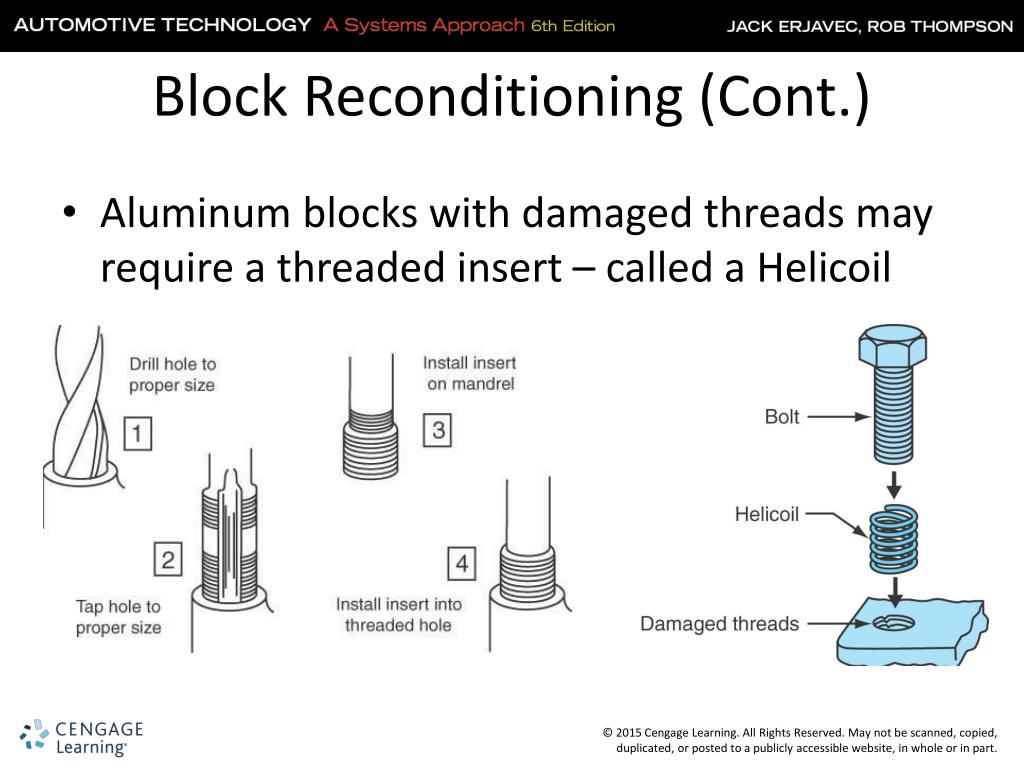

  14. Block Reconditioning (Cont.) • Aluminum blocks with damaged threads may require a threaded insert – called a Helicoil

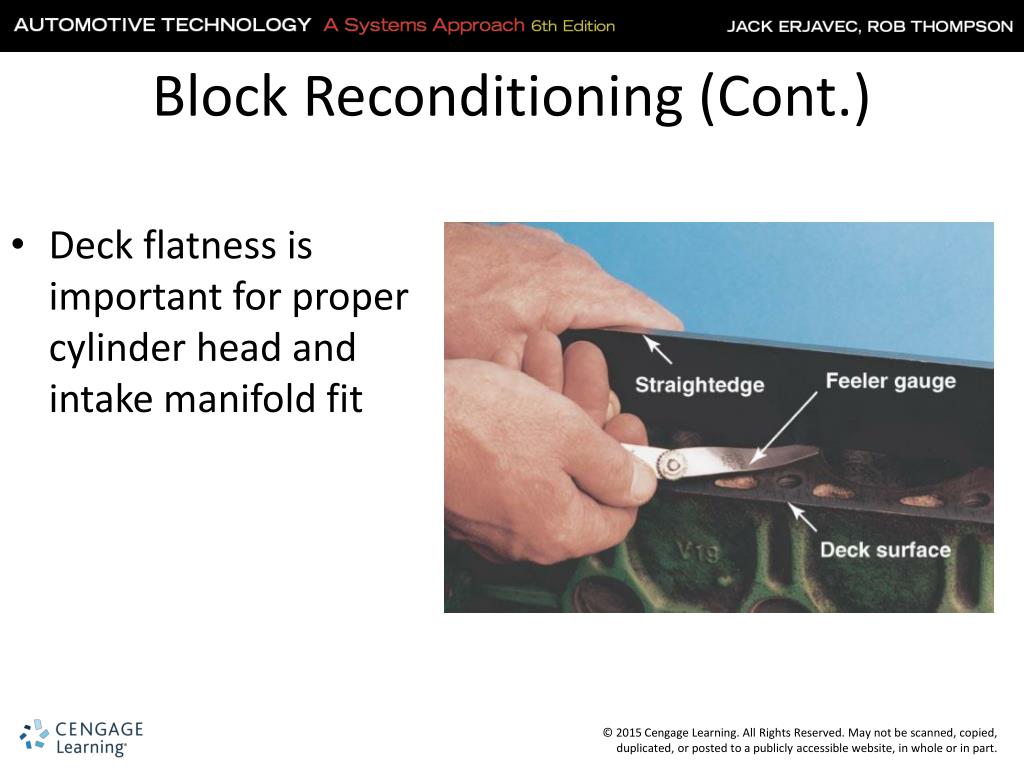

  15. Block Reconditioning (Cont.) • Deck flatness is important for proper cylinder head and intake manifold fit

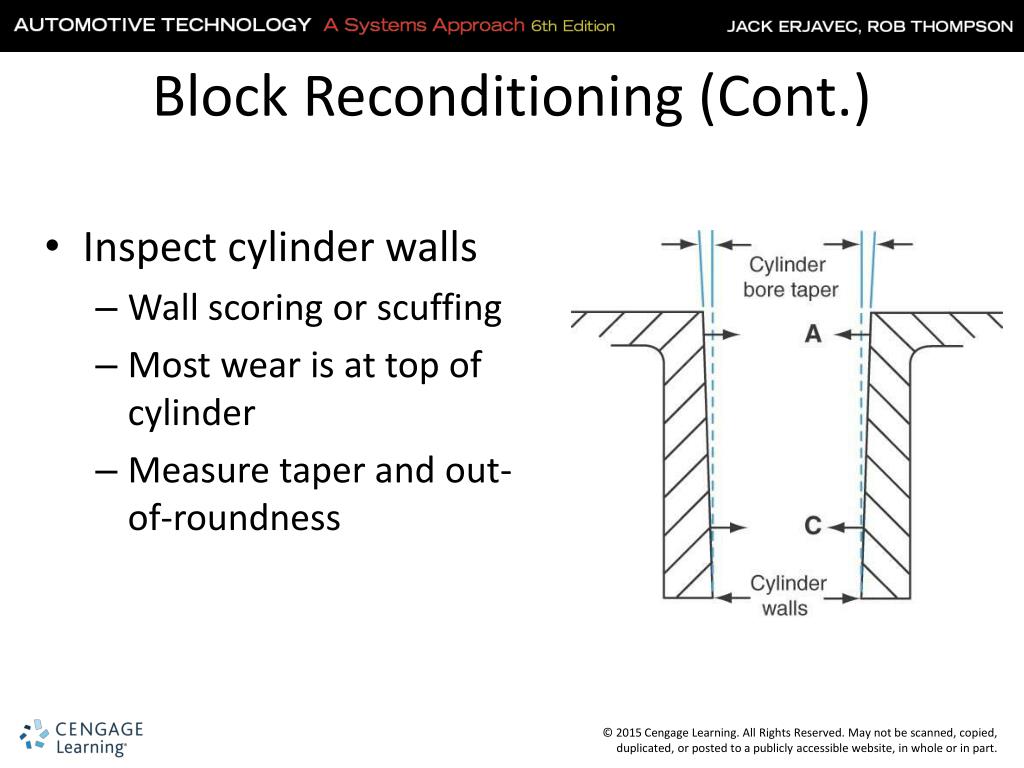

  16. Block Reconditioning (Cont.) • Inspect cylinder walls • Wall scoring or scuffing • Most wear is at top of cylinder • Measure taper and out-of-roundness

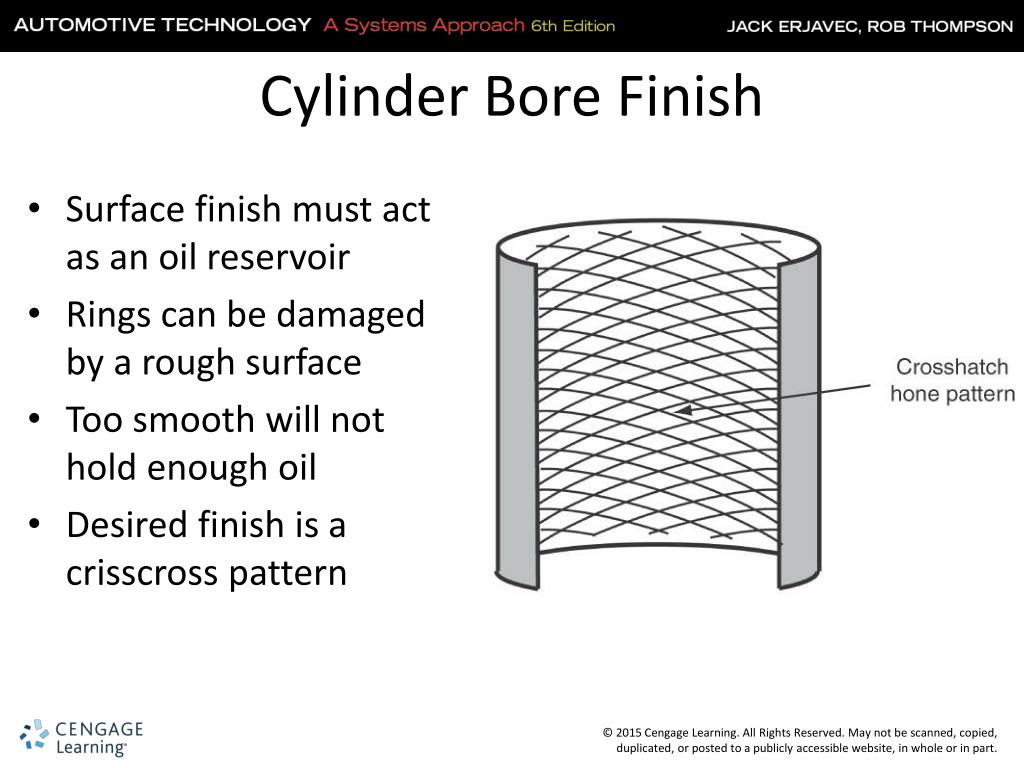

  17. Cylinder Bore Finish • Surface finish must act as an oil reservoir • Rings can be damaged by a rough surface • Too smooth will not hold enough oil • Desired finish is a crisscross pattern

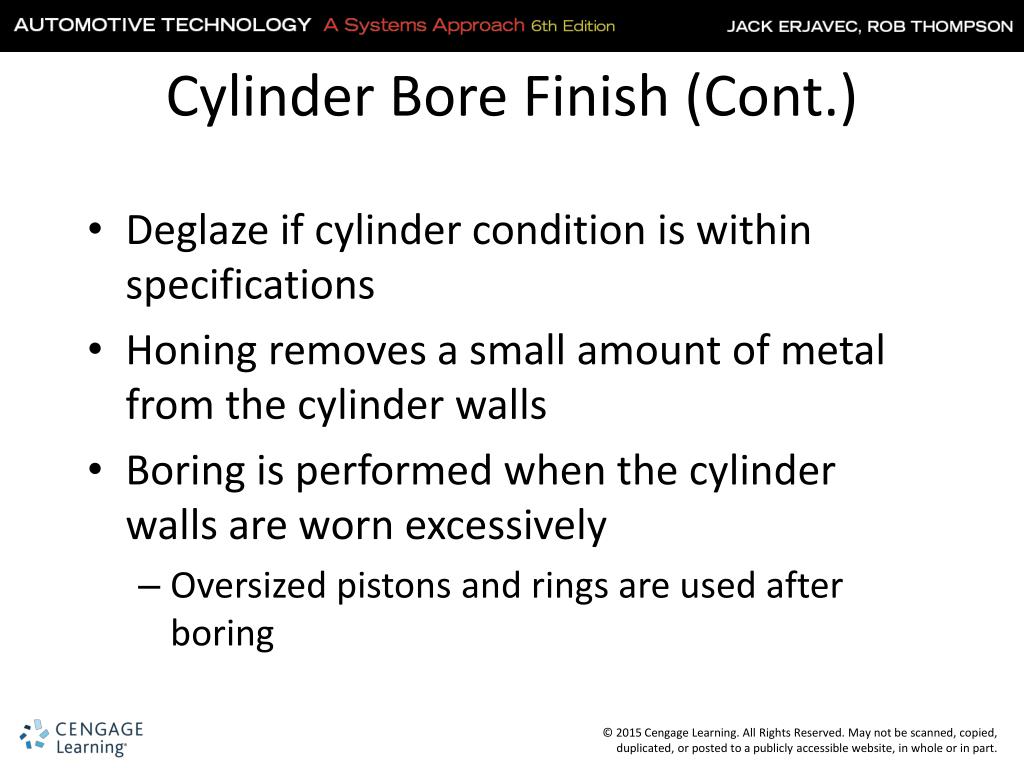

  18. Cylinder Bore Finish (Cont.) • Deglaze if cylinder condition is within specifications • Honing removes a small amount of metal from the cylinder walls • Boring is performed when the cylinder walls are worn excessively • Oversized pistons and rings are used after boring

  19. Knowledge Check • What may result if the cylinder bore finish is too smooth?

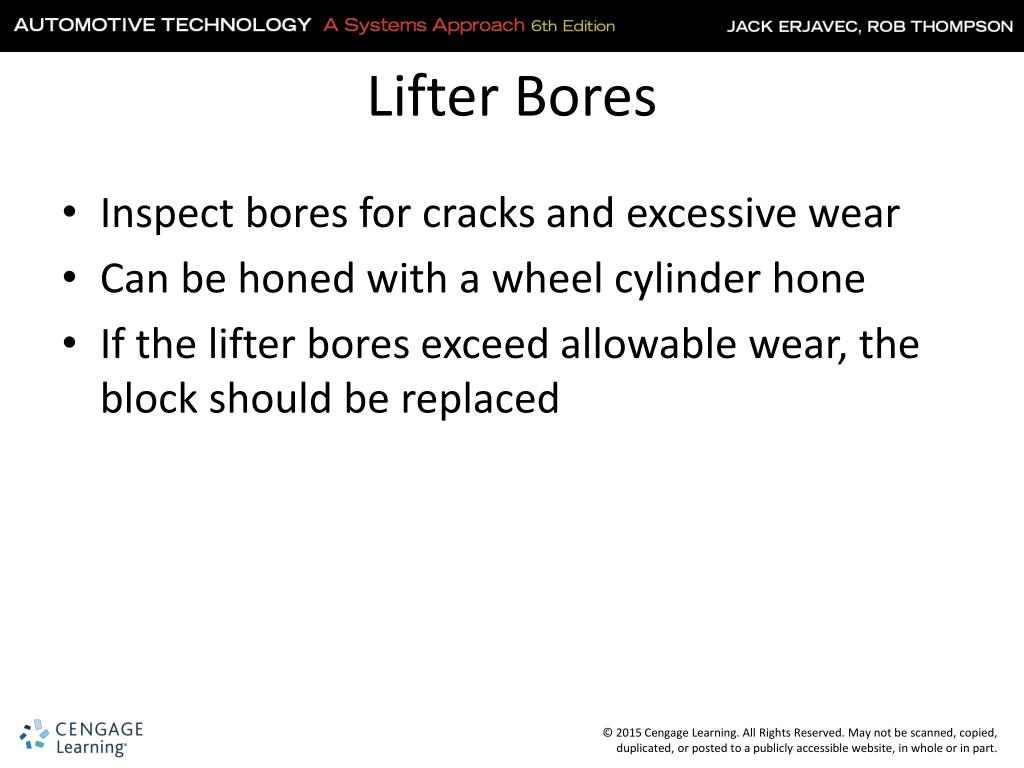

  20. Lifter Bores • Inspect bores for cracks and excessive wear • Can be honed with a wheel cylinder hone • If the lifter bores exceed allowable wear, the block should be replaced

  21. Crankshaft Saddle Alignment • Misalignment will cause the crankshaft to bend as it rotates • May be repaired by line boring • Badly warped blocks are replaced • Checked along the crankshaft saddle bore • Roundness should be checked as well

  22. Crankshaft Saddle Alignment

  23. Installing Core Plugs • After cleaning, the block should have new core and oil plugs installed • Coat the plug or bore lightly with a non-hardening sealer

  24. Camshafts • Have a cam lobe for each exhaust and intake valve • Lobe height is proportional to valve lift • May drive distributor and/or oil pump • May be iron, steel, or hollow

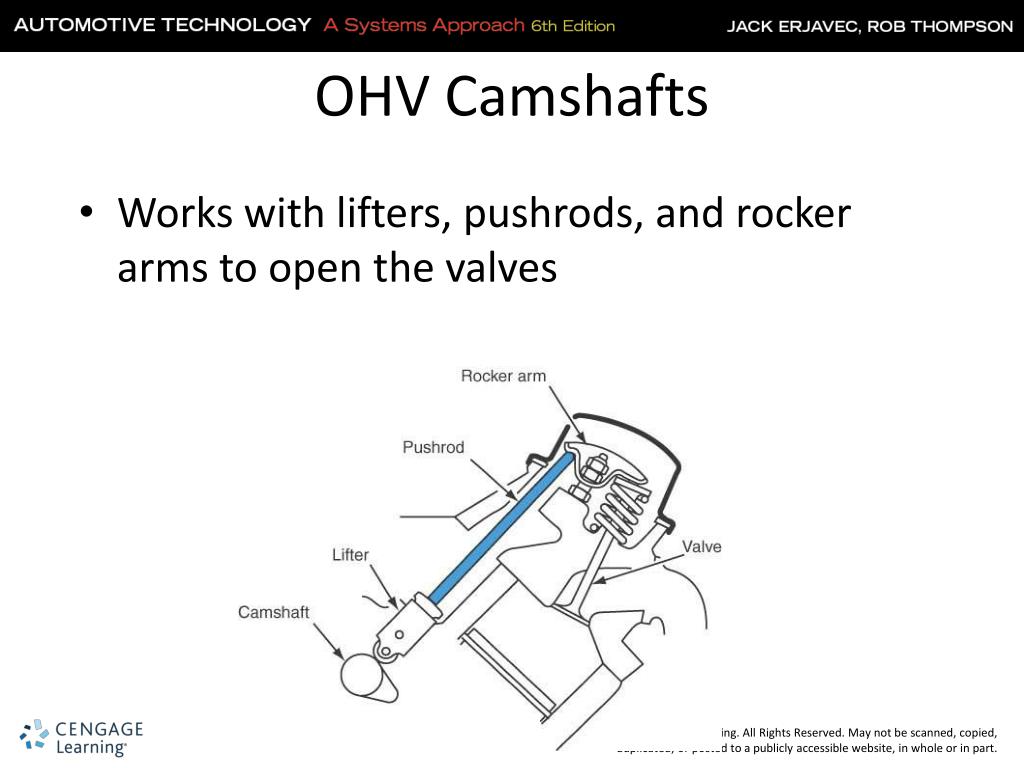

  25. OHV Camshafts • Works with lifters, pushrods, and rocker arms to open the valves

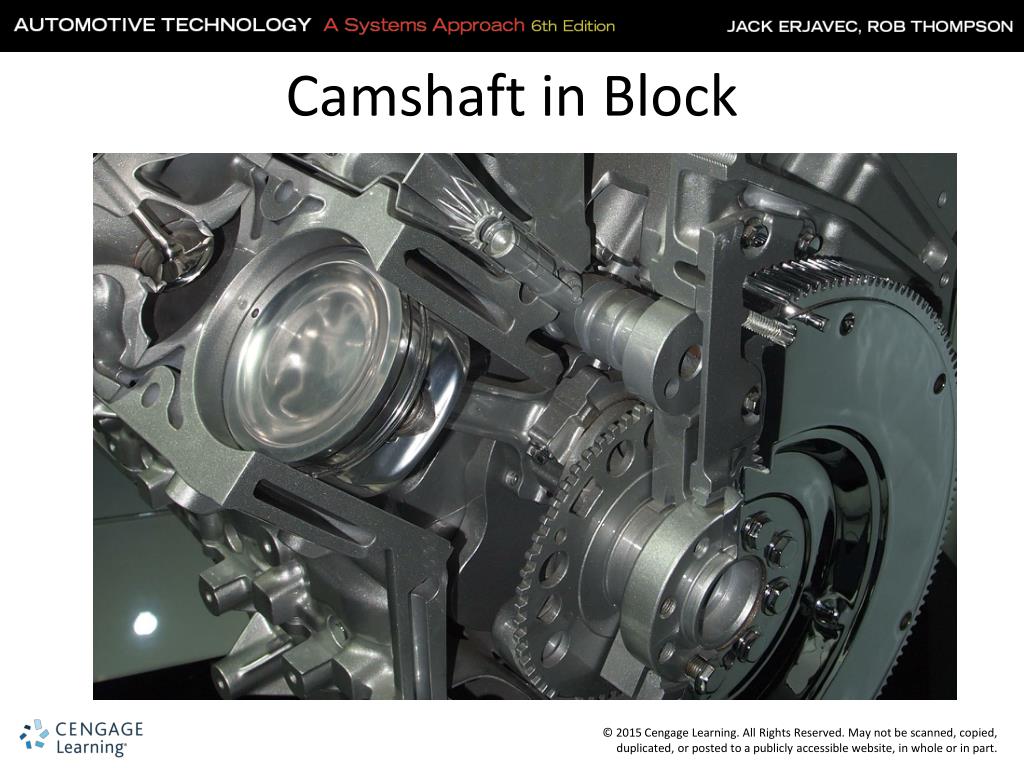

  26. Camshaft in Block

  27. OHC Camshafts • May be single or dual overhead camshafts • Can open valves directly or through lifters, followers, or rocker arms

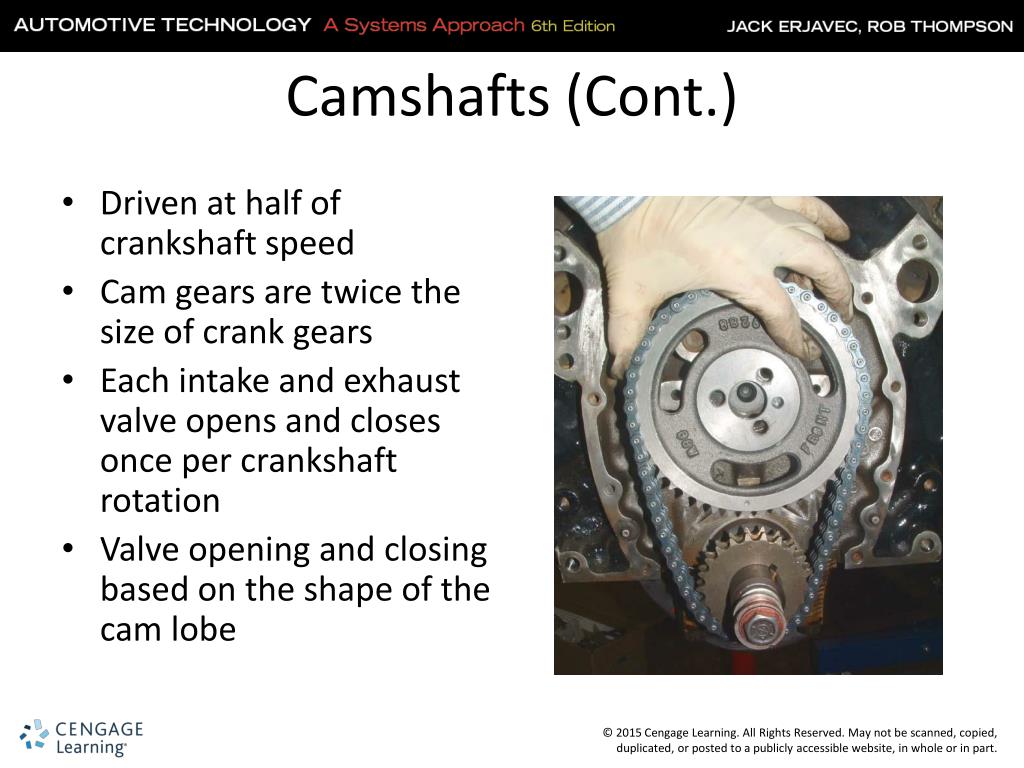

  28. Camshafts (Cont.) • Driven at half of crankshaft speed • Cam gears are twice the size of crank gears • Each intake and exhaust valve opens and closes once per crankshaft rotation • Valve opening and closing based on the shape of the cam lobe

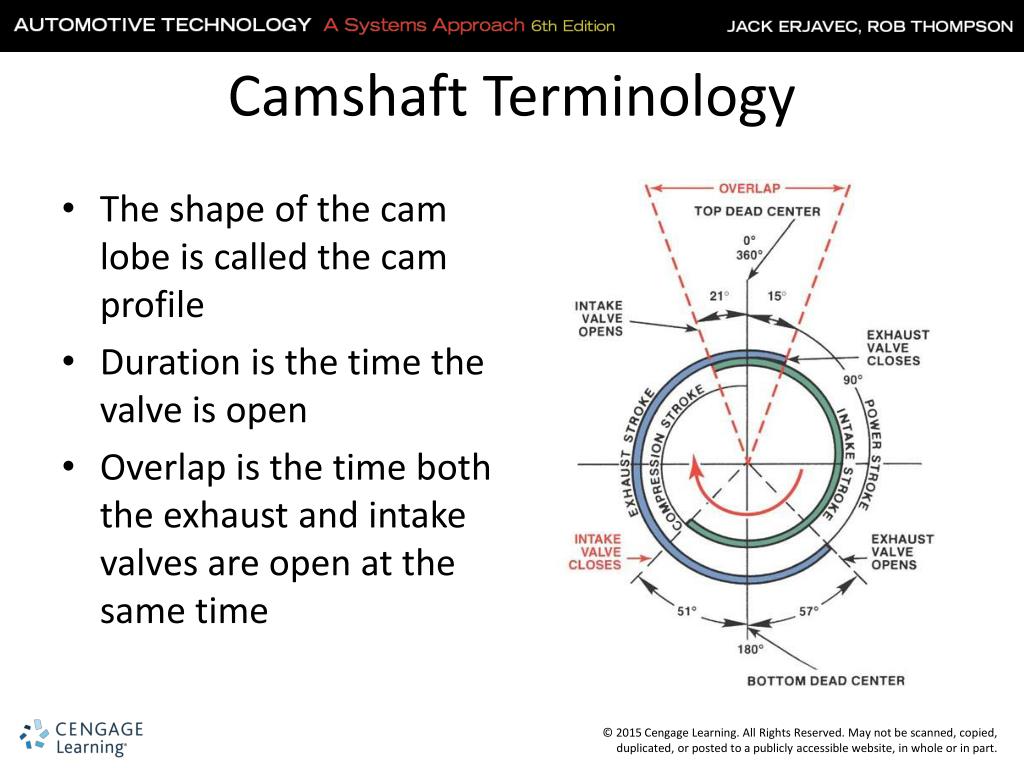

  29. Camshaft Terminology • The shape of the cam lobe is called the cam profile • Duration is the time the valve is open • Overlap is the time both the exhaust and intake valves are open at the same time

  30. Lobe Terminology

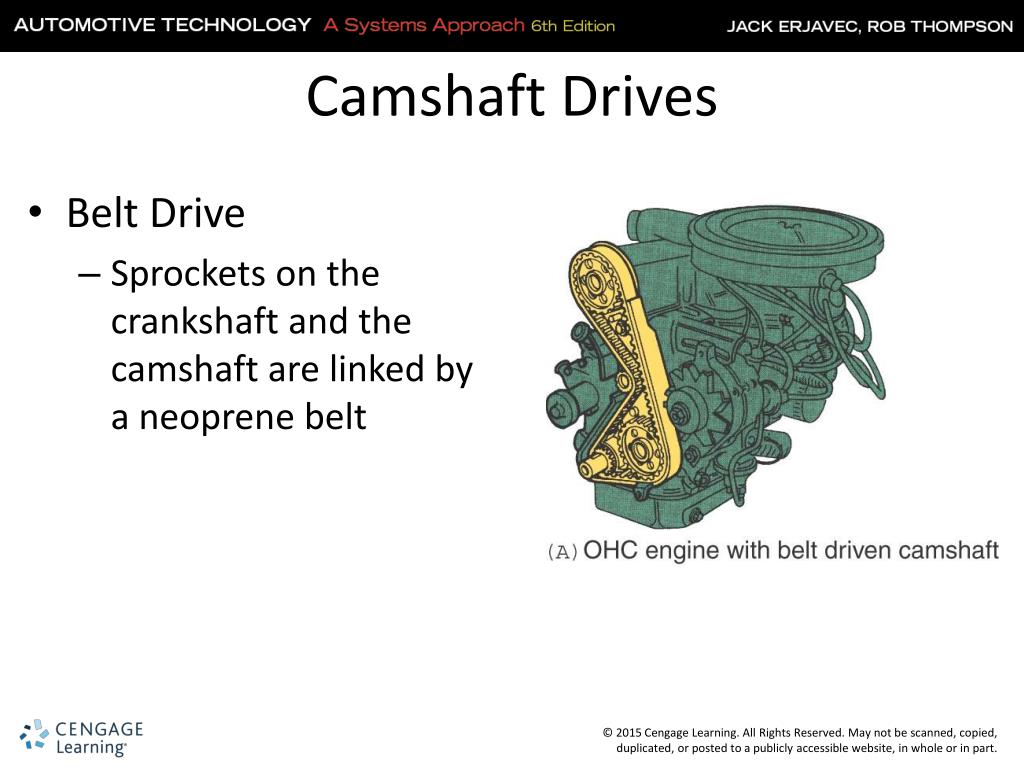

  31. Camshaft Drives • Belt Drive • Sprockets on the crankshaft and the camshaft are linked by a neoprene belt

  32. Camshaft Drives • Chain Drive • Sprockets on the crankshaft and the camshaft are linked by a continuous chain

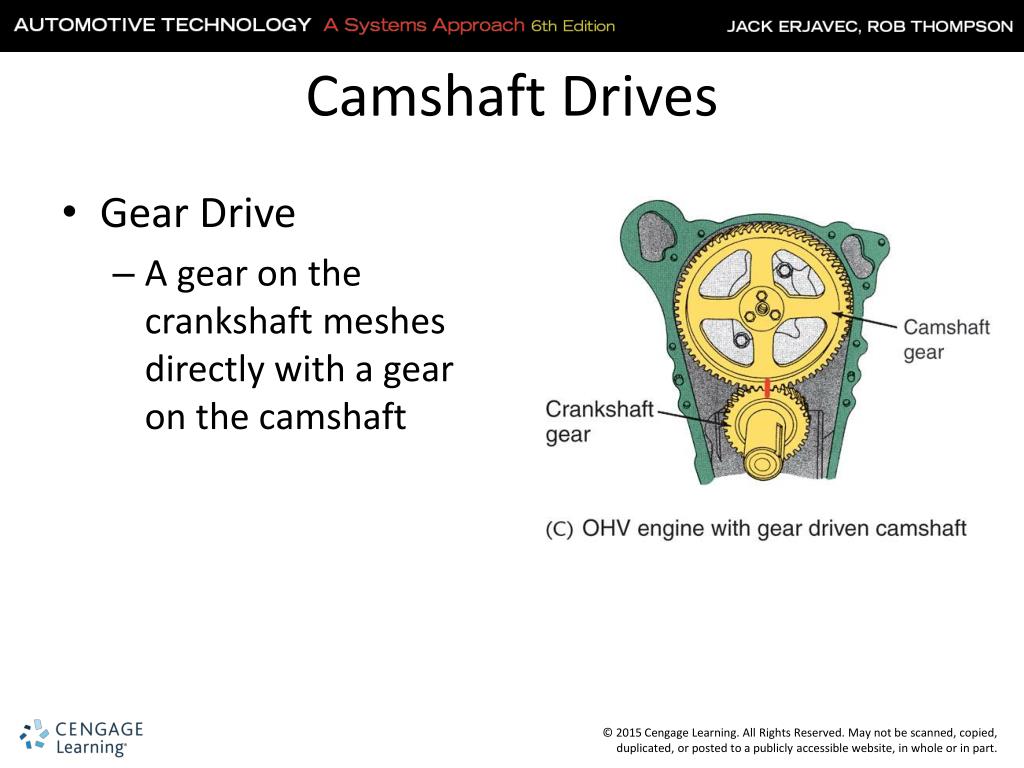

  33. Camshaft Drives • Gear Drive • A gear on the crankshaft meshes directly with a gear on the camshaft

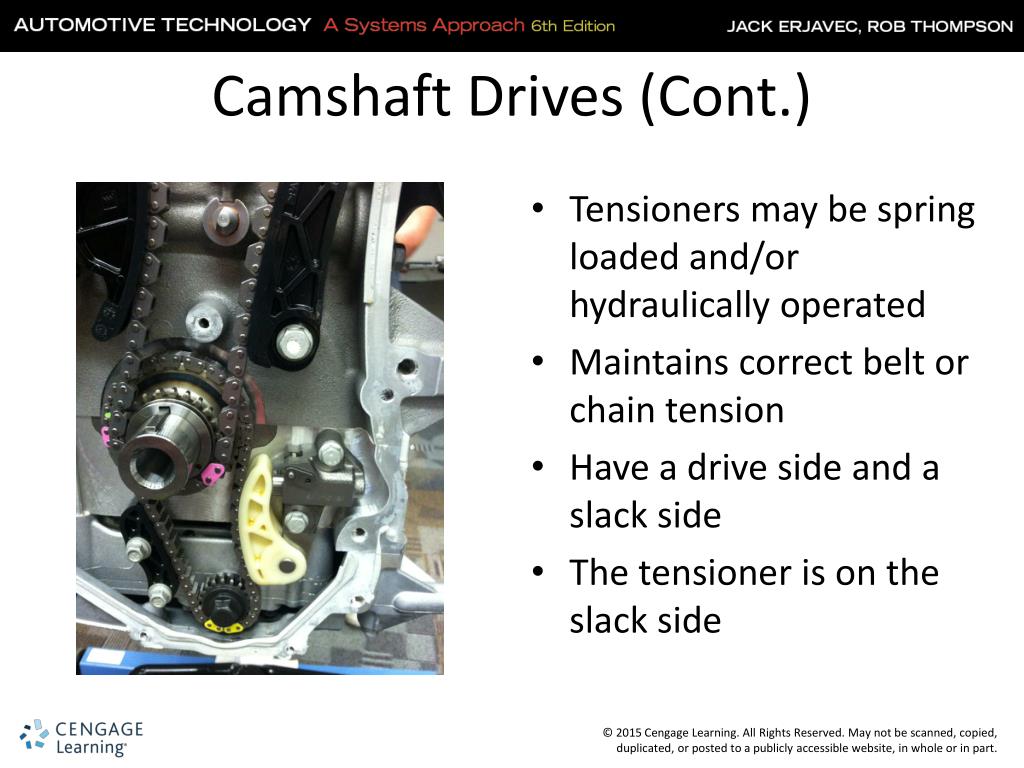

  34. Camshaft Drives (Cont.) • Tensioners may be spring loaded and/or hydraulically operated • Maintains correct belt or chain tension • Have a drive side and a slack side • The tensioner is on the slack side

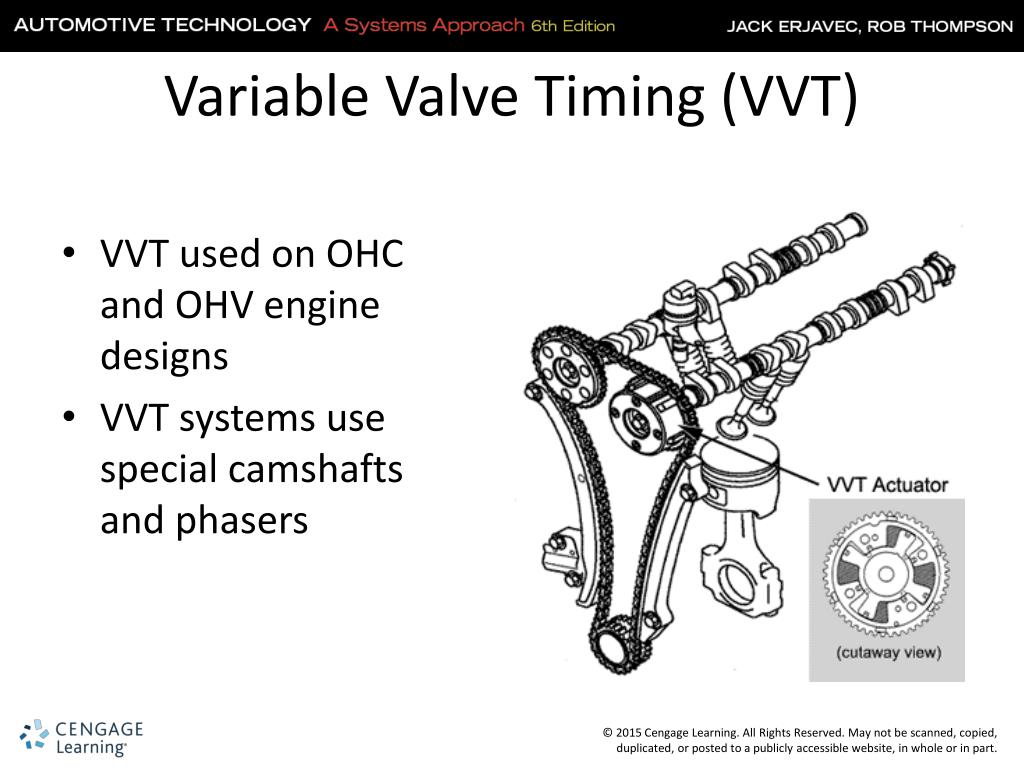

  35. Variable Valve Timing (VVT) • VVT used on OHC and OHV engine designs • VVT systems use special camshafts and phasers

  36. Knowledge Check • What are the three types of camshaft drives?

  37. Lifter Types - Hydraulic Lifter • Hydraulic Lifters • Uses oil to absorb the shock from the valve train movement

  38. Lifter Types - Solid Lifter • Solid Lifters • Require a clearance between parts of the valve train

  39. Lifter Types - Roller Lifter • Roller Lifters • Uses a roller to minimize friction

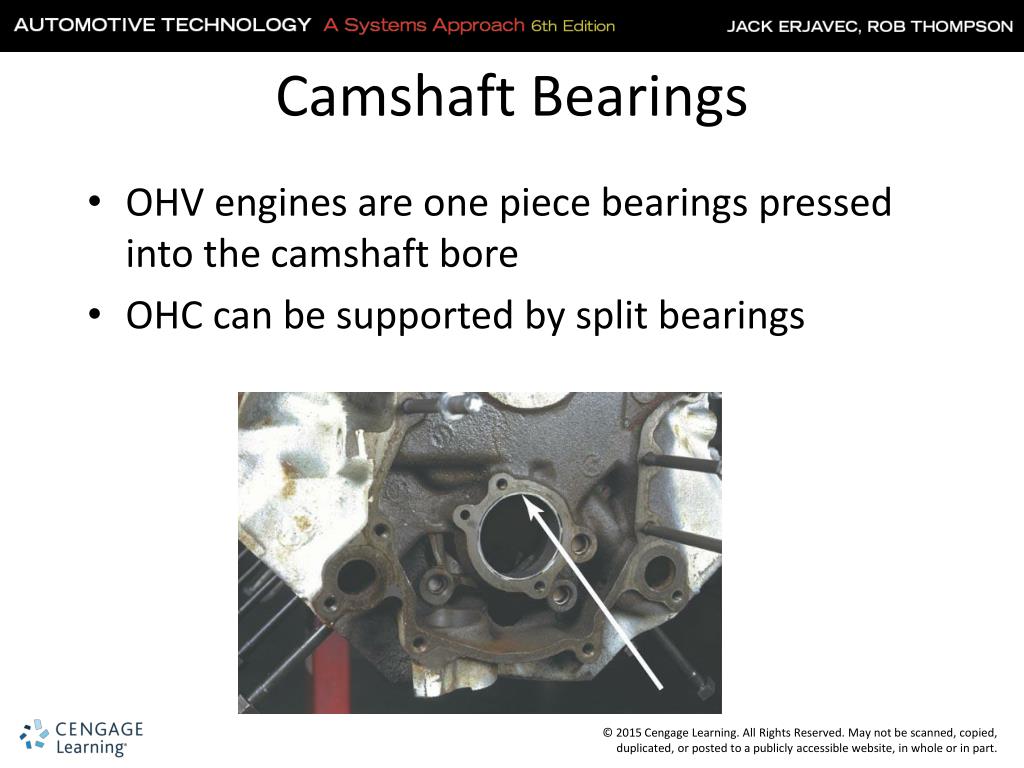

  40. Camshaft Bearings • OHV engines are one piece bearings pressed into the camshaft bore • OHC can be supported by split bearings

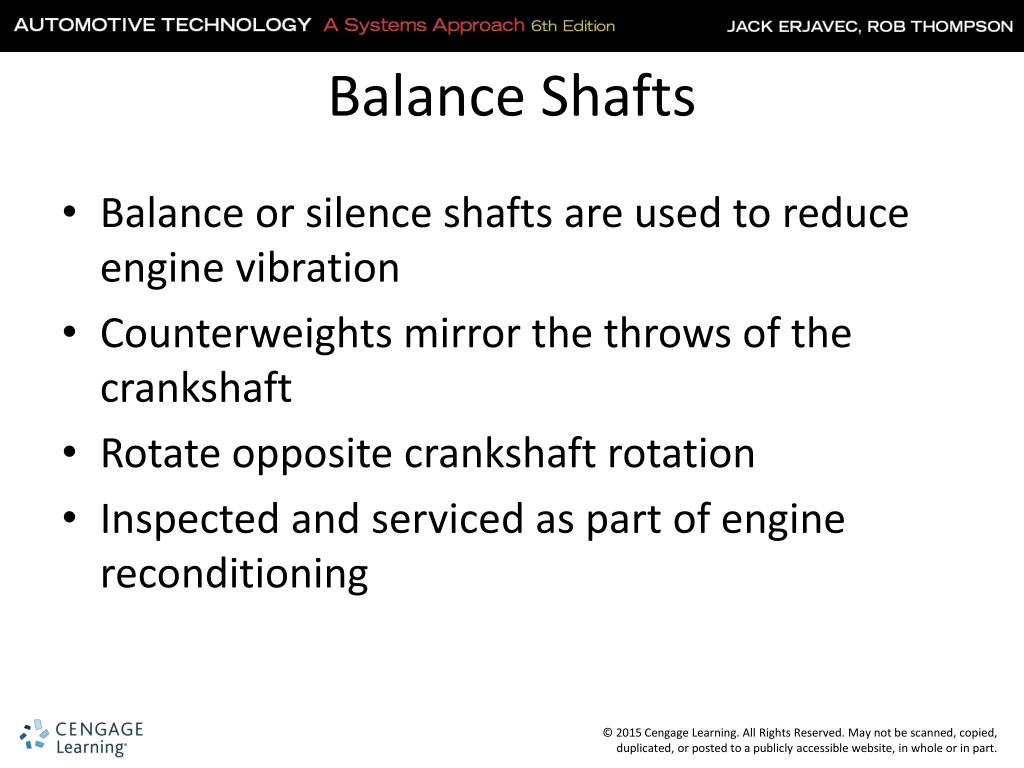

  41. Balance Shafts • Balance or silence shafts are used to reduce engine vibration • Counterweights mirror the throws of the crankshaft • Rotate opposite crankshaft rotation • Inspected and serviced as part of engine reconditioning

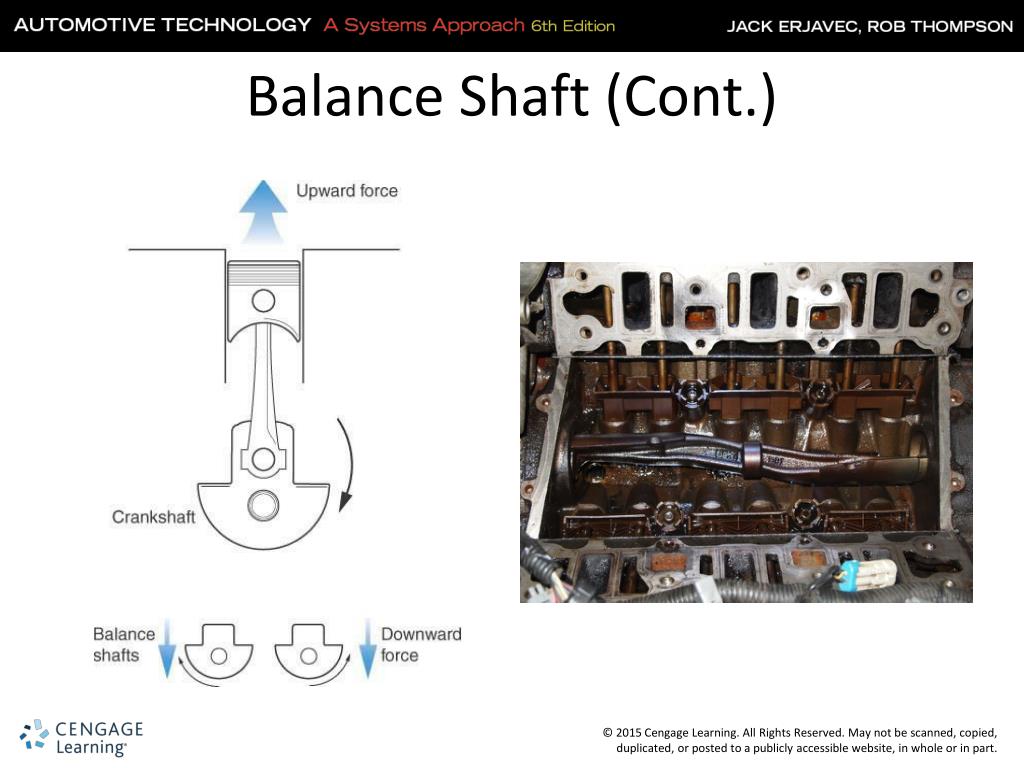

  42. Balance Shaft (Cont.)

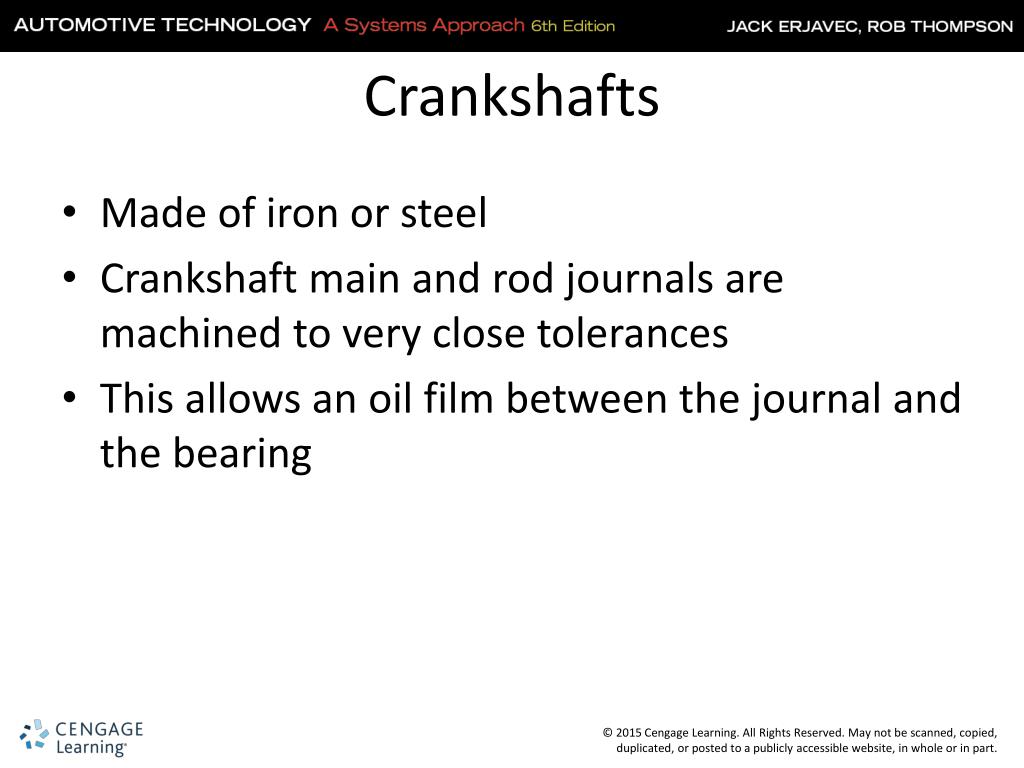

  43. Crankshafts • Made of iron or steel • Crankshaft main and rod journals are machined to very close tolerances • This allows an oil film between the journal and the bearing

  44. Crankshaft Torsional Dampers • Crankshaft twists and bends under combustion forces causing harmonic vibrations • This vibration can damage the crankshaft, the engine, and/or accessories driven by the crankshaft • Two common types of torsional dampers used

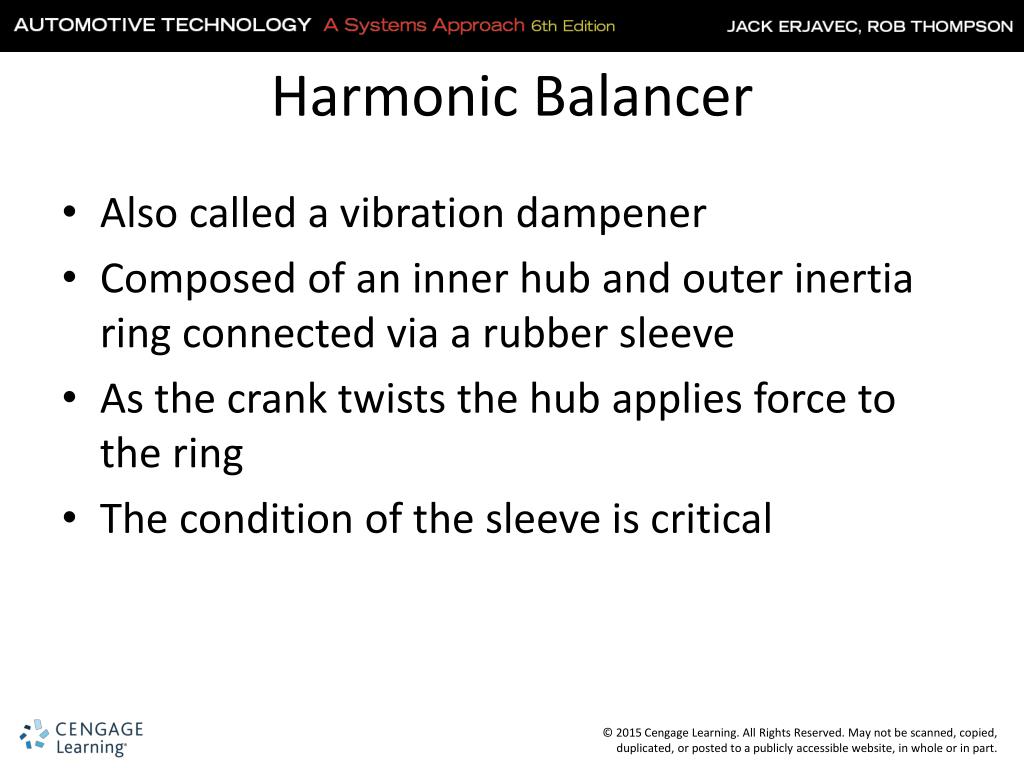

  45. Harmonic Balancer • Also called a vibration dampener • Composed of an inner hub and outer inertia ring connected via a rubber sleeve • As the crank twists the hub applies force to the ring • The condition of the sleeve is critical

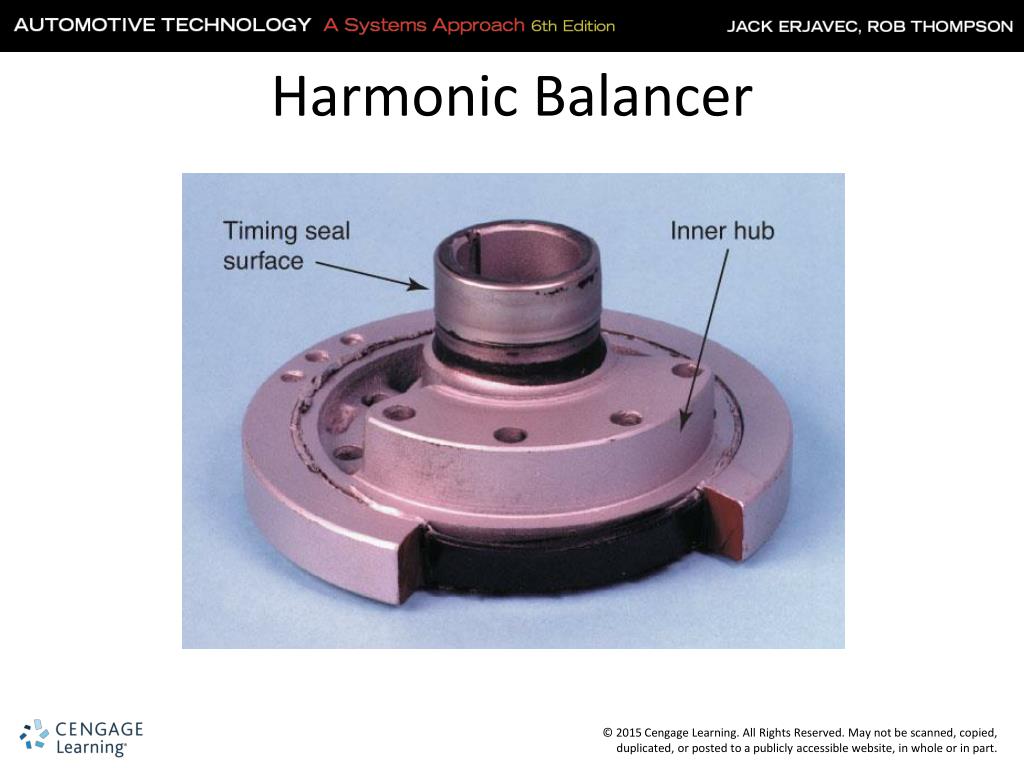

  46. Harmonic Balancer

  47. Fluid Damper • Commonly installed by the aftermarket • Fluid filled dampers have a hub surrounded by the inertia ring • The ring is filled with a high viscosity fluid • The outer ring moves against the hub as it absorbs vibrations • This movement results in heat

  48. Flywheel • Helps the engine run smoother • Applies a constantly moving force to the crankshaft • Flywheel inertia helps keep the crank moving from one firing event to the next • On automatic transmissions, the flex-plate and torque converter act as a flywheel
