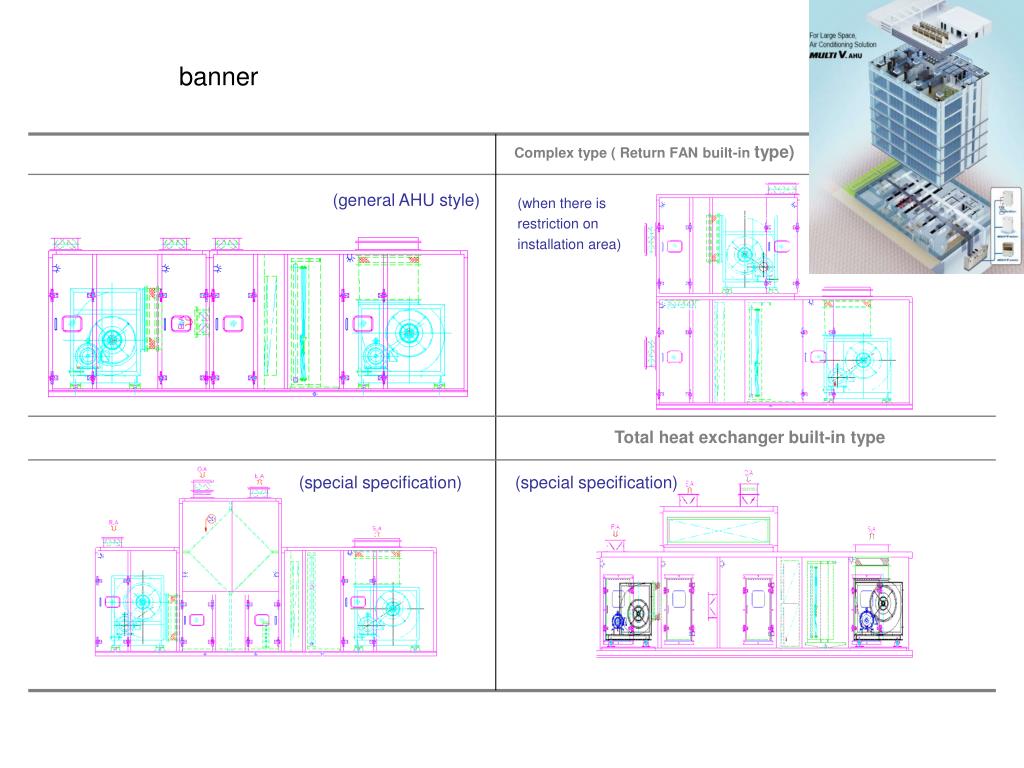

  1. banner Complex type ( Return FAN built-in type) (general AHU style) (when there is restriction on installation area) Total heat exchanger built-in type (special specification) (special specification)

  2. Turbo Fan Turbo Fan Sirocco Fan Product Composition Casing Part Case & Door • Case • Access Door • Case & insulation • Door Air Flow Part Damper Part Air Filter Part Humidifier Part Coil Part • Blower / Motor / Pulley • Frame / Spring • Inner Damper • Outer Damper #1~4 • Pre Filter • Medium Filter • DX Coil • Evaporative • Steam Injection Air volume control (High static Fan) Air cleanliness (Air Filter) Control air temp. (Heat exchanger) Control air humidity (humidifier) Görsel.

  3. DIAGRAM OF THE AIR CONDITIONER PLANTS WITH DX BATTERY FOR THE VRF EXTERNAL UITS The DX batteries of the air-conditioner plants can be cooled or heated with the VRF external units without using a boiler or chiller or with only a boiler large enought to support the system during the Defrost periods Local company(AHU) Expansion type AHU LG Channel work scope AHU KIT Central control ACP Controller TXV BMS Multi V ODU
