  1. Gas Furnace Controls Part 4

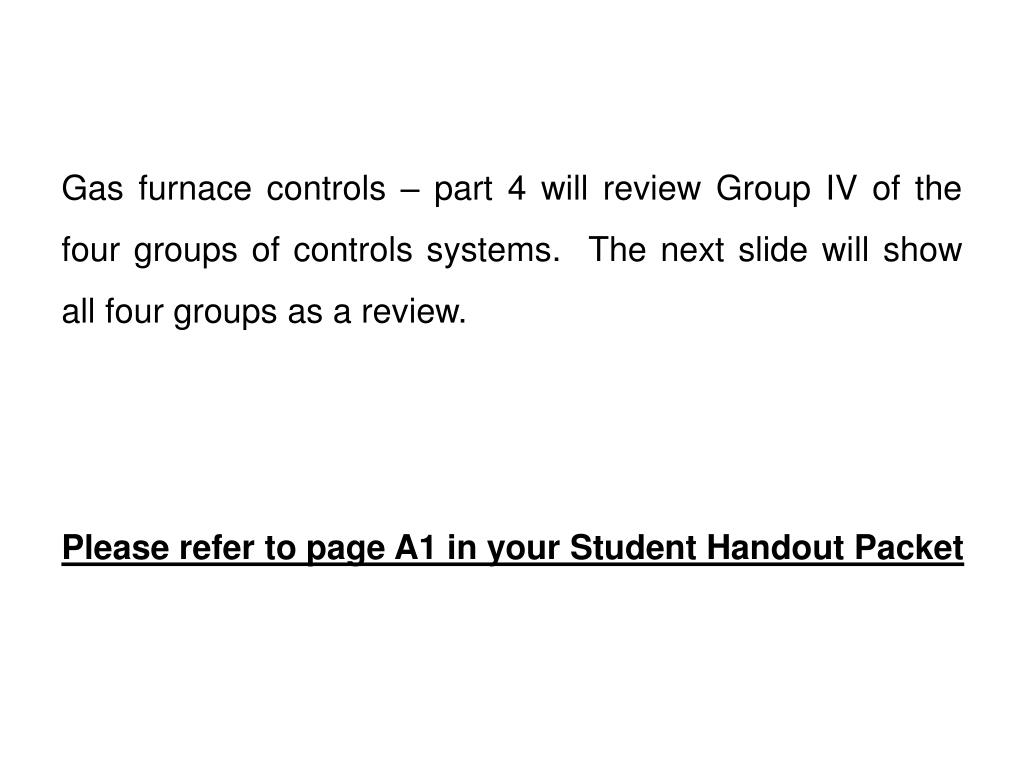

  2. Gas furnace controls – part 4 will review Group IV of the four groups of controls systems. The next slide will show all four groups as a review. Please refer to page A1 in your Student Handout Packet

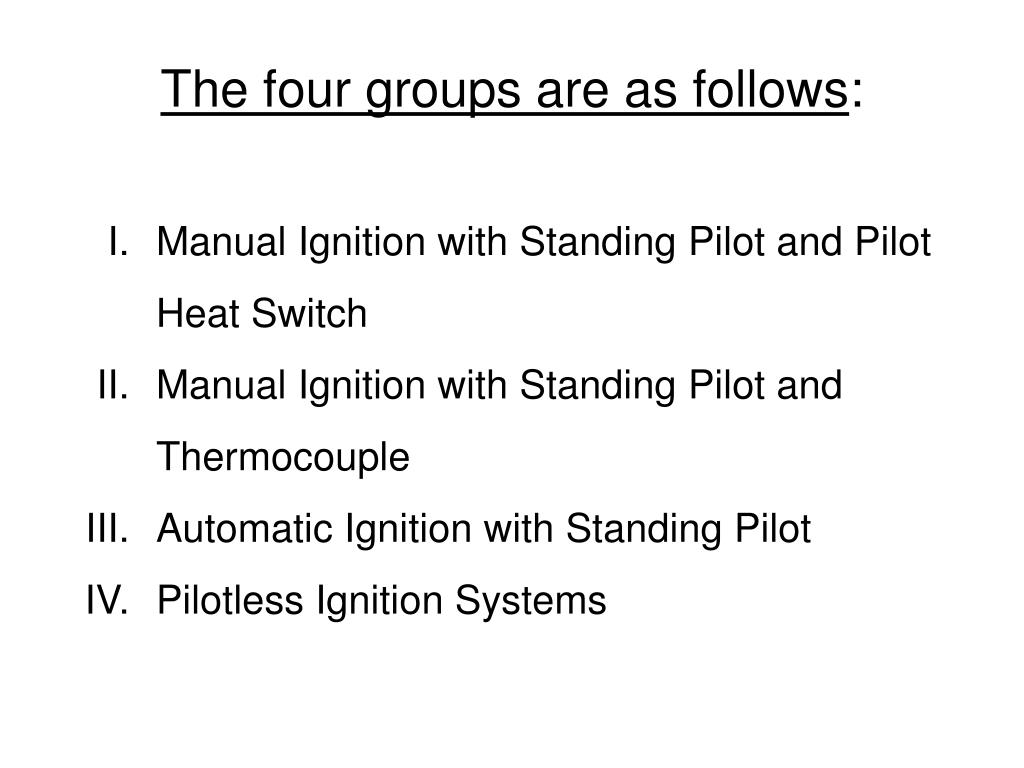

  3. The four groups are as follows: • I. Manual Ignition with Standing Pilot and Pilot Heat Switch • II. Manual Ignition with Standing Pilot and Thermocouple • III. Automatic Ignition with Standing Pilot • IV. Pilotless Ignition Systems

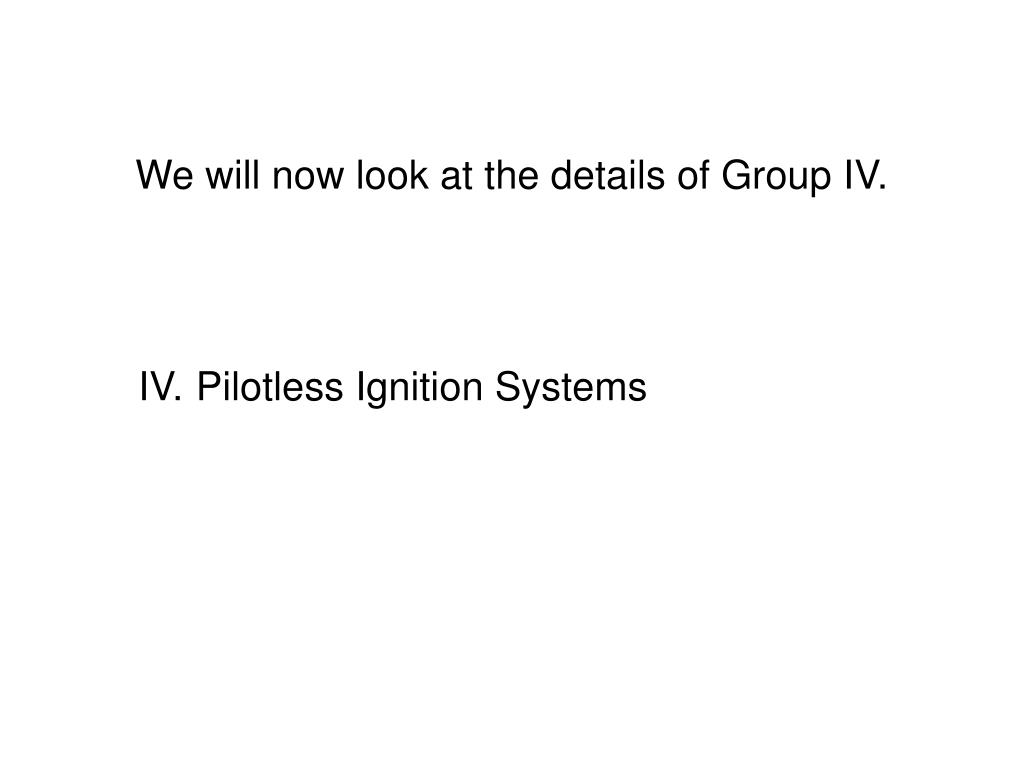

  4. We will now look at the details of Group IV. IV. Pilotless Ignition Systems

  5. Pilotless Ignition Systems • Pilotless Ignition Systems basically means that there is NO standing pilot.

  6. Pilotless Ignition Systems • The sequence of operation of pilotless ignition systems will either: • light a pilot, prove the pilot is lit, open the main gas valve to the main burners and the pilot will light the gas and keep operating, or • light the main burners, prove they are lit and keep operating.

  7. Pilotless Ignition Systems • There are two systems this power point presentation will review. They are: • Hot Surface Ignition (HSI) • Direct Spark Ignition (DSI)

  8. Pilotless Ignition Systems • The two systems are represented in your Student Handout Packet. These two systems are found in the A9 section and the A10 section.

  9. Before we take a look at these two pilotless ignition systems, we need to review two flame characteristics. Flame conductivity Flame rectification

  10. Flame Conductivity • A physical property of a flame is that it will pass current through it. It will be a VERY SMALL amount of current.

  11. Flame Conductivity • The way it works is that the control module sends out an AC voltage. The flame conducts current both ways with the same size flame sensors, so the control module will ‘see’ an AC input in response to the AC signal it sent out.

  12. Flame Conductivity Flame Sensors Control Module

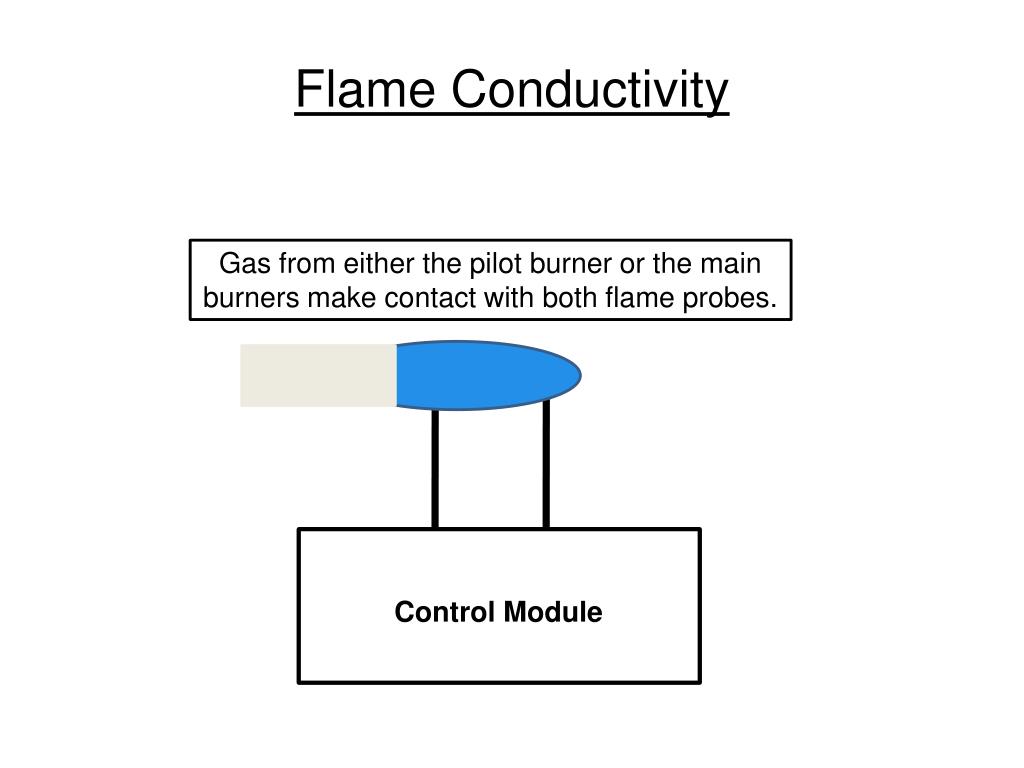

  13. Flame Conductivity Gas from either the pilot burner or the main burners make contact with both flame probes. Control Module

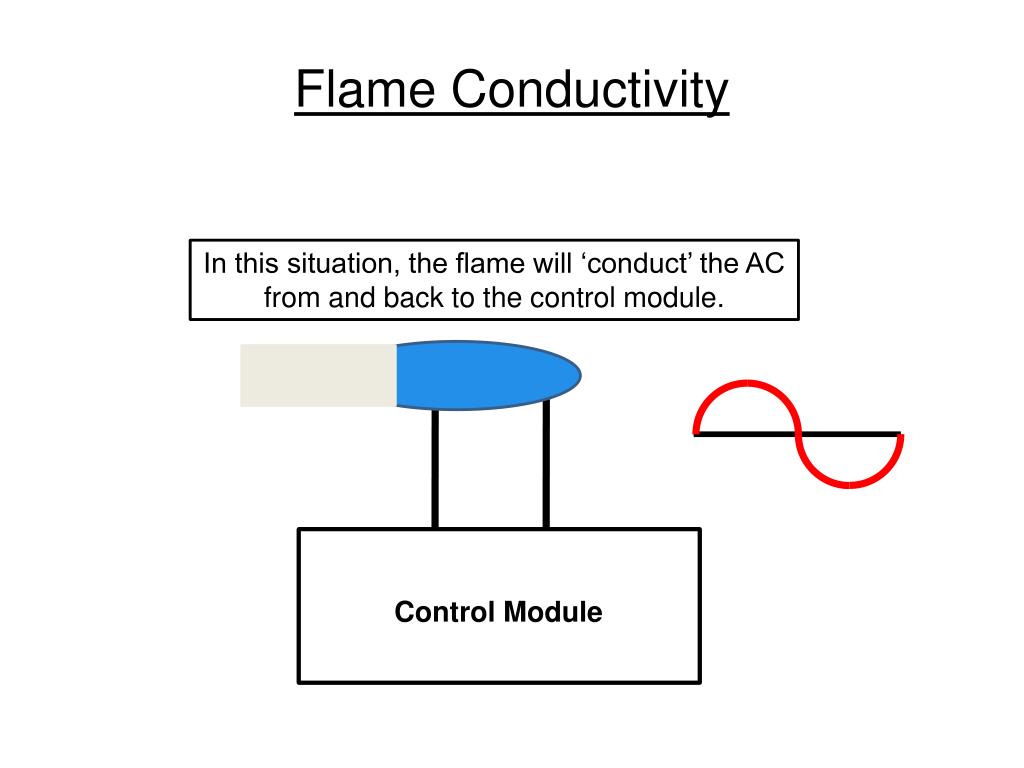

  14. Flame Conductivity In this situation, the flame will ‘conduct’ the AC from and back to the control module. Control Module

  15. Flame Conductivity • Flame conductivity had some issues with false sensing and that is not good with gas equipment. So ‘flame conductivity’ is no longer used.

  16. Flame Rectification • Flame rectification has replaced flame conductivity and is a better flame sensing system.

  17. Flame Rectification Notice that there are still two sensors, but one is very large compared to the other one. The larger one is usually the metal housing of the furnace, so it is large compared to a pencil lead sized probe. Flame Sensors Control Module

  18. Flame Rectification Gas from either the pilot burner or the main burners makes contact with one probe. The other probe is the furnace housing, which is connected to the control module. Furnace housing Control Module

  19. Flame Rectification In this situation, the flame will ‘conduct’ AC from the control module, but due to the size difference of the probes, only a ‘rectified’ AC wave will return. So the rectified current will actually appear to be DC and the control module is designed to only sense this DC. So if it senses AC, it knows something is wrong and will shut down the furnace. Control Module

  20. Flame Rectification This is what the sine wave looks like in the rectification circuit. A lot of flow in one direction, but very little flow in the opposite direction. Control Module

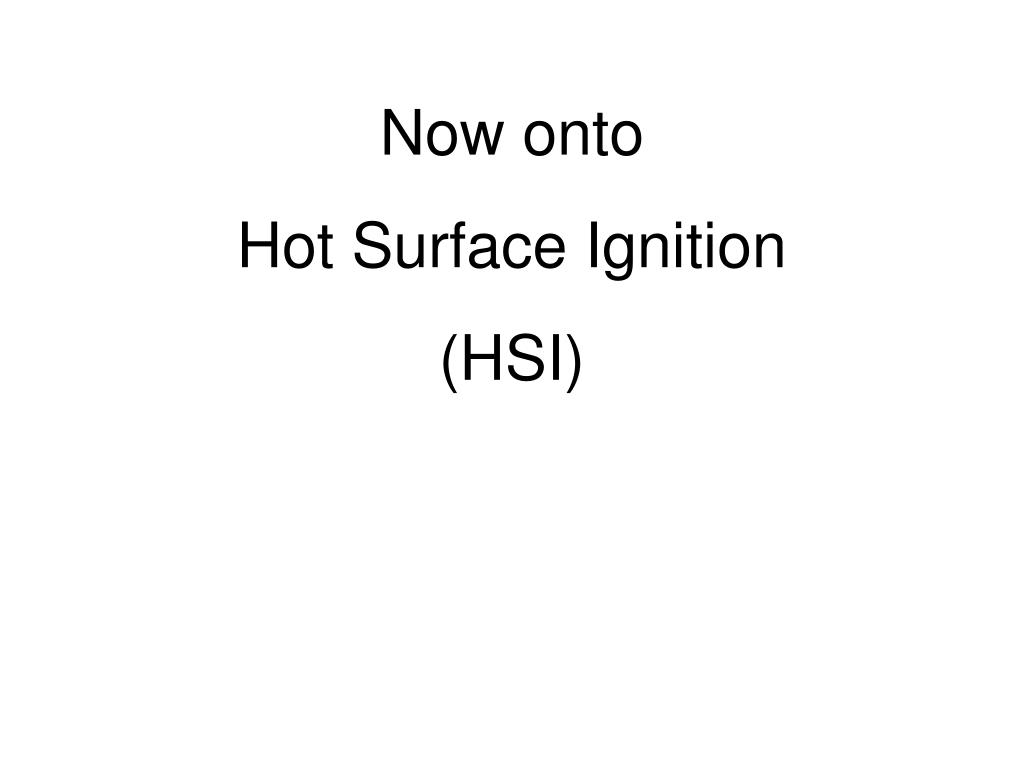

  21. Now ontoHot Surface Ignition(HSI)

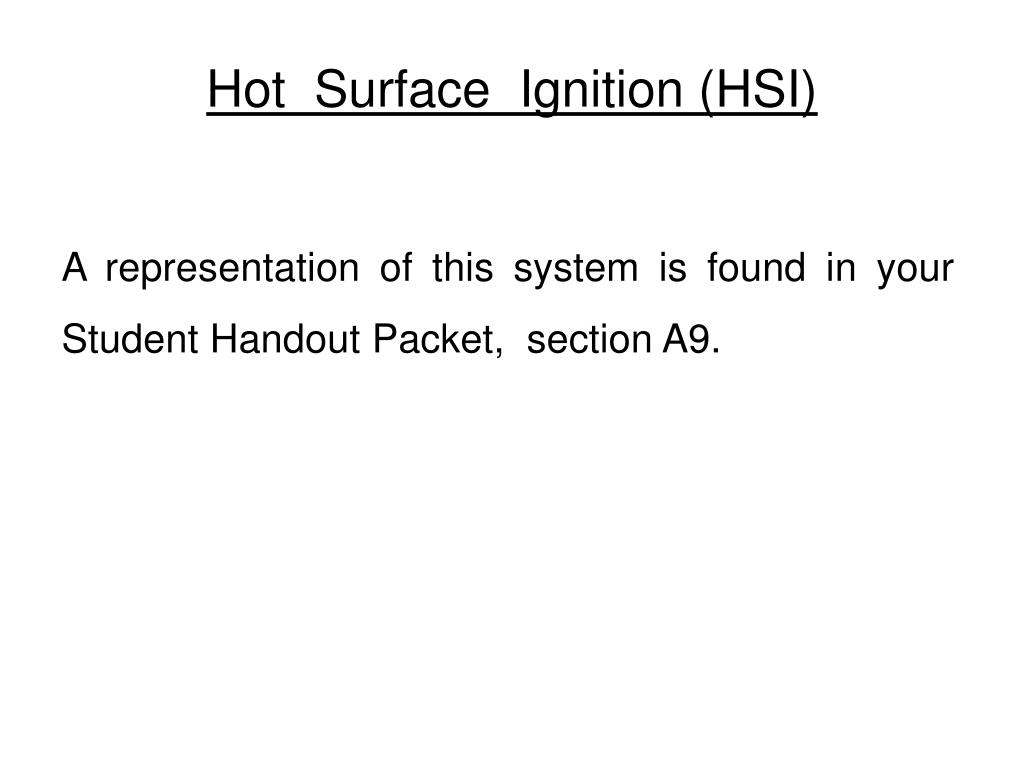

  22. Hot Surface Ignition (HSI) • A representation of this system is found in your Student Handout Packet, section A9.

  23. Turn to page A9c to review the schematic,which is shown below.

  24. A review of the following componentsfound on this HSI system. Main valve/Redundant valve Flame Sensor Probe Control Module Hot Surface Ignitor

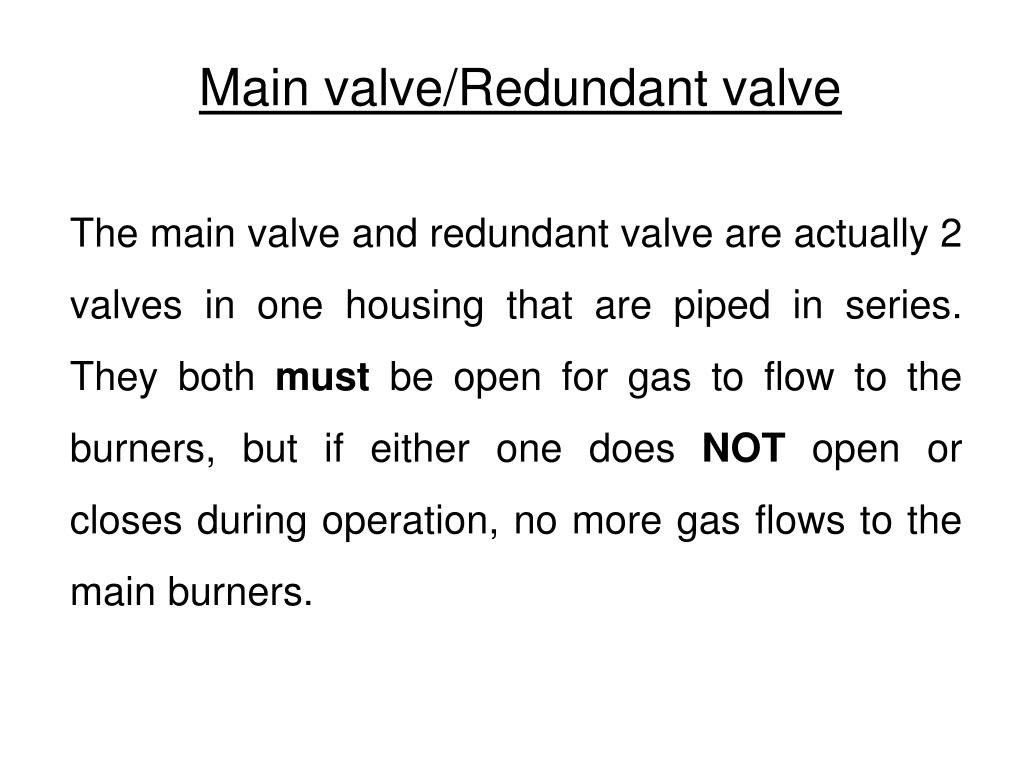

  25. Main valve/Redundant valve The main valve and redundant valve are actually 2 valves in one housing that are piped in series. They both must be open for gas to flow to the burners, but if either one does NOT open or closes during operation, no more gas flows to the main burners.

  26. Main valve/Redundant valve One valve would do the job, but because there are two, it is considered ‘redundant.’ This feature is for safety considerations.

  27. Main valve/Redundant valve Look at the schematic and notice how the two valves are electrically connected. They are wired in parallel. This means that both valves will get voltage at the same time and they will open together.

  28. Main valve/Redundant valve To review, the main valve and redundant valves are PIPED in series, but WIRED in parallel.

  29. Flame Sensor Probe The ‘flame sensor probe’ may also be known as the ‘flame probe’ or ‘flame rod.’ It is a piece of stainless steel that one end is inserted into the gas flame, and the other end is connected to the control module.

  30. Flame Sensor Probe Flame Sensor Probe

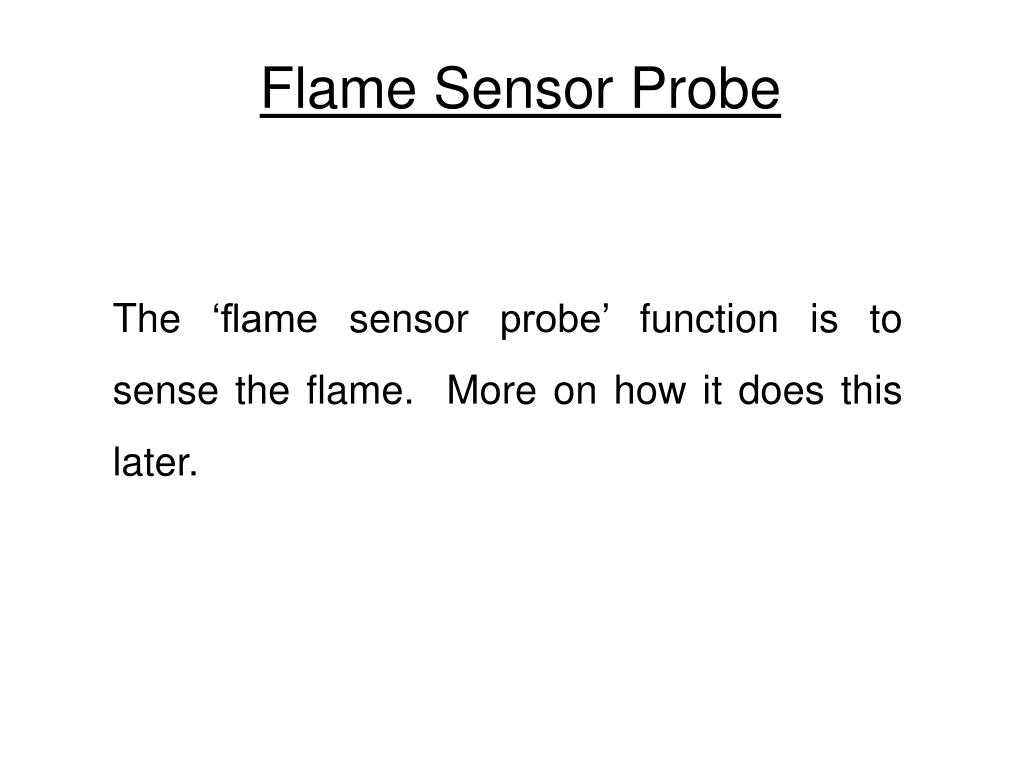

  31. Flame Sensor Probe The ‘flame sensor probe’ function is to sense the flame. More on how it does this later.

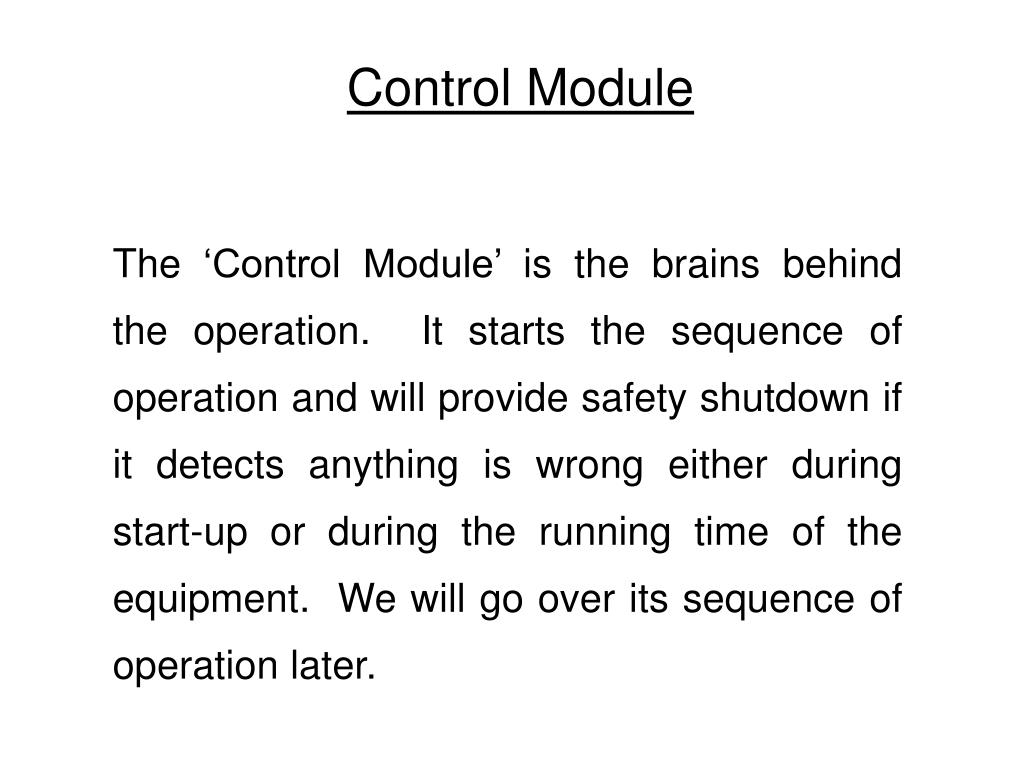

  32. Control Module The ‘Control Module’ is the brains behind the operation. It starts the sequence of operation and will provide safety shutdown if it detects anything is wrong either during start-up or during the running time of the equipment. We will go over its sequence of operation later.

  33. Hot Surface Ignitor The hot surface ignitor can be either silicone carbide or silicone nitride. When either device receives the voltage that it is rated at, it will get very hot and glow. This then becomes the high tech version of the older ‘glow coil’ described in a previous presentation.

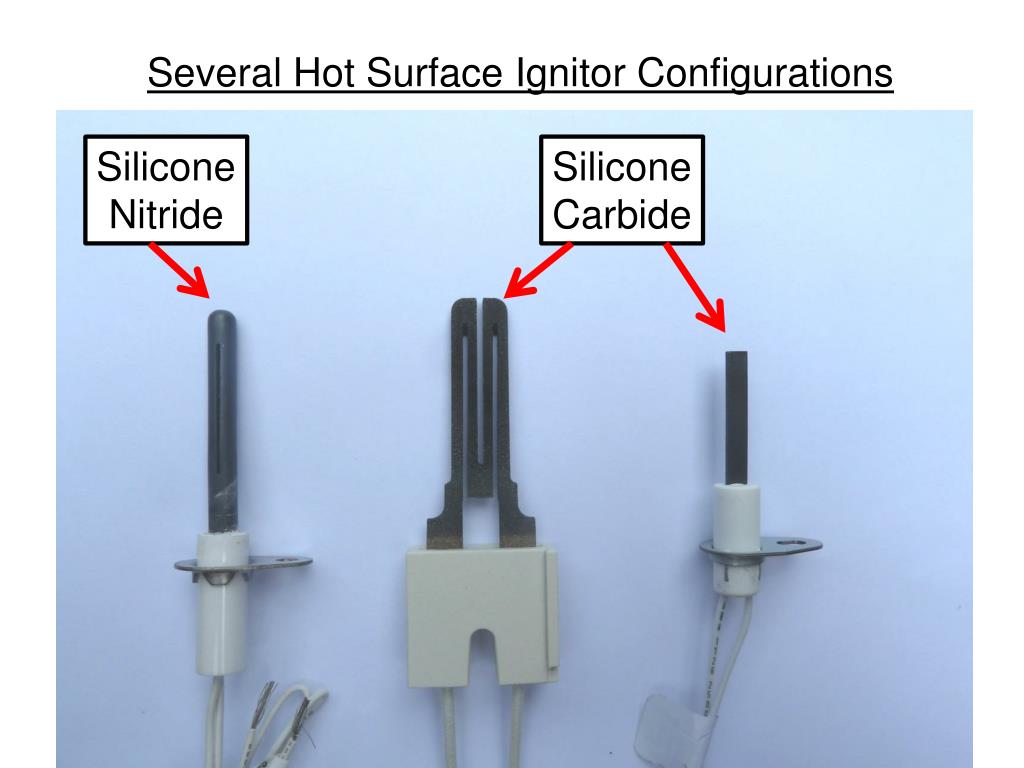

  34. Silicone Nitride Silicone Carbide Several Hot Surface Ignitor Configurations

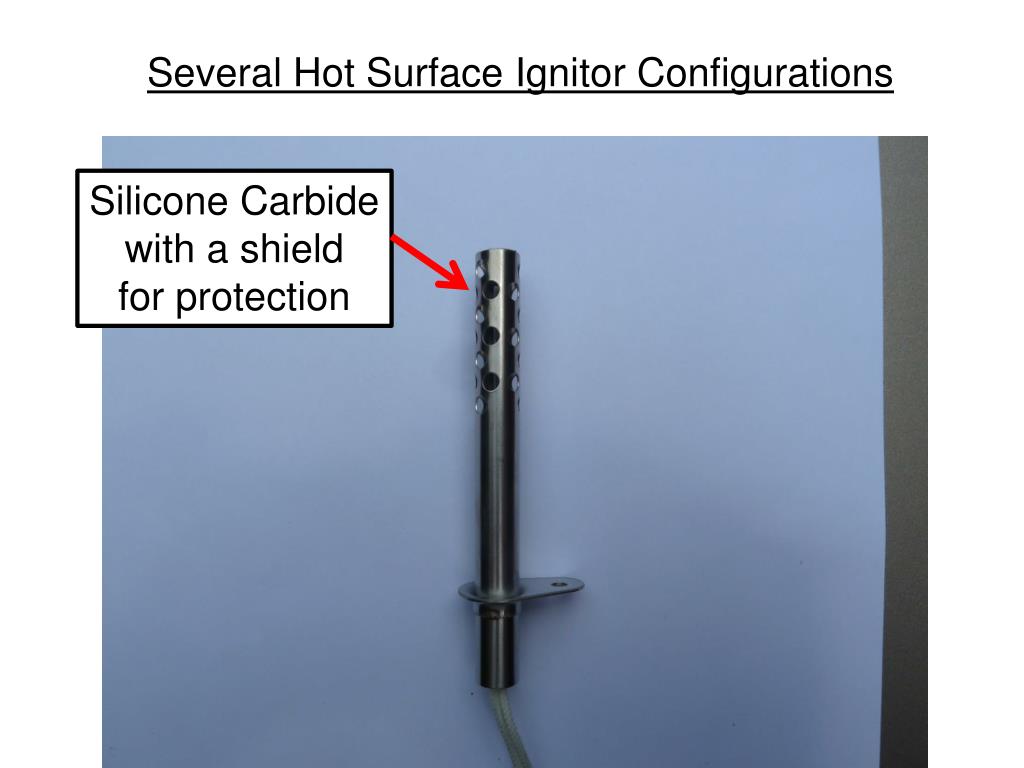

  35. Silicone Carbide with a shield for protection Several Hot Surface Ignitor Configurations

  36. Now that we have gone through each of the components of an HSI system, we will go through the sequence of operation. This sequence is also available on page A9c of your Student Handout Packet.

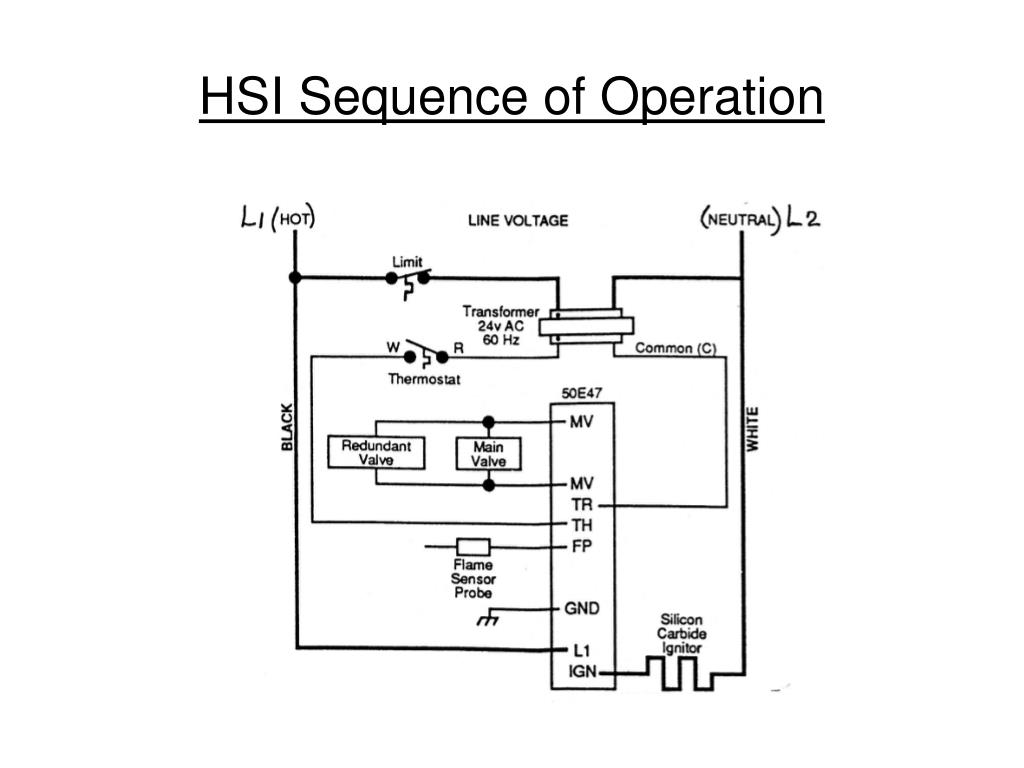

  37. HSI Sequence of Operation

  38. Power is supplied to the furnace

  39. Thermostat calls for heat,control module is energized

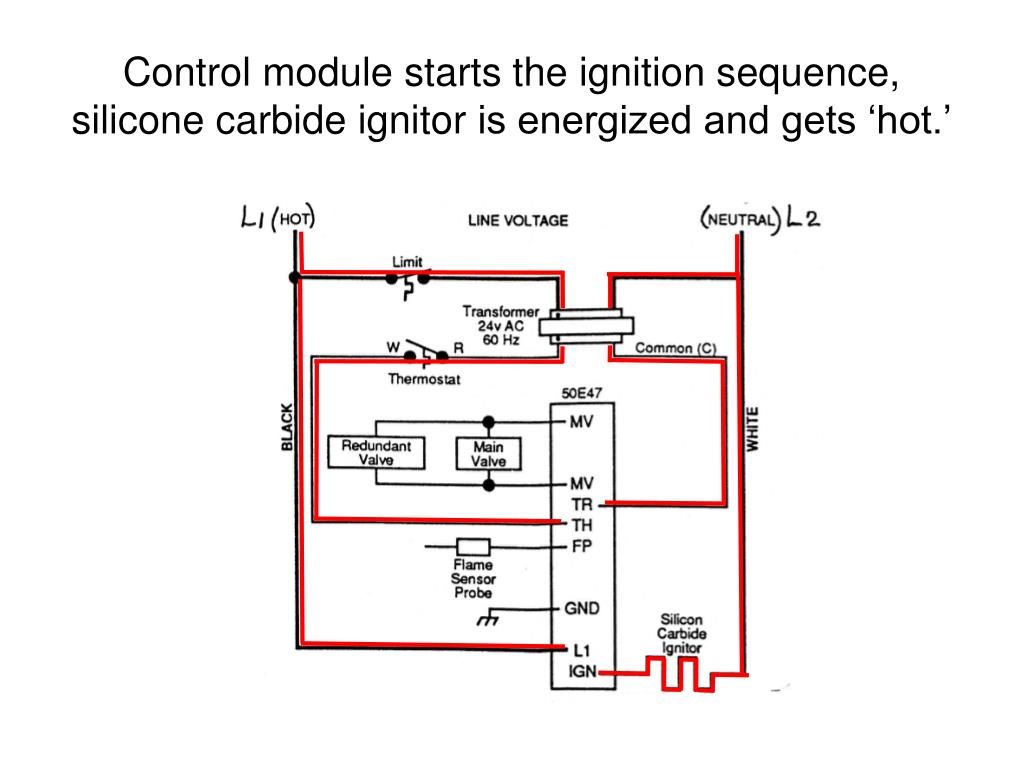

  40. Control module starts the ignition sequence,silicone carbide ignitor is energized and gets ‘hot.’

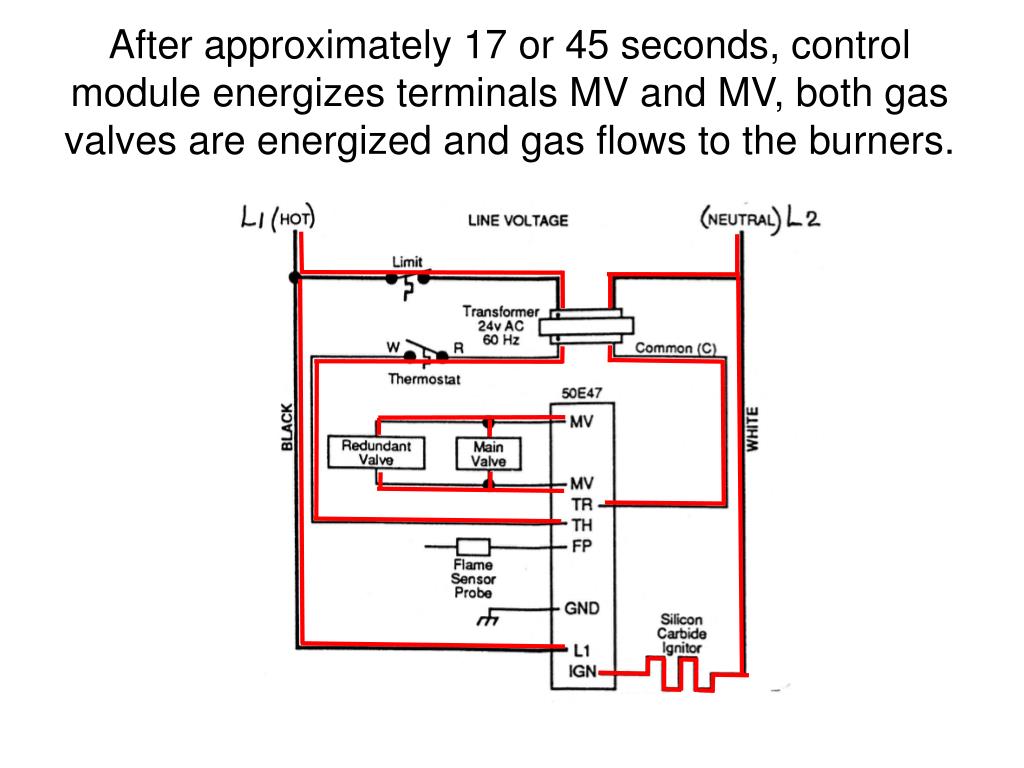

  41. After approximately 17 or 45 seconds, control module energizes terminals MV and MV, both gas valves are energized and gas flows to the burners.

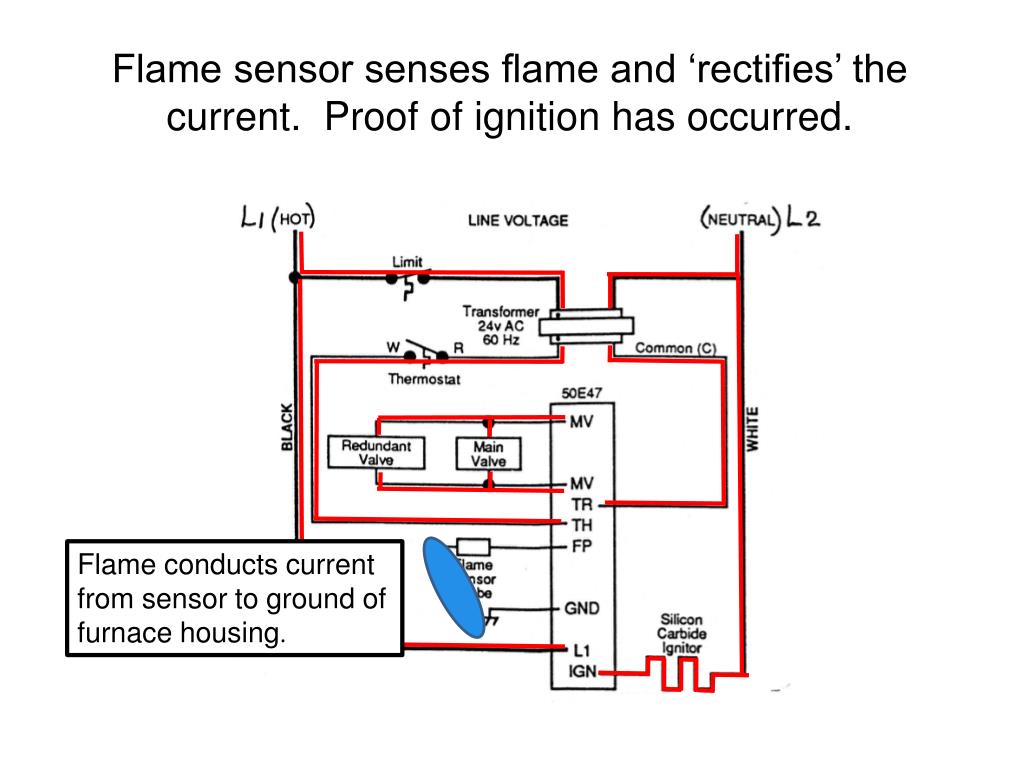

  42. Flame sensor senses flame and ‘rectifies’ the current. Proof of ignition has occurred. Flame conducts current from sensor to ground of furnace housing.

  43. After proof of ignition has occurred,control module will de-energize HSI.

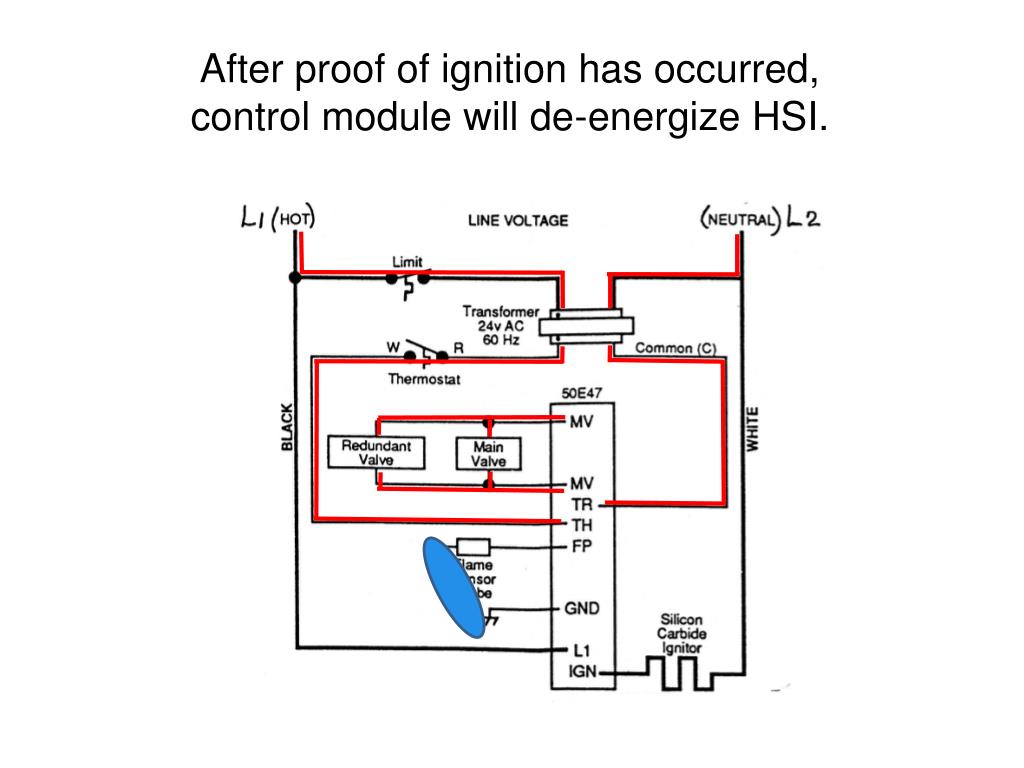

  44. This completes the sequence of operation.

  45. Look at the control module and the terminal identification for the valves. You see MV and MV.

  46. MV and MV is abbreviated for Main Valve. What you don’t see is a PV for PILOT VALVE. This means that this control system does NOT have a separate pilot. The main burner gas is ignited and serves in place of the pilot gas. The control system proves ignition for the main burners.

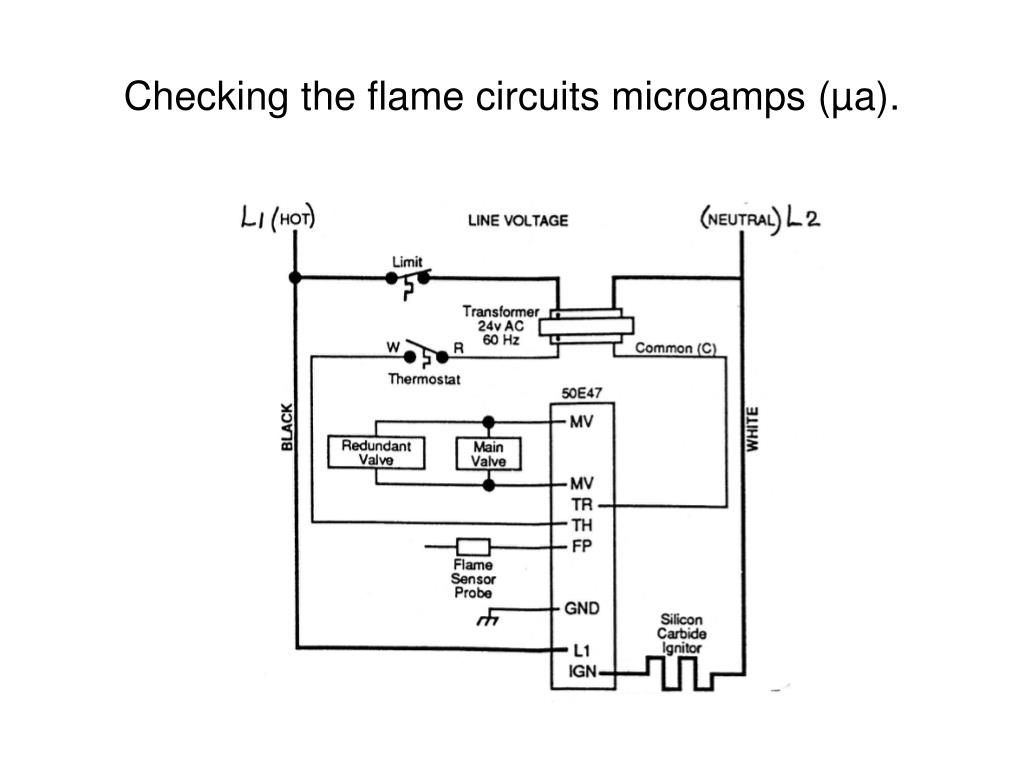

  47. Checking the flame circuits microamps (µa).

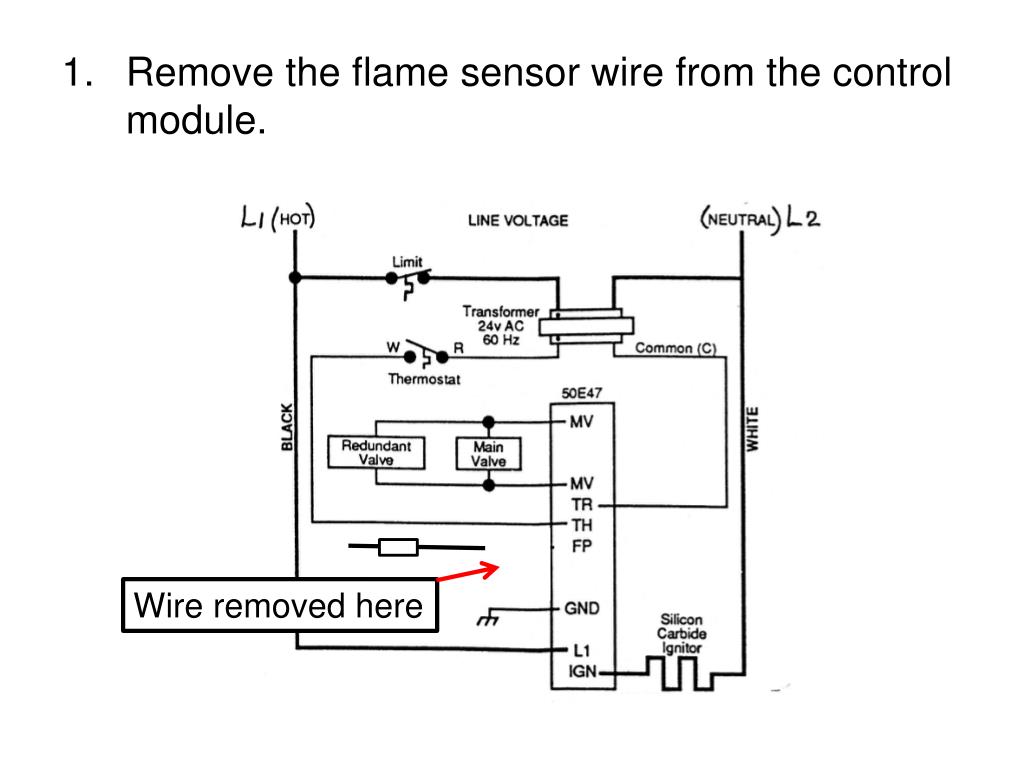

  48. 1. Remove the flame sensor wire from the control module. Wire removed here

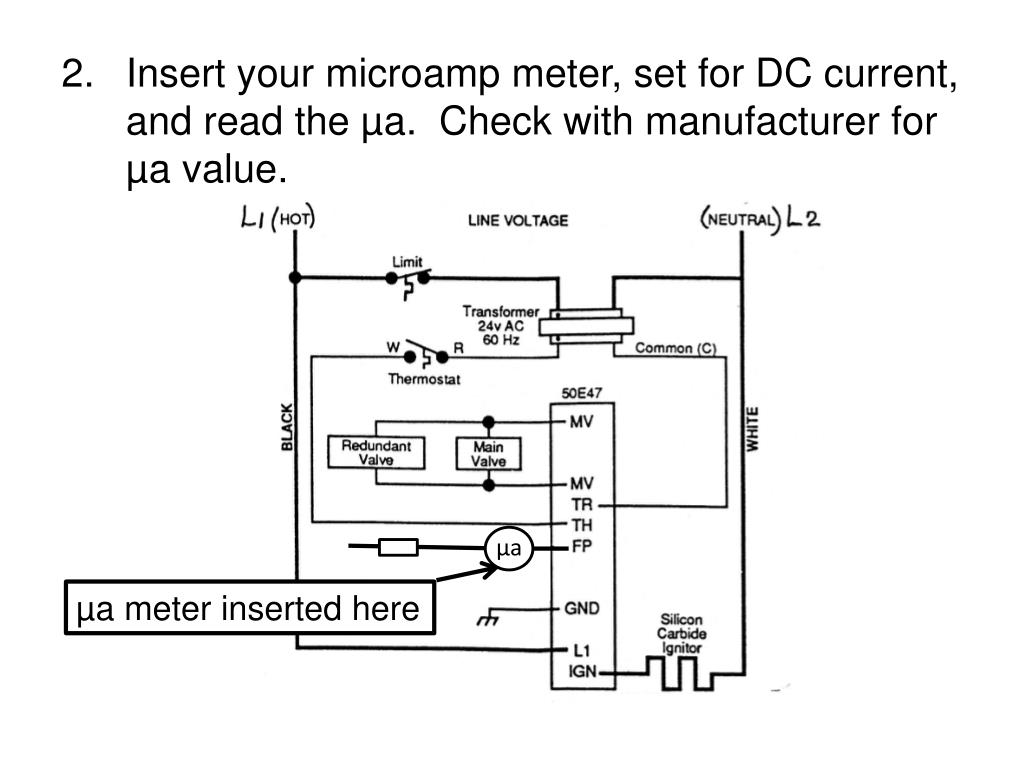

  49. 2. Insert your microamp meter, set for DC current, and read the µa. Check with manufacturer for µa value. µa a µa meter inserted here
