Extending ILCT to LOS Data Sets: Analyzing Flow Consistency with Induction Equations

This study explores the applicability of the Induction Law of Current Transfer (ILCT) to Line-of-Sight (LOS) data sets, emphasizing flow consistency with induction equations' normal components. We investigate using ILCT-derived flows and 3D component decomposition, while addressing the challenge of lacking direct measurements of the transverse magnetic field (B⊥) at the photosphere. Also, the initial magnetic field conditions are estimated using a combination of global Potential Field Source Surface (PFSS) and local Nonlinear Force-Free Field (NLFFF) models, facilitating data-driven simulations of magnetic events during the SOHO era.

halla-hobbs
Télécharger la présentation

Extending ILCT to LOS Data Sets: Analyzing Flow Consistency with Induction Equations

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

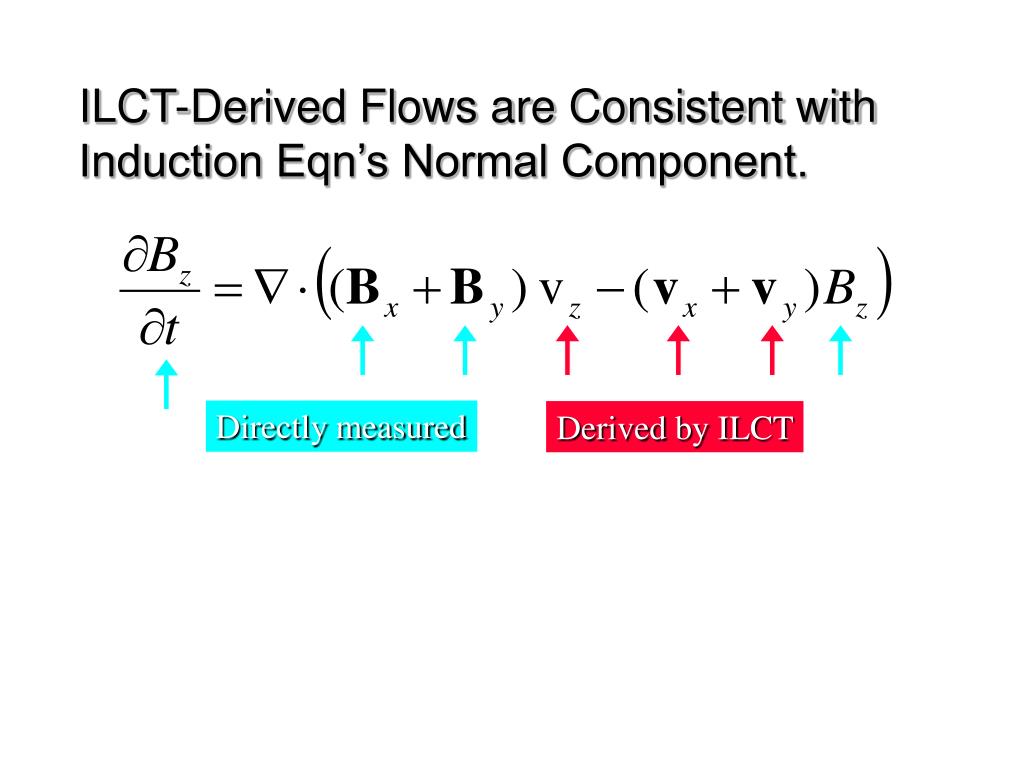

  1. Directly measured Derived by ILCT ILCT-Derived Flows are Consistent with Induction Eqn’s Normal Component.

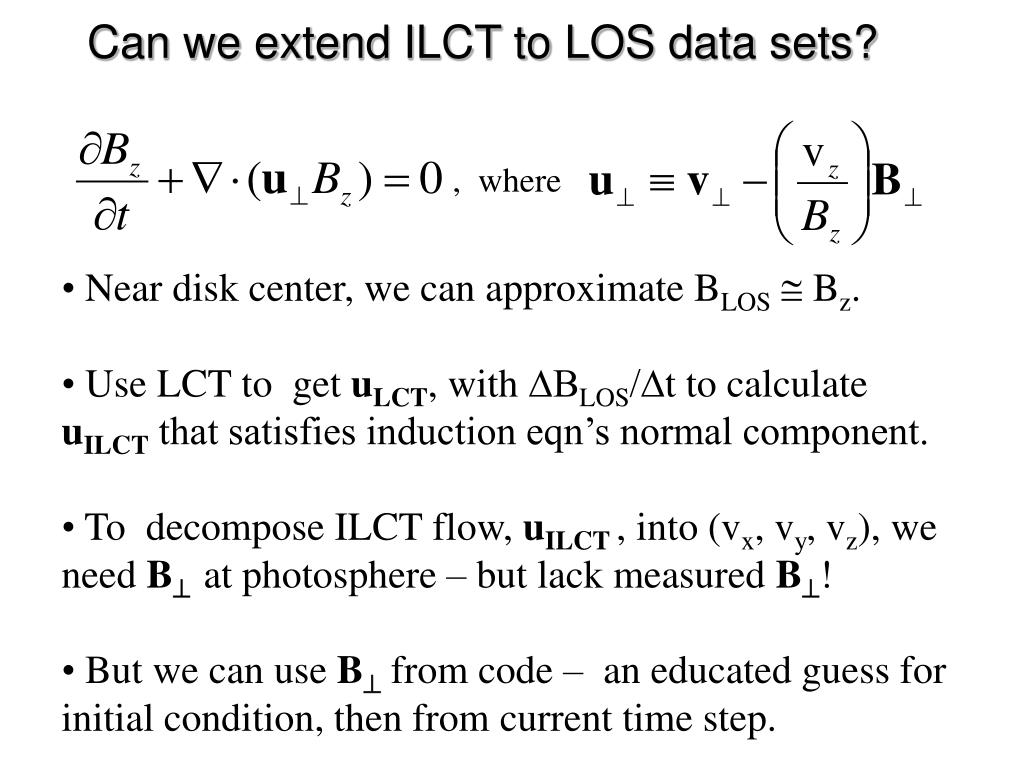

  2. Can we extend ILCT to LOS data sets? , where • Near disk center, we can approximate BLOS Bz. • Use LCT to get uLCT, with LOSt to calculate uILCT that satisfies induction eqn’s normal component. • To decompose ILCT flow, uILCT , into (vx, vy, vz), we need B at photosphere – but lack measured B! • But we can use B from code – an educated guess for initial condition, then from current time step.

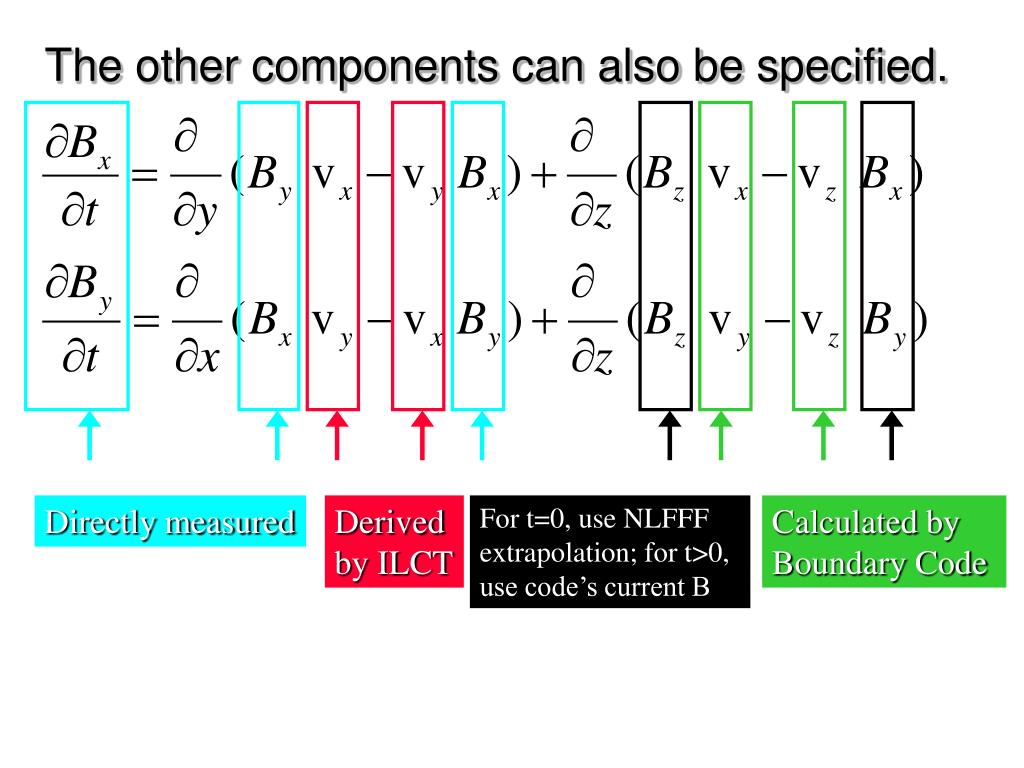

  3. The other components can also be specified. Directly measured Derived by ILCT For t=0, use NLFFF extrapolation; for t>0, use code’s current B Calculated by Boundary Code at photosphere, z = 0 above photosphere, z > 0

  4. The other components can also be specified. Directly measured Derived by ILCT For t=0, use NLFFF extrapolation; for t>0, use code’s current B Calculated by Boundary Code

  5. Extending ILCT to LOS data sets, cont’d: • Long-duration data sets of MDI full-disk magneto- grams exist for most events in SOHO era! • Initial B(x,y,z) can be given by combination of global PFSS model + local NLFFF consistent with • X-ray/EUV observations. • In principle, can run data-driven simulations of almost all events in SOHO era!

  6. Induction Equation’s Components

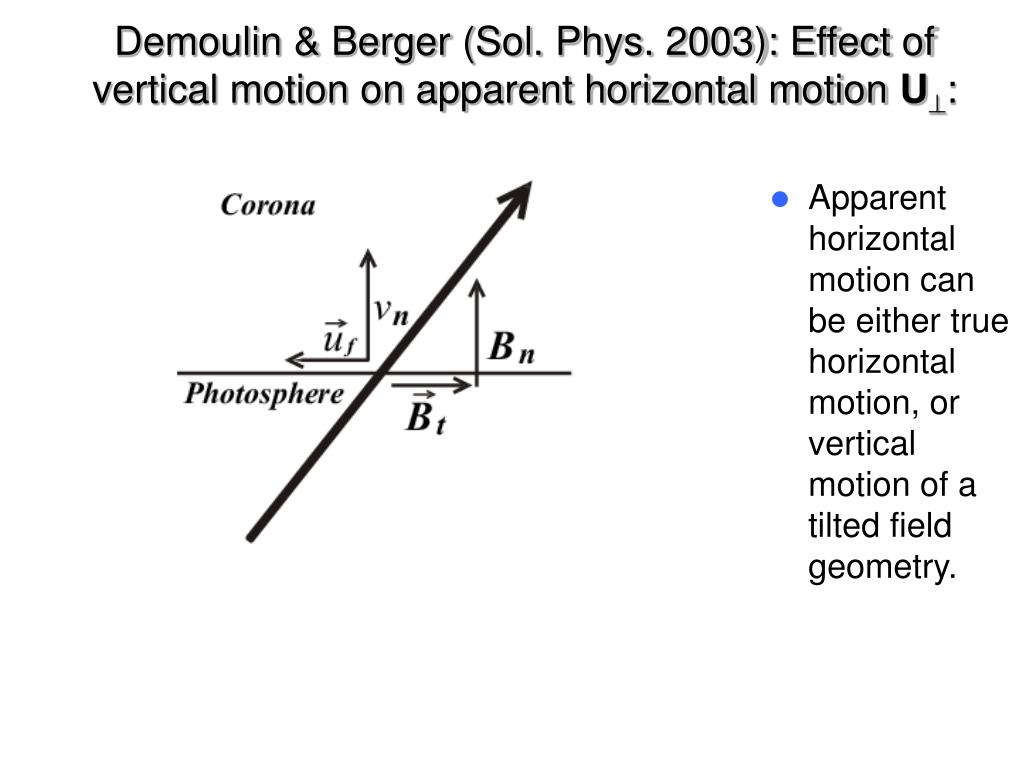

  7. Demoulin & Berger (Sol. Phys. 2003): Effect of vertical motion on apparent horizontal motion U: • Apparent horizontal motion can be either true horizontal motion, or vertical motion of a tilted field geometry.
