Precision Optics Mounting System for Illumination Lens and Test Plate

This preliminary design review focuses on the mounting system for an illumination lens and test plate, ensuring precise alignment and adjustment for optimal performance. The design includes counterweight supports, axial flexures, and micrometer access points for fine adjustments. Key features include RMS slope errors, interface access points, and kinematic grooves for positioning. Action items involve finalizing Solidworks models and determining optimal flexure angles for mounting. Flexure material and positioning are crucial for achieving accuracy in lens alignment.

hamish-cummings
Télécharger la présentation

Precision Optics Mounting System for Illumination Lens and Test Plate

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Preliminary Design Review Katie Schwertz Optics 523 April 3, 2009

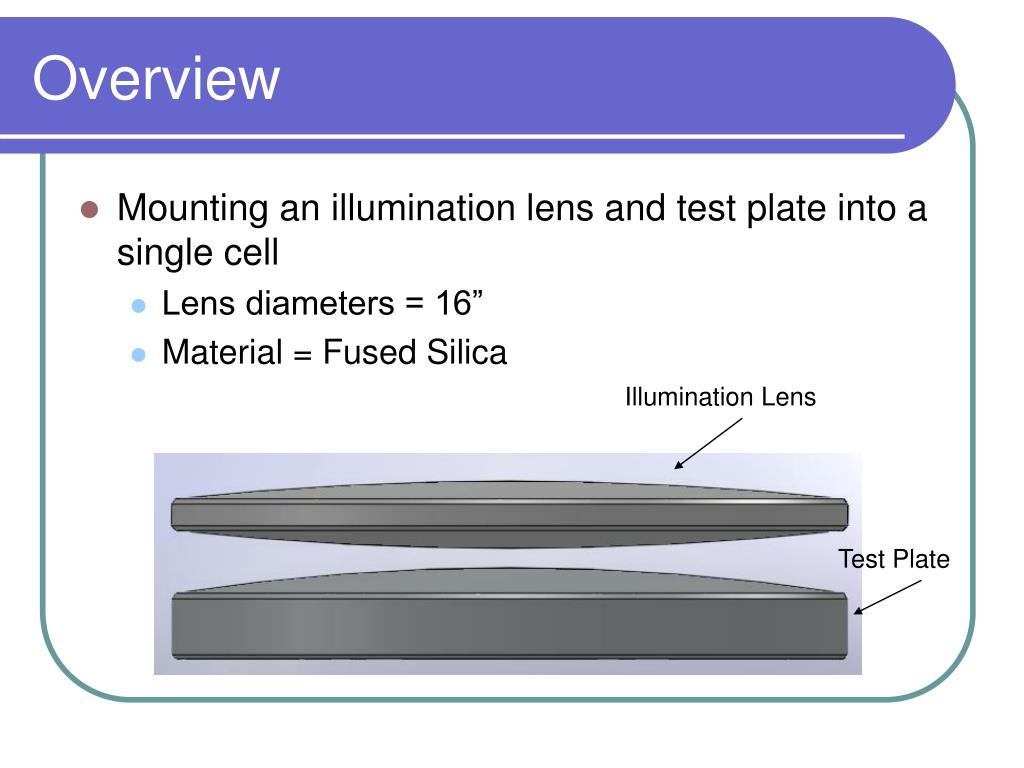

  2. Overview • Mounting an illumination lens and test plate into a single cell • Lens diameters = 16” • Material = Fused Silica Illumination Lens Test Plate

  3. Requirements Review • Test Plate • Concave surface: RMS slope error < 10 nm/cm (0.1 urad) • Alignment of lenses • 100 um position • 1 mrad angle • 10 mm nominal separation (100 um tolerance) • Adjustment of cell • 0.2 urad angular sensitivity • 0.15um translation sensitivity (along axis) • Coarse and fine adjustments • Interface • Access points needed at 3 points around cell for a feeler gauge measurement • Test plate will be 5 mm away from next surface • Cell will sit within another cell on rollerballs in kinematic grooves

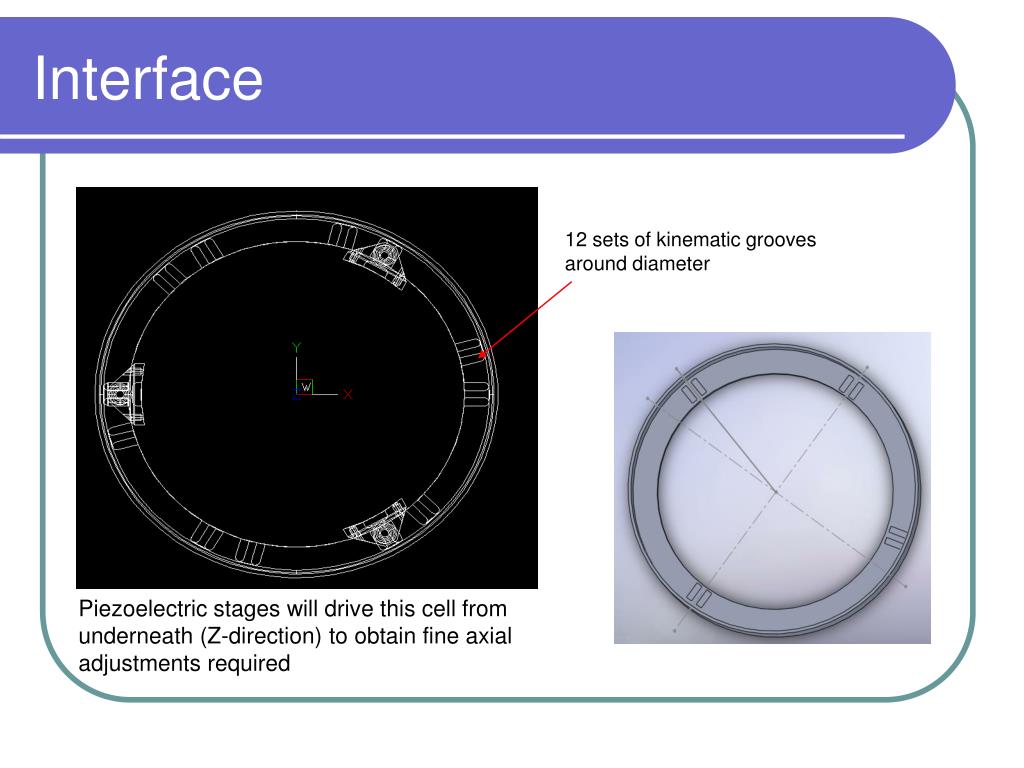

  4. Interface 12 sets of kinematic grooves around diameter Piezoelectric stages will drive this cell from underneath (Z-direction) to obtain fine axial adjustments required

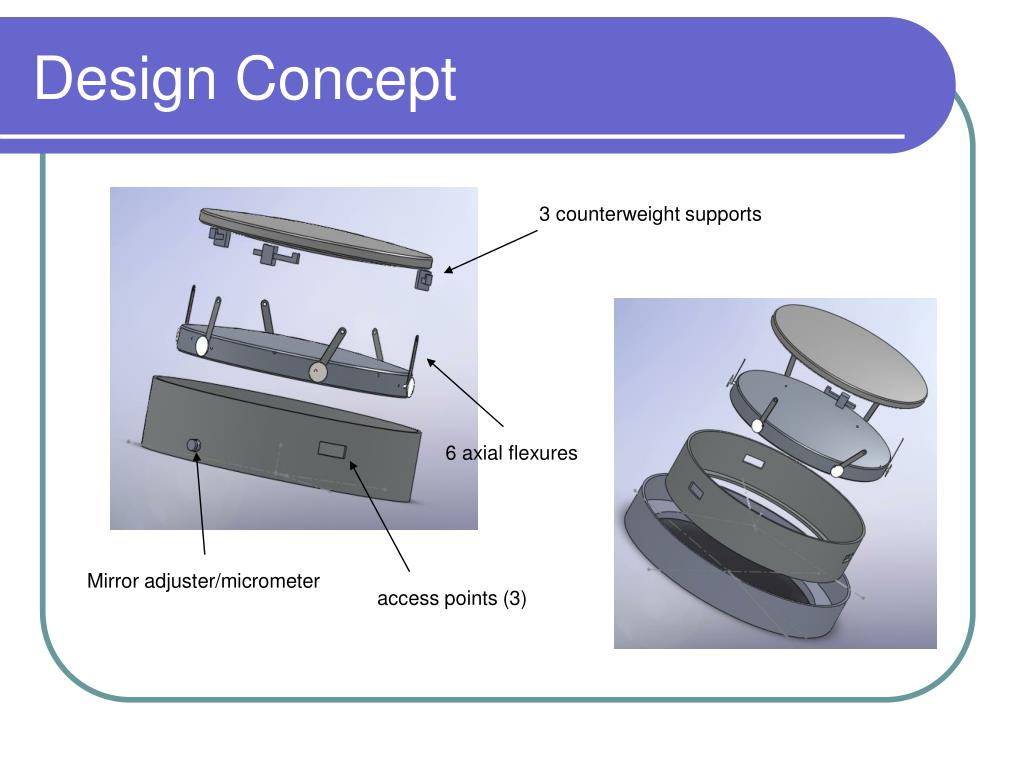

  5. Design Concept 3 counterweight supports 6 axial flexures Mirror adjuster/micrometer access points (3)

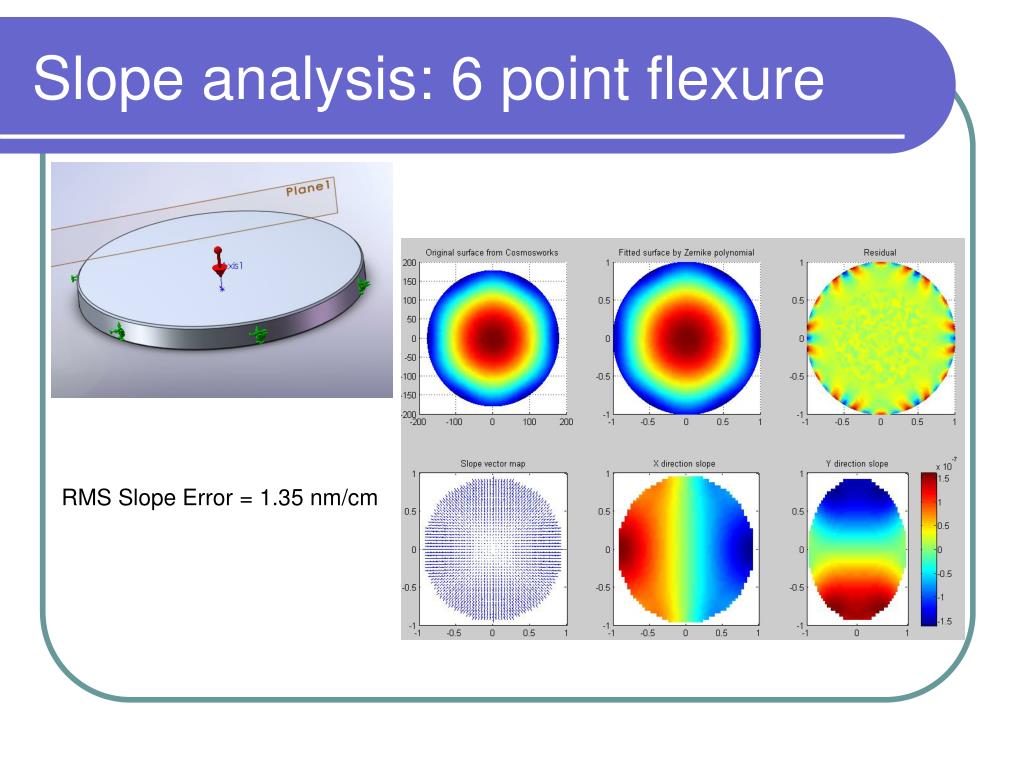

  6. Slope analysis: 6 point flexure RMS Slope Error = 1.35 nm/cm

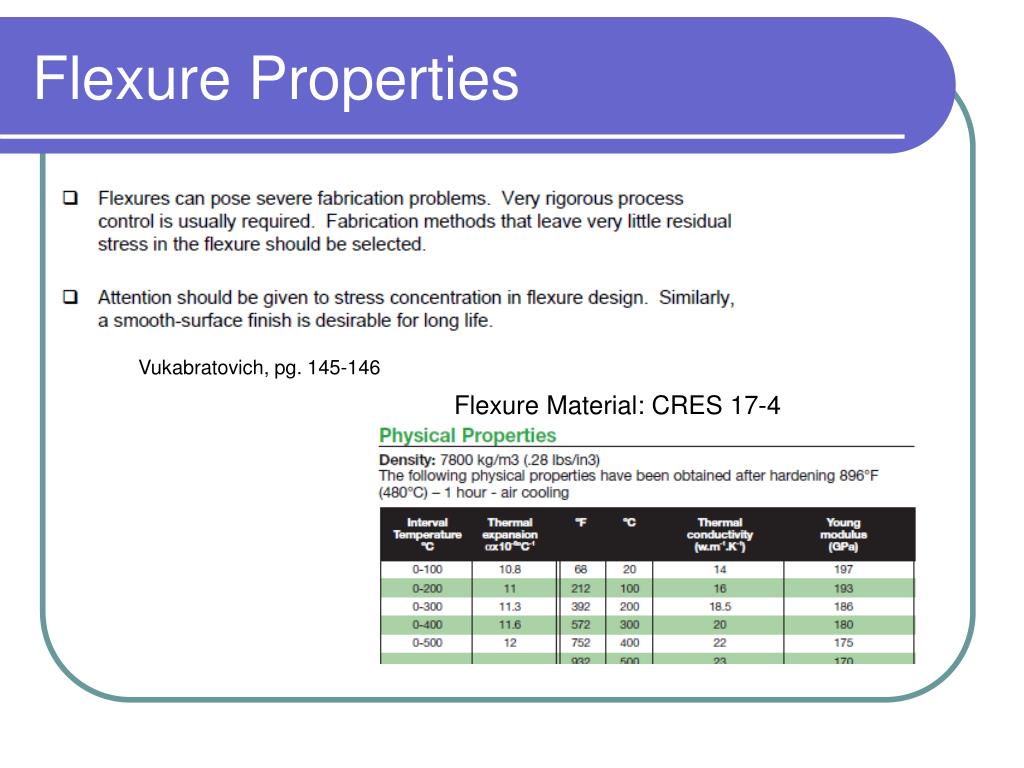

  7. Flexure Properties Vukabratovich, pg. 145-146 Flexure Material: CRES 17-4

  8. Design Concept 3 counterweight supports 6 axial flexures Mirror adjuster/micrometer access points (3)

  9. Counterweight Vukabratovich, pg 297

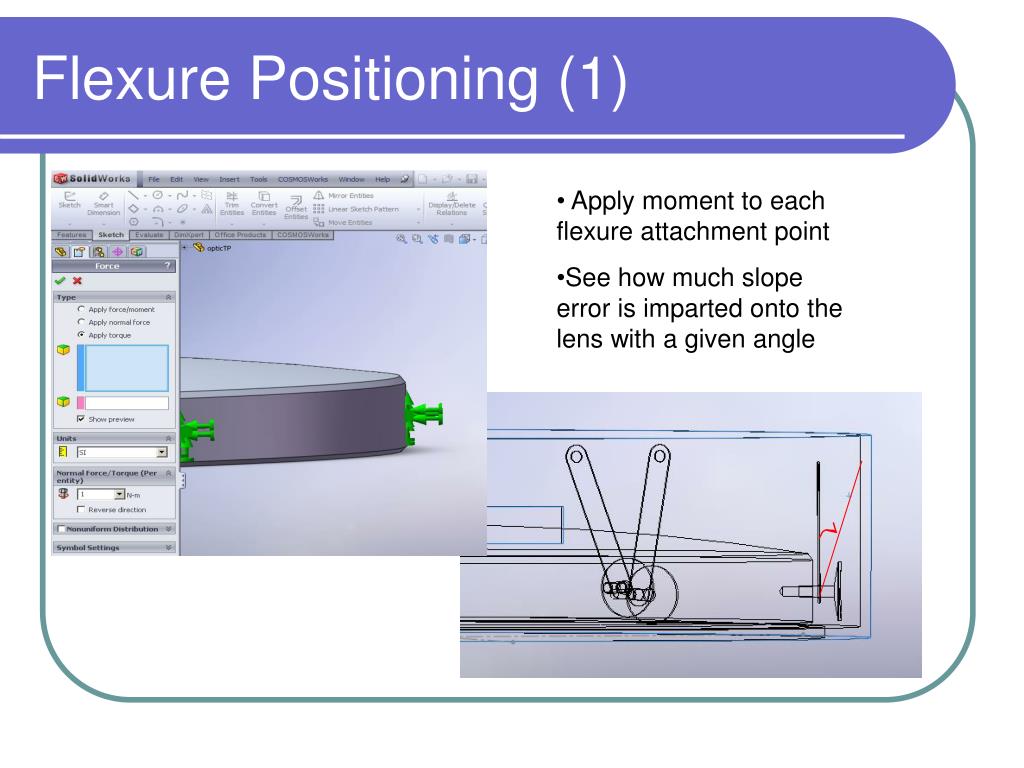

  10. Flexure Positioning (1) • Apply moment to each flexure attachment point • See how much slope error is imparted onto the lens with a given angle

  11. Flexure Positioning (2)  • Adjust angle of flexures to determine optimal angle to mount flexures

  12. Action Items • Finish Solidworks models of interfaces and counterweights • Determine moment tolerance • Determine optimal angle of flexures • Determine thickness/stiffness of cell needed

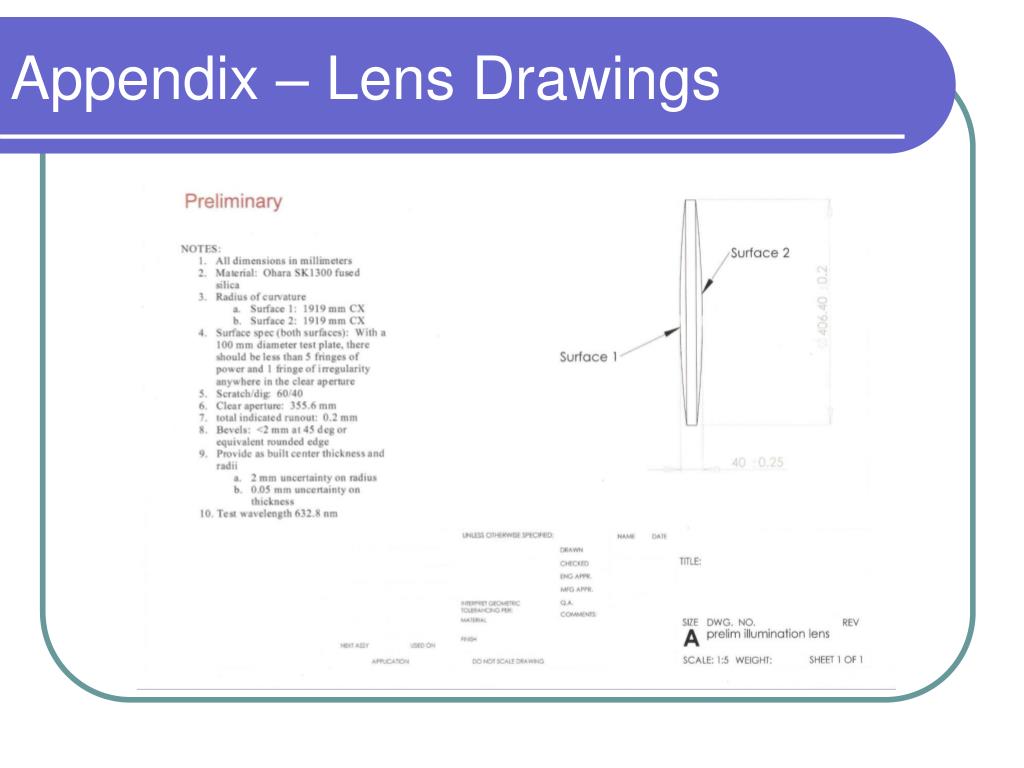

  13. Appendix – Lens Drawings

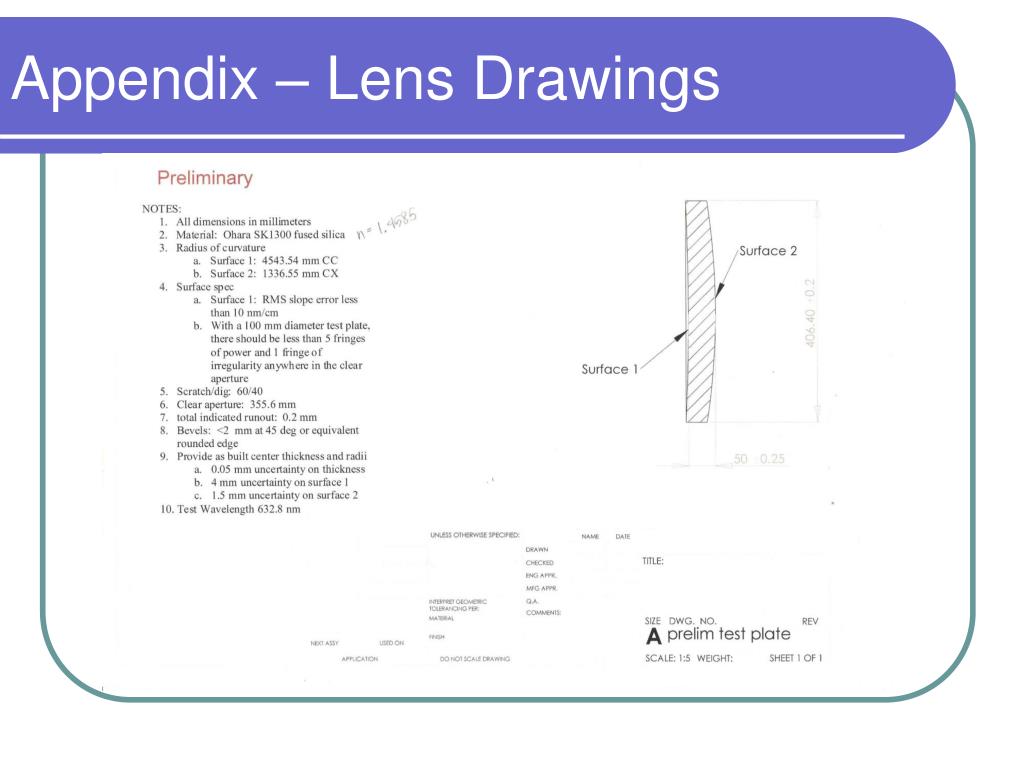

  14. Appendix – Lens Drawings
