Vertebral Column

Vertebral Column. Consists of 31 vertebrae and the intervening discs It appears as straight line anteroposteriorly , and with multiple curves laterally According to shape and location, vertebrae can be divided into: Cervical Thoracic Lumbar Sacral

hammer
Télécharger la présentation

Vertebral Column

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

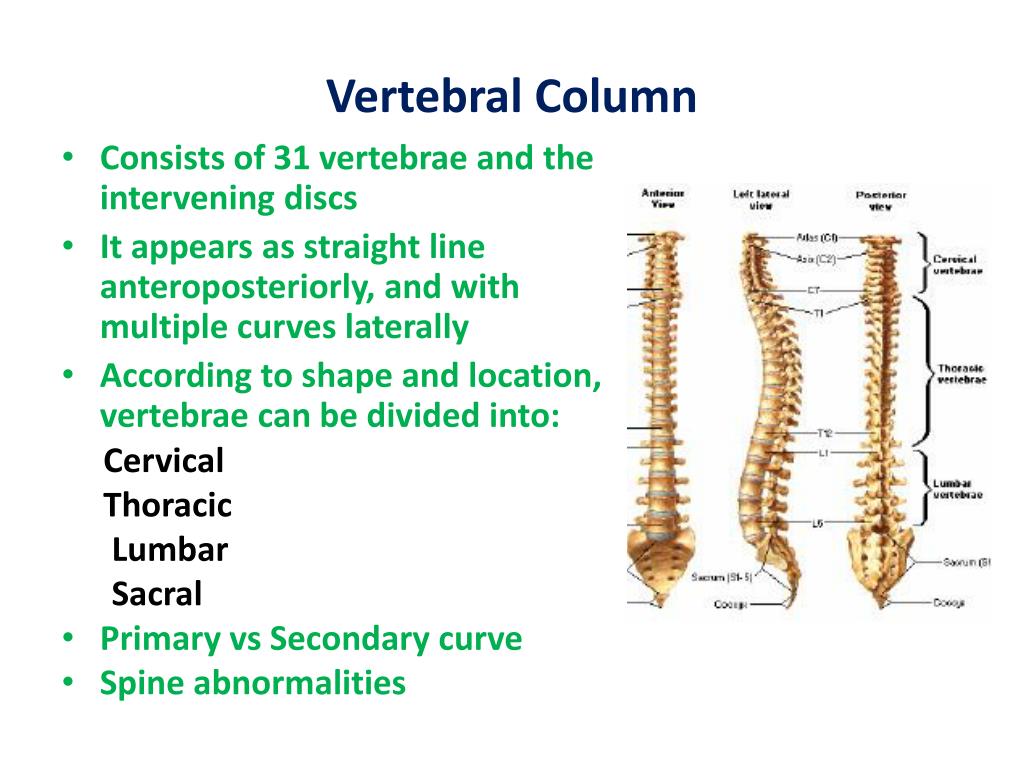

  1. Vertebral Column • Consists of 31 vertebrae and the intervening discs • It appears as straight line anteroposteriorly, and with multiple curves laterally • According to shape and location, vertebrae can be divided into: Cervical Thoracic Lumbar Sacral • Primary vs Secondary curve • Spine abnormalities

  2. Vertebral Column • General structure of vertebra : Body Pedicle Lamina Spine Transverse process Vertebral foramen Vertebral notch Superior articulating process Inferior articulating process

  3. Cervical Vertebrae • 1st cervical vertebra(Atlas) No body No spine Anterior arch Posterior arch • 2nd cervical vertebra (Axis) looks like typical vertebra It has odontoid process (Dens)

  4. Cervical Vertebrae • Typical cervical vertebra: Characterized by general structure of vertebra It has a bifid spine • 7th cervical vertebra: Characterized by general structure of vertebra It has no bifid spine

  5. Ligaments of the Spine • Anterior spinal ligament • Posterior spinal ligament • Tectorial membrane • Interspinous ligaments • Supraspinous ligament • Ligamentumflavum

  6. Atlanto Occipital Joint • Between dens and anterior arch of atlas • Supported by alar ligament and cruciate ligament • Cruciate ligament Superior longitudinal Inferior longitudinal Transverse

  7. Ligaments of the Spine • Anterior longitudinal • Posterior longitudinal • Supraspinous • Interspinous • Ligamentumflavum

  8. Thoracic Vertebra • Heart-shaped body • Long, thin, vertical spine • Round vertebral foramen • Body/foramen ratio almost 2 • Superior articulating facets facing posteriorly • Body has impression for rib articulation

  9. Lumbar Vertebra • Kidney-shaped body • Short, thick, horizontal spine • Tringularvertebral foramen • Body/foramen ratio almost 3-4 • Noimpression for rib articulation

  10. The Sacrum • Identify the following: Anterior sacral foramina Transverse lines Promontory Ala Posterior sacral foramina Median sacral crest Medial sacral crest Lateral sacral crest Sacral hiatus Cornu Sacral canal
