  1. The Vertebral Column

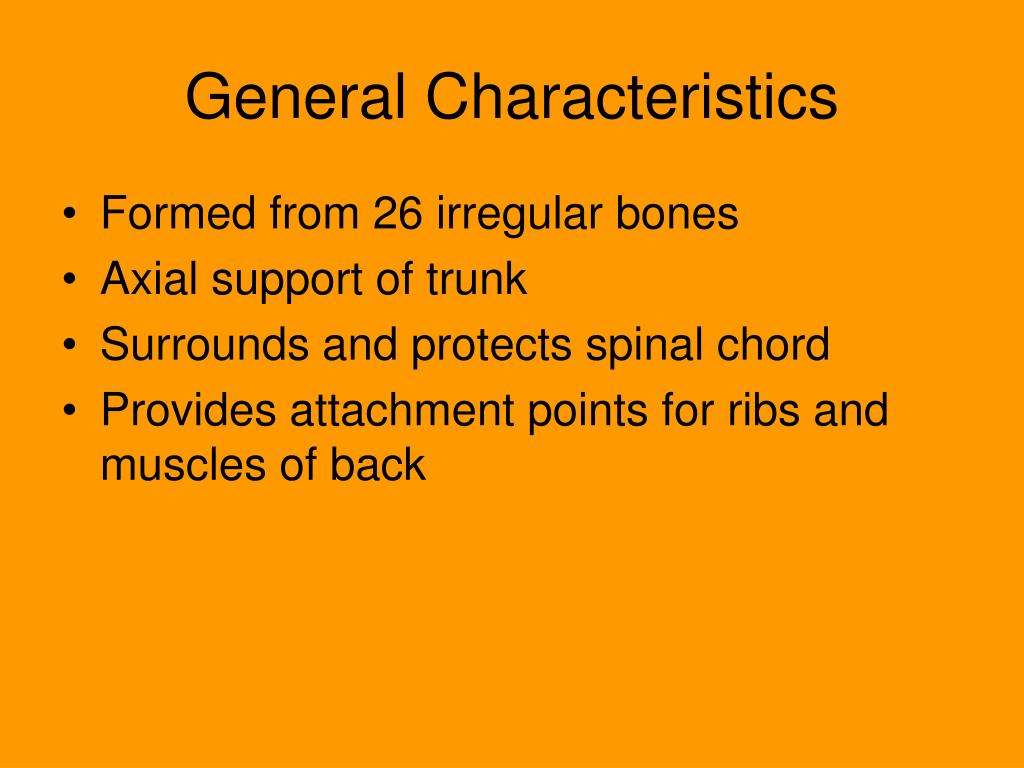

  2. General Characteristics • Formed from 26 irregular bones • Axial support of trunk • Surrounds and protects spinal chord • Provides attachment points for ribs and muscles of back

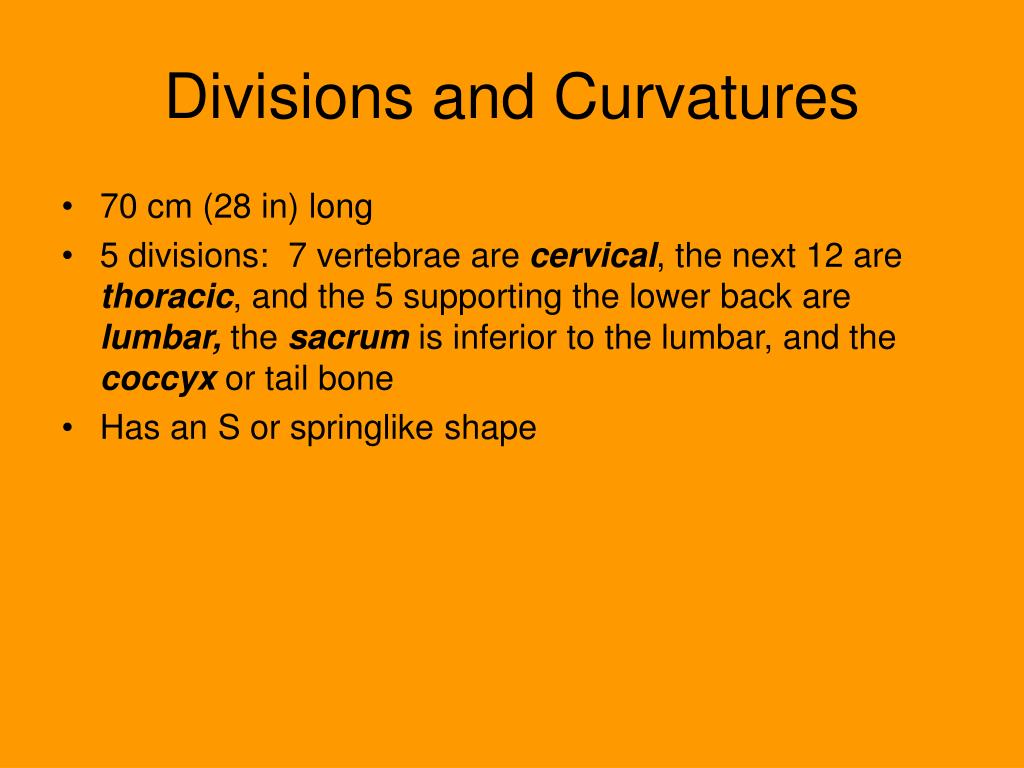

  3. Divisions and Curvatures • 70 cm (28 in) long • 5 divisions: 7 vertebrae are cervical, the next 12 are thoracic, and the 5 supporting the lower back are lumbar, the sacrum is inferior to the lumbar, and the coccyx or tail bone • Has an S or springlike shape

  4. Cervical Vertebrae • Identified as the first 7 vertebrae c1 to c7 • Smallest and lightest • Typical features of c3 to c7 vertebrae • Body is oval • The spinous is short, projects directly back and is bifid (split at its tip) except c7 • The vertebral foramen is large and generally triangular • Each transverse process contains a transverse foramen through which the vertebral blood vessels pass to brain • C7 is larger than other cervical vertebrae, spinous process is visible through skin and is used to count (called vertebra prominens)

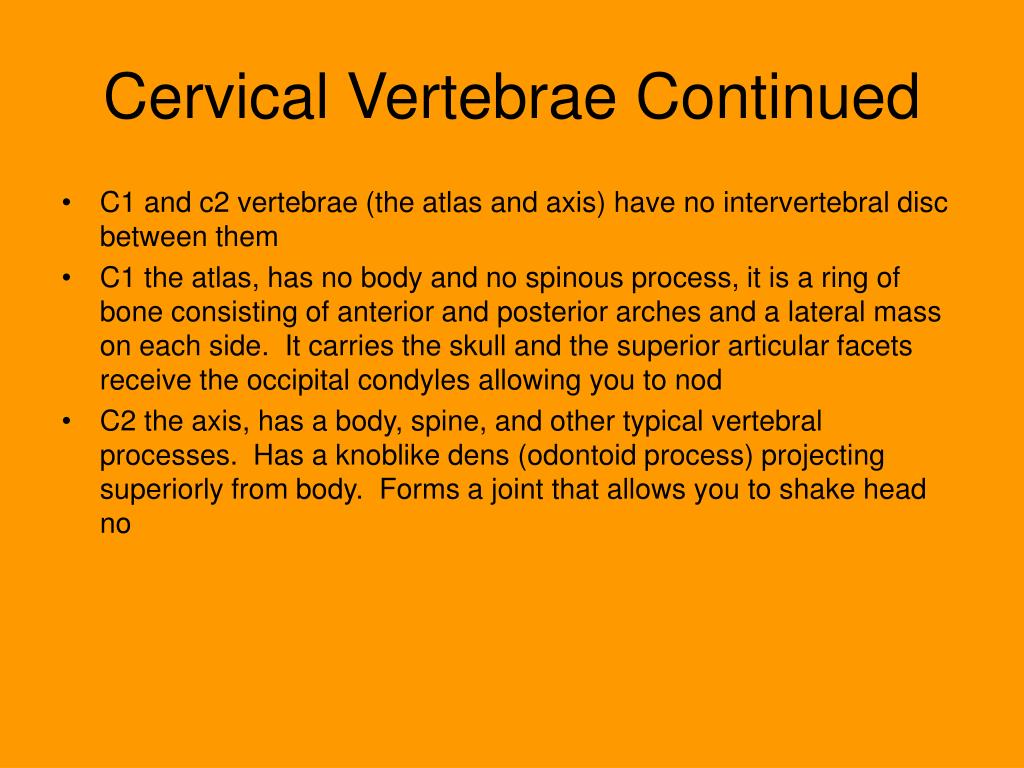

  5. Cervical Vertebrae Continued • C1 and c2 vertebrae (the atlas and axis) have no intervertebral disc between them • C1 the atlas, has no body and no spinous process, it is a ring of bone consisting of anterior and posterior arches and a lateral mass on each side. It carries the skull and the superior articular facets receive the occipital condyles allowing you to nod • C2 the axis, has a body, spine, and other typical vertebral processes. Has a knoblike dens (odontoid process) projecting superiorly from body. Forms a joint that allows you to shake head no

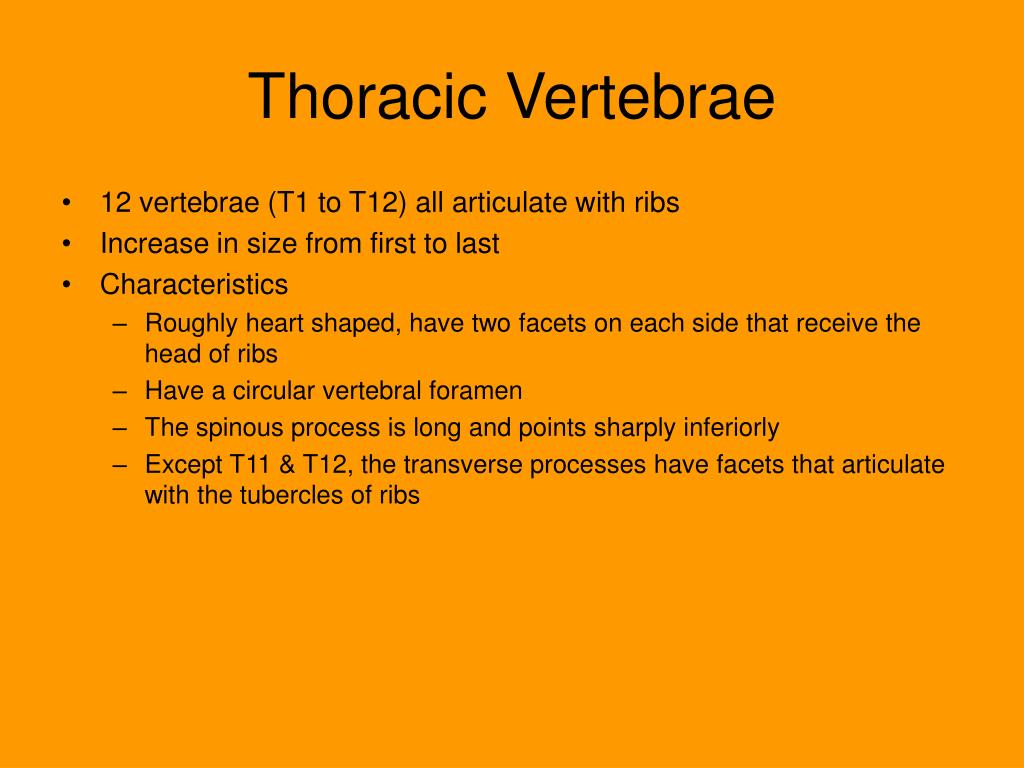

  6. Thoracic Vertebrae • 12 vertebrae (T1 to T12) all articulate with ribs • Increase in size from first to last • Characteristics • Roughly heart shaped, have two facets on each side that receive the head of ribs • Have a circular vertebral foramen • The spinous process is long and points sharply inferiorly • Except T11 & T12, the transverse processes have facets that articulate with the tubercles of ribs

  7. Lumbar Vertebrae • Commonly called small of back, receives most stress • 5 vertebrae (L1 to L5) • Massive bodies and kidney shaped • Characteristics • The pedicles and laminae are shorter and thicker than other vertebrae • The spinous processes are short, flat, and hatchet shaped and are easily seen when a person bends. Processes project backward for attachment of back muscles • The vertebral foramen is triangular • The orientation of the facets of the articular processes of the lumbar vertebra lock the vertebrae together and keeps the rotation of the lumbar spine

  8. Sacrum • Roughly heart shaped • Formed by 5 fused vertebrae • Strengthens and stabilizes the pelvis • Forms the sacroiliac joint with hip bones • The sacral promontory, the anterosuperior margin of the first sacral vertebra, bulges into pelvic cavity. It is used as a landmark for obstetricians and the body’s center of gravity lies about 1 cm posterior to it

  9. Coccyx • The tail bone “cuckoo” because looks like birds beak • Small triangular bone, consisting of four vertebrae fused together • Articulates superiorly to the sacrum • Useless bone, only provides slight support to pelvic organs

  10. Disease of Vertebrae • Scoliosis: “twisted disease” • An abnormal lateral curvature of spine • Common late childhood, especially in girls • Result from abnormal vertebral structure, lower limbs of unequal length, or muscle paralysis • Severe cases must be treated with braces or surgery before growth ends to prevent permanent deformity and breathing difficulties

  11. Vertebrae Disease Continued • Kyphosis • “hunchback” • A dorsally exaggerated thoracic curvature • Common in elderly due to osteoporosis • May also be due to to tuberculosis of spine, rickets, or osteomalacia • Lordosis • “Swayback” • Accentuated lumbar curvature • Caused by spinal tuberculosis or rickets • May be temporary: “beer guts” in men, pregnancy in women • Prolapsed disc • Herniated disc caused by trauma to back

  12. Kyphosis

  13. Lordosis

  14. Prolapsed Disk

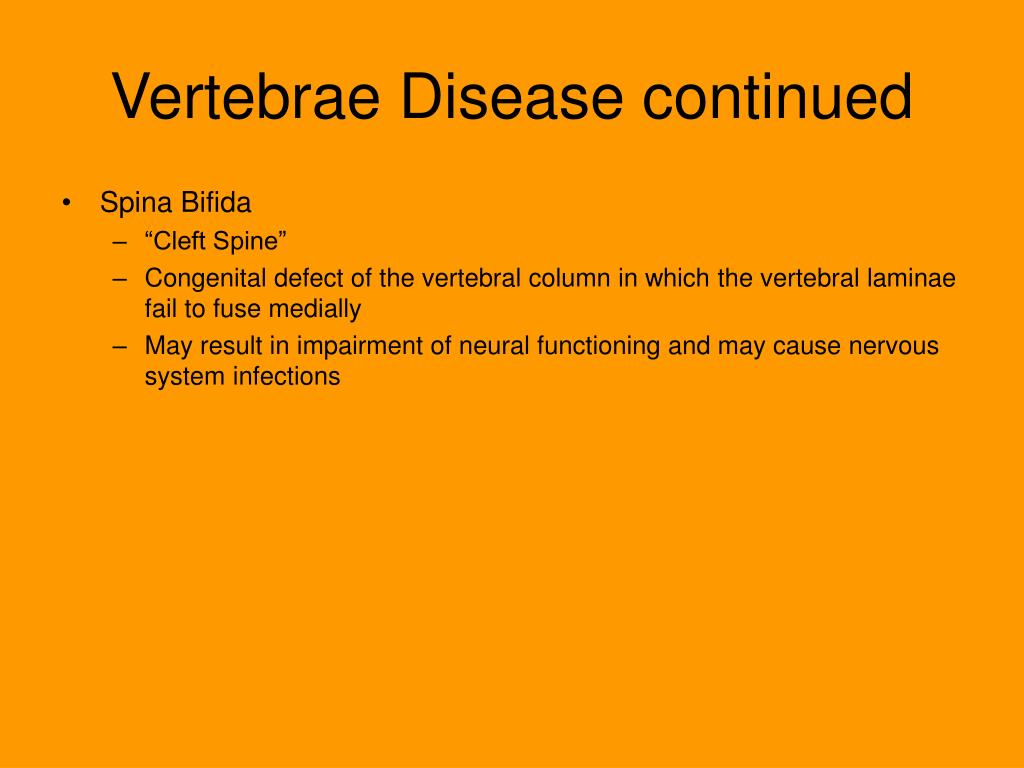

  15. Vertebrae Disease continued • Spina Bifida • “Cleft Spine” • Congenital defect of the vertebral column in which the vertebral laminae fail to fuse medially • May result in impairment of neural functioning and may cause nervous system infections

  16. Spina Bifida
