  1. SPD DCS Status Report Ivan Amos Calìa,b, S.Ceresaa,c, C.Torcato de Matosa aCERN-AIT bUniversità degli studi di Bari cASP On behalf of the ALICE SPD collaboration 18th ALICE DCS Workshop

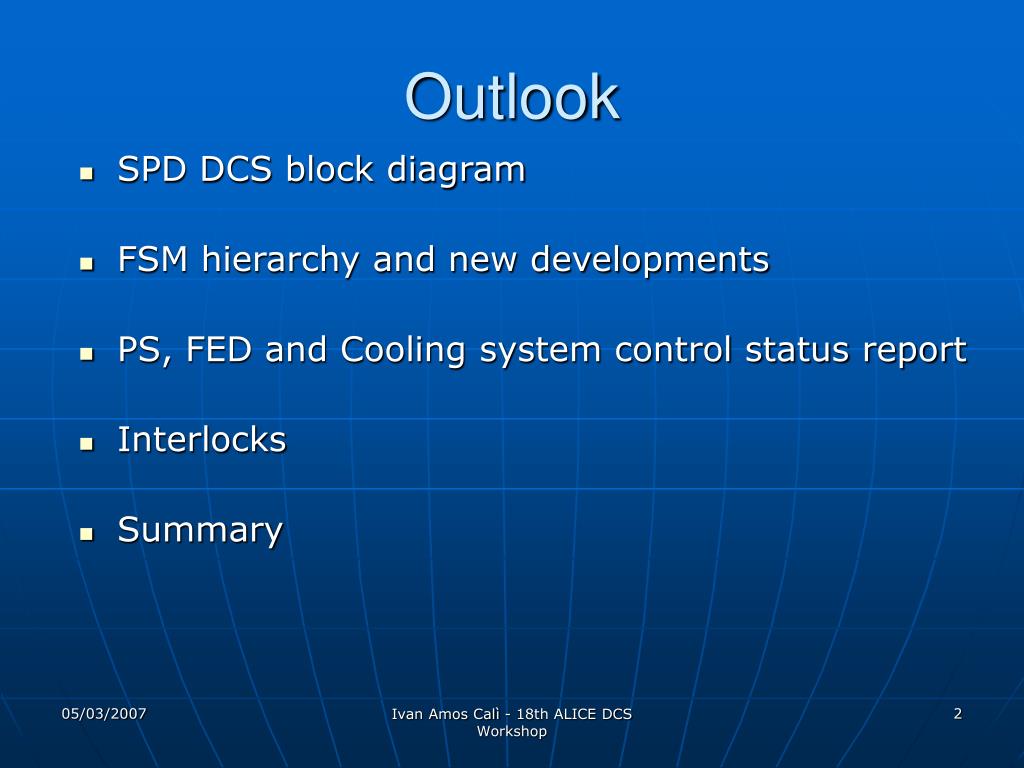

  2. Outlook • SPD DCS block diagram • FSM hierarchy and new developments • PS, FED and Cooling system control status report • Interlocks • Summary Ivan Amos Calì - 18th ALICE DCS Workshop

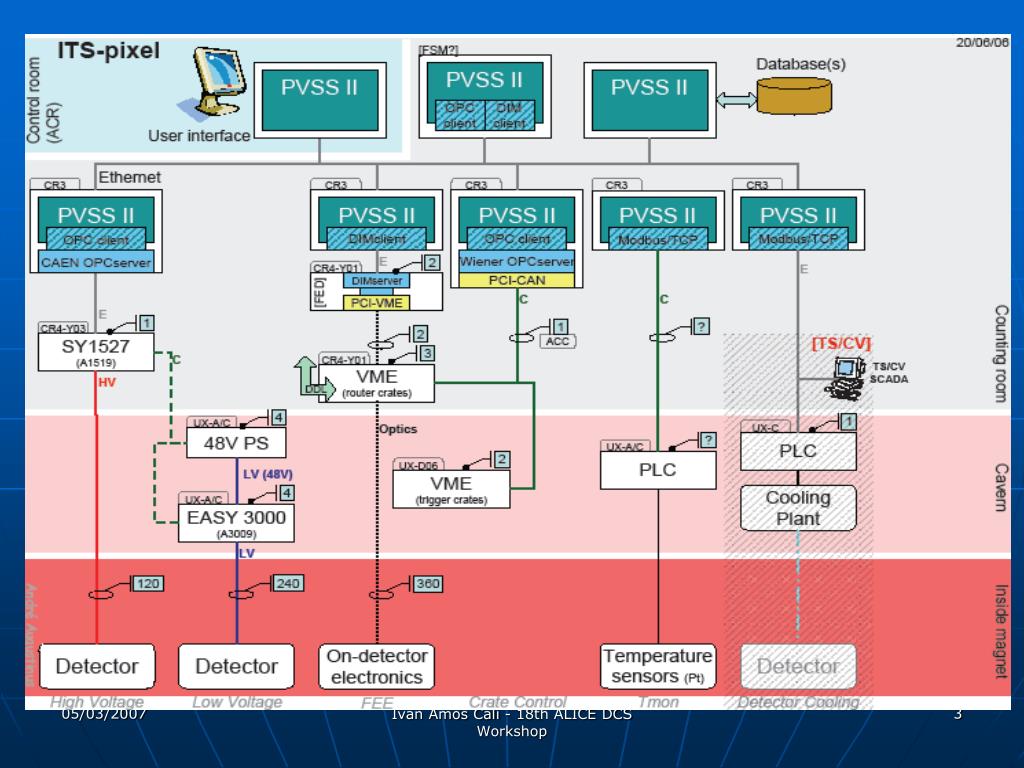

  3. Ivan Amos Calì - 18th ALICE DCS Workshop

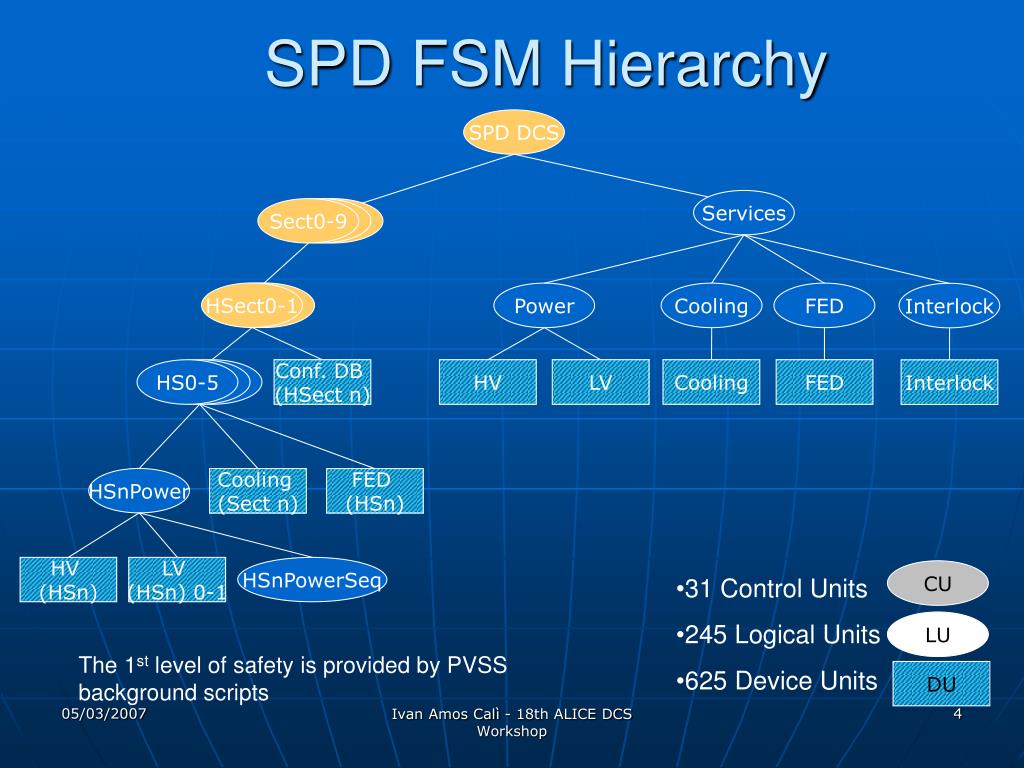

  4. Services Sect0-9 HS0-5 Power Cooling Interlock FED HSect0-1 HV LV Cooling FED Interlock Conf. DB (HSect n) • 31 Control Units • 245 Logical Units • 625 Device Units CU LU HSnPower Cooling (Sect n) FED (HSn) DU HSnPowerSeq HV (HSn) LV (HSn) 0-1 SPD FSM Hierarchy SPD DCS The 1st level of safety is provided by PVSS background scripts Ivan Amos Calì - 18th ALICE DCS Workshop

  5. FSM Top node States OFF GO_OFF CONFIGURE (run_mode, vers.) GO_STANDBY STANDBY STANDBY The state means MCM_ONLY for the SPD GO_STANDBY CONFIGURE (run_mode, vers) DOWNLOADING CALIBRATE (calib_mode) GO_BEAM_TUN GO_READY STBY_CONFIGURED STBY_CONFIGURED CONFIGURE (run_mode, vers) CALIBRATE (calib_mode) GO_STBY_CONF MOVING_BEAM_TUN MOVING_STBY_CONF GO_READY BEAM_TUNING BEAM_TUNING CONFIGURING MOVING_BEAM_TUN MOVING_READY STOP CONFIGURING CALIBRATING READY (version) READY GO_STBY_CONF UNLOCK GO_BEAM_TUN CALIBRATE (calib_mode) READY_LOCKED READY_LOCKED CONFIGURE (run_mode, vers) LOCK Ivan Amos Calì - 18th ALICE DCS Workshop

  6. FERO Status • FED Server version 2.2.12 operative in DSF • Automatic detector & off-detector electronics configuration • Automatic calibration procedures • Temperature and voltages Monitoring • FED Status monitoring • FED PVSS manual control panels implemented • FED DU prototype developed and tested • PVSS – FED macroinstruction translator operative • Configuration Db client integrated • Full chain is operative in the DSF • Missing interconnection between DAQ FXS and the Configuration Db Ivan Amos Calì - 18th ALICE DCS Workshop

  7. Cooling System • SPD cooling plant installed at DSF with 10 cooling lines • PVSS control of the system using fwCoolingAndVentilation 0.14 panel • Cooling system DU Prototype operative • Integration in the ALICE cooling system control must be done Ivan Amos Calì - 18th ALICE DCS Workshop

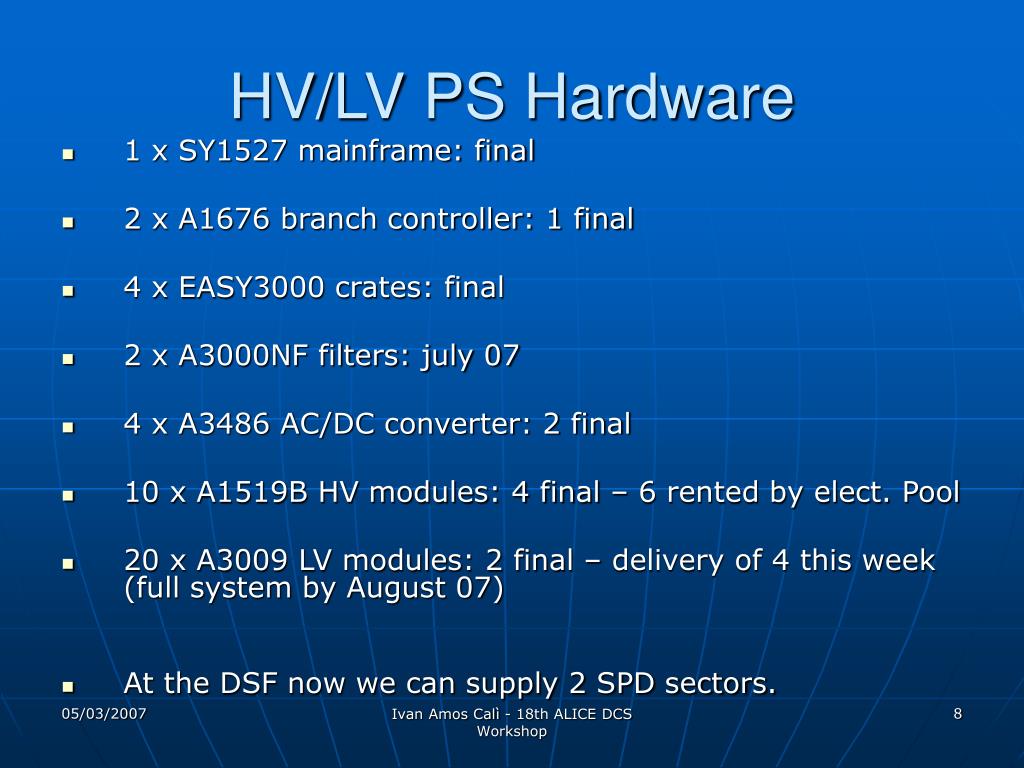

  8. HV/LV PS Hardware • 1 x SY1527 mainframe: final • 2 x A1676 branch controller: 1 final • 4 x EASY3000 crates: final • 2 x A3000NF filters: july 07 • 4 x A3486 AC/DC converter: 2 final • 10 x A1519B HV modules: 4 final – 6 rented by elect. Pool • 20 x A3009 LV modules: 2 final – delivery of 4 this week (full system by August 07) • At the DSF now we can supply 2 SPD sectors. Ivan Amos Calì - 18th ALICE DCS Workshop

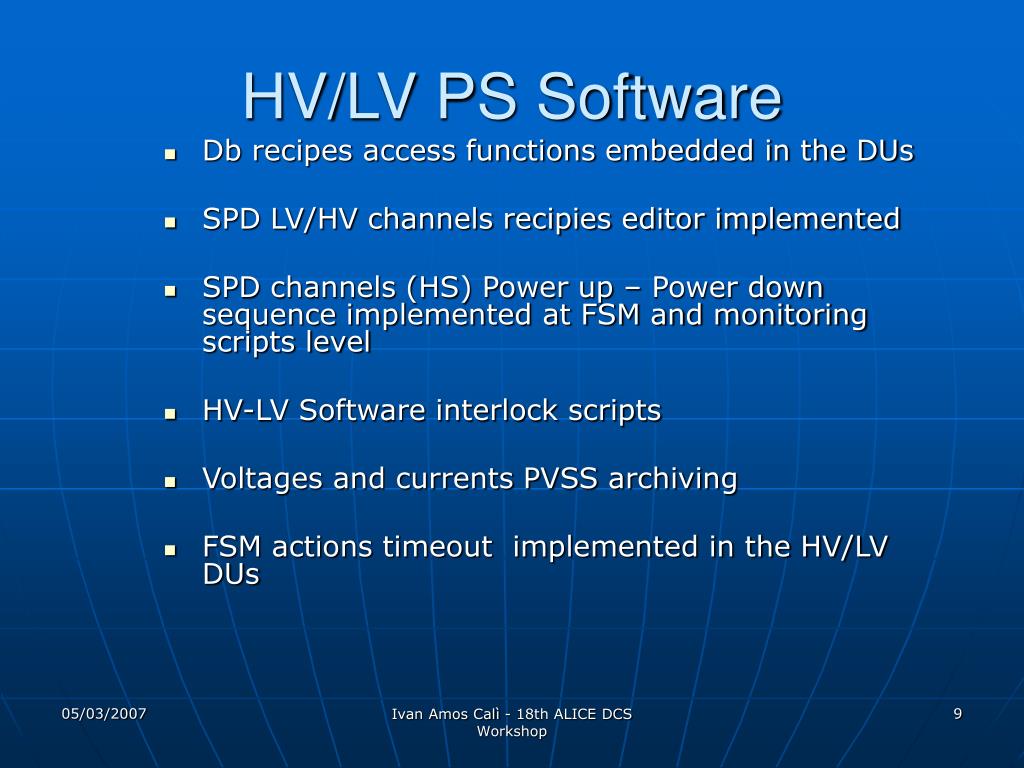

  9. HV/LV PS Software • Db recipes access functions embedded in the DUs • SPD LV/HV channels recipies editor implemented • SPD channels (HS) Power up – Power down sequence implemented at FSM and monitoring scripts level • HV-LV Software interlock scripts • Voltages and currents PVSS archiving • FSM actions timeout implemented in the HV/LV DUs Ivan Amos Calì - 18th ALICE DCS Workshop

  10. HV/LV Recipe Editing Panels Ivan Amos Calì - 18th ALICE DCS Workshop

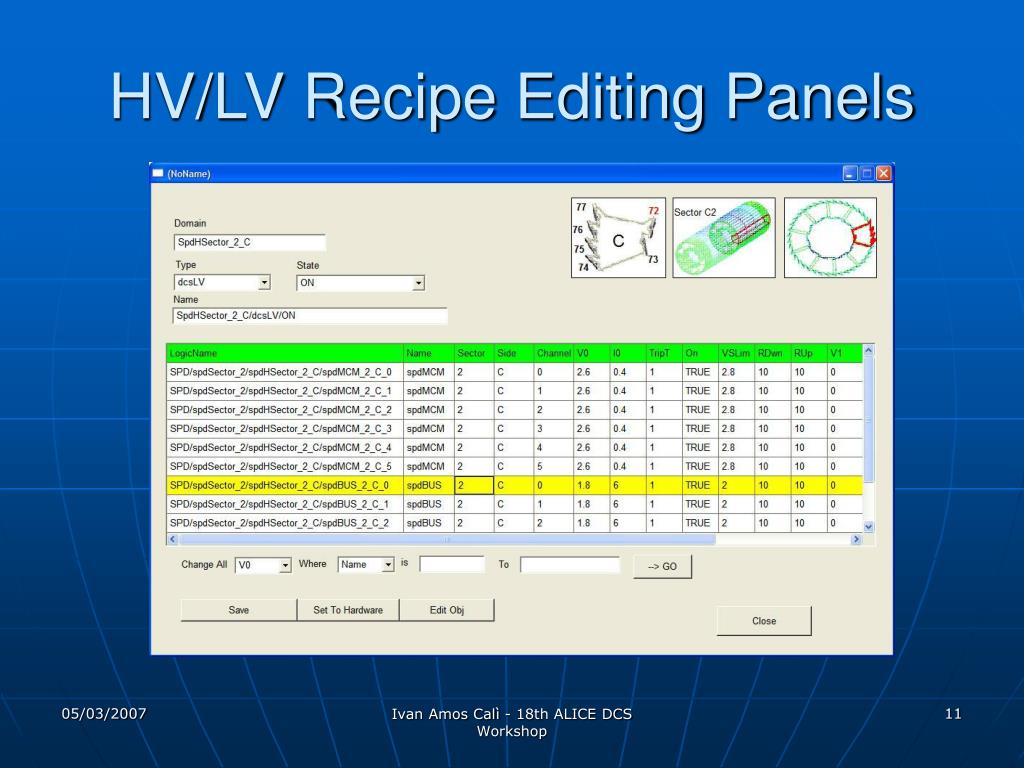

  11. HV/LV Recipe Editing Panels Ivan Amos Calì - 18th ALICE DCS Workshop

  12. T interlock Routers (HSectors, Pt1000) 20 T interlock PLC (HSector, Pt1000) LV/ HV Modules (HSector granularity) Cooling line T sensors (Sectors, Pt1000) 20 10 1 Cooling plant (General Alarm) Interlocks • The PLC modules are compatible with the ALICE DSS (possible integration) • Interlock system under test in DSF • Software interlocks • Sensors leakage currents trends • Temperature trends (Routers & Interlock PLC) Ivan Amos Calì - 18th ALICE DCS Workshop

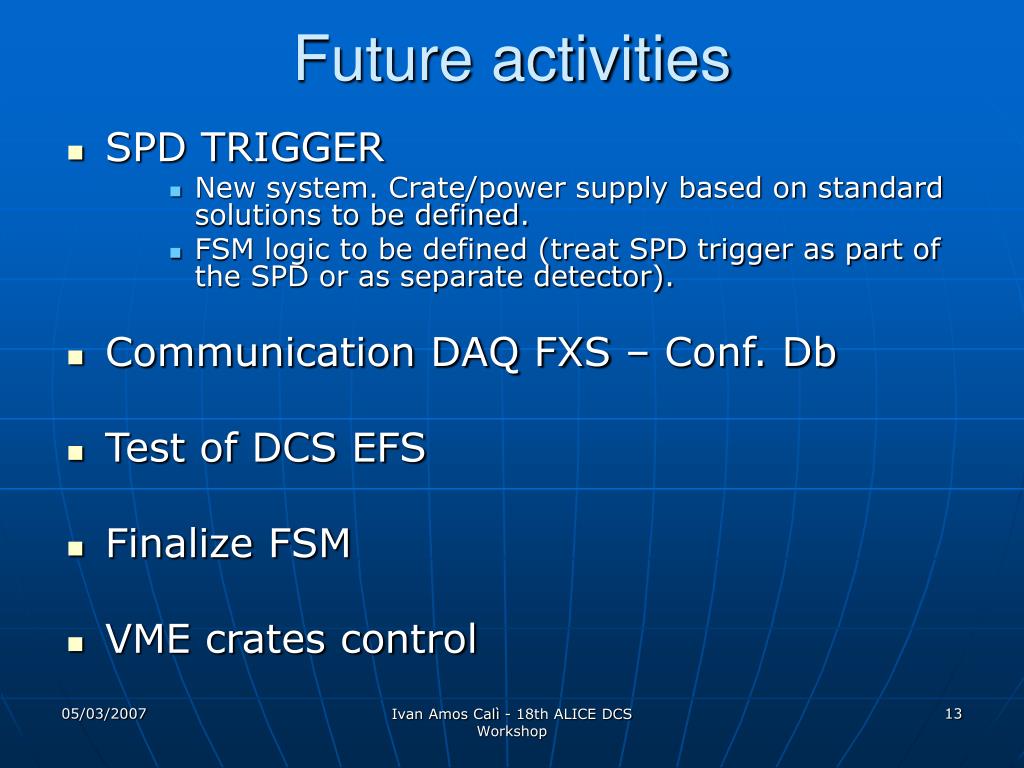

  13. Future activities • SPD TRIGGER • New system. Crate/power supply based on standard solutions to be defined. • FSM logic to be defined (treat SPD trigger as part of the SPD or as separate detector). • Communication DAQ FXS – Conf. Db • Test of DCS EFS • Finalize FSM • VME crates control Ivan Amos Calì - 18th ALICE DCS Workshop

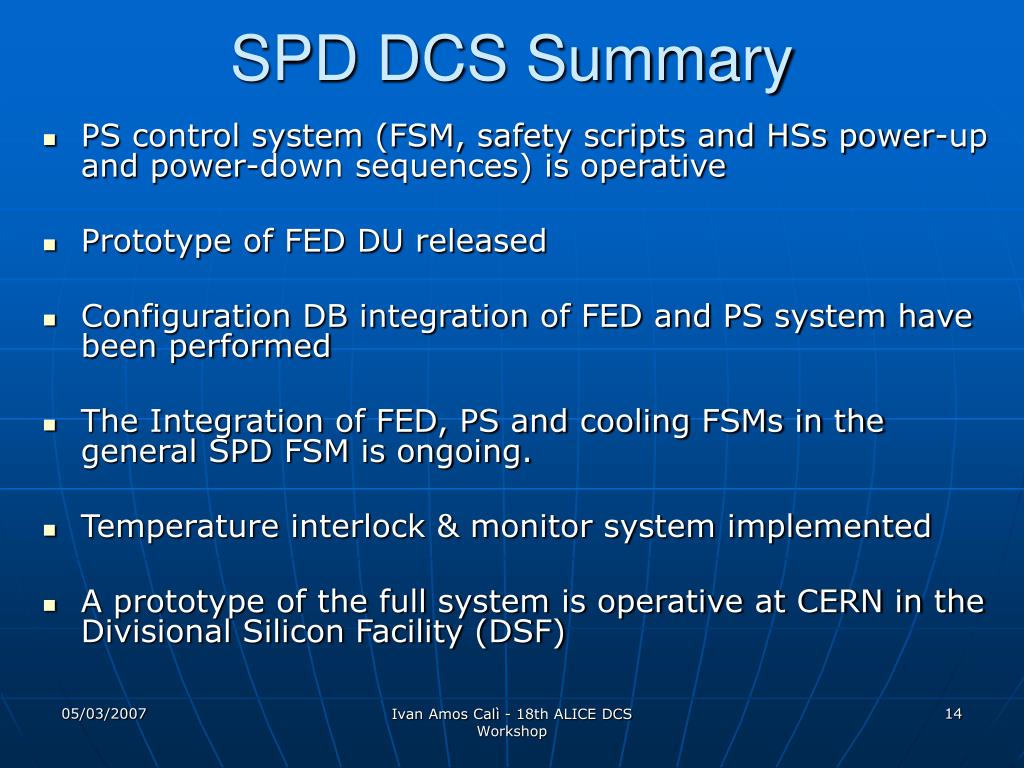

  14. SPD DCS Summary • PS control system (FSM, safety scripts and HSs power-up and power-down sequences) is operative • Prototype of FED DU released • Configuration DB integration of FED and PS system have been performed • The Integration of FED, PS and cooling FSMs in the general SPD FSM is ongoing. • Temperature interlock & monitor system implemented • A prototype of the full system is operative at CERN in the Divisional Silicon Facility (DSF) Ivan Amos Calì - 18th ALICE DCS Workshop

  15. BACKUP Ivan Amos Calì - 18th ALICE DCS Workshop

  16. Analysis tool & Interlock, T monitor system 2 FED Servers Cooling Control FED control PS control DSF “Control Room” Ivan Amos Calì - 18th ALICE DCS Workshop

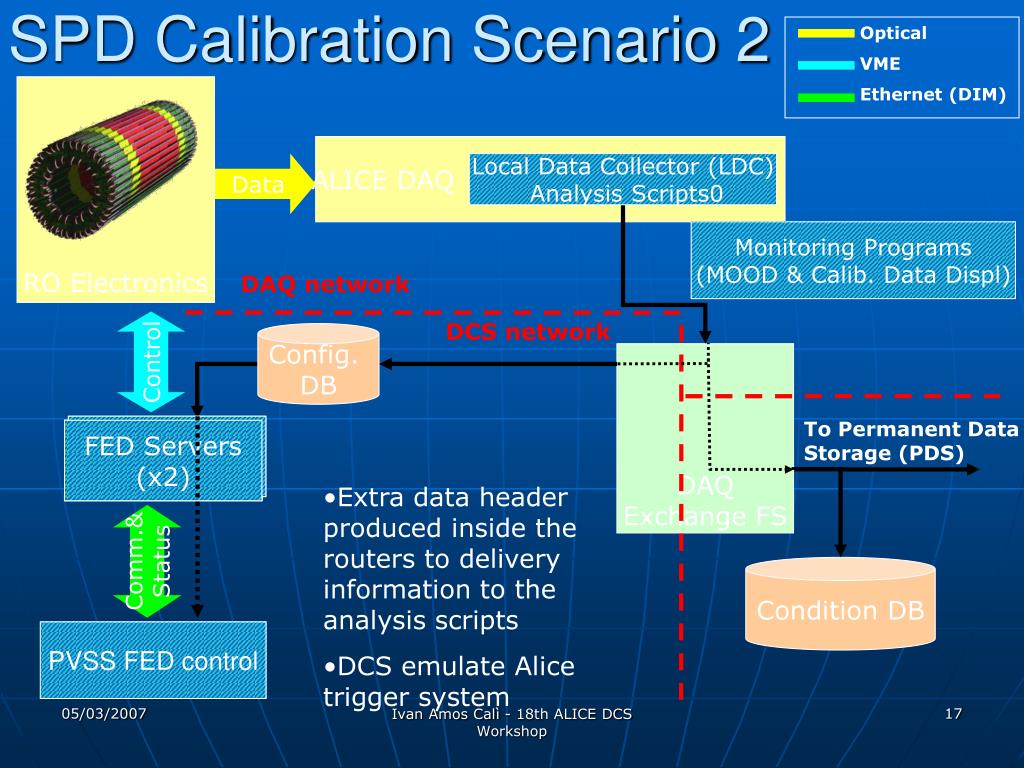

  17. RO Electronics FED Servers (x2) FED Servers (x2) Optical VME Ethernet (DIM) SPD Calibration Scenario 2 ALICE DAQ Data Local Data Collector (LDC) Analysis Scripts0 Monitoring Programs (MOOD & Calib. Data Displ) DAQ network DCS network Config. DB Control DAQ Exchange FS To Permanent Data Storage (PDS) FED Servers (x2) FED Servers (x2) FED Servers (x2) • Extra data header produced inside the routers to delivery information to the analysis scripts • DCS emulate Alice trigger system Comm.& Status Condition DB PVSS FED control Ivan Amos Calì - 18th ALICE DCS Workshop

  18. SPD Calibration Scenario 1 RO Electronics FED Servers (x2) FED Servers (x2) Optical VME Ethernet (DIM) • DCS Standalone emulate Alice Trigger and DAQ system • Run number provided by Experiment Control System (ECS) for synchronization General purpose network DCS network Config. DB Data & Ctl Online Analysis Tool (ROOT based) FED Servers (x2) FED Servers (x2) FED Servers (x2) Data To Permanent Data Storage (PDS) DCS Exchange FS Comm.& Status PVSS Archives Condition DB PVSS FED control Ivan Amos Calì - 18th ALICE DCS Workshop

  19. DU LV1 DU LV2 DU HV PS Configuration Db • JCOP framework recipes mechanism embedded in SPD panels • Half-sector modularity of configuration • Configuration tagged with state/action SPD PVSS panel (protection script) Cash Recipe (versioning agent) Configuration Db Cash Recipe Expert Only PS System Ivan Amos Calì - 18th ALICE DCS Workshop

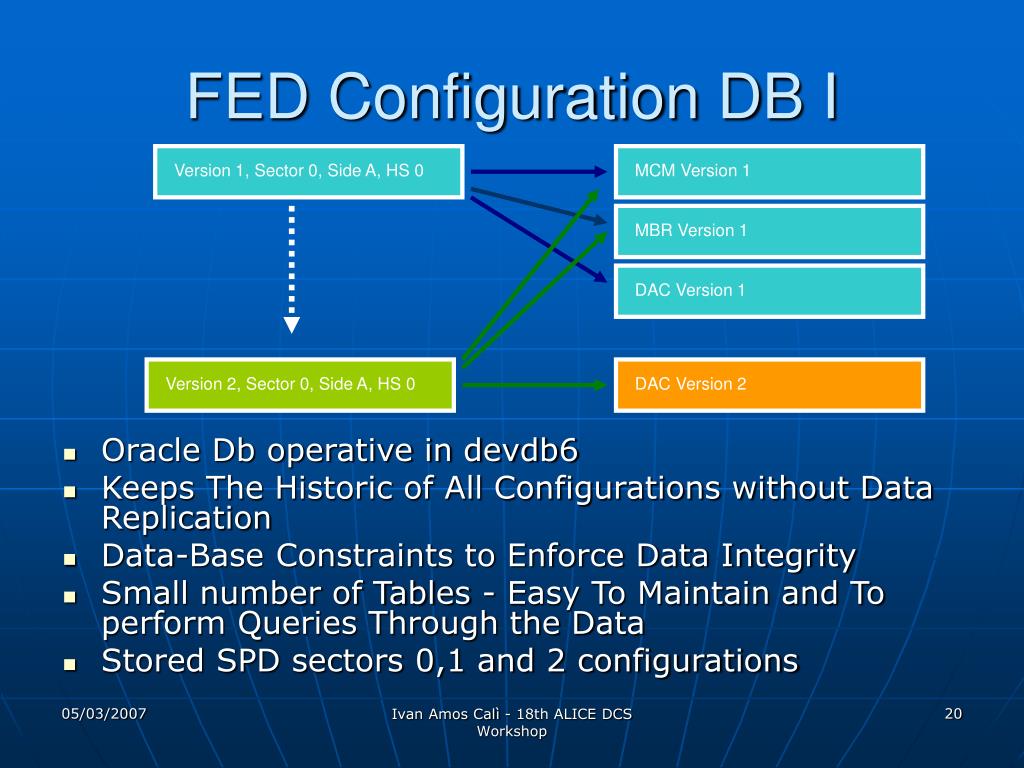

  20. Version 1, Sector 0, Side A, HS 0 MCM Version 1 MBR Version 1 DAC Version 1 DAC Version 2 Version 2, Sector 0, Side A, HS 0 FED Configuration DB I • Oracle Db operative in devdb6 • Keeps The Historic of All Configurations without Data Replication • Data-Base Constraints to Enforce Data Integrity • Small number of Tables - Easy To Maintain and To perform Queries Through the Data • Stored SPD sectors 0,1 and 2 configurations Ivan Amos Calì - 18th ALICE DCS Workshop

  21. SPD FSM Top Node set_mode {mode} cal_mode: • Minimum TH Scan • (DCS_ONLY_MIN_TH_SCAN) • (DAQ_MIN_TH_SCAN) • Mean TH Scan • (DCS_ONLY_MEAN_TH_SCAN) • (DAQ_MEAN_TH_SCAN) • Uniformity Matrix Scan • (DCS_ONLY_UNIFORMITY_SCAN) • (DAQ_UNIFORMITY_SCAN) • Noisy pixels • (DCS_ONLY_NOISY_PIX_SCAN) • (DAQ_NOISY_PIX_SCAN) OFF Startup{mode} STANDBY {mode} go_physic READY PHYSIC standby_physic shutdown go_calibration{cal_mode, run_n} CALIBRATION {cal_mode} Standby_calibration • mode: • PHYSICS • CALIBRATION • MCM_ONLY • BEAM_TUNING • run_nis the run number provided by the ECS in case of DCS_ONLY calibration runs Ivan Amos Calì - 18th ALICE DCS Workshop
