Parameters

Parameters. Learning Objectives. Identify the characteristics of parameters and how they are used in Electronic Health Record (EHR) Setup Examine the menu options used to review and edit various parameters

haruki
Télécharger la présentation

Parameters

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Parameters

  2. Learning Objectives • Identify the characteristics of parameters and how they are used in Electronic Health Record (EHR) Setup • Examine the menu options used to review and edit various parameters • Identify how selected parameters relate to the configuration of the EHR Graphical User Interface (GUI) • As a team, identify the values of selected parameters and perform the initial EHR Parameter Setup using the parameters

  3. Definition of “Parameter” • Allows CAC to configure RPMS-EHR for Site vs. having Programmer make custom Program • Provides hierarchical settings from User up to Package Package levels should never be changed

  4. Definition • System levels set the parameter for all users • Program checks for user level • If set, takes value and quits • If not set, goes to next highest setting • Quits when it finds a value, up to package

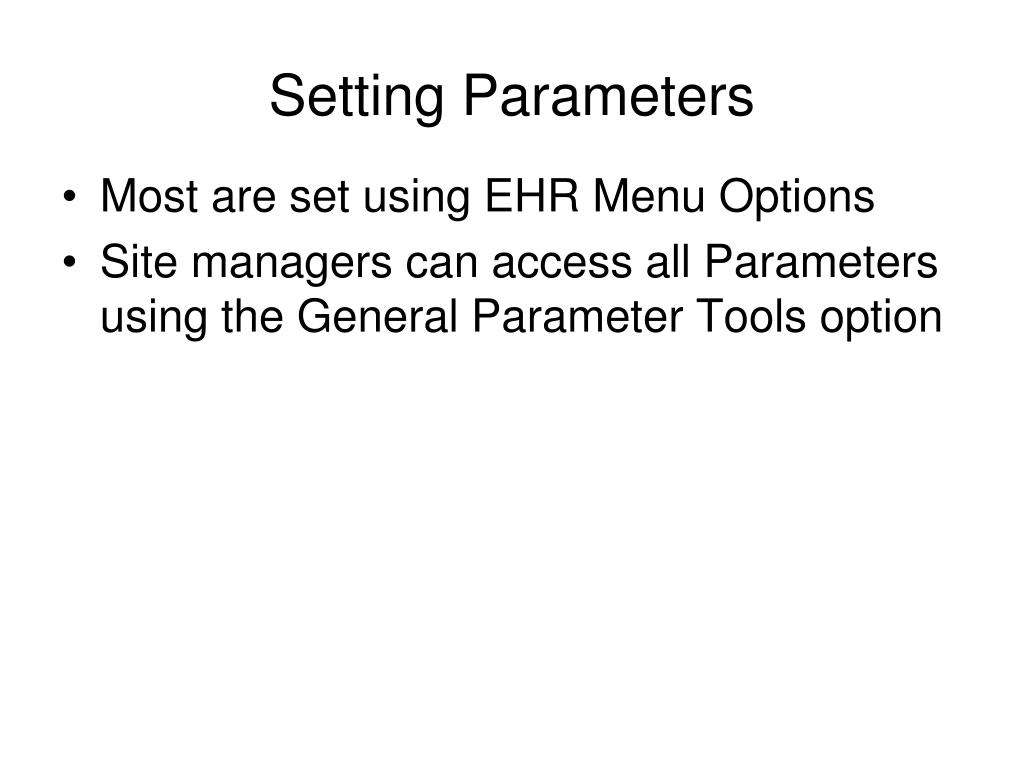

  5. Setting Parameters • Most are set using EHR Menu Options • Site managers can access all Parameters using the General Parameter Tools option

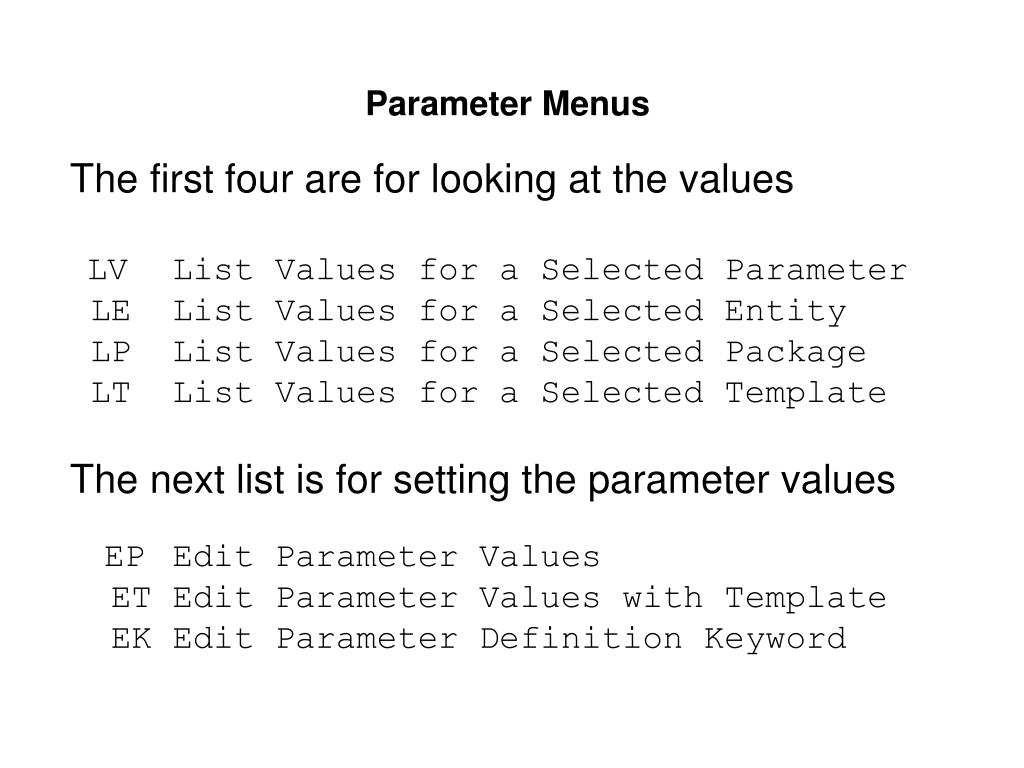

  6. Parameter Menus The first four are for looking at the values LV List Values for a Selected Parameter LE List Values for a Selected Entity LP List Values for a Selected Package LT List Values for a Selected Template The next list is for setting the parameter values EP Edit Parameter Values ET Edit Parameter Values with Template EK Edit Parameter Definition Keyword

  7. Values for BEHOENCX PROVIDER Parameter Instance Value ------------------------------------------------------------- USR: USER,NURSE 1 YES USR: USER,CLERK 1 NO CLS: PROVIDER 1 YES CLS: DENTAL ASSISTANT 1 NO ListValues – Show all values for a chosen parameter

  8. List values for a selected entityPick a person, class, location and see all values ORB PROCESSING FLAG DECEASED PATIENT Disabled ORB PROCESSING FLAG IMAGING PATIENT EXAM Enabled ORWCH BOUNDS frmOMNavA 213,164,491,305 ORWCH BOUNDS frmOMSet 29,512,123,235 CIAVCXEN PROVIDER 1 NO ORWRP TIME/OCC LIMITS INDV ORRPW RADIOLOGY IMAG T-67;T;10 ORWRP TIME/OCC LIMITS INDV ORRPW RADIOLOGY REPO T-98;T;10

  9. List values for a selected package – CIA network components Parameter Instance Value ------------------------------------------------------------ CIANB AUTHENTICATION EHRC Normal CIANB AUTHENTICATION EHRC,EHRC Normal CIANB POLLING INTERVAL 1 3 CIANB RESOURCE DEVICE COUNT 1 4 CIANB RESOURCE DEVICE SLOTS 1 4

  10. List Values for a Selected Template VueCentric Site Parameters for Package: VUECENTRIC FRAMEWORK ----------------------------------------------------------- Default object source path \\161.223.37.201\vuecentric\EHRC\LIB\ Default installation path C:\Program Files\VueCentric\TCEHRC\ Default login template %PROVIDER Host polling interval Maximum number of resource devices Number of resource slots to allocate Primary inactivity timeout 3000 Secondary inactivity timeout 3000 Interval to display countdown timer 20 Disable CCOW support NO Recall last selected patient YES

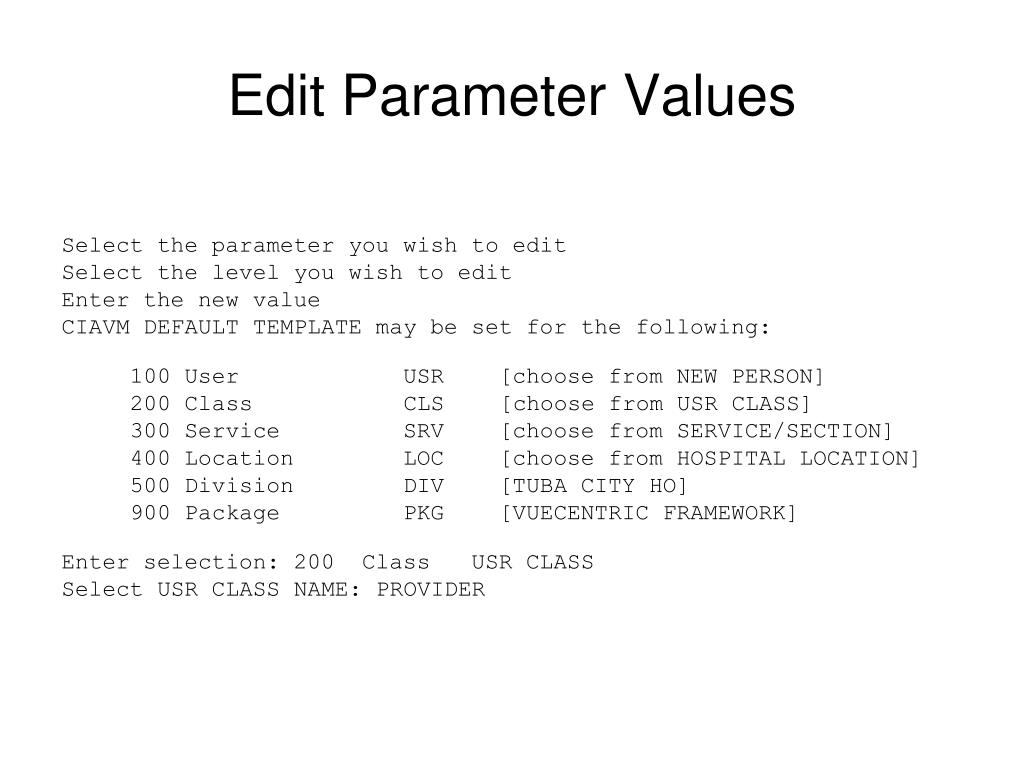

  11. Edit Parameter Values Select the parameter you wish to edit Select the level you wish to edit Enter the new value CIAVM DEFAULT TEMPLATE may be set for the following: 100 User USR [choose from NEW PERSON] 200 Class CLS [choose from USR CLASS] 300 Service SRV [choose from SERVICE/SECTION] 400 Location LOC [choose from HOSPITAL LOCATION] 500 Division DIV [TUBA CITY HO] 900 Package PKG [VUECENTRIC FRAMEWORK] Enter selection: 200 Class USR CLASS Select USR CLASS NAME: PROVIDER

  12. Important Parameters – TIU

  13. Parameters – Ordering Parameters

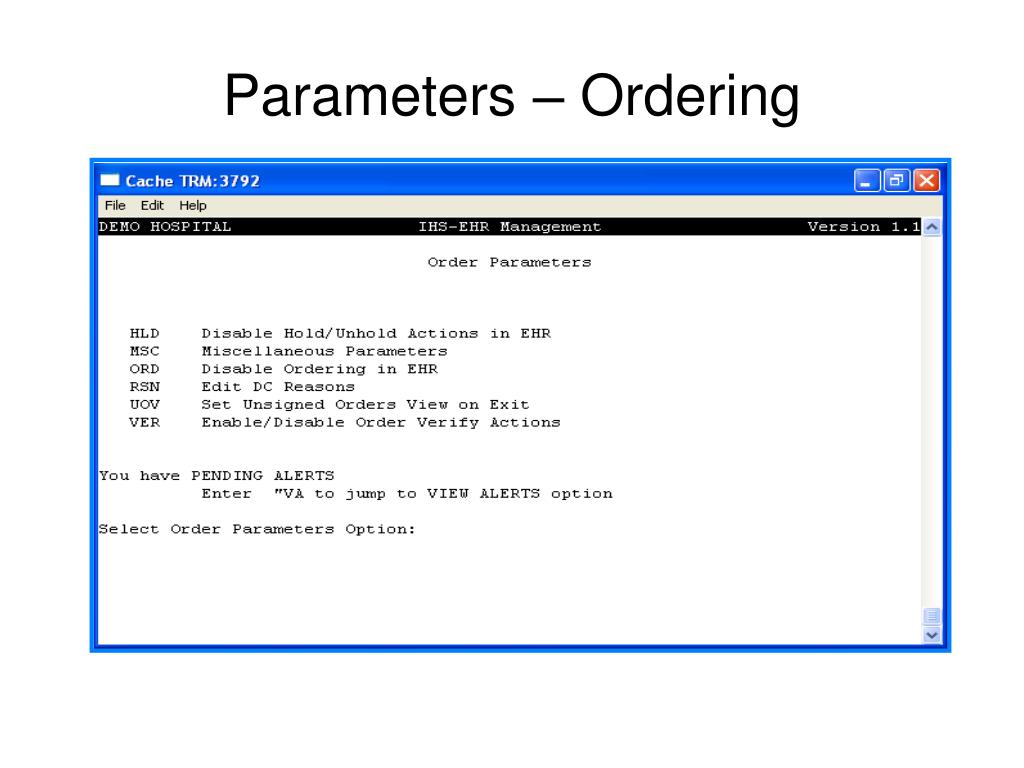

  14. Parameters – Ordering

  15. Parameters – Order Printing

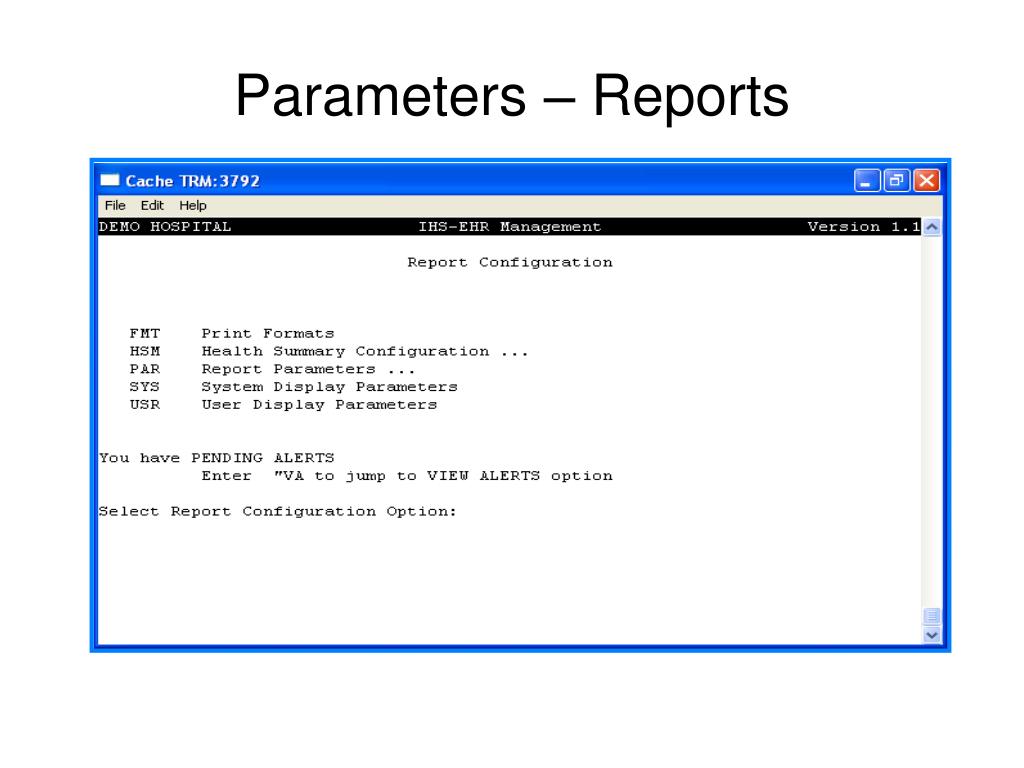

  16. Parameters – Reports

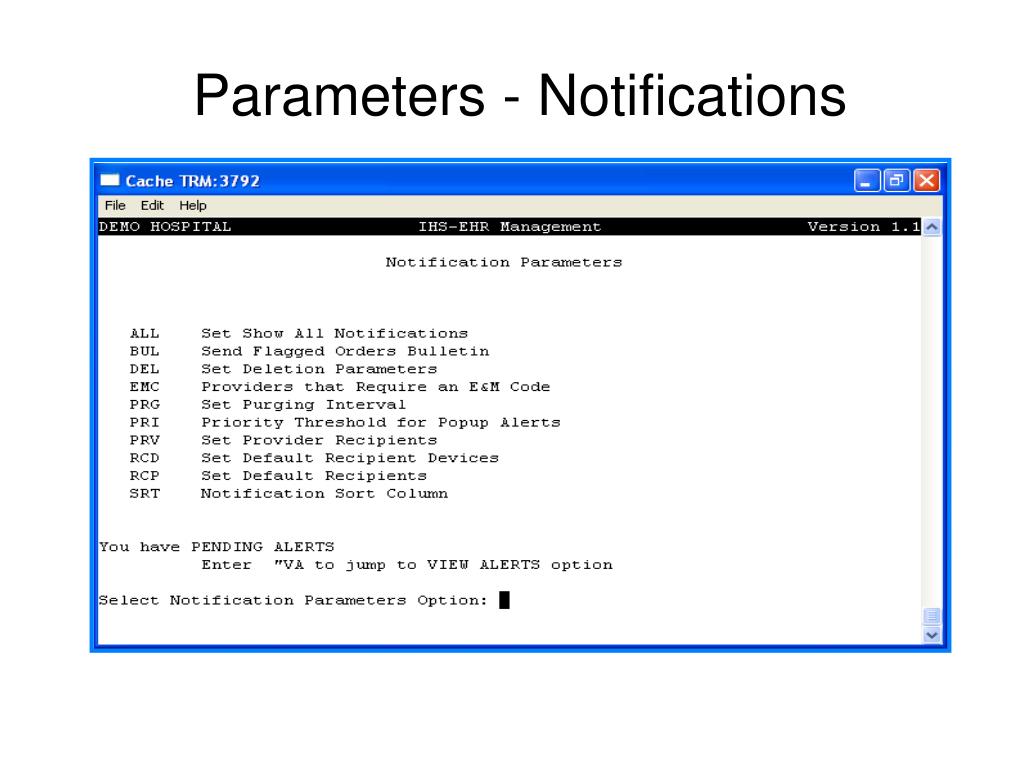

  17. Parameters - Notifications

  18. Parameters Order Checks

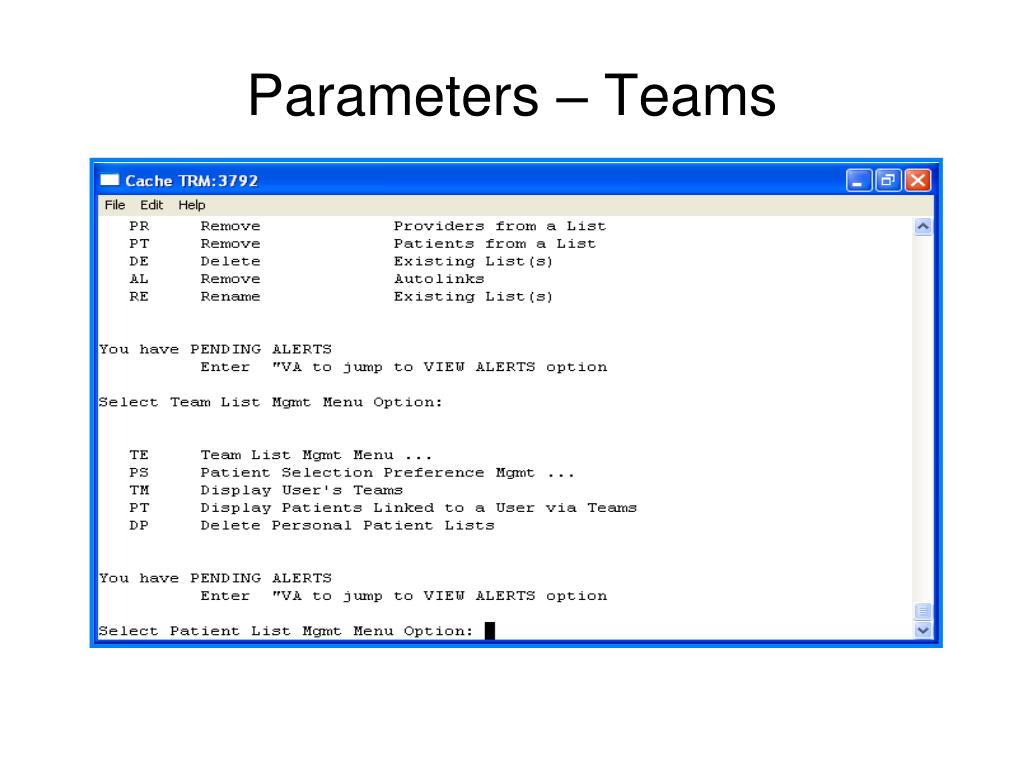

  19. Parameters – Teams

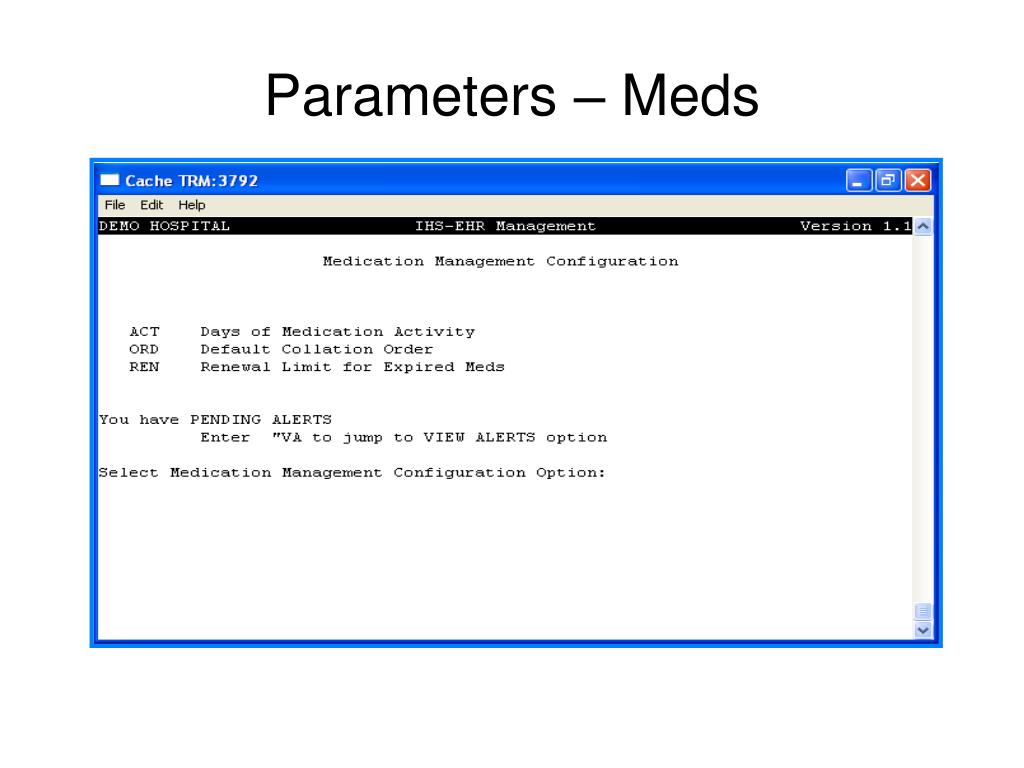

  20. Parameters – Meds

  21. Parameters - Context Labs

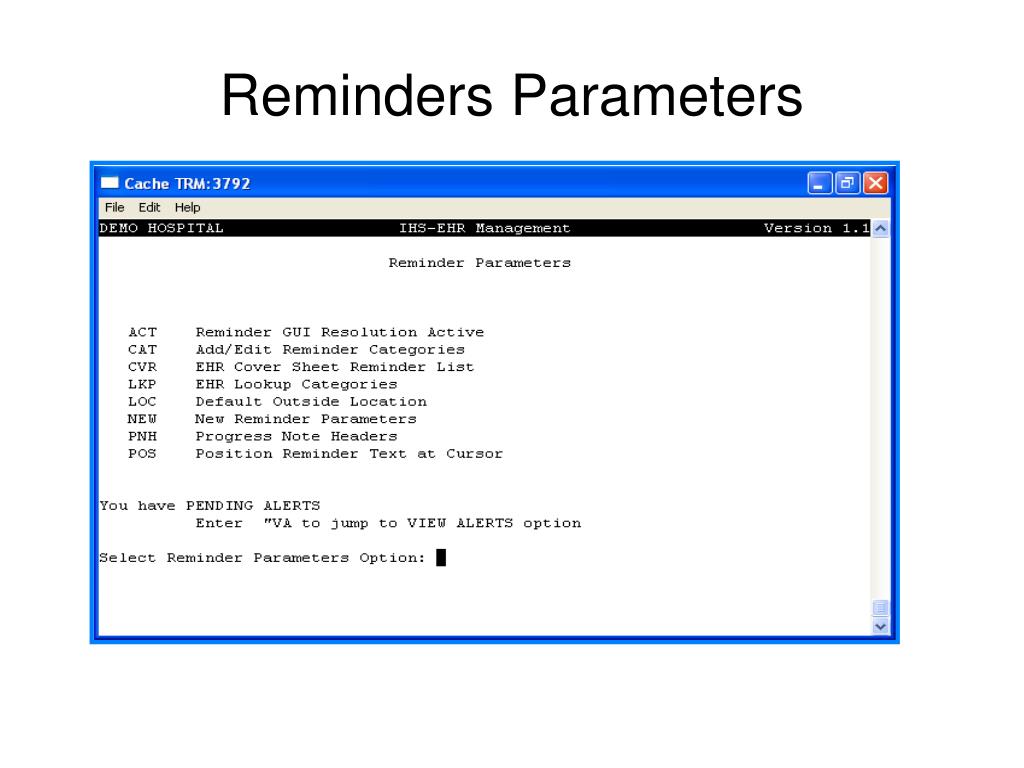

  22. Reminders Parameters

  23. IHS (BEH) Parameters – Vitals

  24. IHS (BEH) Parameters – Visit

  25. IHS (BEH) Parameters – Patient

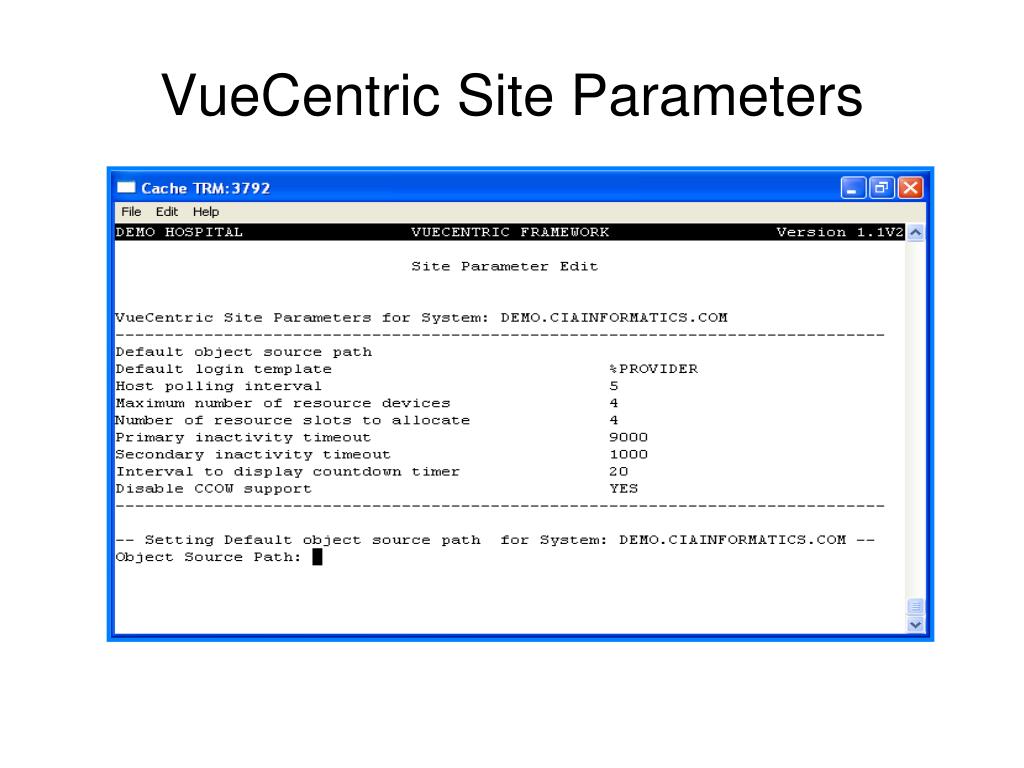

  26. VueCentric Site Parameters

  27. Questions and Discussion
