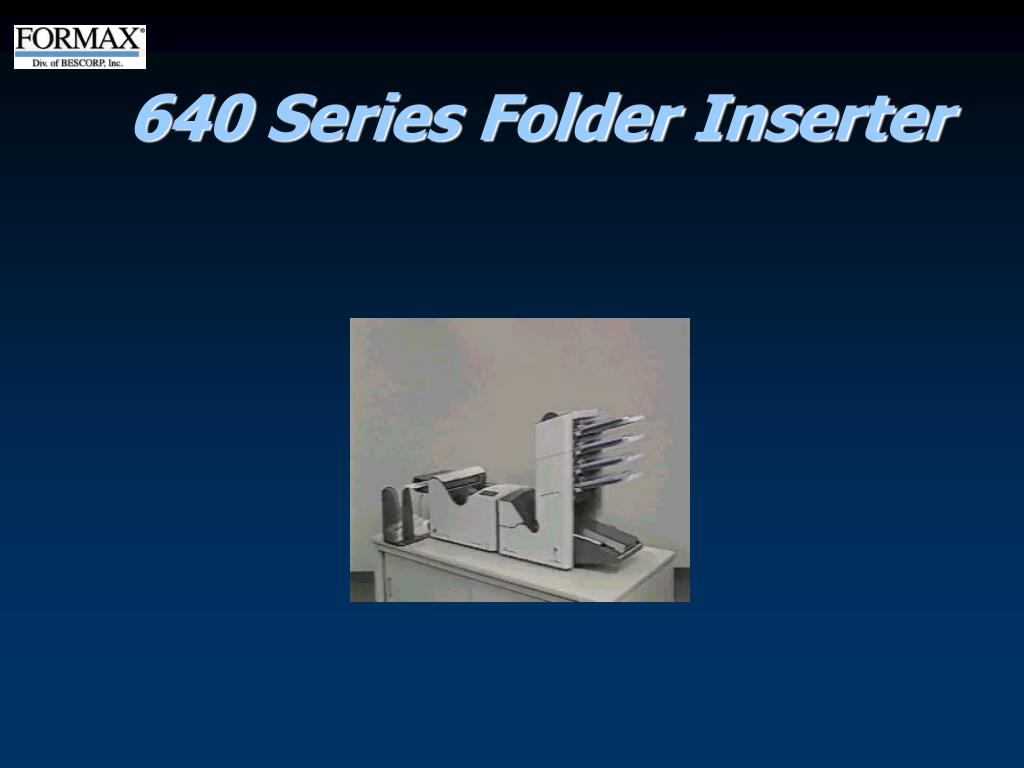

  1. 640 Series Folder Inserter

  2. Volume: 70,000/month Speed: 3,100 env./hour 2 & 4 station models Vertical Feeders Modular Divert Deck Two types of Feeders Exit Options 640 Series Overview • OMR option to follow

  3. Flexible Feeders • 325 sheet capacity each (20lb. bond) • Feeders handle different sizes and types of paper for one job • Process more applications automatically • Multi-functional feeders • sheets (up to 14”) requiring folding • inserts that do not require folding • Collating unit can process sets of varying paper sizes & assembly order • Feeder settings easily programmed into jobs

  4. Self-cleaning rollers Decreases maintenance Maximize up-time New Feed Rollers

  5. Intelligent • Documents diverted before folding when: • Double detected from feeder • Clear system between applications • Divert for OMR • Read error • Benefit • Continuous operation when faults are detected • Allows documents to be checked by operator without interruption

  6. Folds by knife pushing paper through rollers Produces crisp tight fold Folds more sheets - 8! Process sets of varying paper sizes & assembly order Folder capacity TWO times the industry standard Virtually no competition No need to manually change fold settings whenswitching applications New Folding Technology

  7. Knife Folding A knife the width of the document does the folding - NOT the rollers

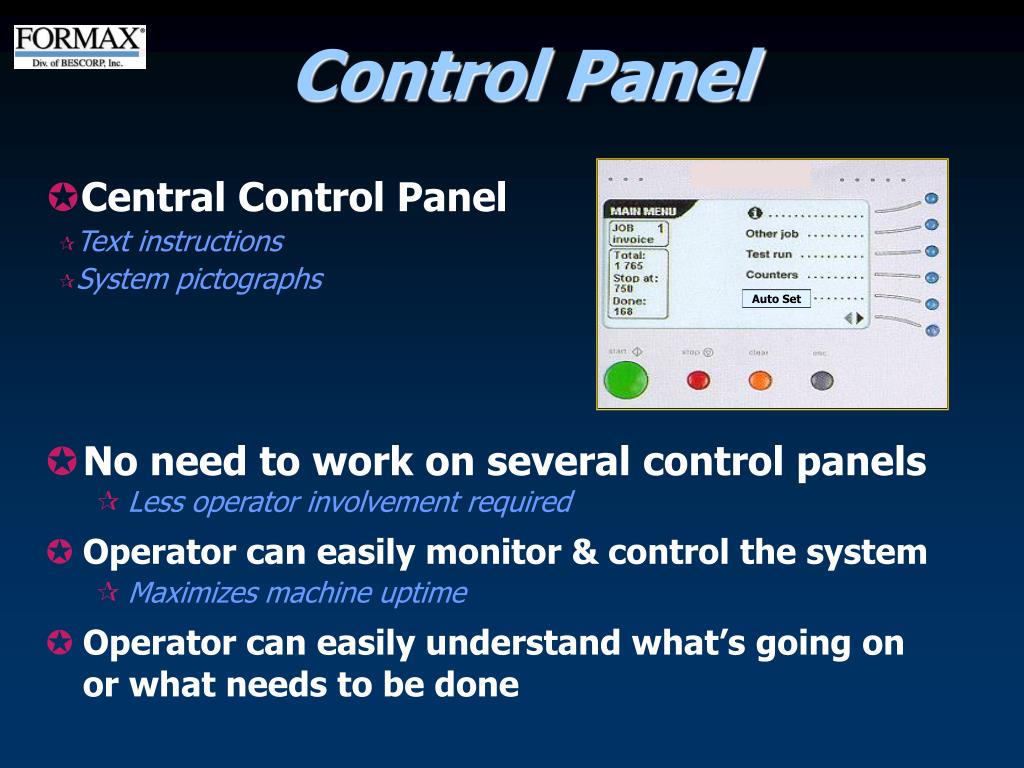

  8. Control Panel • Central Control Panel • Text instructions • System pictographs • No need to work on several control panels • Less operator involvement required • Operator can easily monitor & control the system • Maximizes machine uptime • Operator can easily understand what’s going on or what needs to be done Auto Set

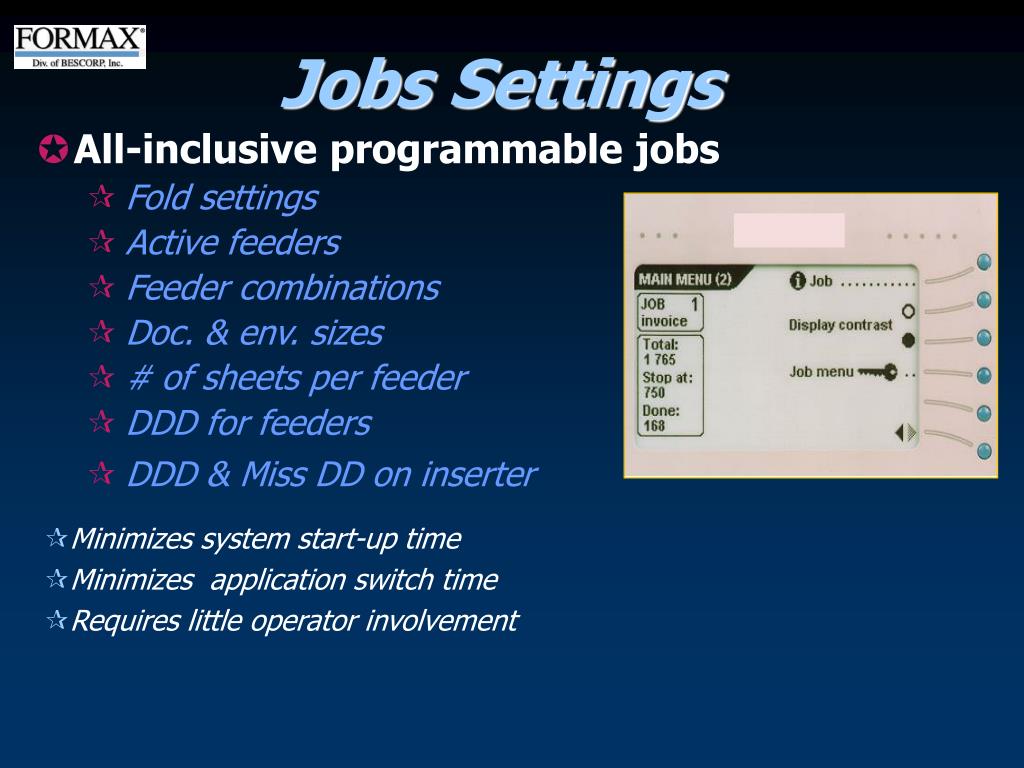

  9. Jobs Settings • All-inclusive programmable jobs • Fold settings • Active feeders • Feeder combinations • Doc. & env. sizes • # of sheets per feeder • DDD for feeders • DDD & Miss DD on inserter • Minimizes system start-up time • Minimizes application switch time • Requires little operator involvement

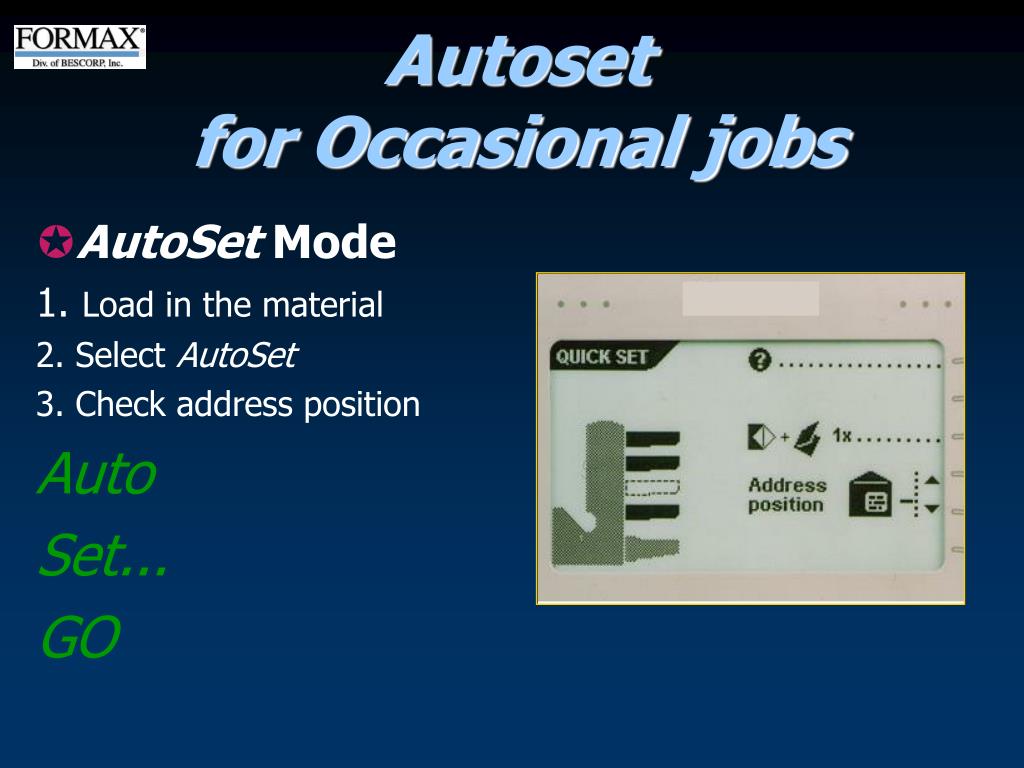

  10. Autoset for Occasional jobs • AutoSet Mode 1. Load in the material 2. Select AutoSet 3. Check address position Auto Set... GO

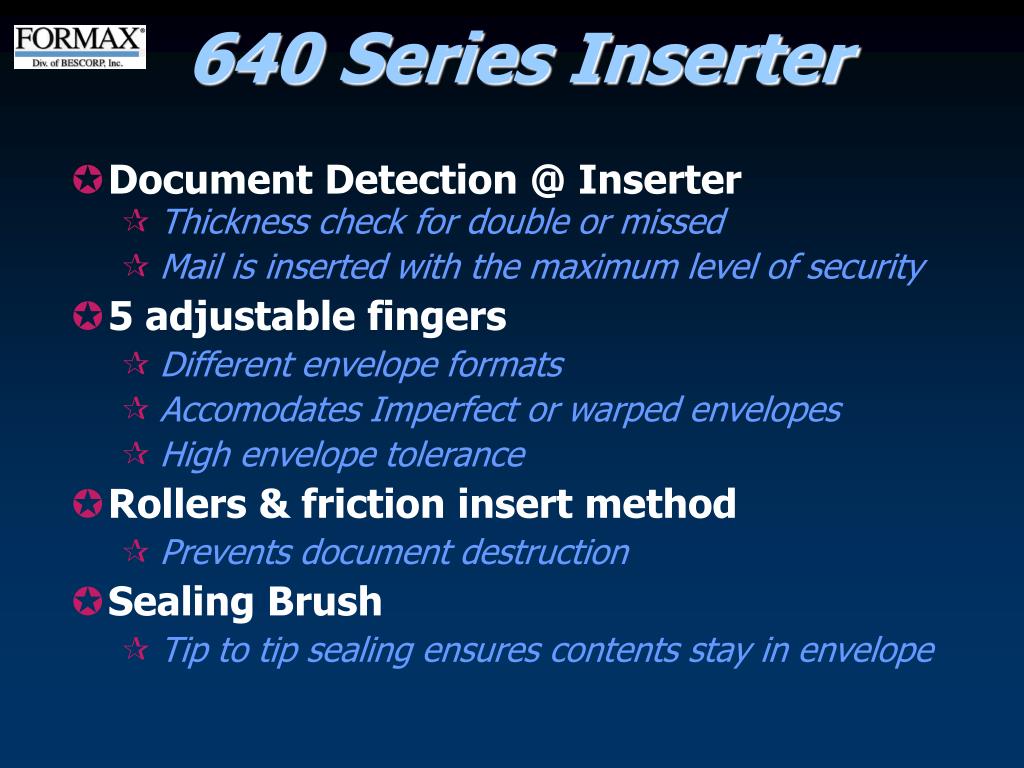

  11. 640 Series Inserter • Document Detection @ Inserter • Thickness check for double or missed • Mail is inserted with the maximum level of security • 5 adjustable fingers • Different envelope formats • Accomodates Imperfect or warped envelopes • High envelope tolerance • Rollers & friction insert method • Prevents document destruction • Sealing Brush • Tip to tip sealing ensures contents stay in envelope

  12. 640 Series Inserter • FD642 • 2 stations (2 STANDARD feeders) • FD644 • 4 station (4 STANDARD feeders) • FD646 • 4 stations (3 STANDARD & 1 SPECIAL feeder) Standard feeders = Automatic thickness adjustment Special feeders = Manual thickness adjustment for booklets, high gloss & other special types of documents

  13. Good Luck Prospecting!
