## Median Image Filter

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

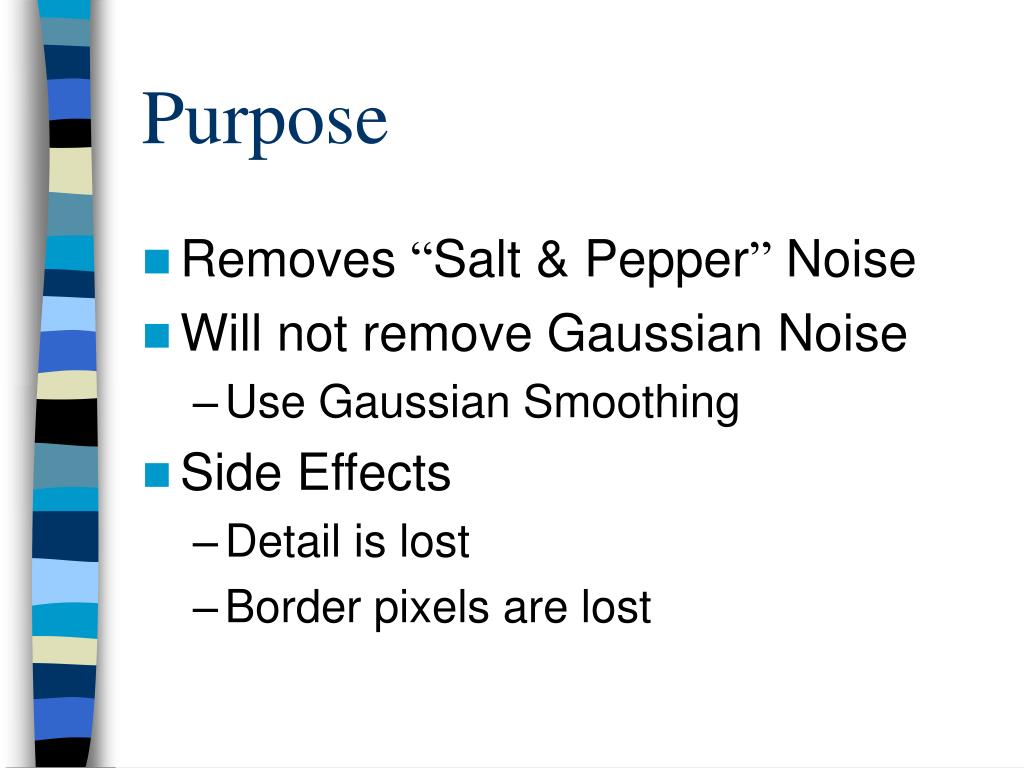

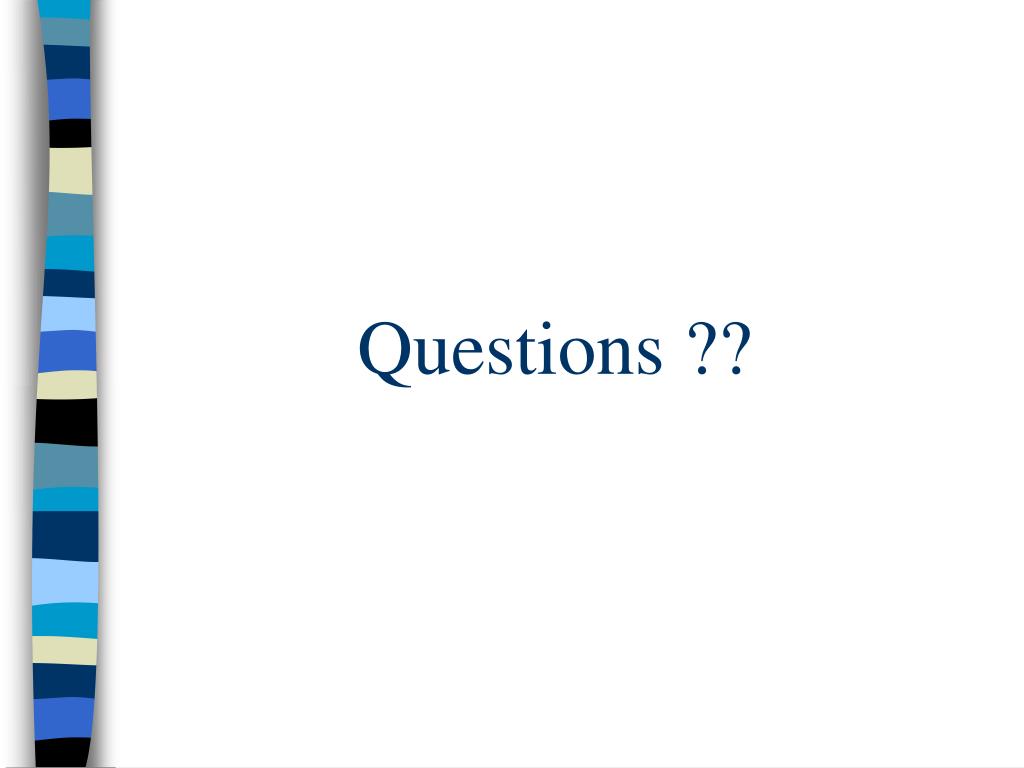

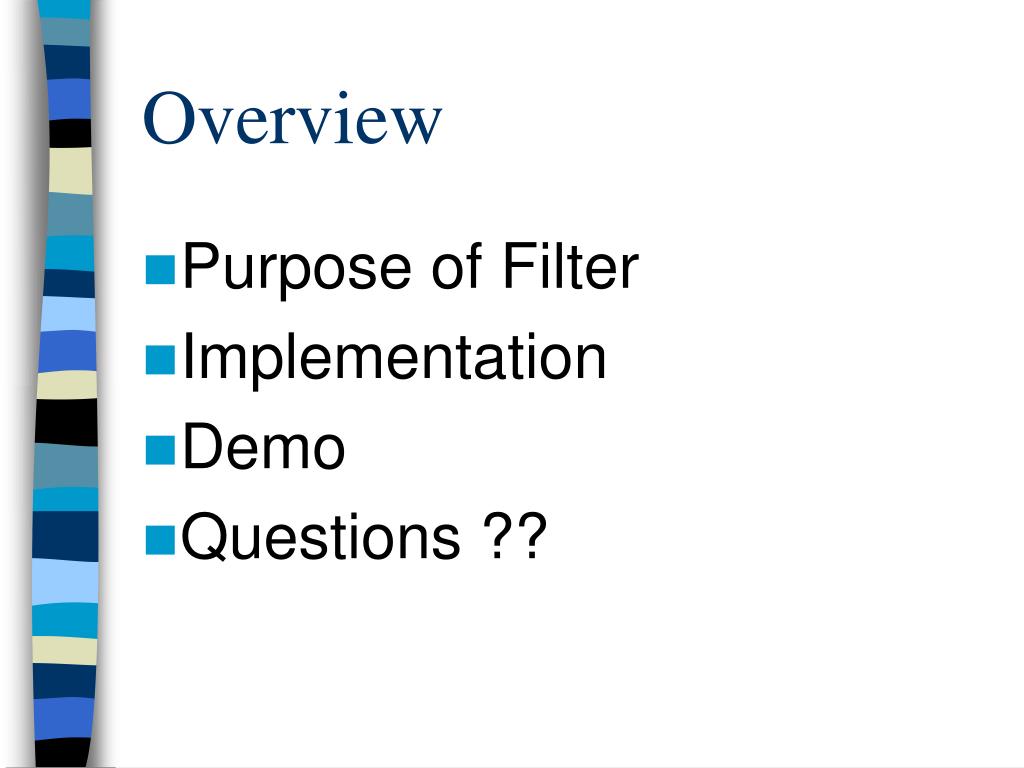

**Median Image Filter**David Newman Nick Govier**Overview**• Purpose of Filter • Implementation • Demo • Questions ??**Purpose**• Removes “Salt & Pepper” Noise • Will not remove Gaussian Noise • Use Gaussian Smoothing • Side Effects • Detail is lost • Border pixels are lost**Implementation (1)**• Use a Template • Of size 3x3, 5x5, 7x7,… etc. • Sort the values in the template • We used merge sort • Middle value of sorted list replaces the template’s central pixel.**N.B. Each template takes**the values its sorts from the original image 101 69 0 56 255 87 123 96 157 0 56 69 87 96 101 123 157 255 Implementation (2)**Demo**• Implemented as a Java Applet • Can be viewed at “www.ecs.soton.ac.uk/~drn101/MedianFilter.html”
