Presentation Transcript

  1. How to plug in worldKit for a slick web interface for MapServer or any WMSand other interesting things mikel maron worldkit@brainoff.com Open Source Geospatial '05 Minneapolis, MN

  2. World as a Blog Weblogs.com + GeoURL + RSS + Flash + Earth http://brainoff.com/geoblog/

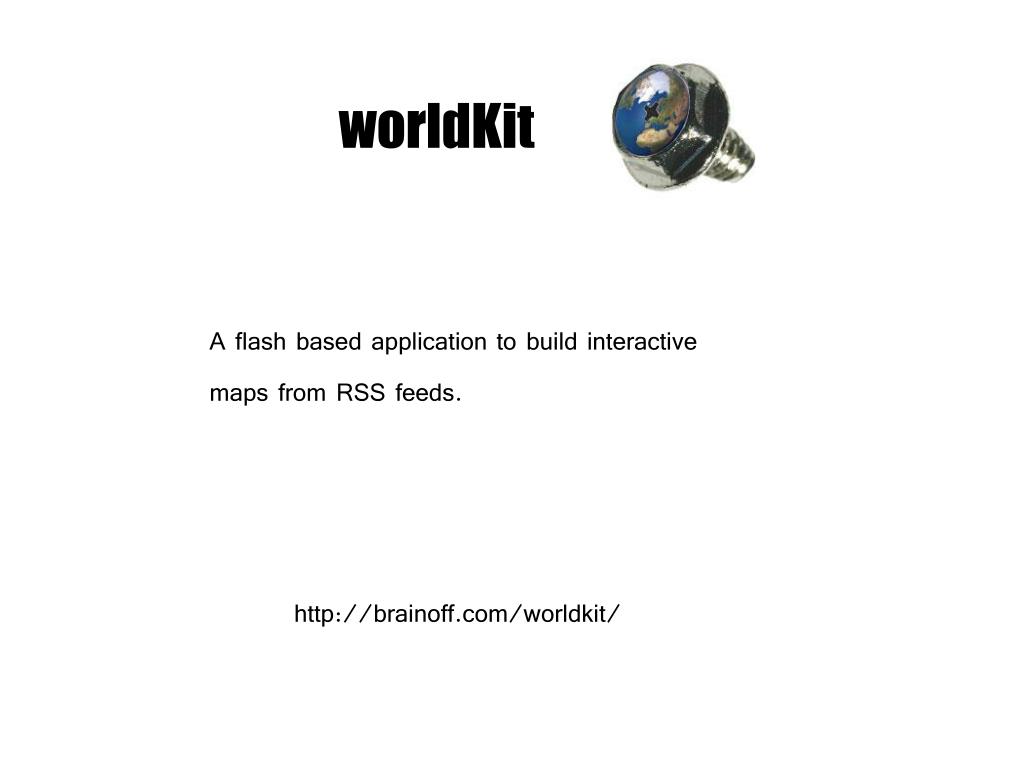

  3. worldKit A flash based application to build interactive maps from RSS feeds. http://brainoff.com/worldkit/

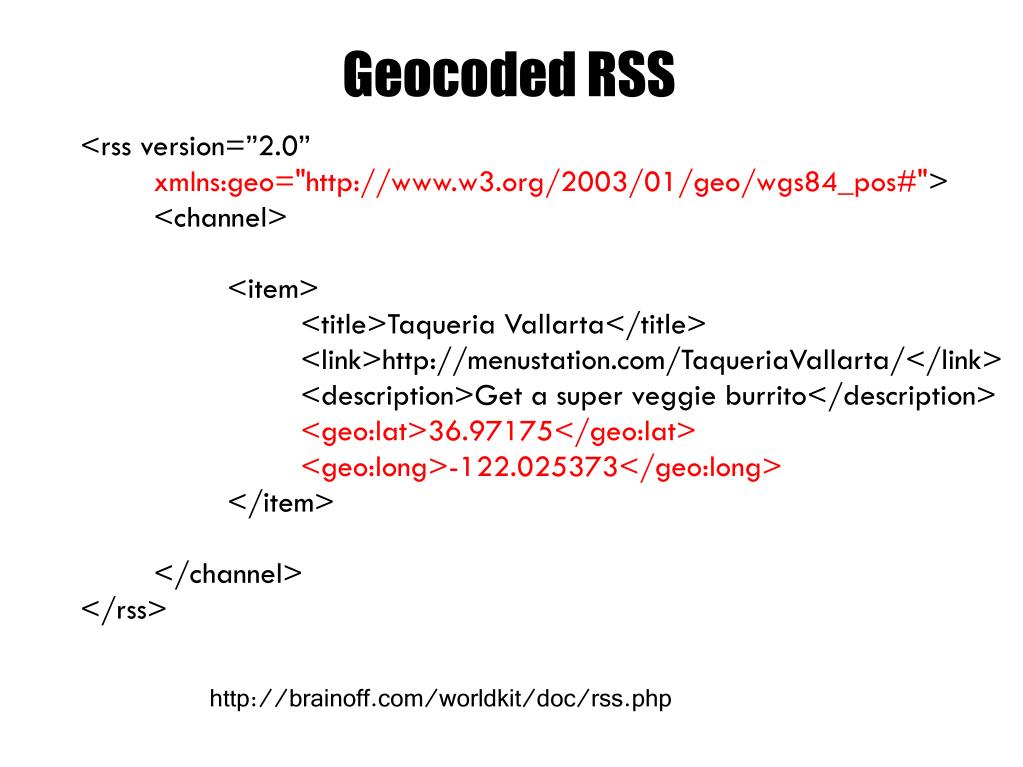

  4. Geocoded RSS <rss version=”2.0” xmlns:geo="http://www.w3.org/2003/01/geo/wgs84_pos#"> <channel> <item> <title>Taqueria Vallarta</title> <link>http://menustation.com/TaqueriaVallarta/</link> <description>Get a super veggie burrito</description> <geo:lat>36.97175</geo:lat> <geo:long>-122.025373</geo:long> </item> </channel> </rss> http://brainoff.com/worldkit/doc/rss.php

  5. Atom with Geotags <feed version="0.3" xmlns="http://purl.org/atom/ns#"> <entry> <title>Taqueria Vallarta</title> <link href="http://menustation.com/TaqueriaVallarta/"/> <summary> Get a super veggie burrito geo:lat=36.97175 geo:long=-122.025373 </summary> </entry> </feed>

  6. config.xml and features <worldkitconf> <width>695</width> <height>550</height> <displaytype>day</displaytype> <dayimg>bluemarble.jpg</dayimg> <dataurl>/weblogs/blogtalk/index.xml</dataurl> <showonlynew>false</showonlynew> <plotinterval>0</plotinterval> <textinterval>0</textinterval> <update>60</update> <initialplotcolor>0xcc55ff<a_really_nice_place>0xFFFF44</a_really_nice_place> <hotels>0xFFFFFF</hotels> <museums_and_sites>0x11cc00</museums_and_sites> <restaurants_and_pubs>0xffaa00</restaurants_and_pubs> <transport>0x22aaFF</transport> <wifi_hotspot>0xff0022</wifi_hotspot> <shopping>0x000099</shopping></initialplotcolor> <plotsize>8</plotsize> <textsize>12</textsize> <plotshape>circle</plotshape> <textboxsize>100</textboxsize> <north>48.2305</north> <west>16.3319</west> <south>48.1827</south> <east>16.4203</east> <annotateurl> /cgi-bin/moveabletype/mt.cgi?blogtalk=1&is_bm=1&bm_show=keywords,category&__mode=view&_type=entry </annotateurl> </worldkitconf>

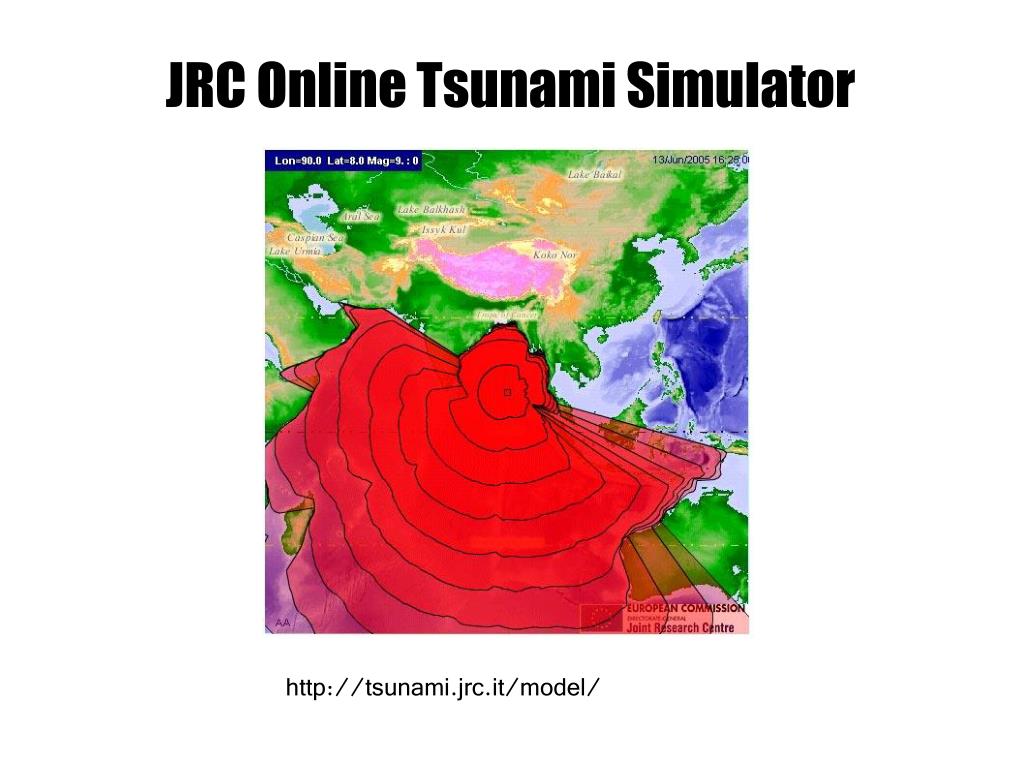

  7. JRC Online Tsunami Simulator http://tsunami.jrc.it/model/

  8. Woody's Kayak Trips http://www.kayaktrips.net/geo/

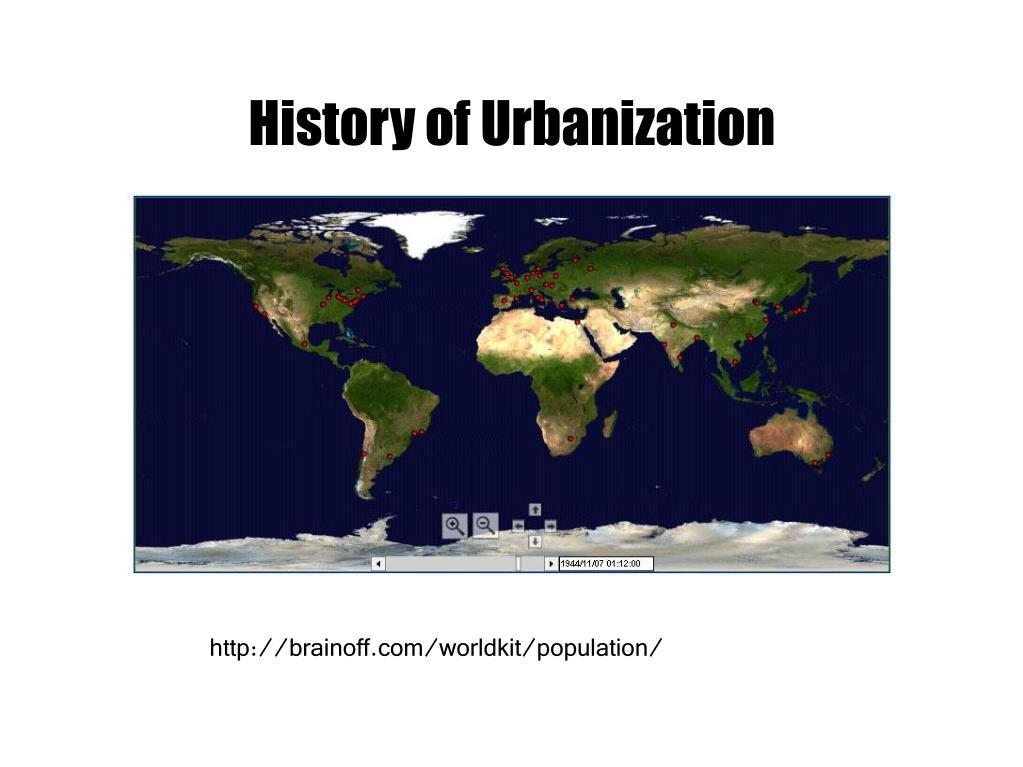

  9. History of Urbanization http://brainoff.com/worldkit/population/

  10. But is it Open Source?

  11. Flash

  12. Mapserver and Flash http://dl.maptools.org/dl/FlashMapserverUserDoc.html http://mapserver.gis.umn.edu/cgi-bin/wiki.pl?MapserverFlash

  13. WorldKit Mod to mapswf.c http://tinyurl.com/8lkxj http://brainoff.com/worldkit/scratch/mapswf.c

  14. WMS and worldKit <swftemplate category="landsat" id="landsat3" tilewidth="376" tileheight="188" extent="-180,-90,180,90" spanx="16" spany="16" minview="4" maxview="50000" minscale="8" maxscale="16"> http://onearth.jpl.nasa.gov/wms.cgi? request=GetMap&width=376&height=188 &layers=modis,global_mosaic &styles=&srs=EPSG:4326&format=image/jpeg &bbox=WEST,SOUTH,EAST,NORTH </swftemplate>

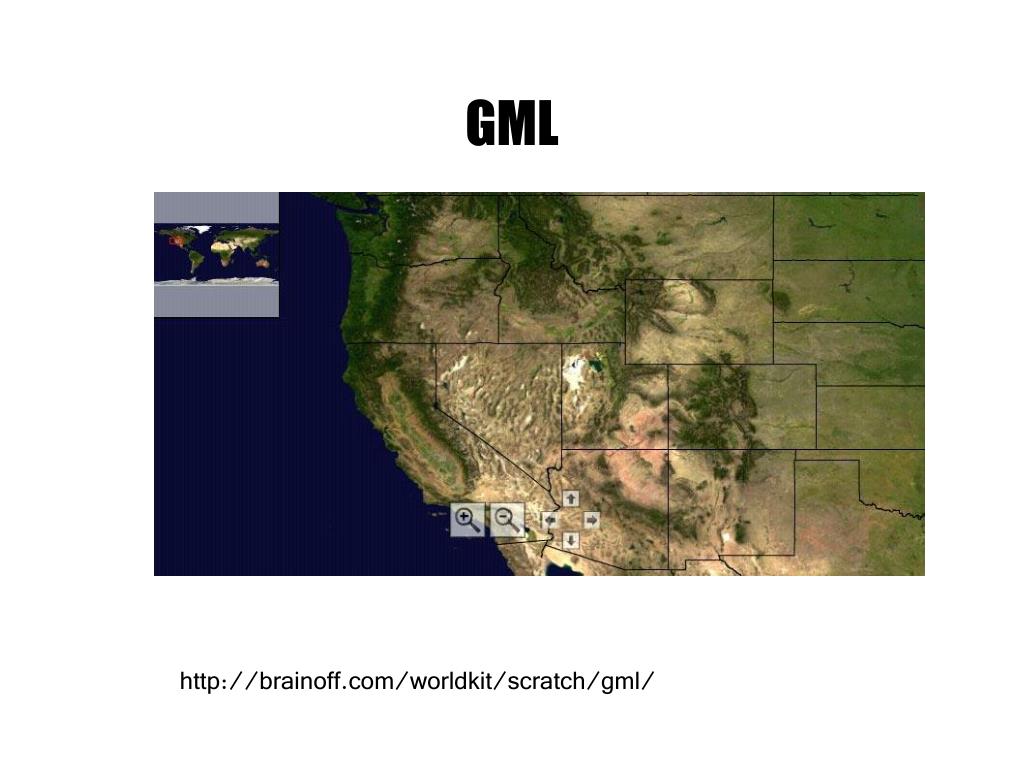

  15. GML http://brainoff.com/worldkit/scratch/gml/

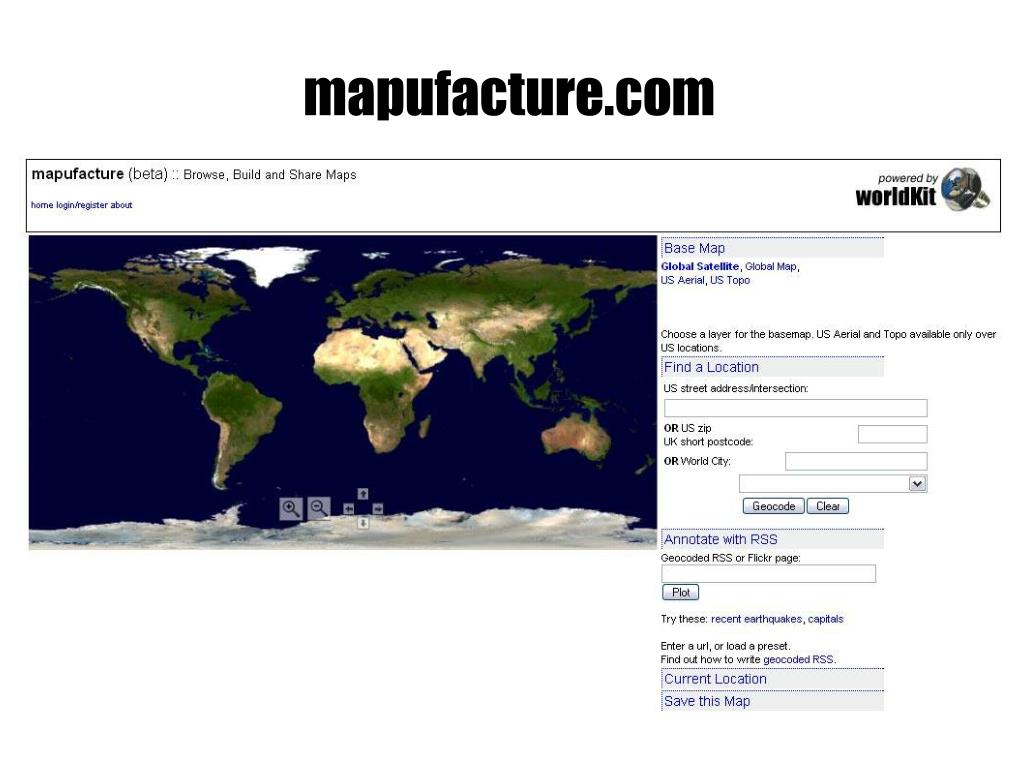

  16. mapufacture.com

  17. del.icio.us osgeo http://mapufacture.com/map.php?mapid=58 http://del.icio.us/rss/tag/osgeo+geotagged/

  18. Thanks!
