Section 10.6: Translating Conic Sections

Section 10.6: Translating Conic Sections. What You’ll Learn: to translate conic sections and write and identify the equation of translated conic section Why: to use location navigation systems. Writing Equations of Translated Conic Sections. 2. Write the equation of each conic section:

herne
Télécharger la présentation

Section 10.6: Translating Conic Sections

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Section 10.6: Translating Conic Sections What You’ll Learn: to translate conic sections and write and identify the equation of translated conic section Why: to use location navigation systems

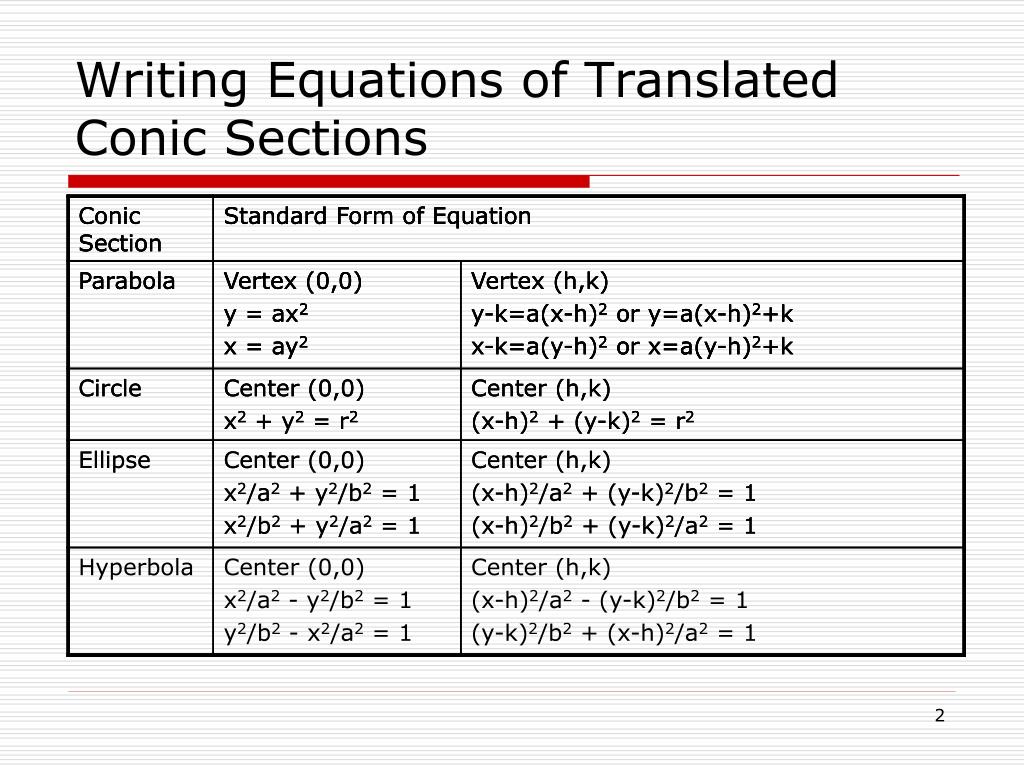

  2. Writing Equations of Translated Conic Sections 2

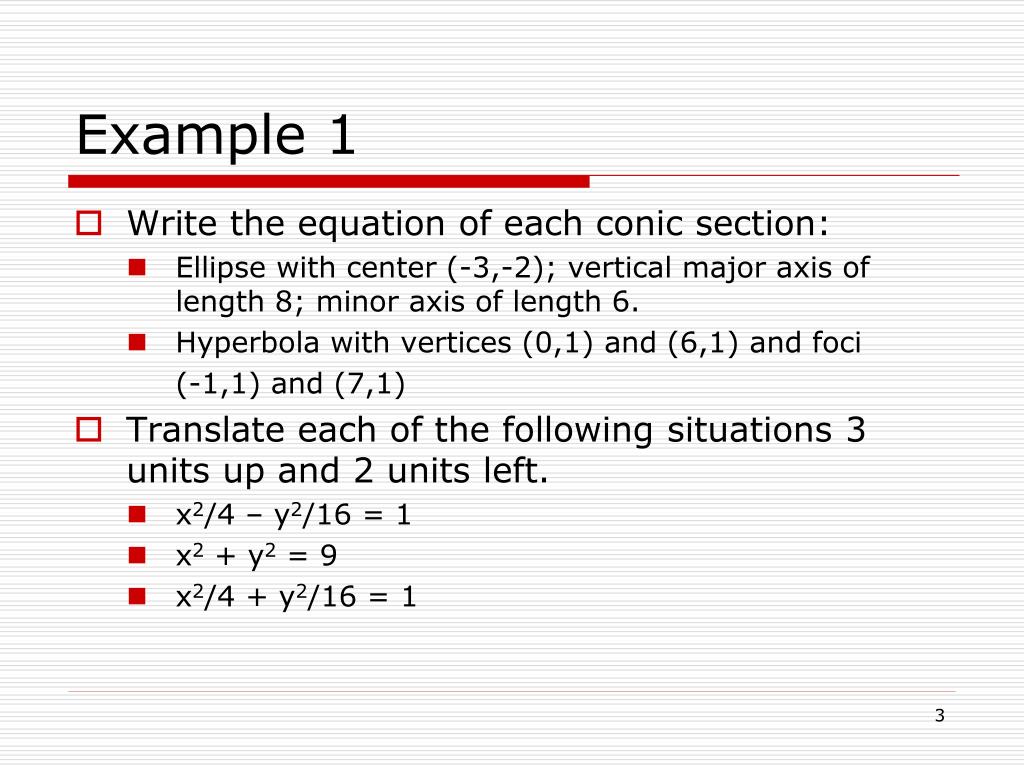

  3. Write the equation of each conic section: Ellipse with center (-3,-2); vertical major axis of length 8; minor axis of length 6. Hyperbola with vertices (0,1) and (6,1) and foci (-1,1) and (7,1) Translate each of the following situations 3 units up and 2 units left. x2/4 – y2/16 = 1 x2 + y2 = 9 x2/4 + y2/16 = 1 Example 1

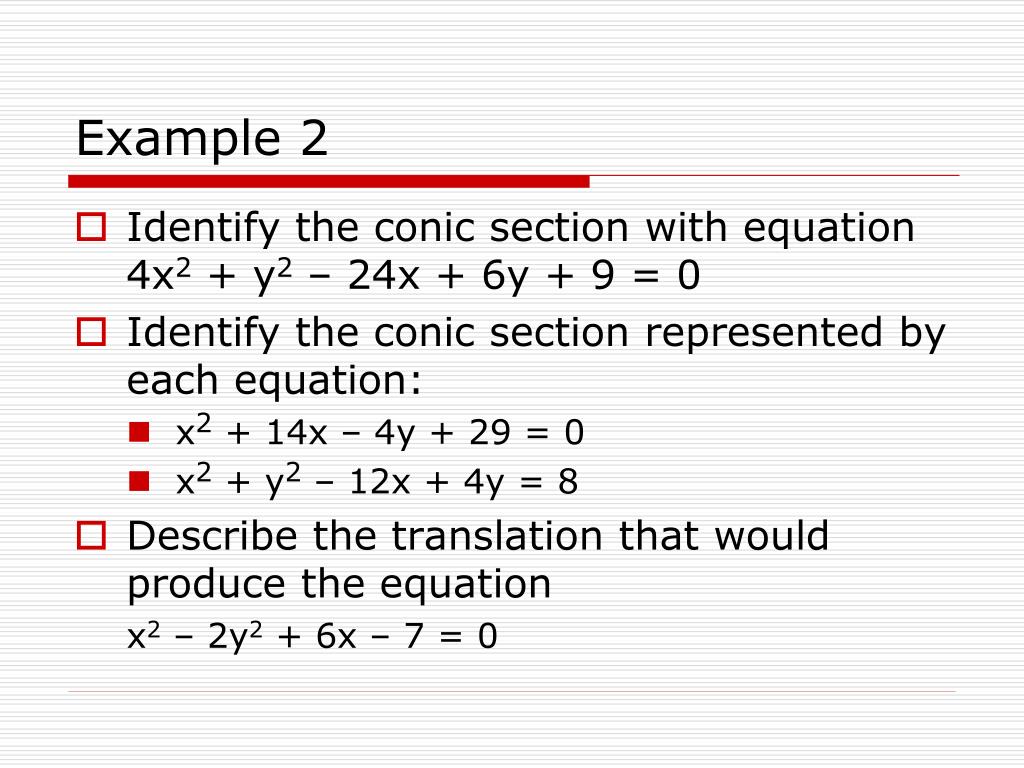

  4. Example 2 • Identify the conic section with equation 4x2 + y2 – 24x + 6y + 9 = 0 • Identify the conic section represented by each equation: • x2 + 14x – 4y + 29 = 0 • x2 + y2 – 12x + 4y = 8 • Describe the translation that would produce the equation x2 – 2y2 + 6x – 7 = 0

  5. Homework Section 10-6 HW pages 495-496: 1-21 (no graphs) Any questions that involve writing or explaining should be done in complete sentences and show critical thinking skills. 5
