Cell Division: Cells do not increase in size. They increase in number.

Cell Division: Cells do not increase in size. They increase in number. Chapter 8-2 & 8-3. Cell Cycle. Time from beginning of one cell division to the beginning of the next Cell doubles its contents so it is ready to divide into two completely independent cells 3 steps: Interphase

hesper
Télécharger la présentation

Cell Division: Cells do not increase in size. They increase in number.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Cell Division:Cells do not increase in size. They increase in number. Chapter 8-2 & 8-3

  2. Cell Cycle • Time from beginning of one cell division to the beginning of the next • Cell doubles its contents so it is ready to divide into two completely independent cells • 3 steps: • Interphase • Mitosis (M phase) • Cytokinesis

  3. G1 – cell grows in size, organelles in cytoplasm are copied S – DNA is copied G2 – cell prepares for division Cells spend most of their lifetime in interphase 1. Interphase (G1, S, & G2 phase)

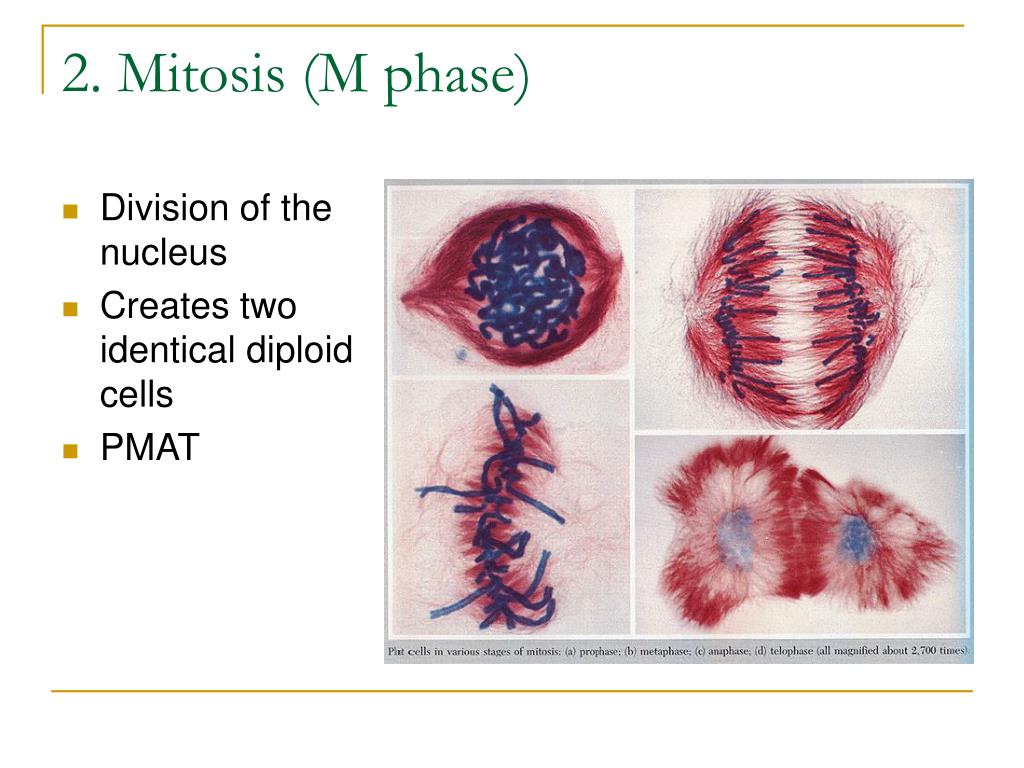

  4. 2. Mitosis (M phase) • Division of the nucleus • Creates two identical diploid cells • PMAT

  5. Nuclear membrane disappears DNA – shorter and thicker and forms a chromosome Chromosomes double to sister chromatids Centrioles move to opposite ends of a cell Spindle fiber – cell skeleton begins to form Mitosis – Prophase

  6. Doubled chromosomes attach to spindle fibers by the centromeres Chromosomes pushed and pulled by spindle fibers Line up along the middle Shortest stage Mitosis - Metaphase

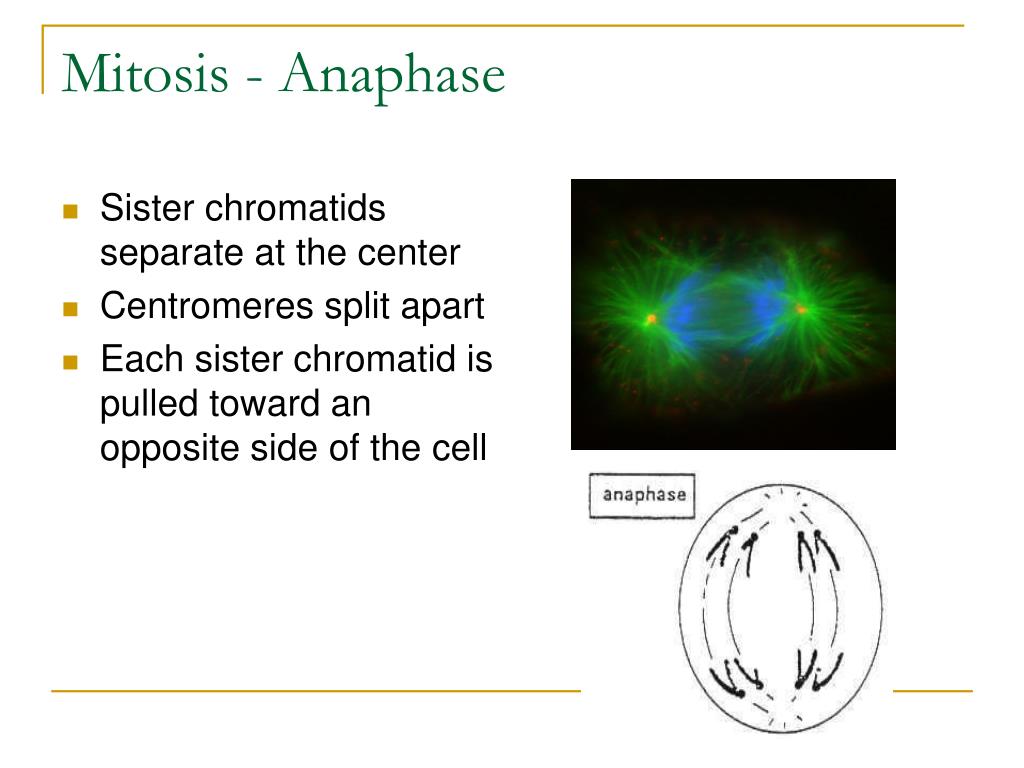

  7. Sister chromatids separate at the center Centromeres split apart Each sister chromatid is pulled toward an opposite side of the cell Mitosis - Anaphase

  8. Chromatids reach opposite poles Spindles break down Nuclear membrane reappears There are now 2 separate nuclei Mitosis - Telophase

  9. 3. Cytokinesis • Division of cytoplasm • Cell membrane pinches to form two new cells • Animal cells – cytoplasm & cell membrane pinches • Plant cells – cell plate forms and becomes the cell wall

  10. Cell Cycle – Animal Cell

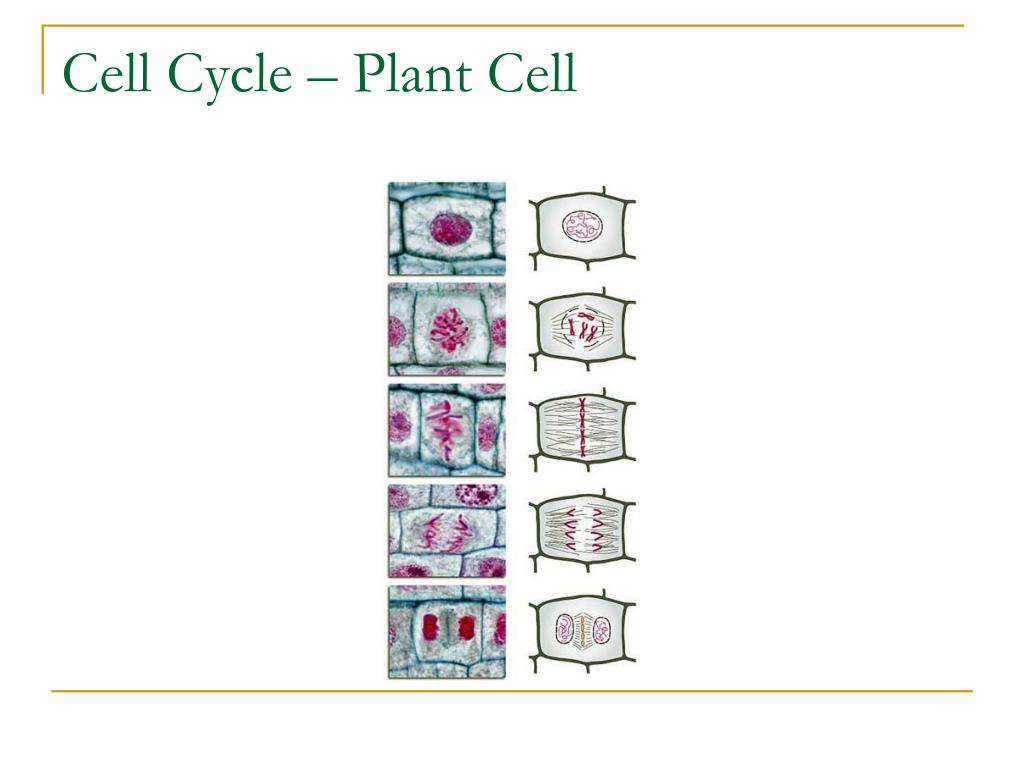

  11. Cell Cycle – Plant Cell

  12. Whitefish

  13. Onion Root Tip

  14. Cells do not increase in size. They increase in number. • Meiosis: reduces the chromosome number by half in new cells (gametes)

  15. Meiosis • Creates four haploid cells (gametes) • Two nuclear divisions occur without DNA being copied in between

  16. Meiosis • Interphase • Meiosis I • Prophase I • Metaphase I • Anaphase I • Telophase I & Cytokinesis (results in 2 diploid cells) • Goes directly into Meiosis II • Prophase II • Metaphase II • Anaphase II • Telophase II & Cytokinesis (results in 4 haploid cells)
