On-Line Construction

1. On-Line Construction of Suffix Trees E. Ukkonen

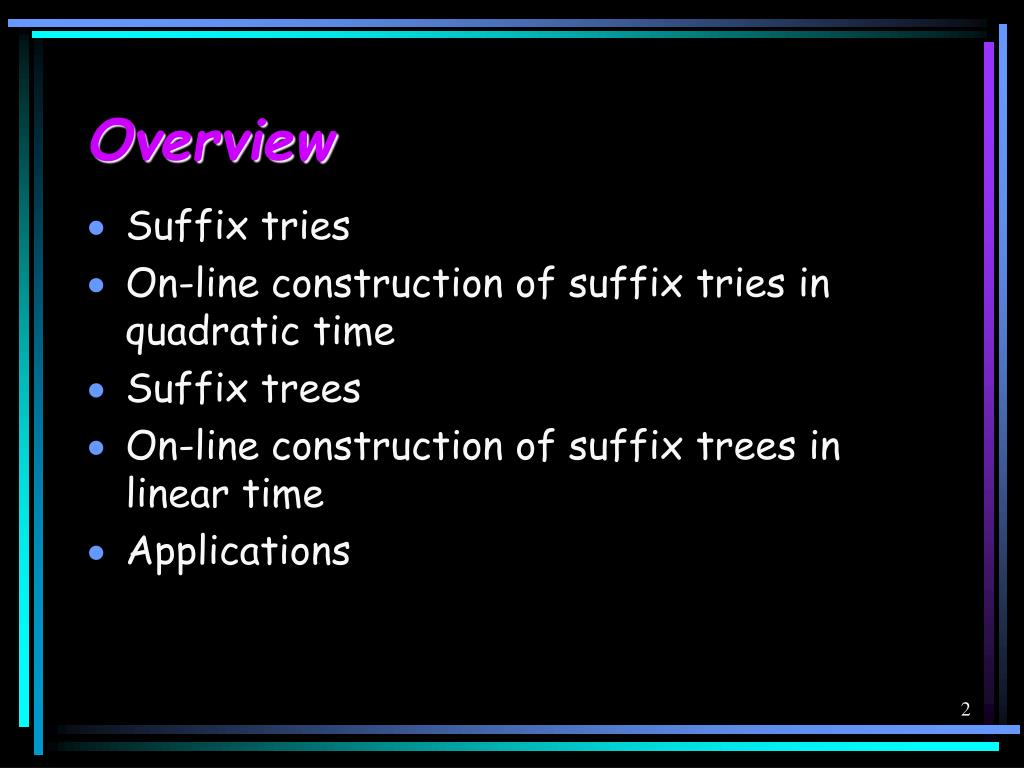

2. Overview • Suffix tries • On-line construction of suffix tries in quadratic time • Suffix trees • On-line construction of suffix trees in linear time • Applications

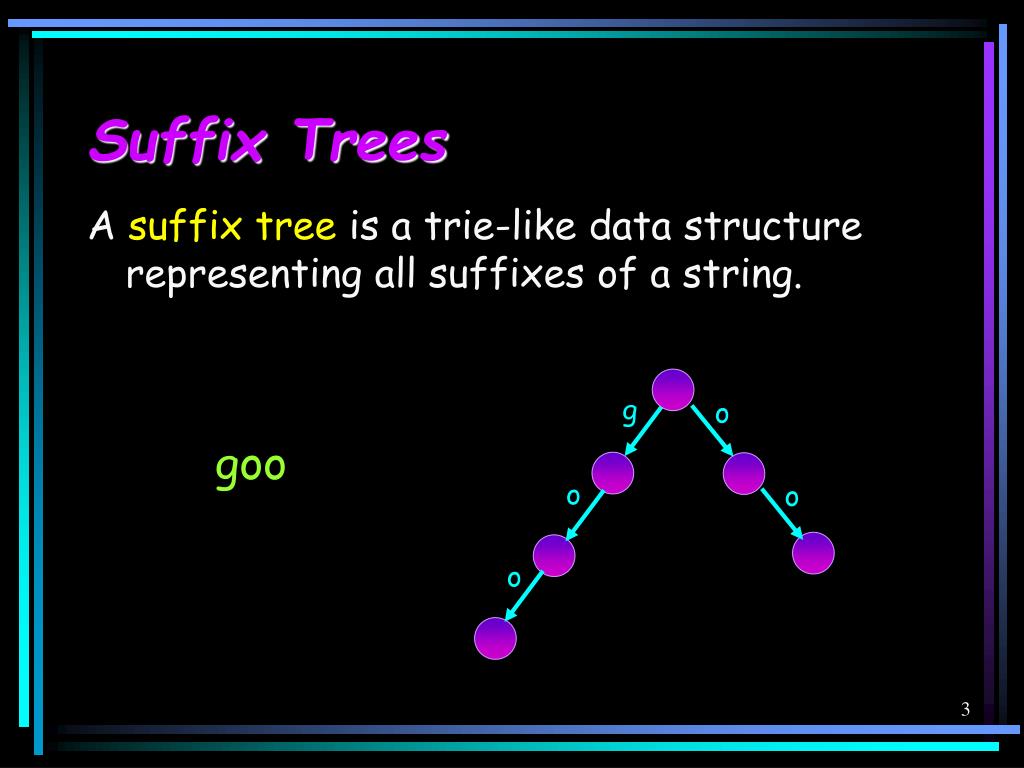

3. g o o o o Suffix Trees A suffix tree is a trie-like data structure representing all suffixes of a string. goo

4. Notations • Let T = t1…tnbe a string. • For 0  i  n, let Ti =t1…tidenote thei-lengthprefix of T. • For 1  i  n + 1, let Ti =ti…tndenote thesuffix of T that starts at the ith position. • Let (T) = {Ti | 1  i  n + 1}.

5. Suffix Tries The suffix trie of T, denoted by STrie(T), is a trie representing (T).

6. Suffix Tries (cont.) Definition:STrie(T) is an augmented DFA, STrie(T) = (Q{}, root, F, g, f) where: • Q = {x | x is a substring of T} is the set of the states of the DFA. • is an auxiliary state. • rootis the initial state, corresponding to the empty string . • F = (T)is the set of finite states.

7. Suffix Tries (cont.) • g : Q{}    Q (a partial function) is the transition function, defined as follows: • g(x,a) = y for all x,yQ and a, s.t. y = xa. • g(,a) = root for all a. • f : Q  Q{} is the suffix function defined as follows: • f(x) = y for all x,yQ, x  root, s.t a, s.t.x = ay. • f(root) = .

8.   o  o c a a c o a c ac ca ao a o c cao cac aca o a caca acao o cacao An Example – STrie(cacao)

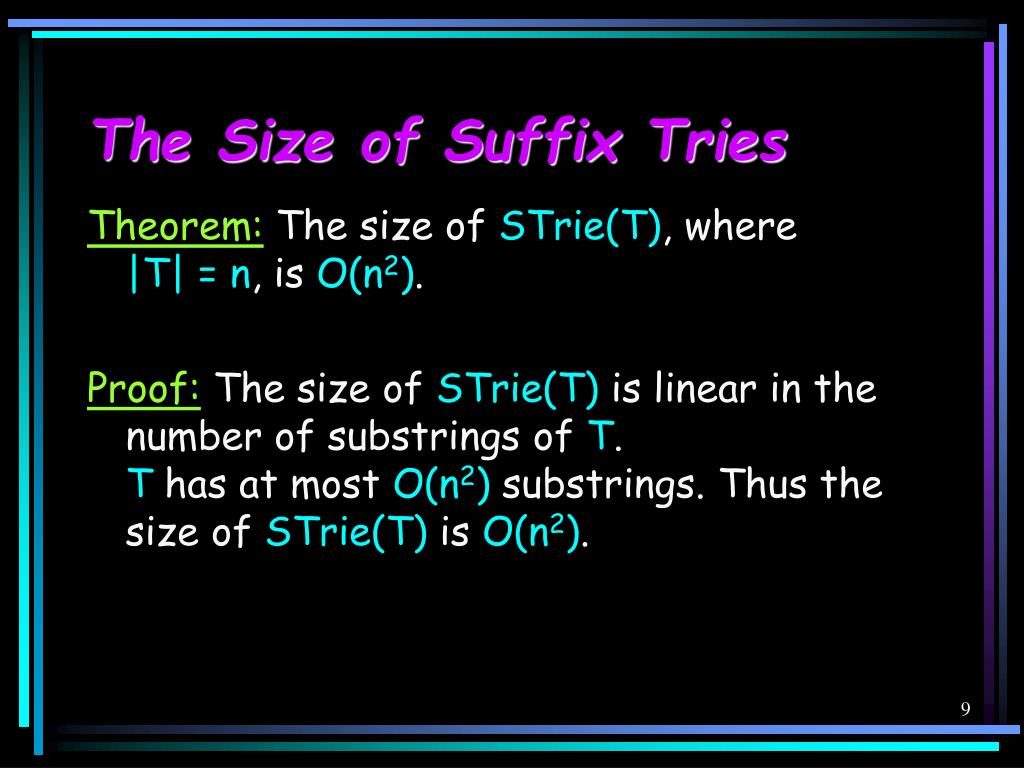

9. The Size of Suffix Tries Theorem:The size of STrie(T), where |T| = n, is O(n2). Proof:The size of STrie(T) is linear in the number of substrings of T.T has at most O(n2) substrings. Thus the size of STrie(T) is O(n2).

10. On-Line Construction of Suffix Tries • Let T = t1…tn. •  1  i  n, the algorithm constructs STrie(Ti). • First we construct STrie(T0) = STrie(). • Then,  1  i  n, we obtain STrie(Ti) from STrie(Ti-1).

11. On-Line Construction of Suffix Tries (cont.) Observation 1:(Ti) = {xti | x (Ti-1)}  {}. Observation 2: The suffixes of Ti can be found by starting at the state Ti and following the suffix links, until .Thus, (Ti) = {fj(Ti) | 0  j  i}. Definition: The path from Ti to  following the suffix links is called the boundary path of STrie(Ti).

12.   o  o c a a c o a c ac ca ao a o c cao cac aca o a caca acao o cacao On-Line Construction of Suffix Tries (cont.)

13. a c a   a c c a STrie(Ti-1)  STrie(Ti) cac  caca

14. The Algorithm create STrie() top   for i  1 to n do r  top while g(r,ti) is undefined do create new state r’ and g(r,ti)  r’ if r  top then f(old-r’)  r’ old-r’  r’ r  f(r) f(old-r’)  g(r,ti) top  g(top,ti)

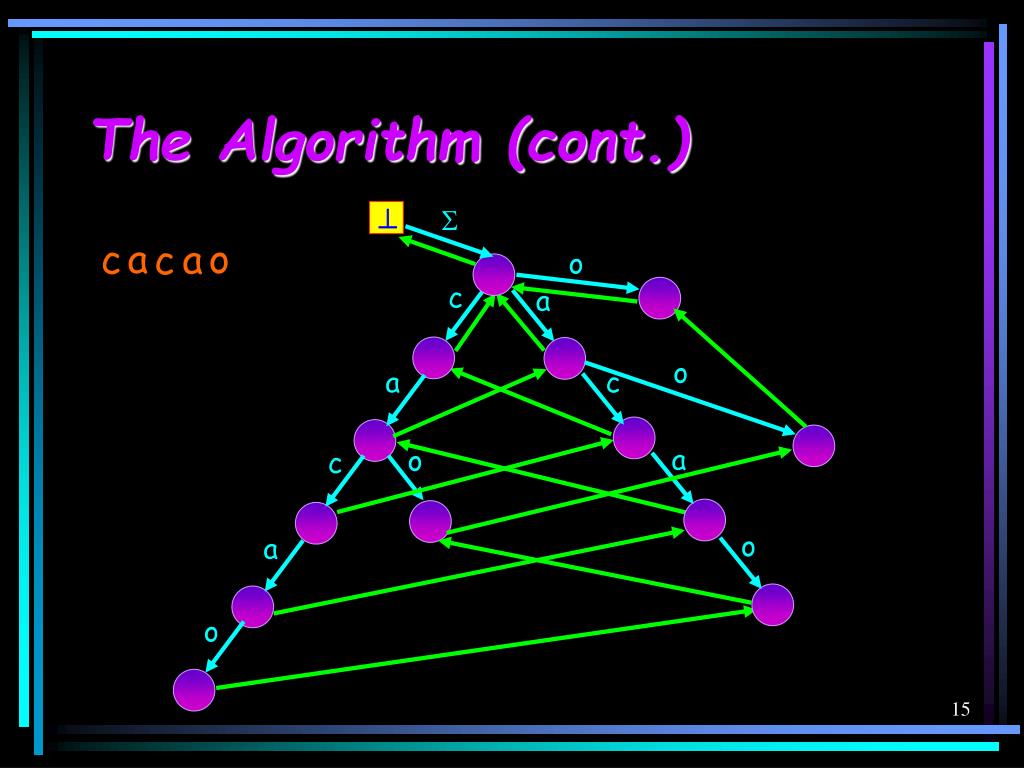

15.   o a c a a o c o c o a o The Algorithm (cont.) a o c a c

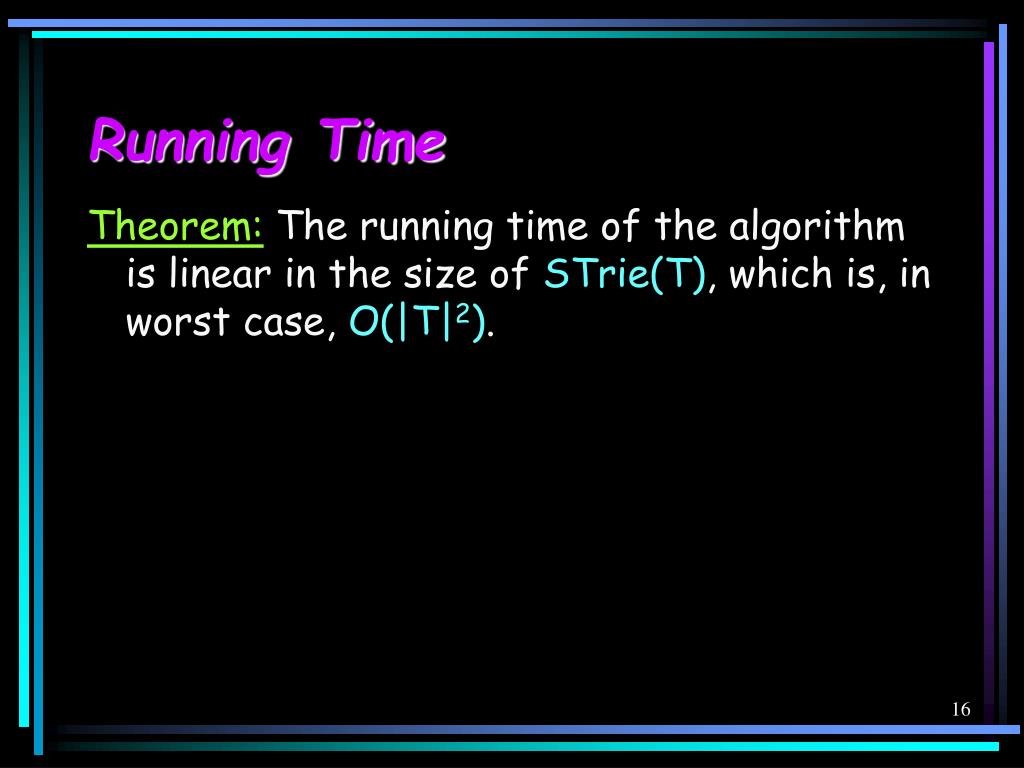

16. Running Time Theorem:The running time of the algorithm is linear in the size of STrie(T), which is, in worst case, O(|T|2).

17. Running Time (cont.) create STrie() top   for i  1 to n do r  top while g(r, ti) is undefined do create new state r’ and g(r, ti)  r’ if r  top then f(old-r’)  r’ old-r’  r’ r  f(r) f(old-r’)  g(r, ti) top  g(top, ti) O(1) for each node added to STrie(T)

18. Suffix Trees • A suffix treeSTree(T) represents STrie(T) in space linear in |T|. • This is achieved by representing only a subset of Q’{} of Q{}, called the explicit states.

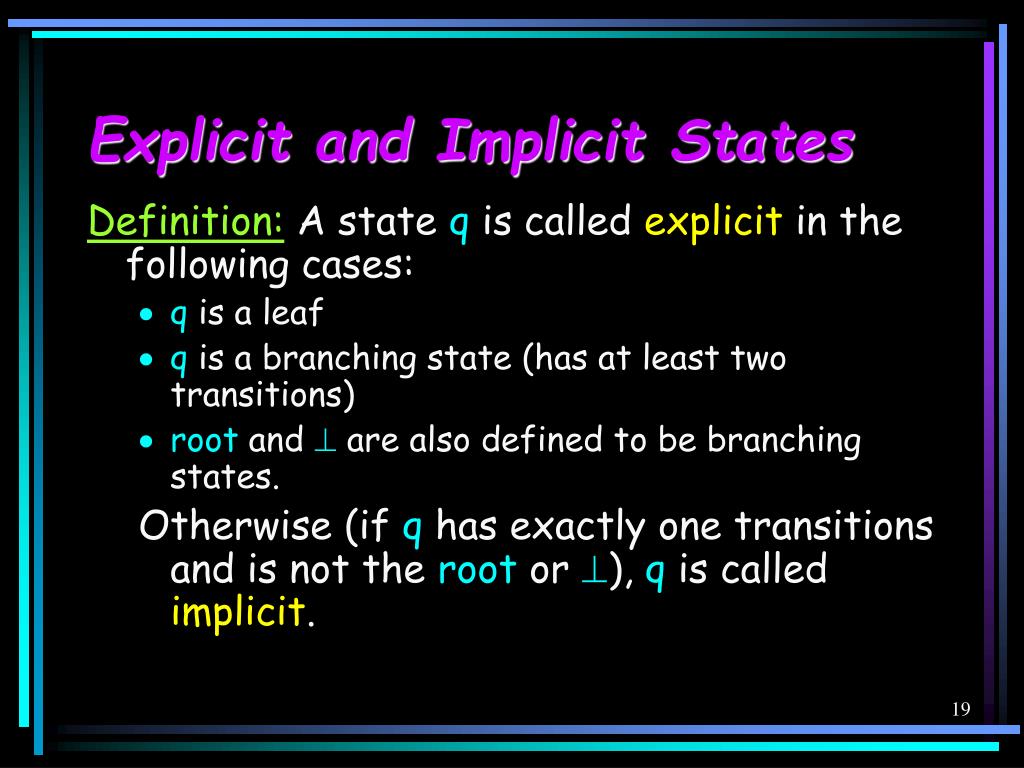

19. Explicit and Implicit States Definition:A state q is called explicit in the following cases: • q is a leaf • q is a branching state (has at least two transitions) • root and  are also defined to be branching states. Otherwise (if q has exactly one transitions and is not the root or ), q is called implicit.

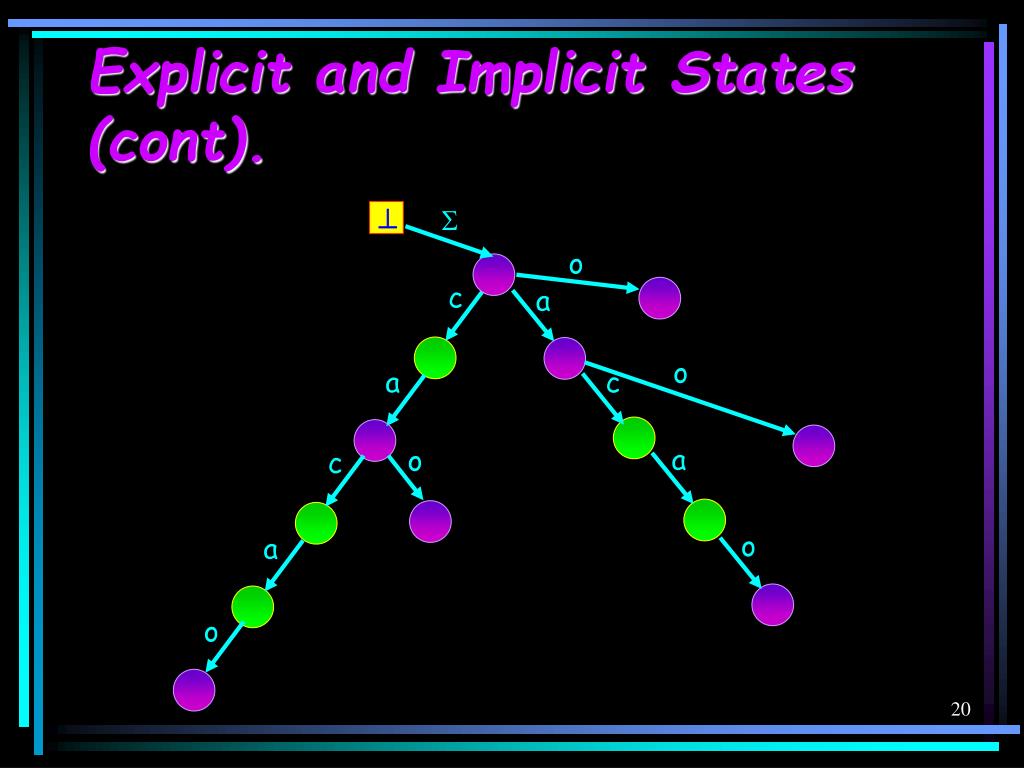

20. Explicit and Implicit States (cont).   o c a o a c a o c o a o

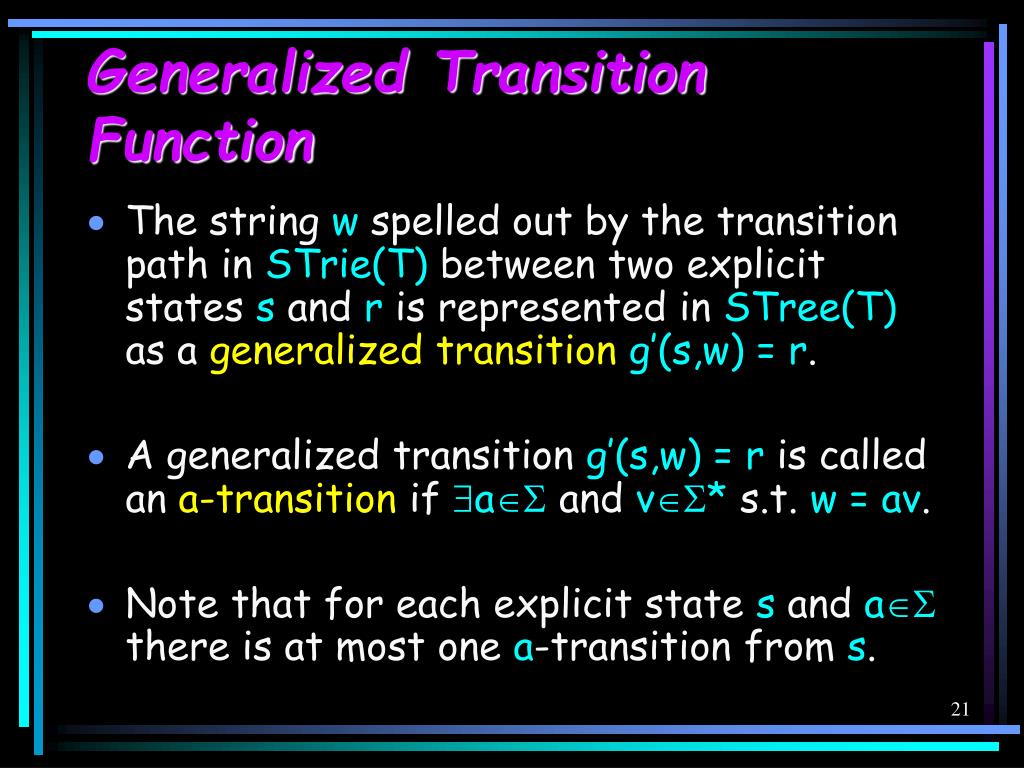

21. Generalized Transition Function • The string w spelled out by the transition path in STrie(T) between two explicit states s and r is represented in STree(T) as a generalized transitiong’(s,w) = r. • A generalized transition g’(s,w) = r is called an a-transition if a and v* s.t. w = av. • Note that for each explicit state s and a there is at most one a-transition from s.

22. STrie(T)  STree(T)   o c a o a c a o c o a o

23. STrie(T)  STree(T)   o c a o a c a o c o a o

24. STrie(T)  STree(T)   o a ca o cao o cao

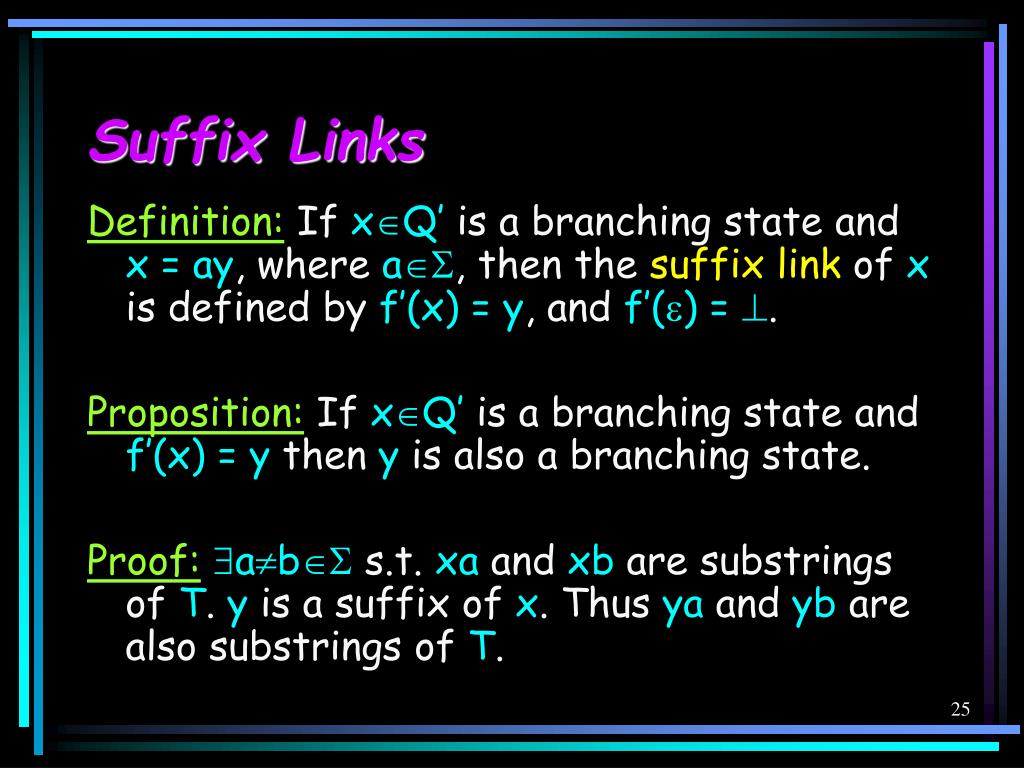

25. Suffix Links Definition: If xQ’ is a branching state andx = ay, where a, then the suffix link of x is defined by f’(x) = y, and f’() = . Proposition:If xQ’ is a branching state and f’(x) = y then y is also a branching state. Proof:ab s.t. xa and xb are substrings of T. y is a suffix of x. Thus ya and yb are also substrings of T.

26.   o a ca o cao o cao STree(T) STree(T) = (Q’{}, root, g’, f’).

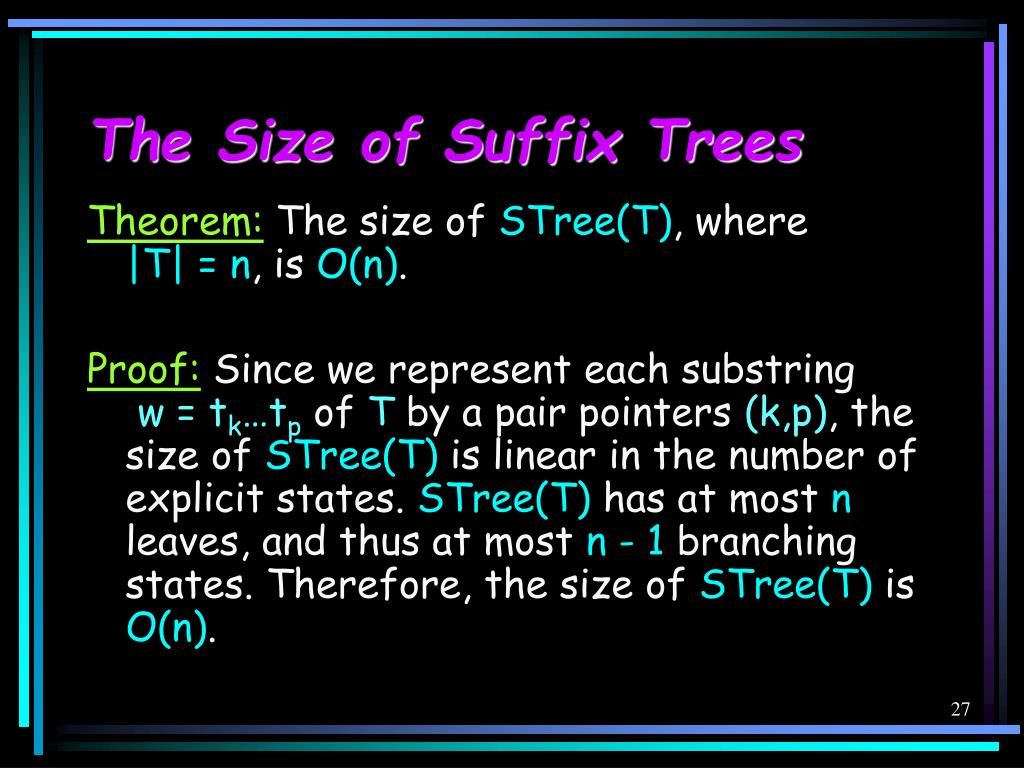

27. The Size of Suffix Trees Theorem:The size of STree(T), where|T| = n, is O(n). Proof:Since we represent each substring w = tk…tpof T by a pair pointers (k,p), the size of STree(T) is linear in the number of explicit states. STree(T) has at most n leaves, and thus at most n - 1 branching states. Therefore, the size of STree(T) is O(n).

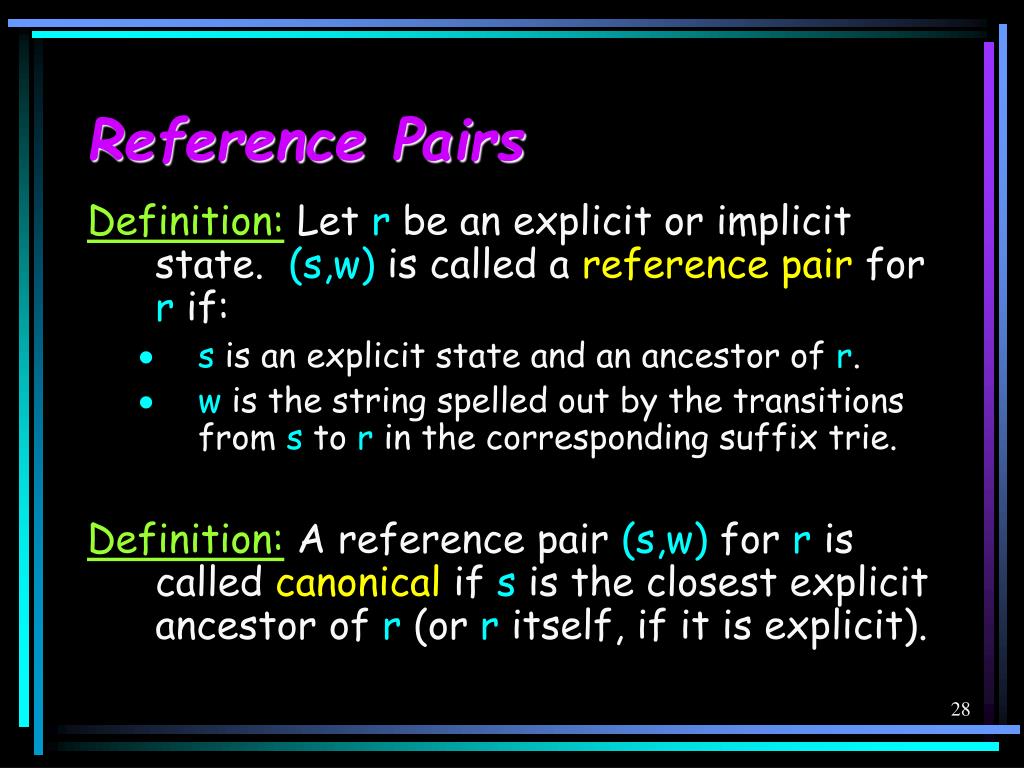

28. Reference Pairs Definition: Let r be an explicit or implicit state. (s,w) is called a reference pair for r if: • s is an explicit state and an ancestor of r. • w is the string spelled out by the transitions from s to r in the corresponding suffix trie. Definition:A reference pair(s,w)forris calledcanonicalifsis the closest explicit ancestor ofr (or r itself, if it is explicit).

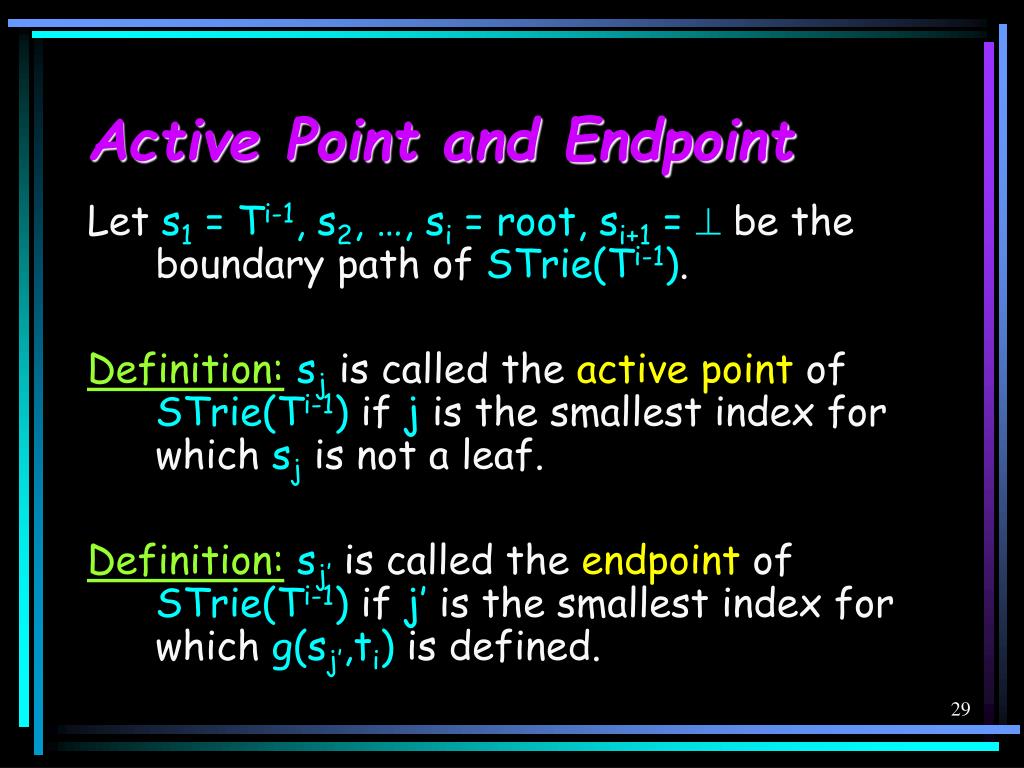

29. Active Point and Endpoint Let s1 = Ti-1, s2, …, si = root, si+1 =  be the boundary path of STrie(Ti-1). Definition:sjis called theactive pointofSTrie(Ti-1) ifj is the smallest index for whichsjis not a leaf. Definition:sj’is called theendpointofSTrie(Ti-1) ifj’ is the smallest index for whichg(sj’,ti)is defined.

30.   a c a a c c a Active Point and Endpoint (cont.) The endpoint The active point

31. Active Point and Endpoint (cont.) Proposition:sjand sj’are well definedandj  j’. Proof: • root is not a leaf sjis defined. • g(,ti) is defined sj’is defined. • g(sj’,ti) is defined  sj’is not a leaf j  j’.

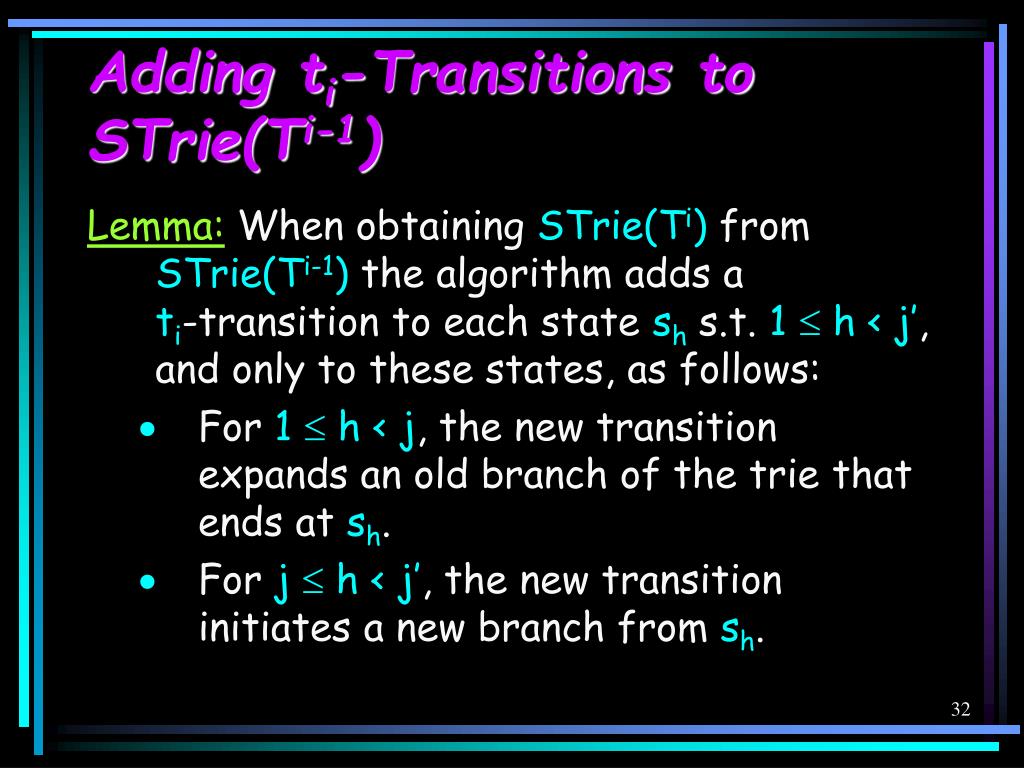

32. Adding ti-Transitions to STrie(Ti-1) Lemma:When obtainingSTrie(Ti)from STrie(Ti-1)the algorithm adds ati-transition to each stateshs.t. 1  h < j’, and only to these states, as follows: • For1  h < j, the new transition expands an old branch of the trie that ends atsh. • Forj  h < j’, the new transition initiates a new branch fromsh.

33.   The endpoint o a c a a o c The active point o c o a o Adding ti-Transitions to STrie(Ti-1) (cont.)

34. On-Line Construction of Suffix Trees • We create STree(), and then  1  i  n we obtain STree(Ti)from STree(Ti-1). • When obtainingSTree(Ti)fromSTree(Ti-1), we update STree(Ti-1) according to the transitions we would add to STrie(Ti-1). • Note that s1,…,si-1 are not necessarily explicit states.

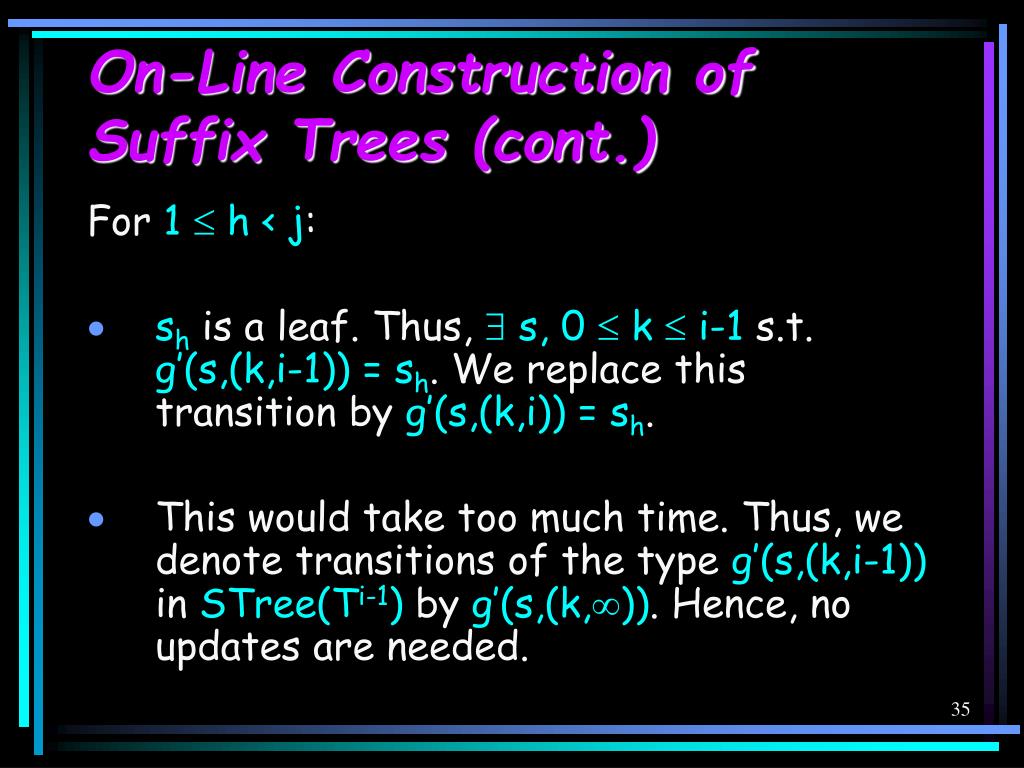

35. On-Line Construction of Suffix Trees (cont.) For 1  h < j: • sh is a leaf. Thus, s, 0  k  i-1 s.t. g’(s,(k,i-1)) = sh.We replace this transition byg’(s,(k,i)) = sh. • This would take too much time. Thus, we denote transitions of the type g’(s,(k,i-1)) in STree(Ti-1) by g’(s,(k,)). Hence, no updates are needed.

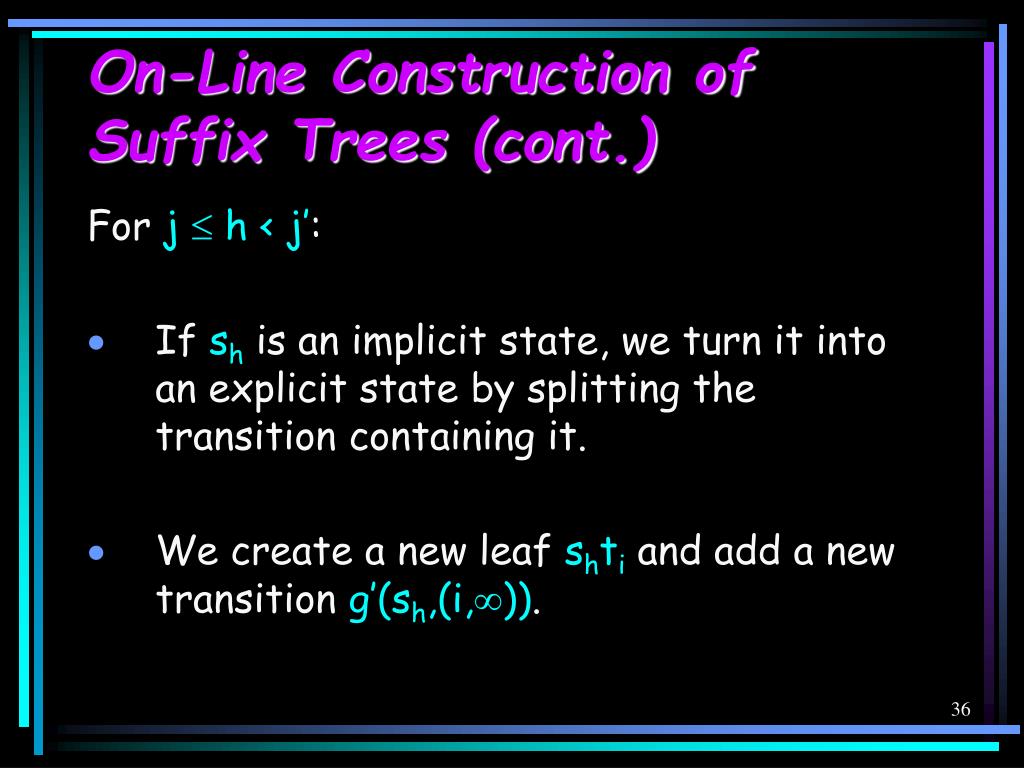

36. On-Line Construction of Suffix Trees (cont.) For j  h < j’: • If sh is an implicit state, we turn it into an explicit state by splitting the transition containing it. • We create a new leaf shti and add a new transition g’(sh,(i,)).

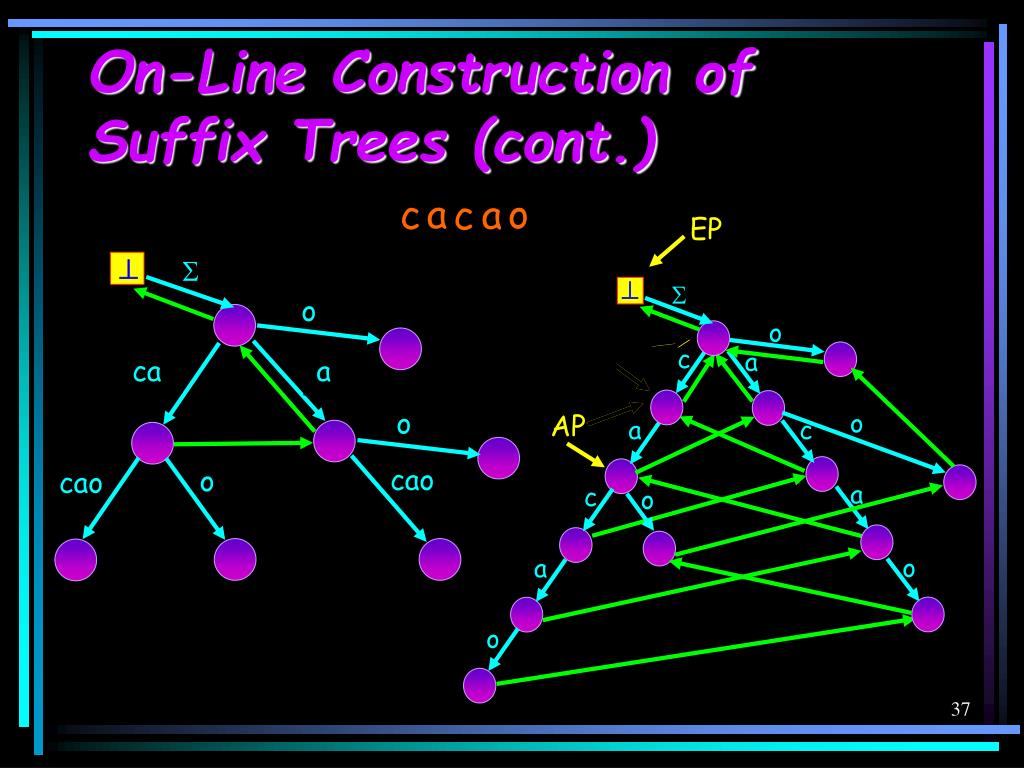

37. EP EP EP o   a c   o AP EP a c o a AP o c o cao o cao a c o a o On-Line Construction of Suffix Trees (cont.) a o c a c ca cac a cacao caca ac acao ca aca

38. Lemma 1 Lemma 1:Let (s,(k,p)) be some reference pair for a state r. Then  s’, k’ s.t. (s’,(k’,p)) is the canonical reference pair for r. Proof:Lets’ be the closest explicit ancestor of r, or r itself if r is explicit. tk…tp is the path from the explicit state s to r. Thus, the path from s’ to r is a suffix tk’…tp of tk…tp.

39. Lemma 2 Lemma 2:Let r be a state on the boundary path of STrie(Ti). Then  s, k s.t. (s,(k,i)) is the canonical reference pair for r. Proof:ris on the boundary path ofSTrie(Ti). r refers to some suffix tk’…ti of Ti.(,(k’,i)) is a reference pair for r. the claim holds by lemma 1.

40. Lemma 3 Lemma 3:Let (s,(k,i-1)) be a reference pair for the endpoint of STrie(Ti-1). Then (s,(k,i)) is a reference pair for the active point of STrie(Ti). Proof: • sjis the active point of STrie(Ti-1) iff tj…ti-1 is the longest suffix of Ti-1 that occurs at least twice in Ti-1.

41. Lemma 3 (cont.) Proof (cont.): • sj’ is the endpoint of STrie(Ti-1) iff tj’…ti-1 is the longest suffix of Ti-1 such that tj’…ti-1ti is a substring of Ti-1. • Thus, if sj’ is the endpoint of STrie(Ti-1), thentj’…ti-1ti is the longest suffix of Ti that occurs at least twice in Ti. Therefore, sj’ti is the active point of STrie(Ti).

42. The Algorithm Transforms STree(Ti-1) into STree(Ti). Input: (s,(k,i)) s.t. (s,(k,i-1) is the active point of STrie(Ti-1). Output: (s’,k’) s.t. (s’,(k’,i-1) is the endpoint of STrie(Ti-1). create STree() s  root k  1 for i  1 to n do (s,k)  update(s,(k,i)) (s,k)  canonize(s,(k,i)) Input: a reference pair (s,(k,p)) for some state r. Output: (s’,k’) s.t. (s’,(k’,p)) is the canonical reference pair for r.

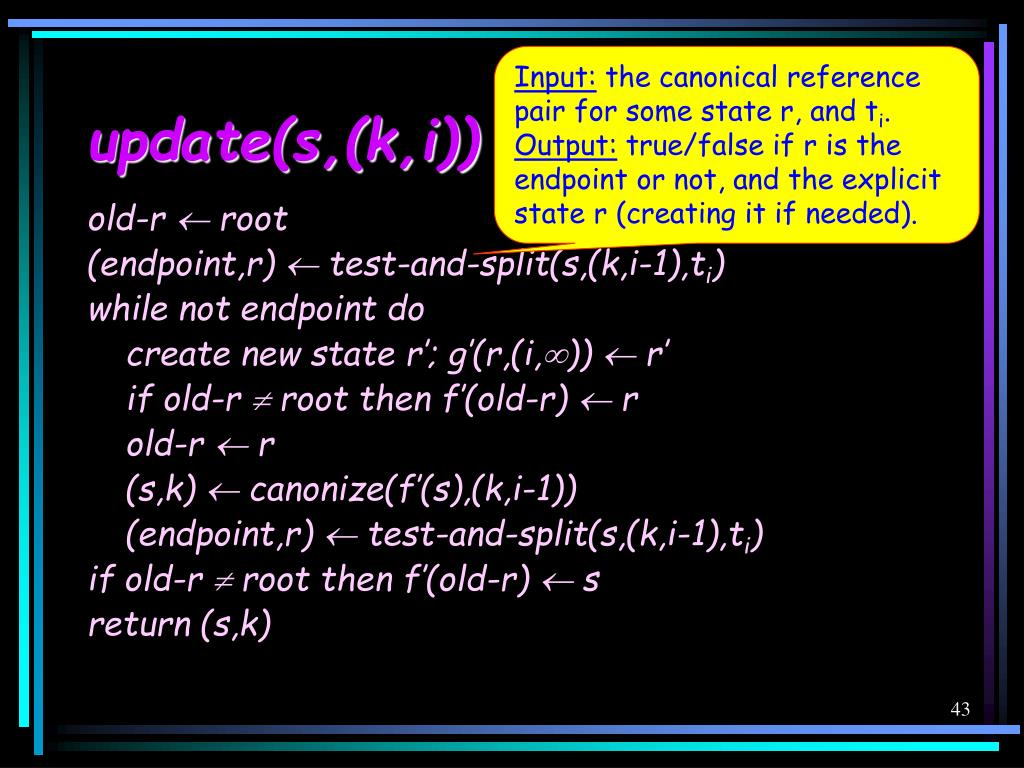

43. Input: the canonical reference pair for some state r, and ti. Output: true/false if r is the endpoint or not, and the explicit state r (creating it if needed). update(s,(k,i)) old-r  root (endpoint,r)  test-and-split(s,(k,i-1),ti) while not endpoint do create new state r’; g’(r,(i,))  r’ if old-r  root then f’(old-r)  r old-r  r (s,k)  canonize(f’(s),(k,i-1)) (endpoint,r)  test-and-split(s,(k,i-1),ti) if old-r  root then f’(old-r)  s return (s,k)

44.   (5,) (1,) (2,) (5,) (3,) (5,) (3,) update a o c a c s =  s = root s = root s =  s =  s = root k = 2 k = 5 k = 3 k = 4 k = 1 (1,2) (2,2) i = 2 i = 4 i = 5 i = 3 i = 1

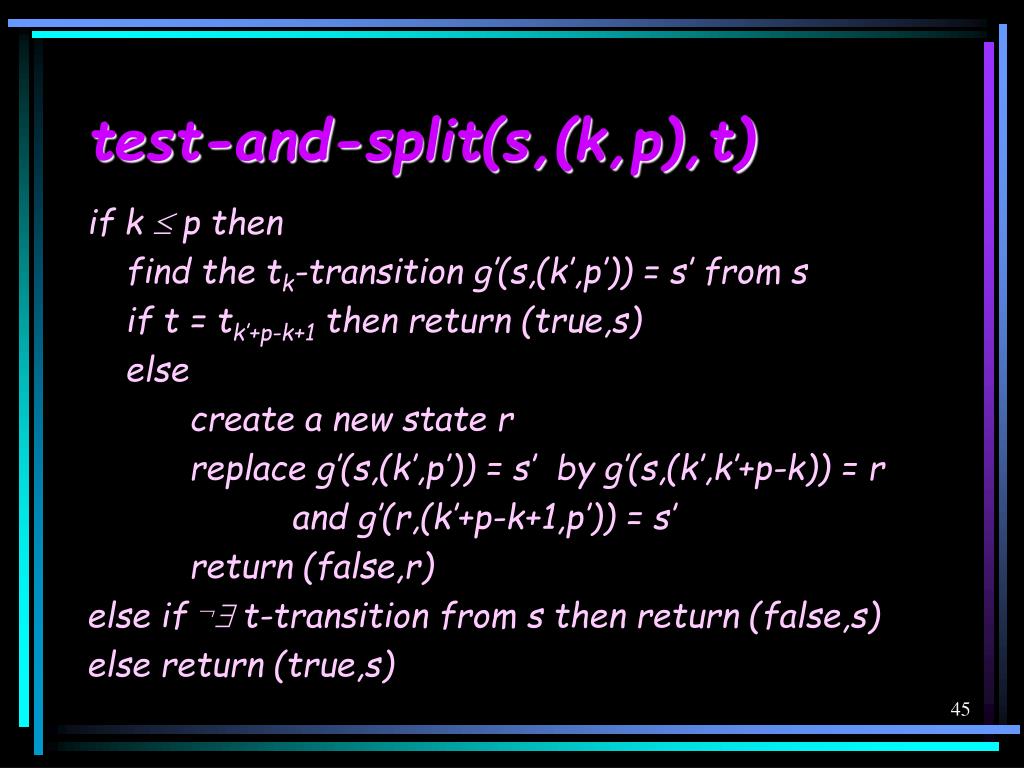

45. test-and-split(s,(k,p),t) if k  p then find the tk-transition g’(s,(k’,p’)) = s’ from s if t = tk’+p-k+1 then return (true,s) else create a new state r replace g’(s,(k’,p’)) = s’ by g’(s,(k’,k’+p-k)) = r and g’(r,(k’+p-k+1,p’)) = s’ return (false,r) else if  t-transition from s then return (false,s) else return (true,s)

46. canonize(s,(k,p)) if p < k then return (s,k) else find the tk-transition g’(s,(k’,p’)) = s’ from s while p’ – k’  p – k do k  k + p’ – k’ + 1 s  s’ if k  p then find the tk-transition g’(s,(k’,p’)) = s’ from s return (s,k)

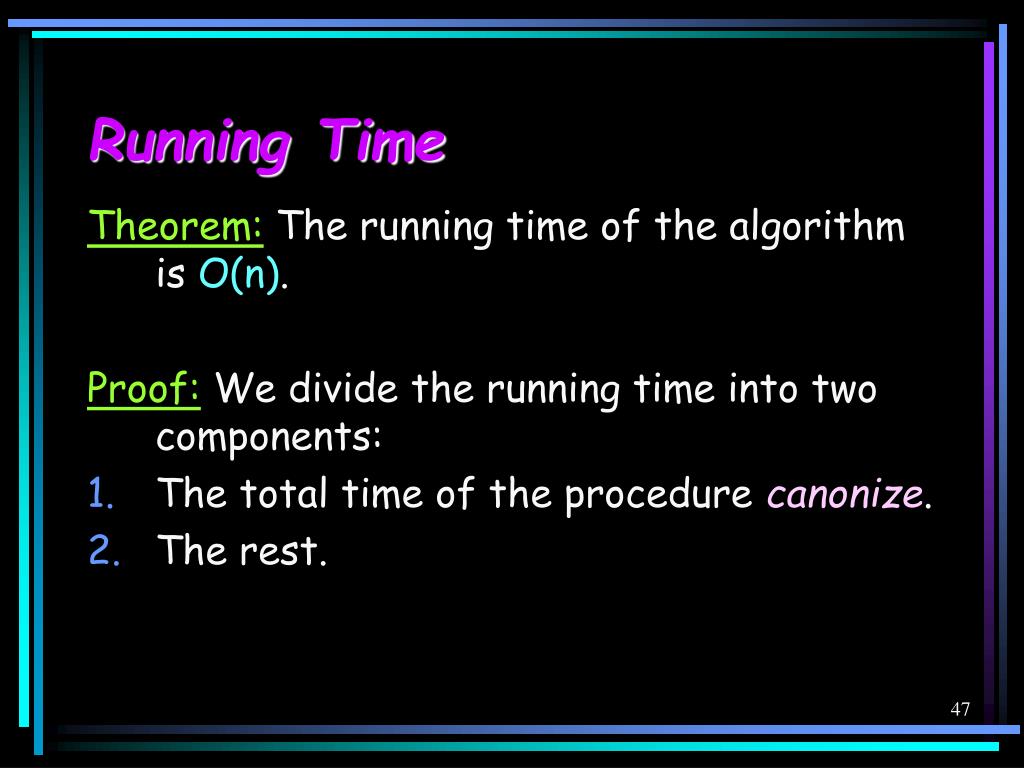

47. Running Time Theorem:The running time of the algorithm is O(n). Proof:We divide the running time into two components: • The total time of the procedure canonize. • The rest.

48. update Called n times old-r  root (endpoint,r)  test-and-split(s,(k,i-1),ti) while not endpoint do create new state r’; g’(r,(i,))  r’ if old-r  root then f’(old-r)  r old-r  r (s,k)  canonize(f’(s),(k,i-1)) (endpoint,r)  test-and-split(s,(k,i-1),ti) if old-r  root then f’(old-r)  s return (s,k) In each execution of the loop, a new state is created. O(1)

49. canonize Called O(n) times if p < k then return (s,k) else find the tk-transition g’(s,(k’,p’)) = s’ from s while p’ – k’  p – k do k  k + p’ – k’ + 1 s  s’ if k  p then find the tk-transition g’(s,(k’,p’)) = s’ from s return (s,k) In each execution of the loop, the value of k increases.

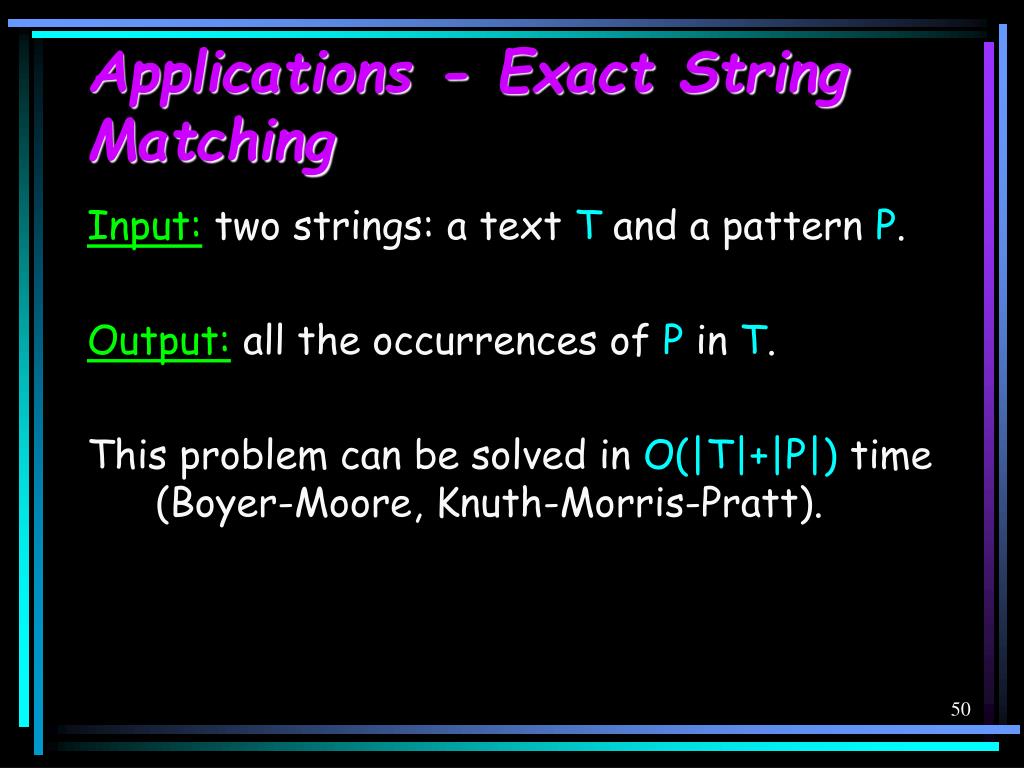

50. Applications - Exact String Matching Input: two strings: a text T and a pattern P. Output: all the occurrences of P in T. This problem can be solved in O(|T|+|P|) time (Boyer-Moore, Knuth-Morris-Pratt).
