Testing and Evaluation of Leaf MGTs and Control Firmware Stability

hina avatar
hina
3 diapositives · 178 Views · Feb 11, 2013

The extensive testing of Leaf Tests, focusing on slow control via USB test fixtures and LabVIEW. Key issues emerged with the second FPGA in the control chain, revealing layout-dependent problems. Notably, MGTs showed stability issues with high bit error rates during transfers, necessitating resets to clear faults. Furthermore, inconsistencies were found in data transfers across multiple channels, with sync patterns being observed unexpectedly. Continuous improvements are underway with new firmware for enhanced testing capabilities, including simultaneous bit error rate assessments.

#mgt testing #firmware stability #data transfer issues #error rates
Testing and Evaluation of Leaf MGTs and Control Firmware Stability - slide 1
01 / 3Testing and Evaluation of Leaf MGTs and Control Firmware Stability
1 / 17

Télécharger la présentation

Testing and Evaluation of Leaf MGTs and Control Firmware Stability
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

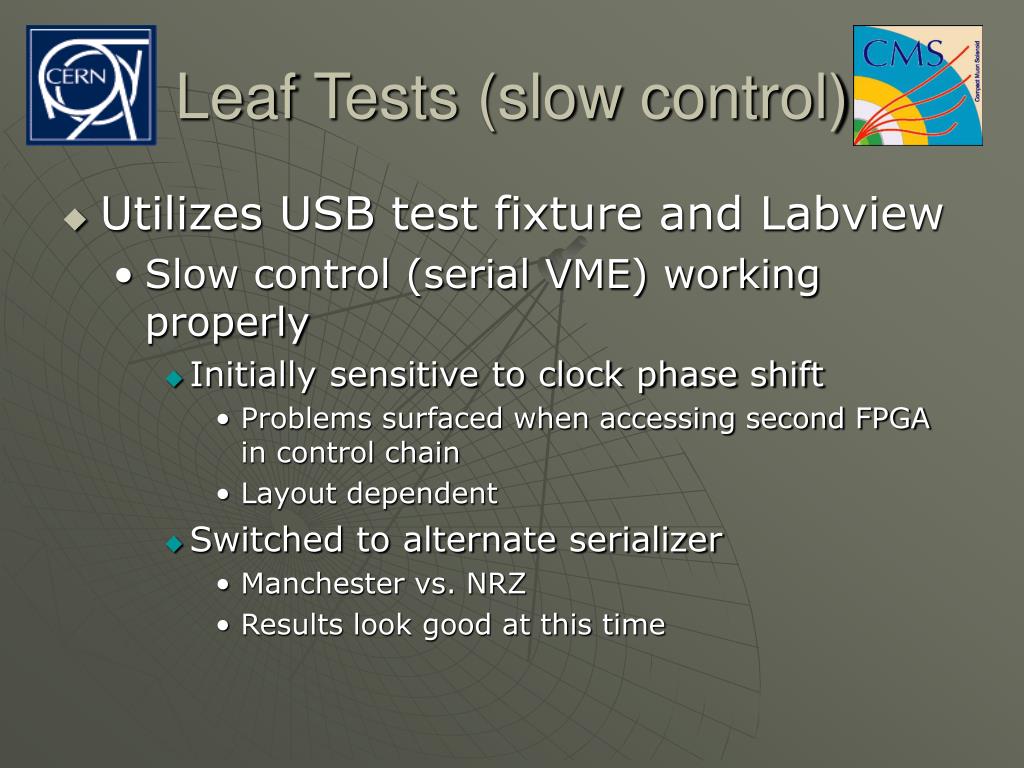

  1. Leaf Tests (slow control) • Utilizes USB test fixture and Labview • Slow control (serial VME) working properly • Initially sensitive to clock phase shift • Problems surfaced when accessing second FPGA in control chain • Layout dependent • Switched to alternate serializer • Manchester vs. NRZ • Results look good at this time

  2. Leaf Tests (MGTs) • All MGTs tested in loopback mode • All work as expected • Flaw in Leaf MGT power filtering discovered • Ferrites have too high DC resistance • Results in voltage drop of ~.2V • With both transmitter and receiver active • Operational effects • MGTs sometimes have high bit error rates • Fail at least once in a 512 word transfer • This effect can be cleared by resetting the MGT • Multiple resets are sometimes necessary • Similar flaw exists on the optical reciever • Inductor bypassed as a temporary fix

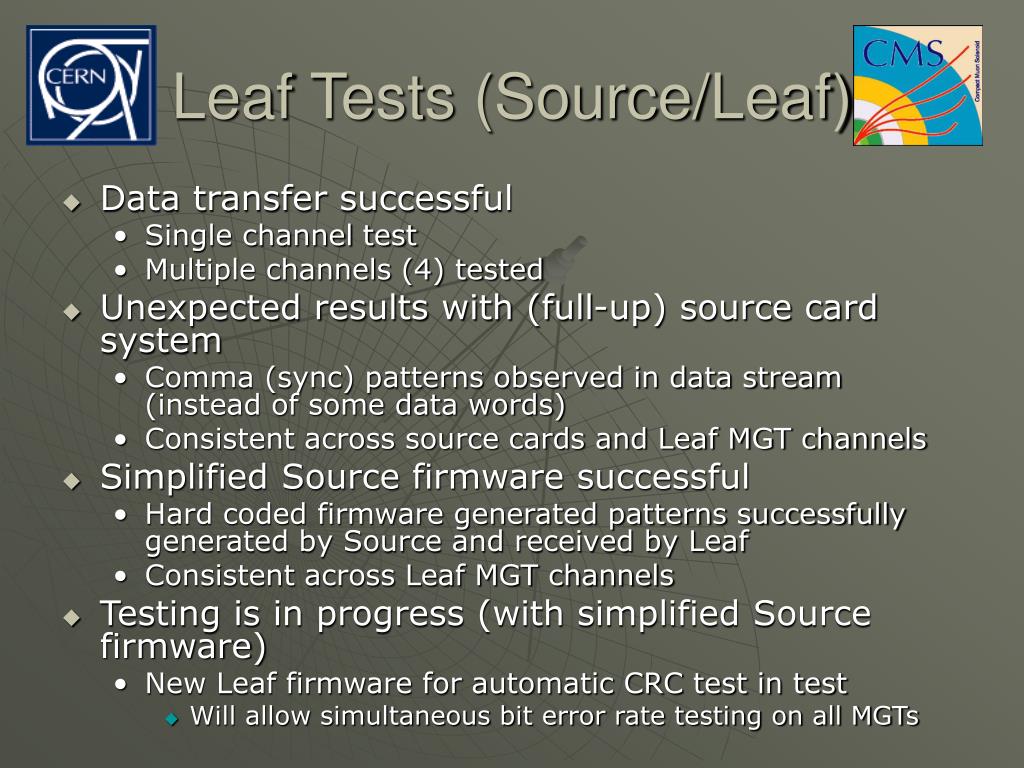

  3. Leaf Tests (Source/Leaf) • Data transfer successful • Single channel test • Multiple channels (4) tested • Unexpected results with (full-up) source card system • Comma (sync) patterns observed in data stream (instead of some data words) • Consistent across source cards and Leaf MGT channels • Simplified Source firmware successful • Hard coded firmware generated patterns successfully generated by Source and received by Leaf • Consistent across Leaf MGT channels • Testing is in progress (with simplified Source firmware) • New Leaf firmware for automatic CRC test in test • Will allow simultaneous bit error rate testing on all MGTs
